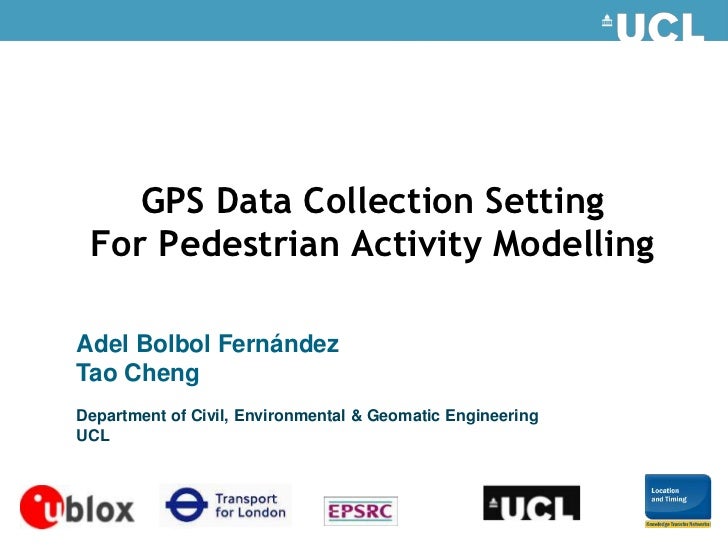

GPS Data Collection Setting
 For Pedestrian Activity Modelling

Adel Bolbol Fernández
Tao Cheng
Department of Civil, Envir...
Outline
• Background
   – Research Area
   – Positioning Sensor Devices
   – Scenario
• Why
   – Epoch Rate Detection?
   ...
Background: Research Area
            Location Information                Activity Recognition
               “Sensor Data...
Background: Positioning Sensor Devices
                             Travel Data

     Wi-Fi, GSM                          ...
Why Pedestrians?


     1. Almost every journey starts and ends in the
        “Pedestrian” Mode (Walking)

     2. Unlike...
Why Find Best Epoch Rate?
                                                       “Epoch Rate”
      The frequency at which...
Scenario
1. Route Detection                                                      Walk
                                    ...
Why Find Best Epoch Rate Detection? 10S
1. For Route Detection




   Epoch rate =
   10 Seconds




   Background        ...
Why Find Best Epoch Rate Detection? 20S
1. For Route Detection




   Epoch rate =
   20
   10 Seconds




   Background  ...
Why Find Best Epoch Rate Detection? 60S
1. For Route Detection




   Epoch rate =
   60
   20 Seconds




   Background  ...
Why Find Best Epoch Rate Detection? 4
1. For Route Detection
2. For Mode Detection
3. For Detecting Start-End             ...
Test: Data

    • 7-8 minute walking journey

    • Data was collected every 1 second

    • Data was thinned to the follo...
Test: Method

1. Route taken                     1. Positional Errors
      (Map matching)
2. Distance Travelled          ...
Analysis: 1. Positional Errors

                                                                     From Averages of All ...
Analysis: 2. Route Length Errors

                                  1100
                                  4200

         ...
Analysis: 3. Average Speed Errors

                                    2.5


                                    2.3


   ...
Analysis: 4. Distances from last points to Trips
Starts & Ends
                                                           ...
Conclusions

  1. Positional Accuracy = Approx. 15-20m

  2. Length Calculation: 20 sec was most accurate

  3. Speed Calc...
Thank You
& what are your questions?
