Memcached has become a critical tool in the web technology stack. High traffic web sites with dynamic content - like Facebook, Twitter, and Wikipedia - rely on Memcached to scale and ensure ...

Memcached has become a critical tool in the web technology stack. High traffic web sites with dynamic content - like Facebook, Twitter, and Wikipedia - rely on Memcached to scale and ensure “snappy” site performance.

This presentation willl cover a brief overview of Memcached, then dive into the evolution of Memcached’s use in dynamic web sites and how you can scale your site and get better performance with Memcached. We’ll also review emerging architectures and tools of high performance, large scale dynamic websites.

In this webinar you will learn best practices used by some of the hottest sites and get tips on how to avoid potential pitfalls when scaling. Whether you're just building the infrastructure for a brand new site or have a large dynamic site with millions of users, this webinar is for you.

Statistics

Views

Total Views
5,517
Views on SlideShare
5,418
Embed Views
99

Actions

Likes
10
Downloads
132
Comments
3

2 Embeds 99

http://rg443blog.wordpress.com 89
http://www.slideshare.net 10

Accessibility

Categories

Upload Details

Uploaded via as Adobe PDF

Usage Rights

© All Rights Reserved

Report content

Flagged as inappropriate Flag as inappropriate
Flag as inappropriate

Select your reason for flagging this presentation as inappropriate.

Cancel

13 of 3 previous next Post a comment

  • Full Name Full Name Comment goes here.
    Are you sure you want to
    Your message goes here
    Processing…
  • simple and nice!
    Are you sure you want to
    Your message goes here
    Processing…
  • City Real Estate Europe http://www.cityorbestate.com


    عقار http://www.3qarsa.net

    حكايات نواعم http://www.nem-stories.com/vb/
    Are you sure you want to
    Your message goes here
    Processing…
  • Memcached 101
    Are you sure you want to
    Your message goes here
    Processing…
Post Comment
Edit your comment

    Evolution of a Memcached Deployment Webinar 2010 01 13 Evolution of a Memcached Deployment Webinar 2010 01 13 Presentation Transcript

    • The Evolution of a Memcached Deployment Presented by: Bill Takacs – Director, Product Management January 2010

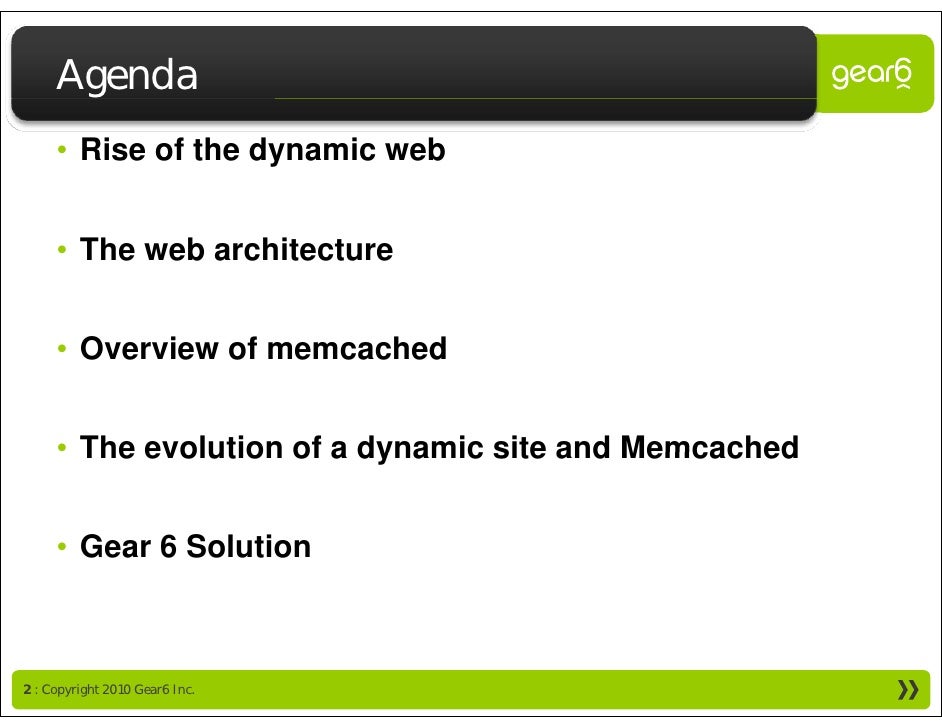

    • Agenda • Rise of the dynamic web • The web architecture • Overview of memcached • The evolution of a dynamic site and Memcached •G Gear 6 S l ti Solution 2 : Copyright 2010 Gear6 Inc.
    • The Web: What’s Changed? • Population • Traffic • Content & Applications 3 : Copyright 2010 Gear6 Inc.

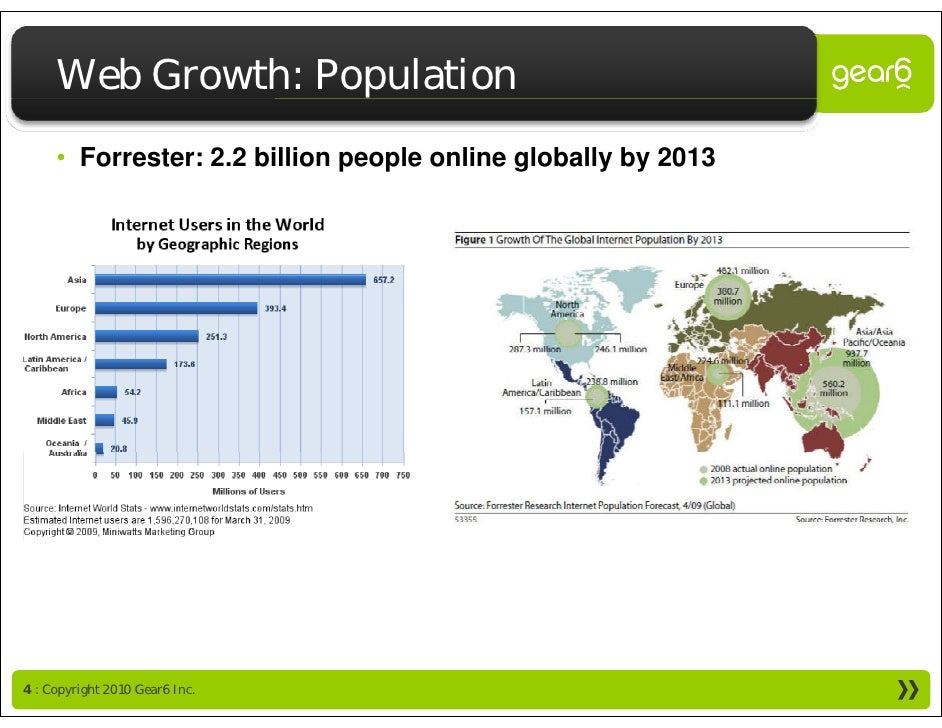

    • Web Growth: Population • Forrester: 2.2 billion people online globally by 2013 4 : Copyright 2010 Gear6 Inc.

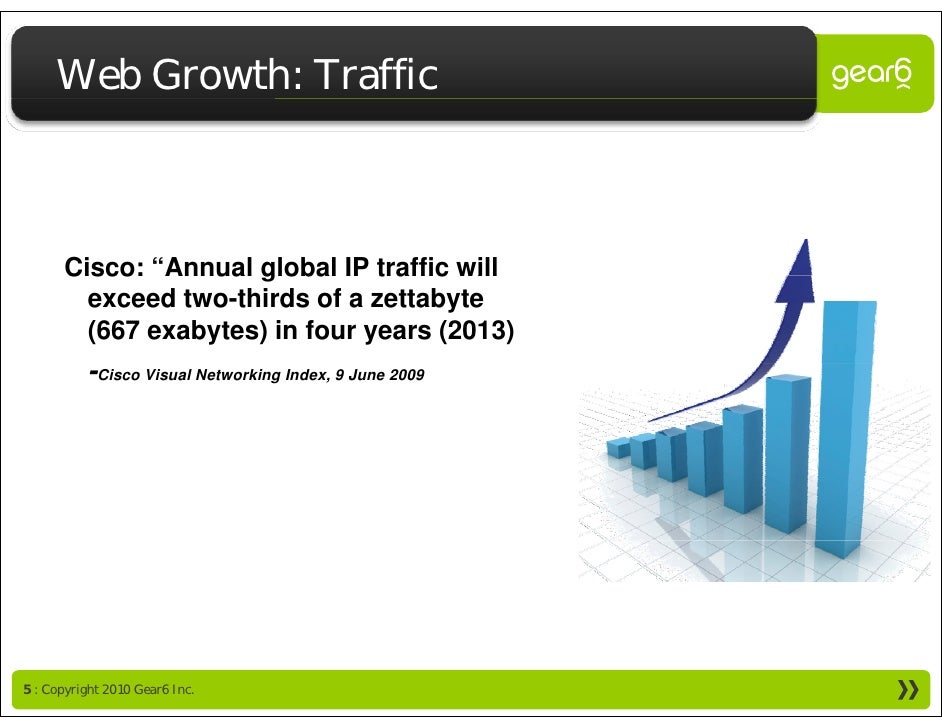

    • Web Growth: Traffic Cisco: “Annual global IP traffic will Annual exceed two-thirds of a zettabyte (667 exabytes) in four years (2013) -Cisco Visual Networking Index, 9 June 2009 5 : Copyright 2010 Gear6 Inc.
    • Web Growth: Application & Content • Social Networking • Entertainment Static • Media Dynamic • Communication • Community generated content 6 : Copyright 2010 Gear6 Inc.
    • Use of online video sharing double since 2006 Pew Internet & American Life Project, Online participation in the social media era by Aaron Smith Dec 10th, 2009 http://www.pewinternet.org/Presentations/2009/RTIP-Social-Media.aspx 7 : Copyright 2010 Gear6 Inc.

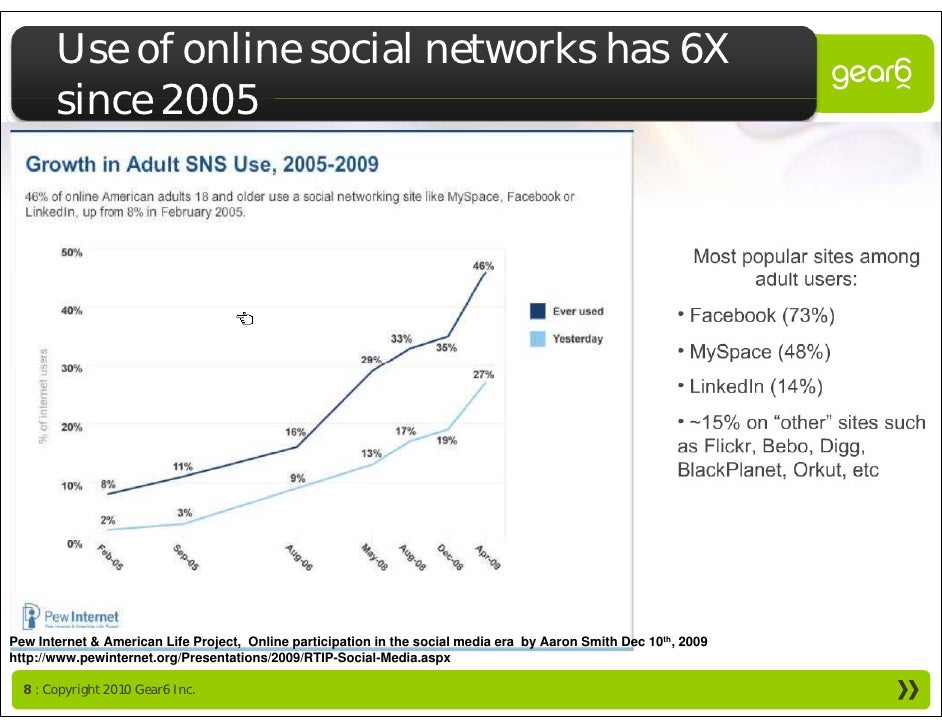

    • Use of online social networks has 6X since 2005 Pew Internet & American Life Project, Online participation in the social media era by Aaron Smith Dec 10th, 2009 http://www.pewinternet.org/Presentations/2009/RTIP-Social-Media.aspx 8 : Copyright 2010 Gear6 Inc.

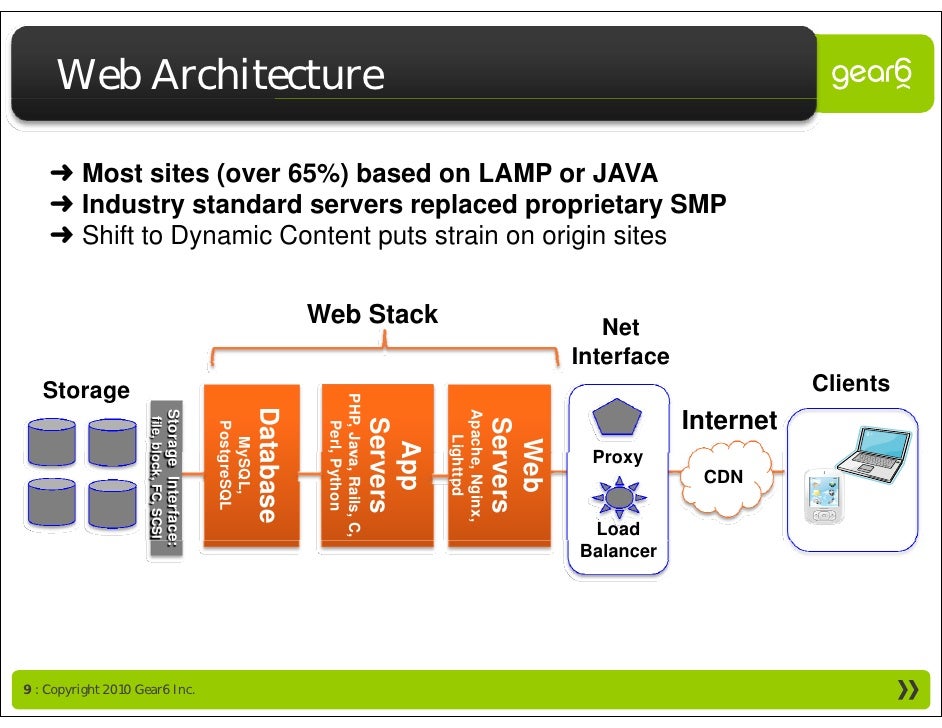

    • Web Architecture ➜ Most sites (over 65%) based on LAMP or JAVA ( ) ➜ Industry standard servers replaced proprietary SMP ➜ Shift to Dynamic Content puts strain on origin sites Web Stack Net Interface Storage Clients PHP, Jav Rails, C, Data Storag Interface Apach Nginx, Internet file, bl Ser Ser Perl, Python Post Lig My Web W A App he, ghttpd ge tgreSQL ySQL, abase , rvers rvers va, Proxy P lock, FC, SCSI CDN Load e: Balancer 9 : Copyright 2010 Gear6 Inc.
    • Why Does it Matter? = $ 10 : Copyright 2010 Gear6 Inc.

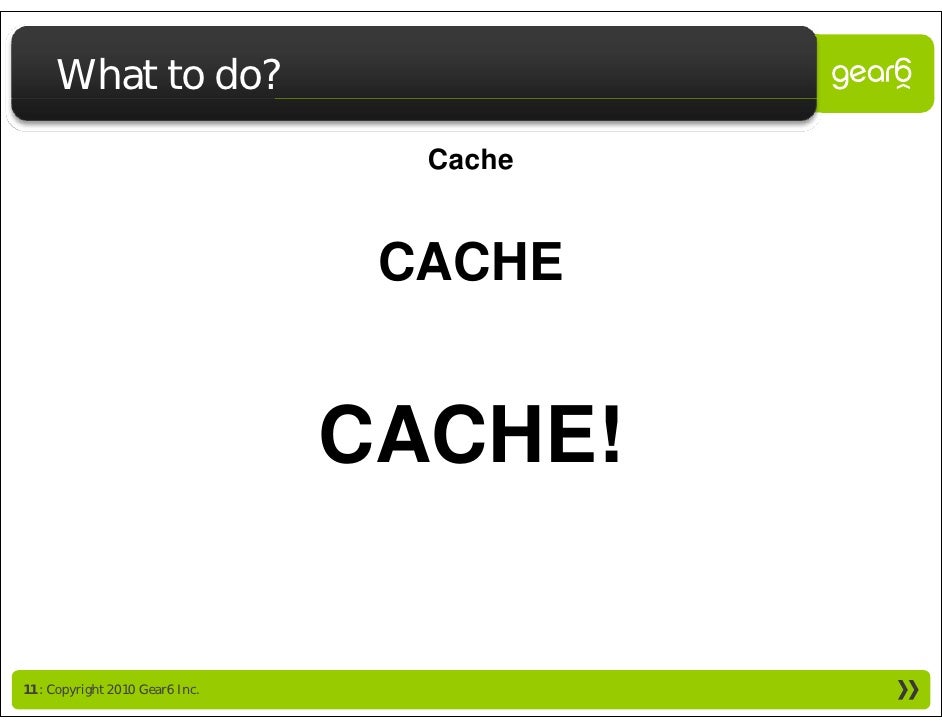

    • What to do? Cache CACHE CACHE! 11 : Copyright 2010 Gear6 Inc.

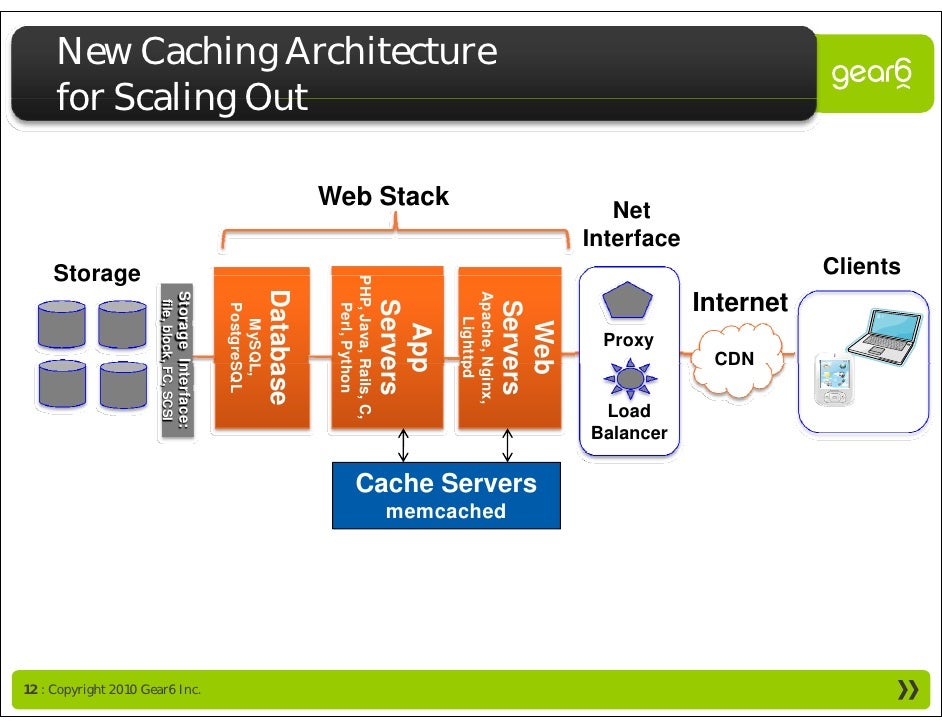

    • New Caching Architecture for Scaling Out W b Stack Web S k Net Interface Storage Clients PHP, Java, R Databa Storage Interface: Apache, N Internet file, block, FC, SCSI Serve Serve Perl, Pyt PostgreS Lighttp MySQL, Web App Proxy CDN ers Nginx, ers p Rails, C, b thon pd SQL ase Load Balancer Cache Servers memcached 12 : Copyright 2010 Gear6 Inc.
    • Memcached: Pillar of Web 2.0 Architecture “Everything runs from Everything Memory in Web 2.0” y » Evan Weaver, Twitter, March 2009 13 : Copyright 2010 Gear6 Inc.

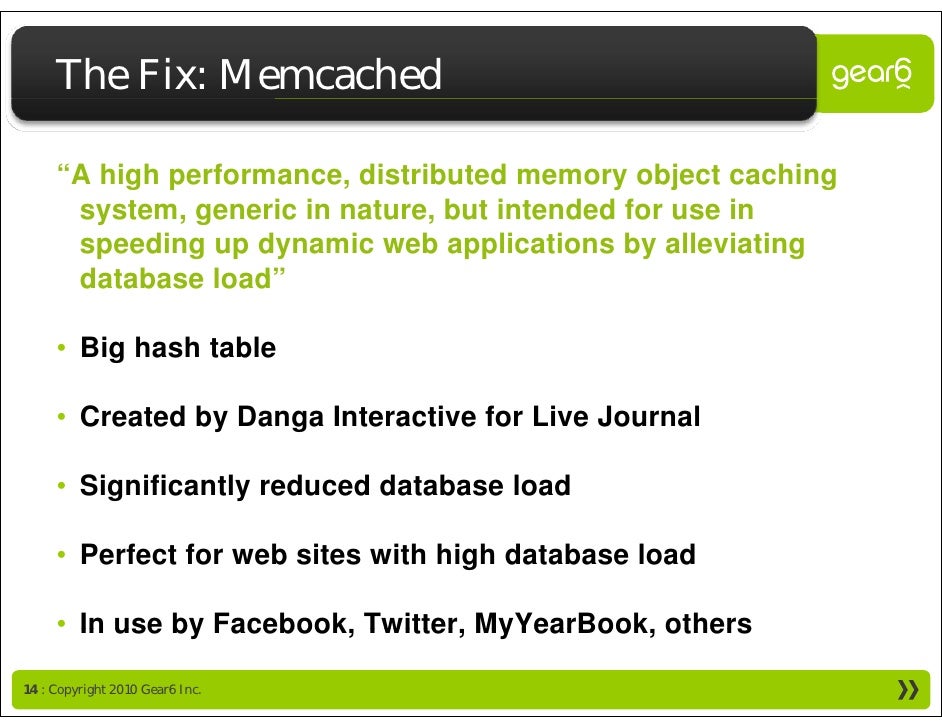

    • The Fix: Memcached “A high performance, distributed memory object caching g p , y j g system, generic in nature, but intended for use in speeding up dynamic web applications by alleviating database load” • Big hash table • Created by Danga Interactive for Live Journal • Significantly reduced database load • Perfect for web sites with high database load • In use by Facebook Twitter MyYearBook others Facebook, Twitter, MyYearBook, 14 : Copyright 2010 Gear6 Inc.

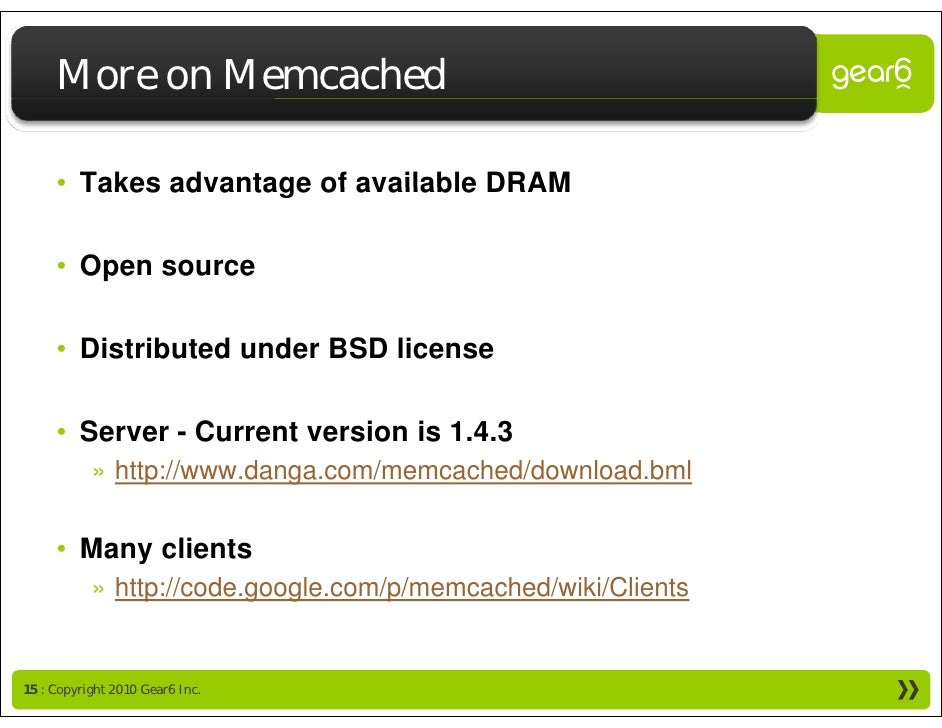

    • More on Memcached • Takes advantage of available DRAM • Open source Ope sou ce • Distributed under BSD license • Server - Current version is 1.4.3 » http://www.danga.com/memcached/download.bml • M Many clients li t » http://code.google.com/p/memcached/wiki/Clients 15 : Copyright 2010 Gear6 Inc.

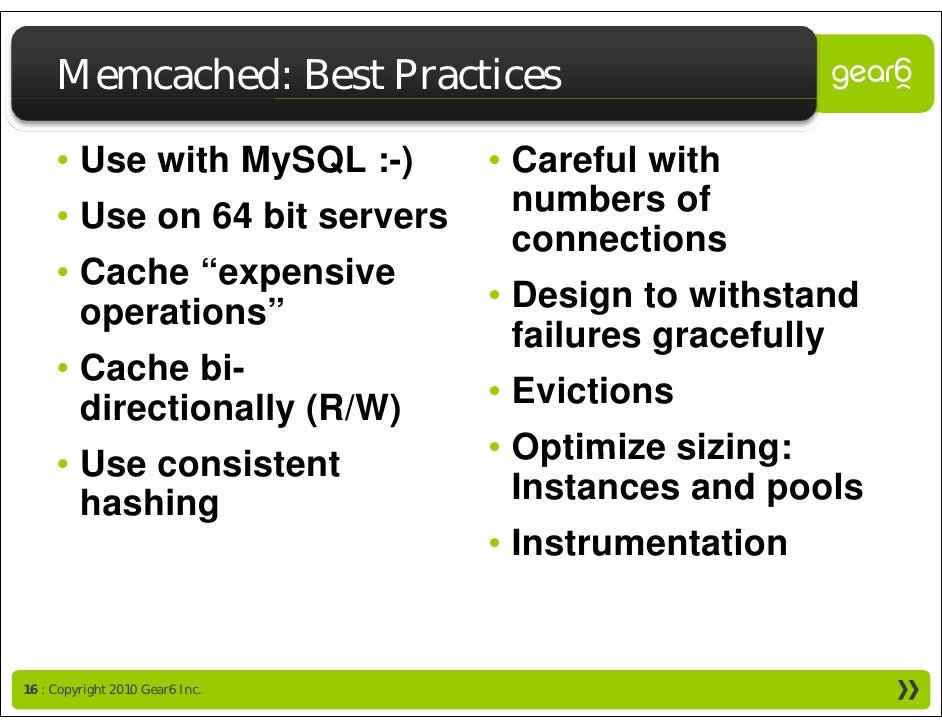

    • Memcached: Best Practices • Use with MySQL :-) • Careful with • Use on 64 bit servers numbers of b f connections • Cache “expensive expensive operations” • Design to withstand failures gracefully • Cache bi bi- directionally (R/W) • Evictions • U consistent Use i t t • Optimize sizing: hashing Instances and pools • Instrumentation 16 : Copyright 2010 Gear6 Inc.

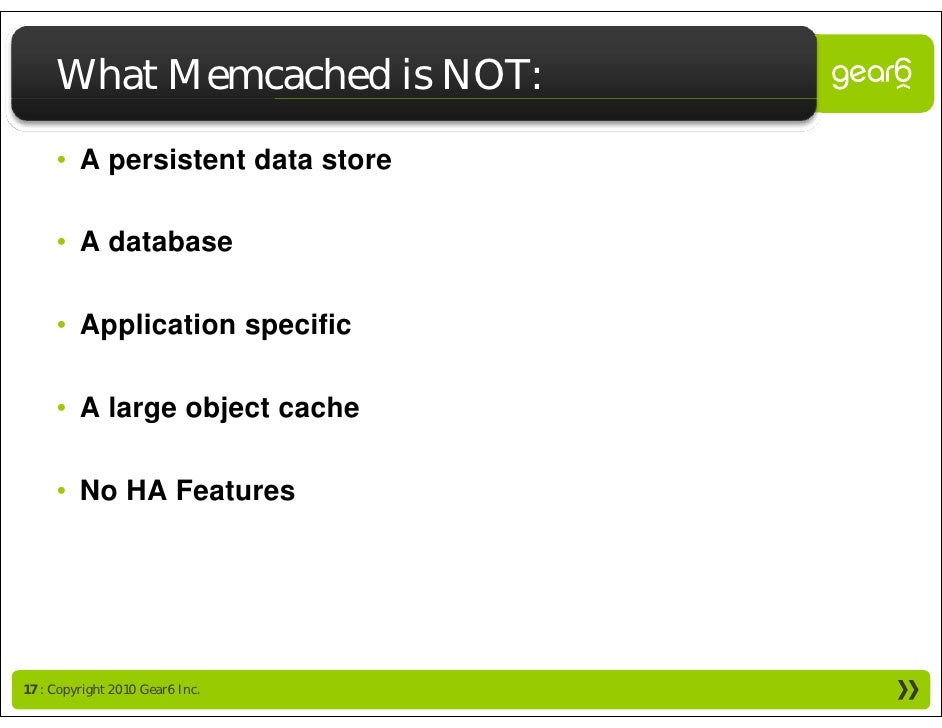

    • What Memcached is NOT: • A persistent data store • A database • Application specific • A large object cache • No HA Features 17 : Copyright 2010 Gear6 Inc.

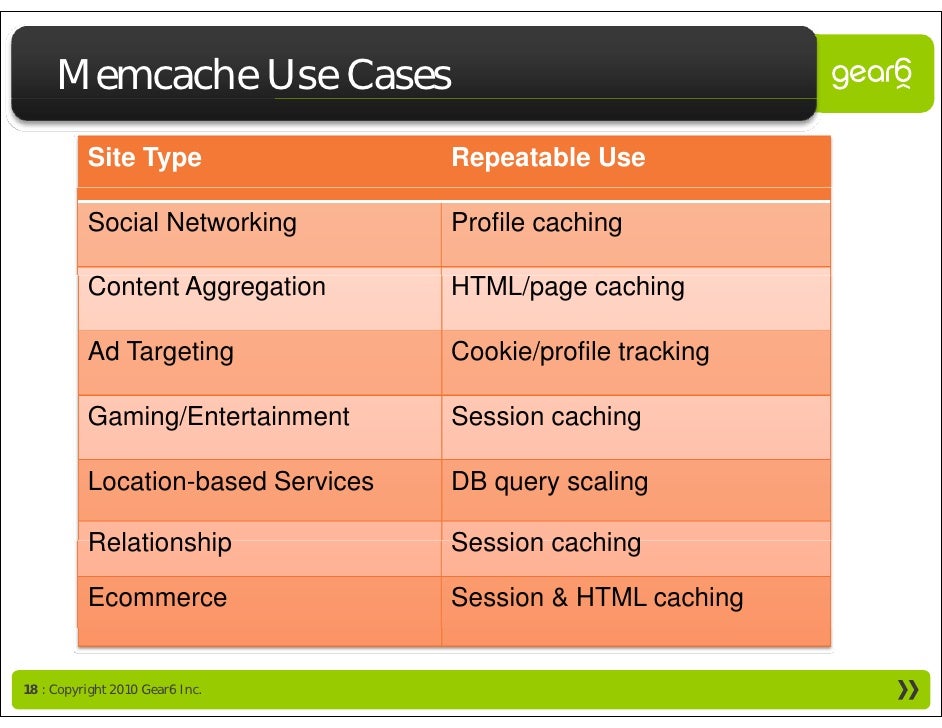

    • Memcache Use Cases Site Type Repeatable Use Social Networking Profile caching Content Aggregation HTML/page caching Ad Targeting g g Cookie/profile tracking p g Gaming/Entertainment Session caching Location-based Services DB query scaling Relationship Session caching Ecommerce Session & HTML caching 18 : Copyright 2010 Gear6 Inc.
    • Evolution of a Dynamic Site #1 A day in the life of a growing web service App Server App Server App Server App Server App Server App Server App Server App Server App Server write write … write read read read MySQL MySQL MySQL 19 : Copyright 2010 Gear6 Inc.

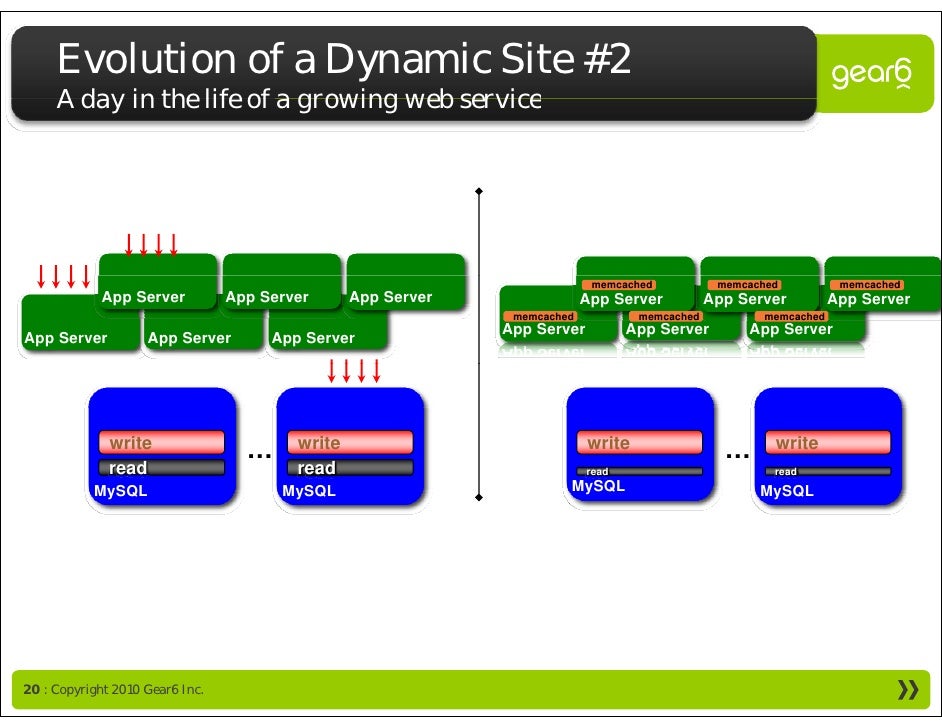

    • Evolution of a Dynamic Site #2 A day in the life of a growing web service memcached memcached memcached App Server App Server App Server App Server App Server App Server memcached memcached memcached App Server App Server App Server App Server App Server App Server write … write write … write read read read read MySQL MySQL MySQL MySQL 20 : Copyright 2010 Gear6 Inc.
    • Evolution of a Dynamic Site #3 A day in the life of a growing web service memcached memcached memcached App Server App Server App Server App Server App Server App Server memcached memcached memcached App Server App Server App Server App Server App Server App Server memcached memcached … memcached write … write read read write … write MySQL MySQL read read MySQL MySQL 21 : Copyright 2010 Gear6 Inc.

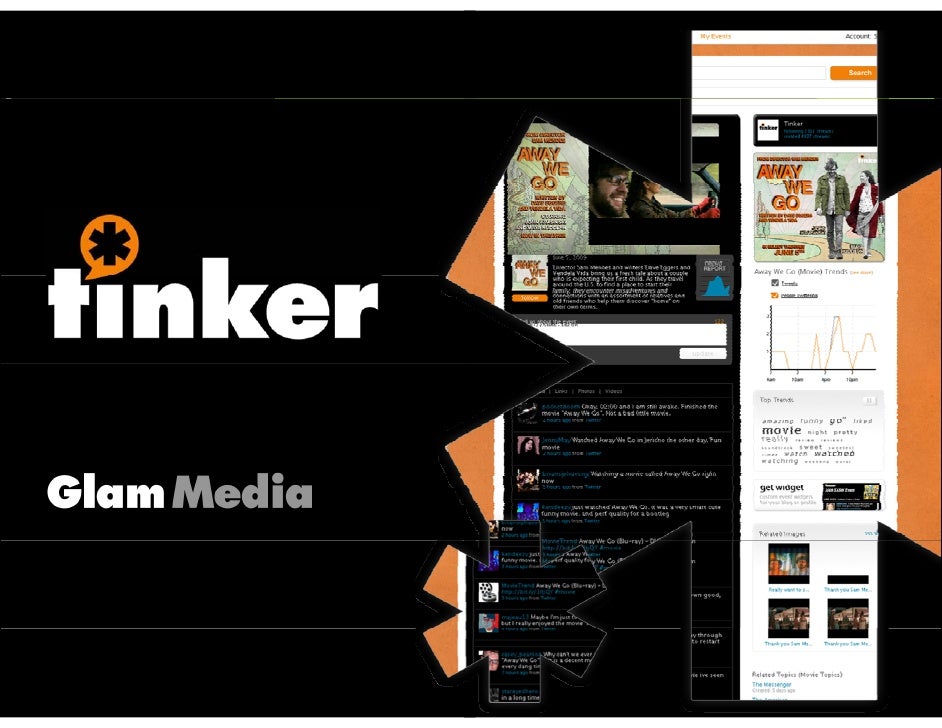

    • 22 22 : Copyright 2010 Gear6 Inc.

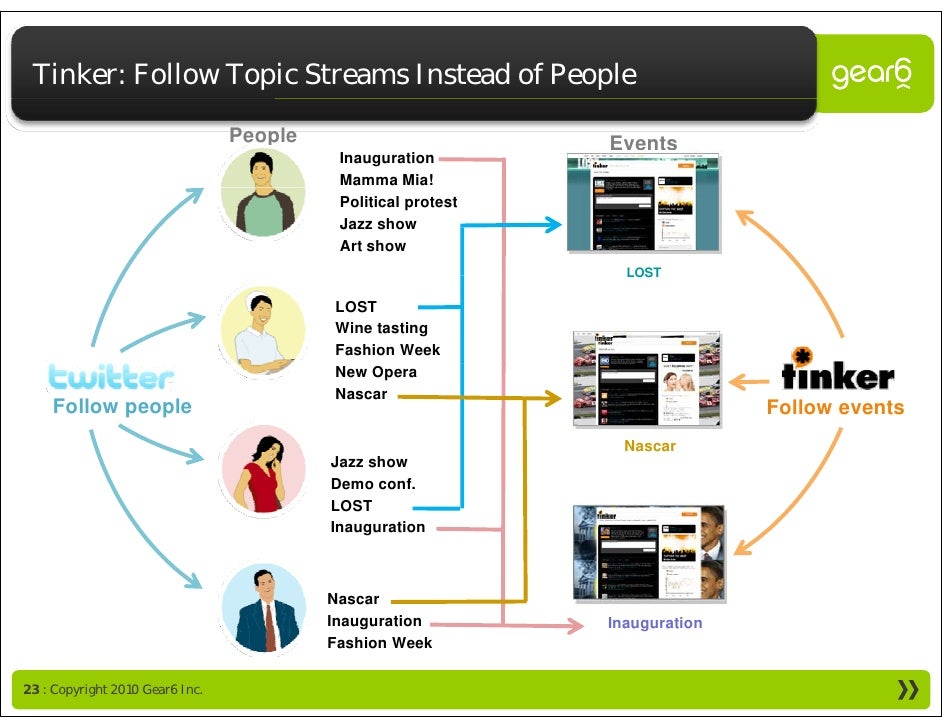

    • Tinker: Follow Topic Streams Instead of People People Events Inauguration Mamma Mia! Political protest Jazz show Art show LOST LOST Wine tasting Fashion Week New Opera Nascar Follow people Follow events Nascar Jazz show Demo conf. LOST Inauguration Nascar g Inauguration Inauguration augu at o Fashion Week 23 : Copyright 2010 Gear6 Inc.

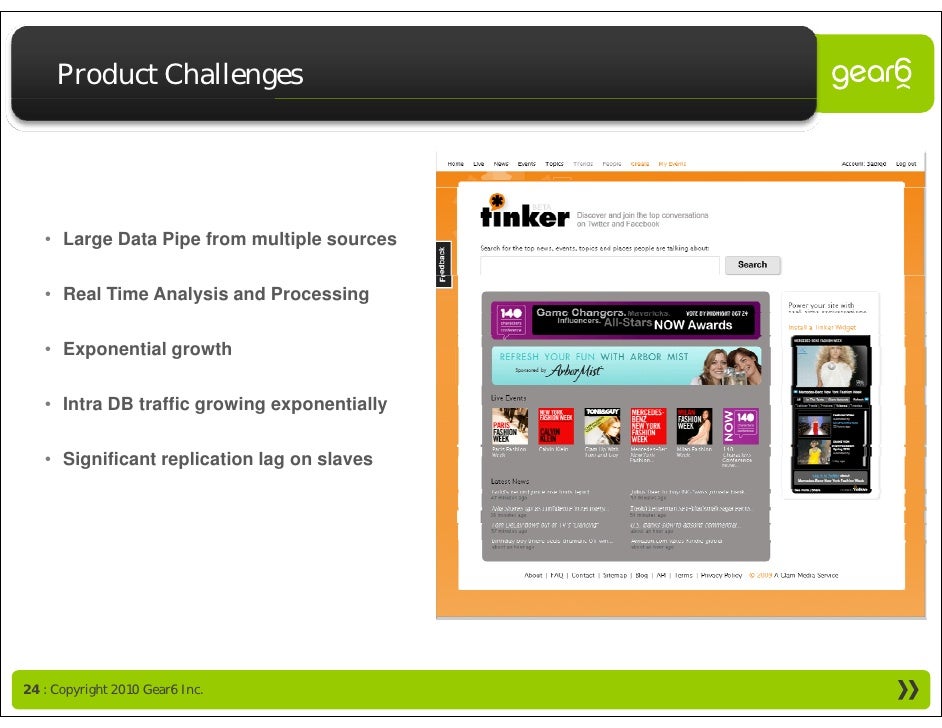

    • Product Challenges • Large Data Pipe from multiple sources • Real Time Analysis and Processing • Exponential growth • Intra DB traffic growing exponentially • Si ifi li i l l Significant replication lag on slaves 24 : Copyright 2010 Gear6 Inc.
    • Tinker Infrastructure – Prototype Launched March 2009 Application Servers X2 Glam is traditionally Oracle house but: • Leveraged MySQL for Tinker • Cost • Features – Replication / Clustering MySQL: y • 1 Master • 2 Slaves Configuration • MyISAM • PHP Front End • Replicated • MySQL Database Performance • Up to 10K users • Up to 100 queries / second 25 : Copyright 2010 Gear6 Inc.

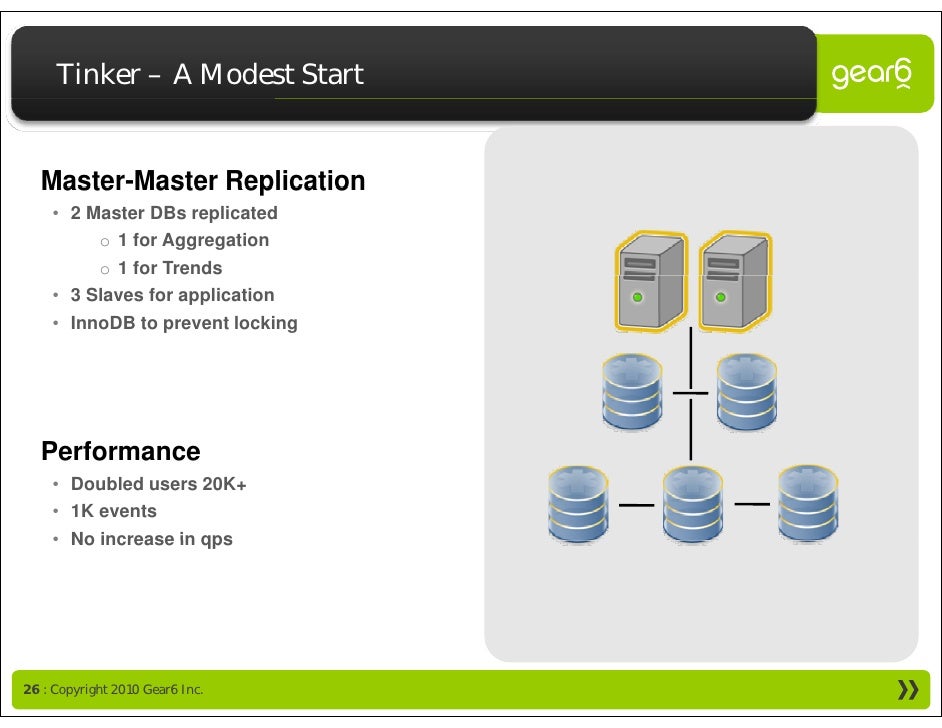

    • Tinker – A Modest Start Master-Master Replication Master Master • 2 Master DBs replicated o 1 for Aggregation o 1 for Trends • 3 Slaves for application • InnoDB to prevent locking Performance • Doubled users 20K+ • 1K events • No increase in qps 26 : Copyright 2010 Gear6 Inc.
    • CLUSTERING - Reducing Replication Created Two DB Clusters Cluster 1 – Main DB • 1 Master DB for aggregation • 3 Slaves for application • 1 Slave for backup Cluster 2 – Trends DB • 1 Master • 1 Slave • Replicates 3 Tables from master Performance • Reduced traffic to slaves by half • 50K + users • 3K + events 27 : Copyright 2010 Gear6 Inc.

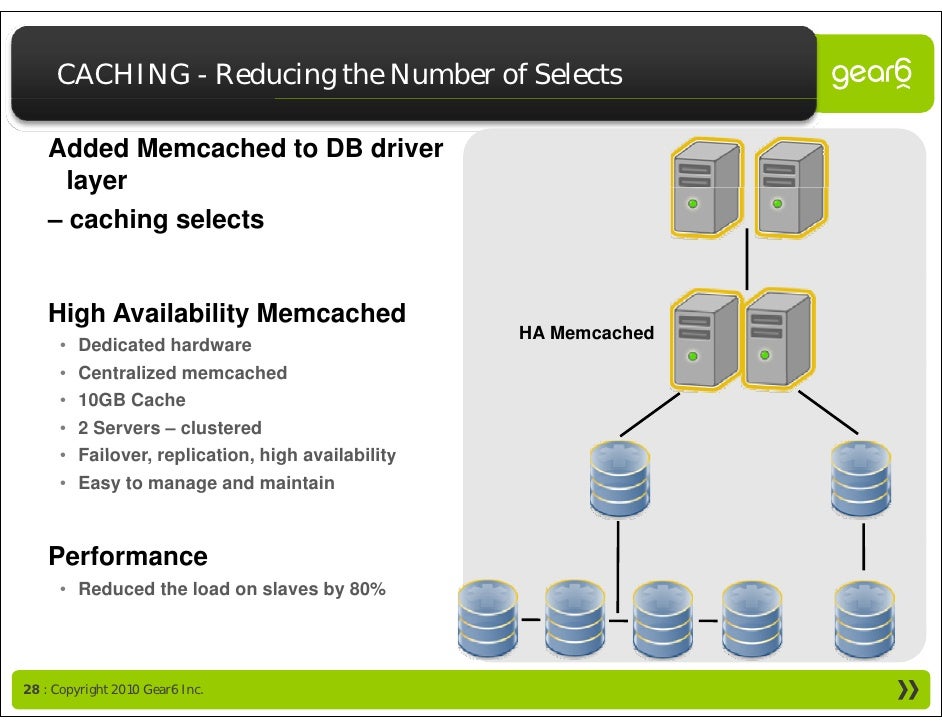

    • CACHING - Reducing the Number of Selects Added Memcached to DB driver layer – caching selects High Availability Memcached HA Memcached • Dedicated hardware • Centralized memcached • 10GB Cache • 2 Servers – clustered • Failover, replication, high a ailabilit Failo er replication availability • Easy to manage and maintain Performance • Reduced the load on slaves by 80% 28 : Copyright 2010 Gear6 Inc.
    • CACHING – Optimization and Tuning Smart Caching Strategy • Based on timeliness of the data o 1 min to 1 hour • Invalidate cached based on user activity o Creating events o Following events o Aggregating post Improved Queries I dQ i • Created appropriate indexes • Reduced number of queries needed to load a page i tl di <5 d bi d • All DB queries on a page must load in <.5 seconds combined • Eliminate count queries where appropriate • The largest table Feed_Item was partitioned by date range o Reduce table / row locks Performance g pp • Load average on Slave DBs dropped from >20 to <1 • Page loads that were 20 – 30 sec now loaded in <1 29 : Copyright 2010 Gear6 Inc.

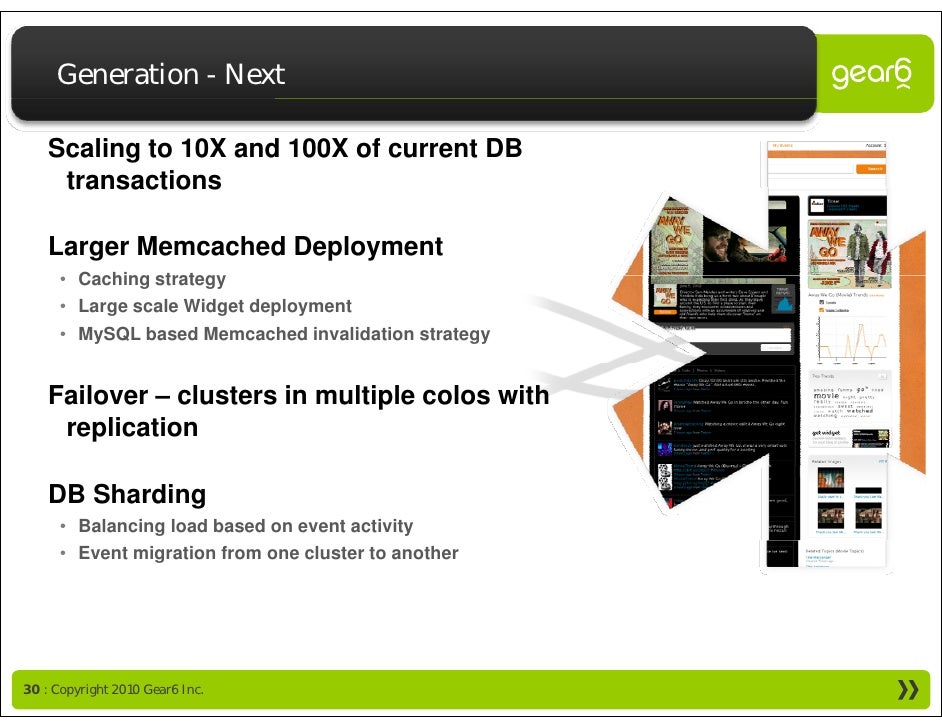

    • Generation - Next Scaling to 10X and 100X of current DB transactions Larger Memcached Deployment • Caching strategy strateg • Large scale Widget deployment • MySQL based Memcached invalidation strategy Failover – clusters in multiple colos with replication DB Sharding • Balancing load based on event activity • Event migration from one cluster to another 30 : Copyright 2010 Gear6 Inc.

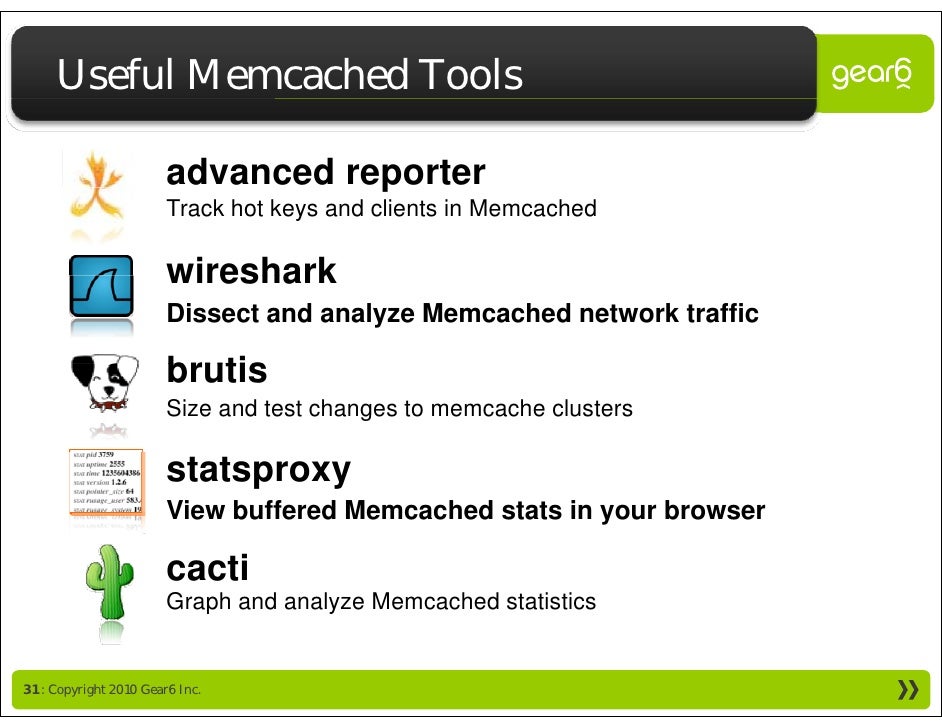

    • Useful Memcached Tools advanced reporter p Track hot keys and clients in Memcached wireshark Dissect and analyze Memcached network traffic brutis Size and test changes to memcache clusters statsproxy View buffered Memcached stats in your browser cacti Graph and analyze Memcached statistics 31 : Copyright 2010 Gear6 Inc.

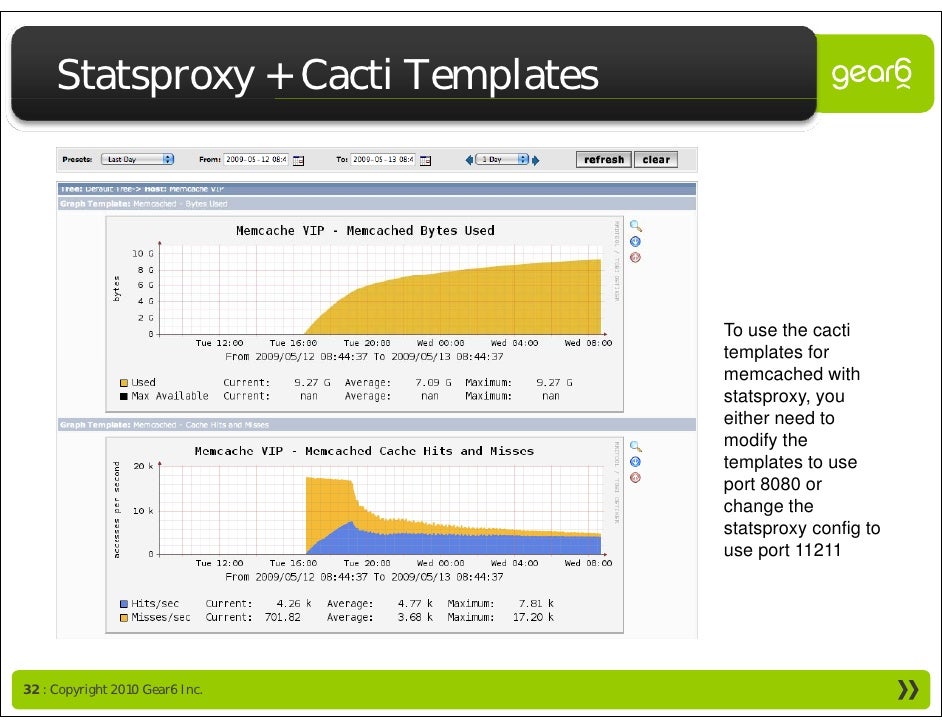

    • Statsproxy + Cacti Templates To use the cacti templates for memcached with statsproxy, you either need to modify the templates to use port 8080 or change the statsproxy config to use port 11211 32 : Copyright 2010 Gear6 Inc.

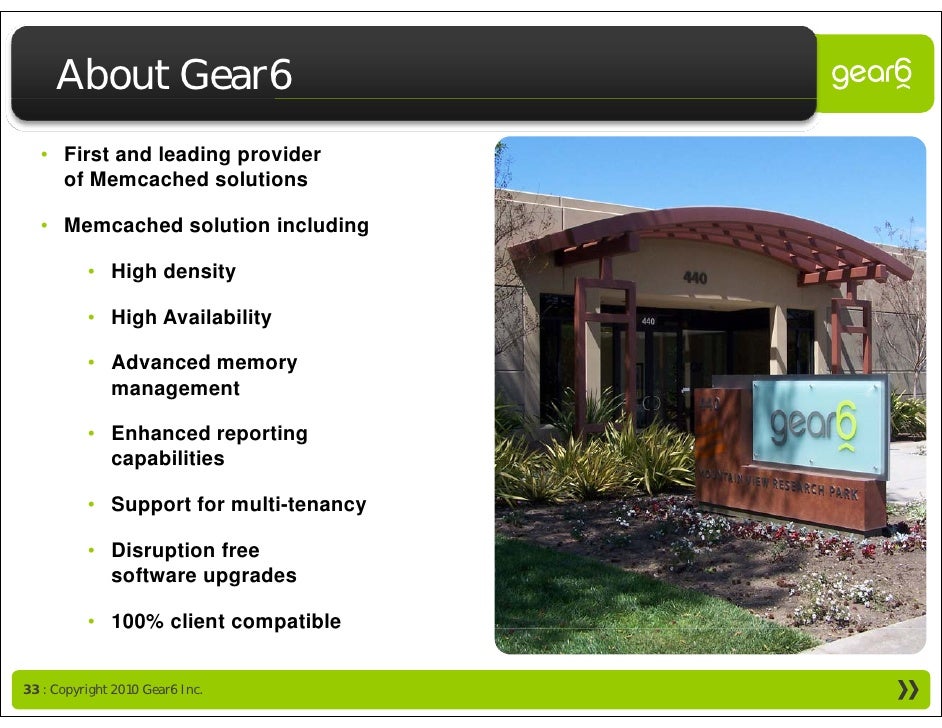

    • About Gear6 • First and leading provider of Memcached solutions • Memcached solution including • High density • High Availability • Advanced memory management • Enhanced reporting capabilities biliti • Support for multi-tenancy • Disruption free software upgrades • 100% c e t co pat b e 00% client compatible 33 : Copyright 2010 Gear6 Inc.

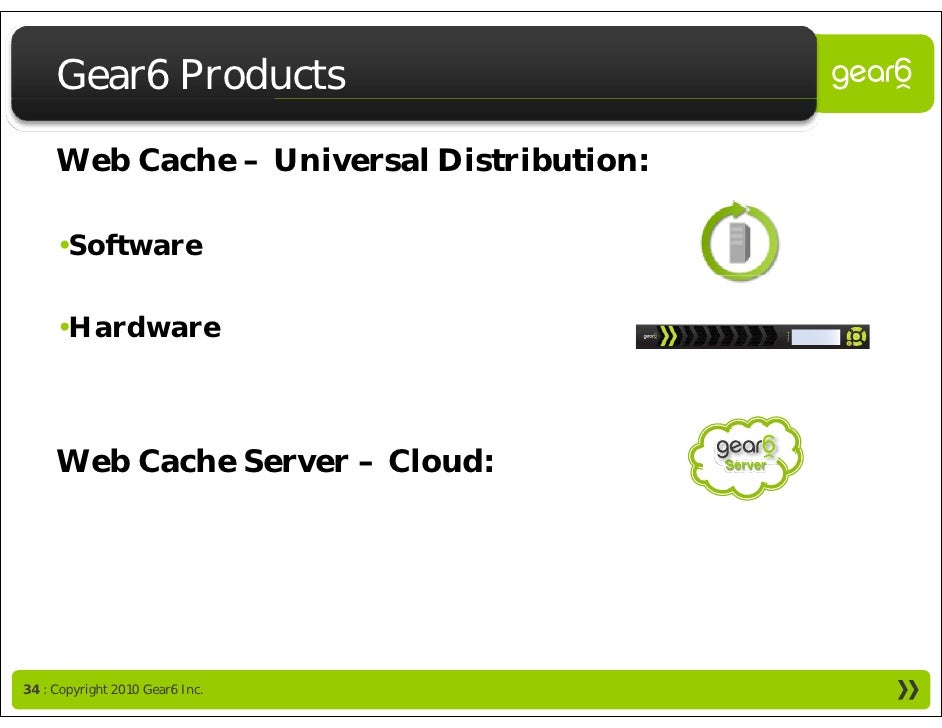

    • Gear6 Products Web Cache – Universal Distribution: •Software •Hardware W b C h Server – Cl d Web Cache S Cloud: Server 34 : Copyright 2010 Gear6 Inc.

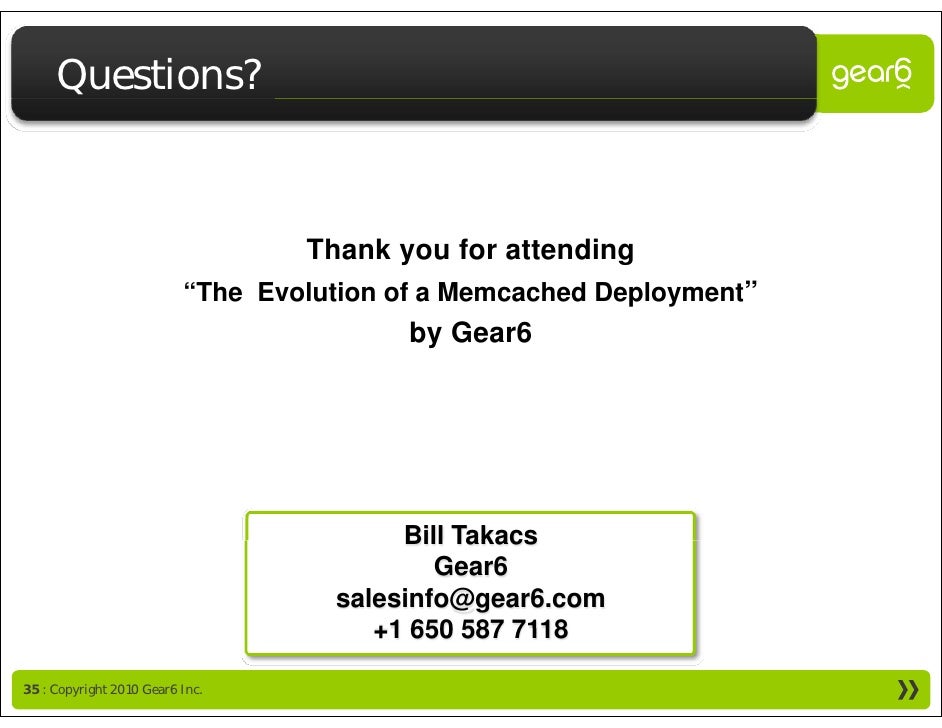

    • Questions? Thank you for attending “The Evolution of a Memcached Deployment” by Gear6 Bill Takacs Gear6 salesinfo@gear6.com +1 650 587 7118 35 : Copyright 2010 Gear6 Inc.
    • References • Danga.com • g y Highscalability.com • Dev.gear6.com • Groups.google.com/group/memcached • g g p Code.google.com/p/memcached • Twitter.com/gearsix • Cacti.net • Wireshark.org • http://dev.mysql.com/doc/mysql-ha-scalability/en/ha-memcached-using- deployment.html • http://dev.mysql.com/doc/mysql-ha-scalability/en/ha-memcached-using- p y q y q y g hashtypes.html • http://jayant7k.blogspot.com/2009/04/memcached-replication.html • http://www.lexemetech.com/2007/11/consistent-hashing.html • http://www8.org/w8-papers/2a- webserver/caching/paper2.htmlhttp://www.last.fm/user/RJ/journal/2007/04/10/rz_l ibketama_-_a_consistent_hashing_algo_for_memcache_clients • http://bazaar.launchpad.net/~libmemcached- developers/libmemcached/trunk/revision/539 36 : Copyright 2010 Gear6 Inc.
