Google Earth as a GIS




Contents:

  • Looking at Change over time in Google Earth

  • Downloading Maps from emapsite

...
Looking at Change over Time in Google Earth

The amount of different images you have available will depend on the region y...
Accessing OS Maps from ‘eMapSite’ under the ‘Map Pilot’

1. Go to the website: http://www.emapsite.com/mapshop/




2. Cli...
6. If multiple options for that town name is found you will need to select the one that you meant.



    7. When given th...

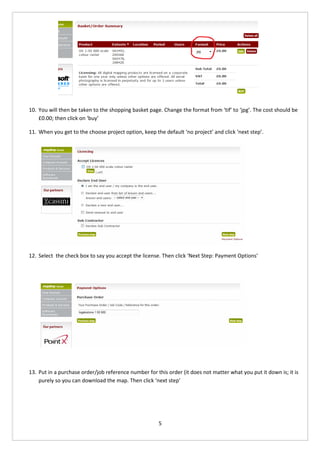

10. You will then be taken to the shopping basket page. Change the format from ‘tif’ to ‘jpg’. The cost should be
    £0.0...
14. You will then see a screen telling you your order is being processed. For a small area this will typically take
    30...
Adding Images as Overlays in Google Earth



In this example this is adding an OS Map over the top of the Google Earth Ima...
3. Go To Add> Image Overlay or click the Add Image Overlay Button (      )




4. Type in a title and navigate to the imag...
5. Move the ‘Google Earth- New Image Overlay’ box out of to one side, but do not click on OK at this point.

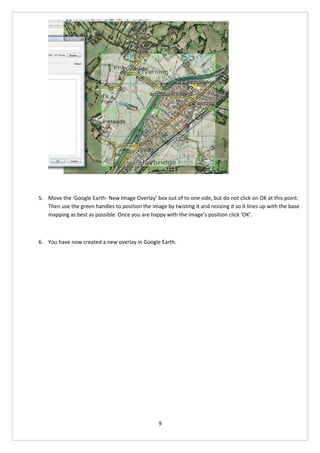

   Then use th...

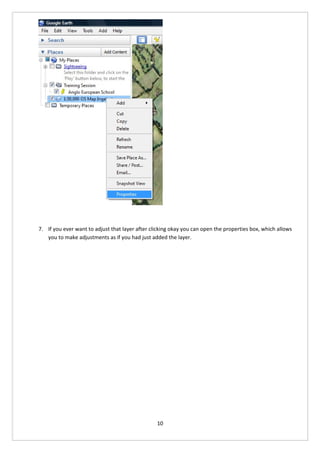

7. If you ever want to adjust that layer after clicking okay you can open the properties box, which allows
   you to make ...
Saving Google Earth Placemarks / Overlays



Google Earth automatically keeps all the place marks / overlays you have crea...
5. Choose the destination of your file (where you want to save it), and the file name; keep the ‘Save as
   Type’ as Kmz.
...
APPENDIX ONE: GOOGLE EARTH FILE FORMATS

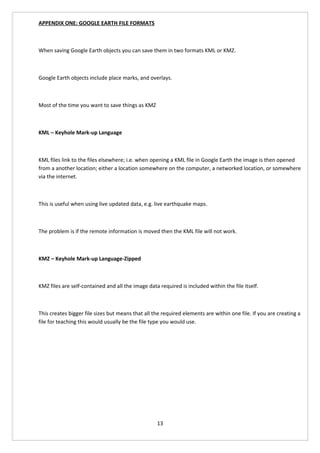

When saving Google Earth objects you can save them in two formats KML or KMZ.

...
APPENDIX TWO: MAP TYPES INCLUDED IN THE SCHOOLS MAP PILOT

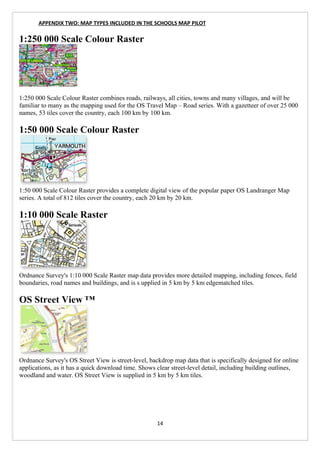

1:250 000 Scale Colour Raster




1:250 000 Scale Colour Raster...

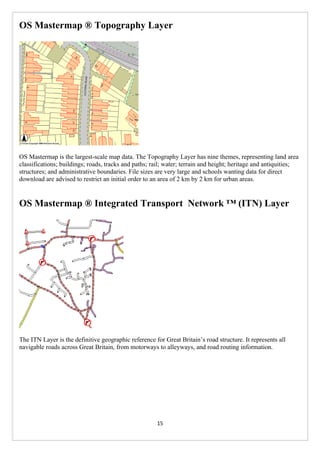

OS Mastermap ® Topography Layer




OS Mastermap is the largest-scale map data. The Topography Layer has nine themes, repr...
APPENDIX THREE: Unzipping Zip Files in Windows XP

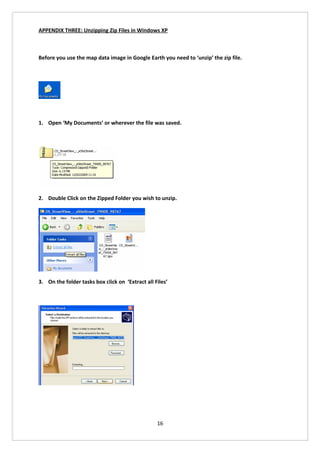

Before you use the map data image in Google Earth you need to ‘unzip’...

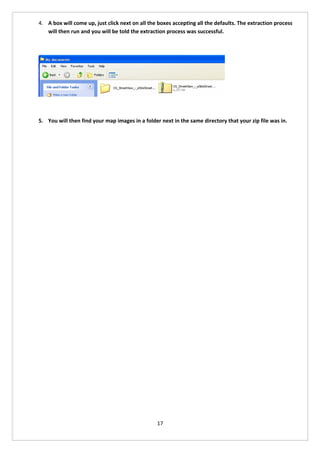

4. A box will come up, just click next on all the boxes accepting all the defaults. The extraction process
   will then ru...
Upcoming SlideShare
Loading in …5
×

Google Earth as a GIS

2,036 views
1,909 views

Published on

A session that I gave at a Mid-Essex Geography network meeting on June 4th 2009.

0 Comments
1 Like
Statistics
Notes
  • Be the first to comment

No Downloads
Views
Total views
2,036
On SlideShare
0
From Embeds
0
Number of Embeds
496
Actions
Shares
0
Downloads
35
Comments
0
Likes
1
Embeds 0
No embeds

No notes for slide

Google Earth as a GIS

  1. 1. Google Earth as a GIS Contents: • Looking at Change over time in Google Earth • Downloading Maps from emapsite • Creating Overlays in Google Earth Graeme Eyre, Anglo European School eyreg@aesessex.co.uk 1

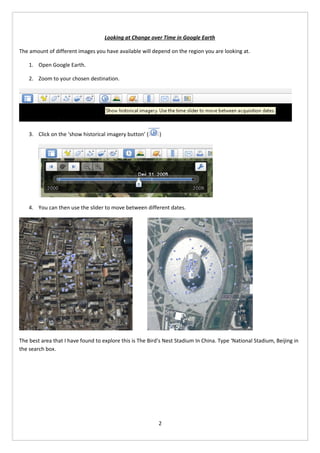

  2. 2. Looking at Change over Time in Google Earth The amount of different images you have available will depend on the region you are looking at. 1. Open Google Earth. 2. Zoom to your chosen destination. 3. Click on the ‘show historical imagery button’ ( ) 4. You can then use the slider to move between different dates. The best area that I have found to explore this is The Bird’s Nest Stadium In China. Type ‘National Stadium, Beijing in the search box. 2

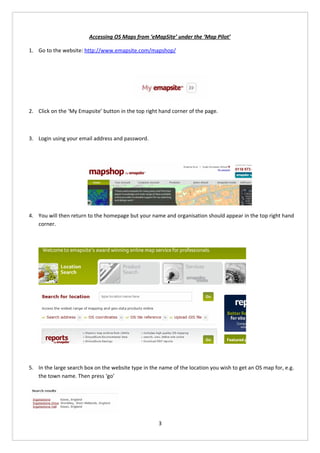

  3. 3. Accessing OS Maps from ‘eMapSite’ under the ‘Map Pilot’ 1. Go to the website: http://www.emapsite.com/mapshop/ 2. Click on the ‘My Emapsite’ button in the top right hand corner of the page. 3. Login using your email address and password. 4. You will then return to the homepage but your name and organisation should appear in the top right hand corner. 5. In the large search box on the website type in the name of the location you wish to get an OS map for, e.g. the town name. Then press ‘go’ 3
  4. 4. 6. If multiple options for that town name is found you will need to select the one that you meant. 7. When given the choice between ‘mapshop’ or ‘plans ahead’ select ‘mapshop’ 8. You can now use the map window to select the area that you wish to down load your map of. I suggest you use the rectangle tool. You then need to select the map type that you want using the check boxes on the left. NOTE: Only the map types listed as part of the ‘Map Pilot’ will be free, the cost will be set as zero when you progress to the shopping basket. If you choose another type of map you will need to pay for them. 9. Click on the ‘Add Selection to basket and view’ 4
  5. 5. 10. You will then be taken to the shopping basket page. Change the format from ‘tif’ to ‘jpg’. The cost should be £0.00; then click on ‘buy’ 11. When you get to the choose project option, keep the default ‘no project’ and click ‘next step’. 12. Select the check box to say you accept the license. Then click ‘Next Step: Payment Options’ 13. Put in a purchase order/job reference number for this order (it does not matter what you put it down is; it is purely so you can download the map. Then click ‘next step’ 5

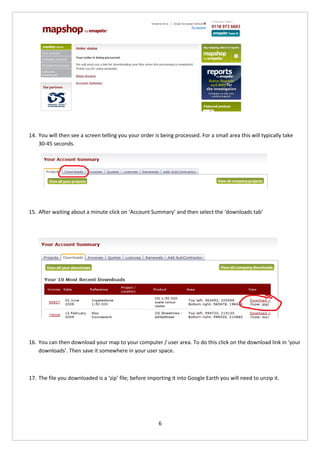

  6. 6. 14. You will then see a screen telling you your order is being processed. For a small area this will typically take 30-45 seconds. 15. After waiting about a minute click on ‘Account Summary’ and then select the ‘downloads tab’ 16. You can then download your map to your computer / user area. To do this click on the download link in ‘your downloads’. Then save it somewhere in your user space. 17. The file you downloaded is a ‘zip’ file; before importing it into Google Earth you will need to unzip it. 6

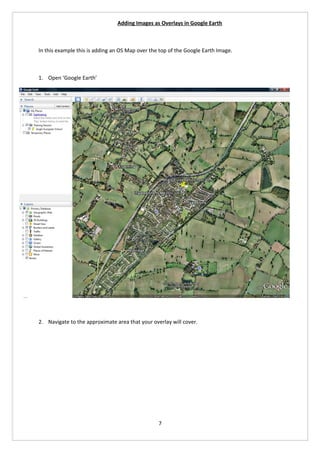

  7. 7. Adding Images as Overlays in Google Earth In this example this is adding an OS Map over the top of the Google Earth Image. 1. Open ‘Google Earth’ 2. Navigate to the approximate area that your overlay will cover. 7
  8. 8. 3. Go To Add> Image Overlay or click the Add Image Overlay Button ( ) 4. Type in a title and navigate to the image you want to overlay using the ‘browse button’. Then the image should appear in the centre of the window overlaid over the Google Earth base image. Use the slider to make the image slightly opaque so that you can position it correctly. 8
  9. 9. 5. Move the ‘Google Earth- New Image Overlay’ box out of to one side, but do not click on OK at this point. Then use the green handles to position the image by twisting it and resizing it so it lines up with the base mapping as best as possible. Once you are happy with the image’s position click ‘OK’. 6. You have now created a new overlay in Google Earth. 9
  10. 10. 7. If you ever want to adjust that layer after clicking okay you can open the properties box, which allows you to make adjustments as if you had just added the layer. 10

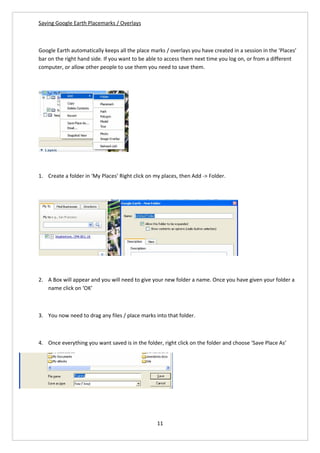

  11. 11. Saving Google Earth Placemarks / Overlays Google Earth automatically keeps all the place marks / overlays you have created in a session in the ‘Places’ bar on the right hand side. If you want to be able to access them next time you log on, or from a different computer, or allow other people to use them you need to save them. 1. Create a folder in ‘My Places’ Right click on my places, then Add -> Folder. 2. A Box will appear and you will need to give your new folder a name. Once you have given your folder a name click on ‘OK’ 3. You now need to drag any files / place marks into that folder. 4. Once everything you want saved is in the folder, right click on the folder and choose ‘Save Place As’ 11

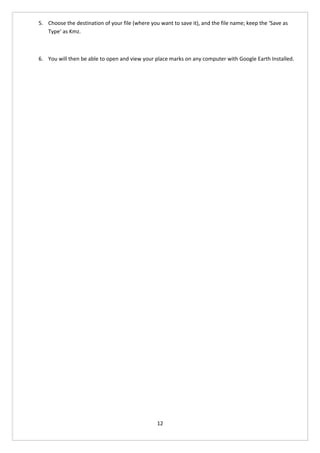

  12. 12. 5. Choose the destination of your file (where you want to save it), and the file name; keep the ‘Save as Type’ as Kmz. 6. You will then be able to open and view your place marks on any computer with Google Earth Installed. 12
