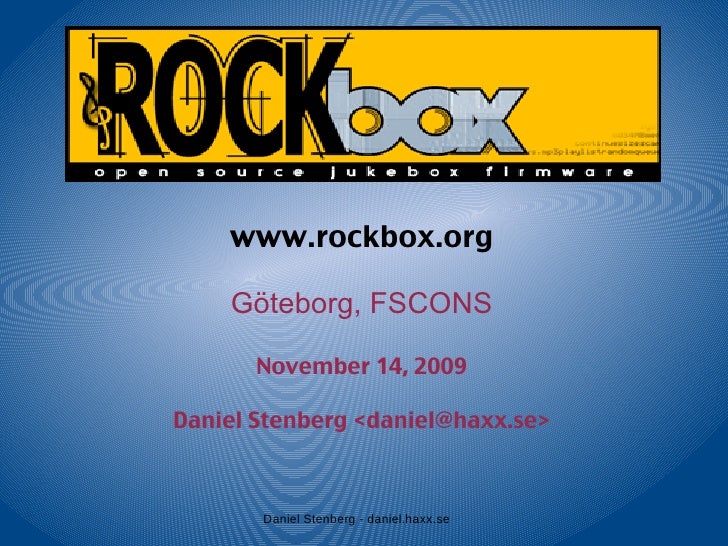

www.rockbox.org Göteborg, FSCONS November 14, 2009 Daniel Stenberg <daniel@haxx.se>
Daniel Stenberg <ul><li>Co-founder of the Rockbox project
Embedded systems developer
Open source hacker </li></ul>
Gadgets Gadgets don't do what we want them to
People like to customize things
Enter portable music players 2001 Not so fancy
How hard can it be? Björn Stenberg Linus Nielsen Feltzing Daniel Stenberg Stockholm Sweden, Dec 2001
more Freedom Games Music formats Speed Customization Applications
And not the least What must not be forgotten...
Sandisk Sansa c100, Onda VX747, SanDisk Sansa Fuze, Sandisk Sansa Clip v1, iAudio M5, Archos FM Recorder, Cowon iAudio 7, ...
… make great towers!
How to hack an mp3 player Or at least a general description how we've done it so far...
Community involve many people! Time consuming Tedious Lots of work
Physical components <ul><li>Rip apart
Hi-Res scan PCB and publish
beep connections
Identify components </li><ul><li>- used to be less hard
- custom branded chips
SoC is primary </li></ul></ul>
What is inside a typical device? <ul><li>SoC (sh, ARM, m68k, MIPS, ...)
USB
Sound Codec
RAM (usually 32MB)
Flash (NOR for the program)
Flash (NAND these days for everything)
HDD (for storage)
FM tuner
LCD (greyscale, 16bit color, touch, …)
Remote
Buttons, pads, wheels... </li></ul><ul><li>Each device is unique and needs adaptations </li></ul>
Learn how components work <ul><li>Find data sheets
Not always available
NDAs like crazy
Parts of chips are sublicensed and thus under different licenses/NDAs
