Mapping History
 (starting with Manchester)
      Frankie Roberto
      frankie@frankieroberto.com
      Twitter: frankier...

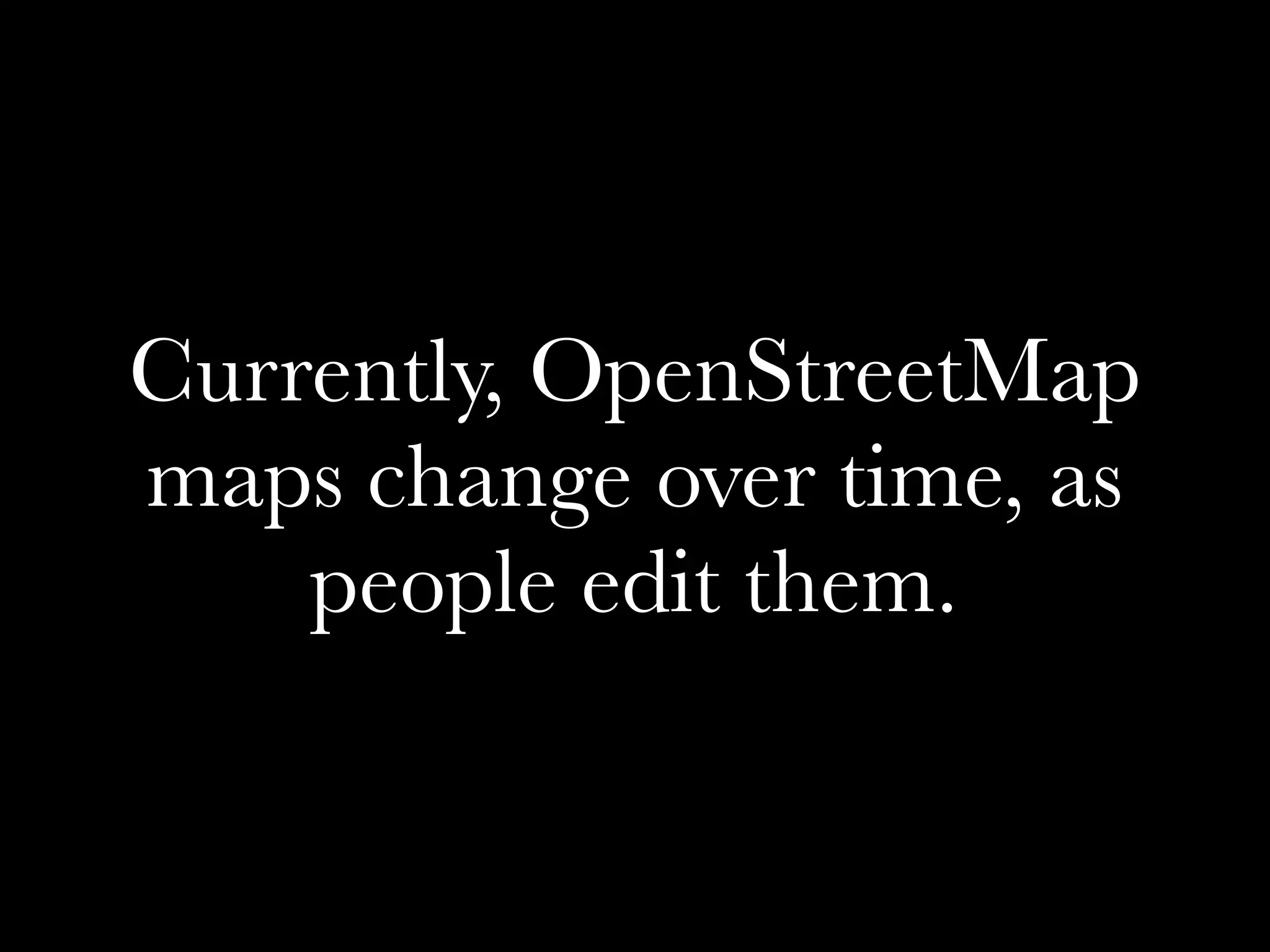

Currently, OpenStreetMap
maps change over time, as
    people edit them.
...in a way that printed maps don’t.
        N.B. This map, in Sheffield, has been like this for months.

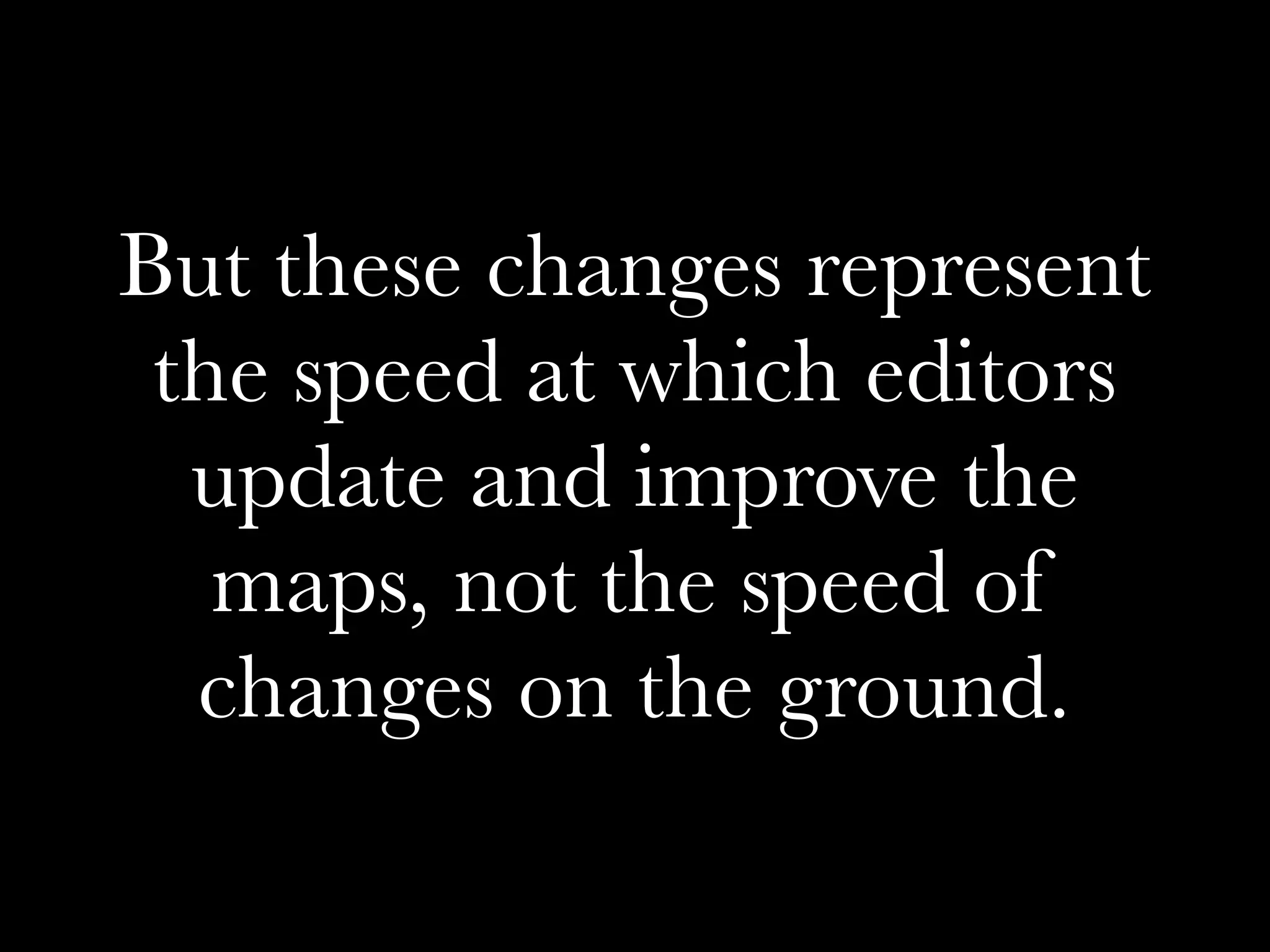

But these changes represent
 the speed at which editors
  update and improve the
   maps, not the speed of
  changes on th...
I’d like to be able to add a
time-slider to maps, so that
you can see how the places
  themselves have changed
           ...
Comparing old maps with
   new maps is fun...

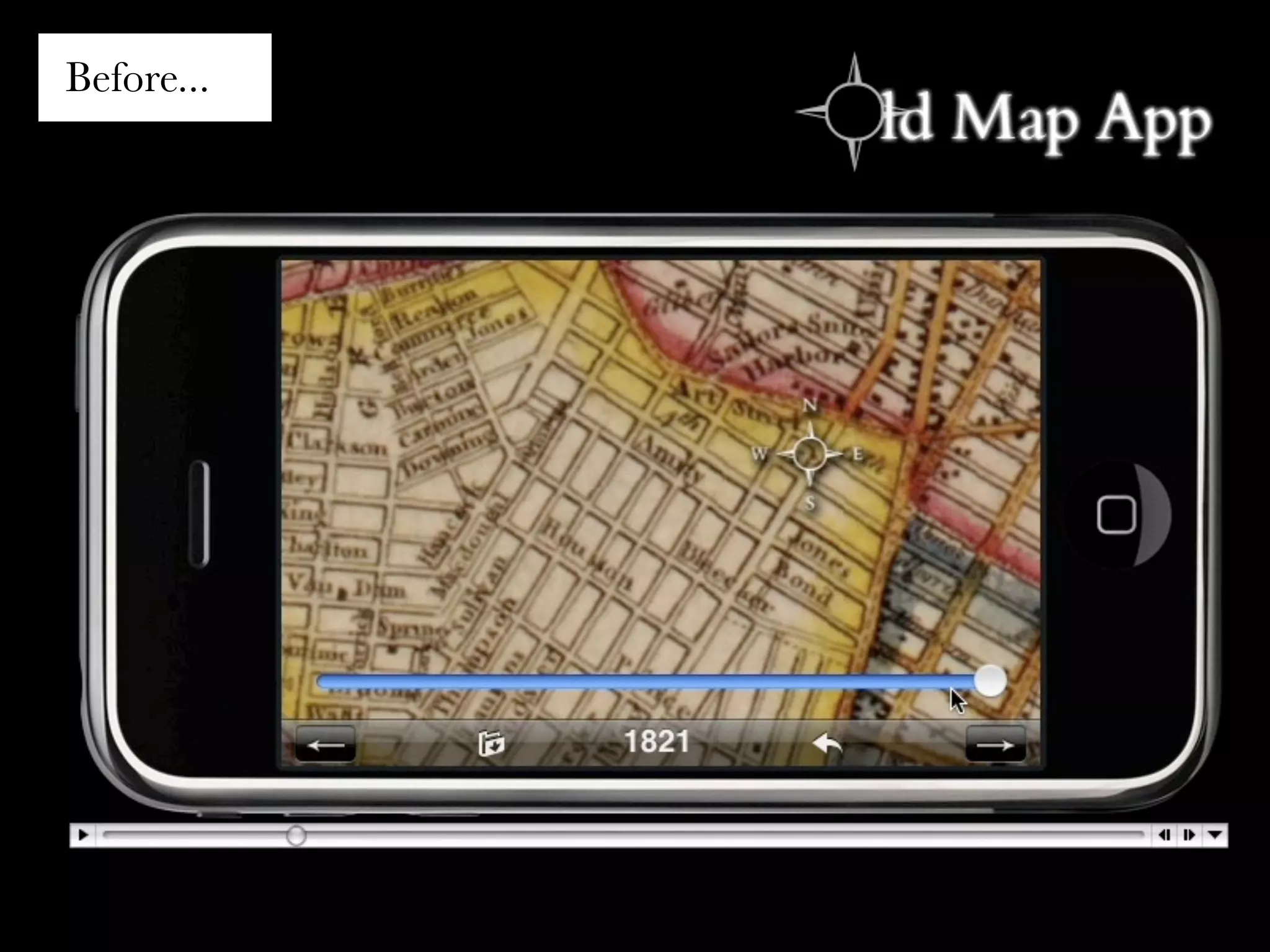

Before...
After...
But these comparisons are
 made harder by the big
 changes in cartography.

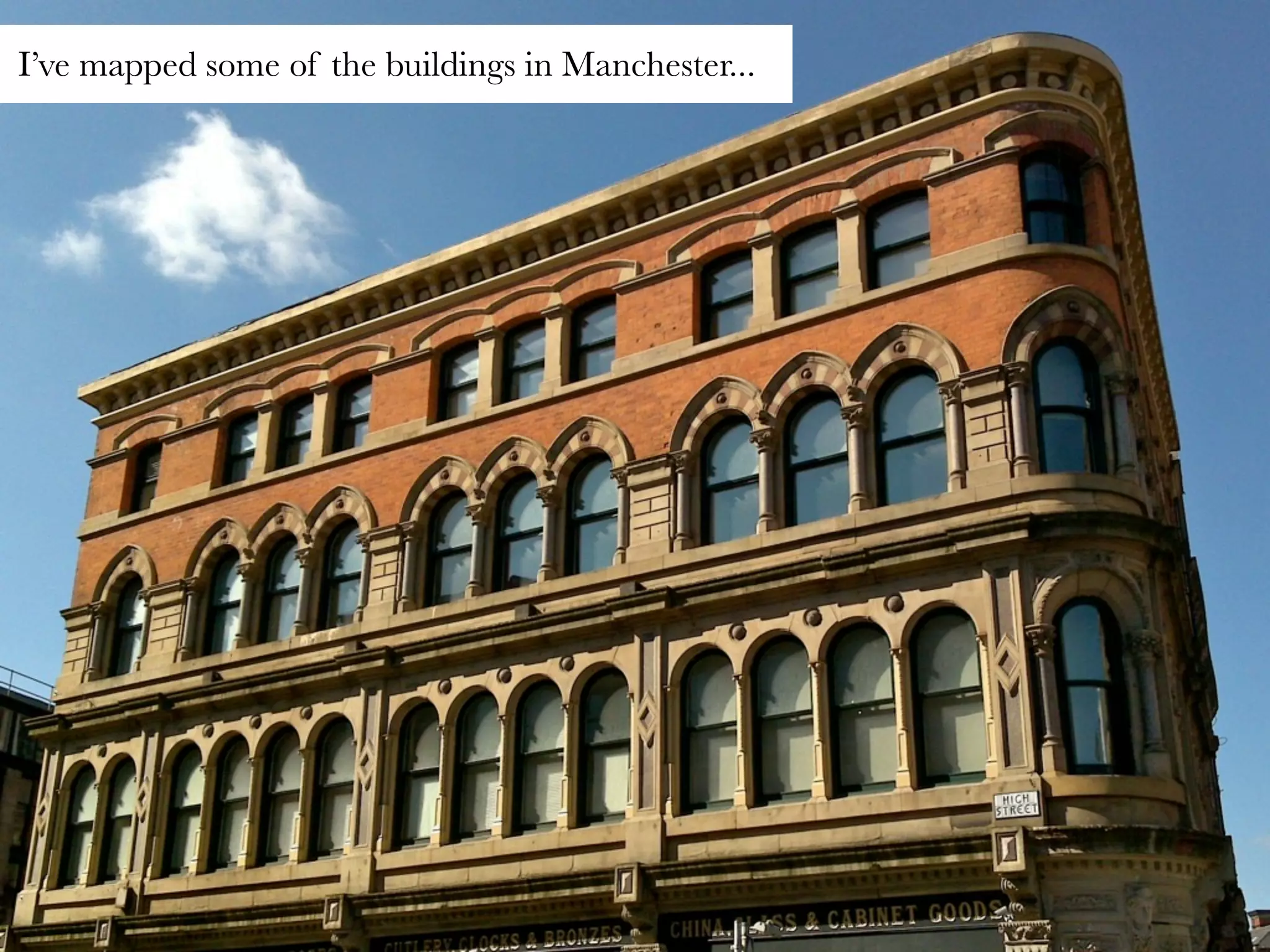

I’ve mapped some of the buildings in Manchester...
...where there are lots of pretty old buildings...

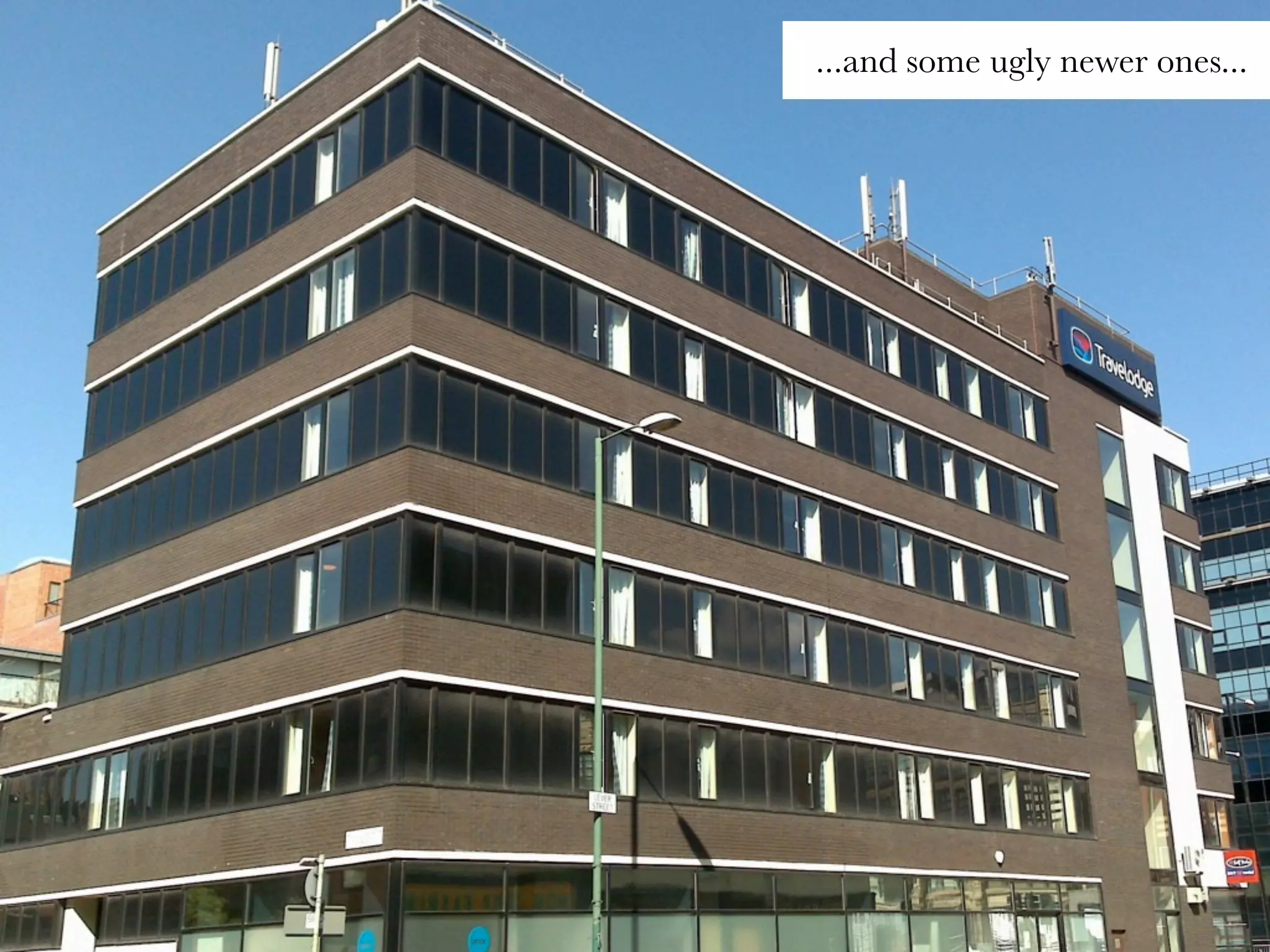

...and some ugly newer ones...
...as well as a few under construction.

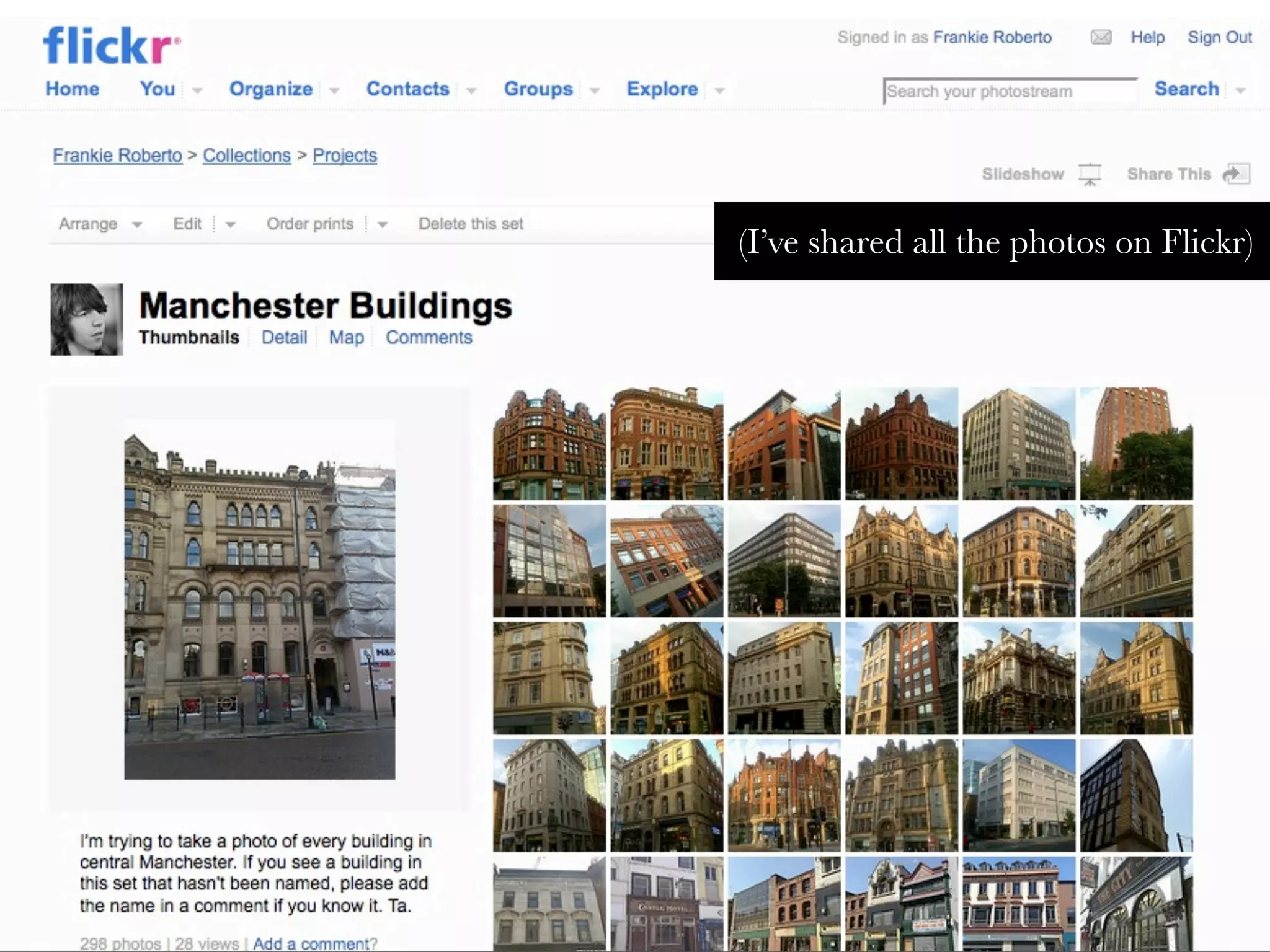

(I’ve shared all the photos on Flickr)

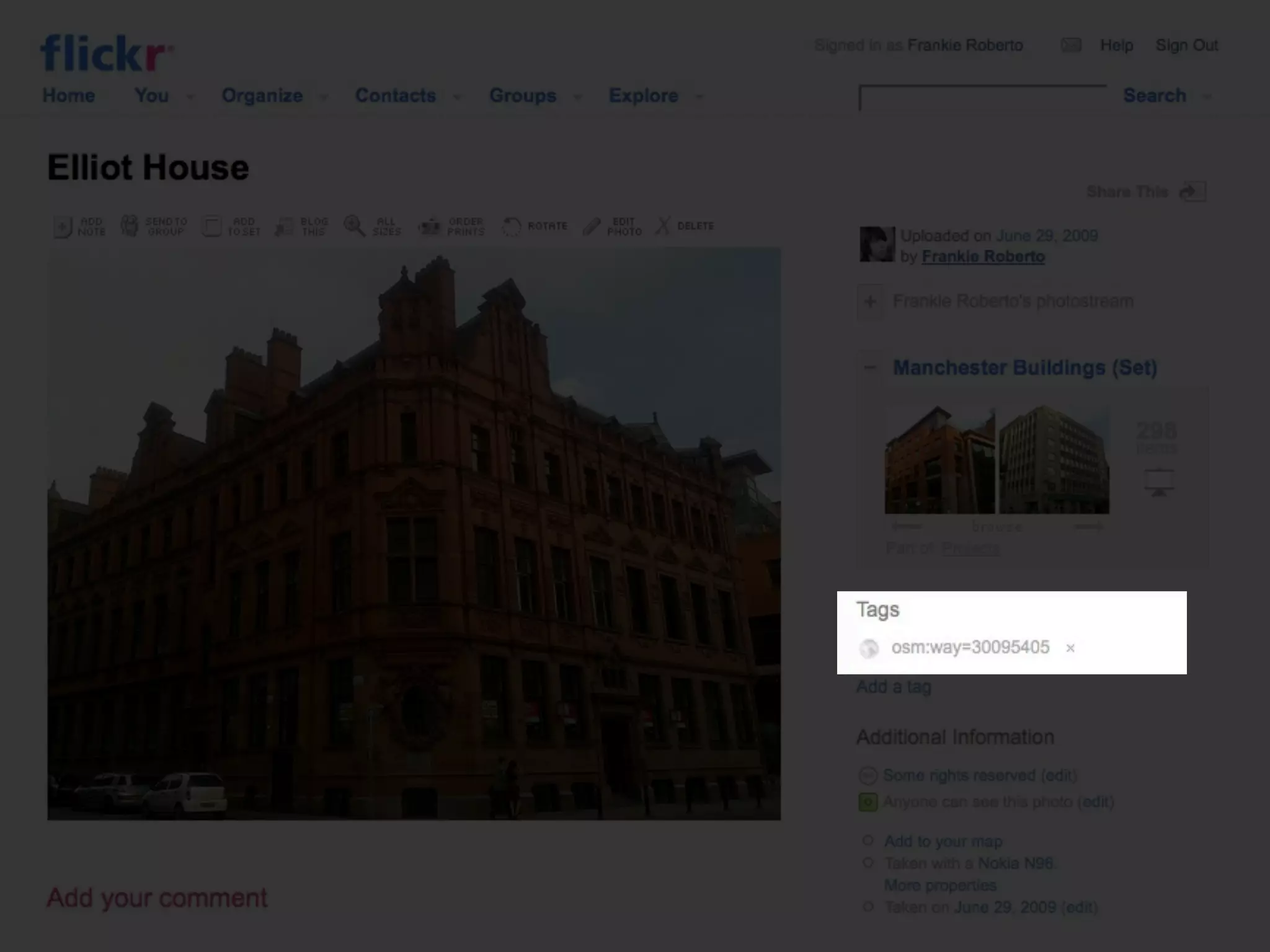

...where they are even machine tagged with the appropriate way.
The years in which the
buildings were constructed
    have been added to
 OpenStreetMap using...
start_date=

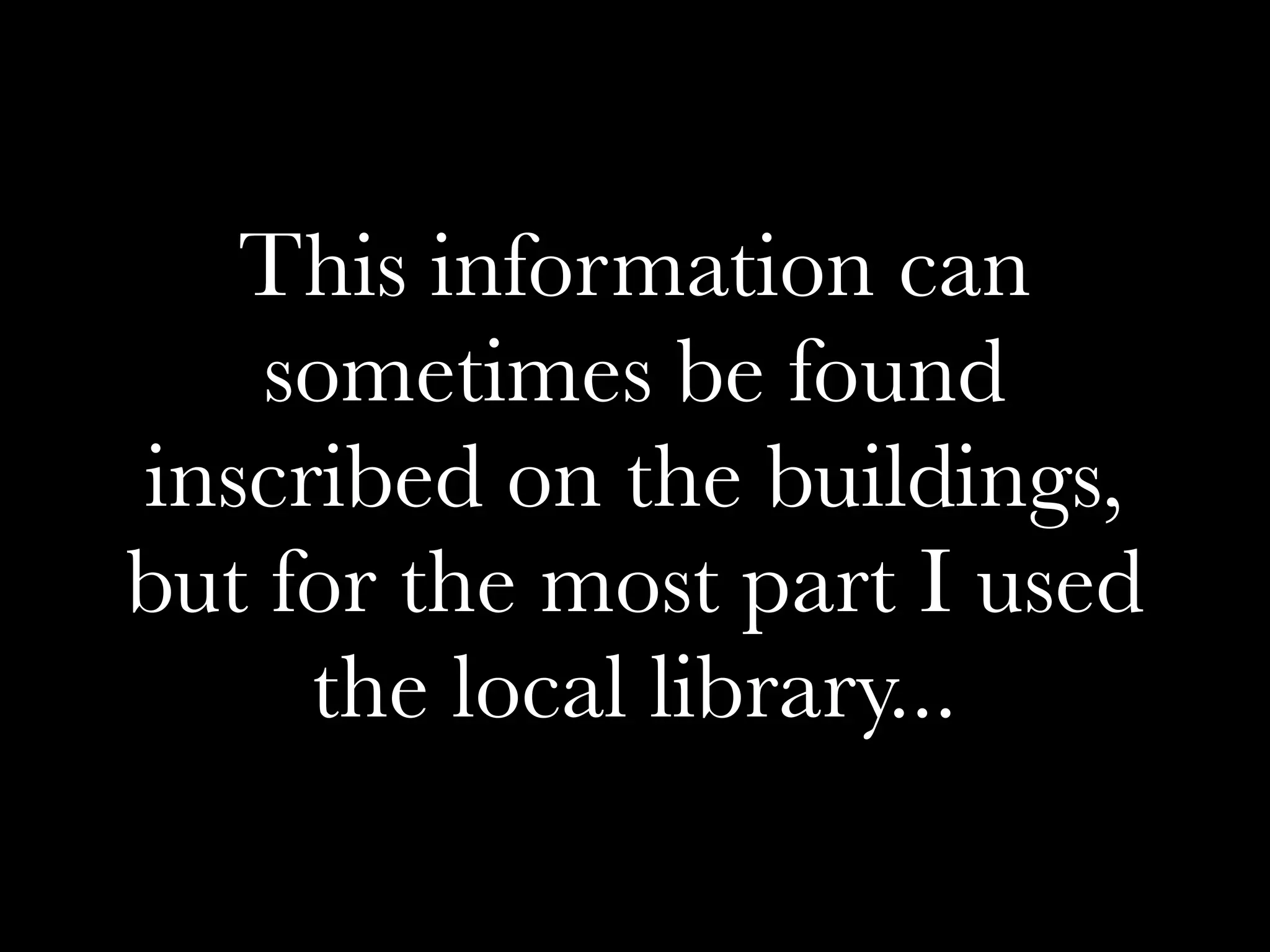

This information can
    sometimes be found
inscribed on the buildings,
but for the most part I used
     the local librar...
Isn’t it pretty?
Books like this were a great help.

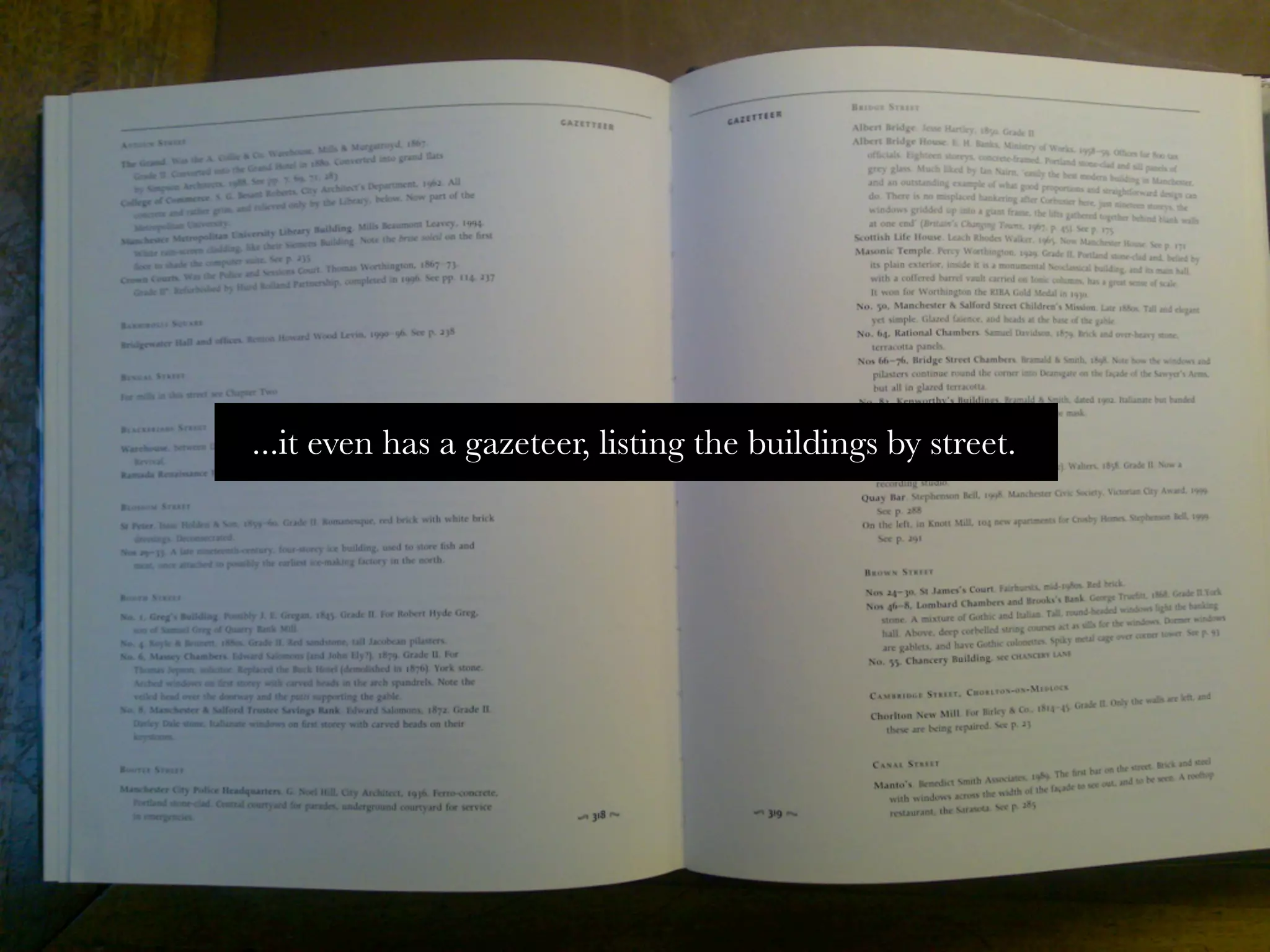

...it even has a gazeteer, listing the buildings by street.
So, given this data, how do
you filter out new buildings
      from old maps?
You could add extra rules
to Mapnik or Osmarender.

...but it’s probably easiest
      to pre-process.
<?xml version="1.0" encoding="ISO-8859-1"?>
<xsl:stylesheet version="1.0"
xmlns:xsl="http://www.w3.org/1999/XSL/Transform"...
#!/bin/bash

for (( i = 1900; i < 2011; i = i + 10))
do
	    xsltproc --stringparam "year" "$i" start_date_filter.xsl data...
#!/bin/bash

for (( i = 1900; i < 2011; i = i + 10))
do
	    ln -s ../files/$i.osm data.osm
	    xsltproc osmarender.xsl o...

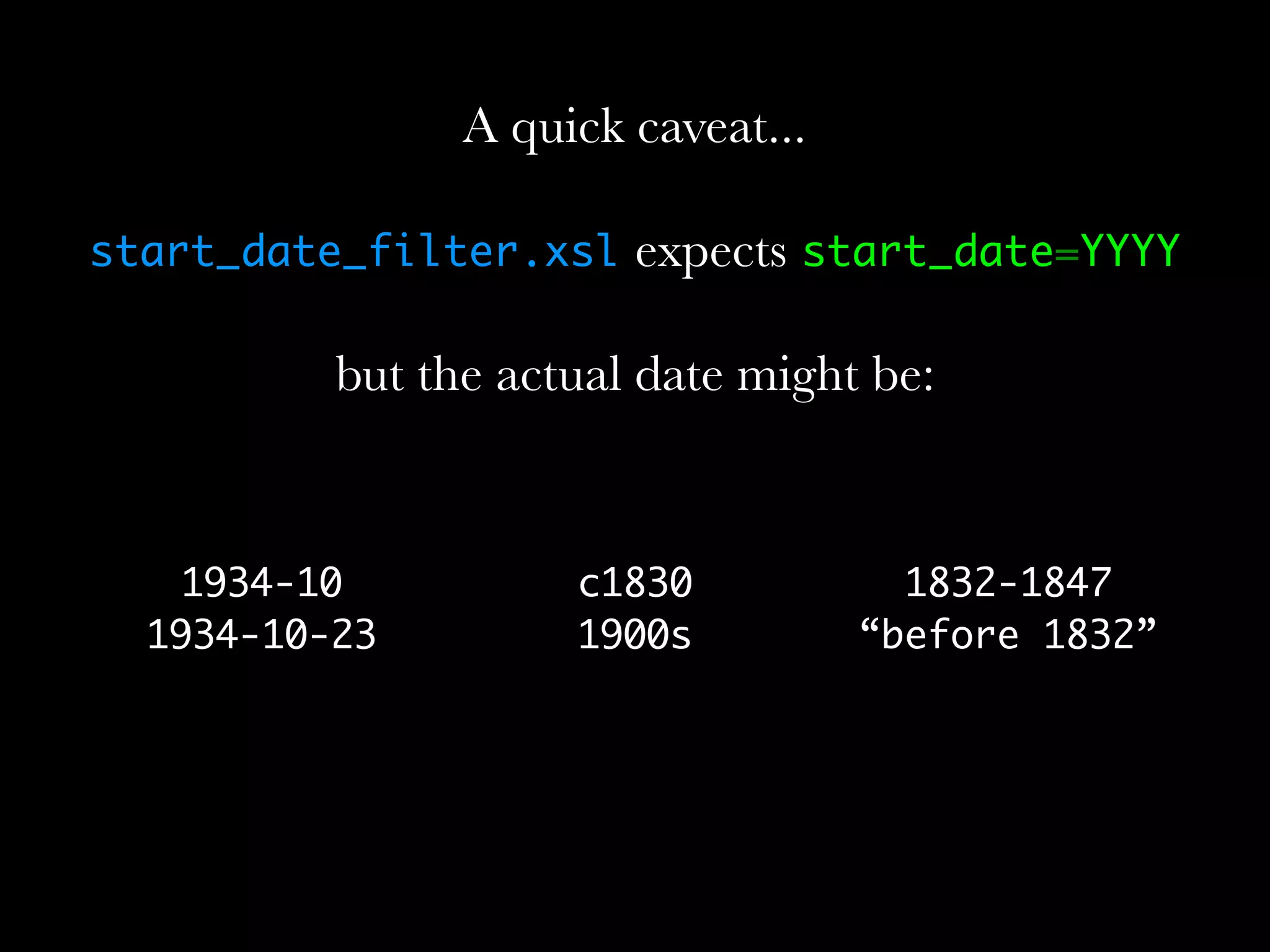

A quick caveat...
A quick caveat...

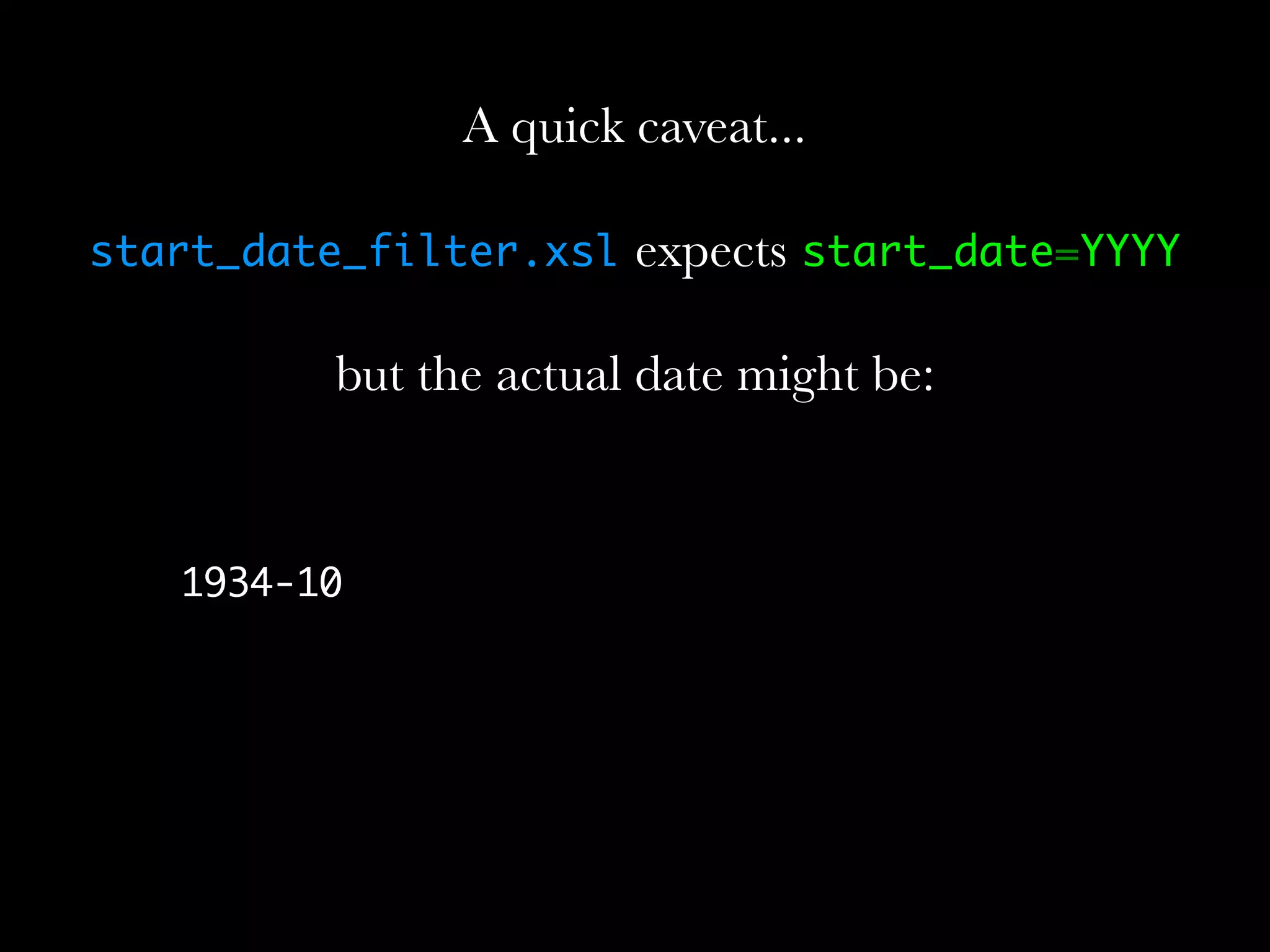

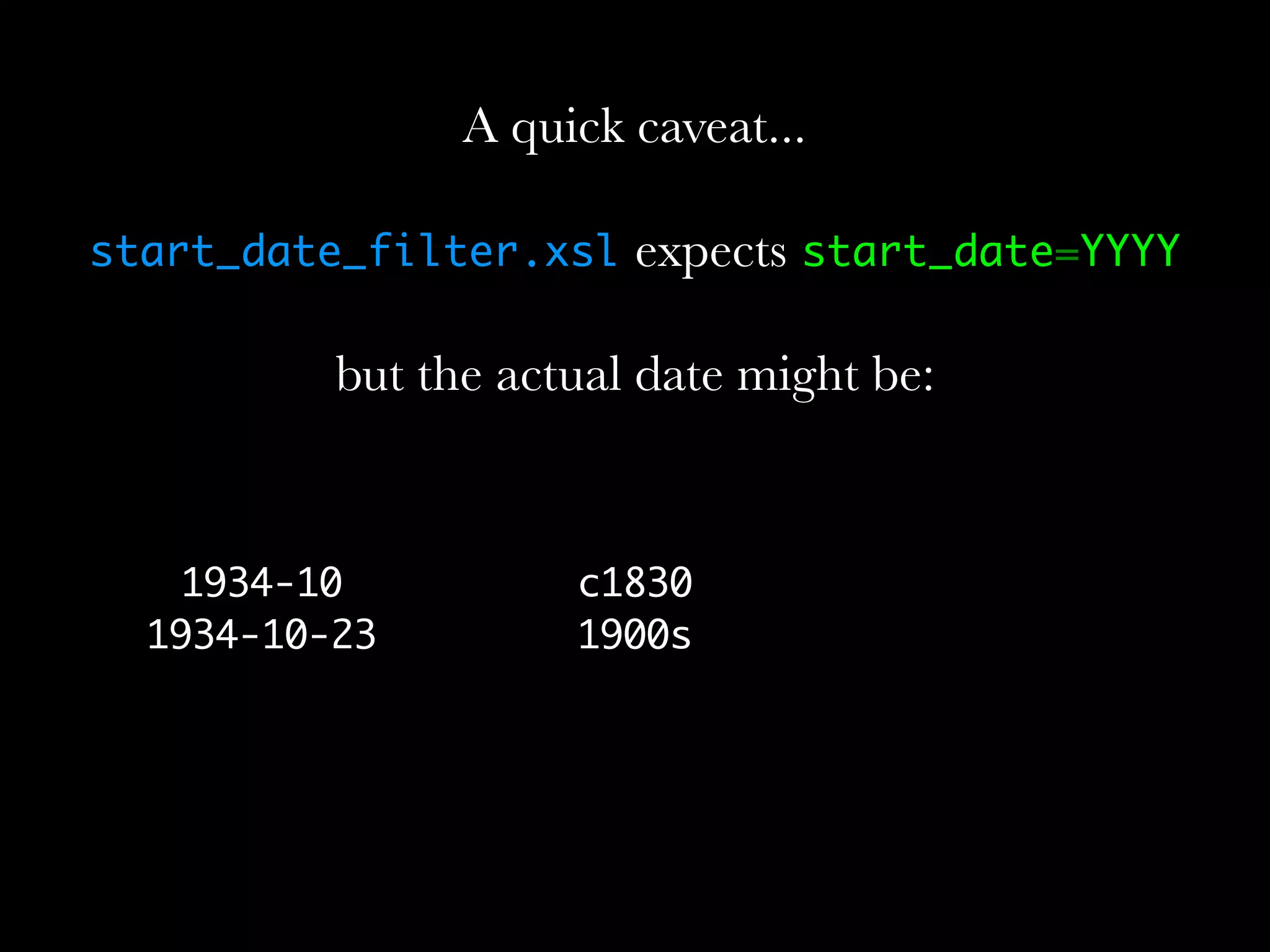

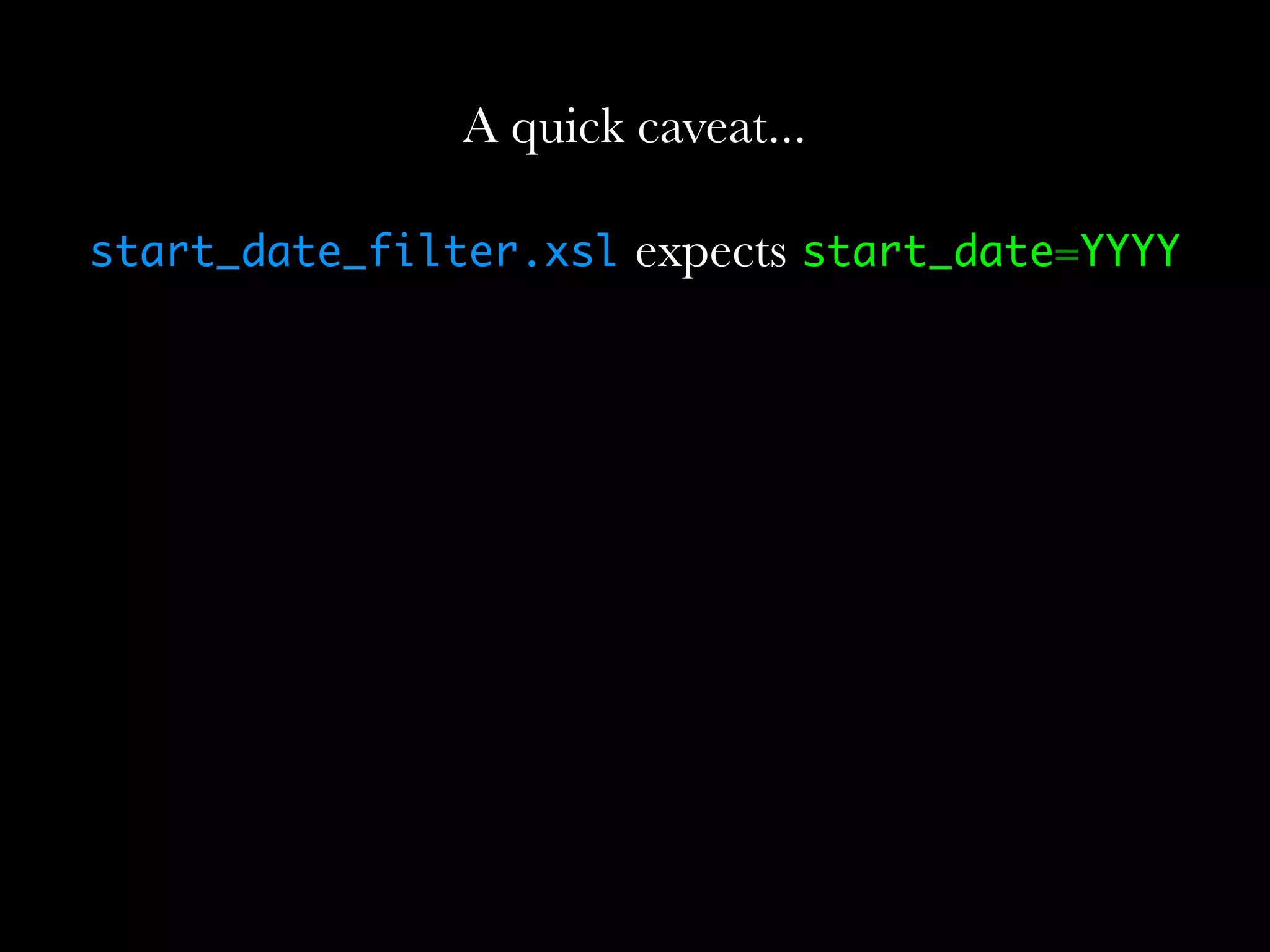

start_date_filter.xsl   expects start_date=YYYY
A quick caveat...

start_date_filter.xsl   expects start_date=YYYY

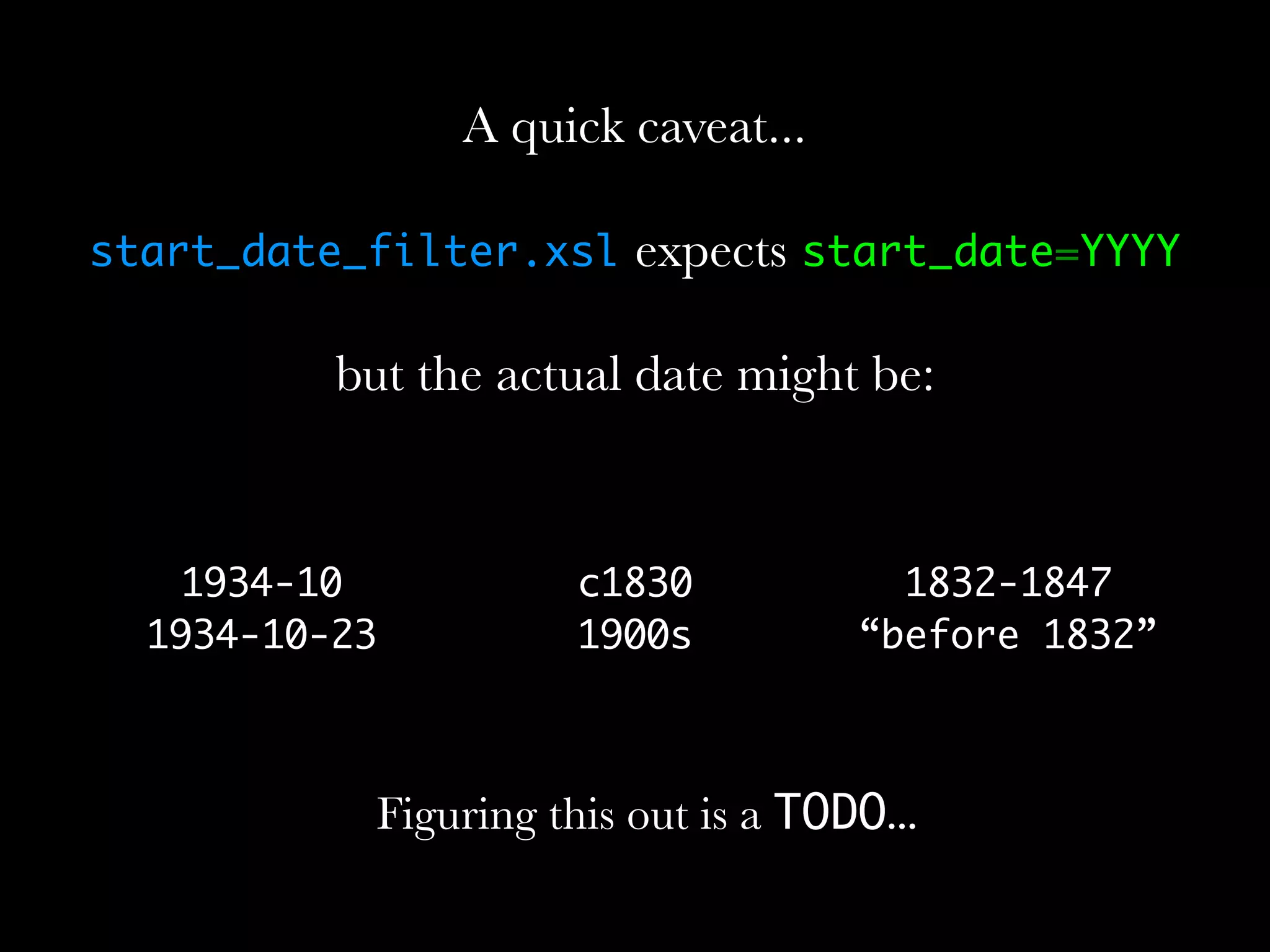

         but the actual date might be:
A quick caveat...

start_date_filter.xsl   expects start_date=YYYY

         but the actual date might be:


   1934-10
A quick caveat...

start_date_filter.xsl   expects start_date=YYYY

          but the actual date might be:


    1934-10
...
A quick caveat...

start_date_filter.xsl   expects start_date=YYYY

          but the actual date might be:


    1934-10 ...
A quick caveat...

start_date_filter.xsl   expects start_date=YYYY

          but the actual date might be:


    1934-10 ...
A quick caveat...

start_date_filter.xsl   expects start_date=YYYY

          but the actual date might be:


    1934-10 ...
A quick caveat...

start_date_filter.xsl   expects start_date=YYYY

          but the actual date might be:


    1934-10 ...
A quick caveat...

start_date_filter.xsl    expects start_date=YYYY

          but the actual date might be:


    1934-10...

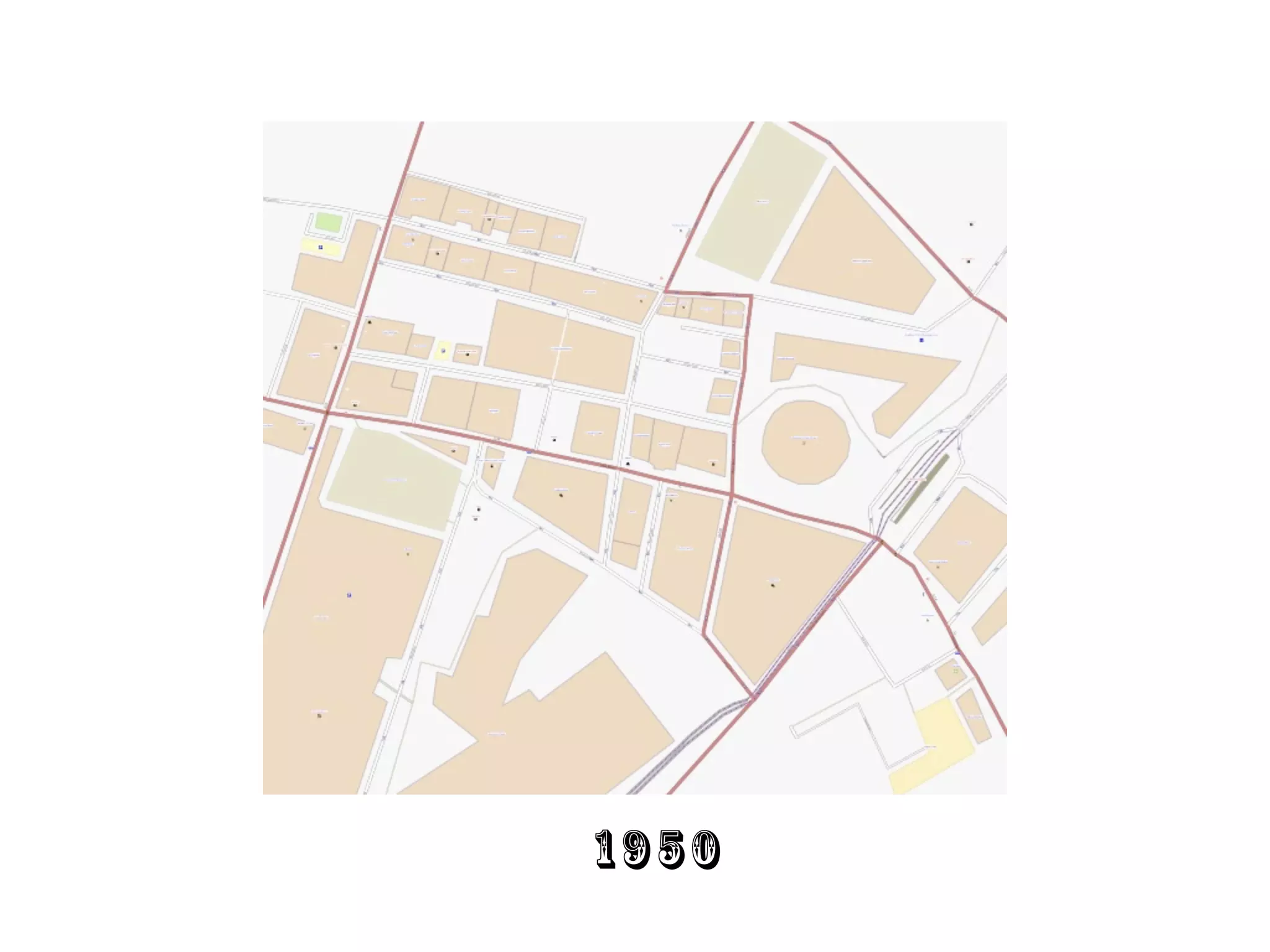

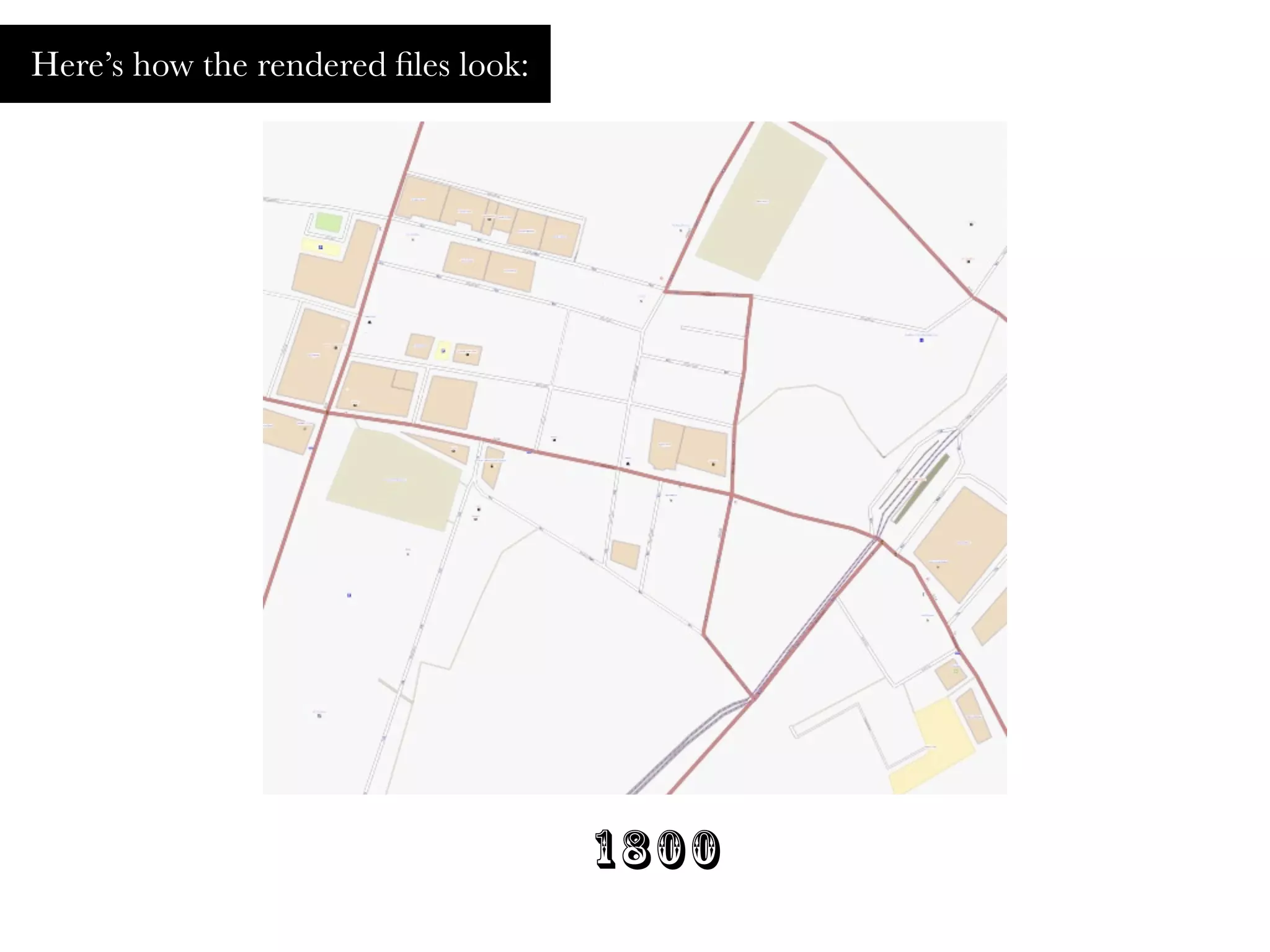

Here’s how the rendered files look:




                                     1 80 0
18 1 0

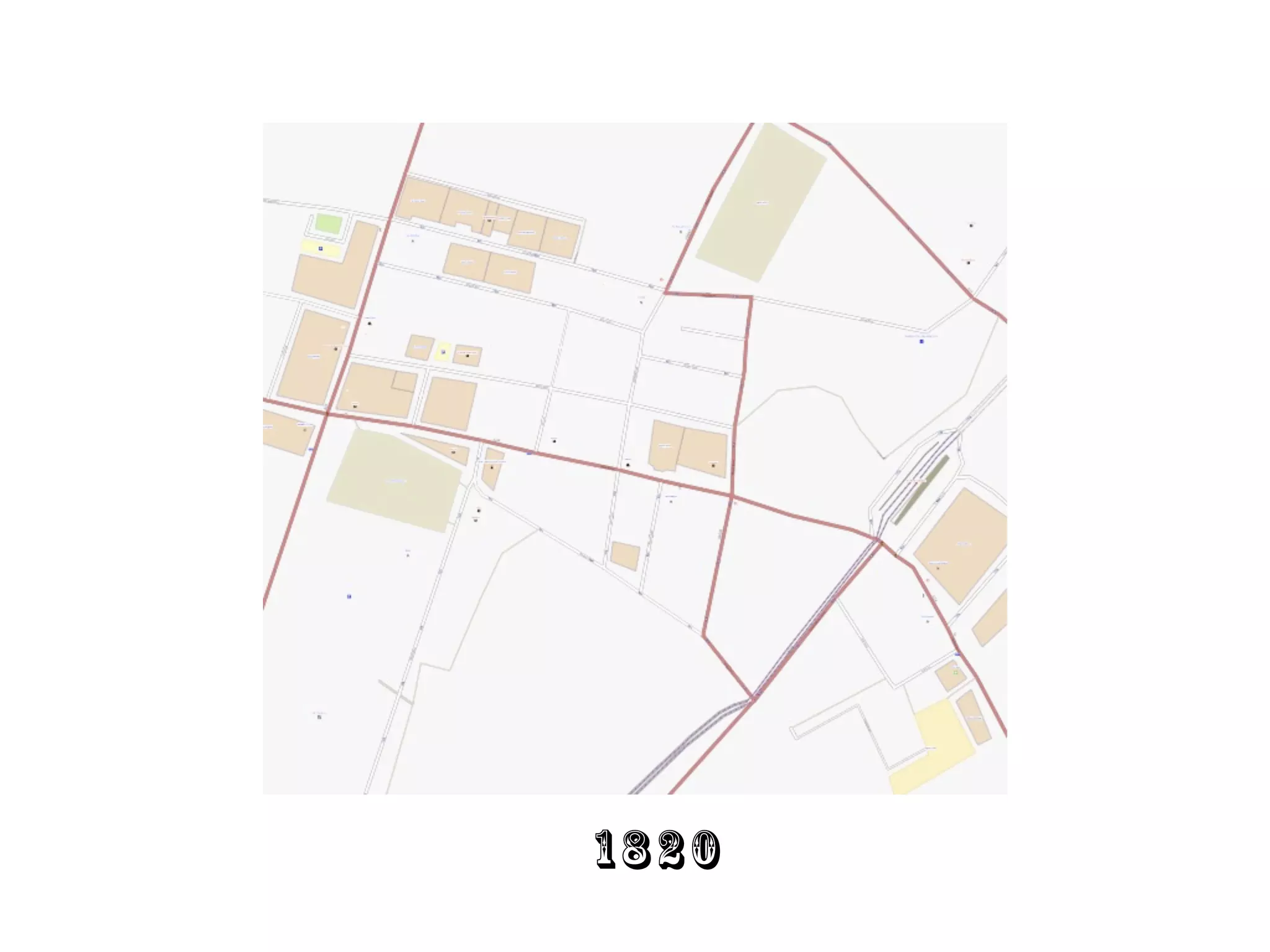

1820
1830
1840

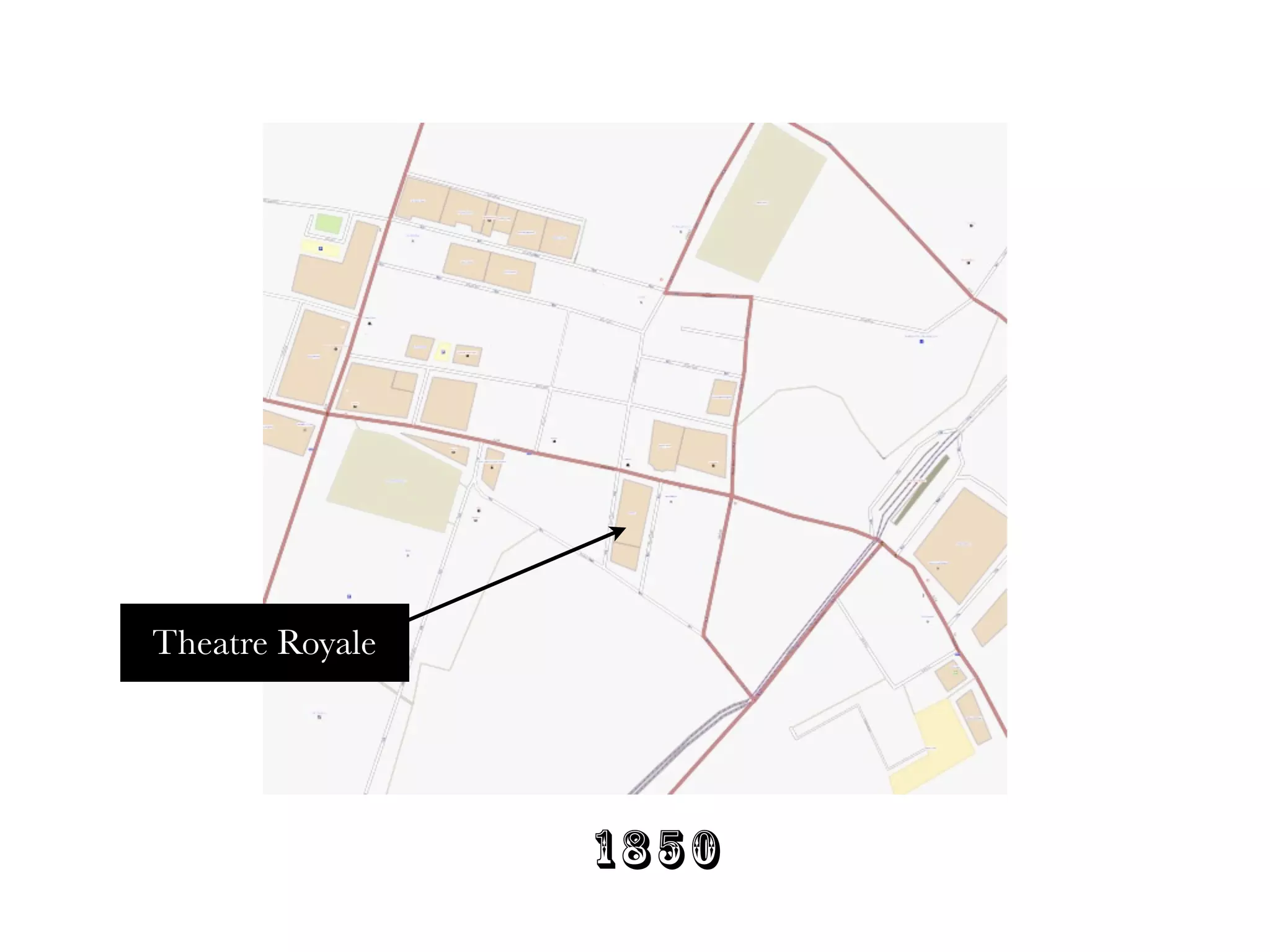

Theatre Royale




                 1850

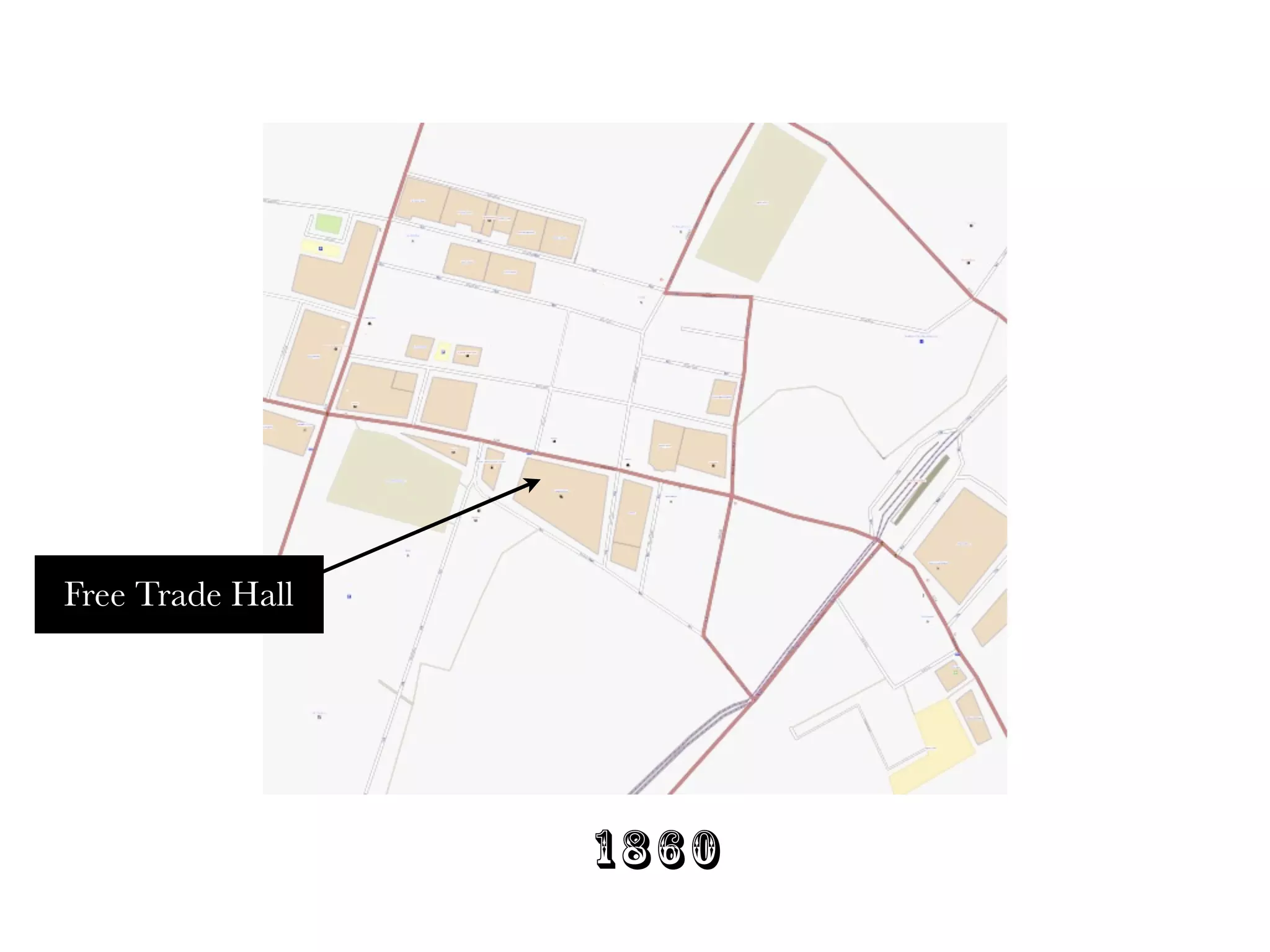

Free Trade Hall




                  1860

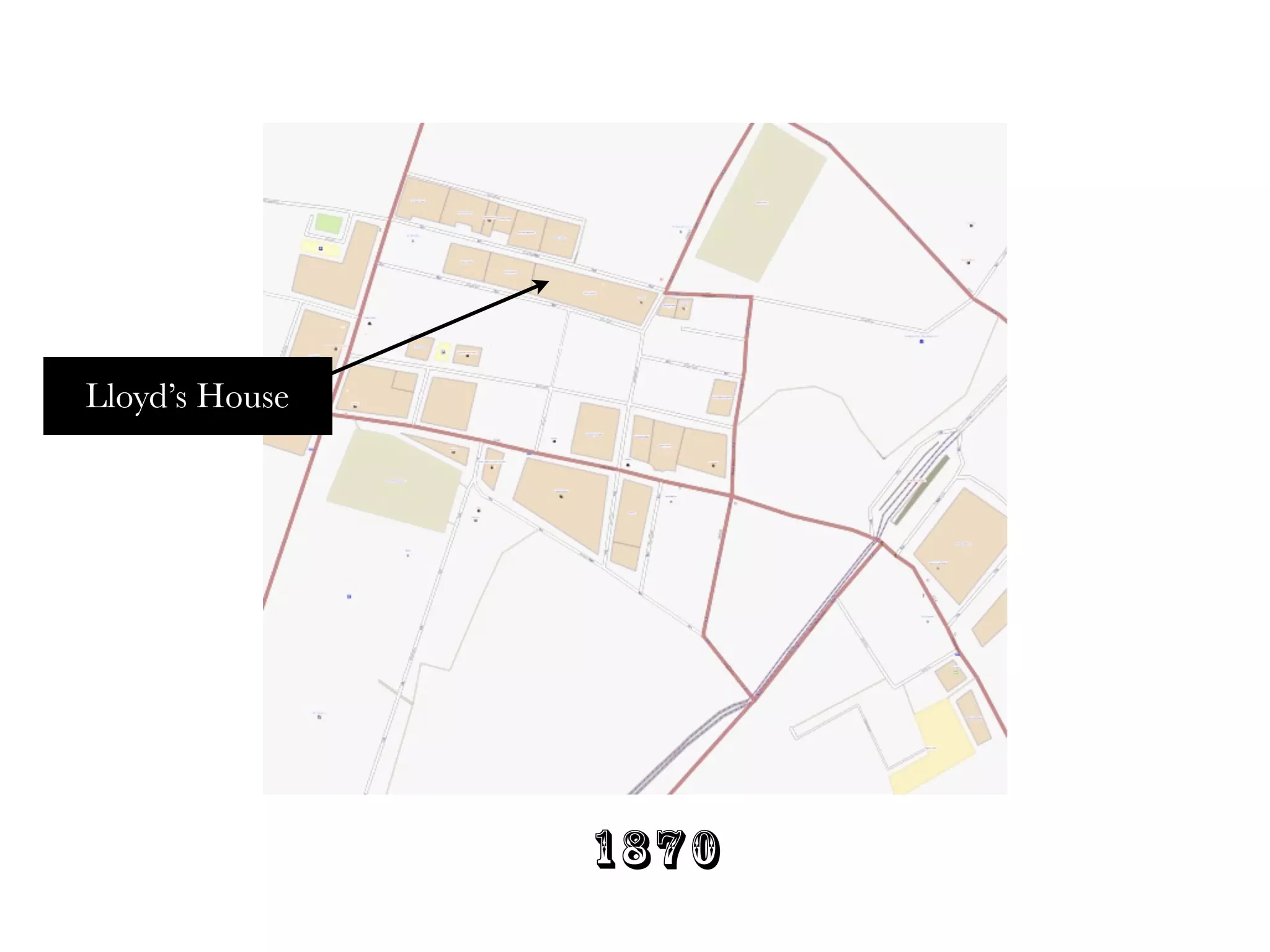

Lloyd’s House




                1870
Town Hall




Train station




                1 880

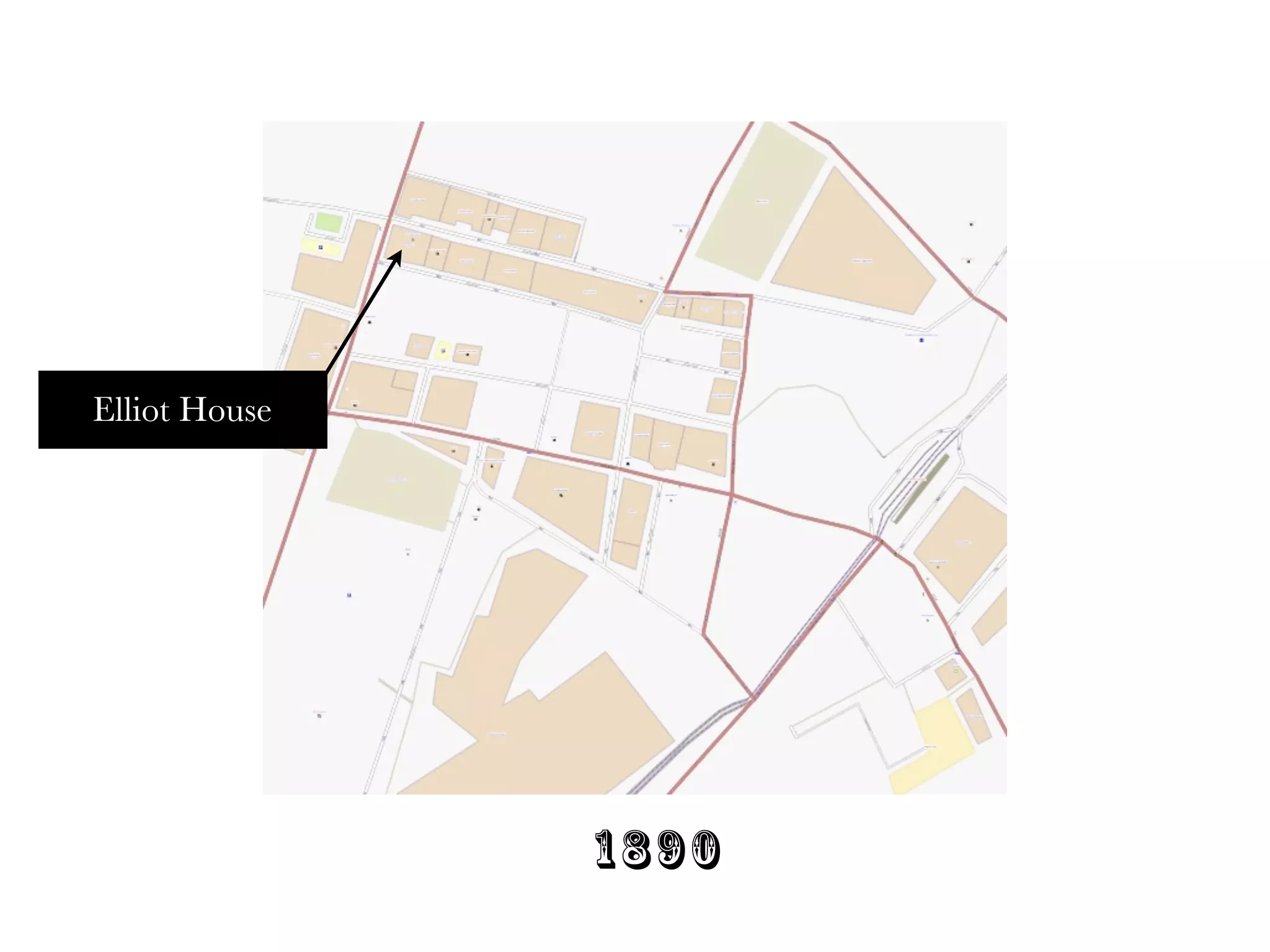

Elliot House




               1 89 0

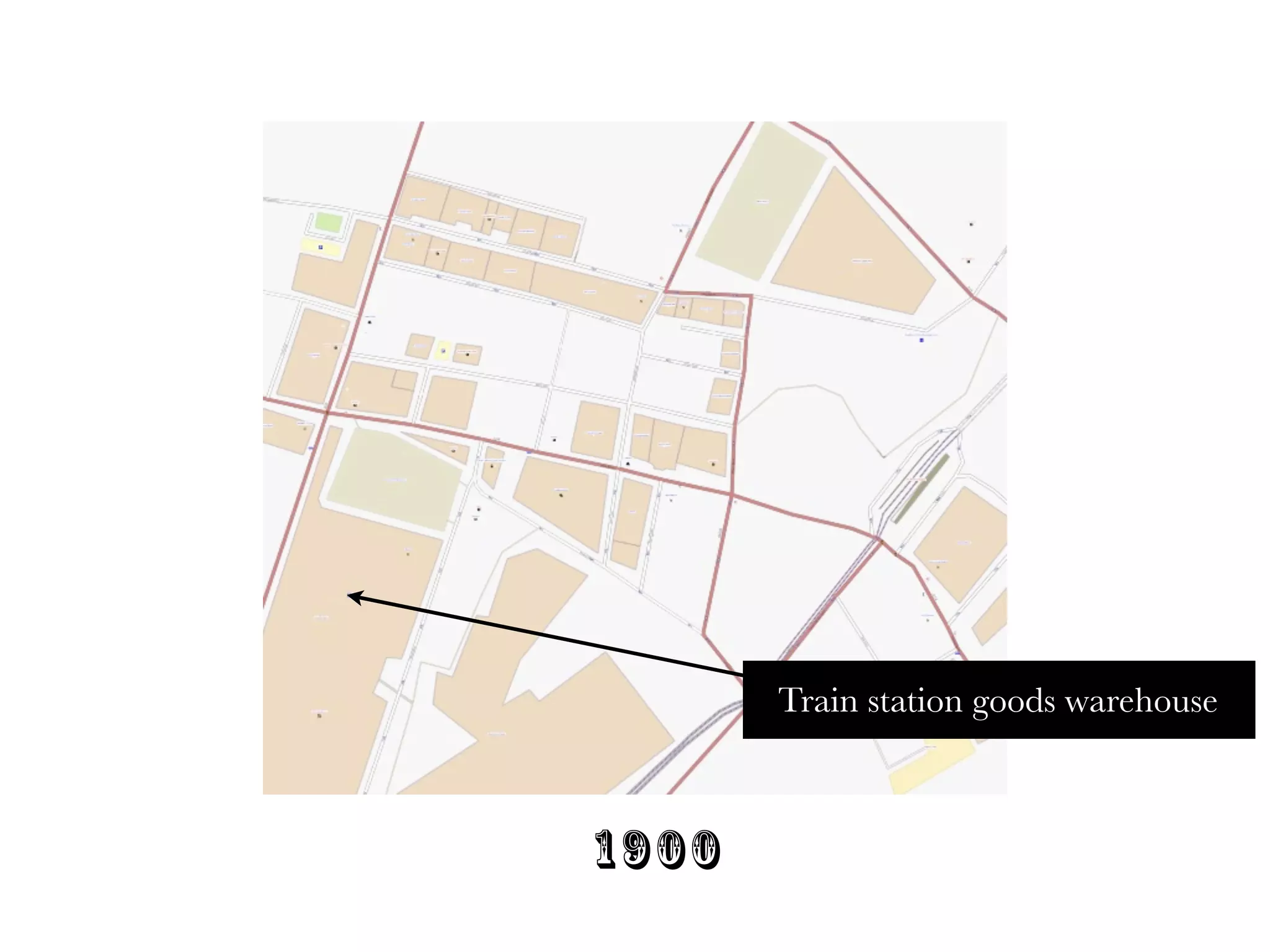

Train station goods warehouse

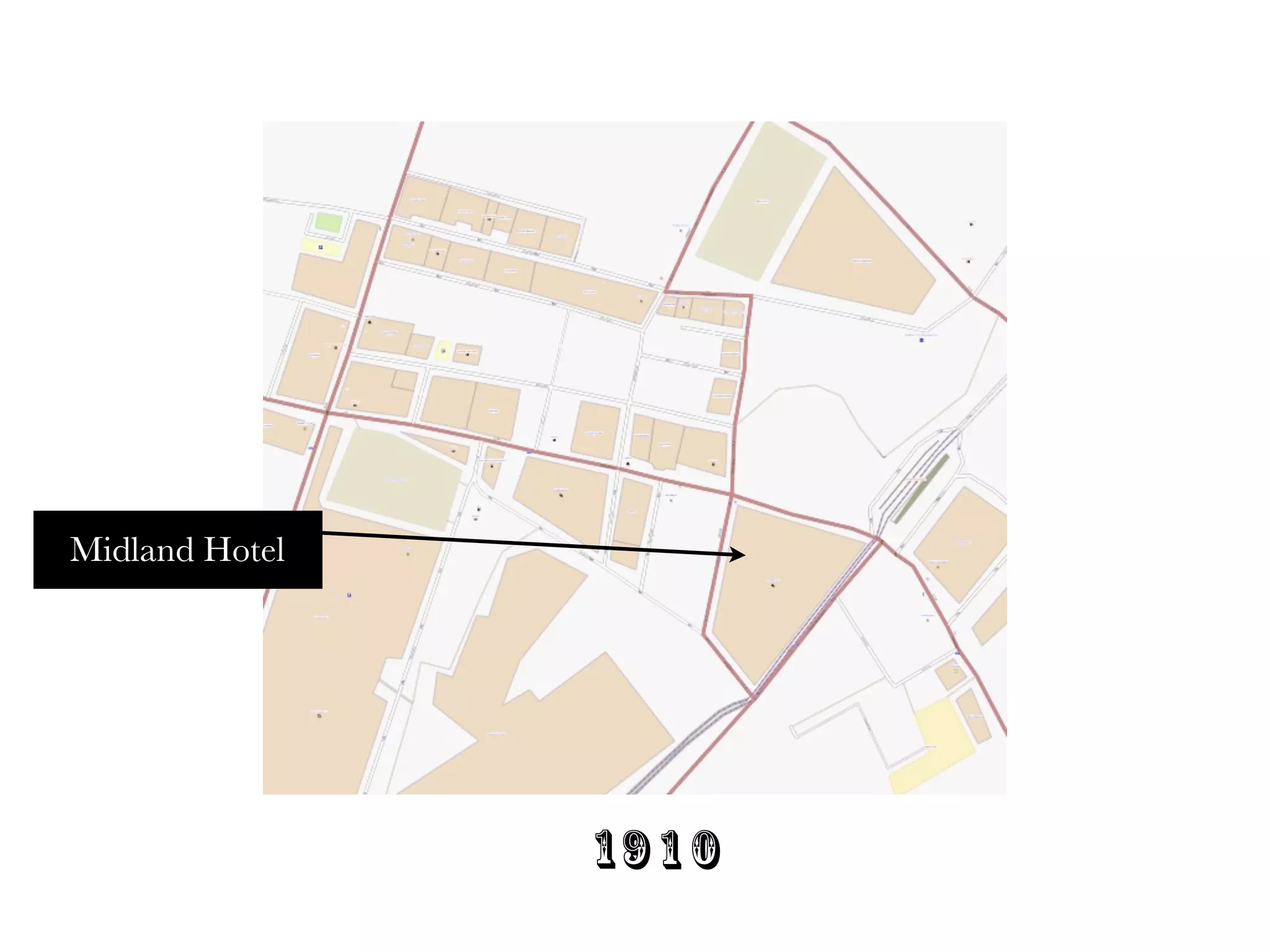

1900
Midland Hotel




                19 1 0

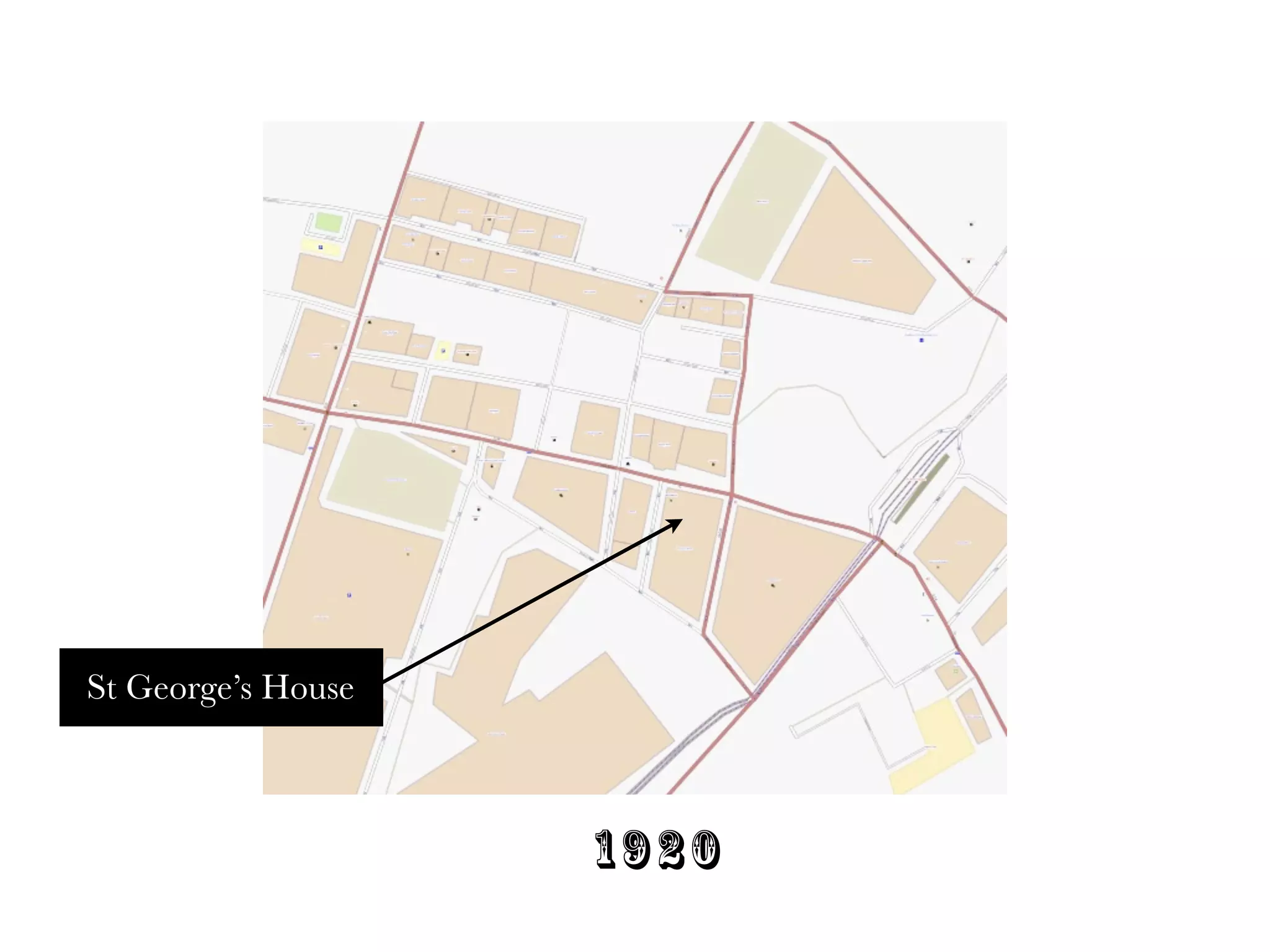

St George’s House



                    1920

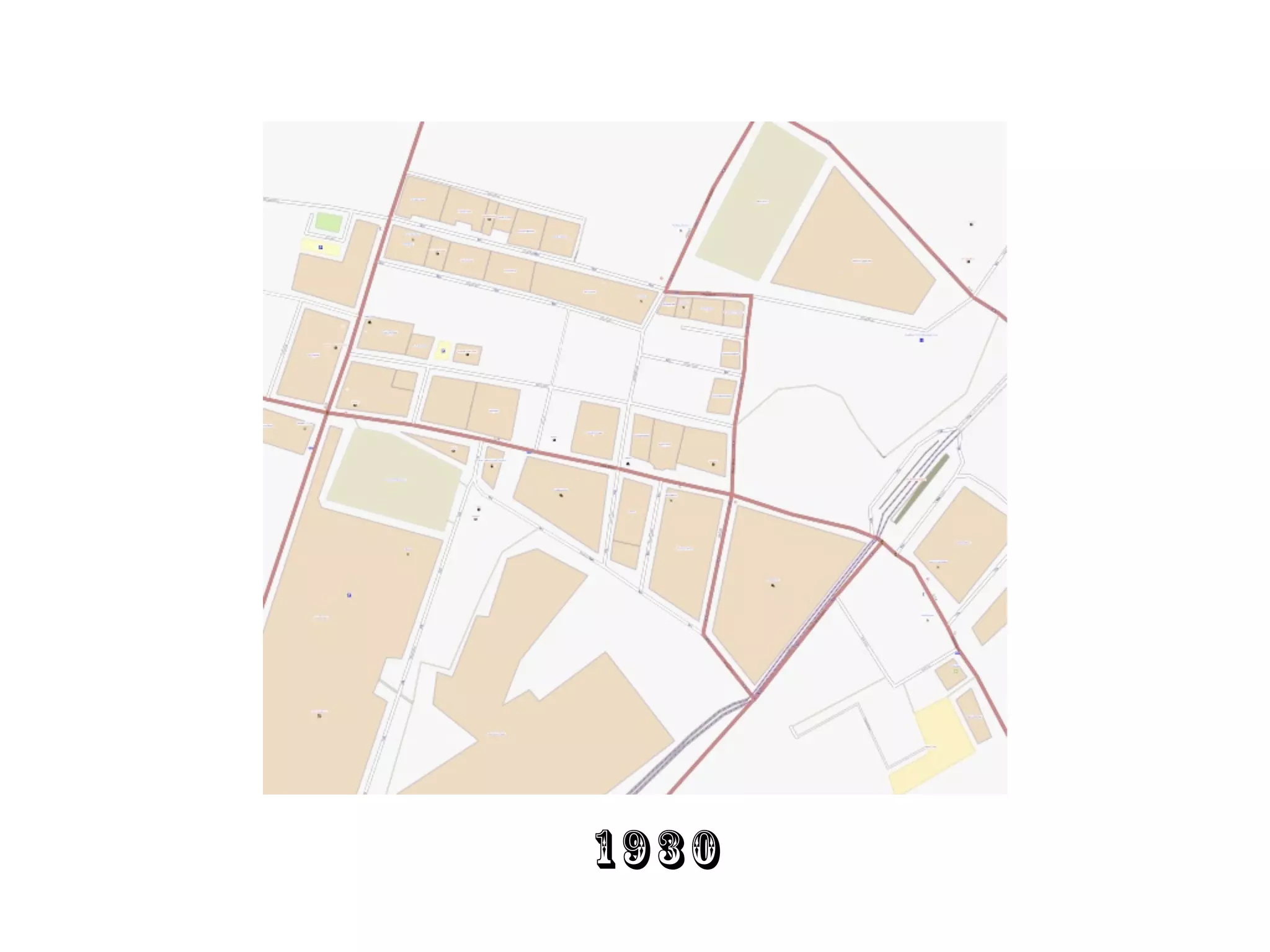

1930

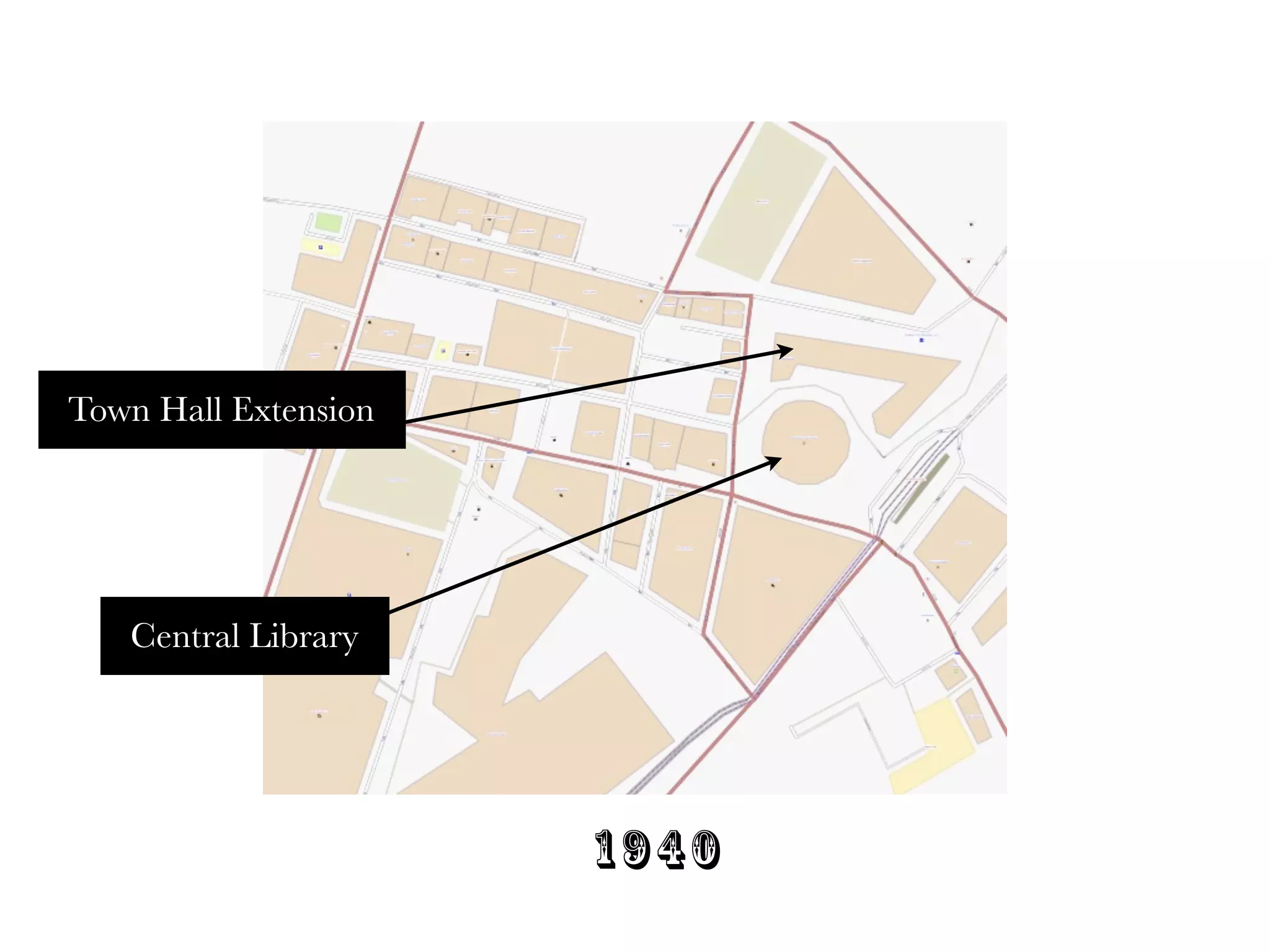

Town Hall Extension




   Central Library




                      1940
1950

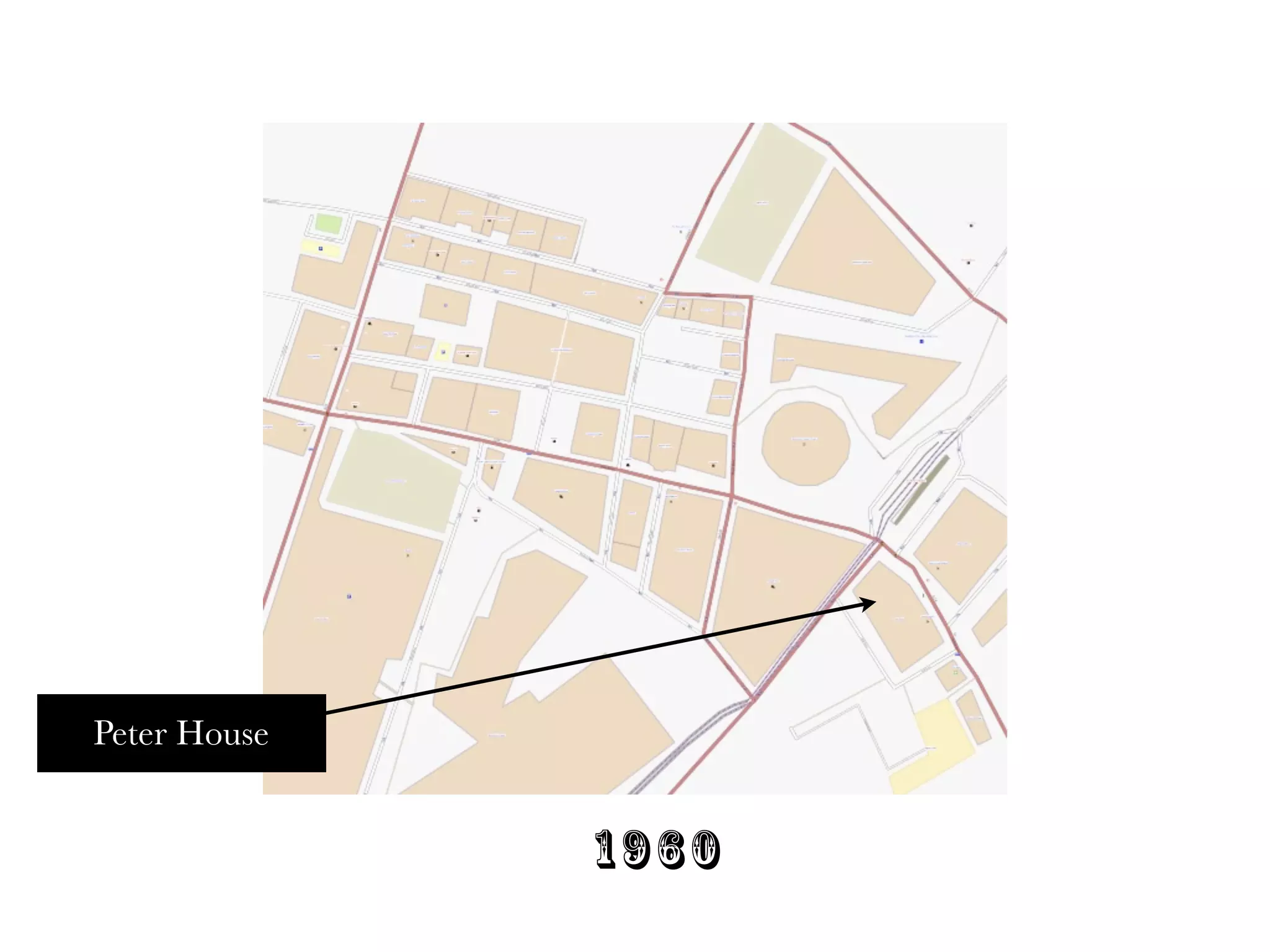

Peter House


              1960

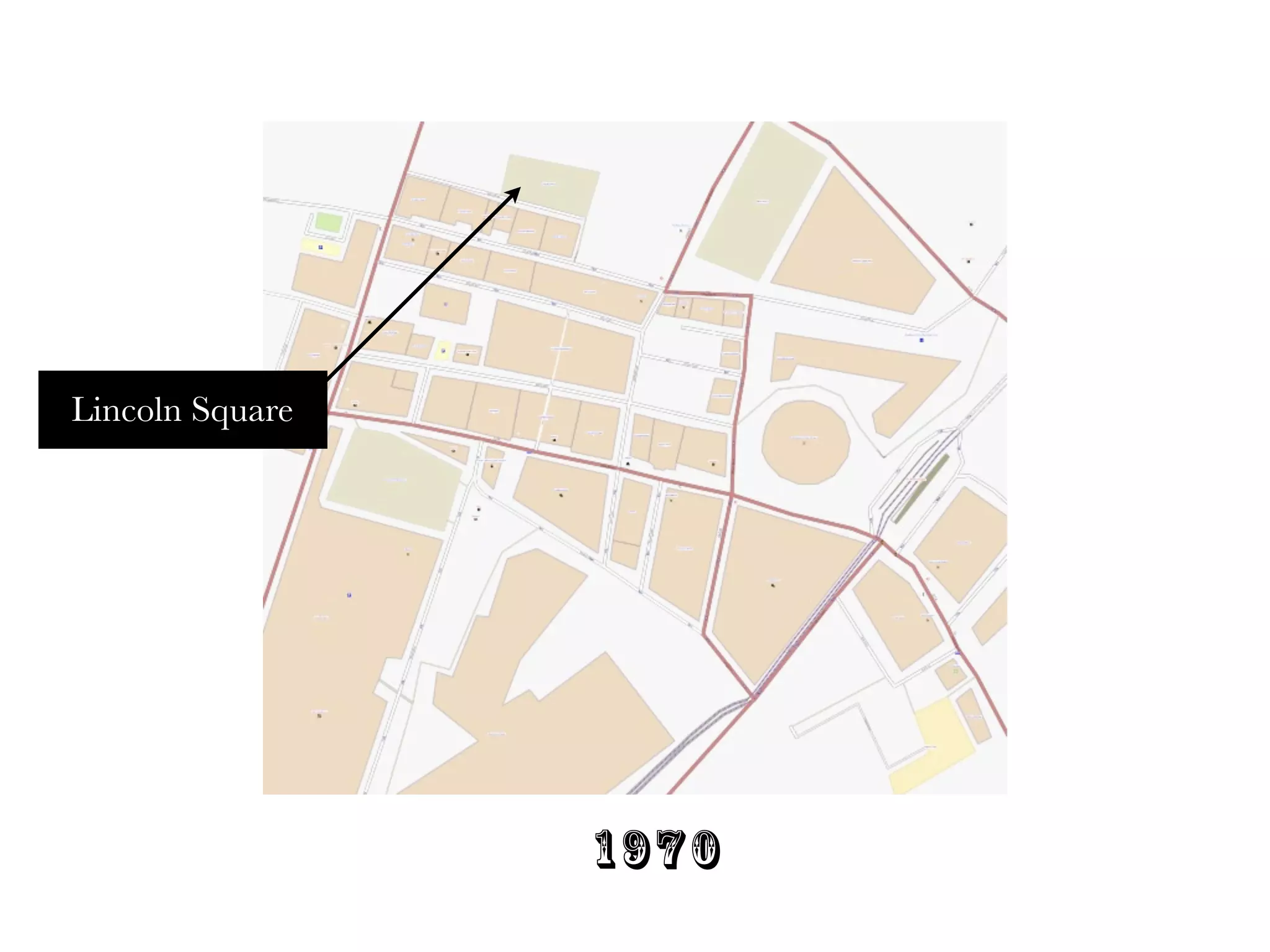

Lincoln Square




                 1970
1 980
Heron House




              1990

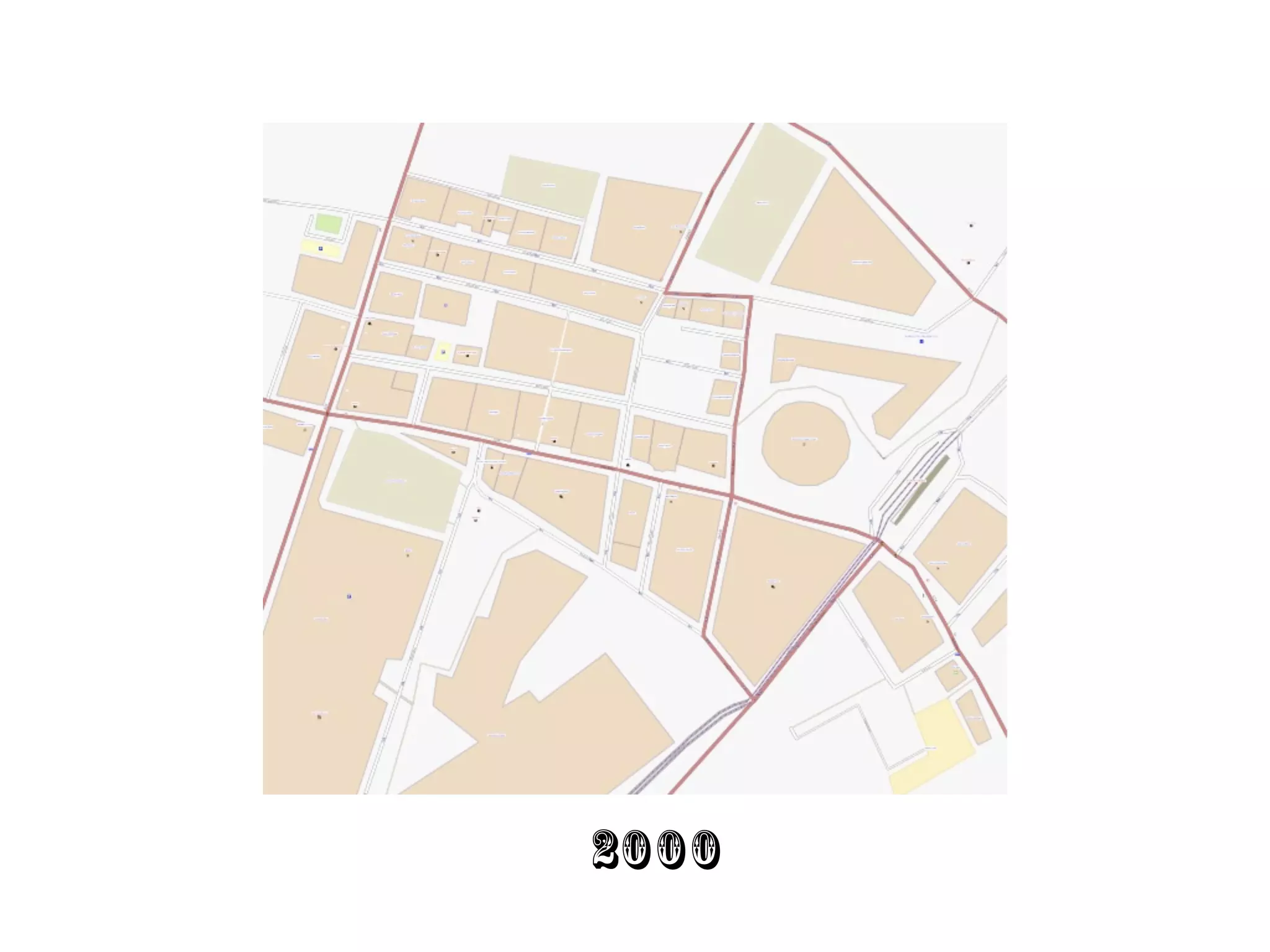

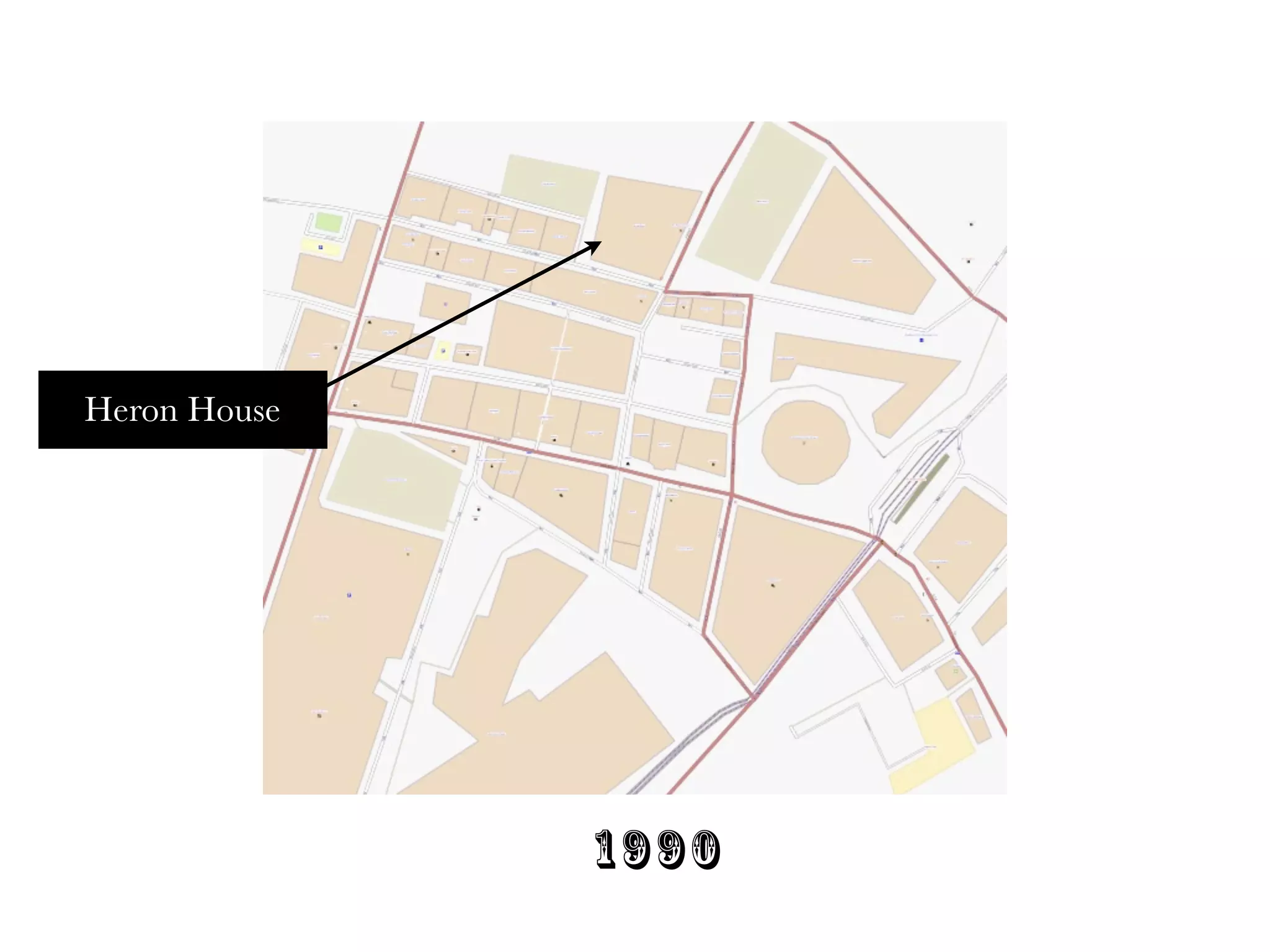

20 0 0
Great Northern Tower

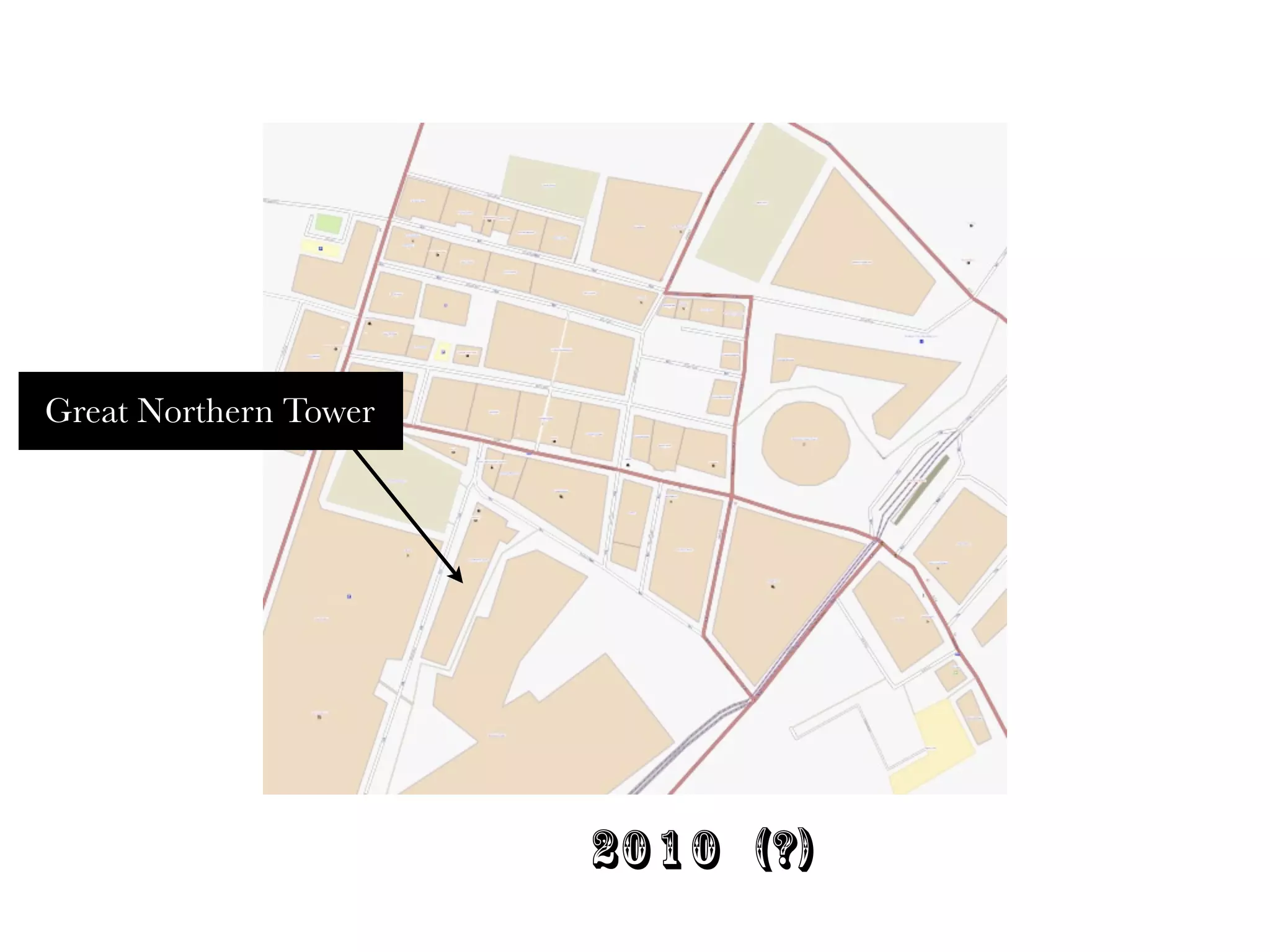

                       20 1 0 (?)

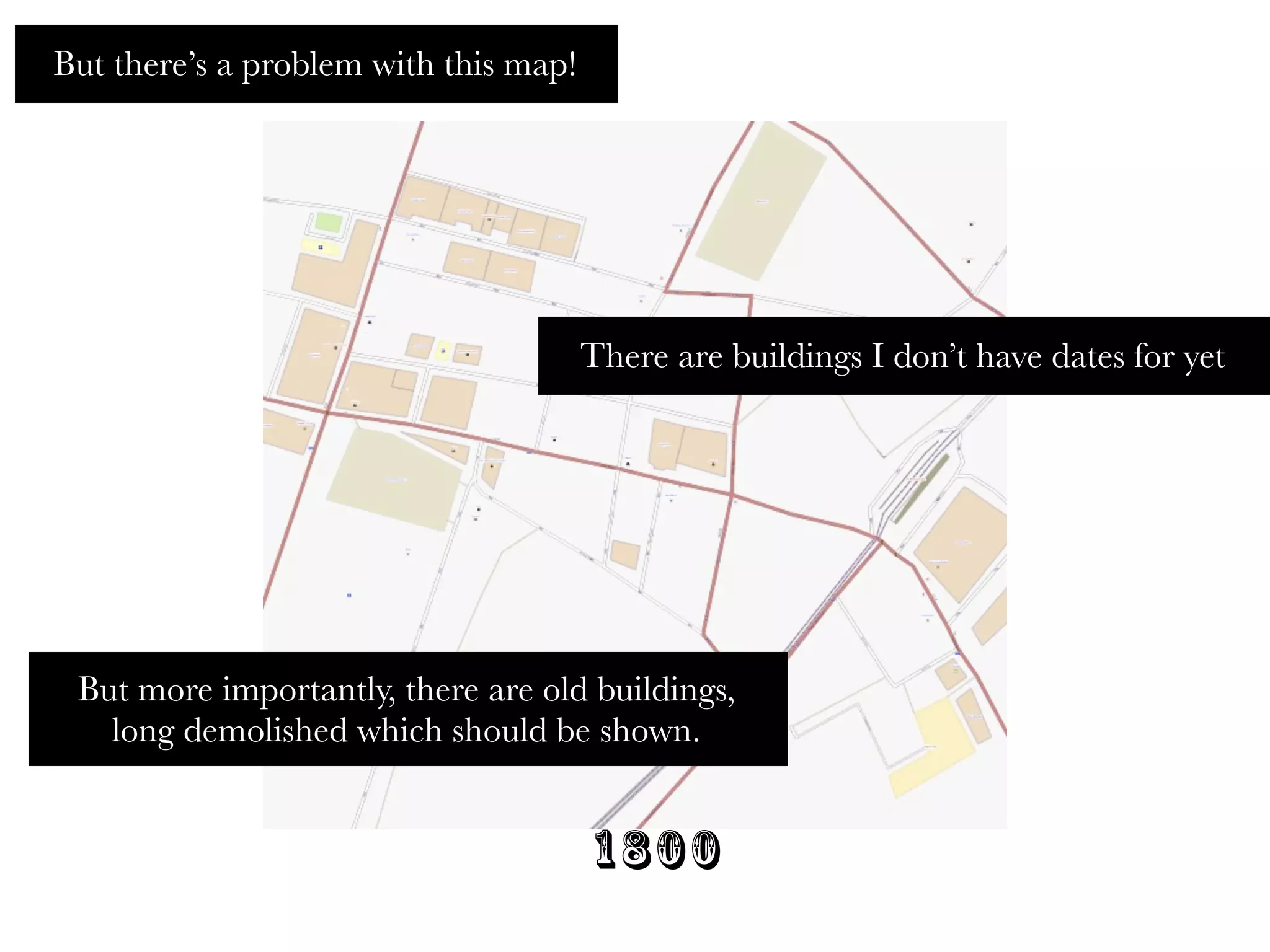

But there’s a problem with this map!




                                       There are buildings I don’t have dates for...

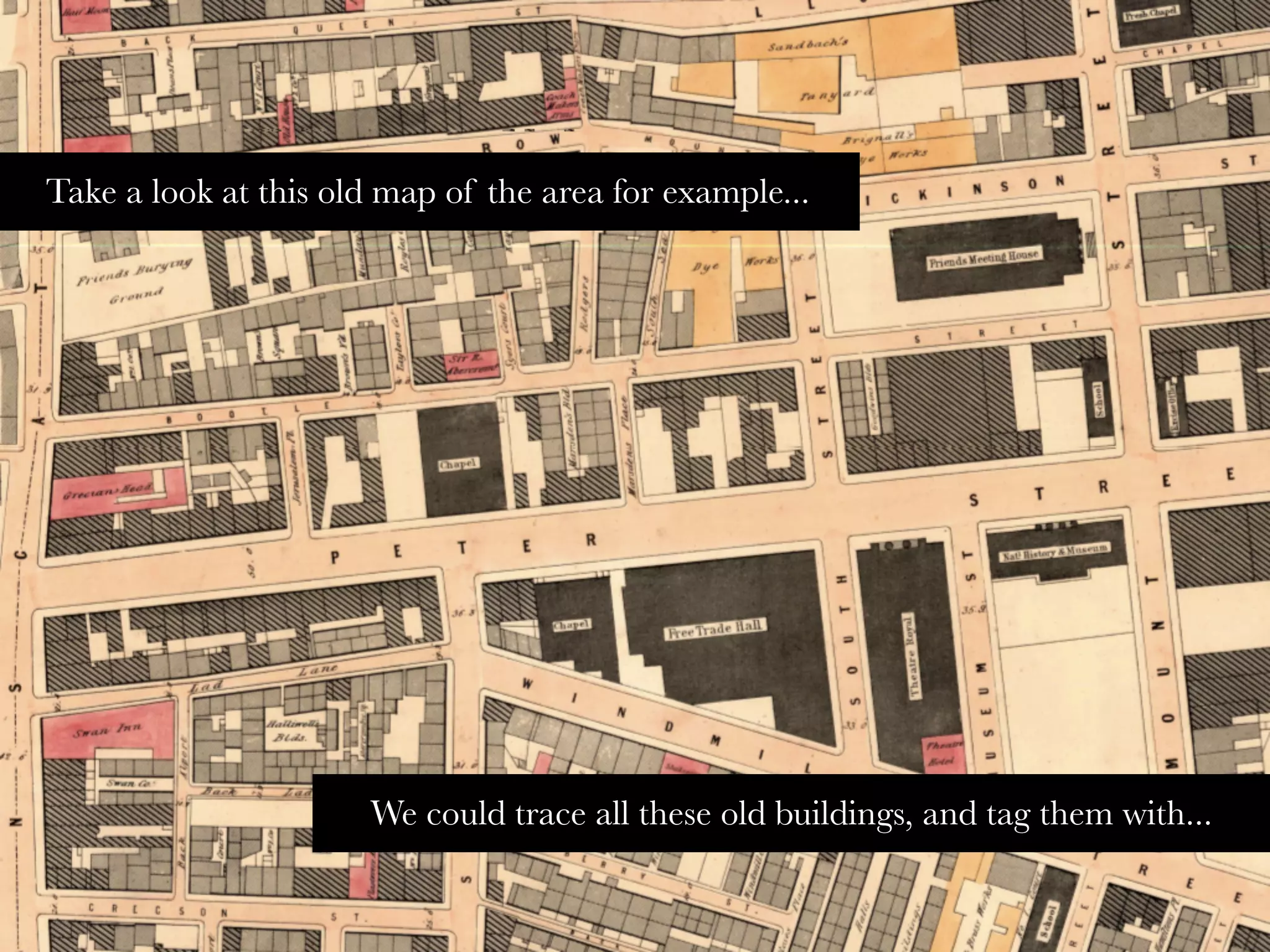

Take a look at this old map of the area for example...




                      We could trace all these old buildings, a...
end_date=
But there’s a problem:
But there’s a problem:

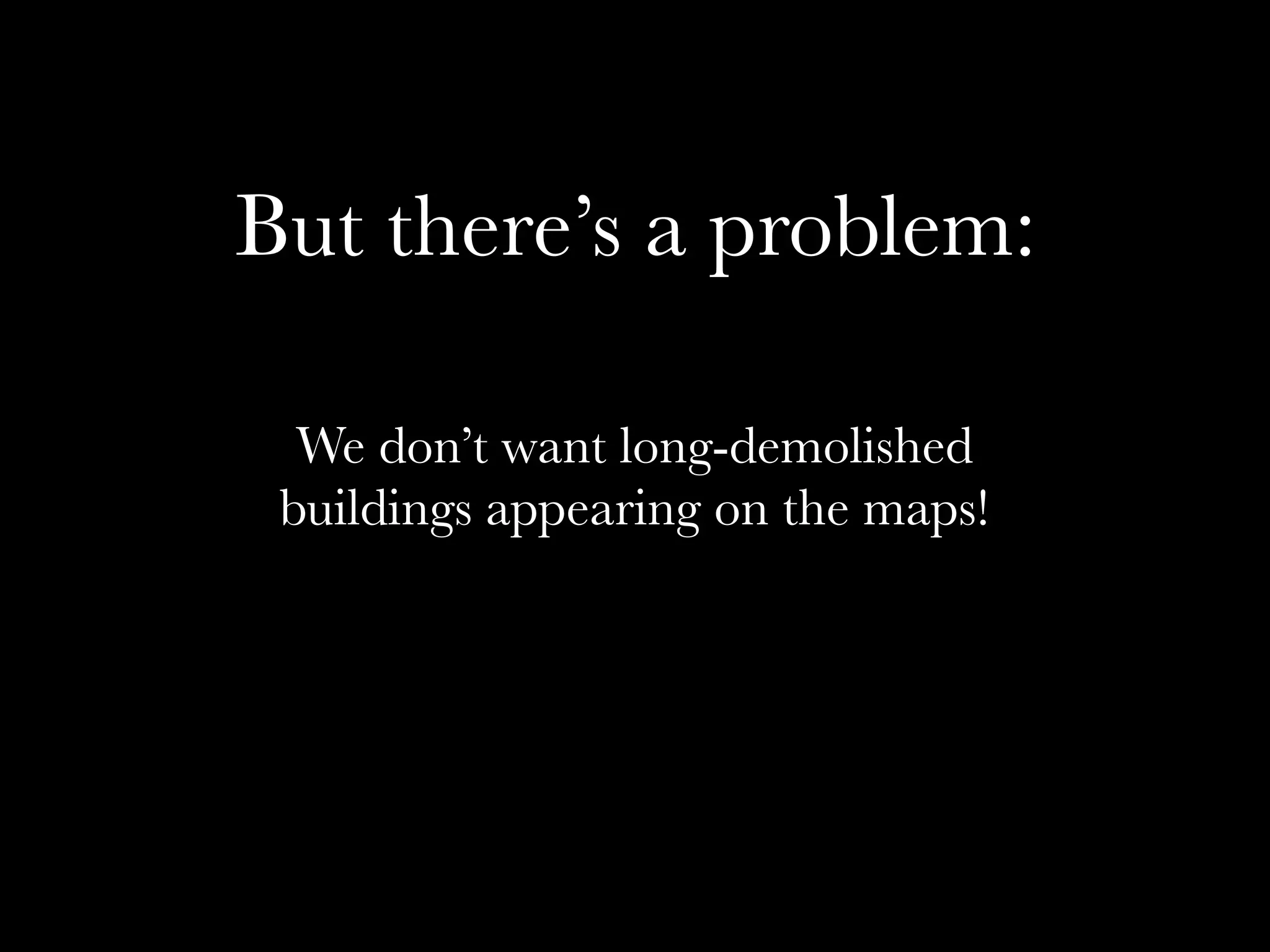

  We don’t want long-demolished
 buildings appearing on the maps!
But there’s a problem:

    We don’t want long-demolished
   buildings appearing on the maps!


Renderers could filter out ...

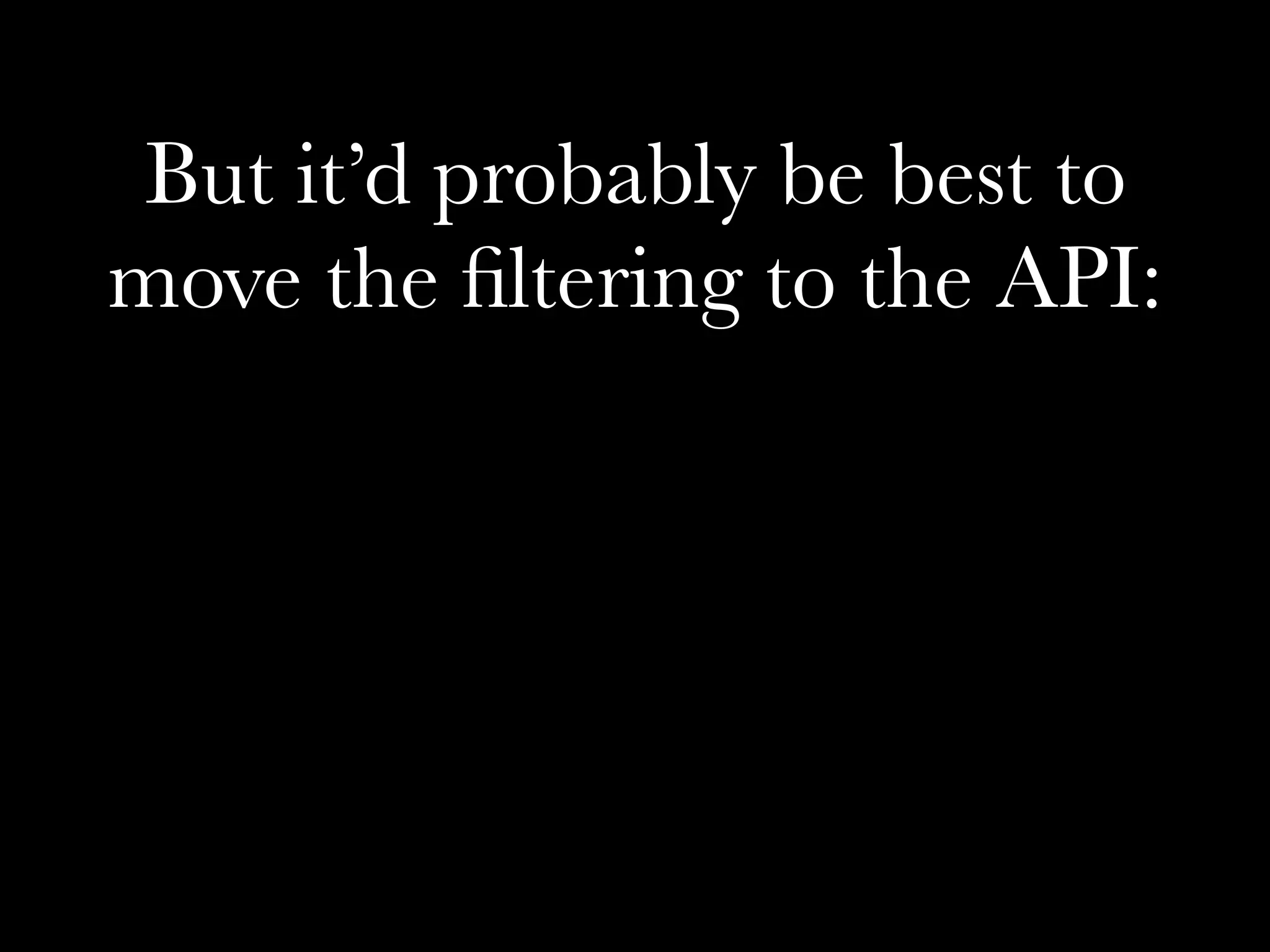

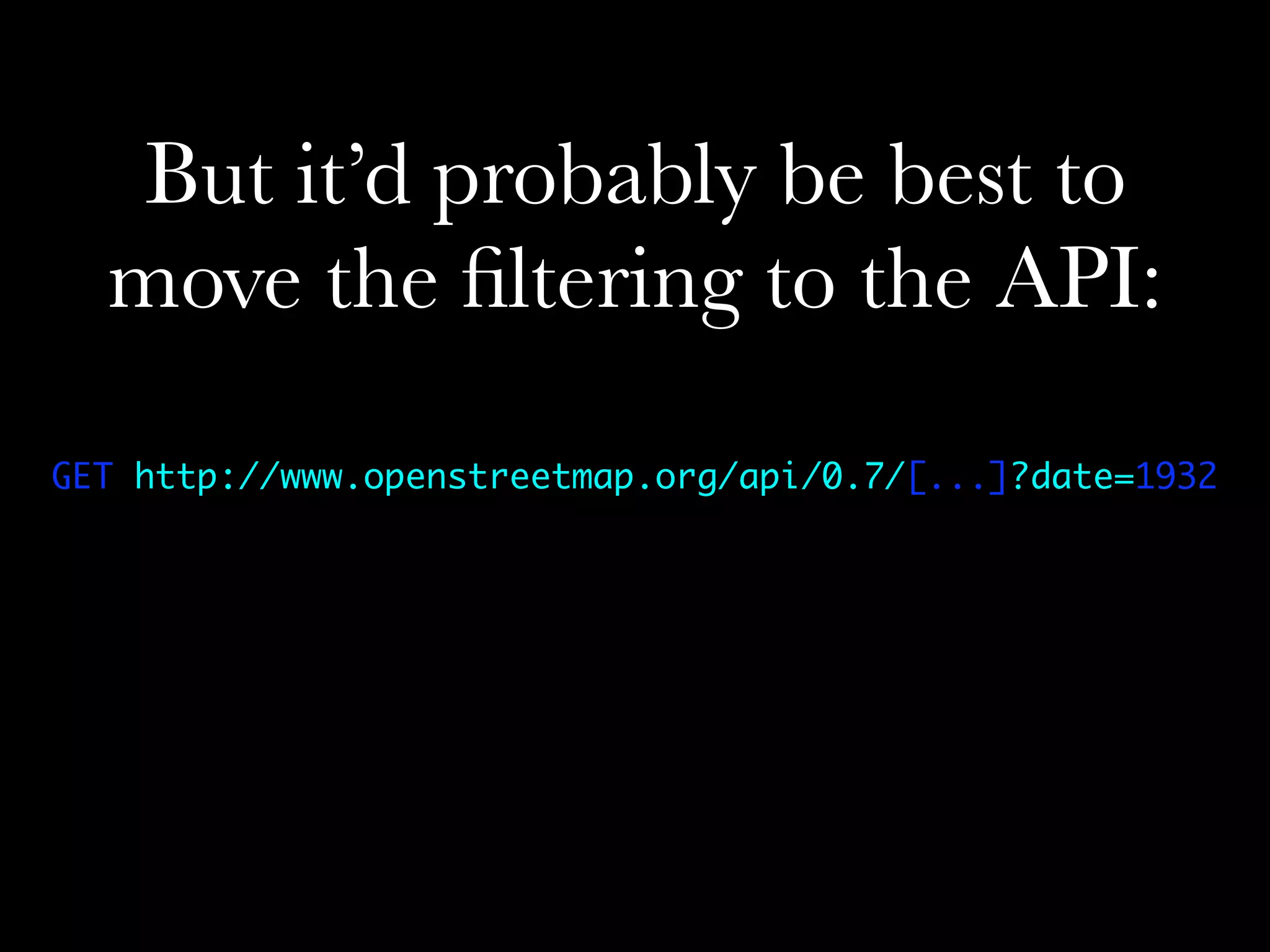

But it’d probably be best to
move the filtering to the API:
But it’d probably be best to
  move the filtering to the API:

GET http://www.openstreetmap.org/api/0.7/[...]?date=1932
But it’d probably be best to
  move the filtering to the API:

GET http://www.openstreetmap.org/api/0.7/[...]?date=1932



...

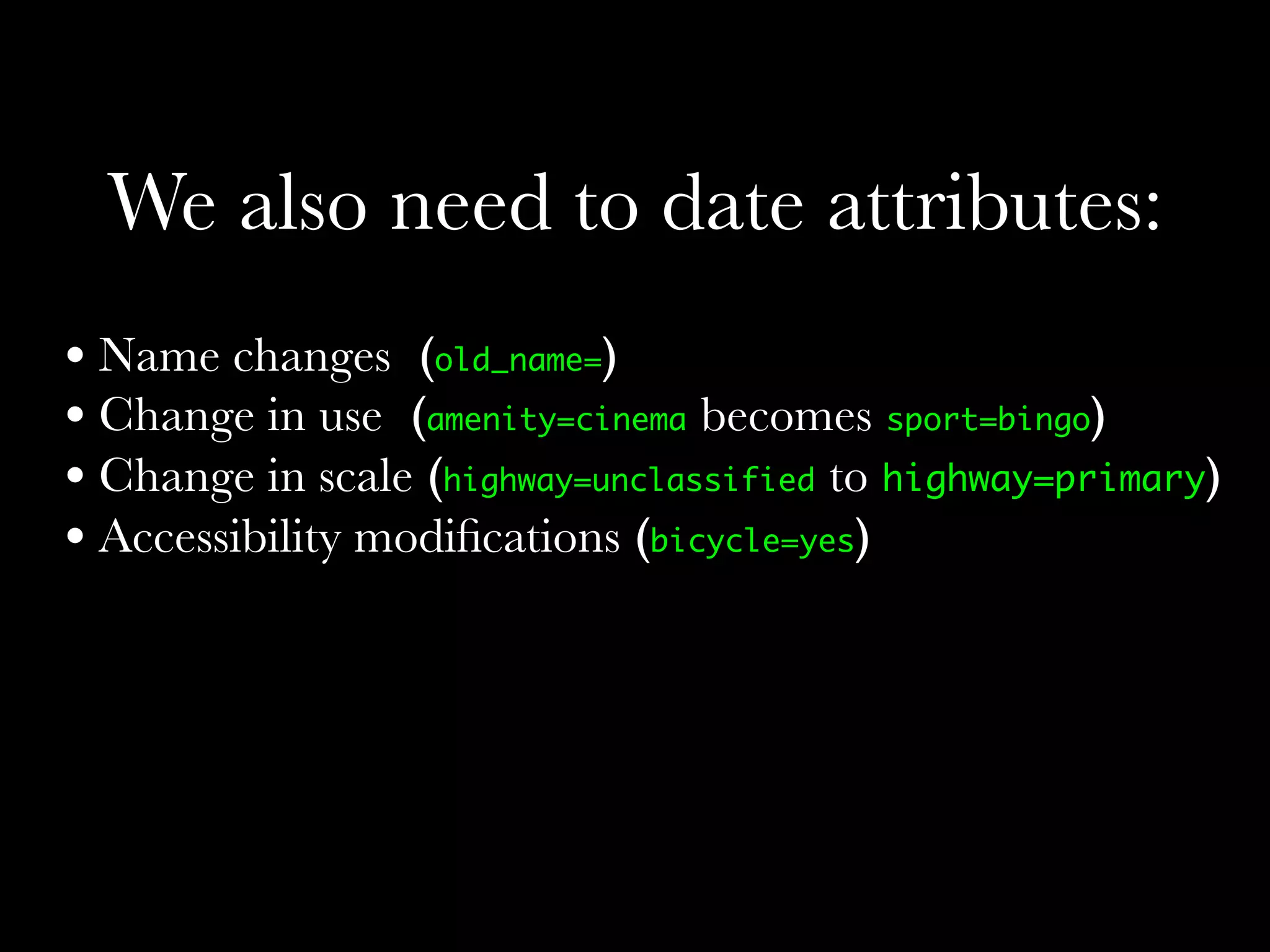

We also need to date attributes:
We also need to date attributes:

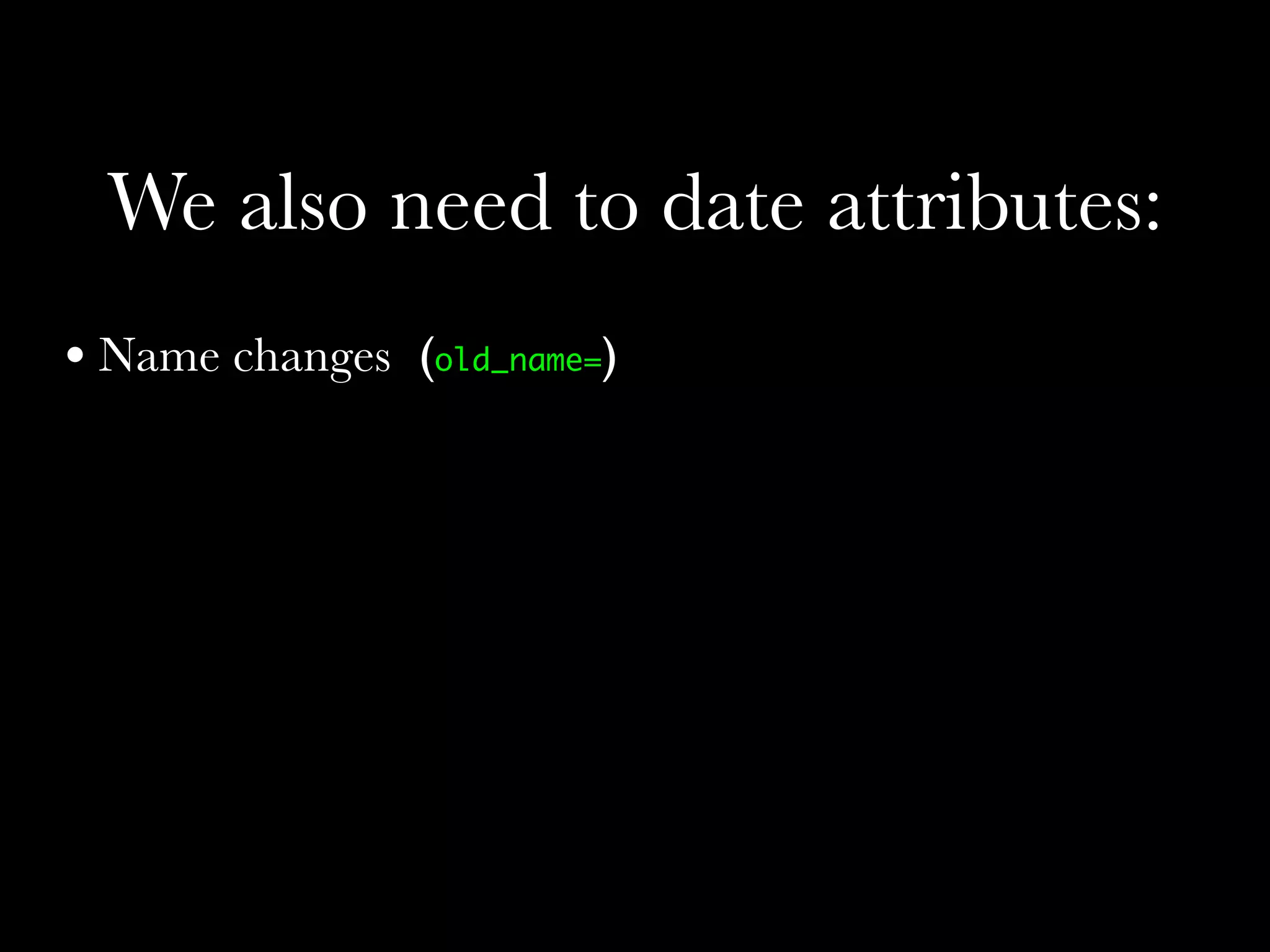

• Name changes   (old_name=)
We also need to date attributes:
• Name changes     (old_name=)

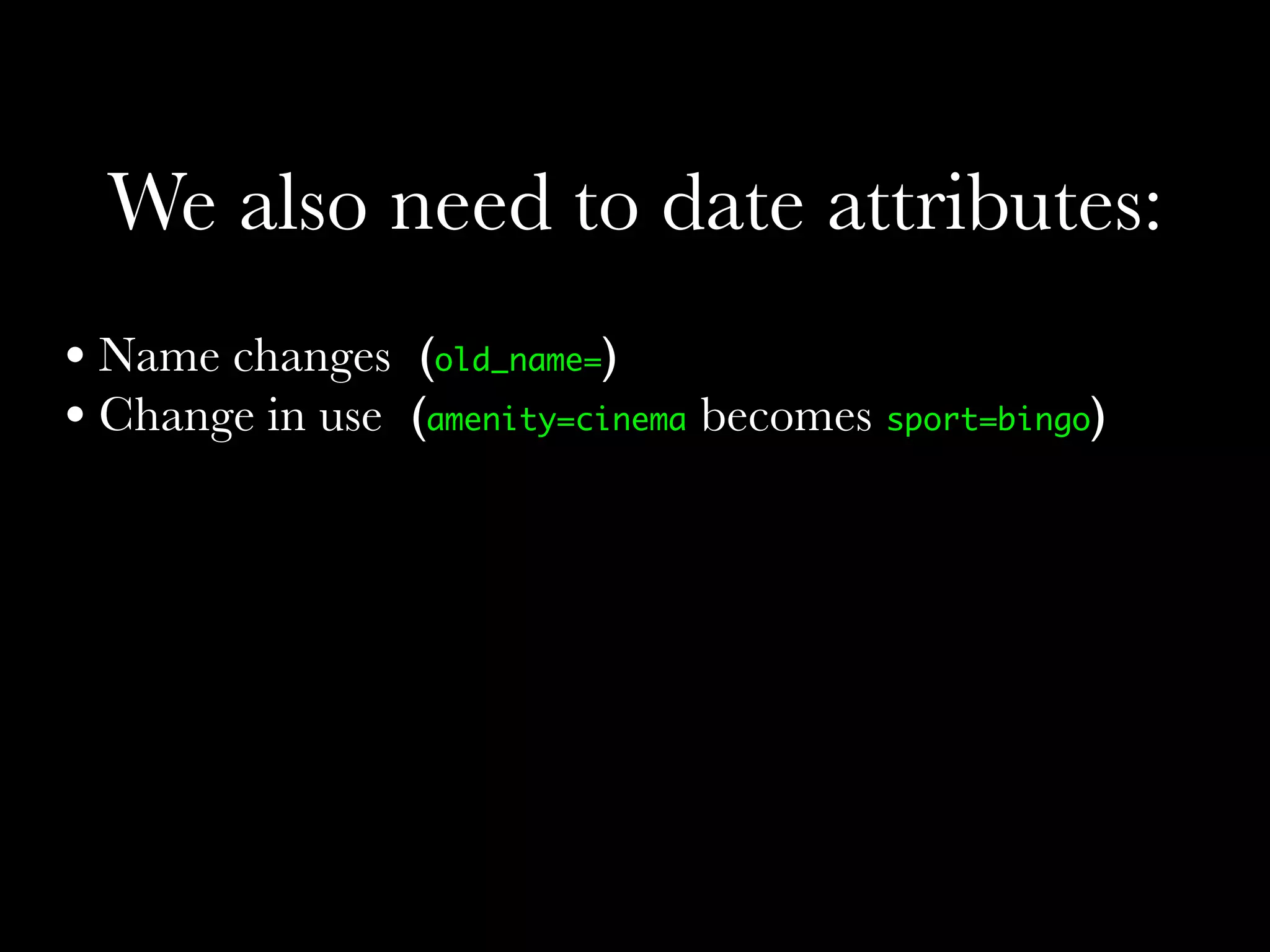

• Change in use   (amenity=cinema becomes sport=bingo)
We also need to date attributes:
• Name changes (old_name=)
• Change in use (amenity=cinema becomes sport=bingo)
• Change ...
We also need to date attributes:
• Name changes (old_name=)
• Change in use (amenity=cinema becomes sport=bingo)
• Change ...

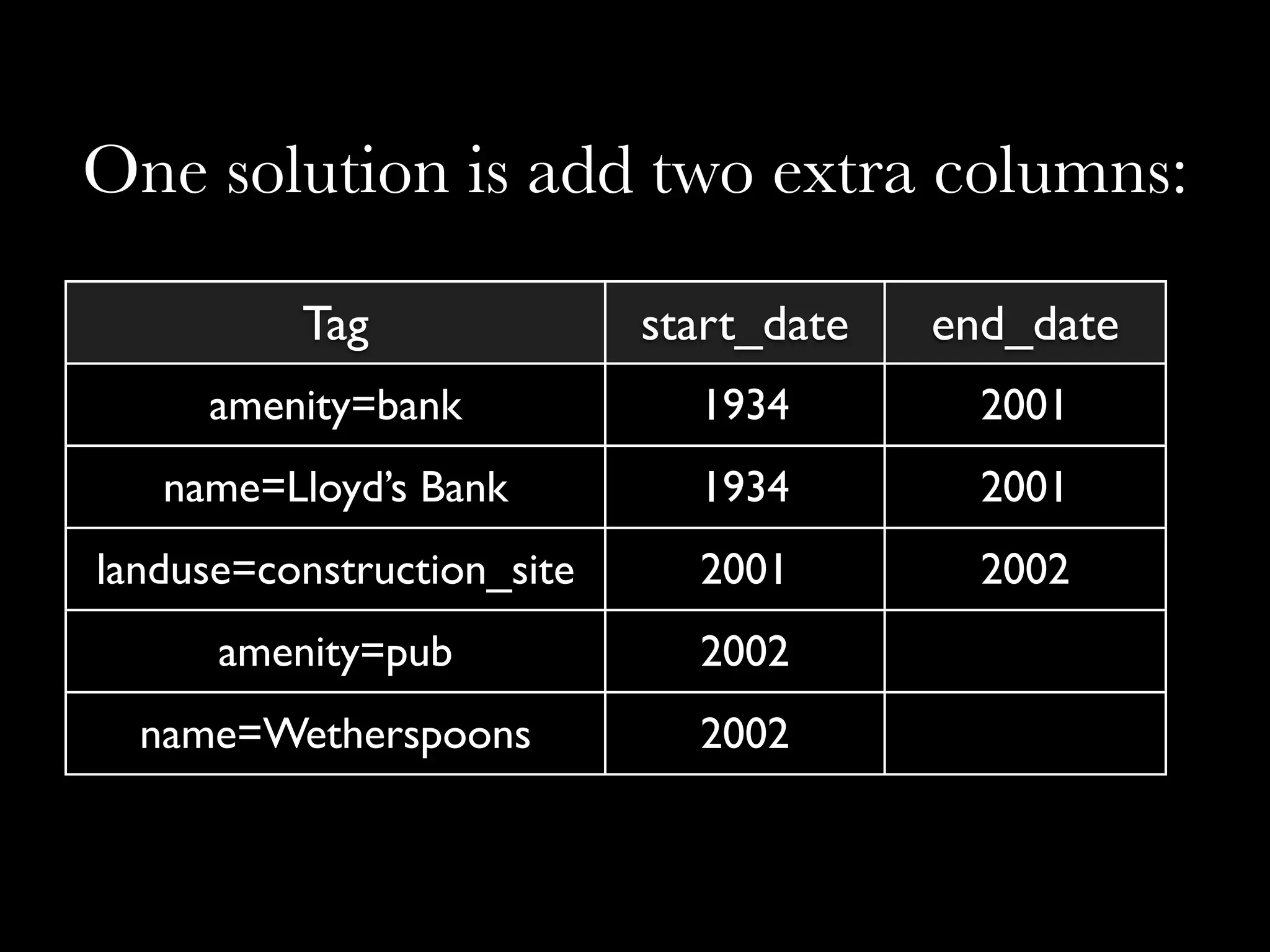

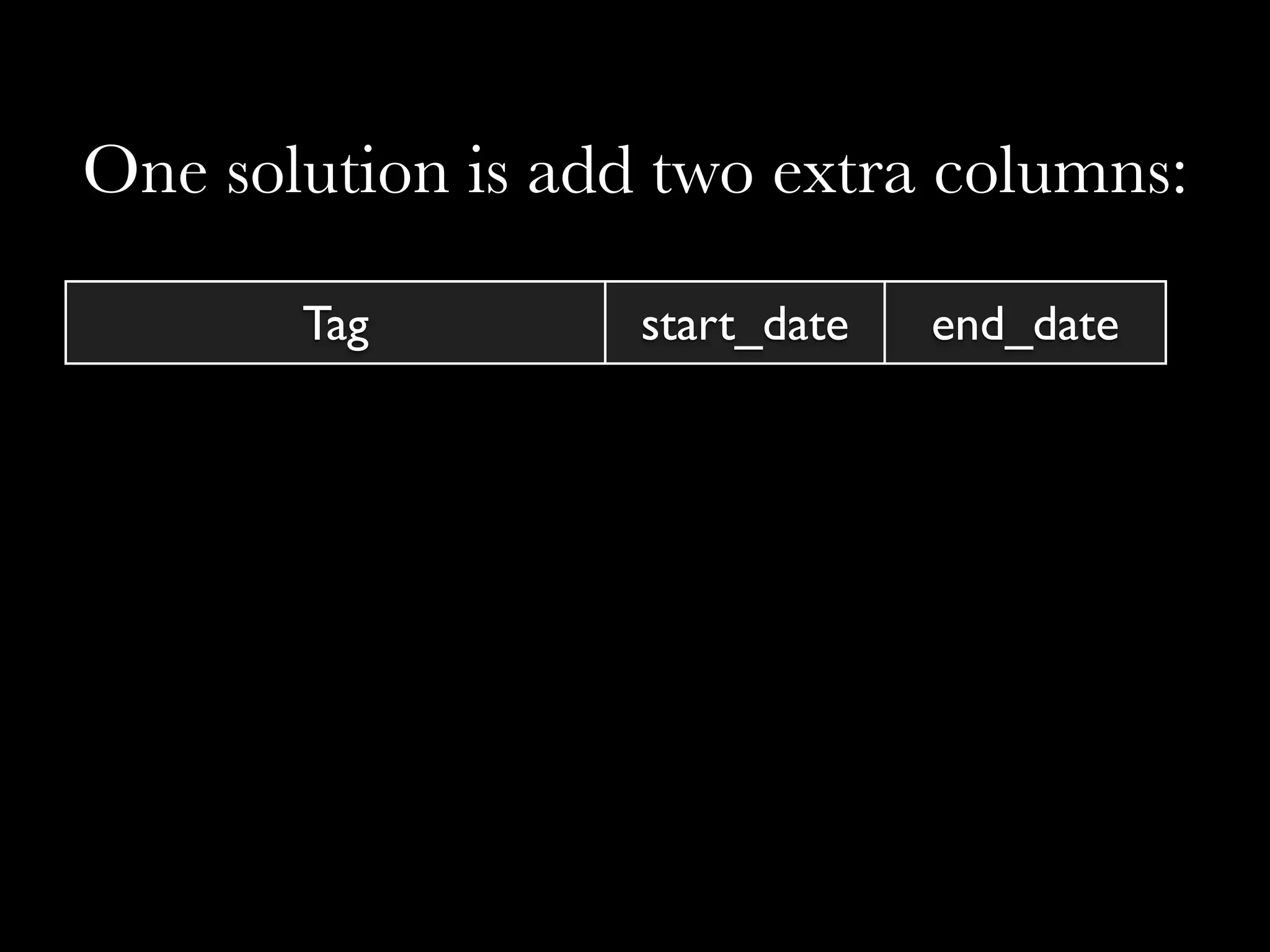

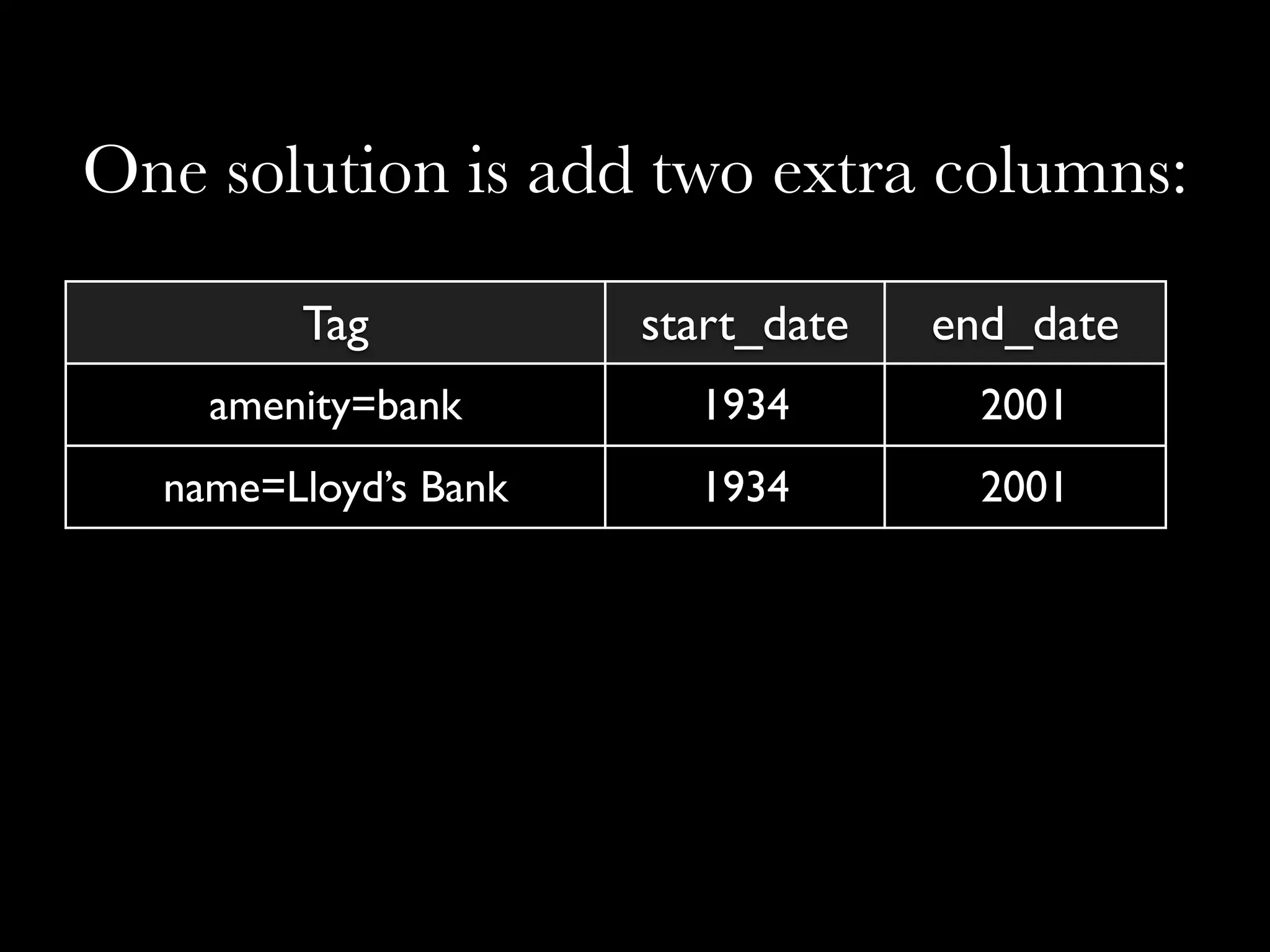

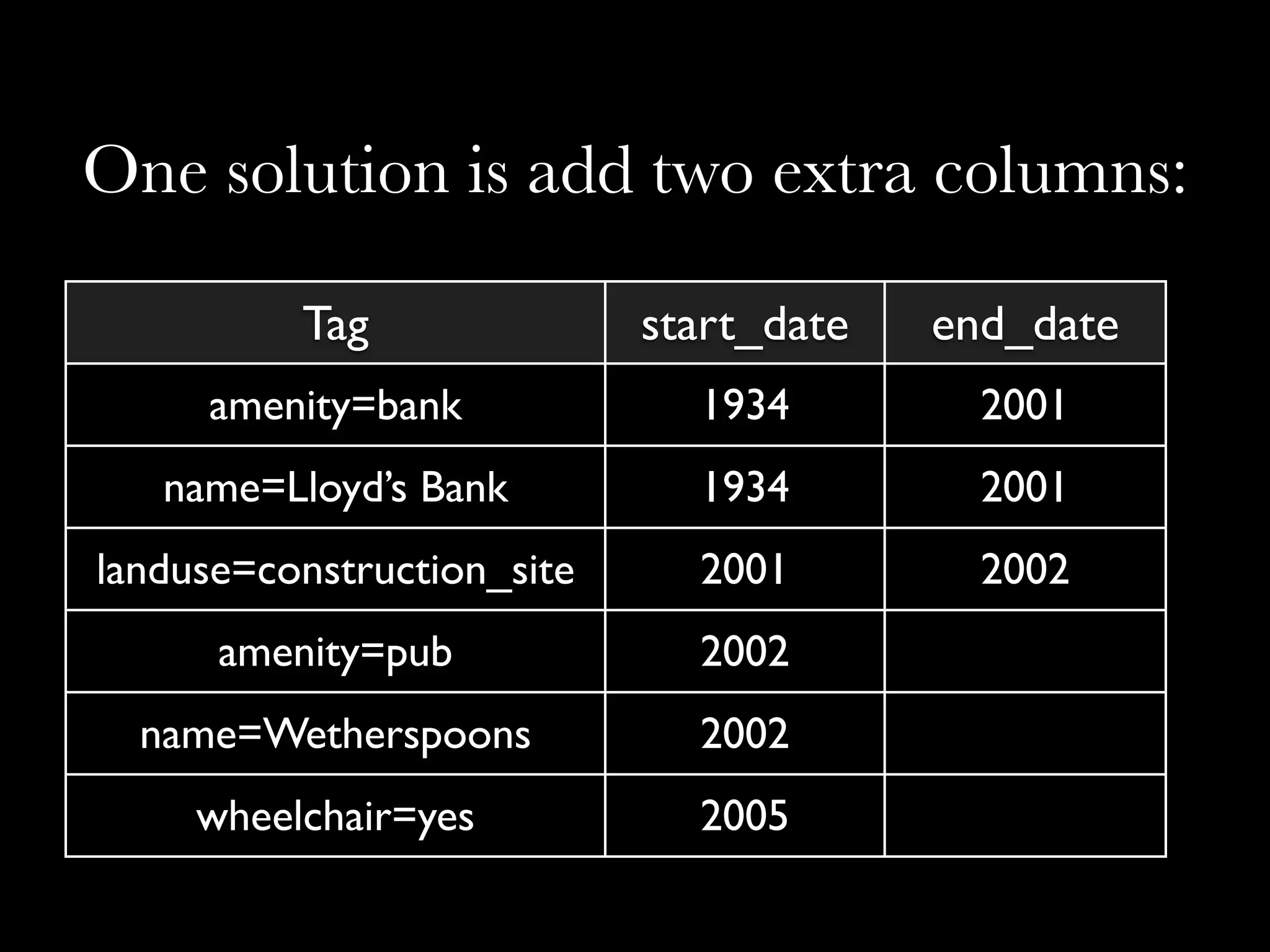

One solution is add two extra columns:
One solution is add two extra columns:

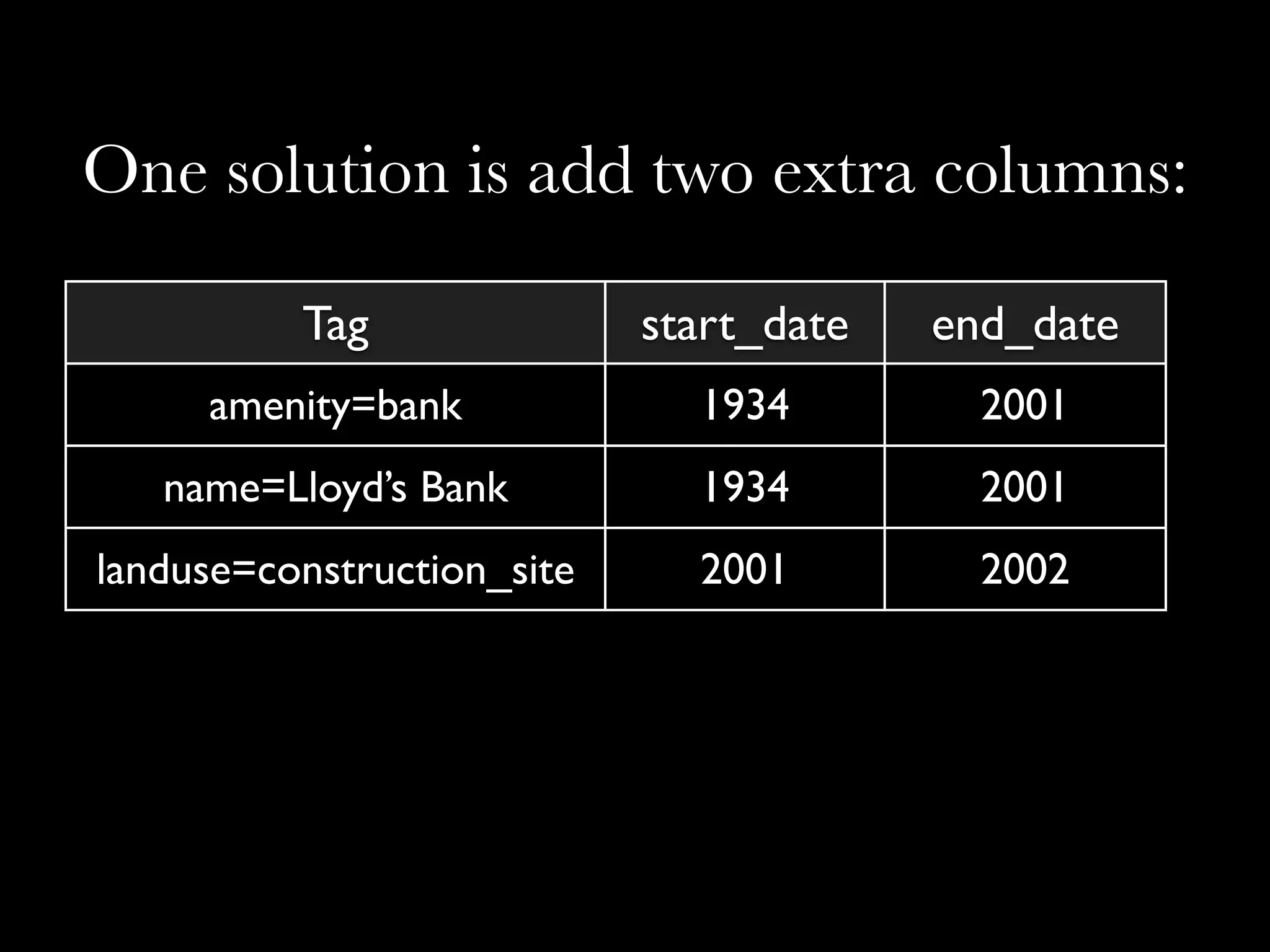

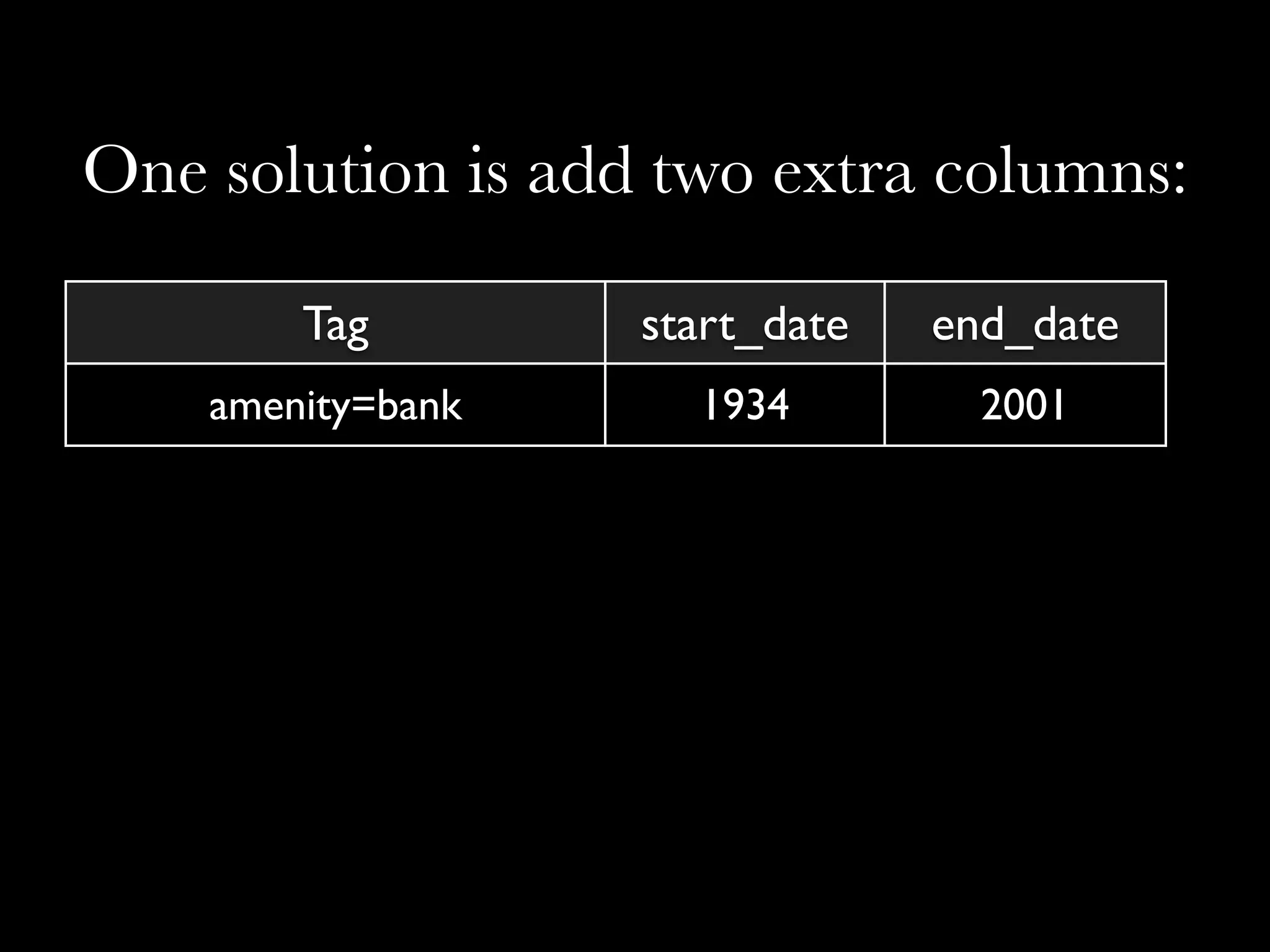

          Tag               start_date   end_date
     amenity=bank             19...
One solution is add two extra columns:

          Tag               start_date   end_date
     amenity=bank             19...
One solution is add two extra columns:

          Tag               start_date   end_date
     amenity=bank             19...
One solution is add two extra columns:

          Tag               start_date   end_date
     amenity=bank             19...
One solution is add two extra columns:

          Tag               start_date   end_date
     amenity=bank             19...
One solution is add two extra columns:

          Tag               start_date   end_date
     amenity=bank             19...
One solution is add two extra columns:

          Tag               start_date   end_date
     amenity=bank             19...

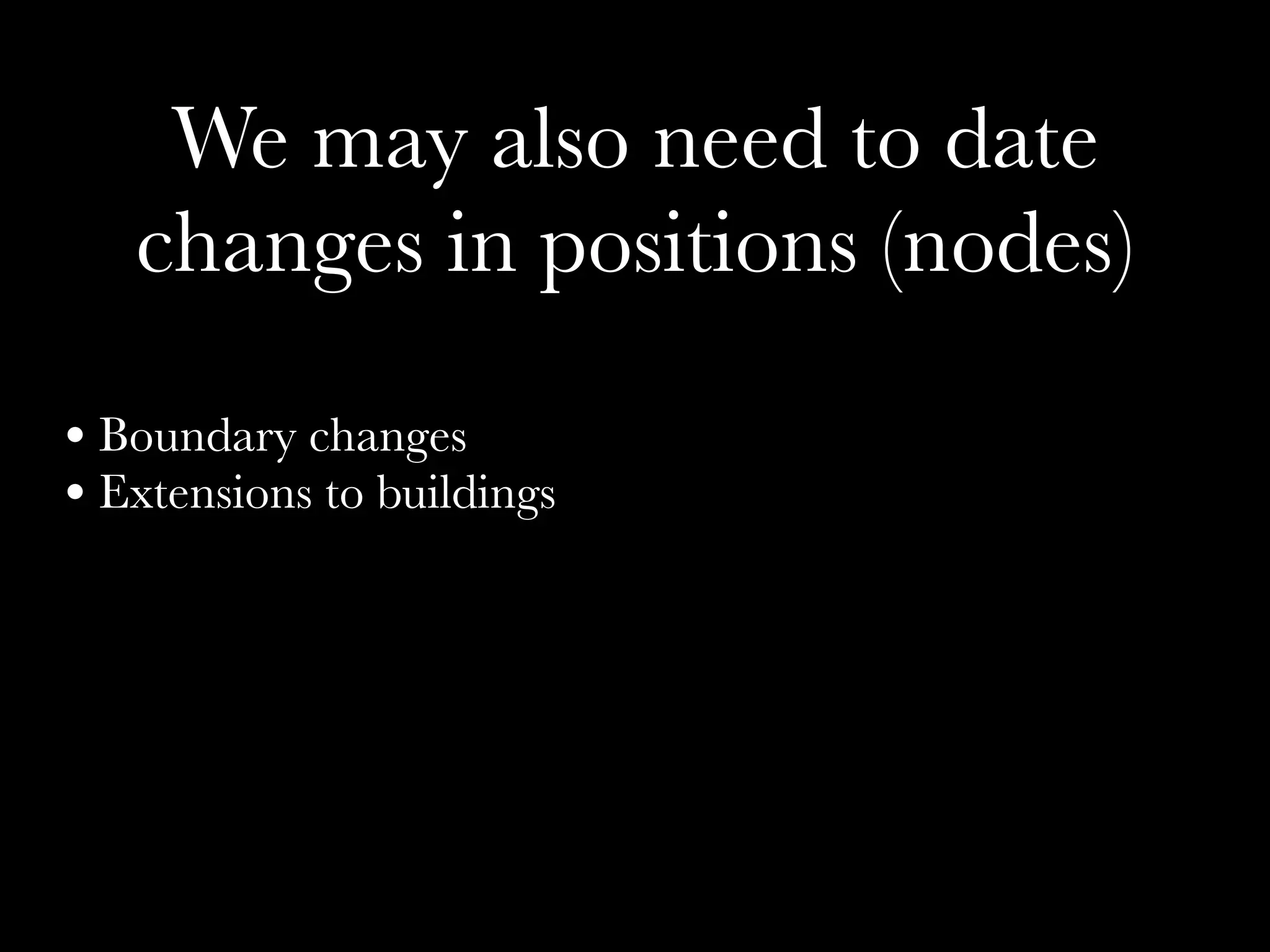

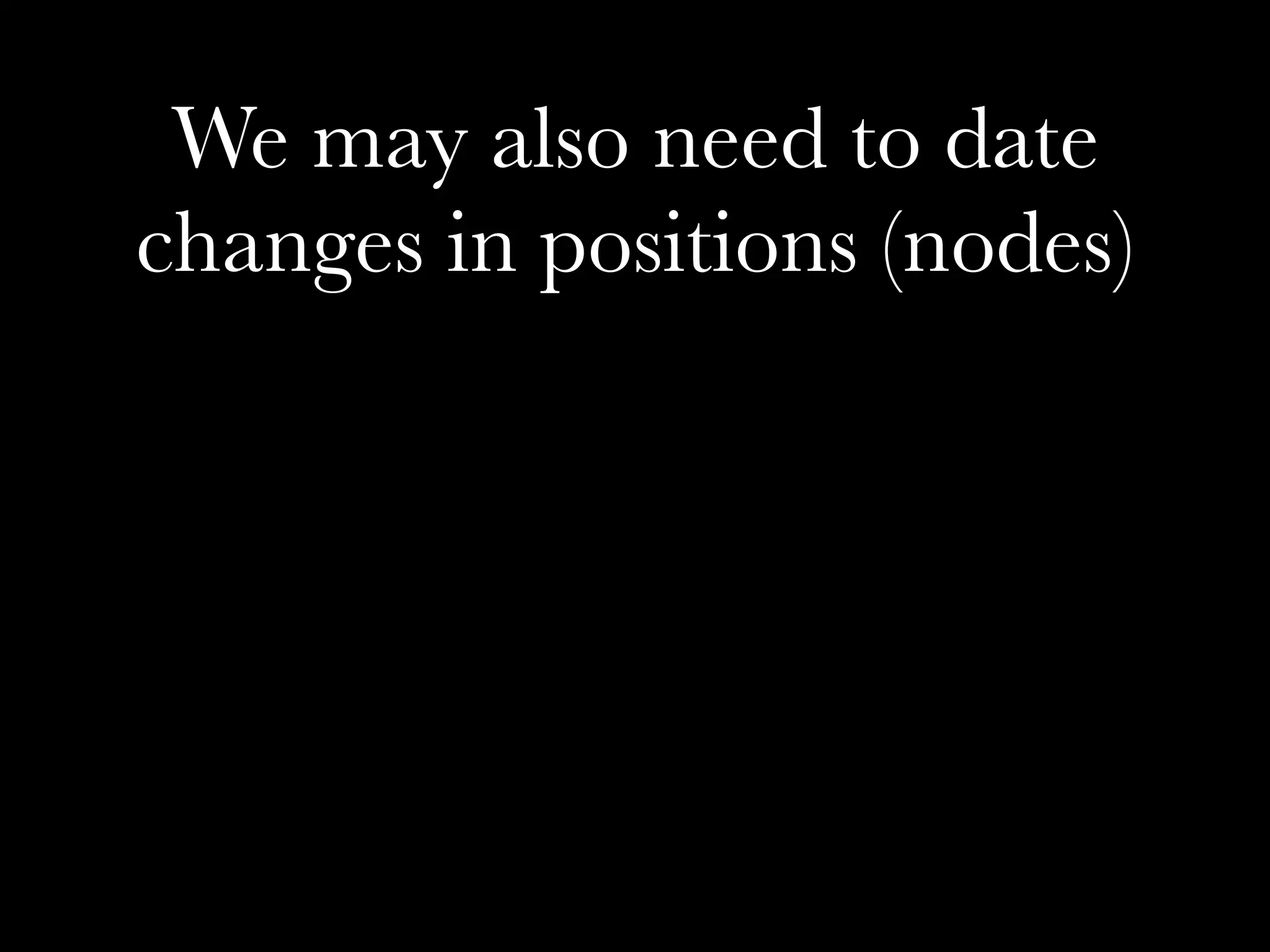

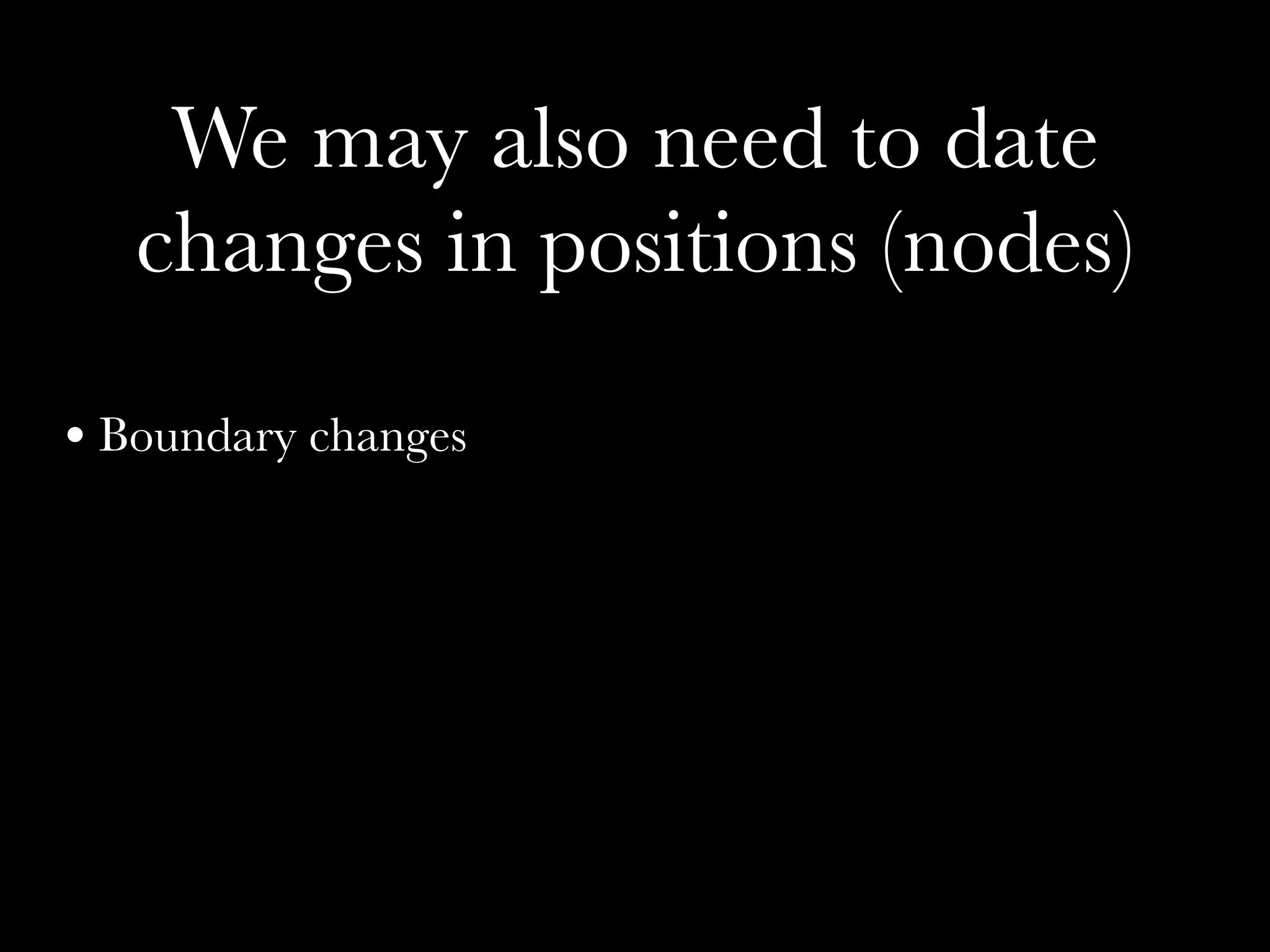

We may also need to date
changes in positions (nodes)
We may also need to date
   changes in positions (nodes)

• Boundary changes
We may also need to date
   changes in positions (nodes)

• Boundary changes
• Extensions to buildings
We may also need to date
   changes in positions (nodes)

• Boundary changes
• Extensions to buildings
• Road straightening
We may also need to date
   changes in positions (nodes)

• Boundary changes
• Extensions to buildings
• Road straightenin...
The solution is probably to use
        Relations (??)
Dating things poses some
  Philosophical Issues
How long does a feature remain the same feature?

  (Is a building with a preserved facade the
         same building, or ...
Final thought....
Final thought....



Can we predict the future?
Final thought....



Can we predict the future?

    (Should we tag planned new
   buildings, roads and features?)
Thanks
(get mapping history!)
   Frankie Roberto
   frankie@frankieroberto.com
  Twitter: frankieroberto
Mapping History on Open Street Map
Mapping History on Open Street Map
Mapping History on Open Street Map
