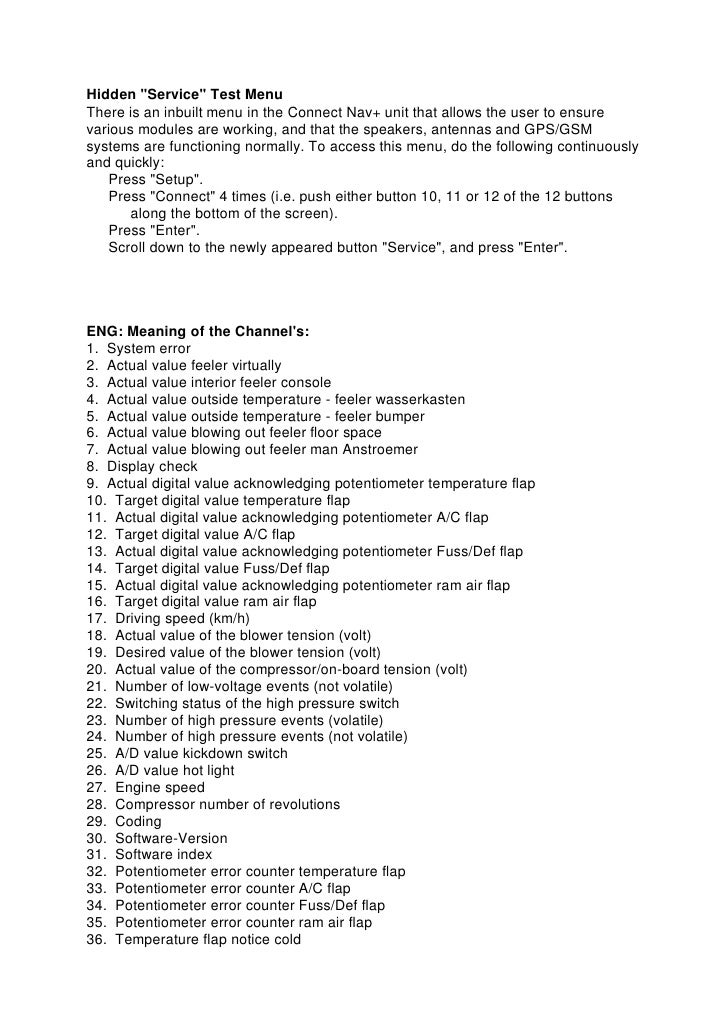

Hidden Service Test Menu
There is an inbuilt menu in the Connect Nav+ unit that allows the user to ensure
various modules ...
Fiat Stilo Connect Nav+ GPS GSM hidden diagnostic menu
Fiat Stilo Connect Nav+ GPS GSM hidden diagnostic menu
Fiat Stilo Connect Nav+ GPS GSM hidden diagnostic menu
Fiat Stilo Connect Nav+ GPS GSM hidden diagnostic menu
Upcoming SlideShare
Loading in …5
×

Fiat Stilo Connect Nav+ GPS GSM hidden diagnostic menu

4,536 views

Published on

Fiat Stilo Connect Nav+ Setup Mode

Published in: Technology
0 Comments
0 Likes
Statistics
Notes
  • Be the first to comment

  • Be the first to like this

No Downloads
Views
Total views
4,536
On SlideShare
0
From Embeds
0
Number of Embeds
23
Actions
Shares
0
Downloads
24
Comments
0
Likes
0
Embeds 0
No embeds

No notes for slide

Fiat Stilo Connect Nav+ GPS GSM hidden diagnostic menu

  1. 1. Hidden Service Test Menu There is an inbuilt menu in the Connect Nav+ unit that allows the user to ensure various modules are working, and that the speakers, antennas and GPS/GSM systems are functioning normally. To access this menu, do the following continuously and quickly: Press Setup. Press Connect 4 times (i.e. push either button 10, 11 or 12 of the 12 buttons along the bottom of the screen). Press Enter. Scroll down to the newly appeared button Service, and press Enter. ENG: Meaning of the Channel's: 1. System error 2. Actual value feeler virtually 3. Actual value interior feeler console 4. Actual value outside temperature - feeler wasserkasten 5. Actual value outside temperature - feeler bumper 6. Actual value blowing out feeler floor space 7. Actual value blowing out feeler man Anstroemer 8. Display check 9. Actual digital value acknowledging potentiometer temperature flap 10. Target digital value temperature flap 11. Actual

×
