Graph databases - EuroPython 2014 Graph databases - EuroPython 2014 Presentation Transcript

  • Graph Databases A little connected tour Francisco Fernández Castaño ! @fcofdezc
  • Beginning
  • The old town of Königsberg has seven bridges: Can you take a walk through town, visiting each part of the town and crossing each bridge only once?
  • El origenG = (V, E)
  • What is a Graph DB?
  • Graph Nodes Relationships Properties Store Store Connect Have Have
  • Written in Java ACID Rest interface Cypher
  • Why Graph DB?
  • The traditional way in the context of connected data is artificial
  • !Scalability

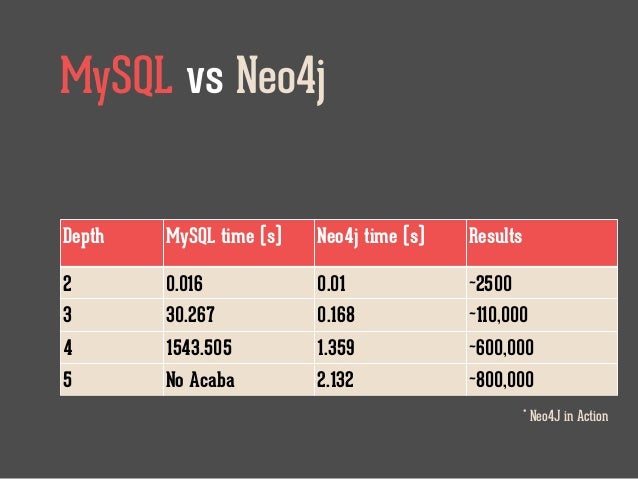

  • Depth MySQL time (s) Neo4j time (s) Results 2 0.016 0.01 ~2500 3 30.267 0.168 ~110,000 4 1543.505 1.359 ~600,000 5 No Acaba 2.132 ~800,000 MySQL vs Neo4j * Neo4J in Action

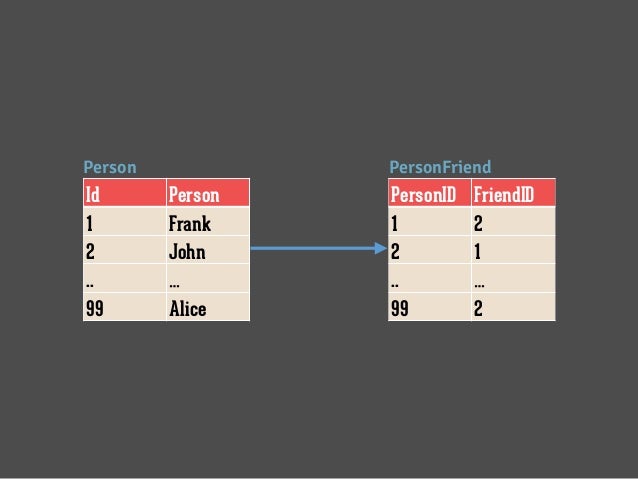

  • Person Id Person 1 Frank 2 John .. … 99 Alice PersonFriend PersonID FriendID 1 2 2 1 .. … 99 2
  • O(log n)
  • O(1)
  • O(m log n)
  • O(m)
  • We can transform our domain model in a natural way
  • Use cases
  • Social Networks Follow Follow John Jeff Douglas
  • Geospatial problems Fraud detection Authorization Network management
  • Recommendation System
  • Cypher Declarative language ASCII oriented Pattern matching

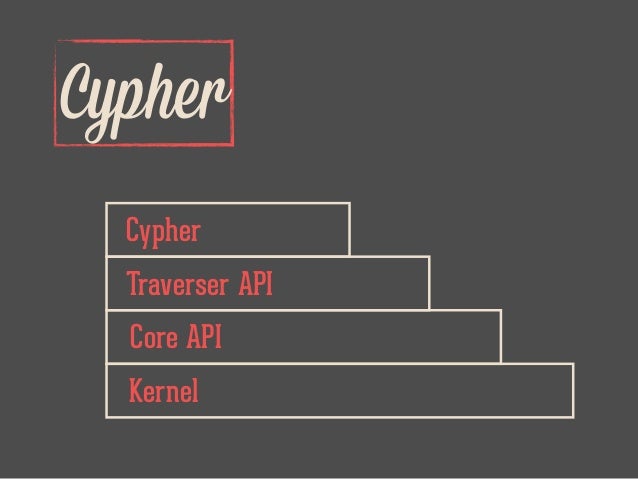

  • Cypher Cypher Traverser API Core API Kernel

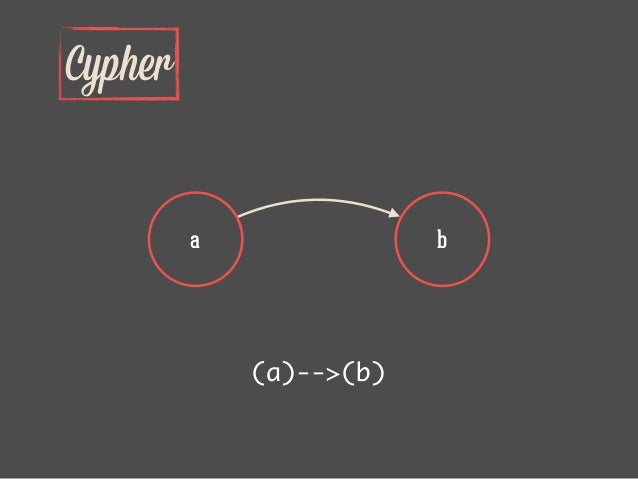

  • Cypher a b (a)-->(b)

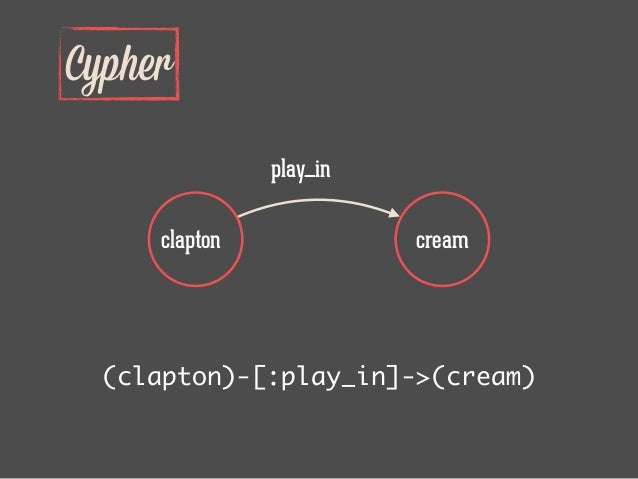

  • Cypher clapton cream (clapton)-[:play_in]->(cream) play_in

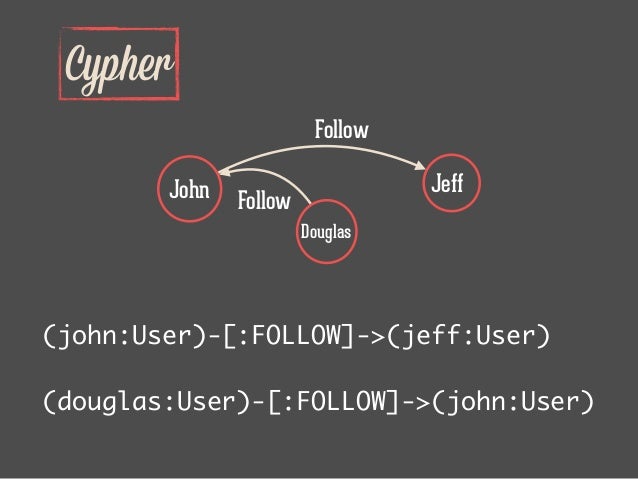

  • Follow FollowJohn Jeff Douglas Cypher (john:User)-[:FOLLOW]->(jeff:User) ! (douglas:User)-[:FOLLOW]->(john:User)
  • Cypher clapton {name: Eric Clapton} cream (clapton)-[:play_in]->(cream)<-[:labeled]-(blues) play_in {date: 1968} Blues labeled

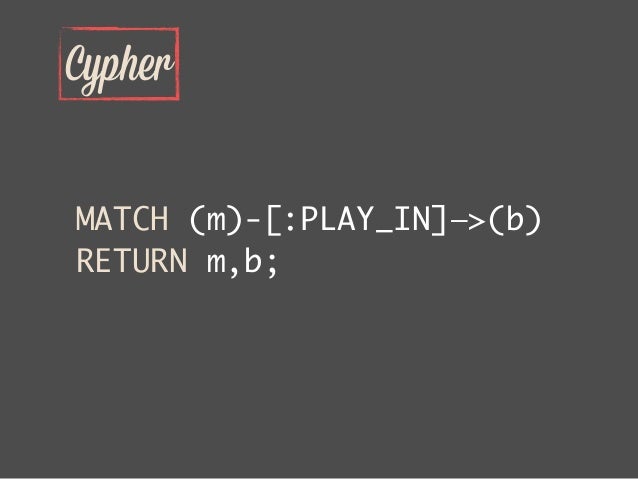

  • Cypher MATCH (m)-[:PLAY_IN]—>(b) RETURN m,b;

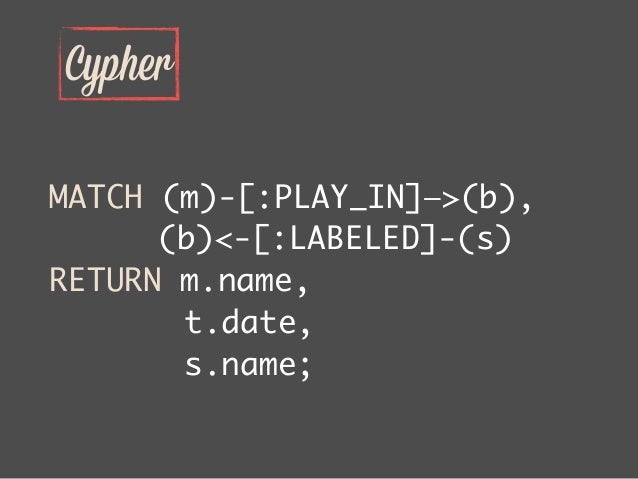

  • Cypher MATCH (m)-[:PLAY_IN]—>(b), (b)<-[:LABELED]-(s) RETURN m.name, t.date, s.name;

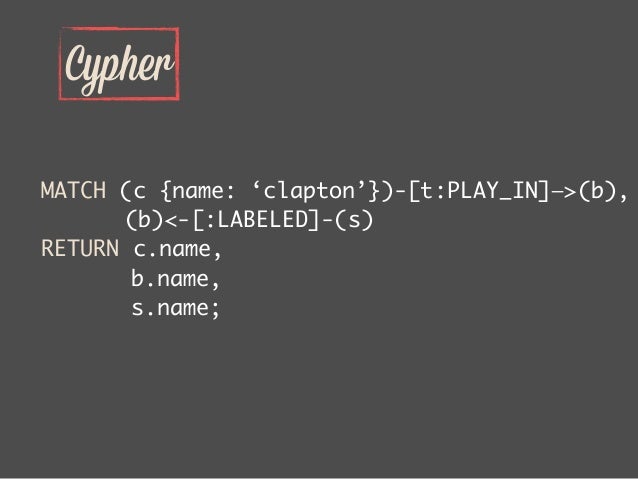

  • Cypher MATCH (c {name: ‘clapton’})-[t:PLAY_IN]—>(b), (b)<-[:LABELED]-(s) RETURN c.name, b.name, s.name;
  • Cypher MATCH (c {name: ‘clapton’})-[t:PLAY_IN]—>(b), (b)<-[:LABELED]-(e {name: ‘blues’}) RETURN c.name, b.name, e.name ORDER BY t.date
  • Cypher MATCH (c {name: ‘clapton’})-[r:PLAY_IN | PRODUCE]—>(b), (b)<-[:LABELED]-(e {name: ‘blues’}) RETURN c.name, b.name, e.name WHERE r.date > 1968 ORDER BY r.date

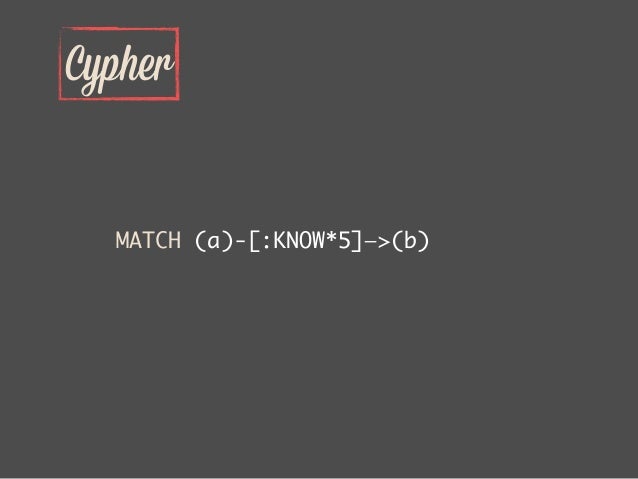

  • Cypher MATCH (a)-[:KNOW*5]—>(b)

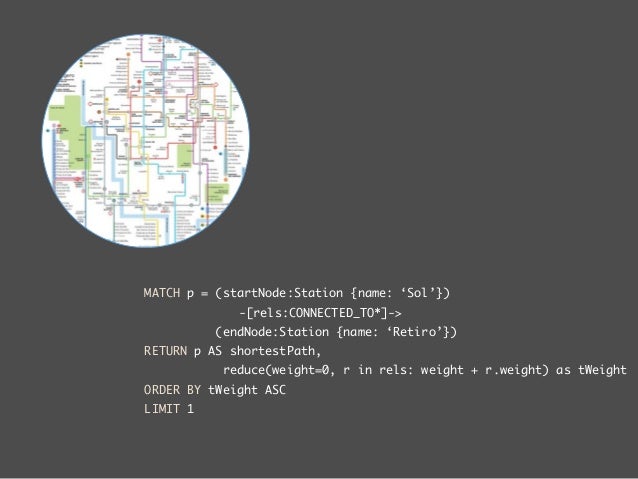

  • MATCH p = (startNode:Station {name: ‘Sol’}) -[rels:CONNECTED_TO*]-> (endNode:Station {name: ‘Retiro’}) RETURN p AS shortestPath, reduce(weight=0, r in rels: weight + r.weight) as tWeight ORDER BY tWeight ASC LIMIT 1
  • Neo4J extensions Managed Unmanaged
  • Neo4J extensions Managed Unmanaged
  • Neo4J extensions Managed Unmanaged
  • Drivers/Clients
  • Instead of just picking a relational database because everyone does, we need to understand the nature of the data we’re storing and how we want to manipulate it. Martin Fowler
  • References
  • Neo4J as a service http://www.graphenedb.com
  • Danke
