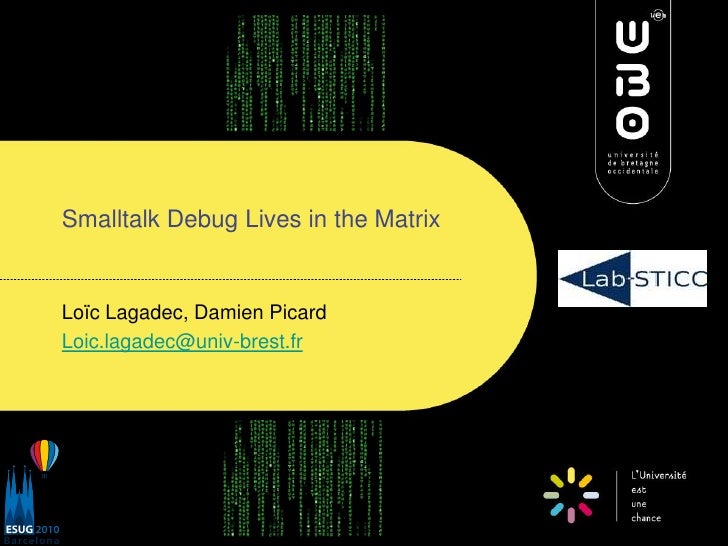

  • 1. Smalltalk Debug Lives in the Matrix Loïc Lagadec, Damien Picard Loic.lagadec@univ-brest.fr
  • 2. What Matrix? “Flexible” hardware Hard to program Time to market Hard to debug Compute node i1 LUT LUT LUT I1-i2 i2 E/S µP i1 LUT LUT I1+i2 i2 LUT Programmable LUT LUT LUT interconnection
  • 3. What Matrix? “Flexible” hardware Hard to program Time to market Hard to debug Specific languages Specific tools Performances still requires manual tuning EE skills required
  • 4. State of the art debugging Huge challenge
  • 5. Touching the void State of the art debugging Huge challenge Meet in the middle
  • 6. Debug silver bullet Observability Controlability Abstract analysis Fast changes Time to market Multiple runs Long cycles Simulation is not enough
  • 7. Debug silver bullet Observability Controlability Abstract analysis Fast changes Time to market Multiple runs Long cycles Simulation is not enough
  • 8. Operate at-speed Keep your speed-up alive Multiple runs prohibit any over time penalty
  • 9. Operate in-situ Because only HW brings speed-up Debug requires extra circuitry
  • 10. Debugging facilities are circuits
  • 11. Debugging facilities are circuits
  • 12. Debugging facilities are circuits
  • 13. Observe and monitor Take decision You cannot watch everything
  • 14. Abstract analysis: semantic needed From information to knowledge Signals vs Variables, etc. Composite pattern, polymorphism, etc.
  • 15. From a technical point of view ?  Synthesis  Software abstraction Implementation in hardware From D. Picard’s ESUG 2009 talk
  • 16. Full observabiliy isn’t scalable Focus on POI
  • 17. Full observabiliy isn’t scalable Focus on POI
  • 18. Take control Select your Become a time traveller
  • 19. Smalltalk debugger Just fit approach Run code and catch exception Code hot replacement, variable update, etc. Step on or resume execution Possible rollback Multiple runs Breakpoints update, earlier exception Same conceptual behavior
  • 20. Dodge bullets Once the time has stopped … just operate !
  • 21. Bullet time explained Bullet time 21
  • 22. Conditional probes Conditional probes offer the controlabily that lacks in commercial tools Observability can be gained at the cost of adding some variable look-up wires … But also using vendor’s tool such as Chipscope
  • 23. Decomposition Red Pill Probes Application Application Inserted probe (Generated) Control panel Active probes Probes inspector
  • 24. RedPill Flow extends Biniou (HLS) Application Probe High-level Insertion CDFG Low-level CDFG Multi-Level Simulator Synthesis Tools Probed Netlist Reconfigurable Architecture Biniou
  • 25. Abstract analysis Encapsulate circuit modules as smalltalk blocks Enables soft and hard objects to communicate Delivers the power of Sunit to hardware
  • 26. Abstract analysis (example)
  • 27. Characterization tests & SUnit
  • 28. How Many matrix?
  • 29. Reboot the Matrix
  • 30. Will you take the red pill? HLS (Biniou) offers a path from HL languages to circuits Vendors tools offer observability Red Pill offers controlability Object encapsulation offers abstract analysis and polymorphism. Smalltalk debug definitively lives in the Matrix
  • 31. Thank you for your attention http://stiff.univ-brest.fr/BINIOU

×
