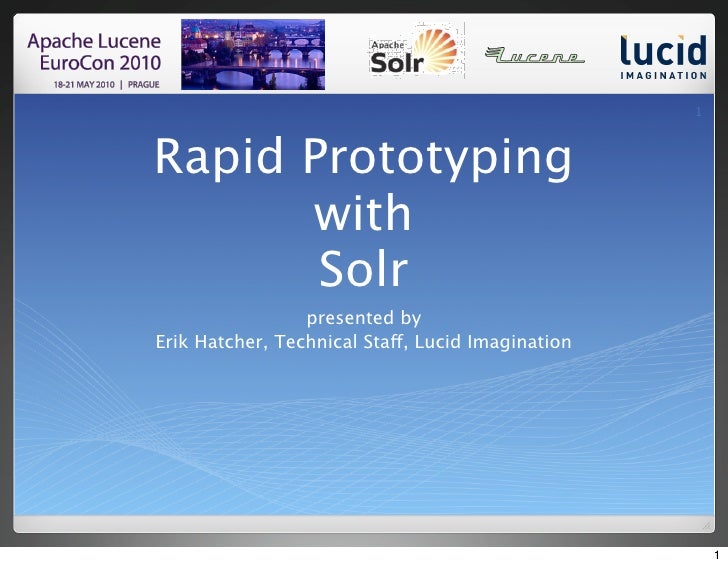

Rapid Prototyping
      with
       Solr
                 presented by
Erik Hatcher, Technical Staff, Lucid Imaginati...
Abstract

   Got data?  Let's make it searchable!  This interactive
   presentation will demonstrate getting documents int...
Why prototype?
   Demonstrate Solr can handle your needs
   Buy-in
   "Prototyping: faster than teaching a 9-year-old
 ...
Got Data?
   Files?
       Solr Cell

   Databases?
       Data Import Handler

   Feeds (Atom/RSS/XML)?
       Data...
UI
   Solritas (VelocityResponseWriter)
   http://localhost:8983/solr/itas
   Documentation:
       http://wiki.apache...
LucidWorks for Solr
   great starting point
   built-in and pre-configured:
       Clustering
         Carrot2

      ...
~/LucidWorks: start.sh
2010-05-21 08:53:49.595::INFO: Logging to STDERR via
org.mortbay.log.StdErrLog
2010-05-21 08:53:49....
Your Data
First Name,Last Name,Company,Title,Work Country
Erik,Hatcher,Lucid Imagination,"Member, Technical Staff", USA
.
...
First try

curl "http://localhost:8983/solr/update/csv?stream.file=EuroCon2010.csv"

undefined field First Name




      ...
Schema: dynamic field flexibility


<dynamicField name="*_s"   type="string"   indexed="true"   stored="true"/>
<dynamicFiel...
Mapping to dynamic fields


curl "http://localhost:8983/solr/update/csv?
stream.file=EuroCon2010.csv&fieldnames=first_s,las...
Identifying uniqueKey, or not
curl "http://localhost:8983/solr/update/csv?

stream.file=EuroCon2010.csv&fieldnames=first_s...
http://localhost:8983/solr/itas




                                  13

                                       13
Schema tinkering
   Removed all example field definitions
   Uncomment and adjust catch-all dynamic field:
       <dynamic...
Issues with no uniqueKey
   Remove from solrconfig.xml references to:
       clustering component
       query elevation...
Reindexing with cleaner field names
# Delete all documents
curl "http://localhost:8983/solr/update?stream.body=%3Cdelete%3E...
Faceting
 http://localhost:8983/solr/itas?facet.field=country




                                                      17
...
country normalization
http://localhost:8983/solr/update/csv?
commit=true&stream.file=EuroCon2010.csv&fieldnames=first,last...
UI treatments
   Customize request handler mappings
   Edit templates
       hit display
       header/footer
       ...
Customize request handlers
  <requestHandler name="/browse" class="solr.SearchHandler">
    <lst name="defaults">
      <s...
hit.vm

<div class="result-document">
  <p>$doc.getFieldValue('first') $doc.getFieldValue('last')</p>
  <p>$!doc.getFieldV...
Voila!




         22

              22
Adding bells and whistles
   JQuery
       <script type="text/javascript" src="/solr/admin/
        jquery-1.2.3.min.js"...
tree map table
<script type="text/javascript">
  function onLoad() {
     jQuery("#treemap-country").treemap(640,480, {});...
Tree map




           25

                25
Ajax fun: giveaways
   Add "static" templated page
   JQuery Ajax request
   snippet templated output




             ...
"static" Solritas page
 solrconfig.xml
 <requestHandler name="/giveaways" class="solr.DumpRequestHandler">
   <lst name="d...
fragment template
solrconfig.xml
<requestHandler name="/generate_winner" class="solr.SearchHandler">
  <!-- sort=random_.....
And the winner is...




                       29

                            29
Prototyping tools
   CSV update handler
   Schema Browser
   Solritas
   Solr Explorer
       https://issues.apache.o...
Refine, iterate, integrate
   What's next?
       script full & delta indexing processes
       adjust schema
         ...
Test
   Performance
   Scalability
   Relevance
   Automate all of the above, start baselines and avoid
    regression...
Upcoming SlideShare
Loading in...5
×

Rapid Prototyping with Solr

6,557

Published on

Got data? Let's make it searchable! This interactive presentation will demonstrate getting documents into Solr quickly, provide some tips in adjusting Solr's schema to match your needs better, and finally showcase your data in a flexible search user interface. We'll see how to rapidly leverage faceting, highlighting, spell checking, and debugging. Even after all that, there will be enough time left to outline the next steps in developing your search application and taking it to production.

Published in: Technology
3 Comments
8 Likes
Statistics
Notes
  • Is http://localhost:8983/solr/browse available for Solr 4+ for earlier solr version it is http://localhost:8983/solr/itas ?

    I am using solr 4.3.1 able to access http://localhost:8983/solr/browse but http://locahost:8983/solr/itas is not accessible
       Reply
    Are you sure you want to  Yes  No
    Your message goes here
  • Thanks for your slides. I uploaded some data with dynamic fields (e.g. CountryName_s,CountryCode_s,1960_d,1961_d) _s fields are string and indexed _d fields are double and indexed. Uploaded data there was no error. Console says
    ============================
    SimplePostTool version 1.5
    Posting files to base url http://localhost:8990/solr/update/csv using content-ty
    pe text/csv..
    POSTing file Inflation.csv
    1 files indexed.
    COMMITting Solr index changes to http://localhost:8990/solr/update/csv..
    Time spent: 0:00:03.498
    ======================================
    But when I search the value not able to retrieve them. Trying to figure out what's wrong?
       Reply
    Are you sure you want to  Yes  No
    Your message goes here
  • I enjoyed your slide about Rapid Prototyping there were a lot of great points. Thanks for sharing!
       Reply
    Are you sure you want to  Yes  No
    Your message goes here
No Downloads
Views
Total Views
6,557
On Slideshare
0
From Embeds
0
Number of Embeds
0
Actions
Shares
0
Downloads
155
Comments
3
Likes
8
Embeds 0
No embeds

No notes for slide

Transcript of "Rapid Prototyping with Solr"

  1. 1. 1 Rapid Prototyping with Solr presented by Erik Hatcher, Technical Staff, Lucid Imagination 1
  2. 2. Abstract Got data?  Let's make it searchable!  This interactive presentation will demonstrate getting documents into Solr quickly, provide some tips in adjusting Solr's schema to match your needs better, and finally showcase your data in a flexible search user interface.  We'll see how to rapidly leverage faceting, highlighting, spell checking, and debugging.  Even after all that, there will be enough time left to outline the next steps in developing your search application and taking it to production. 2 2
  3. 3. Why prototype?  Demonstrate Solr can handle your needs  Buy-in  "Prototyping: faster than teaching a 9-year-old Ju-Jitsu"  It's quick, easy, AND FUN!  The User Interface is the app 3 3
  4. 4. Got Data?  Files?  Solr Cell  Databases?  Data Import Handler  Feeds (Atom/RSS/XML)?  Data Import Handler  3rd party repositories?  Lucene Connectors Framework  custom indexing scripts using a Solr API  CSV!!!  CSV upload handler 4 4
  5. 5. UI  Solritas (VelocityResponseWriter)  http://localhost:8983/solr/itas  Documentation:  http://wiki.apache.org/solr/VelocityResponseWriter 5 5
  6. 6. LucidWorks for Solr  great starting point  built-in and pre-configured:  Clustering  Carrot2  Search UI  Solritas (VelocityResponseWriter)  Server includes root context, handy for serving static files  Better stemming  KStem  Tomcat, optionally 6 6
  7. 7. ~/LucidWorks: start.sh 2010-05-21 08:53:49.595::INFO: Logging to STDERR via org.mortbay.log.StdErrLog 2010-05-21 08:53:49.764::INFO: jetty-6.1.3 May 21, 2010 8:53:50 AM org.apache.solr.core.SolrResourceLoader locateSolrHome INFO: JNDI not configured for solr (NoInitialContextEx) May 21, 2010 8:53:50 AM org.apache.solr.core.SolrResourceLoader locateSolrHome INFO: using system property solr.solr.home: /Users/erikhatcher/ LucidWorks/lucidworks/jetty/../solr May 21, 2010 8:53:50 AM org.apache.solr.core.SolrResourceLoader <init> INFO: Solr home set to '/Users/erikhatcher/LucidWorks/lucidworks/ jetty/../solr/' . . . May 21, 2010 8:53:51 AM org.apache.solr.core.SolrCore registerSearcher INFO: [] Registered new searcher Searcher@21fb3211 main 7 7
  8. 8. Your Data First Name,Last Name,Company,Title,Work Country Erik,Hatcher,Lucid Imagination,"Member, Technical Staff", USA . . . 8 8
  9. 9. First try curl "http://localhost:8983/solr/update/csv?stream.file=EuroCon2010.csv" undefined field First Name 9 9
  10. 10. Schema: dynamic field flexibility <dynamicField name="*_s" type="string" indexed="true" stored="true"/> <dynamicField name="*_t" type="text" indexed="true" stored="true"/> 10 10
  11. 11. Mapping to dynamic fields curl "http://localhost:8983/solr/update/csv? stream.file=EuroCon2010.csv&fieldnames=first_s,last_s,company_s,title_t, country_s&header=true" Document [null] missing required field: id 11 11
  12. 12. Identifying uniqueKey, or not curl "http://localhost:8983/solr/update/csv? stream.file=EuroCon2010.csv&fieldnames=first_s, id,company_s,title_t,co untry_s&header=true" <?xml version="1.0" encoding="UTF-8"?> <response> <lst name="responseHeader"><int name="status">0</int><int name="QTime">40</int></lst> </response> 12 12
  13. 13. http://localhost:8983/solr/itas 13 13
  14. 14. Schema tinkering  Removed all example field definitions  Uncomment and adjust catch-all dynamic field:  <dynamicField name="*" type="string" multiValued="false"/>  Ensure uniqueKey is appropriate  Unusual in this data example:  <!-- <uniqueKey>id</uniqueKey> -->  Make every document/field fully searchable!  <copyField source="*" dest="text"/>  Then restart! 14 14
  15. 15. Issues with no uniqueKey  Remove from solrconfig.xml references to:  clustering component  query elevation component  data import handler  Then restart! 15 15
  16. 16. Reindexing with cleaner field names # Delete all documents curl "http://localhost:8983/solr/update?stream.body=%3Cdelete%3E%3Cquery %3E*:*%3C/query%3E%3C/delete%3E&commit=true" # Index your data curl "http://localhost:8983/solr/update/csv? commit=true&stream.file=EuroCon2010.csv&fieldnames= first,last, company,title,country&header=true" 16 16
  17. 17. Faceting http://localhost:8983/solr/itas?facet.field=country 17 17
  18. 18. country normalization http://localhost:8983/solr/update/csv? commit=true&stream.file=EuroCon2010.csv&fieldnames=first,last,company,ti f.country.map=Great tle,country&header=true& +Britain:United+Kingdom 18 18
  19. 19. UI treatments  Customize request handler mappings  Edit templates  hit display  header/footer  style 19 19
  20. 20. Customize request handlers <requestHandler name="/browse" class="solr.SearchHandler"> <lst name="defaults"> <str name="wt">velocity</str> <str name="v.template">browse</str> <str name="v.layout">layout</str> <str name="rows">10</str> <str name="fl">*,score</str> <str name="defType">lucene</str> <str name="q">*:*</str> <str name="debugQuery">true</str> <str name="hl">on</str> <str name="hl.fl">title</str> <str name="hl.fragsize">0</str> <str name="hl.alternateField">title</str> <str name="facet">on</str> <str name="facet.mincount">1</str> <str name="facet.missing">true</str> </lst> <lst name="appends"> <str name="facet.field">country</str> </lst> </requestHandler> 20 20
  21. 21. hit.vm <div class="result-document"> <p>$doc.getFieldValue('first') $doc.getFieldValue('last')</p> <p>$!doc.getFieldValue('title'), $!doc.getFieldValue('company')</p> <p>$!doc.getFieldValue('country')</p> </div> 21 21
  22. 22. Voila! 22 22
  23. 23. Adding bells and whistles  JQuery  <script type="text/javascript" src="/solr/admin/ jquery-1.2.3.min.js"></script>  Let's add a tree map  <script type="text/javascript" src="/scripts/treemap.js"></script>  http://plugins.jquery.com/project/Treemap 23 23
  24. 24. tree map table <script type="text/javascript"> function onLoad() { jQuery("#treemap-country").treemap(640,480, {}); } </script> ---------------------------- <body onload="onLoad();"> ---------------------------- <table id="treemap-country"> #foreach($facet in $response.getFacetField('country').values) <tr> <td>#if($facet.name) $esc.html($facet.name)#else&lt;Unspecified&gt;#end</td> <td>$facet.count</td> <td>#if($facet.name)$esc.html($facet.name)#{else}Unspecified#end</ td> </tr> #end </table> 24 24
  25. 25. Tree map 25 25
  26. 26. Ajax fun: giveaways  Add "static" templated page  JQuery Ajax request  snippet templated output 26 26
  27. 27. "static" Solritas page solrconfig.xml <requestHandler name="/giveaways" class="solr.DumpRequestHandler"> <lst name="defaults"> <str name="wt">velocity</str> <str name="v.template">giveaways</str> <str name="v.layout">layout</str> </lst> </requestHandler> giveaways.vm <input type="button" value="Pick a Winner" onClick="javascript:$ ('#winner').load('/solr/generate_winner?sort=random_' + new Date().getTime() + '+asc');"> <h2>And the winner is...</h2> <center><font size="20"><div id="winner"></div></font></center> 27 27
  28. 28. fragment template solrconfig.xml <requestHandler name="/generate_winner" class="solr.SearchHandler"> <!-- sort=random_... required --> <lst name="defaults"> <str name="wt">velocity</str> <str name="v.template">winner</str> <str name="rows">1</str> <str name="fl">first,last</str> <str name="defType">lucene</str> <str name="q">*:* -company:"Lucid Imagination" -company:"Stone Circle Productions"</str> </lst> </requestHandler> winner.vm #set($winner=$response.results.get(0)) $winner.getFieldValue('first') $winner.getFieldValue('last') 28 28
  29. 29. And the winner is... 29 29
  30. 30. Prototyping tools  CSV update handler  Schema Browser  Solritas  Solr Explorer  https://issues.apache.org/jira/browse/SOLR-1163  Solr Flare  http://wiki.apache.org/solr/Flare 30 30
  31. 31. Refine, iterate, integrate  What's next?  script full & delta indexing processes  adjust schema  define fields, field types, analysis  tweak configuration  caches, indexing parameters  deploy to staging/production environments 31 31
  32. 32. Test  Performance  Scalability  Relevance  Automate all of the above, start baselines and avoid regressions 32 32
