White PaperHADOOP ON EMC ISILON SCALE-OUT NAS              Abstract              This white paper details the way EMC Isil...
Copyright © 2012 EMC Corporation. All Rights Reserved.EMC believes the information in this publication is accurate asof it...
Table of ContentsIntroduction ...............................................................................................
IntroductionEnterprises have been continuously dealing with storing and managing rapidlygrowing amounts of data, also know...
Hadoop Distributed File System (HDFS): the distributed file system that a Hadoopcompute farm uses to store all the data th...
NameNode: single master metadata server that has in-memory maps of every file, filelocations as well as all the blocks wit...
The above is not an exhaustive list of all Hadoop ecosystem components.                               All components of Ha...
OneFS combines filesystem, volume manager and protection                    into one single intelligent, distributed syste...
•   NL-Series: Near-primary accessibility, with near-tape value•   Performance Accelerator: Independent scaling for ultima...
Hadoop On IsilonSince all of the communication in HDFS is layered on top of the TCP/IP protocol, Isilonhas integrated the ...
All Hadoop components working with Isilon                        scale-out NAS in a Hadoop environmentThe EMC Isilon OneFS...
•   CIFS/SMB•   FTP•   HTTP•   iSCSI•   RESTThe Isilon HDFS implementation is a lightweight protocol layer between OneFSfi...
Along with the operational ease and simple management that Isilon brings to improveOPEX savings, there are other efficienc...
ReliabilityTo get the most value of their Hadoop analytics investments, enterprises require aresilient Big Data storage in...
OneFS Hybrid Parity Protection Schemes (N+M:x)File System JournalEvery Isilon node is equipped with a dual-battery backed ...
utilize checksum verification. Metadata checksums are housed in the metadatablocks themselves, whereas file data checksums...
Data High AvailabilityIn a traditional Hadoop cluster using direct attached storage, there is only a singleNameNode that m...
User driven file recovery using SnapshotIQIn addition to the benefits provided by SnapshotIQ in terms of user recovery of ...
While snapshots and NDMP provide an ideal solution for localized failure scenarios,when it comes to catastrophic failures ...
Fixed Scalability                      Independent Scalability    – Rigid compute to storage ratio       – Add compute & s...
ConclusionHadoop is an innovative analytics engine that can significantly reduce the time and resourcesneeded by an enterp...
Upcoming SlideShare
Loading in...5
×

White Paper: Hadoop on EMC Isilon Scale-out NAS

6,087

Published on

This White Paper details how EMC Isilon can be used to support an enterprise Hadoop data analytics workflow. Core architectural components are covered as well as how an enterprise can gain reliable business insight quickly and efficiently while maintaining simplicity to meet the storage requirements of an evolving Big Data analytics workflow.

Published in: Technology, Business
0 Comments
1 Like
Statistics
Notes
  • Be the first to comment

No Downloads
Views
Total Views
6,087
On Slideshare
0
From Embeds
0
Number of Embeds
2
Actions
Shares
0
Downloads
349
Comments
0
Likes
1
Embeds 0
No embeds

No notes for slide

White Paper: Hadoop on EMC Isilon Scale-out NAS

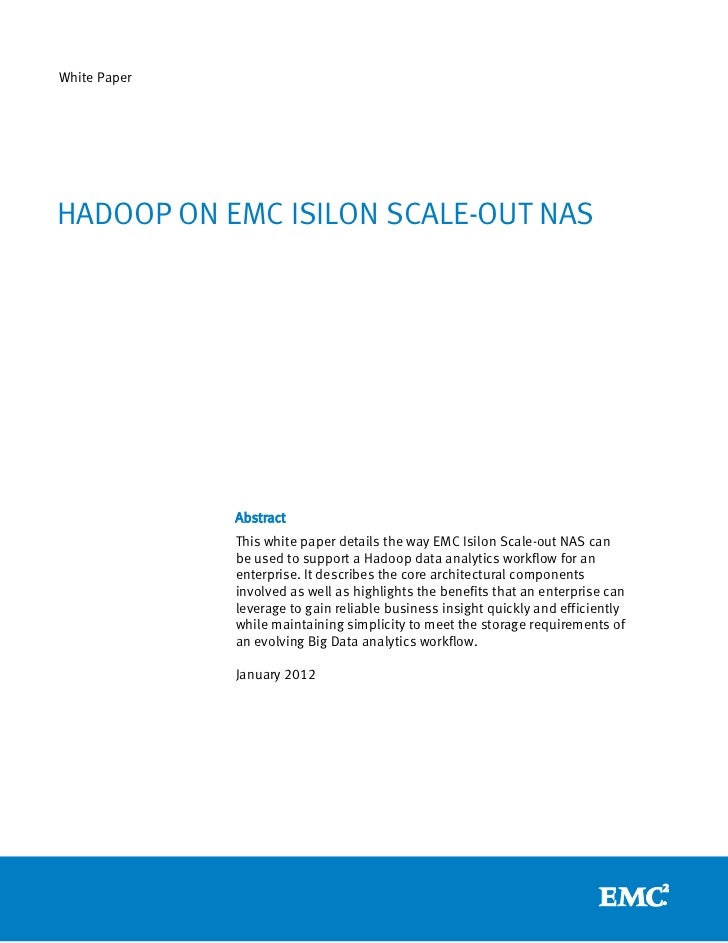

  1. 1. White PaperHADOOP ON EMC ISILON SCALE-OUT NAS Abstract This white paper details the way EMC Isilon Scale-out NAS can be used to support a Hadoop data analytics workflow for an enterprise. It describes the core architectural components involved as well as highlights the benefits that an enterprise can leverage to gain reliable business insight quickly and efficiently while maintaining simplicity to meet the storage requirements of an evolving Big Data analytics workflow. January 2012
