Flex 4 Deep Dive

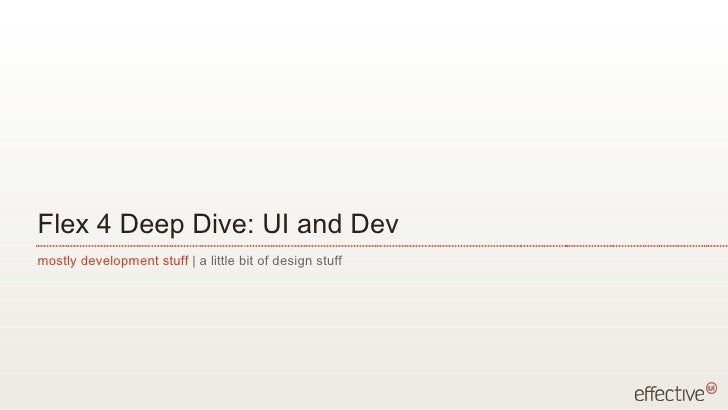

Flex 4 Deep Dive: UI and Dev
mostly development stuff | a little bit of design stuff

Who are we?
RJ Owen
Senior Developer at EffectiveUI
Andy McIntosh
Experience Architect at EffectiveUI
Experienced Flex Developers, men in the trenches, the kind of guys who know what it’s like out there.

Where’s Juan?
Juan Sanchez has abandoned the Rocky Mountain Adobe Camp in favor of a relaxing beach vacation.
Let’s all feel bad for Juan, and thank Andy for jumping in at the last second.

Who are you?
Software designers and developers
Some Flex experience in Flex 3
Interested in building better interfaces

What will we talk about?
Today we’ll cover:
Language updates in Flex 4
MXML graphics and the new Flash Text Engine
Effects and Animations
Containers and Layout
Components, Custom and Otherwise
Component Lifecycle, Skins
Credit where it’s due:
Our talk draws from Ely Greenfield’s “Flex 4 Migration” presentation from Adobe MAX 2008

Flex T-Shirt Store Demo
Built for Adobe R&D team in 2 weeks

Changes in 2009
Some MXML languages changes to support the new features of Flex 4

What’s new in Flex 4?
A lot:
Spark components
Skin components, dynamic layout
FXG - declarative graphics
Flash Catalyst integration
Styles are different
States are different
“ Groups” vs. “Child Lists”; new container types
Enhanced Text renderer
New MXML tags
Effects and Animation
Chrome, Scrolling
Updated component lifestyle, architecture
Designer / Developer contract
We’ve got our work cut out for us.

Fundamental Changes
Designer / Developer Workflow
Developer Designer Workflow

Fundamental Changes
Graphics are 1st Tier Citizens
Flash Catalyst Integration
New “Spark” component architecture (old “Halo”)
Flex 3 Component Model (Halo) Flex 4 Component Model (Spark)

Changes in 2009: Namespaces
Duplicate components = duplicate tags.
Public outcry over “FxButton” vs. “Button”
Improved Productivity
Fix things, tinker with things
The result: MXML 2009
Contains new language features only available in 2009
One language namespace per file, but can mix and match per application
Spark and Halo live side by side in 2009
Spark is only intended to be used in 2009 – won’t generally work in 2006

Flex Namespaces
xmlns:fx= “http://ns.adobe.com/mxml/2009 ”
Language tags (Script, Style, and more)
Built in types (Array, String, Number, etc)
xmlns:s=“library://ns.adobe.com/flex/spark”
All new classes introduced in Flex 4
RPC
Graphics
xmlns:mx=“library://ns.adobe.com/flex/halo”
All legacy Halo components
States, Validators, RPC, etc.
Anything that was in 2006
xmlns:mx=“ http://ns.adobe.com/mxml/2006 ”
The same as it was in Flex 3 - use this if you’re not going to use 2009 namespaces

Changes in 2009: New Tags
<fx:Declarations />
A place to stick your stuff
Anything that’s not a visual child of a component belongs here.
Services, Data Models, singletons…anything that doesn’t show up in your UI ends up here
Previously ‘stuff’ could just go at the top of the file
<s:Application> <fx:Declarations> <s:HTTPService … /> </fx:Declarations> <s:TextInput … /> … </s:Application>

Changes in 2009: Styles
New components have overlapping class names
New with Flex 4: qualified CSS selectors
<Style>
@namespace s "library://ns.adobe.com/flex/spark”; s|Button { }
</Style>
Required on all type identifiers in CSS
New syntax is global to an application – even in MXML 2006 documents
Namespaces are resolved at compile time – at runtime, types are fully qualified classnames
(i.e., s|Button above becomes spark.components.Button)

Changes in 2009: Advanced Styles
Multiple Class Selectors: <Button id=“upButton” styleName=“default tiny” />
ID Selectors: #upButton { fontSize: 14 }
Descendant Selectors: s|Scrollbar #upButton { baseColor: #FF8888 }
Pseudo Selectors: s|Scrollbar #upButton:over { baseColor: #8888FF }
default and tiny are two separate distinct styles!

Changes in 2009: States - what’s broken?
States in Flex 3 and below suck
Overly verbose
Really awkward to use - AddChild children, RemoveChild children, etc.
Hard to optimize
We never ever ever use them. Ever.
Okay, Andy uses them all the time, but he hates them.

Changes in 2009: States - Fix it!
States in Flex 4 are awesome
Declare your states with a ‘State’ tag
Describe ‘alternate views’ of your markup
Change values, bindings, event handlers
Include and exclude components as easily as setting visibility
Unscoped entries specify the ‘default’ for all states
States can be grouped into State Groups - see Flex documentation for more info
<fx:Reparent> tag to move children between states
WARNING: Use NEW STATES in 2009 documents – 2006 still supports legacy states.
<states> <State name=”login"/> <State name=”register"/> <State name=”someOtherState” stateGroups=”group1”/> </states> <Group> <TextBox text=“username:” /> <TextInput /> <TextBox text=“password:” /> <TextInput /> <Button label=“new user?” /> <Checkbox includeIn=“register” label=“agree to terms” /> <Button label=“log in” label.register=“sign up” /> </Group>

MXML for Graphics and new Text rendering
Flex 4 provides a declarative graphics language that makes drawing vector art easier (but not really “easy.”)
Flex 4 makes deliberate use of the new text rendering engine in Flash Player 10 (FTE) to allow you to manipulate text in the way you’d expect (FINALLY.)

MXML Graphics
MXML Graphics library providing rich primitive support
Simple Shape primitives
(Rectangles, rounded rects, ellipses, circles)
Complex Paths
(Linear, Quadratic, and Bezier curve segments)
Full range of fills and strokes
(solid, transparent, bitmap, linear and radial gradients)
Masking, filters, blend modes, and more.
(blur, glow, dropshadow, screen, multiply…)
Color and 2D transformations
(rotate, scale, tint, brighten…)
Integrated text, bitmaps
Anyone heard of “Degrafa?”

MXML Graphics: This is ugly, but cool <Graphic> <Path data=“ ….. “> <fill> <LinearGradient angle=“90”>…. </LinearGradient> </fill> </Path> <Path blendMode=“screen” data=“…” > <fill> <LinearGradient angle=“45”>… </LinearGradient> </fill> </Path> <GraphicText text=“MXML Graphics”> <filters> <Glow color=“#00FF00” strength=“3” … /> </filters> </GraphicText> </Graphic> Credit where it’s due: Ely Greenfield made this.

MXML Graphics
1st class citizens
Anything that can be set can be changed
Easy to animate with effects, states, transitions, code
Freely mix and match with Spark components
GraphicElement
Focused on performance
optimized for fast rendering, low overhead
One DisplayObject shared by many GraphicElements
Important to understand: Components are DisplayObjects GraphicElements draw into DisplayObjects
GraphicElement Ellipse Line Path Bitmap Image

MXML Graphics: DisplayObject sharing
Elements are “Drawn” into a DisplayObject (any Sprite - remember this.graphics.draw from Flex 3?)
DisplayObjects are shared to optimize rendering, memory, performance, etc.
Sharing can be affected by Rotation, Scale, 3D, BlendModes, Alpha, Filters, siblings
Credit where it’s due: Ely Greenfield made this.

MXML Graphics: FXG
FXG: graphics format based on MXML
Understood by Design tools
Based on flash rendering model.
Static – no binding, layout, event handlers, styling, etc.
Optimized by compiler

Text in Flex 4
FTE: New low level text engine (player 10)
Stands for “Flash Text Engine”
TLF: New text layout library built on top of FTE.
“ Text Library for Flash?”
Might also stand for “Totally Like Fireballs”,“Typical Lightning Flamboyance” or “Tumultuous Latex Fusion”
Benefits:
Soft hyphens (we know you’ve all been missing those!)
Baseline control (e.g., superscripts and subscripts)
Right, center, and decimal tabs
Vertical justification
Multiple columns
Ligatures, capitalization styles, digit styles
Integrated Rendering of device fonts (a.k.a. I can fade and rotate my text FINALLY)
Bi-Directional text
etc.

Text in Flex 4: New Text components
Spark Introduces 3 new ‘Primitive’ Text components:
SimpleText (Label, sorta)
RichText (Text, sorta)
careful - these do NOT extend UIComponent!!
RichEditableText (editable TextField)
2 new skinnable text Spark components (based on the primitives):
TextInput
TextArea
(Creatively named identically to the current components.)

Flex 4 Text: Old vs. New
Based on TextField
Simple layout support
Uses DefineFont3 embedded fonts
Based on Flash Text Engine Complex layout and editing support Uses DefineFont4 embedded fonts Flex 3 / Halo Flex 4 / Spark An important note: embedded fonts can’t be shared. (Adobe is working on resolving this issue)

We’re just going to touch on this, but it’s much improved over Flex 3.

What’s wrong with Flex’s animation now?
Make use of the new Elements (graphics)
Designed for more advanced tools (i.e. Flast Catalyst)
More Flexible
Animate
Animates arbitrary targets (GraphicElements and more)
Animates arbitrary types (floats, integers, colors, vectors, paths)
Animates along arbitrary motion paths
Auto-reversing behavior for mirroring transitions (easy fix for “flickering” animations)
Precision timing for executing compound transitions

Effects and Animation: Simple Animation
<Animate target=“{pane}” duration=“300”>
<AnimationProperty property=“x”
valueFrom=“200” valueTo=“400” />
<AnimationProperty property=“y”
valueFrom=“200” valueTo=“400” />
</Animate>

Effects and Animation: Complex Animation <Animate target=“{pane}”> <MotionPath property=“x”> <KeyFrame time=“0” value=“200” /> <KeyFrame time=“150” value=“250” /> <KeyFrame time=“300” value=“400” /> </MotionPath> <MotionPath property=“baseColor”> <interpolator> <HSBInterpolator /> </interpolator> <KeyFrame time=“0” value=“200” /> <KeyFrame time=“150” value=“250” > <easer> <Sine easeInFraction=“.3” /> </easer> </KeyFrame> <KeyFrame time=“300” value=“400” /> </MotionPath> </Animate> More complex, powerful than Flex 3

Animate different types of transforms with AnimateTransform
3D animations with AnimateTransformMove, AnimateTransformRotate, AnimateTransformScale
Subclasses of AnimateTransform
Move, Zoom, Rotate animations
AnimateShaderTransition

Effects and Animation: Auto-Reversing
When animations are interrupted, you frequently transition back to the previous state
Snap-to-end isn’t always what you want
This often produces the “flicker” effect between states
Simple solution:
<Transition autoReverse=“true”>
Limitations
Still need to define both transitions
Only works when A->B is interrupted by B->A

Containers and Layout
Separating Containers from Layout to make both more powerful

Containers: what’s broken?
mx.core.Container is the root container in Flex 3
Extends from UIComponent; complex component lifecycle
Too many capabilities we don’t need
scrollbar policies - always turning scroll-bars off
Rigid layout rules tightly-bound with container’s business logic
Can’t support our new GraphicElements
No built-in support for transforms and 3D effects

Containers: Fix it!
Group
Lowest level container in Spark framework
Supports both UIComponents and GraphicElements
Only the bare essentials:
Layout (through delegates)
Containment
Basic Flash player features (transforms, etc.)
Introducing “DataGroup:
The basis of any “List” based container
Anything that uses ItemRenderers
Ely: “Repeater done Right”
In Spark, everything displayable resides in a Group

MXML Graphics: Elements vs. Children
Use the Container Child List
addChild(), removeChild(), etc.
All children are UIComponents
Use the Group Elements list addElement(), removeElement(), etc. All elements are UIComponents or GraphicElements Flex 3 / Halo Flex 4 / Spark

Layout: what’s broken?
Layout is intimately tied to containment
Layout code and container code are tightly coupled
Very difficult to make lists that CONTAIN objects in the same way DISPLAY them differently
Example: any ordered container (list) has a single layout available in Flex 3
DataProviders offered some of the solution; decouple data from visualization
Flex 4 abstracts the view a step farther with Layout classes

Layout: Fix it!
All layout classes extend LayoutBase
VerticalLayout, HorizontalLayout, TileLayout, BasicLayout (Canvas)
Basis of layout for all containers, lists, skins, etc.
The goal: clean layout, easy extension, consistent behavior
Big difference: layouts can support transforms
Example: Ryan Campbell’s layout demo
http://www.bobjim.com/2009/06/16/heres-5-3d-layouts-for-flex-4/

Components
Custom and otherwise

Flex Component Lifecycle
Every component goes through defined phases of its life
Leverages invalidation for performance
Defer code execution until a specific time
Avoids duplicate processing
Understanding the lifecycle is very important
Image courtesy of Ted Patrick

Flex 3 Component Lifecycle Construction Configuration Addition Initialization Invalidation Validation Interaction Removal Garbage Collection Birth Life Death

Components: what’s broken?
In Halo, components were rigid
Hard to extend
“ Monkey patching” to make small changes to component view
Example: HTML text in the panel title bar

Components: Fix it!
Separate data, logic and behavior from visuals, states, animation and layout
Create component-logic with no assumption about appearance
Create component-view without digging into the logic

MVC in Button Component label:String, selected:Boolean text field, icon, background mouse handlers, selection logic M V C

Halo Component Skin (background) M V C V

Spark Component Skin (entire view) M C V

Example: Button with Two icons
Halo
Extend viewIconForPhase and duplicate logic for new icon ~100 lines
Extend layoutContents to position/size new icon and position/size existing components so nothing overlaps
Requires ActionScript knowledge and understanding of Button component
Spark
Copy MXML from default Button Skin
Add two tags to create two icons
Adjust position/size of icons and label
All MXML!

Skin-Component Relationship Component Skin (entire view) M C V

Skin Parts
Component specifies optional/required skin parts as metadata
[SkinPart(required=”true”)]
public var labelElement:SimpleText;
Skin implements skin parts
Exception thrown if required part is not found

Skin States
Defined in the component using metadata
[SkinState(“up”)]
[SkinState(“down”)]
Current state is passed to the skin from the component
All states are required. An exception will be thrown if a state is not implemented in the skin

Data
Data can be pushed to a skin part from the component (recommended)
or, data can be pulled from the component by the skin using data-binding
[HostComponent("spark.components.Button")]
Pulling can be error-prone and costly
Pushing promotes encapsulation

Styles
Colorize
baseColor
color
contentBackgroundColor
symbolColor
rollOverColor
selectionColor
focusColor
Skins specify which elements are affected by which styles
Styles are limited because skinning is so easy.

Components: Conclusion
Not all components have been built as Spark components
But, Spark extends Halo so both coexist
Flex 3 Component Model (Halo) Flex 4 Component Model (Spark)
SkinnableComponent extends UIComponent
Flex Team working on more Spark components

Any questions?
RJ Owen
[email_address]
twitter: rjowen
Andy McIntosh [email_address] twitter: andymcintosh www.effectiveui.com [email_address] .com

Bibliography and More Reading
Ely Greenfield’s “Flex 4 Migration” talk from Adobe Max, 2008
Mrinal Wadhwa’s talk on Component LifeCycle
http://weblog.mrinalwadhwa.com/2009/06/21/flex-4-component-lifecycle/
Ryan Campbell’s blog post on Layout in Flex 4
http://www.bobjim.com/2009/06/16/heres-5-3d-layouts-for-flex-4/

page heading
samples!
some text (line 2 indented)
goes in a list
this is what it
looks like
Some text goes into a paragraph, this is what it looks like. Some text goes into a paragraph, this is what it looks like. Some text goes into a paragraph, this is what it looks like. Some text goes into a paragraph, this is what it looks like. list heading object Some text goes into a paragraph, this is what it looks like. 3

Flex 4 Deep Dive

by EffectiveUI on Nov 01, 2011

Accessibility

Categories

Tags

Upload Details

Usage Rights

Statistics

Flex 4 Deep Dive — Presentation Transcript
