Computer notes - AVL Tree Presentation Transcript

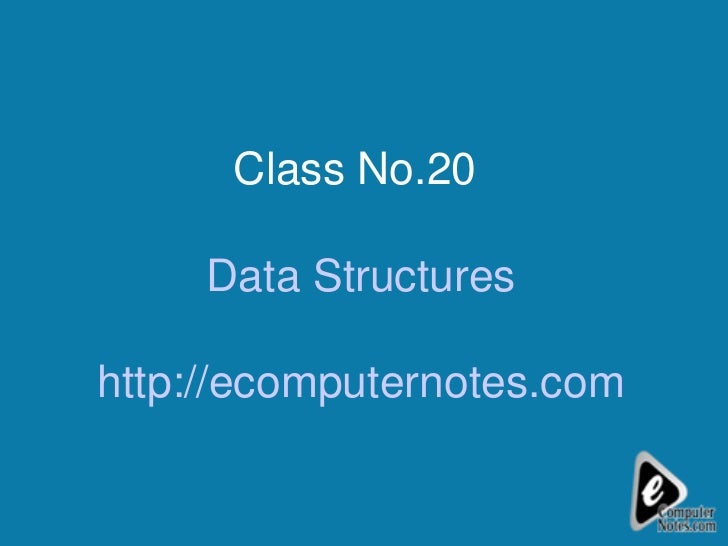

  • 1. Class No.20 Data Structures http://ecomputernotes.com
  • 2. AVL Tree
    • AVL (Adelson-Velskii and Landis) tree.
    • An AVL tree is identical to a BST except
      • height of the left and right subtrees can differ by at most 1.
      • height of an empty tree is defined to be (–1).
    http://ecomputernotes.com
  • 3. AVL Tree
    • An AVL Tree
    height 0 1 2 3 http://ecomputernotes.com 5 8 2 4 3 1 7
  • 4. AVL Tree
    • Not an AVL tree
    height 0 1 2 3 http://ecomputernotes.com 6 8 1 4 3 1 5
  • 5. Balanced Binary Tree
    • The height of a binary tree is the maximum level of its leaves (also called the depth).
    • The balance of a node in a binary tree is defined as the height of its left subtree minus height of its right subtree.
    • Here, for example, is a balanced tree. Each node has an indicated balance of 1, 0, or –1.
    http://ecomputernotes.com
  • 6. Balanced Binary Tree http://ecomputernotes.com -1 0 1 0 0 0 0 -1 0 1 0 0 0 0 0 0 0
  • 7. Balanced Binary Tree
    • Insertions and effect on balance
    U 1 U 2 U 3 U 4 U 5 U 6 U 7 U 8 U 9 U 10 U 11 U 12 B B B B B B http://ecomputernotes.com -1 0 1 0 0 0 0 -1 0 1 0 0 0 0 0 0 0
  • 8. Balanced Binary Tree
    • Tree becomes unbalanced only if the newly inserted node
      • is a left descendant of a node that previously had a balance of 1 (U 1 to U 8 ),
      • or is a descendant of a node that previously had a balance of –1 (U 9 to U 12 )
    http://ecomputernotes.com
  • 9. Balanced Binary Tree
    • Insertions and effect on balance
    U 1 U 2 U 3 U 4 U 5 U 6 U 7 U 8 U 9 U 10 U 11 U 12 B B B B B B http://ecomputernotes.com -1 0 1 0 0 0 0 -1 0 1 0 0 0 0 0 0 0
  • 10. Balanced Binary Tree
    • Consider the case of node that was previously 1
    U 1 U 2 U 3 U 4 U 5 U 6 U 7 U 8 U 9 U 10 U 11 U 12 B B B B B B http://ecomputernotes.com -1 0 1 0 0 0 0 -1 0 1 0 0 0 0 0 0 0
  • 11. Inserting New Node in AVL Tree A B T 3 1 http://ecomputernotes.com 1 0 T 1 T 2
  • 12. Inserting New Node in AVL Tree A B T 3 new 1 2 http://ecomputernotes.com 2 1 T 1 T 2
  • 13. Inserting New Node in AVL Tree A B T 3 new 1 2 A B T 3 new Inorder: T 1 B T 2 A T 3 Inorder: T 1 B T 2 A T 3 http://ecomputernotes.com 2 1 T 1 T 2 0 0 T 1 T 2
  • 14. AVL Tree Building Example
    • Let us work through an example that inserts numbers in a balanced search tree.
    • We will check the balance after each insert and rebalance if necessary using rotations.
    http://ecomputernotes.com
  • 15. AVL Tree Building Example
    • Insert(1)
    http://ecomputernotes.com 1
  • 16. AVL Tree Building Example
    • Insert(2)
    http://ecomputernotes.com 1 2
  • 17. AVL Tree Building Example
    • Insert(3) single left rotation
    -2 http://ecomputernotes.com 1 2 3
  • 18. AVL Tree Building Example
    • Insert(3) single left rotation
    -2 http://ecomputernotes.com 1 2 3
  • 19. AVL Tree Building Example
    • Insert(3)
    http://ecomputernotes.com 1 2 3
