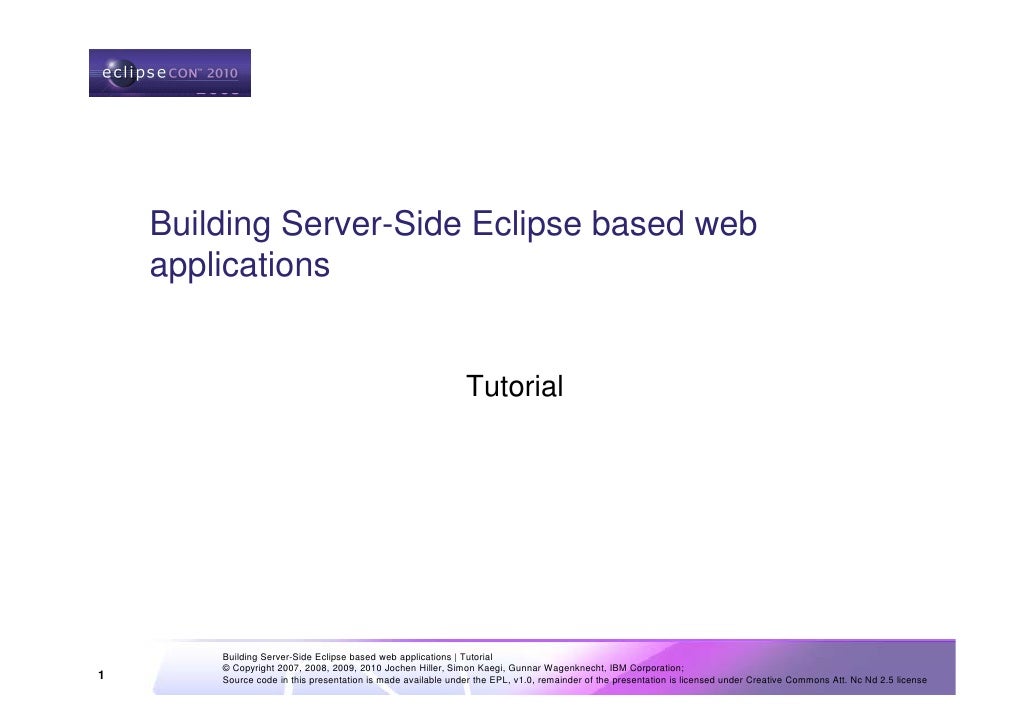

Building Server-Side Eclipse based web applications Tutorial Building Server-Side Eclipse based web applications | Tutorial © Copyright 2007, 2008, 2009, 2010 Jochen Hiller, Simon Kaegi, Gunnar Wagenknecht, IBM Corporation; 1 Source code in this presentation is made available under the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license

The authors Jochen Hiller Simon Kaegi Deutsche Telekom AG, Germany IBM Rational Software, Canada jo.hiller@googlemail.com simon_kaegi@ca.ibm.com Equinox, e4 Committer Gunnar Wagenknecht AGETO, Germany gunnar@wagenknecht.org Eclipse Committer Building Server-Side Eclipse based web applications | Tutorial © Copyright 2007, 2008, 2009, 2010 Jochen Hiller, Simon Kaegi, Gunnar Wagenknecht, IBM Corporation; 2 Source code in this presentation is made available under the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license

Overview • Introduction to Server-Side Eclipse • Developing Server-Side Eclipse applications • Deploying Server-Side Eclipse applications • Monitoring and Debugging Server-Side Eclipse applications • Summary Building Server-Side Eclipse based web applications | Tutorial © Copyright 2007, 2008, 2009, 2010 Jochen Hiller, Simon Kaegi, Gunnar Wagenknecht, IBM Corporation; 3 Source code in this presentation is made available under the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license

What is Server-Side Eclipse (SSE)? • Recognition… that many of the features that have made RCP successful are equally applicable in server-side contexts. Standardized component model (OSGi) Pervasive extensibility – Extension Registry Runtime provisioning • Integration... with existing server-side infrastructure and technologies J2EE Application Servers Servlets and JSPs Application Frameworks • The top level project Eclipse Runtime is an umbrella project for a lot of server-related projects Building Server-Side Eclipse based web applications | Tutorial © Copyright 2007, 2008, 2009, 2010 Jochen Hiller, Simon Kaegi, Gunnar Wagenknecht, IBM Corporation; 4 Source code in this presentation is made available under the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license

What motivates developers to use SSE? Web developer RCP developer Infrastructure developer JavaTM EE RCP application application application framework + component model + server support + component model + use 3rd party plug-ins + re-use plugins • modular + distributed • flexible applications • dynamic Building Server-Side Eclipse based web applications | Tutorial © Copyright 2007, 2008, 2009, 2010 Jochen Hiller, Simon Kaegi, Gunnar Wagenknecht, IBM Corporation; 5 Source code in this presentation is made available under the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license

SSE Based Web Applications • Component based (Bundles) • Use the OSGi HttpService (Servlet API) Explicitly (code) or declaratively (extension registry) • Consistent development story independent of deployment constraints Support for an embedded HttpService Support for running embedded in Application Servers Building Server-Side Eclipse based web applications | Tutorial © Copyright 2007, 2008, 2009, 2010 Jochen Hiller, Simon Kaegi, Gunnar Wagenknecht, IBM Corporation; 6 Source code in this presentation is made available under the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license

Integrating Java EE with the OSGi HttpService • Replaces web deploy descriptor (e.g. “web.xml”) • URL mapping differences • Servlet API support ServletContext / HttpContext differences Does not provide “direct” support for Filters, Listeners. • Dynamic Registration void registerResources(String alias, String name, HttpContext context) void registerServlet(String alias, Servlet servlet, Dictionary initparams, HttpContext context) void unregister(String alias) Supported in Equinox: void registerFilter(String alias, Filter filter, Dictionary initparams, HttpContext context) void unregisterFilter(Filter filter) Building Server-Side Eclipse based web applications | Tutorial © Copyright 2007, 2008, 2009, 2010 Jochen Hiller, Simon Kaegi, Gunnar Wagenknecht, IBM Corporation; Source code in this presentation is made available under the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license

URL Mapping Differences void registerResources(String alias, String name, HttpContext context) • “alias” roughly equivalent to <url-mapping> alias of “/myContent” is equivalent to <url-mapping> /myContent/* </url-mapping> • “name” provides a base path when looking up resources in the HttpContext. Supported in Equinox • No support for extension mappings Syntax is: {path}/*.jsp • No implicit welcome file support eg. mapping “/” to “/index.html” Building Server-Side Eclipse based web applications | Tutorial © Copyright 2007, 2008, 2009, 2010 Jochen Hiller, Simon Kaegi, Gunnar Wagenknecht, IBM Corporation; Source code in this presentation is made available under the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license

HttpContext • Maps 1-1 to a ServletContext Method Summary String getMimeType(String name) • Allows implementation of custom HttpContext URL getResource(String name) • MIME type retrieval boolean handleSecurity( • resource retrieval HttpServletRequest request, HttpServletResponse response) • authentication • Does not directly support: Supported in Equinox (via Reflection) getNamedDispatcher getResourcePaths Set getResourcePaths(String path) getInitParameters (*) “Context Path” (*) Building Server-Side Eclipse based web applications | Tutorial © Copyright 2007, 2008, 2009, 2010 Jochen Hiller, Simon Kaegi, Gunnar Wagenknecht, IBM Corporation; Source code in this presentation is made available under the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license

Servlets and Filters What’s missing… (*) = Workarounds Available: • Filter • Technique is to wrap-and-adapt your now fully supported in Helios Servlet or Resource. Servlet wrapped = new • HttpSessionListener ContextListenerServletAdaptor( myServlet, myListener); • HttpSessionAttributeListener registerServlet(“/myPath”, wrapped, params, myHttpContext); • HttpSessionActivationListener • org.eclipse.equinox.http.helper[s] • ServletContextListener (*) in the Equinox-Incubator CVS • ServletContextAttributeListener not currently API but supported • ServletRequestListener • ServletRequestAttributeListener Building Server-Side Eclipse based web applications | Tutorial © Copyright 2007, 2008, 2009, 2010 Jochen Hiller, Simon Kaegi, Gunnar Wagenknecht, IBM Corporation; Source code in this presentation is made available under the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license

Dynamic Registration • Code-based Lifecycle: tied to Bundle START and STOP More Complex but provides greater control • Extension Registry (org.eclipse.equinox.http.registry) Lifecycle: tied to Bundle RESOLVED and UNRESOLVED Simpler in most cases • Declarative Services Lifecycle: tied to Bundle START and STOP Requires writing a component file URL Space is also dynamic and shared across all registrations No more than one registration per “alias” Worth planning – useful techniques with relative URLs Building Server-Side Eclipse based web applications | Tutorial © Copyright 2007, 2008, 2009, 2010 Jochen Hiller, Simon Kaegi, Gunnar Wagenknecht, IBM Corporation; Source code in this presentation is made available under the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license

JSP Support • Provided by: org.eclipse.equinox.jsp.jasper.JspServlet << public JspServlet(Bundle bundle, String bundleResourcePath, String alias) >> • No default constructor Requires compilation / runtime context from “bundle” • JSP lookup consistent with OSGi HttpService resource registration. Building Server-Side Eclipse based web applications | Tutorial © Copyright 2007, 2008, 2009, 2010 Jochen Hiller, Simon Kaegi, Gunnar Wagenknecht, IBM Corporation; Source code in this presentation is made available under the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license

JSP Support – Extension Registry • Extension Registry Support provided by: org.eclipse.equinox.jsp.jasper.registry.JspFactory • ExecutableExtensionFactory <extension point="org.eclipse.equinox.http.registry.servlets"> <servlet alias="/myPath/*.jsp“ class="org.eclipse.equinox.jsp.jasper.registry.JSPFactory:/bundlePath"> </servlet> </extension> • Use “{path}/*.jsp” style alias for JSPs. Allows a “{path}” resource registration to support more efficiently serving static resources without an alias namespace collision. Building Server-Side Eclipse based web applications | Tutorial © Copyright 2007, 2008, 2009, 2010 Jochen Hiller, Simon Kaegi, Gunnar Wagenknecht, IBM Corporation; Source code in this presentation is made available under the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license

Exercises • Start Eclipse & configure target platform • Hello Servlet • Hello Filter • Hello JSP • Hello Servlet Registry • Hello Filter Registry • Hello JSP Registry Building Server-Side Eclipse based web applications | Tutorial © Copyright 2007, 2008, 2009, 2010 Jochen Hiller, Simon Kaegi, Gunnar Wagenknecht, IBM Corporation; 15 Source code in this presentation is made available under the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license

Recommended deployment scenarios Deployment depends on target infrastructure: • Standalone Equinox server application Embedded HttpService Lightweight solution – good choice for development Distribute like Eclipse RCP application • Run application in External Application Server Recommended as production solution Deploy as standard WAR application (scripts provided) Building Server-Side Eclipse based web applications | Tutorial © Copyright 2007, 2008, 2009, 2010 Jochen Hiller, Simon Kaegi, Gunnar Wagenknecht, IBM Corporation; 17 Source code in this presentation is made available under the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license

Equinox embedding an HttpService • Run Equinox as standalone application • Multiple processes isolated • Embedded HttpService (e.g. Jetty) • Application functionality based on bundles, Servlets, JSPs, ... • Add web services as bundle • Server management based on bundles Source: Jeff McAffer, Eclipse Summit Europe, Server-Side Symposium, Oct 12nd 2006 Building Server-Side Eclipse based web applications | Tutorial © Copyright 2007, 2008, 2009, 2010 Jochen Hiller, Simon Kaegi, Gunnar Wagenknecht, IBM Corporation; 18 Source code in this presentation is made available under the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license

Deploying standalone Equinox server • Choose target platform • Add platform specific launchers if required • Add common services and bundles (see Eclipse Orbit!) • Add application plug-ins • Group bundles / plug-ins as features Servlet JSP Bundles ... ... Application plug-ins Common services Launcher commons- Update Jetty Jasper 3rdParty logging, ... Configurator (see Orbit) Equinox Server-Side Eclipse Operating System Building Server-Side Eclipse based web applications | Tutorial © Copyright 2007, 2008, 2009, 2010 Jochen Hiller, Simon Kaegi, Gunnar Wagenknecht, IBM Corporation; 19 Source code in this presentation is made available under the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license

Deploying Standalone Equinox server • Deploy like an RCP application Plugins / Feature / Product based export You have to include SSE related plugins Maintain config.ini for starting bundles • Important config.ini settings: osgi.console=true # start an OSGi console osgi.noShutdown=true # do NOT shutdown OSGi eclipse.ignoreApp=true # do NOT start an Eclipse application • Or use commandline arguments when using Eclipse starter: -console # enable OSGi console -noExit # same as osgi.noShutdown=true Building Server-Side Eclipse based web applications | Tutorial © Copyright 2007, 2008, 2009, 2010 Jochen Hiller, Simon Kaegi, Gunnar Wagenknecht, IBM Corporation; 20 Source code in this presentation is made available under the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license

Deploy Standard Equinox – Running the Server • Start Equinox server java –Dorg.osgi.service.http.port=8080 –jar pluginsorg.eclipse.equinox.launcher_<version>.jar –console -noExit Building Server-Side Eclipse based web applications | Tutorial © Copyright 2007, 2008, 2009, 2010 Jochen Hiller, Simon Kaegi, Gunnar Wagenknecht, IBM Corporation; 21 Source code in this presentation is made available under the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license

Application Server running an embedded Equinox • Launch Equinox in traditional application server • Isolation between multiple web applications/Equinox instances • Forwarding (Lite) HttpService exposes application server capabilities • Application functionality based on bundles, Servlets, JSPs, ... • Bridging aspect is referred to as the Servletbridge Servlet JSP Servlet JSP Bundles Servletbridge HTTP Service Bundles Servletbridge HTTP Service Equinox Equinox Equinox WAR … Equinox WAR Bridge Servlet Bridge Servlet App Server OS Building Server-Side Eclipse based web applications | Tutorial © Copyright 2007, 2008, 2009, 2010 Jochen Hiller, Simon Kaegi, Gunnar Wagenknecht, IBM Corporation; 22 Source code in this presentation is made available under the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license

What is the Servletbridge? … a bridge between the servlet and OSGi world Servlet - side OSGi - side • Eclipse framework launcher • Proxy Servlet that registers with • Bridge Servlet with a call-back Bridge Servlet registration point • OSGi HttpService 1 5 Bridge Servlet Proxy Servlet 2 Servlet OSGi 4 3 Framework Launcher HttpService Building Server-Side Eclipse based web applications | Tutorial © Copyright 2007, 2008, 2009, 2010 Jochen Hiller, Simon Kaegi, Gunnar Wagenknecht, IBM Corporation; 23 Source code in this presentation is made available under the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license

What is the Servletbridge? Servlet OSGi Incoming Request Registered Request Handler Servletbridge OSGi HttpService registerResource(…) registerServlet(…) Incoming requests are “proxied” through the Servletbridge to registered request handlers. Building Server-Side Eclipse based web applications | Tutorial © Copyright 2007, 2008, 2009, 2010 Jochen Hiller, Simon Kaegi, Gunnar Wagenknecht, IBM Corporation; 24 Source code in this presentation is made available under the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license

Deploying Equinox Inside an Application Server • Deploy similar to an RCP application but in a Web Archive /WEB-INF /launch.ini (contains framework properties that will allow override of any eclipse specific System Properties) /web.xml (with one servlet entry assigning all incoming requests to the BridgeServlet) /lib/org.eclipse.equinox.servletbridge_<version>.jar (the classes associated with the equinox.servletbridge) /configuration (contains config.ini which lists the bundles you want to have available at startup) /features /plugins • Uses the PDE Product Export Wizard Uncheck “The product includes native launcher artifacts” and select “Eclipse Product Export Wizard” Set the “root directory” to WEB-INF and press “Finish” For sample products see: org.eclipse.equinox.server.examples.servletbridge.product server.core.product (Basic Servletbridge Product) server.core.p2.product (Servletbridge Product with p2 support for provisioning) Building Server-Side Eclipse based web applications | Tutorial © Copyright 2007, 2008, 2009, 2010 Jochen Hiller, Simon Kaegi, Gunnar Wagenknecht, IBM Corporation; 25 Source code in this presentation is made available under the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license

Deploying Equinox inside Application Server • Online Demo Building Server-Side Eclipse based web applications | Tutorial © Copyright 2007, 2008, 2009, 2010 Jochen Hiller, Simon Kaegi, Gunnar Wagenknecht, IBM Corporation; 26 Source code in this presentation is made available under the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license

Exercises • Export standalone server using product export • Create & deploy WAR file using Servlet bridge Building Server-Side Eclipse based web applications | Tutorial © Copyright 2007, 2008, 2009, 2010 Jochen Hiller, Simon Kaegi, Gunnar Wagenknecht, IBM Corporation; 27 Source code in this presentation is made available under the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license

Logging in Equinox Jetty 6 Integration • Jetty logging controllable in 3.5+ • -Dorg.eclipse.equinox.http.jetty.log.stderr.threshold=<level> "debug", "info", "warn", "error", and "off“ Default is “warn” • Log will happen to STDERR only (for now) • Outlook: deeper integration with Extended Equinox Log Service (3.7) Building Server-Side Eclipse based web applications | Tutorial © Copyright 2007, 2008, 2009, 2010 Jochen Hiller, Simon Kaegi, Gunnar Wagenknecht, IBM Corporation; 29 Source code in this presentation is made available under the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license

Debugging: Where to hook in • Hook either in OSGi world ServetBridge • Startup problems: FrameworkLauncher • Central access: ProxyServlet Hook in processAlias Building Server-Side Eclipse based web applications | Tutorial © Copyright 2007, 2008, 2009, 2010 Jochen Hiller, Simon Kaegi, Gunnar Wagenknecht, IBM Corporation; 30 Source code in this presentation is made available under the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license

Servlet Bridge Management Commands “web.xml” allows configuration of initial parameters: • commandLine Allows all non-VM command line parameterizations of Eclipse. The default value is "-console“ which should be cleared for production. • enableFrameworkControls (true / false) - Controls whether or not the sp_* control URLs are accessible sp_deploy - Copies the contents of /platform to the install area (the servlet context tempdir is used - parameterizable someday) sp_undeploy - Removes the copy of Eclipse from the install area sp_redeploy - Resets the platform (e.g. stops, undeploys, deploys, starts) sp_start - Starts a deployed platform sp_stop - Stops the platform sp_test - Provides a sanity check and determines if an OSGi based servlet is ready to accept requests • frameworkLauncherClass – allows customization of the launcher • extendedFrameworkExports – additional java package exports from the web application. Servlet API is automatically exported. Building Server-Side Eclipse based web applications | Tutorial © Copyright 2007, 2008, 2009, 2010 Jochen Hiller, Simon Kaegi, Gunnar Wagenknecht, IBM Corporation; 31 Source code in this presentation is made available under the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license

Knopflerfish HTTP Console • Provides convenient way to manage bundles at runtime • Works within Servlet Bridge Building Server-Side Eclipse based web applications | Tutorial © Copyright 2007, 2008, 2009, 2010 Jochen Hiller, Simon Kaegi, Gunnar Wagenknecht, IBM Corporation; 32 Source code in this presentation is made available under the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license

Summary - Looking forward... • Eclipse >3.3 supports building OSGi based web applications for: Equinox based RCP and headless applications Equinox embedded in an application server • Outlook for Eclipse 3.7 Jetty 7 JSP 2.1 • New Specifications from OSGi Enterprise Expert Group OSGi Web Container (RFC 66) JNDI and OSGi Integration (RFC 142) Building Server-Side Eclipse based web applications | Tutorial © Copyright 2007, 2008, 2009, 2010 Jochen Hiller, Simon Kaegi, Gunnar Wagenknecht, IBM Corporation; 34 Source code in this presentation is made available under the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license

OSGi Web Container (RFC 66) • New concept… “Web Application Bundle” • Includes a “web.xml” in the bundle • Same deployment model and same features as current web applications • …but is a real bundle that can use OSGi Services • Syntactic sugar? Tasty? Building Server-Side Eclipse based web applications | Tutorial © Copyright 2007, 2008, 2009, 2010 Jochen Hiller, Simon Kaegi, Gunnar Wagenknecht, IBM Corporation; Source code in this presentation is made available under the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license

JNDI and OSGi Integration (RFC 142) • Current JNDI implementations use Context Class Loader for lookup. • Clever Idiom? ClassLoader original = Thread.currentThread().getContextClassLoader(); try { Thread.currentThread().setContextClassLoader(BridgeServlet.class.getClassLoader()); // Do JNDI Calls here } finally { Thread.currentThread().setContextClassLoader(original); } • JNDI Service will provide a more sensible “bundle” scoped lookup. Building Server-Side Eclipse based web applications | Tutorial © Copyright 2007, 2008, 2009, 2010 Jochen Hiller, Simon Kaegi, Gunnar Wagenknecht, IBM Corporation; Source code in this presentation is made available under the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license

For more information... Project hub: http://www.eclipse.org/equinox/server Newsgroup: news://news.eclipse.org/eclipse.technology.equinox Dev Mailing List: equinox-dev@eclipse.org Thank-you Building Server-Side Eclipse based web applications | Tutorial © Copyright 2007, 2008, 2009, 2010 Jochen Hiller, Simon Kaegi, Gunnar Wagenknecht, IBM Corporation; 37 Source code in this presentation is made available under the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license

Legal Notices • Java and all Java-based trademarks are trademarks of Sun Microsystems, Inc. in the United States, other countries, or both • Microsoft, Windows, Windows NT, and the Windows logo are trademarks of Microsoft Corporation in the United States, other countries, or both. • Linux is a registered trademark of Linus Torvalds in the United States, other countries, or both. • Other company, product, or service names may be trademarks or service marks of others Building Server-Side Eclipse based web applications | Tutorial © Copyright 2007, 2008, 2009, 2010 Jochen Hiller, Simon Kaegi, Gunnar Wagenknecht, IBM Corporation; 38 Source code in this presentation is made available under the EPL, v1.0, remainder of the presentation is licensed under Creative Commons Att. Nc Nd 2.5 license
