  • The HP Business Data Warehouse offers a solution for the customers discussed on the previous slide. It’s a solution that is:Complete – the appliance comes with all the hardware and software you need, pre-configured for a data warehouse workload based on expertise from HP and Microsoft, and includes support services from a single source.Optimized – Experts from Microsoft and HP have designed and tuned the appliance specifically for data warehouse workloads, so you can be sure it will meet your data warehouse requirements with efficient power utilization and built in security and reliability features.Agile – Because the BDW is a single hardware appliance, you can just plug it in, switch it on, and within a very short period you’ll have a working data warehouse. The easy to use wizards included in the appliance make it easy to configure and load, enabling your business to start taking advantage of your data warehouse sooner than with a “self-build” solution. And while the BDW is optimized for relatively low data volumes and concurrency, if your business grows significantly you can transfer your BDW software licenses to a Fast Track solution.
  • There are two key scenarios for using the HP Business Data Warehouse appliance:A small business or departmental data warehouse for a small group of concurrent users who need to store and analyse up to 5 TB of data.A spoke in an Enterprise Data Warehouse “hub and spoke” architecture, where the BDW is used to deliver a subset of the corporate data warehouse to a specific set of users.
  • The hardware for the BDW is provided by HP, and consist of a server (which can be provided in a 4U rack-mount unit configuration or as a standalone “pedestal” server), and storage hardware. The specific hardware components and configuration have been carefully chosen to provide the optimal solution for a 5TB data warehouse with light concurrency requirements.
  • To help you get started, the appliance includes two HP wizard applications – one to complete the initial deployment of the appliance and integrate it into your Windows domain infrastructure, and another to help you create your data warehouse schema and load data to the data warehouse.
  • The appliance is a complete solution with hardware, software, and service that is needed in a mission critical data warehouse. The database is highly scalable and can handle workloads of hundreds of terabytes while maintaining performance. The EDW appliance also works with your existing data warehouses and data marts so you do not have to rip and replace your current investments. Also, you can use familiar tools such as Microsoft Excel to analyze the data in your data warehouse.
  • Customers will purchase at least two racks for a complete EDW Appliance system. [Click]The control rack will have control nodes, management nodes, the landing zone, and backup nodes. The data rack will have servers that are compute nodes and storage nodes. Each of these racks and node types will be discussed in more detail.
  • Customers will purchase at least two racks for a complete EDW Appliance system. [Click]The control rack will have control nodes, management nodes, the landing zone, and backup nodes. The data rack will have servers that are compute nodes and storage nodes. Each of these racks and node types will be discussed in more detail.
  • Customers will purchase at least two racks for a complete EDW Appliance system. [Click]The control rack will have control nodes, management nodes, the landing zone, and backup nodes. The data rack will have servers that are compute nodes and storage nodes. Each of these racks and node types will be discussed in more detail.
  • Customers will purchase at least two racks for a complete EDW Appliance system. [Click]The control rack will have control nodes, management nodes, the landing zone, and backup nodes. The data rack will have servers that are compute nodes and storage nodes. Each of these racks and node types will be discussed in more detail.
  • Customers will purchase at least two racks for a complete EDW Appliance system. [Click]The control rack will have control nodes, management nodes, the landing zone, and backup nodes. The data rack will have servers that are compute nodes and storage nodes. Each of these racks and node types will be discussed in more detail.
  • Customers will purchase at least two racks for a complete EDW Appliance system. [Click]The control rack will have control nodes, management nodes, the landing zone, and backup nodes. The data rack will have servers that are compute nodes and storage nodes. Each of these racks and node types will be discussed in more detail.
  • Customers will purchase at least two racks for a complete EDW Appliance system. [Click]The control rack will have control nodes, management nodes, the landing zone, and backup nodes. The data rack will have servers that are compute nodes and storage nodes. Each of these racks and node types will be discussed in more detail.
  • The Administrative Console is an Internet Information Services (IIS) web application for SQL Server Parallel Data Warehouse that displays the appliance’s state information. Users connect to the Administrative Console through Microsoft Internet Explorer.
  • The Configuration Manager is an appliance administration tool that SQL Server Parallel Data Warehouse system administrators use to perform appliance-level operations and to change appliance-level settings. For example, use the Configuration Manager to reset passwords, set the time zone, change IP addresses, configure SSL certificates, enable remote access through the firewall, start or stop the appliance, and set Instant File Initialization.
  • A distributed data warehouse solution, such as that supported by SQL Server Parallel Data Warehouse, comprises a centralized EDW and a set of loosely coupled data marts. For many years, this has been the preferred approach for enterprise-wide data warehousing, and numerous studies since 2003 confirm that hub and spoke is the most popular data warehouse architecture among DW professionals. Traditionally, implementing a hub and spoke architecture has been challenging due to practical limitations of the database engine and network resources.[Click to display types of spoke]With SQL Server Parallel Data Warehouse, you can create a diverse range of types of spoke, from SQL Server Parallel Data Warehouse MPP appliances for user groups that have extreme scalability requirements, Fast Track data warehouse implementations, SQL Server 2008 Enterprise data warehouses, and even SQL Server 2008 Analysis Services OLAP databases.[Click to display parallel database copy point]However, the SQL Server Parallel Data Warehouse parallel database copy technology enables rapid data integration between spokes and the SQL Server Parallel Data Warehouse hub, making it easier to build hub and spoke solutions that integrate your diverse data marts and the enterprise data warehouse.[Click to display multiple-user SLA point]The SQL Server Parallel Data Warehouse hub and spoke architecture enables you to support user groups with very different SLAs; supports hot, warm, and cold data; supports different requirements for loading data loading, and more.

HP Microsoft SQL Server Data Management Solutions HP Microsoft SQL Server Data Management Solutions Presentation Transcript

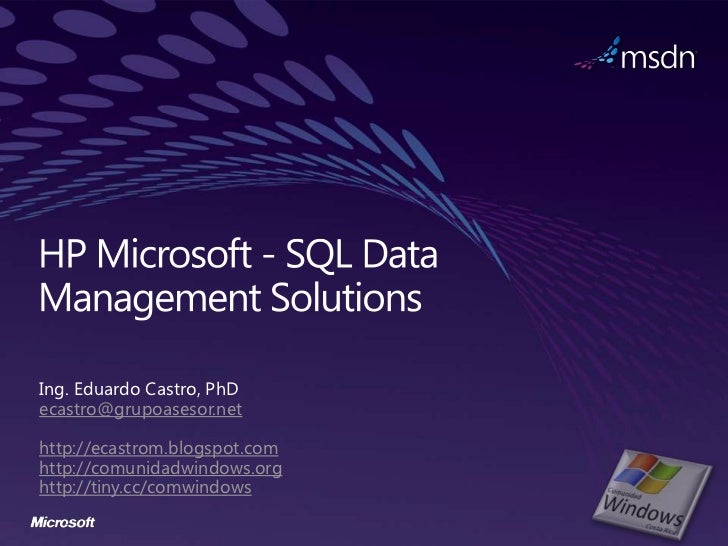

  • Ing. Eduardo Castro, PhDecastro@grupoasesor.nethttp://ecastrom.blogspot.comhttp://comunidadwindows.orghttp://tiny.cc/comwindows
  • Lower and High costs in deploying and maintaining disparatestreamline application solutionsCAPEX and OPEX Protect your investment and lower TCO Reduce Managing silos and layers of technologycomplexity Deploying and implementing multiple solutions Enable Need for dynamic solutions that self provision Scalableapplications Highly scalable application across all workloads ensuring business continuity Align IT Dynamic IT solutions that respond to changing business Business requirements Needs Provide business intelligence and decision making capability
  • #1 technology provider and #1 software provider deliver nextgeneration datacenter and application platformIntegrated roadmap for converged application platforms, comprehensivevirtualization solutions, and integrated management offeringsOptimized performance, reliability, availability, and push buttonsimplicity for the industry’s top business applicationsAutomatically provision, manage, and continuously self-tuned acrossdatacenter and cloud environments10X increased investment on more than 32,000 HP/Microsoft Frontlinepartners, plus HP/Microsoft Global expertise, and comprehensiveservicesLeverage existing data center investment with joint solutions thatare architected for today and future cloud environments
  • Take 1 big SANAdd a little ServerAdd a bigger ServerAdd more networking
  • DISK DISK FC A SQL SERVER CPU CORES A WINDOWS FC SWITCH SERVER HBA B LUN CACHE CACHE A STORAGE A B CONTROLLER B DISK DISK FC A HBA B B LUNCPU Feed Rate SQL Server HBA Port Rate Switch Port Rate SP Port Rate LUN Read Rate Disk Feed Rate Read Ahead Rate
  • Supporting BI Data Storage Presentation LayerSystems Systems Systems Integration Analysis Services Services ETL Cubes Presentation Data Presentation Data Web Analytic Data Path Tools Reporting Services SharePoint Services Dedicated Microsoft Office SAN, Storage SharePoint Data Warehouse PerformancePoin Array Data Staging, t Excel Services Bulk Loading Data Warehouse Scope (dashed)
  • Fast Track Data Parallel Data Enterprise BDW Appliance Warehouse RA Warehouse Appliance for high ReferenceScalable and reliable Scalable and reliable end MPP Data architectures offeringSMP platform for data platform for data Warehousing best price warehousing on any warehousing on any delivering highest performance for data hardware hardware scalability and warehousing performance Ideal for data marts orIdeal for data marts or Ideal for large data small to mid-sized Ideal for high scale small to mid-sized marts or mid-sized data warehouses with or high performance enterprise data EDWs scan-centric data marts and EDWs warehouses (EDWs) workloads Reference DW Appliance Integrated Appliance Architectures (Fully integrated Software only (Software and (Software and Software and Hardware) Hardware) Hardware) Scale-Out DW with Scale-Up DW Scale-Up DW Scale-Up DW MPP 10s of terabytes <5 terabytes 5–80 terabytes 10s - 100s of TB Software Assurance; Software Assurance; 3-Year Support Plus Mission Critical Premier Mission Premier Mission 24 Advantage Program Critical Support Critical Support
  • Effort to Build Very High Very Low Modera Modera Modera Modera Very Low te te te teCapacity Variable 5 TB 14 TB 20 TB 40 TB 40 TB 500 TBConcurrency Variable Light Light Medium Mediu High Very High mQuery Variable Medium Mediu Medium Mediu High Very HighComplexity m m
  • Complete Optimized Agile• Hardware + Software + • Specifically for small to • Deploy in hours/days, not in Services medium data warehouse months• Pre-tuned, pre workload • Easy to use through built-in configured, pre-installed. • Designed for dedicated tools to load and Turn on and go! performance, energy manage your data warehouse• Single point of contact for efficiency, and value by HP • Designed for up to 5TB data support and Microsoft’s best warehouses engineers • Fast Track 3.0 • Security and reliability built compliant, license path to in Fast-Track
  • Small/Departmen Spoke in EDW Hub and tal Data Spoke Architecture Warehouse
  • What’s in the Box: optimizedsoftware Appliance Quick Deployment Wizard • Name the appliance • Join a domain • Specify appliance administrators DDL and Data Load Wizard • Create staging and production databases • Load data • Check data fragmentation
  • What is it?
  • Value Proposition
  • Workload Evaluation
  • Software: • SQL Server 2008 R2 Enterprise • Windows Server 2008 R2Configuration guidelines: • Physical table structures • Indexes • Compression • SQL Server settings • Windows Server settings • LoadingHardware:• Tight specifications forservers, storage and networking• ‘Per core’ building block
  • − Tier-1 Enterprise Data Warehouse Appliance Offering − High scalability from tens to hundreds of terabytes − High performance through the MPP system− Flexibility and Choice − Choice of deployment options through distributed architecture− Most Comprehensive Solution − Complete data warehouse solution spanning desktop, enterprise data warehouse, and data marts
  • SQL SQLSQL SQL SQL SQL SQL SQL SQL SQL SQL
  • CONTROL NODE  Client connections always go through the SQL control node  Contains no persistent user data SQLSQL  Parallel Data Warehouse advantages: SQL oProcesses SQL requests SQL oPrepares execution plan oOrchestrates distributed execution SQL  Local SQL Server processes final query SQL plan and aggregates results  Provided by DataDirect SQL oOpen database connectivity SQL (ODBC), object linking and embedding database (OLE DB), Java Database SQL Connectivity (JDBC), and ActiveX® Data Objects (ADO.net) client drivers SQL oWire protocol (SeQuel link) oDrivers are available for 32 bits and 64 bits
  • LANDING ZONE SQL SQL  Provides high-capacity storage for data filesSQL from ETL processes SQL  Is available as a sandbox for other SQL applications and scripts that run on the internal networkSQL  Provides SQL Server Integration Services SQL SQL SQL Landin Compu Data Source g Zone te Loader SQL Files Nodes SQL DWLoader or SQL Server Integration Services
  • BACKUP NODE SQL SQL  Provides Integrated Backup SolutionSQL  Integrates with SQL party backup option 3rd  Orderable in different sizes SQL SQL SQL SQL SQL SQL SQL
  • SQL SQL• Data Rack Servers 10 active + 1 passive SQL SQL• HP ProLiant DL360 G7 compute nodes SQL SQL• InfiniBand, FC and Ethernet switching, 42U rack SQL SQL• Expansion Grow from 1–4 data SQL racks, storage options, test/dev system SQL• Storage 10x HP SQL StorageWorks MSA P2000 G3• Consists of COMPUTE NODES and STORAGE NODES
  • COMPUTE NODE• Data Rack Servers 10 active + 1 passive SQL• HP ProLiant DL360 G7 compute nodes• InfiniBand, FC and Ethernet switching, 42U rack  Each MPP node is a highly tuned symmetric• Expansion Grow from multi-processing (SMP) node with standard 1–4 data interfaces racks, storage options, test/dev  Provides dedicated system hardware, database, and storage• Storage 10x HP  Runs SQL Server StorageWorks MSA P2000 G3  Spare Node provides failover in case of node failure  Drives are configured as RAID 1
  • SQL SQL Client Drivers SQL SQL SQL SQL Support/Patching SQL SQL ETL Load Interface SQL SQL SQLCorporate Backup Solution
  • SQL SQL ???QUERY SQL SQL SQL SQL SQL SQL SQL SQL SQL
  •  Dashboard  Query activity  Load activity  Backup and restore  Active locks  Active sessions  Alerts  Appliance statehttps://controlnodeipaddress
  •  Appliance topology Services status Network configuration Privileges
  • Parallel database Supports user groupscopy technology with very differentenables rapid data service-levelmovement and agreements (SLAs):consistency between • PerformanceEDW and data marts • Capacity • Loading • Concurrency Create SQL Server 2008 R2, Fast Track Data Warehouse, and SQL Server Analysis Services Data Marts A distributed architecture gives you the flexibility to add or change diverse workloads or user groups while maintaining data consistency across the enterprise
  • Contact your HP/Microsoft Sales Account Manager or Frontline Partner to learn moreNew Business Value services forNext generation applicationplatformPerformance and scalabilityoptimization for SQL Server andExchange ServerHP P4000 Virtual SAN Appliancetune for Hyper-V Microsoft Core Infrastructure Virtualization Client and Virtualization Services Data Management Solutions around OLTP, DW, BIImplement Hyper-V, Exchange and SQL Server Upgrades or Migration ofIntegrate Insight Control for MS System Center Messaging and UnifiedFast Track and Data Warehouse solutions Communications solutionsSQL Server upgrade and consolidation Private Cloud for MicrosoftExchange Server upgradeand migration
  • www.hp.com/go/microsoft/infra2appswww.microsoft.com/go/hp
