Necessitas Qt on Android   Johan Thelin    Pelagicore

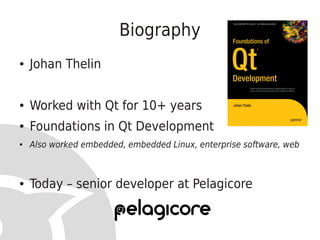

Biography●   Johan Thelin●   Worked with Qt for 10+ years●   Foundations in Qt Development●   Also worked embedded, embedd...
Pelagicore●   Open source based in-vehicle infotainment    ●   Member of Linux Foundation    ●   Ubuntu Core member    ●  ...

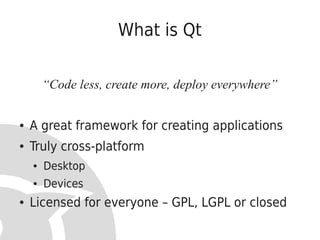

What is Qt        “Code less, create more, deploy everywhere”●   A great framework for creating applications●   Truly cros...
Qt on Desktop●   X11●   OS X●   Windows
Qt on Devices●   Linux with X11    ●   N900, N9●   Linux without X11    ●   industrial, etc●   Symbian●   WinCE●   more...

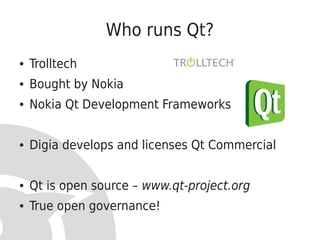

Who runs Qt?●   Trolltech●   Bought by Nokia●   Nokia Qt Development Frameworks●   Digia develops and licenses Qt Commerci...
Qt on Devices●   More than the official ports    ●   Android    ●   RIM Blackberry    ●   WebOS    ●   iOS    ●   Kindle  ...
Qt on Devices●   More verticals    ●   Set-top boxes    ●   Industrial panels    ●   Tablets    ●   Your car
Finding the Roots of Qt        Backends
Backends●   Backends for OS primitives    ●   Atomic operations, files, etc●   Backends for graphics rendering    ●   Soft...
Why Backends  Portability!
Portability between Devices●   QPA – Qt Platform Architecture – or something    ●   Formerly known as Lighthouse●   A back...

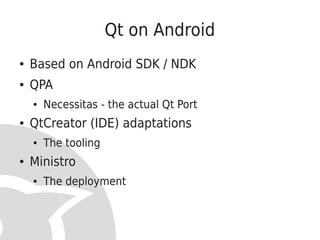

Qt on Android●   Based on Android SDK / NDK●   QPA    ●   Necessitas - the actual Qt Port●   QtCreator (IDE) adaptations  ...
Current Status●   Alpha 3 was just released    ●   Most of Qt is ported    ●   OpenGL rendering    ●   WebKit●   Missing  ...

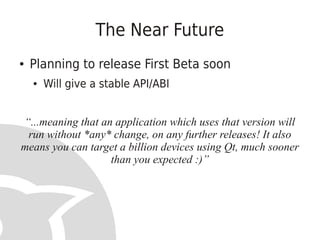

The Near Future●   Planning to release First Beta soon    ●   Will give a stable API/ABI“...meaning that an application wh...

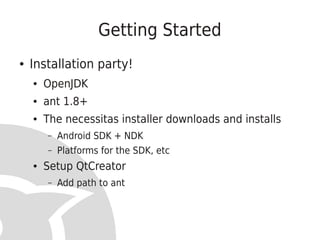

Getting Started●   Installation party!    ●   OpenJDK    ●   ant 1.8+    ●   The necessitas installer downloads and instal...
Installer
Demo Application

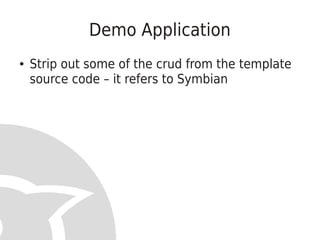

Demo Application●   Strip out some of the crud from the template    source code – it refers to Symbian

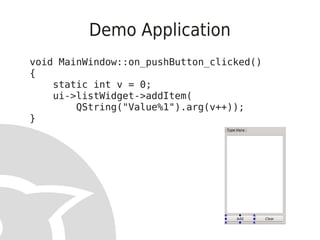

Demo Applicationvoid MainWindow::on_pushButton_clicked(){    static int v = 0;    ui->listWidget->addItem(        QString(...
Demo Application
Demo Application ●   From project directory$ ls -l android/bin/total 1988-rw-rw-r-- 1 e8johan   e8johan    179 2011-11-10 ...
First Run on Phone●   Installs Ministro – Installs Qt – Resumes    https://market.android.com/details?id=eu.licentia.neces...
Second RunIt simply works!
More on Ministro●   Qt libraries are shared among all Qt apps on    the device●   From the beta release, the ABI is stable...
Configurability●   Android target SDK    ●   API levels●   Application icon●   Permissions    ●   What your app wants to b...
Debugging●   Yes! :-)●   Android NDK comes with gdb    ●   Works with QtCreator●   Requires some tweaking    ●   Described...
Qt and Device UIs Got to show you this!
User Interface Development●   Classic – standard widgets, etc    ●   Rectangular areas    ●   Non-overlapping    ●   Clipp...

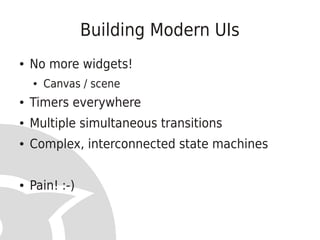

Building Modern UIs●   No more widgets!    ●   Canvas / scene●   Timers everywhere●   Multiple simultaneous transitions●  ...

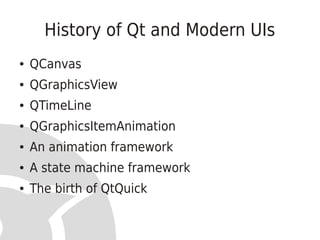

History of Qt and Modern UIs●   QCanvas●   QGraphicsView●   QTimeLine●   QGraphicsItemAnimation●   An animation framework●...
QtQuick●   What is QtQuick?    ●   A run-time for QML    ●   Tooling●   What is QML    ●   Declarative    ●   JavaScript
QMLimport QtQuick 1.0Rectangle {    Rectangle {        MouseArea {        }    }}

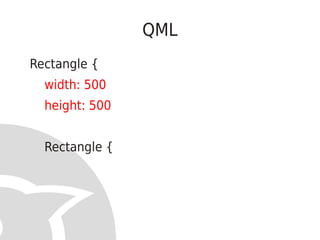

QMLRectangle {  width: 500  height: 500  Rectangle {
QMLRectangle {  Rectangle {    id: box    color: "red"    width: 100    height: 100    x: 200
QMLMouseArea {    anchors.fill: parent    onClicked: {        if(box.state=="up")          box.state="down";        else  ...

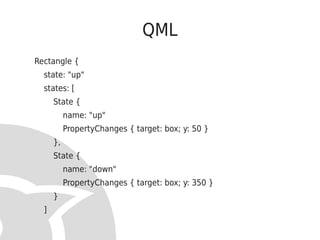

QMLRectangle {  state: "up"  states: [      State {           name: "up"           PropertyChanges { target: box; y: 50 } ...
Demo

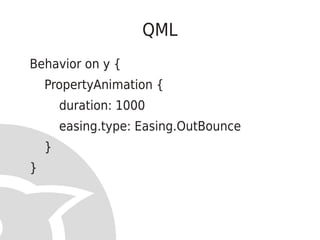

QMLBehavior on y {    PropertyAnimation {        duration: 1000        easing.type: Easing.OutBounce    }}
Demo

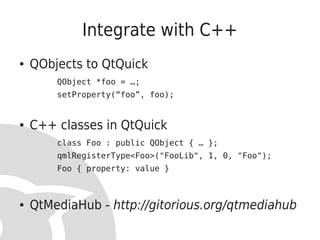

Integrate with C++●   QObjects to QtQuick        QObject *foo = …;        setProperty(“foo”, foo);●   C++ classes in QtQui...
QtMediaHub
Of course QtQuick works on Android too.  With hardware accelerated graphics.

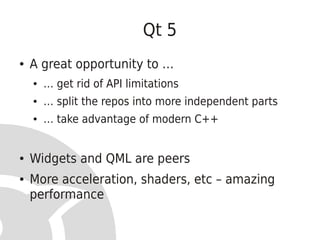

Qt 5●   A great opportunity to …    ●   … get rid of API limitations    ●   … split the repos into more independent parts ...
A new Dawn●   Truly Open Source – a www.qt-project.org●   Qt for Desktop    ●   Windows / X11 / OS X... more●   Qt for Dev...

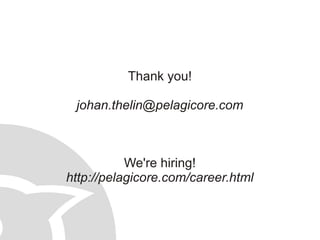

Thank you! johan.thelin@pelagicore.com           Were hiring!http://pelagicore.com/career.html
Upcoming SlideShare
Loading in...5
×

Necessitas - Qt on Android - from FSCONS 2011

4,085

Published on

Published in: Sports, Technology, Art & Photos
0 Comments
4 Likes
Statistics
Notes
  • Be the first to comment

No Downloads
Views
Total Views
4,085
On Slideshare
0
From Embeds
0
Number of Embeds
1
Actions
Shares
0
Downloads
45
Comments
0
Likes
4
Embeds 0
No embeds

No notes for slide

Transcript of "Necessitas - Qt on Android - from FSCONS 2011"

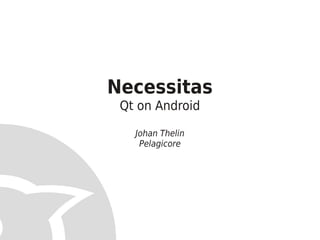

  1. 1. Necessitas Qt on Android Johan Thelin Pelagicore
  2. 2. Biography● Johan Thelin● Worked with Qt for 10+ years● Foundations in Qt Development● Also worked embedded, embedded Linux, enterprise software, web● Today – senior developer at Pelagicore
  3. 3. Pelagicore● Open source based in-vehicle infotainment ● Member of Linux Foundation ● Ubuntu Core member ● GENIVI member ● Active within MeeGo, etc● Uses Qt and QtQuick extensively ● Also HTML5, JavaScript and Android
  4. 4. What is Qt “Code less, create more, deploy everywhere”● A great framework for creating applications● Truly cross-platform ● Desktop ● Devices● Licensed for everyone – GPL, LGPL or closed

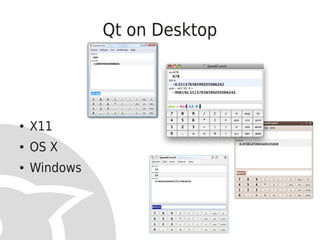

  5. 5. Qt on Desktop● X11● OS X● Windows

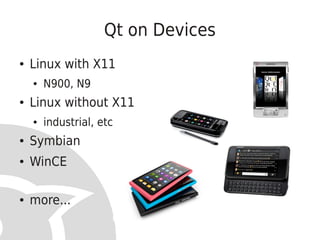

  6. 6. Qt on Devices● Linux with X11 ● N900, N9● Linux without X11 ● industrial, etc● Symbian● WinCE● more...
  7. 7. Who runs Qt?● Trolltech● Bought by Nokia● Nokia Qt Development Frameworks● Digia develops and licenses Qt Commercial● Qt is open source – www.qt-project.org● True open governance!

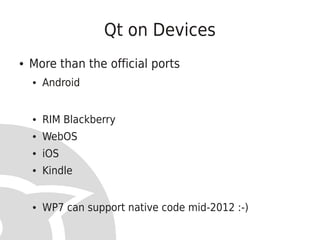

  8. 8. Qt on Devices● More than the official ports ● Android ● RIM Blackberry ● WebOS ● iOS ● Kindle ● WP7 can support native code mid-2012 :-)

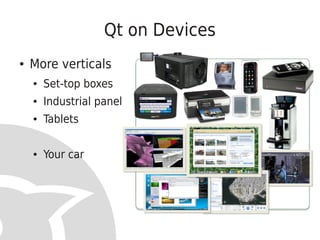

  9. 9. Qt on Devices● More verticals ● Set-top boxes ● Industrial panels ● Tablets ● Your car
  10. 10. Finding the Roots of Qt Backends

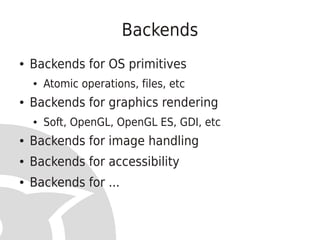

  11. 11. Backends● Backends for OS primitives ● Atomic operations, files, etc● Backends for graphics rendering ● Soft, OpenGL, OpenGL ES, GDI, etc● Backends for image handling● Backends for accessibility● Backends for ...

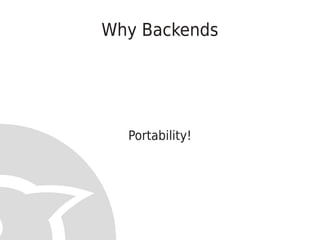

  12. 12. Why Backends Portability!

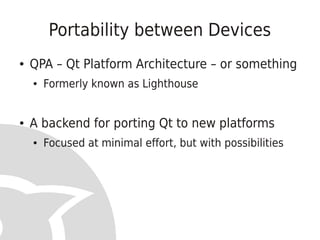

  13. 13. Portability between Devices● QPA – Qt Platform Architecture – or something ● Formerly known as Lighthouse● A backend for porting Qt to new platforms ● Focused at minimal effort, but with possibilities
  14. 14. Qt on Android● Based on Android SDK / NDK● QPA ● Necessitas - the actual Qt Port● QtCreator (IDE) adaptations ● The tooling● Ministro ● The deployment
  15. 15. Current Status● Alpha 3 was just released ● Most of Qt is ported ● OpenGL rendering ● WebKit● Missing ● Mobility (for many Android Versions) ● Rewriting soft keyboard support ● Android Style and Android Menus ● Development support in non-Linux environments ● Documentation
  16. 16. The Near Future● Planning to release First Beta soon ● Will give a stable API/ABI“...meaning that an application which uses that version will run without *any* change, on any further releases! It alsomeans you can target a billion devices using Qt, much sooner than you expected :)”
  17. 17. Getting Started● Installation party! ● OpenJDK ● ant 1.8+ ● The necessitas installer downloads and installs – Android SDK + NDK – Platforms for the SDK, etc ● Setup QtCreator – Add path to ant

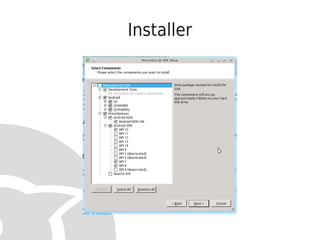

  18. 18. Installer

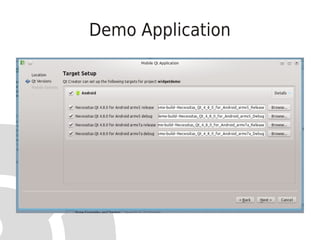

  19. 19. Demo Application
  20. 20. Demo Application● Strip out some of the crud from the template source code – it refers to Symbian
  21. 21. Demo Applicationvoid MainWindow::on_pushButton_clicked(){ static int v = 0; ui->listWidget->addItem( QString("Value%1").arg(v++));}

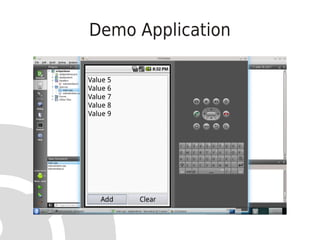

  22. 22. Demo Application

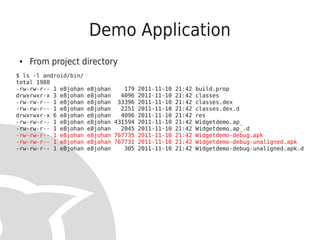

  23. 23. Demo Application ● From project directory$ ls -l android/bin/total 1988-rw-rw-r-- 1 e8johan e8johan 179 2011-11-10 21:42 build.propdrwxrwxr-x 3 e8johan e8johan 4096 2011-11-10 21:42 classes-rw-rw-r-- 1 e8johan e8johan 33396 2011-11-10 21:42 classes.dex-rw-rw-r-- 1 e8johan e8johan 2251 2011-11-10 21:42 classes.dex.ddrwxrwxr-x 6 e8johan e8johan 4096 2011-11-10 21:42 res-rw-rw-r-- 1 e8johan e8johan 431594 2011-11-10 21:42 Widgetdemo.ap_-rw-rw-r-- 1 e8johan e8johan 2045 2011-11-10 21:42 Widgetdemo.ap_.d-rw-rw-r-- 1 e8johan e8johan 767735 2011-11-10 21:42 Widgetdemo-debug.apk-rw-rw-r-- 1 e8johan e8johan 767731 2011-11-10 21:42 Widgetdemo-debug-unaligned.apk-rw-rw-r-- 1 e8johan e8johan 305 2011-11-10 21:42 Widgetdemo-debug-unaligned.apk.d

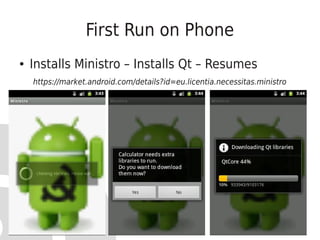

  24. 24. First Run on Phone● Installs Ministro – Installs Qt – Resumes https://market.android.com/details?id=eu.licentia.necessitas.ministro

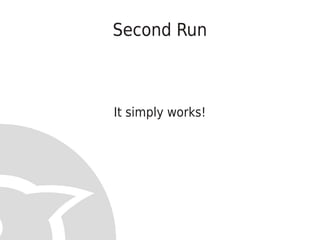

  25. 25. Second RunIt simply works!
  26. 26. More on Ministro● Qt libraries are shared among all Qt apps on the device● From the beta release, the ABI is stable, i.e. Qt can be upgraded separately from apps

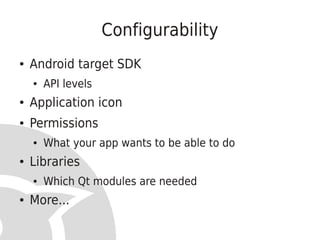

  27. 27. Configurability● Android target SDK ● API levels● Application icon● Permissions ● What your app wants to be able to do● Libraries ● Which Qt modules are needed● More...

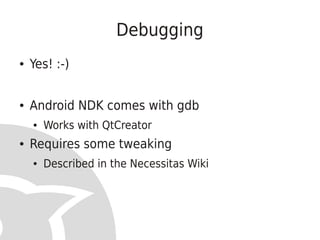

  28. 28. Debugging● Yes! :-)● Android NDK comes with gdb ● Works with QtCreator● Requires some tweaking ● Described in the Necessitas Wiki

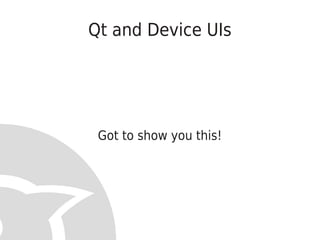

  29. 29. Qt and Device UIs Got to show you this!

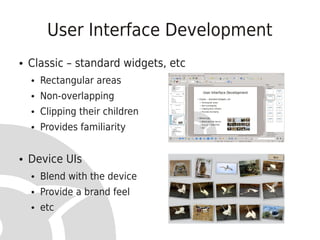

  30. 30. User Interface Development● Classic – standard widgets, etc ● Rectangular areas ● Non-overlapping ● Clipping their children ● Provides familiarity● Device UIs ● Blend with the device ● Provide a brand feel ● etc
  31. 31. Building Modern UIs● No more widgets! ● Canvas / scene● Timers everywhere● Multiple simultaneous transitions● Complex, interconnected state machines● Pain! :-)
  32. 32. History of Qt and Modern UIs● QCanvas● QGraphicsView● QTimeLine● QGraphicsItemAnimation● An animation framework● A state machine framework● The birth of QtQuick

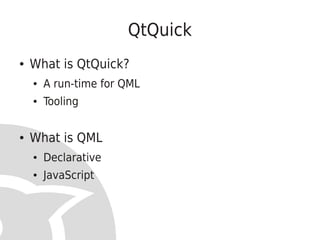

  33. 33. QtQuick● What is QtQuick? ● A run-time for QML ● Tooling● What is QML ● Declarative ● JavaScript

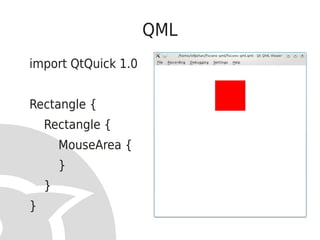

  34. 34. QMLimport QtQuick 1.0Rectangle { Rectangle { MouseArea { } }}
  35. 35. QMLRectangle { width: 500 height: 500 Rectangle {
  36. 36. QMLRectangle { Rectangle { id: box color: "red" width: 100 height: 100 x: 200

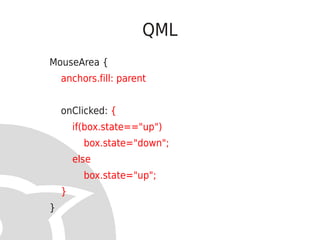

  37. 37. QMLMouseArea { anchors.fill: parent onClicked: { if(box.state=="up") box.state="down"; else box.state="up"; }}
  38. 38. QMLRectangle { state: "up" states: [ State { name: "up" PropertyChanges { target: box; y: 50 } }, State { name: "down" PropertyChanges { target: box; y: 350 } } ]

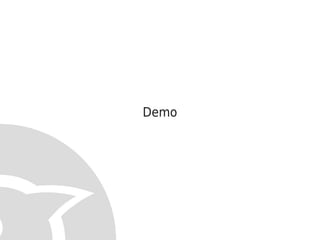

  39. 39. Demo
  40. 40. QMLBehavior on y { PropertyAnimation { duration: 1000 easing.type: Easing.OutBounce }}
  41. 41. Demo
  42. 42. Integrate with C++● QObjects to QtQuick QObject *foo = …; setProperty(“foo”, foo);● C++ classes in QtQuick class Foo : public QObject { … }; qmlRegisterType<Foo>("FooLib", 1, 0, "Foo"); Foo { property: value }● QtMediaHub - http://gitorious.org/qtmediahub

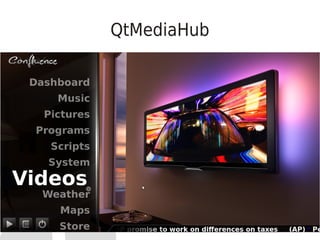

  43. 43. QtMediaHub

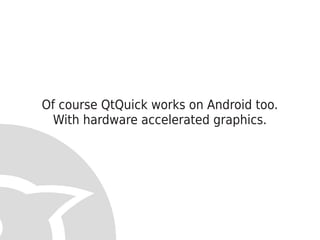

  44. 44. Of course QtQuick works on Android too. With hardware accelerated graphics.
  45. 45. Qt 5● A great opportunity to … ● … get rid of API limitations ● … split the repos into more independent parts ● … take advantage of modern C++● Widgets and QML are peers● More acceleration, shaders, etc – amazing performance

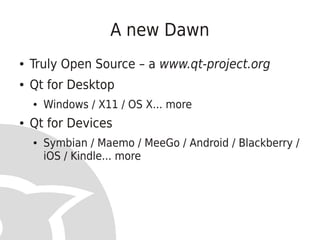

  46. 46. A new Dawn● Truly Open Source – a www.qt-project.org● Qt for Desktop ● Windows / X11 / OS X... more● Qt for Devices ● Symbian / Maemo / MeeGo / Android / Blackberry / iOS / Kindle... more
  47. 47. Thank you! johan.thelin@pelagicore.com Were hiring!http://pelagicore.com/career.html
