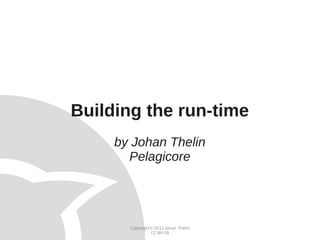

  • 1. Building the run-time by Johan Thelin Pelagicore Copyright©2012 Johan Thelin CC-BY-SA

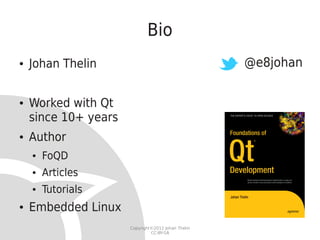

  • 2. Bio● Johan Thelin @e8johan● Worked with Qt since 10+ years● Author ● FoQD ● Articles ● Tutorials● Embedded Linux Copyright©2012 Johan Thelin CC-BY-SA

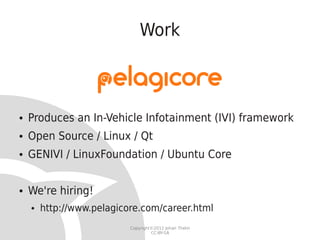

  • 3. Work● Produces an In-Vehicle Infotainment (IVI) framework● Open Source / Linux / Qt● GENIVI / LinuxFoundation / Ubuntu Core● Were hiring! ● http://www.pelagicore.com/career.html Copyright©2012 Johan Thelin CC-BY-SA

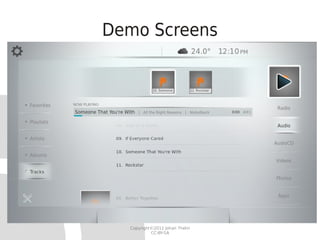

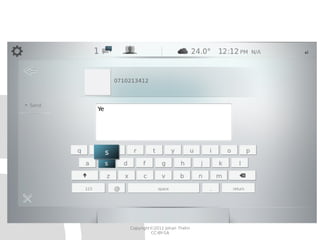

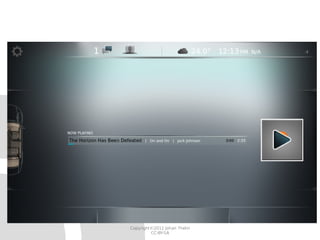

  • 4. Demo Screens Copyright©2012 Johan Thelin CC-BY-SA

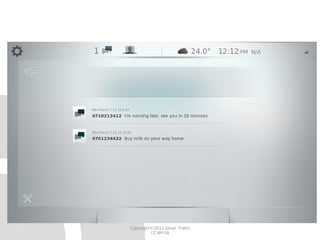

  • 5. Copyright©2012 Johan Thelin CC-BY-SA
  • 6. Copyright©2012 Johan Thelin CC-BY-SA
  • 7. Copyright©2012 Johan Thelin CC-BY-SA
  • 8. Copyright©2012 Johan Thelin CC-BY-SA

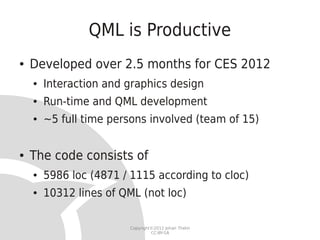

  • 9. QML is Productive● Developed over 2.5 months for CES 2012 ● Interaction and graphics design ● Run-time and QML development ● ~5 full time persons involved (team of 15)● The code consists of ● 5986 loc (4871 / 1115 according to cloc) ● 10312 lines of QML (not loc) Copyright©2012 Johan Thelin CC-BY-SA

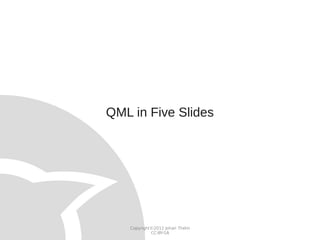

  • 10. QML in Five Slides Copyright©2012 Johan Thelin CC-BY-SA

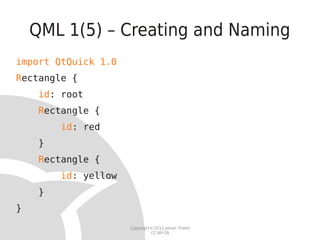

  • 11. QML 1(5) – Creating and Namingimport QtQuick 1.0Rectangle { id: root Rectangle { id: red } Rectangle { id: yellow }} Copyright©2012 Johan Thelin CC-BY-SA

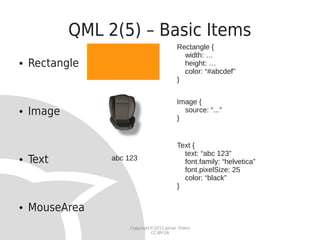

  • 12. QML 2(5) – Basic Items Rectangle { width: …● Rectangle height: … color: “#abcdef” } Image {● Image } source: “...” Text { text: “abc 123”● Text abc 123 font.family: “helvetica” font.pixelSize: 25 color: “black” }● MouseArea Copyright©2012 Johan Thelin CC-BY-SA

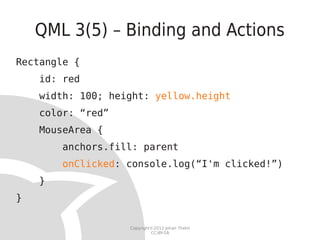

  • 13. QML 3(5) – Binding and ActionsRectangle { id: red width: 100; height: yellow.height color: “red” MouseArea { anchors.fill: parent onClicked: console.log(“Im clicked!”) }} Copyright©2012 Johan Thelin CC-BY-SA

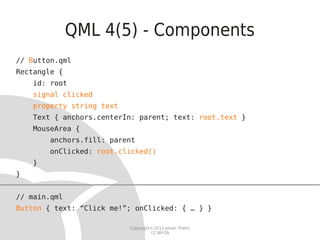

  • 14. QML 4(5) - Components// Button.qmlRectangle { id: root signal clicked property string text Text { anchors.centerIn: parent; text: root.text } MouseArea { anchors.fill: parent onClicked: root.clicked() }}// main.qmlButton { text: “Click me!”; onClicked: { … } } Copyright©2012 Johan Thelin CC-BY-SA

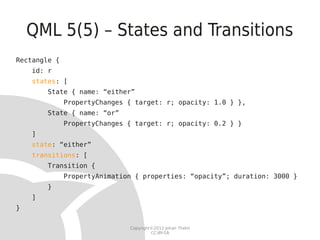

  • 15. QML 5(5) – States and TransitionsRectangle { id: r states: [ State { name: “either” PropertyChanges { target: r; opacity: 1.0 } }, State { name: “or” PropertyChanges { target: r; opacity: 0.2 } } ] state: “either” transitions: [ Transition { PropertyAnimation { properties: “opacity”; duration: 3000 } } ]} Copyright©2012 Johan Thelin CC-BY-SA

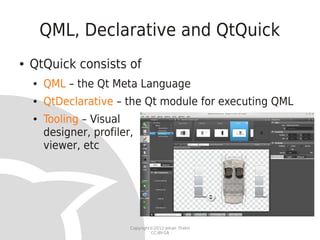

  • 16. QML, Declarative and QtQuick● QtQuick consists of ● QML – the Qt Meta Language ● QtDeclarative – the Qt module for executing QML ● Tooling – Visual designer, profiler, viewer, etc Copyright©2012 Johan Thelin CC-BY-SA
  • 17. The Demonstrator Copyright©2012 Johan Thelin CC-BY-SA

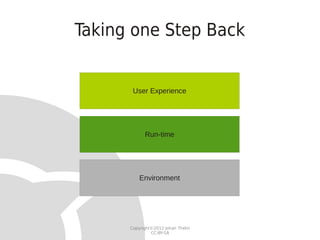

  • 18. Taking one Step Back User Experience Run-time Environment Copyright©2012 Johan Thelin CC-BY-SA

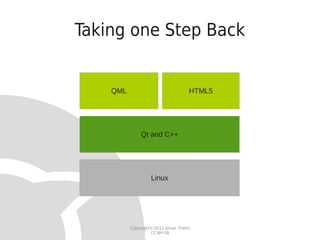

  • 19. Taking one Step Back QML HTML5 Qt and C++ Linux Copyright©2012 Johan Thelin CC-BY-SA

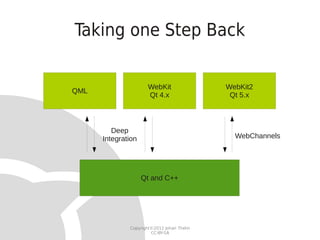

  • 20. Taking one Step Back WebKit WebKit2QML Qt 4.x Qt 5.x Deep Integration WebChannels Qt and C++ Copyright©2012 Johan Thelin CC-BY-SA

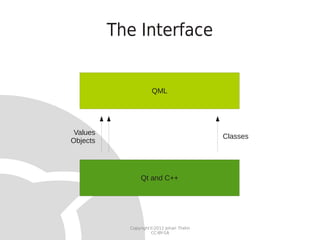

  • 21. The Interface QML Values ClassesObjects Qt and C++ Copyright©2012 Johan Thelin CC-BY-SA
  • 22. A Basic Run-Timeint main(int argc, char **argv){ QApplication a(argc, argv); QDeclarativeView view; view.setSource(“main.qml”); view.show(); return a.exec();} Copyright©2012 Johan Thelin CC-BY-SA

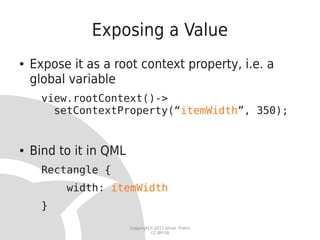

  • 23. Exposing a Value● Expose it as a root context property, i.e. a global variable view.rootContext()-> setContextProperty(“itemWidth”, 350);● Bind to it in QML Rectangle { width: itemWidth } Copyright©2012 Johan Thelin CC-BY-SA

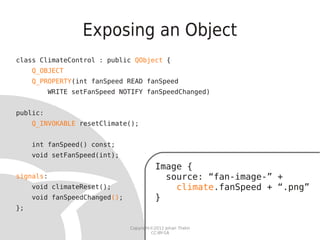

  • 24. Exposing an Objectclass ClimateControl : public QObject { Q_OBJECT Q_PROPERTY(int fanSpeed READ fanSpeed WRITE setFanSpeed NOTIFY fanSpeedChanged)public: Q_INVOKABLE resetClimate(); int fanSpeed() const; void setFanSpeed(int); Image {signals: source: “fan-image-” + void climateReset(); climate.fanSpeed + “.png” void fanSpeedChanged(); }}; Copyright©2012 Johan Thelin CC-BY-SA

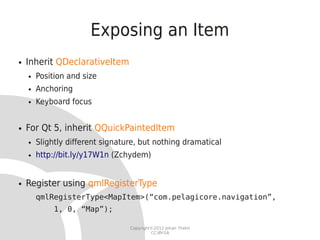

  • 25. Exposing an Item● Inherit QDeclarativeItem ● Position and size ● Anchoring ● Keyboard focus● For Qt 5, inherit QQuickPaintedItem ● Slightly different signature, but nothing dramatical ● http://bit.ly/y17W1n (Zchydem)● Register using qmlRegisterType qmlRegisterType<MapItem>(“com.pelagicore.navigation”, 1, 0, “Map”); Copyright©2012 Johan Thelin CC-BY-SA

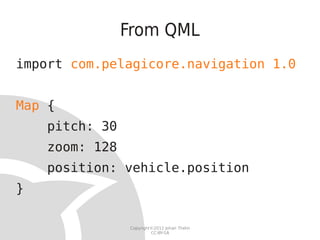

  • 26. From QMLimport com.pelagicore.navigation 1.0Map { pitch: 30 zoom: 128 position: vehicle.position} Copyright©2012 Johan Thelin CC-BY-SA

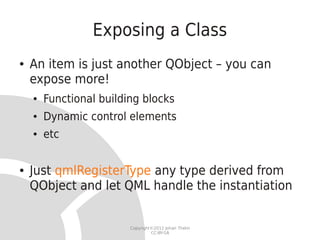

  • 27. Exposing a Class● An item is just another QObject – you can expose more! ● Functional building blocks ● Dynamic control elements ● etc● Just qmlRegisterType any type derived from QObject and let QML handle the instantiation Copyright©2012 Johan Thelin CC-BY-SA

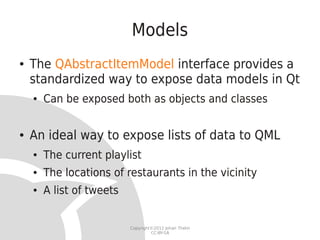

  • 28. Models● The QAbstractItemModel interface provides a standardized way to expose data models in Qt ● Can be exposed both as objects and classes● An ideal way to expose lists of data to QML ● The current playlist ● The locations of restaurants in the vicinity ● A list of tweets Copyright©2012 Johan Thelin CC-BY-SA

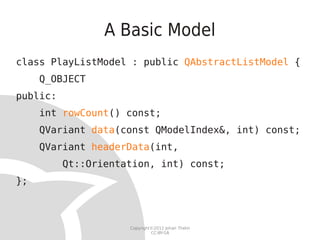

  • 29. A Basic Modelclass PlayListModel : public QAbstractListModel { Q_OBJECTpublic: int rowCount() const; QVariant data(const QModelIndex&, int) const; QVariant headerData(int, Qt::Orientation, int) const;}; Copyright©2012 Johan Thelin CC-BY-SA

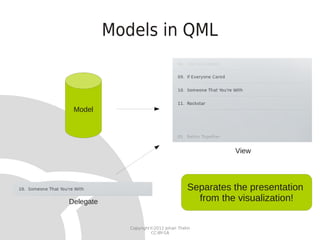

  • 30. Models in QML Model View Separates the presentationDelegate from the visualization! Copyright©2012 Johan Thelin CC-BY-SA

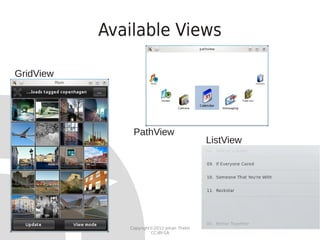

  • 31. Available ViewsGridView PathView ListView Copyright©2012 Johan Thelin CC-BY-SA

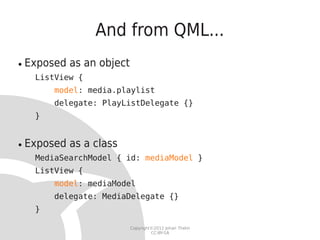

  • 32. And from QML...● Exposed as an object ListView { model: media.playlist delegate: PlayListDelegate {} }● Exposed as a class MediaSearchModel { id: mediaModel } ListView { model: mediaModel delegate: MediaDelegate {} } Copyright©2012 Johan Thelin CC-BY-SA

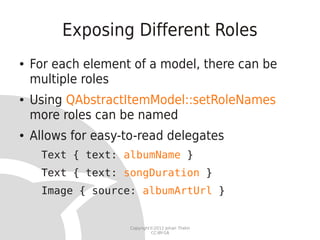

  • 33. Exposing Different Roles● For each element of a model, there can be multiple roles● Using QAbstractItemModel::setRoleNames more roles can be named● Allows for easy-to-read delegates Text { text: albumName } Text { text: songDuration } Image { source: albumArtUrl } Copyright©2012 Johan Thelin CC-BY-SA

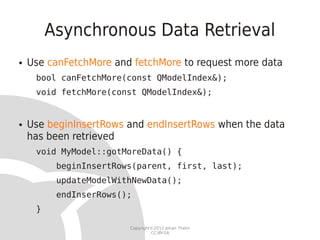

  • 34. Asynchronous Data Retrieval● Use canFetchMore and fetchMore to request more data bool canFetchMore(const QModelIndex&); void fetchMore(const QModelIndex&);● Use beginInsertRows and endInsertRows when the data has been retrieved void MyModel::gotMoreData() { beginInsertRows(parent, first, last); updateModelWithNewData(); endInserRows(); } Copyright©2012 Johan Thelin CC-BY-SA

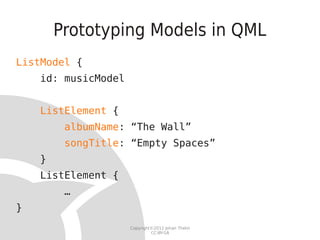

  • 35. Prototyping Models in QMLListModel { id: musicModel ListElement { albumName: “The Wall” songTitle: “Empty Spaces” } ListElement { …} Copyright©2012 Johan Thelin CC-BY-SA

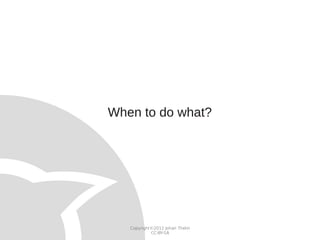

  • 36. When to do what? Copyright©2012 Johan Thelin CC-BY-SA
  • 37. The Goals● QML controls ● Appearance ● Behaviour● The run-time provides ● Functionality CC-BY ekkebus http://www.flickr.com/photos/ekkebus/5020840511/ ● Access to state and data● A well defined interface allows designers and run-time developers to work in parallel Copyright©2012 Johan Thelin CC-BY-SA
  • 38. The State of the System● Use system-wide singletons per function, e.g. ● vehicle, climate, media● Rationale ● There is only a single vehicle, so only one state ● Dividing them among functional areas – gives small, clean interfaces – allows limited system access for sandboxed elements Copyright©2012 Johan Thelin CC-BY-SA

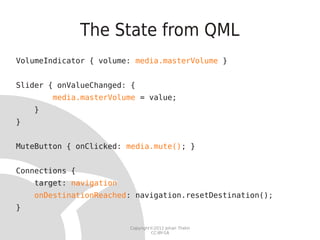

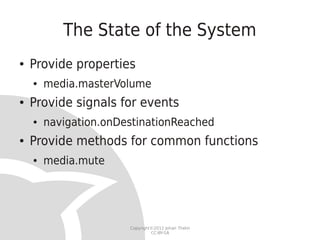

  • 39. The State of the System● Provide properties ● media.masterVolume● Provide signals for events ● navigation.onDestinationReached● Provide methods for common functions ● media.mute Copyright©2012 Johan Thelin CC-BY-SA
  • 40. The State from QMLVolumeIndicator { volume: media.masterVolume }Slider { onValueChanged: { media.masterVolume = value; }}MuteButton { onClicked: media.mute(); }Connections { target: navigation onDestinationReached: navigation.resetDestination();} Copyright©2012 Johan Thelin CC-BY-SA

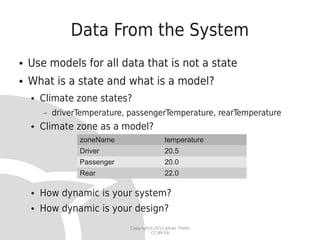

  • 41. Data From the System● Use models for all data that is not a state● What is a state and what is a model? ● Climate zone states? – driverTemperature, passengerTemperature, rearTemperature ● Climate zone as a model? zoneName temperature Driver 20.5 Passenger 20.0 Rear 22.0 ● How dynamic is your system? ● How dynamic is your design? Copyright©2012 Johan Thelin CC-BY-SA

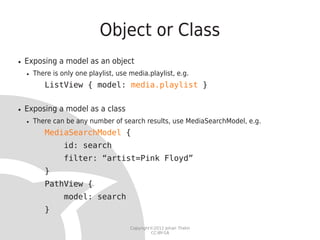

  • 42. Object or Class● Exposing a model as an object ● There is only one playlist, use media.playlist, e.g. ListView { model: media.playlist }● Exposing a model as a class ● There can be any number of search results, use MediaSearchModel, e.g. MediaSearchModel { id: search filter: “artist=Pink Floyd” } PathView { model: search } Copyright©2012 Johan Thelin CC-BY-SA

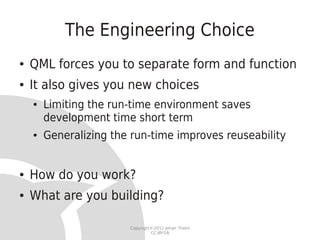

  • 43. The Engineering Choice● QML forces you to separate form and function● It also gives you new choices ● Limiting the run-time environment saves development time short term ● Generalizing the run-time improves reuseability● How do you work?● What are you building? Copyright©2012 Johan Thelin CC-BY-SA

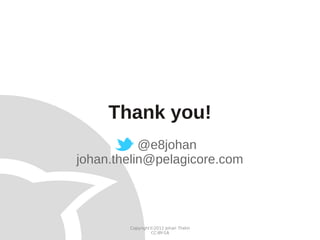

  • 44. Thank you! @e8johanjohan.thelin@pelagicore.com Copyright©2012 Johan Thelin CC-BY-SA

×
