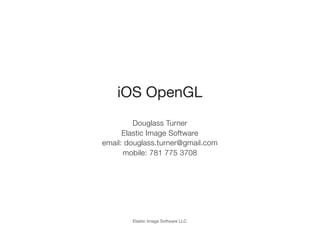

Elastic Image Software LLCiOS OpenGLDouglass TurnerElastic Image Softwareemail: douglass.turner@gmail.commobile: 781 775 3...

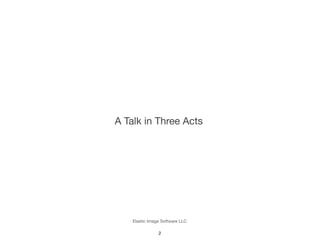

Elastic Image Software LLC2A Talk in Three Acts

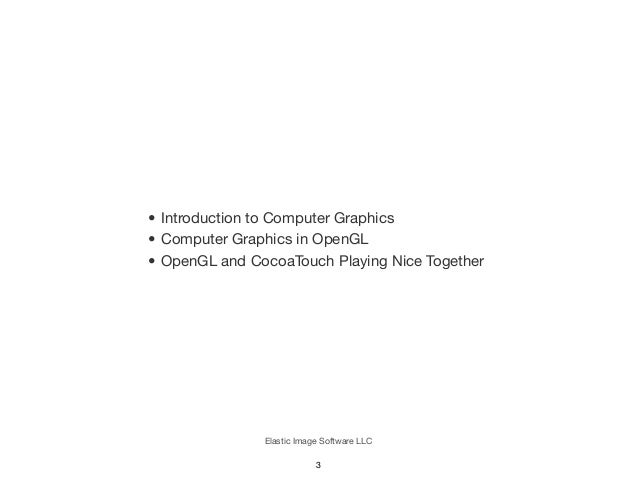

Elastic Image Software LLC• Introduction to Computer Graphics• Computer Graphics in OpenGL• OpenGL and CocoaTouch Playing ...

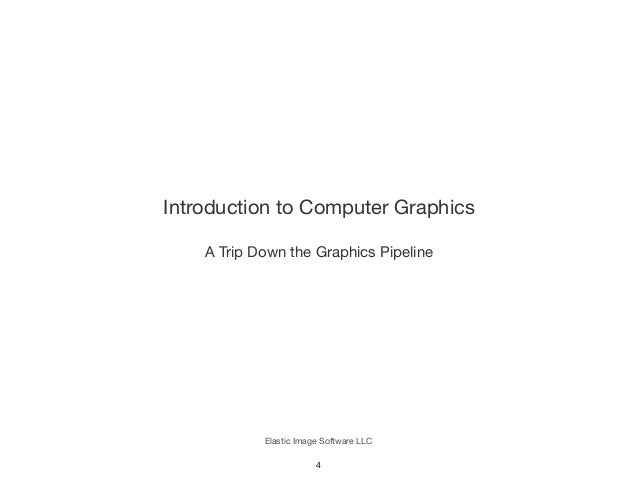

Elastic Image Software LLC4Introduction to Computer GraphicsA Trip Down the Graphics Pipeline
Elastic Image Software LLCCopyright Steve Jubinville5Build and Tesselate Model into Facets
Elastic Image Software LLCCopyright Steve Jubinville6Pose Model
Elastic Image Software LLCAim Camera7

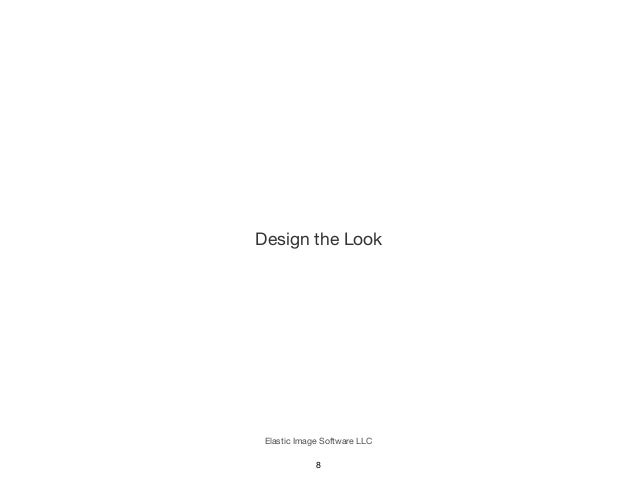

Elastic Image Software LLC8Design the Look
Elastic Image Software LLCDesign Appearance. Light Scene.Copyright © 2006 Holger Schömann9
Elastic Image Software LLCCopyright © 2006 Florian WildDesign Appearance. Light Scene.10
Elastic Image Software LLCCopyright © 2006 Jack QiaoDesign Appearance. Light Scene.11

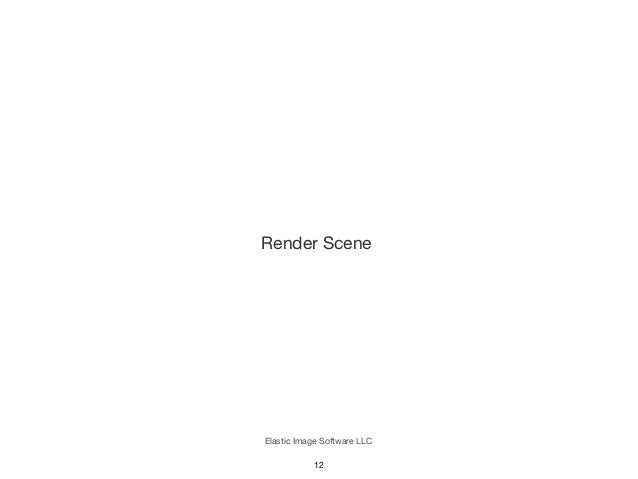

Elastic Image Software LLC12Render Scene

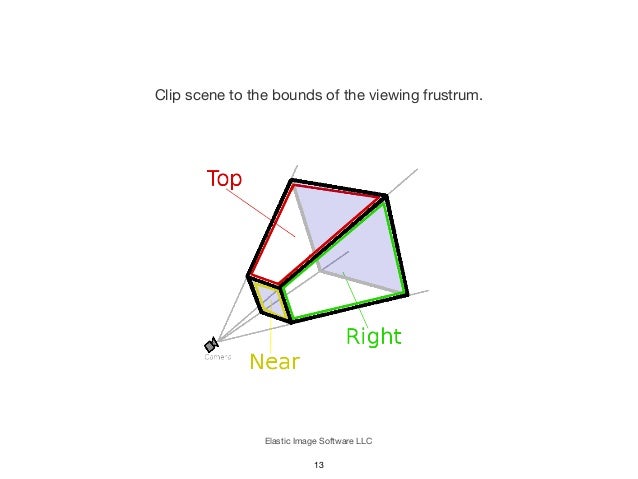

Elastic Image Software LLC13Clip scene to the bounds of the viewing frustrum.
Elastic Image Software LLCRasterize Scene14

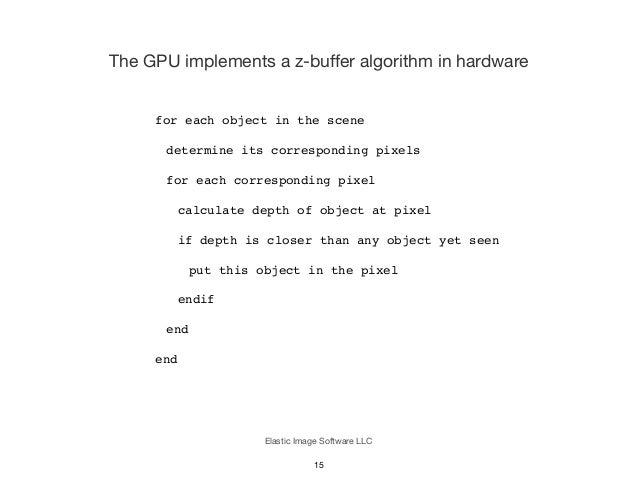

Elastic Image Software LLC15for each object in the scene! determine its corresponding pixels! for each corresponding pixel...
Elastic Image Software LLCIn OpenGL, the Look is evaluated at the same time thatdepth comparison is performed.Together the...

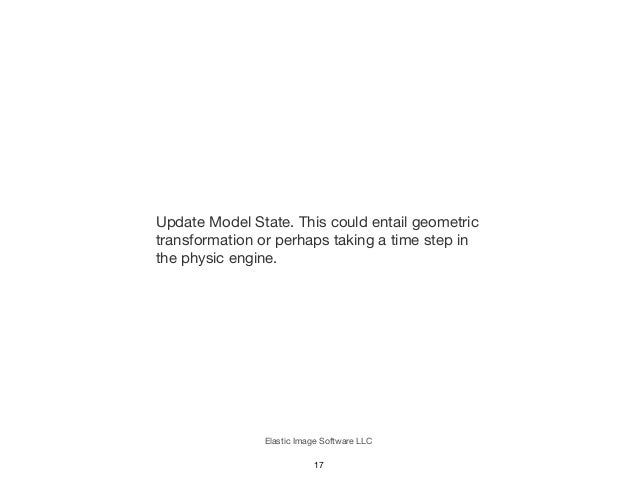

Elastic Image Software LLC17Update Model State. This could entail geometrictransformation or perhaps taking a time step in...
Elastic Image Software LLC18Rinse, repeat.

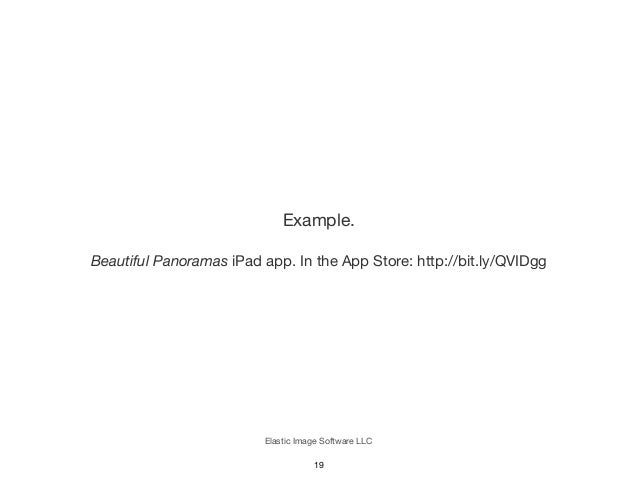

Elastic Image Software LLC19Example.Beautiful Panoramas iPad app. In the App Store: http://bit.ly/QVIDgg

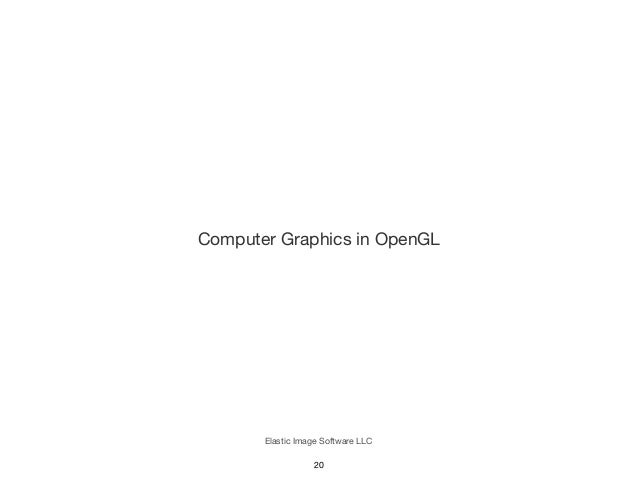

Elastic Image Software LLC20Computer Graphics in OpenGL
Elastic Image Software LLCOpenGL Cocoa21
Elastic Image Software LLCOpenGL is Old School22

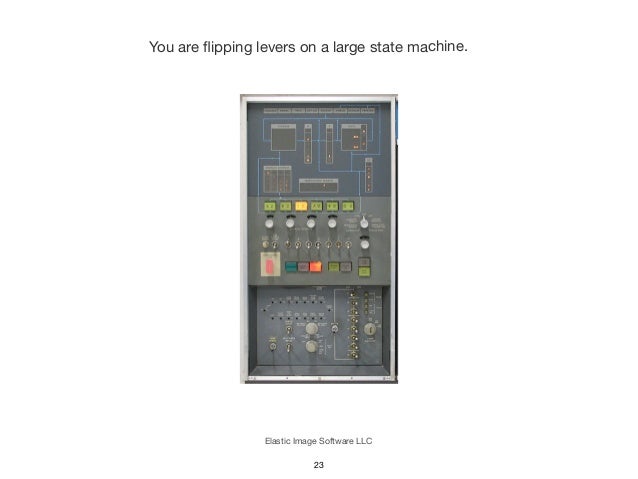

Elastic Image Software LLCYou are flipping levers on a large state machine.23

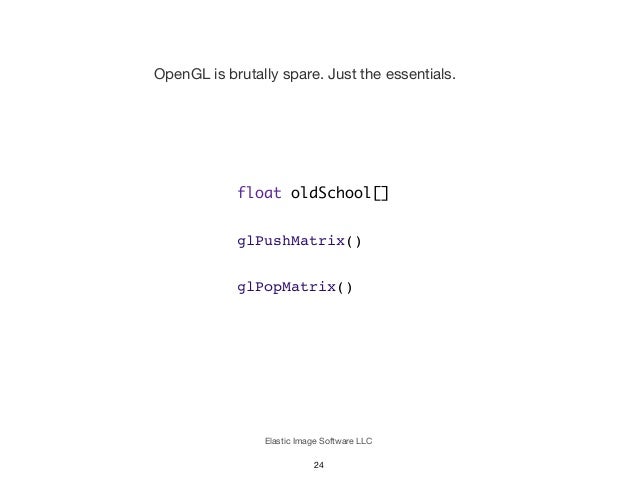

Elastic Image Software LLCOpenGL is brutally spare. Just the essentials.float oldSchool[]glPushMatrix()glPopMatrix()!24
Elastic Image Software LLCKeep in mind OpenGL is a dragster, not a Prius. So, just buckle up ...25
Elastic Image Software LLC... and enjoy the ride, baby!26

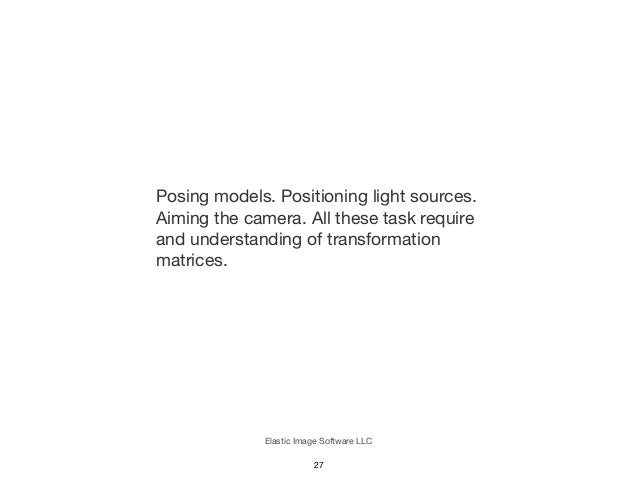

Elastic Image Software LLC27Posing models. Positioning light sources.Aiming the camera. All these task requireand understa...

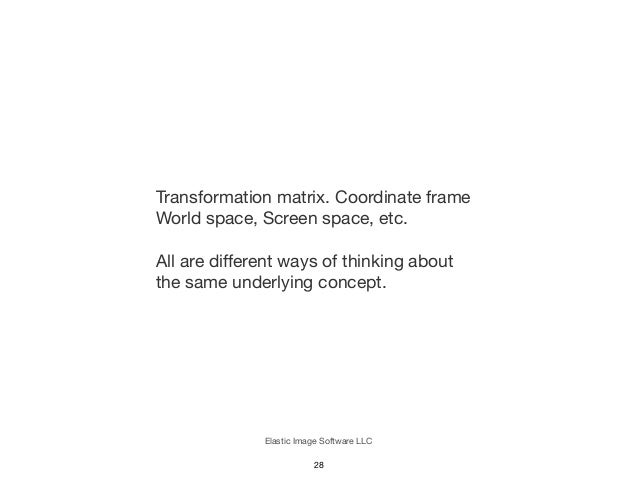

Elastic Image Software LLC28Transformation matrix. Coordinate frameWorld space, Screen space, etc.All are different ways o...

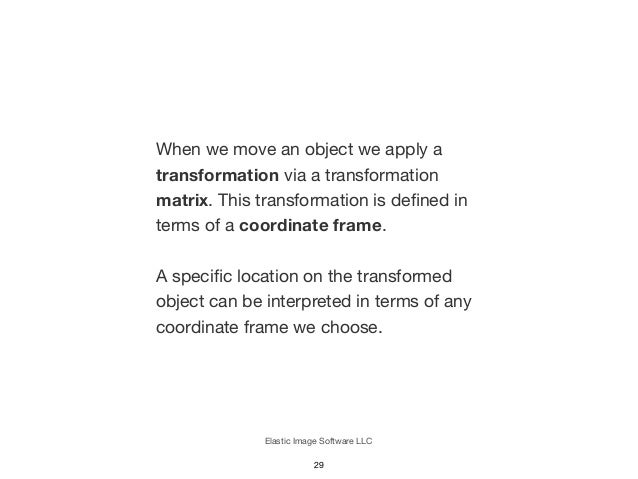

Elastic Image Software LLC29When we move an object we apply atransformation via a transformationmatrix. This transformatio...

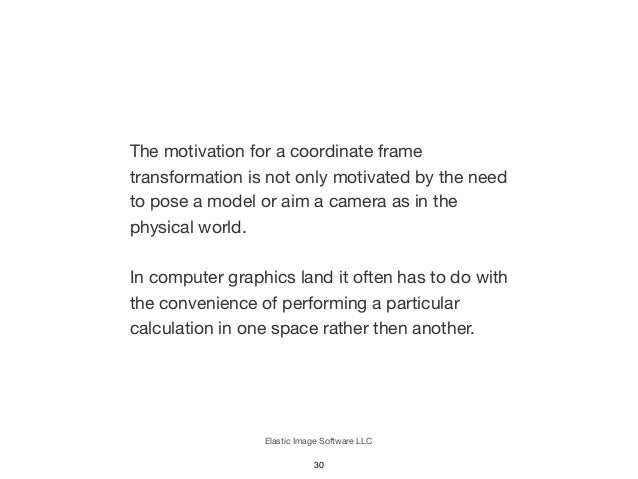

Elastic Image Software LLC30The motivation for a coordinate frametransformation is not only motivated by the needto pose a...

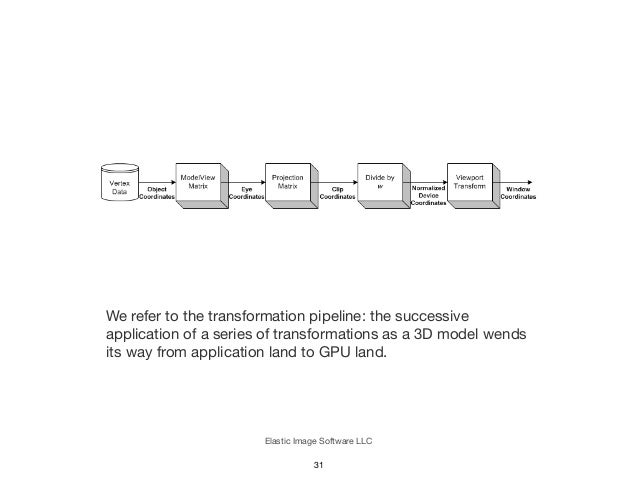

Elastic Image Software LLC31We refer to the transformation pipeline: the successiveapplication of a series of transformati...

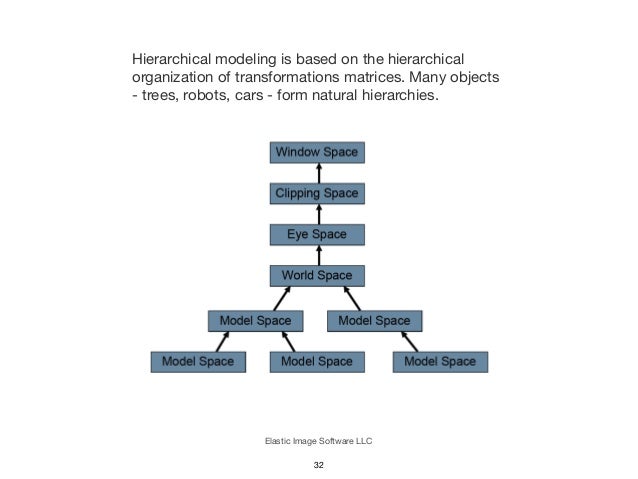

Elastic Image Software LLCHierarchical modeling is based on the hierarchicalorganization of transformations matrices. Many...

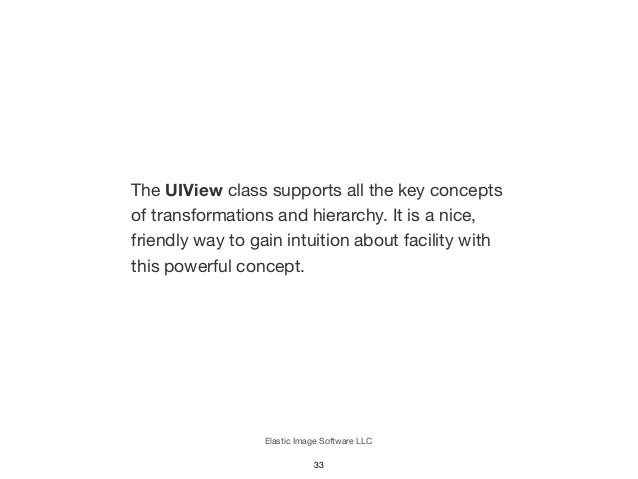

Elastic Image Software LLC33The UIView class supports all the key conceptsof transformations and hierarchy. It is a nice,f...

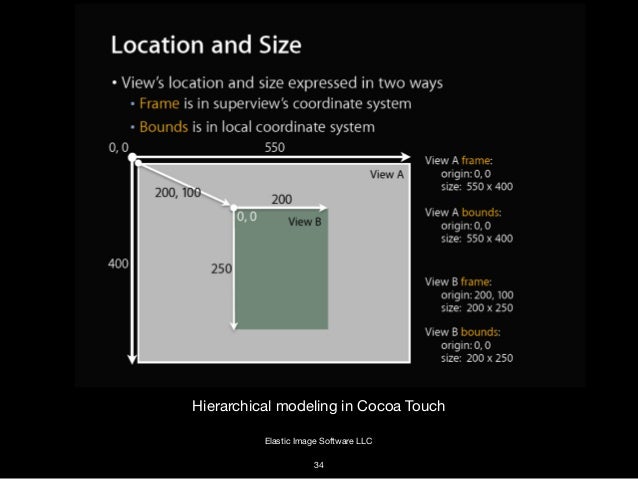

Elastic Image Software LLC34Hierarchical modeling in Cocoa Touch

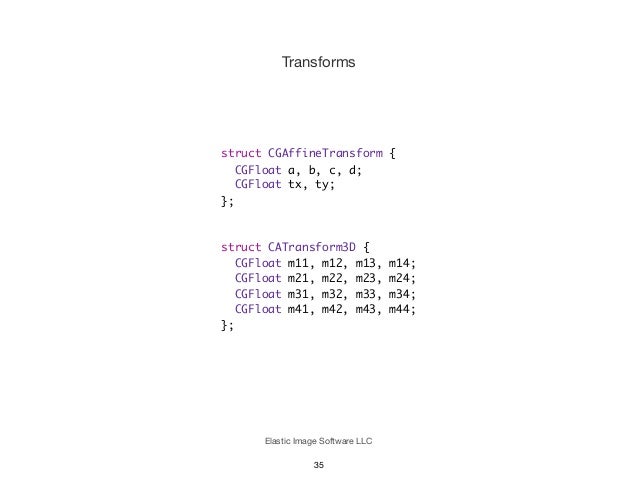

Elastic Image Software LLC35struct CGAffineTransform {CGFloat a, b, c, d;CGFloat tx, ty;};struct CATransform3D {CGFloat m1...
Elastic Image Software LLC36UIView properties// Coordinate frame in parent space@property(nonatomic) CGRect frame;// Dimen...

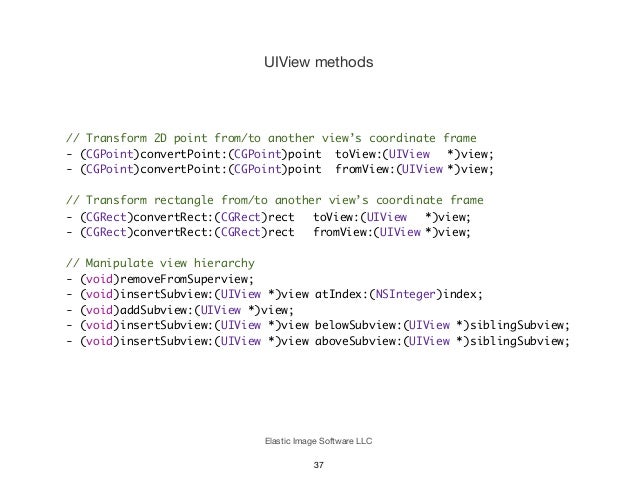

Elastic Image Software LLC37UIView methods// Transform 2D point from/to another view’s coordinate frame- (CGPoint)convertP...

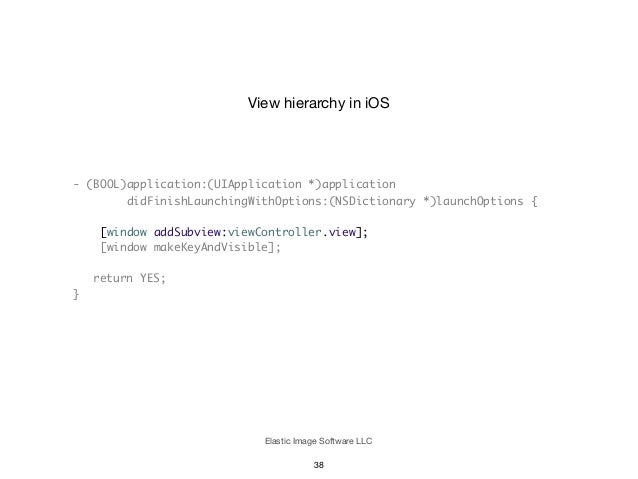

Elastic Image Software LLC38- (BOOL)application:(UIApplication *)applicationdidFinishLaunchingWithOptions:(NSDictionary *)...

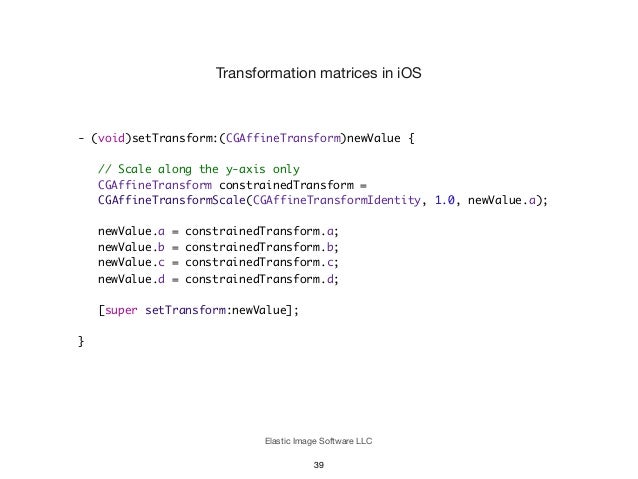

Elastic Image Software LLC39Transformation matrices in iOS- (void)setTransform:(CGAffineTransform)newValue {	 // Scale alo...

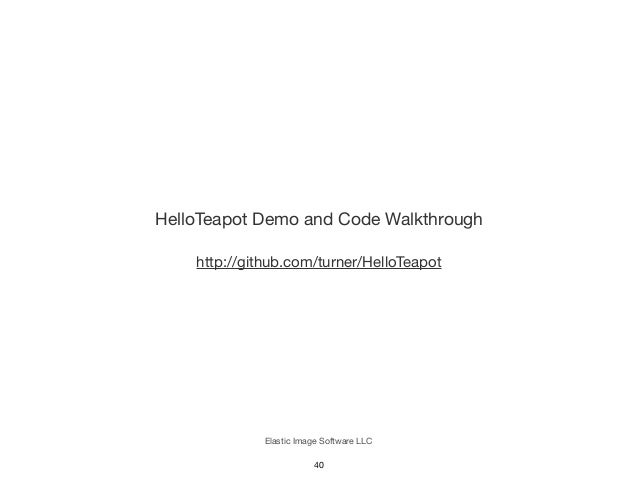

Elastic Image Software LLCHelloTeapot Demo and Code Walkthroughhttp://github.com/turner/HelloTeapot40

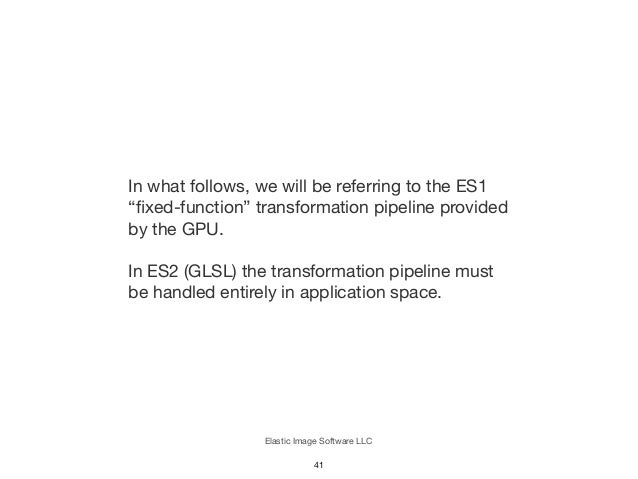

Elastic Image Software LLCIn what follows, we will be referring to the ES1“fixed-function” transformation pipeline provided...
Elastic Image Software LLC42

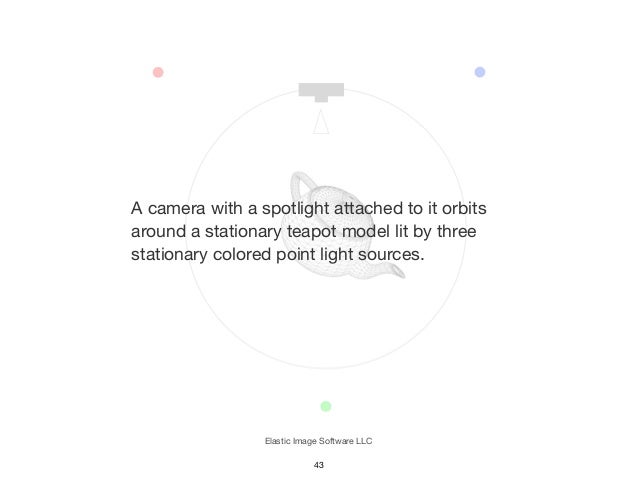

Elastic Image Software LLC43A camera with a spotlight attached to it orbitsaround a stationary teapot model lit by threest...

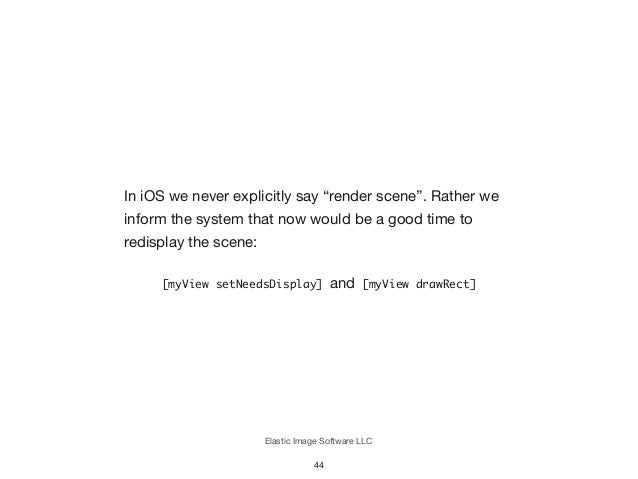

Elastic Image Software LLCIn iOS we never explicitly say “render scene”. Rather weinform the system that now would be a go...

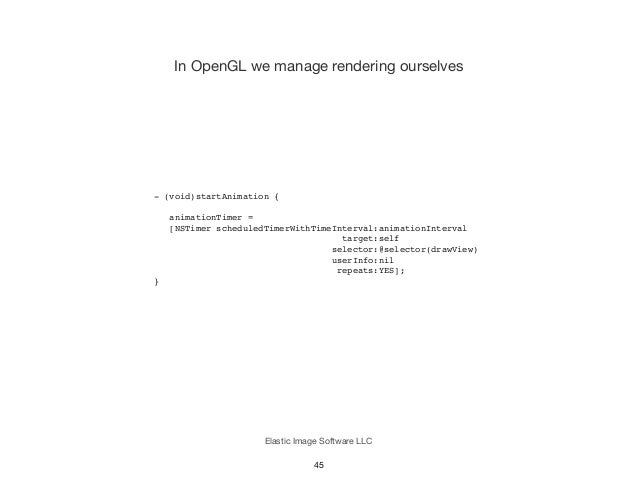

Elastic Image Software LLC- (void)startAnimation {animationTimer =[NSTimer scheduledTimerWithTimeInterval:animationInterva...

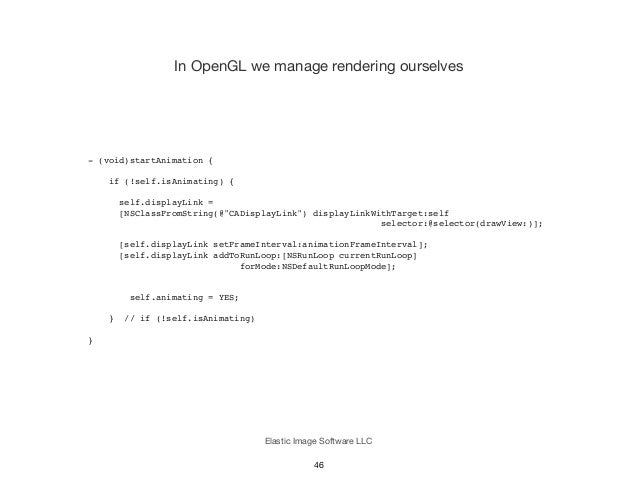

Elastic Image Software LLC46In OpenGL we manage rendering ourselves- (void)startAnimation {!if (!self.isAnimating) {! !sel...
Elastic Image Software LLC! Position the camera! glMatrixMode(GL_MODELVIEW);!! glLoadIdentity();! glLoadMatrixf(_openGLCam...

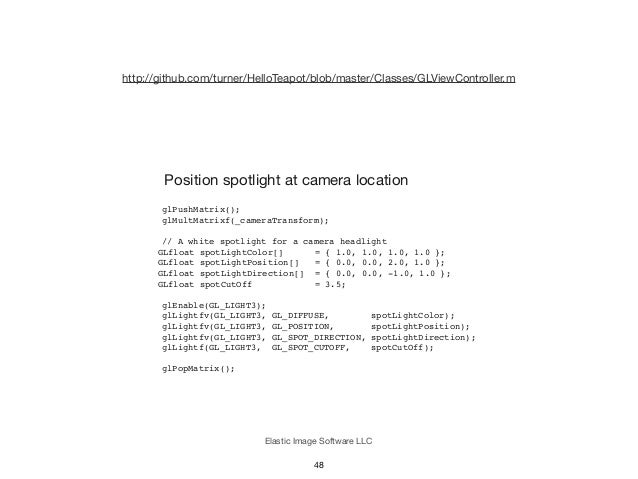

Elastic Image Software LLCPosition spotlight at camera location	 glPushMatrix();! glMultMatrixf(_cameraTransform);!!! // A...

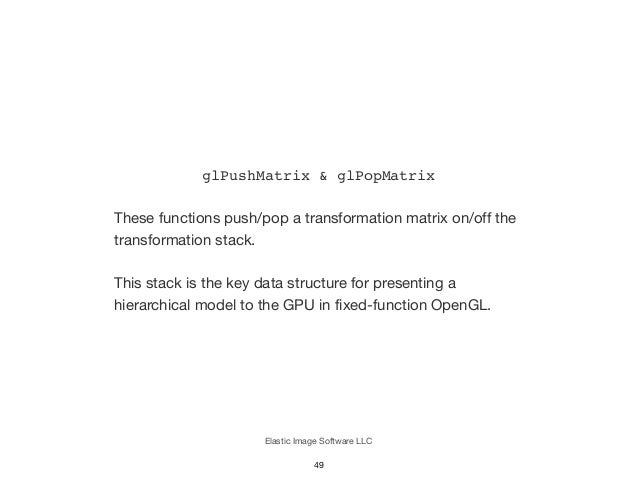

Elastic Image Software LLC49glPushMatrix & glPopMatrixThese functions push/pop a transformation matrix on/off thetransform...

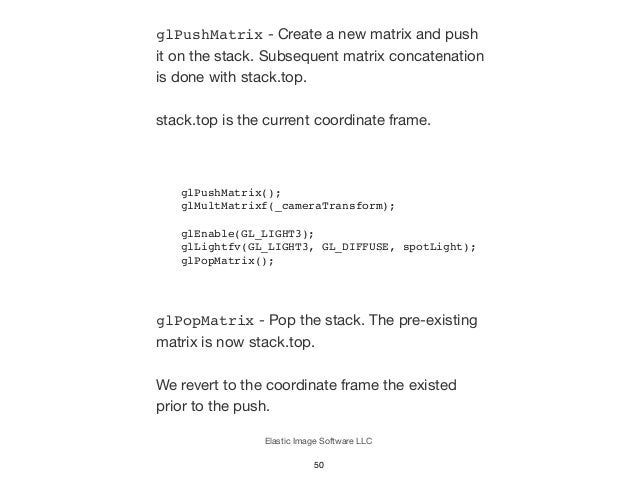

Elastic Image Software LLC50glPushMatrix - Create a new matrix and pushit on the stack. Subsequent matrix concatenationis ...

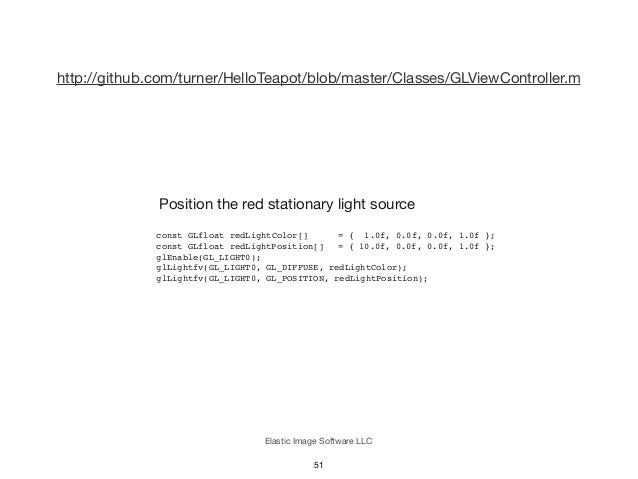

Elastic Image Software LLC51http://github.com/turner/HelloTeapot/blob/master/Classes/GLViewController.mPosition the red st...

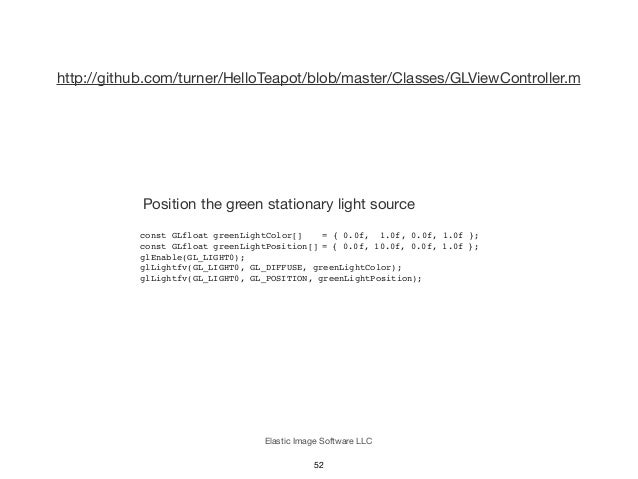

Elastic Image Software LLC52http://github.com/turner/HelloTeapot/blob/master/Classes/GLViewController.mPosition the green ...
Elastic Image Software LLC53http://github.com/turner/HelloTeapot/blob/master/Classes/GLViewController.mPosition the blue s...
Elastic Image Software LLC54http://github.com/turner/HelloTeapot/blob/master/Classes/GLViewController.mPosition and draw t...

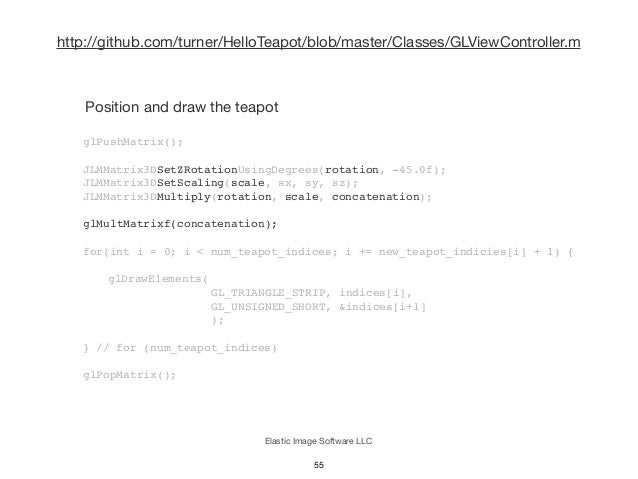

Elastic Image Software LLC55http://github.com/turner/HelloTeapot/blob/master/Classes/GLViewController.mPosition and draw t...
Elastic Image Software LLC56http://github.com/turner/HelloTeapot/blob/master/Classes/GLViewController.mPosition and draw t...
Elastic Image Software LLC57Notice the absence of GL_CAMERA?You may be surprised to learn there is no concept ofcamera in ...

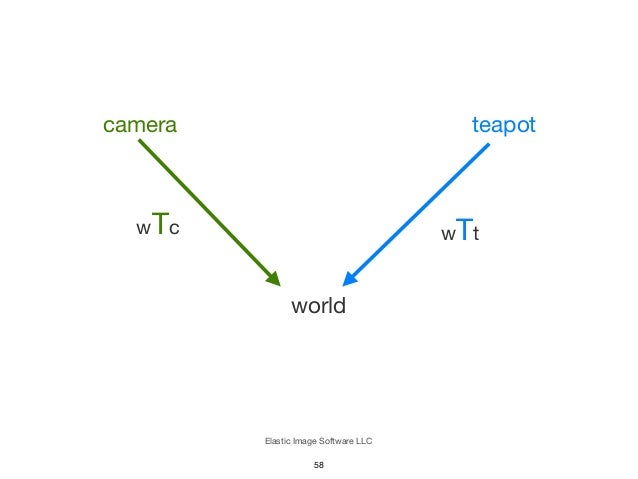

Elastic Image Software LLCcamera teapotworldwTtwTc58

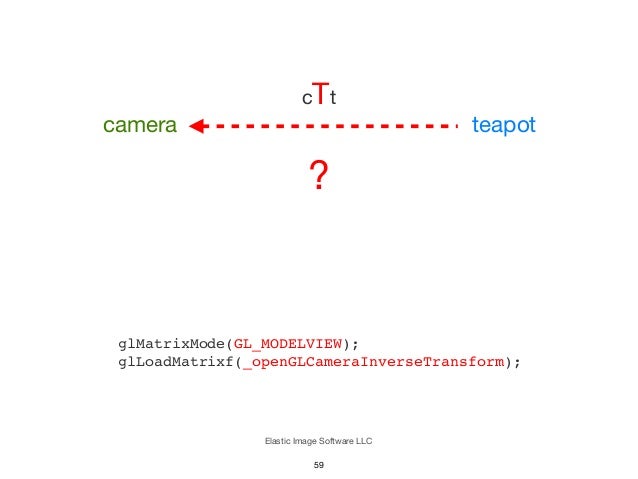

Elastic Image Software LLCcamera teapotglMatrixMode(GL_MODELVIEW);glLoadMatrixf(_openGLCameraInverseTransform);?cTt59
Elastic Image Software LLCcamera teapotworldwTt(wTc)cTtcTt wTtcTw *=-160
Elastic Image Software LLCcTt wTtcTw *=61
Elastic Image Software LLC- (void)placeCameraAtLocation:(M3DVector3f)location target:(M3DVector3f)target up:(M3DVector3f)u...

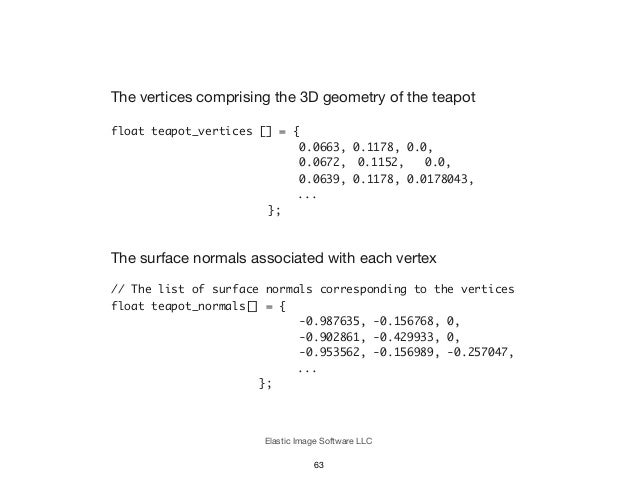

Elastic Image Software LLCThe vertices comprising the 3D geometry of the teapotfloat teapot_vertices [] = {0.0663, 0.1178,...

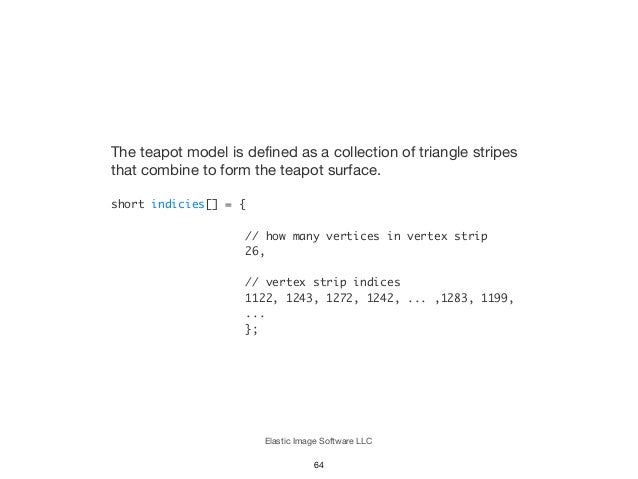

Elastic Image Software LLCThe teapot model is defined as a collection of triangle stripesthat combine to form the teapot s...

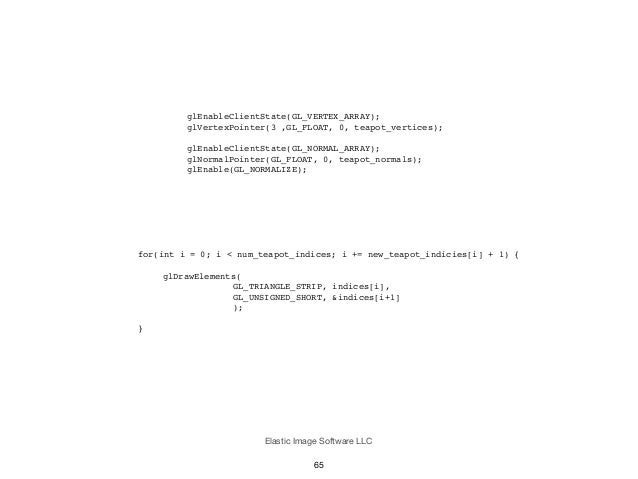

Elastic Image Software LLCglEnableClientState(GL_VERTEX_ARRAY);glVertexPointer(3 ,GL_FLOAT, 0, teapot_vertices);glEnableCl...
Elastic Image Software LLCDesign the Look66

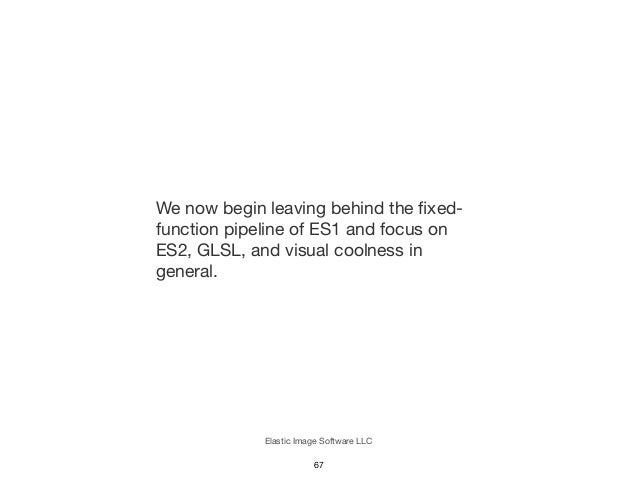

Elastic Image Software LLC67We now begin leaving behind the fixed-function pipeline of ES1 and focus onES2, GLSL, and visua...

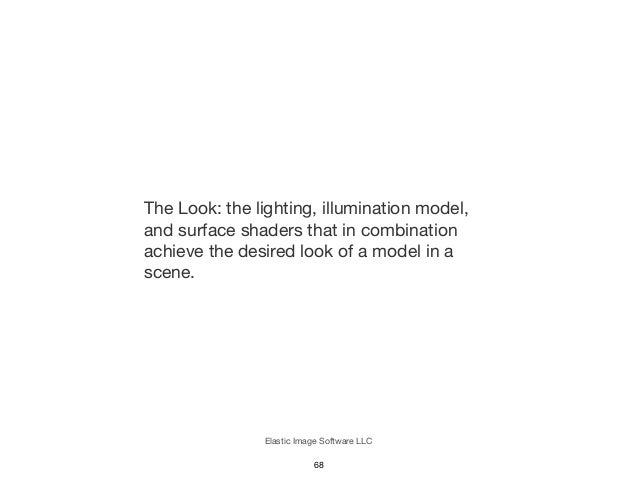

Elastic Image Software LLCThe Look: the lighting, illumination model,and surface shaders that in combinationachieve the de...

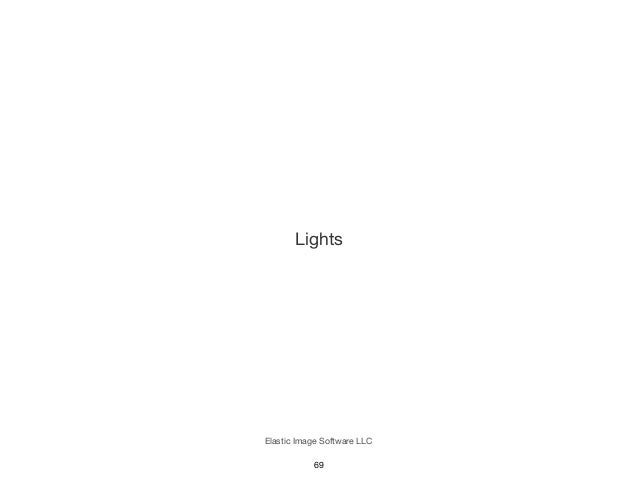

Elastic Image Software LLCLights69
Elastic Image Software LLC70Point Light Directional LightSpot Light Area Light
Elastic Image Software LLC71

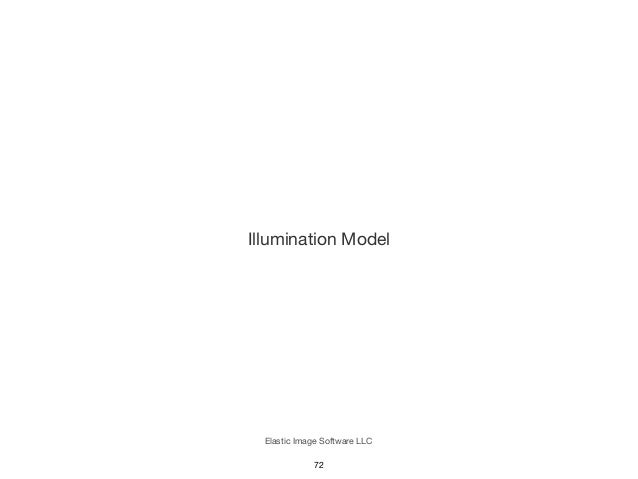

Elastic Image Software LLCIllumination Model72

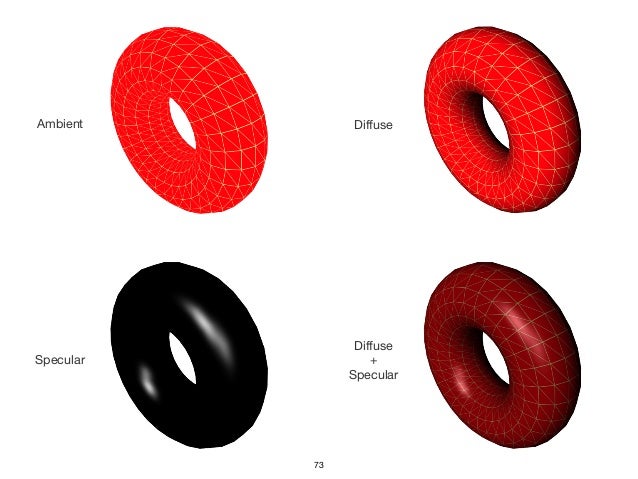

Elastic Image Software LLCAmbient DiffuseSpecularDiffuse+Specular73

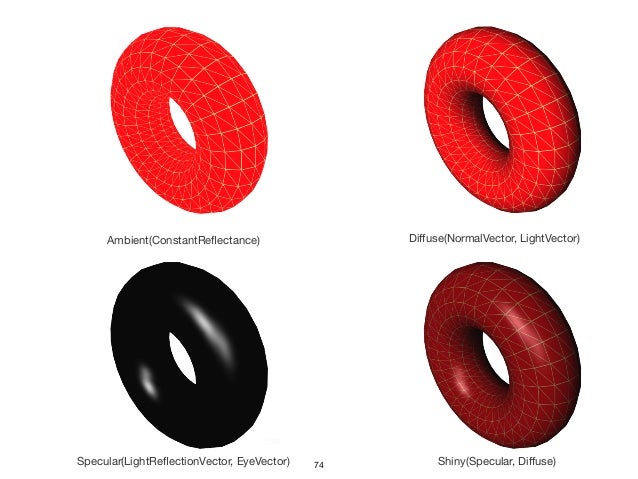

Elastic Image Software LLCDiffuse(NormalVector, LightVector)Ambient(ConstantReflectance)Specular(LightReflectionVector, EyeV...

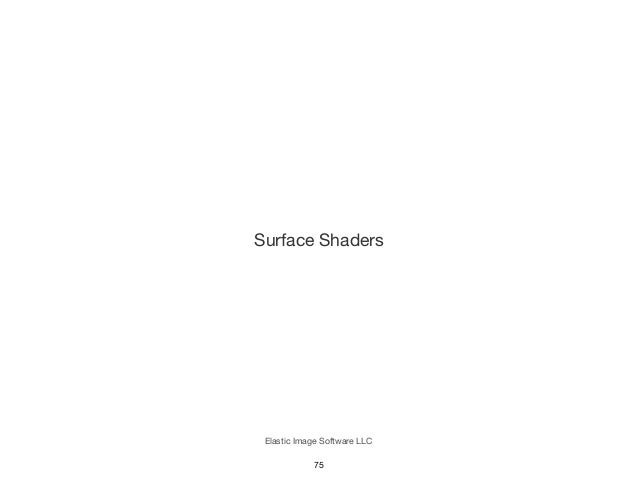

Elastic Image Software LLCSurface Shaders75

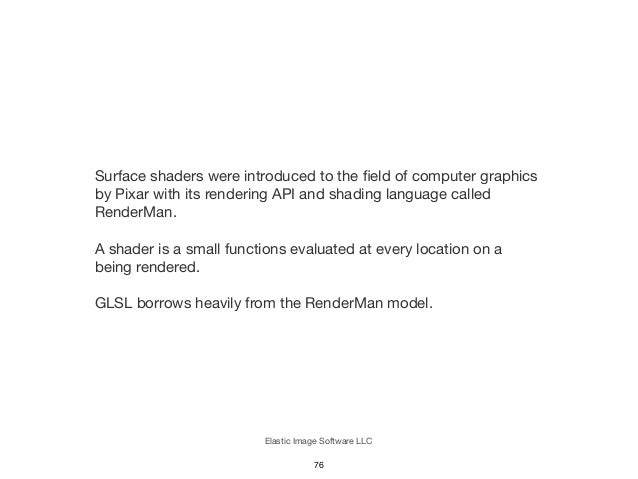

Elastic Image Software LLCSurface shaders were introduced to the field of computer graphicsby Pixar with its rendering API ...
Elastic Image Software LLCCopyright © Douglass Turner77I created this gallery of shaders using a rendering/shadingsystem I...
Elastic Image Software LLC78Copyright © Douglass Turner
Elastic Image Software LLC ZBrush Modeling Daniel LieskeMaterial Design Ralf Stumpf79
Elastic Image Software LLCCopyright: Stephen Molyneaux80

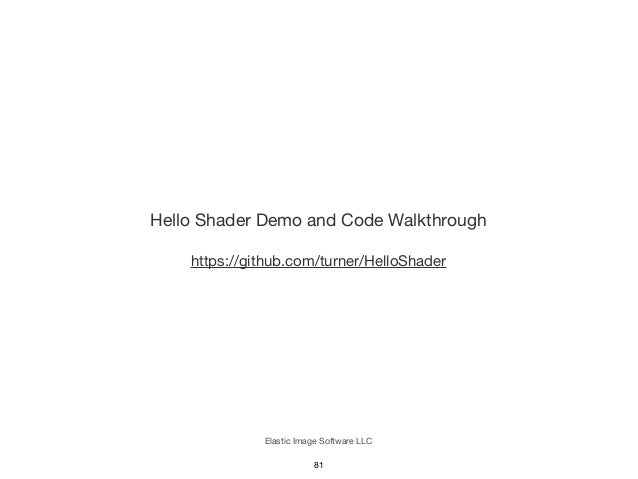

Elastic Image Software LLCHello Shader Demo and Code Walkthroughhttps://github.com/turner/HelloShader81

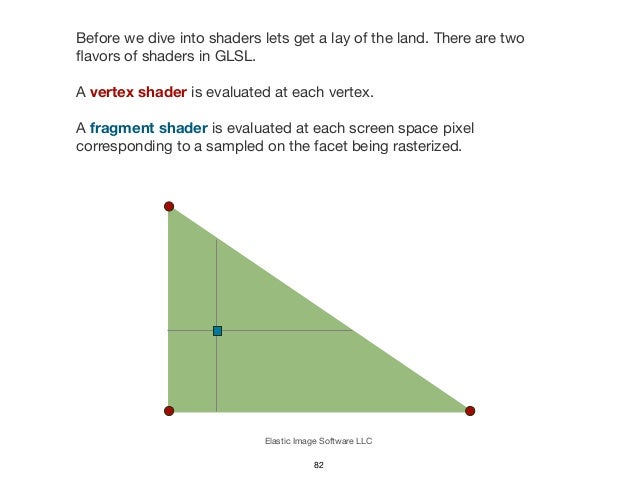

Elastic Image Software LLC82Before we dive into shaders lets get a lay of the land. There are twoflavors of shaders in GLSL...

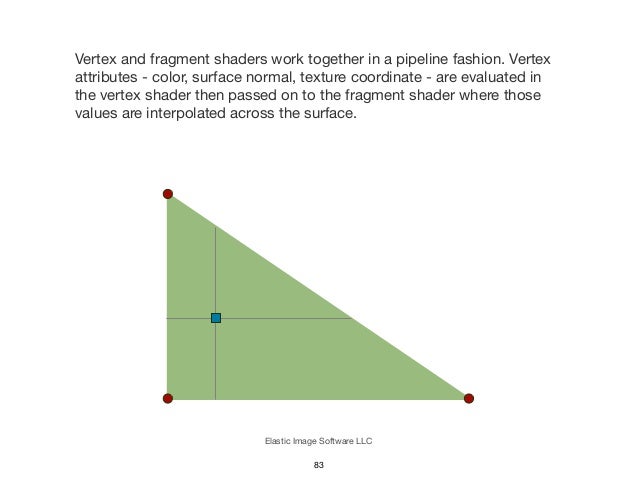

Elastic Image Software LLC83Vertex and fragment shaders work together in a pipeline fashion. Vertexattributes - color, sur...

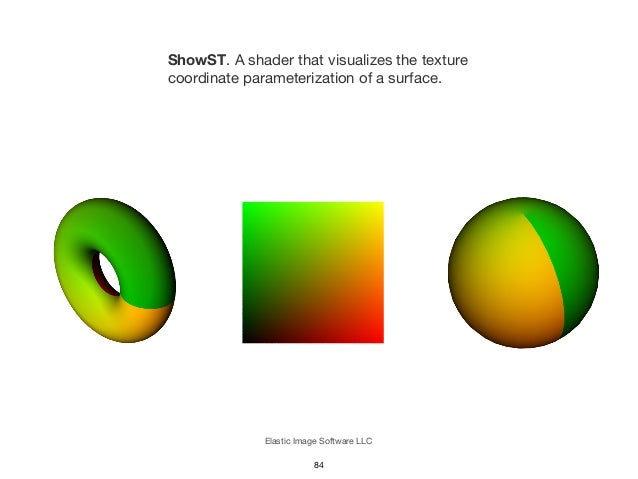

Elastic Image Software LLC84ShowST. A shader that visualizes the texturecoordinate parameterization of a surface.

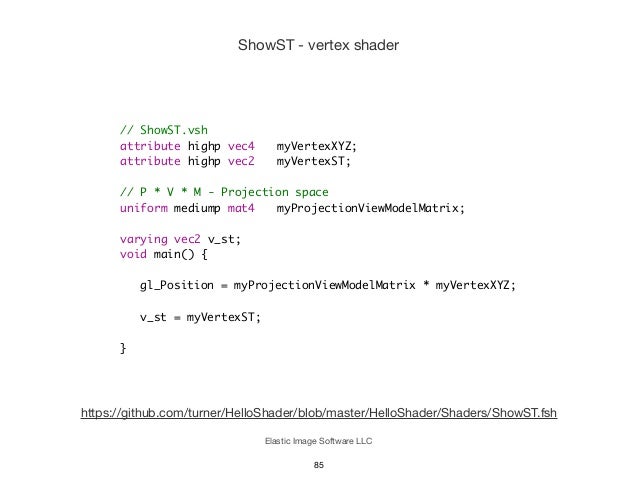

Elastic Image Software LLC85https://github.com/turner/HelloShader/blob/master/HelloShader/Shaders/ShowST.fsh// ShowST.vsha...
Elastic Image Software LLC86attribute vec2 myVertexST - Vertex attributevarying vec2 v_st - Varies across the surfaceunifo...

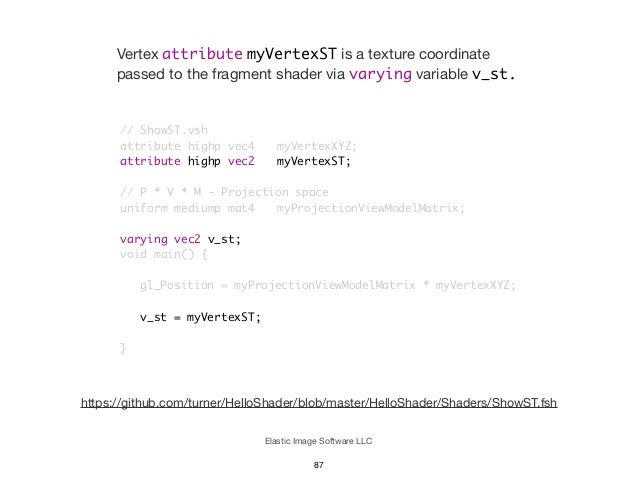

Elastic Image Software LLC87https://github.com/turner/HelloShader/blob/master/HelloShader/Shaders/ShowST.fshVertex attribu...

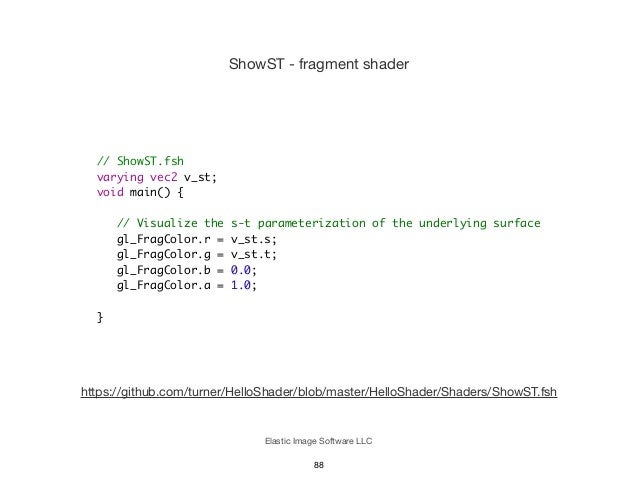

Elastic Image Software LLC88https://github.com/turner/HelloShader/blob/master/HelloShader/Shaders/ShowST.fsh// ShowST.fshv...

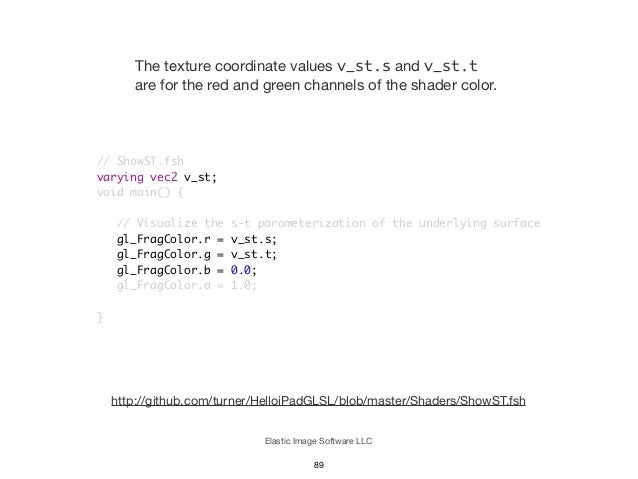

Elastic Image Software LLC89http://github.com/turner/HelloiPadGLSL/blob/master/Shaders/ShowST.fsh// ShowST.fshvarying vec2...
Elastic Image Software LLC90TexturePairShader. A shader that mixes thecolors of a pair of textures using the tweakedalpha ...

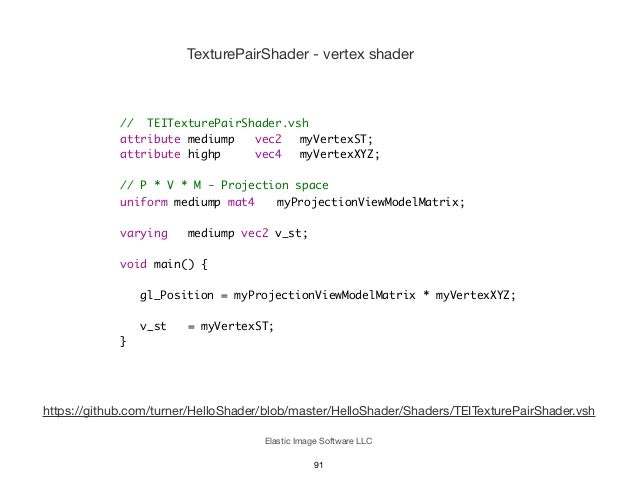

Elastic Image Software LLC91TexturePairShader - vertex shaderhttps://github.com/turner/HelloShader/blob/master/HelloShader...

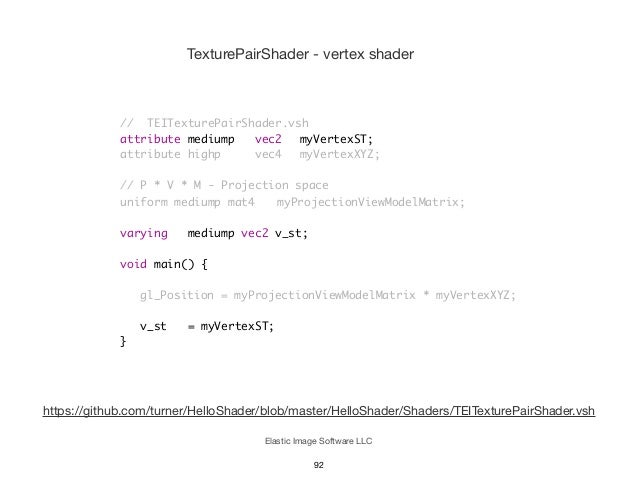

Elastic Image Software LLC92TexturePairShader - vertex shader// TEITexturePairShader.vshattribute mediump	 vec2	 myVertexS...

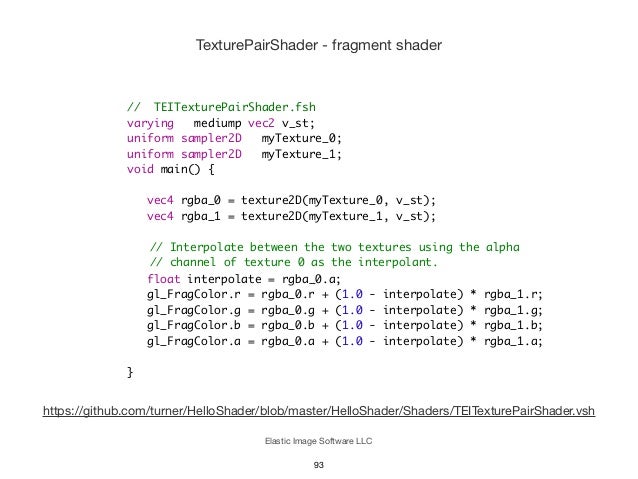

Elastic Image Software LLC93TexturePairShader - fragment shader// TEITexturePairShader.fshvarying	 mediump vec2 v_st;unifo...

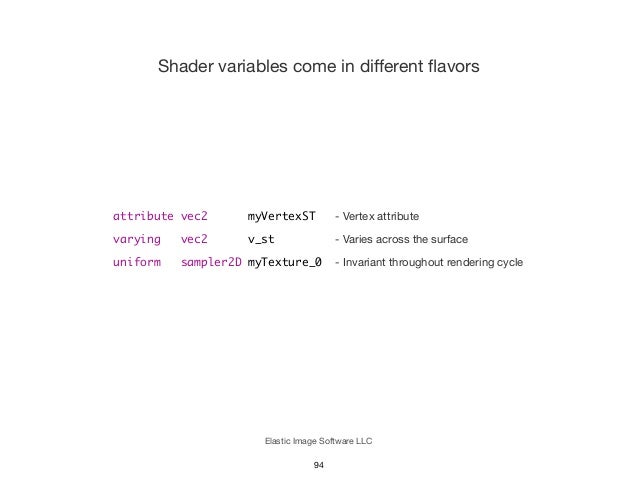

Elastic Image Software LLC94attribute vec2 myVertexST - Vertex attributevarying vec2 v_st - Varies across the surfaceunifo...
Elastic Image Software LLC95An application communicates with its shaders in the follow ways:• attributes - geometry, color...
Elastic Image Software LLC96Lets look at how we wire our iOS app togetherwith our shaders. We will use a texture shadingex...

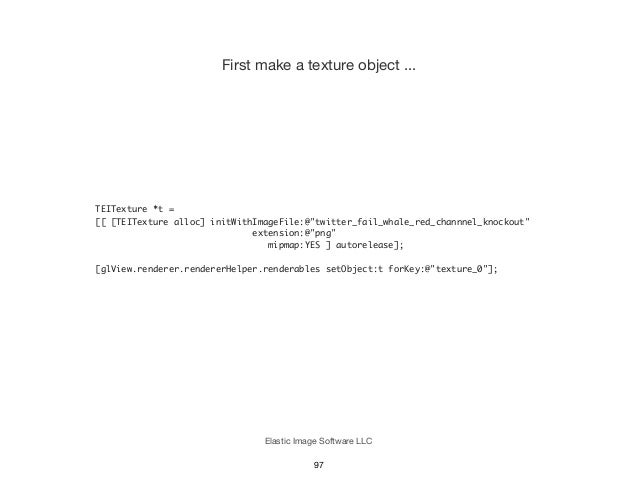

Elastic Image Software LLC97First make a texture object ...TEITexture *t =[[ [TEITexture alloc] initWithImageFile:@"twitte...

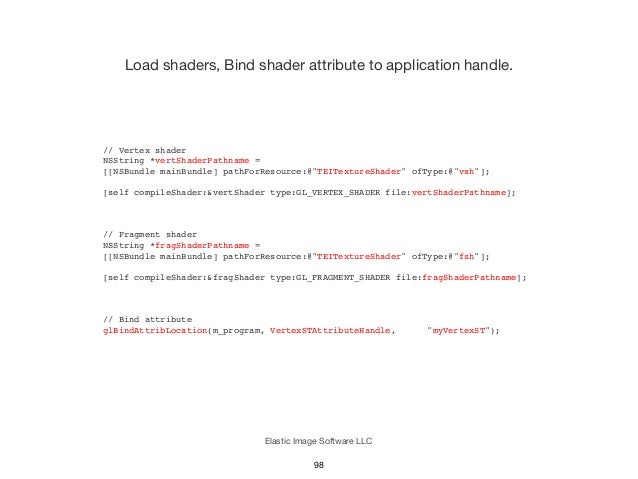

Elastic Image Software LLC98Load shaders, Bind shader attribute to application handle.// Vertex shaderNSString *vertShader...

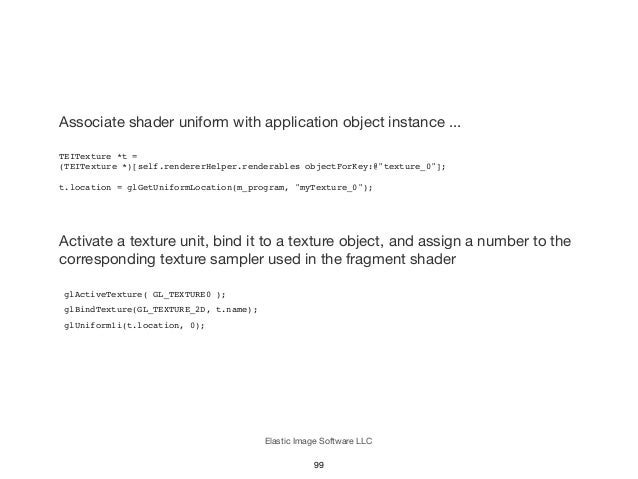

Elastic Image Software LLC99Associate shader uniform with application object instance ...TEITexture *t =(TEITexture *)[sel...

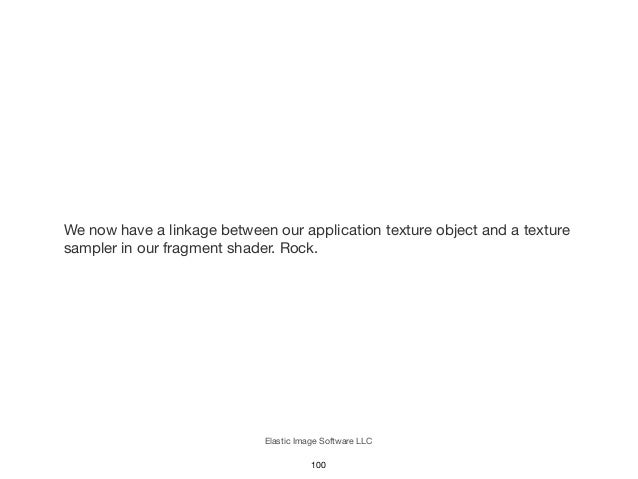

Elastic Image Software LLC100We now have a linkage between our application texture object and a texturesampler in our frag...

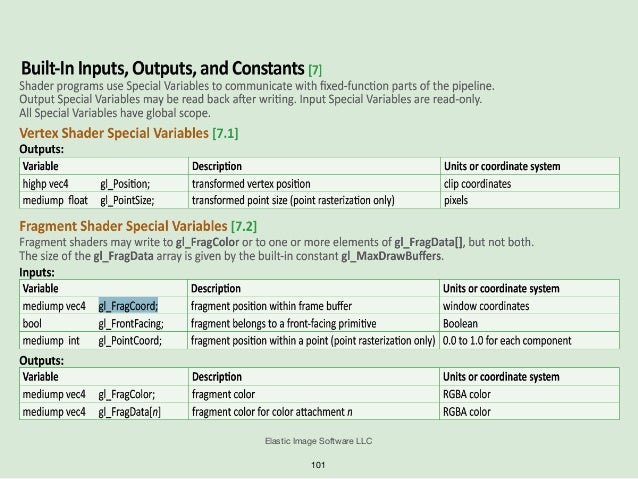

Elastic Image Software LLC101

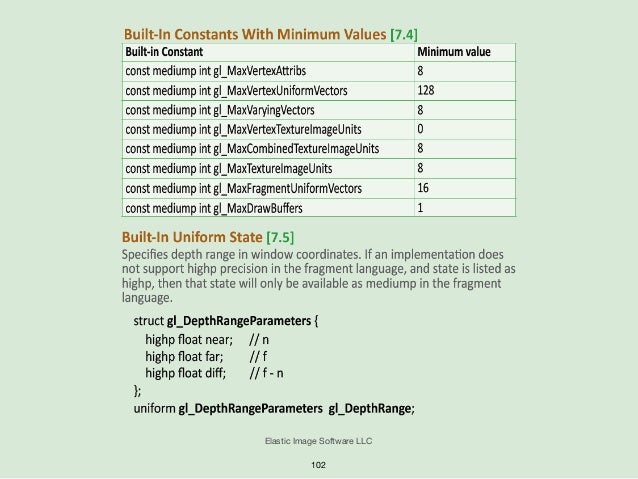

Elastic Image Software LLC102

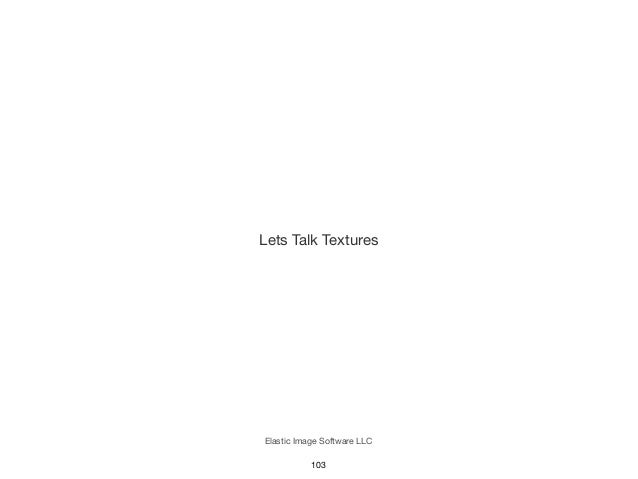

Elastic Image Software LLC103Lets Talk Textures
Elastic Image Software LLC104Texture mapping is the fundamental tool for creating visual complexity

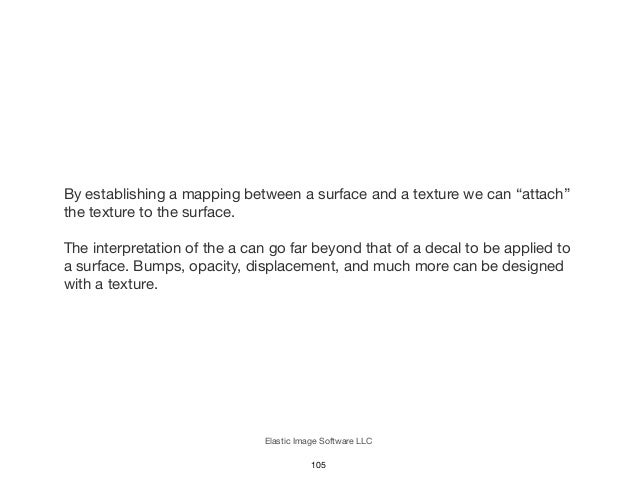

Elastic Image Software LLC105By establishing a mapping between a surface and a texture we can “attach”the texture to the s...
Elastic Image Software LLC106

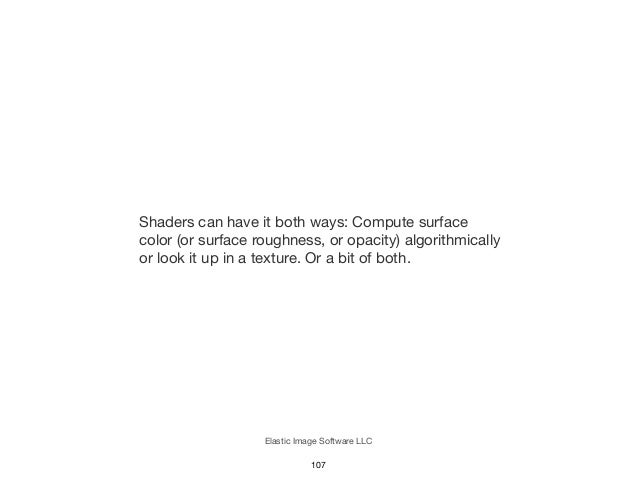

Elastic Image Software LLC107Shaders can have it both ways: Compute surfacecolor (or surface roughness, or opacity) algori...

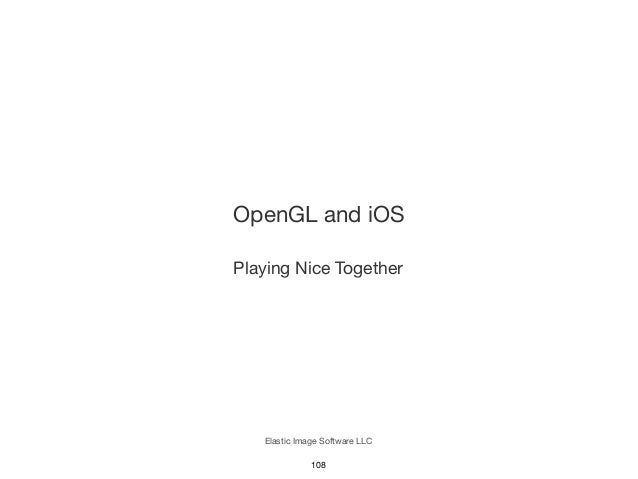

Elastic Image Software LLCOpenGL and iOSPlaying Nice Together108

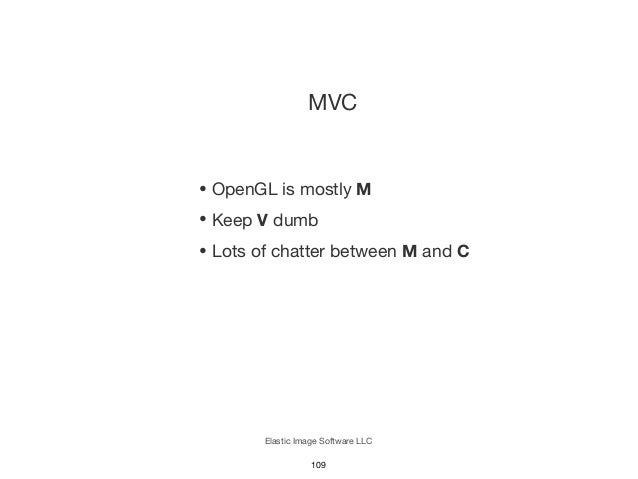

Elastic Image Software LLC• OpenGL is mostly M• Keep V dumb• Lots of chatter between M and CMVC109

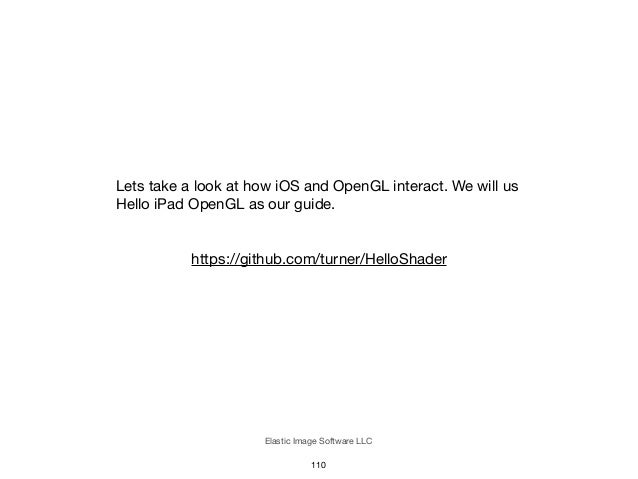

Elastic Image Software LLC110Lets take a look at how iOS and OpenGL interact. We will usHello iPad OpenGL as our guide.htt...

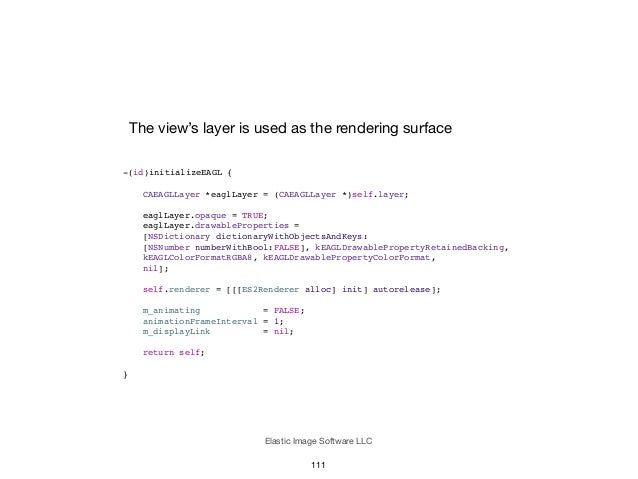

Elastic Image Software LLC111-(id)initializeEAGL {!! CAEAGLLayer *eaglLayer = (CAEAGLLayer *)self.layer;!! eaglLayer.opaqu...

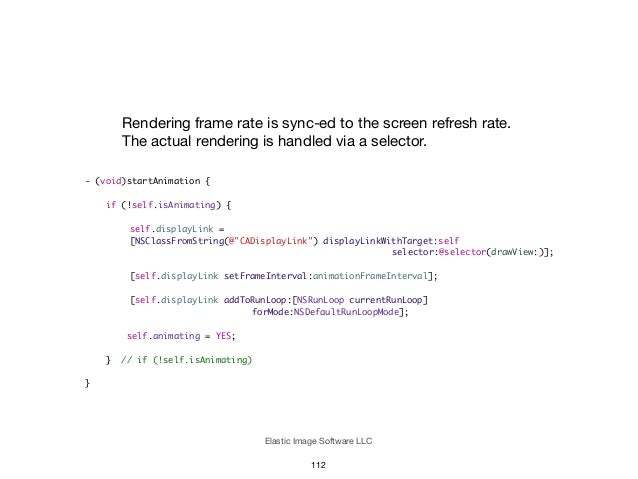

Elastic Image Software LLC112Rendering frame rate is sync-ed to the screen refresh rate.The actual rendering is handled vi...
Elastic Image Software LLC113	 // framebuffer	 glGenFramebuffers(1, &m_framebuffer);	 glBindFramebuffer(GL_FRAMEBUFFER, m_...
Elastic Image Software LLC114- (void) render {! ![EAGLContext setCurrentContext:m_context];glBindFramebuffer(GL_FRAMEBUFFE...

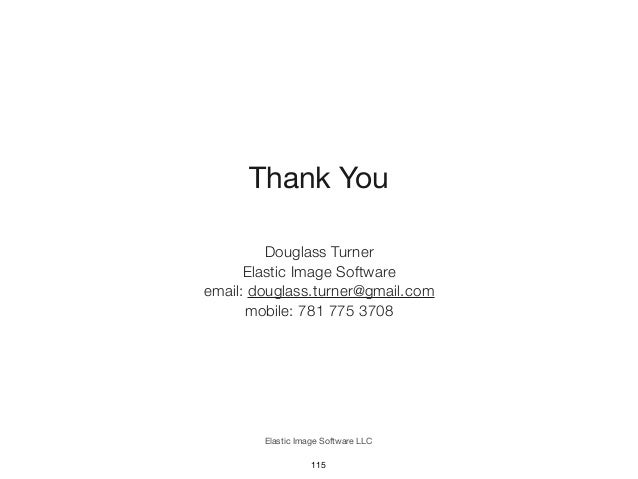

Elastic Image Software LLCThank YouDouglass TurnerElastic Image Softwareemail: douglass.turner@gmail.commobile: 781 775 37...
Elastic Image Software LLC116Copyright © Douglass TurnerElastic Image Software LLC
