Understanding the PC Boot Process
  How Linux and Windows start their day


           By Dominique Gerald Cimafranca
    ...
The PC boot process in a nutshell
1. Executes code from well-known location.
2. Execute first-stage boot loader from MBR.
...
BIOS
●   BIOS – Basic Input/Output System
●   Located at memory location 0xFFFF0
●   Boot firmware designed to be run at s...
Stage 1 Boot Loader: MBR
●   MBR – Master Boot Record
●   Located on first sector of the boot disk
●   Size: 512 bytes
●  ...
Anatomy of the MBR
●   First 446 bytes
    ●   Primary boot loader
    ●   Code and error messages
●   Next 64 bytes
    ●...
Stage 2 Boot Loader
●   Loads the kernel
●   On Linux:
    ●   GRUB – Grand Universal Bootloader
    ●   LILO – Linux Load...
A closer look at GRUB
●   GRUB understands ext2 and ext3 file systems
    ●   LILO had to load raw sectors from the hard d...
What does GRUB load?
title       Ubuntu 9.04, kernel 2.6.28­13­generic
uuid        0ef7b971
kernel      /boot/vmlinuz­2.6....
Execution in the kernel
●   arch/i386/boot/head.S
    ●   performs basic hardware setup
    ●   calls startup_32() of ./ar...
initrd
●   Initial RAM disk – a small temporary file system
●   During stage 2 boot, initrd is copied into RAM
    and mou...
init
●   The first user space program -- /sbin/init
●   Typical for desktop Linux systems
●   For Ubuntu, init reads /etc/...
What about Windows XP?
●   Boot Loader Phase
●   Kernel loading phase
●   Session Manager
●   Winlogon
Windows XP and earlier
●   NTLDR – the actual boot loader
●   boot.ini – booting options
    ●   presents menu options as ...
What NTLDR does
●   Accesses the file system on boot drive
●   Looks for hiberfil.sys, the hibernation image
●   Reads boo...
NTOSKRNL.EXE
●   Kernel image of Windows NT family
●   Contains
    ●   Cache Manager
    ●   Executive
    ●   Kernel
   ...
Kernel Loading Phase
●   HAL.DLL -- type of hardware abstraction layer
●   KDCOM.DLL -- Kernel Debugger HW Extension
    D...
Session Manager
●   SMSS.EXE
●   What it does:
    ●   Creates environment variables
    ●   Starts the kernel and user mo...
Windows Logon
●   Winlogon starts the Local Security Authority
    Subsystem Service (LSASS) and Service
    Control Manag...
What about Windows Vista?
●   Windows Boot Manager (bootmgr)
●   Boot Configuration Data
    ●   replacing boot.ini
    ● ...
Sources
●   “Inside the Linux Boot Process”, M. Tim Jones, IBM Developerworks
    ●   http://www.ibm.com/developerworks/li...
Upcoming SlideShare
Loading in...5
×

Understanding The Boot Process

54,117

Published on

Step-by-step walkthrough of the boot process of Linux and Windows systems.

Published in: Technology, News & Politics
3 Comments
15 Likes
Statistics
Notes
No Downloads
Views
Total Views
54,117
On Slideshare
0
From Embeds
0
Number of Embeds
33
Actions
Shares
0
Downloads
2,077
Comments
3
Likes
15
Embeds 0
No embeds

No notes for slide

Transcript of "Understanding The Boot Process"

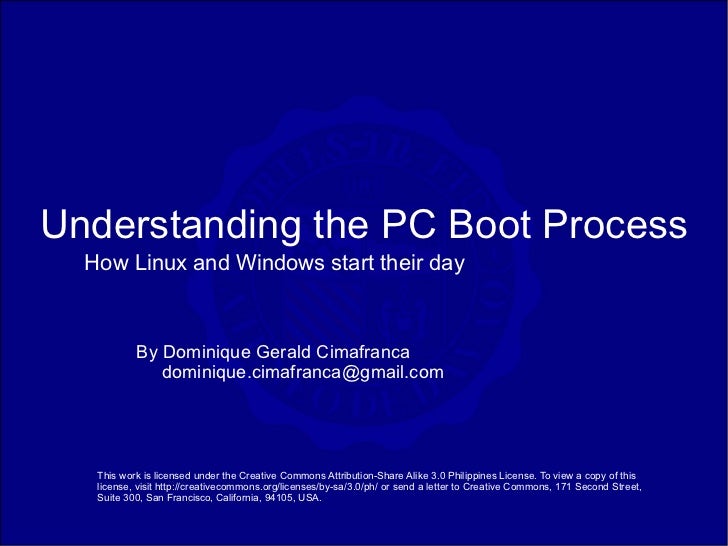

  1. 1. Understanding the PC Boot Process How Linux and Windows start their day By Dominique Gerald Cimafranca dominique.cimafranca@gmail.com This work is licensed under the Creative Commons Attribution-Share Alike 3.0 Philippines License. To view a copy of this license, visit http://creativecommons.org/licenses/by-sa/3.0/ph/ or send a letter to Creative Commons, 171 Second Street, Suite 300, San Francisco, California, 94105, USA.
