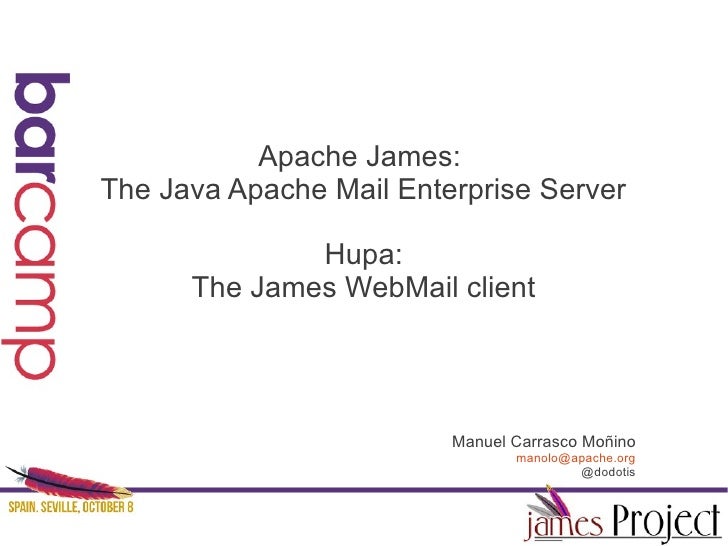

  • 1. Apache James:The Java Apache Mail Enterprise Server Hupa: The James WebMail client Manuel Carrasco Moñino @dodotis
  • 2. About me● Apache James ● HUPA● GWT: ● Gquery & Gquery-plugins ● GwtExporter ● GwtUpload ● Chronoscope● Jenkins ● Performance plugin ● Emma plugin● Linux ● LXP a light and visual window manager based on icewm
  • 3. Contents● Introduction to the James Project – Components – What is new in the release 3.0-beta3● Hupa – Architecture – What is GWT, MVP, How to Test – Hupa Status – Hupa Roadmap● Becoming an open-source contributor.
  • 4. What is James?“The Apache James Project delivers a rich set of open source modules and libraries, written in Java, related to Internet mail communication which build into an advanced enterprise mail server”.
  • 5. Server Components● Server is the main project in James and delivers a full featured modular mail-server composed by: – SMTP, LMTP – POP3 – IMAP4 (James-v3) – NNTP (James-v2) – Queue/Spool – Mail Storage – FetchMail
  • 6. ProjectsJames is divided in projects, so as they can be used in other products easily:● Server: Enterprise mail server, it depends on other modules to be built.● Protocols: framework for mail protocols implementations (smtp, lmtp).● IMAP: flexible codec for IMAP and command processors .● MailBox: a library providing a flexible Mailbox storage accessible by mail protocols (Imap, pop, smtp), supports maildir, openjpa, hbase, jackrabbit.● Mime4J: parser for mime messages like javax.mail but more tolerant.● Mailets: email processing engine, it defines and implements a Mailet-API.● JSieve [*]: Java Framework implementation of the Sieve mail filtering language.● JSPF [*]: Java Sender Policy Framework implementation.● JDKIM [*]: Java Framework Implementation for DomainsKeys identification Mail.● MPT: Mail Protocol Tester (testing of ASCII based line protocols).● PostAge: application for generating mail traffic on mail servers.● HUPA: Hupa is an IMAP-based RIA Webmail written in GWT. [*] These frameworks provide mailet implementations to make easier to integrate with James Server
  • 7. Advantages of using James● Pure java implementation.● Performance in mind.● Test based developing: TDD● Open-Source components.● Easy to Build (maven).● Easy to Install in any platform.● Easy to Use, Manage, and Integrate (APIs).● Easy email processing: Mailets and Matchers● Active developing and mailing lists.
  • 8. Whats new in James-3beta● Imap● Mailboxes (maildir, hbase, openjpa, jcr)● More ddbb are supported (ie: Oracle)● Better logging● JMX management● Performance (Sockets, storage, etc)● NIO support (Using Netty)● Easy writing SMTP extensions, filters, etc.● NNTP not supported any more, it is left in v2 because it is not widely used.
  • 9. HUPA(Pure Java RIA Mail Client)
  • 10. Hupa Architecture Pure JavaScript Pure Java Any server (James, Gmail ...)
  • 11. What is GWT Java to Javascript Compiler and OptimizerIt is a full SDK. Not a Js Framework Not a Js Library
  • 12. Why a compiler? And why Java?● A high level language allows that the developer doesnt get lost with low level details (DOM, Ajax, Cross domain, Compression, Obfuscation, Dependencies ...)● Java syntax is closed to JS, so in theory the Java to Js compiler was easier to develop● Huge Java ecosystem: IDE, re-factoring, Debug, Code reuse, Maven, TDD, CI …● Patterns, MVP, RPC, Pojos …● Type checking, reduce errors.● Separate code maintenance from the effectiveness of the executable.● Normally the compiler would produce better js code that the code we could write by hand (less code, compressed, obfuscated, remove unused stuff, etc).
  • 13. What does the SDK provide● Generators, Compiler, Linker, Optimizer, Obfuscater: one compiled js per browser (like c++ asm per processor).● Client side libraries: DOM, XML, JSON, RPC, RF, I18n, MVP, Widgets● Server libraries: RPC, RF● Eclipse plugin● Multi-browser Dev mode● Unit testing and Debug tools.● Performance tools (speed tracer)● Compiler Statistics● Everything is open sourced (Apache v2.0)
  • 14. Java Code (IDE) Java Server Java Client Side SideToolkit (SDK) GWT development GWT compiler Debug/Hosted/Test Compiler/Optimizer GWT server JRE Emulation libs RPC/RF Libs & Widgets Test Runner FF/IE/Ch-Plugin 3ª Party 3ª Party Server libs Server libs JavaScript Bundles J-Byte Code (css, sprite) RPC/RF/JSON/XML RF/JSON/XML Other Backends JVM App-Server Browser (php, ruby, ...)
  • 15. MVP: Model View Presenter ● Define the View Interface and decouple the Presenter so as it do not need any browser specific stuff. ● Testing of the view is not necessary since we use tested components (widgets) ● Fast developing using TDD and MockView run in JVM instead of browser using Gin and Guice for DI (minimize usage of GWTTestCase). ● EventBus facilitate decoupling of presenters. ● The Dispatcher (Command pattern) or RF simplifies the transport layer and data binding.
  • 16. Hupa, Status● Time ago, Hupa was a reference of a GWT MVP application.● Hupa MVP design is based of a set of libraries available for gwt a couple of years ago: – Gwt-presenter: for the MVP and EventBus patterns – Gwt-dispatch: for the Command pattern – Gin + Guice: for dependency injection.● Hupa was developed before GWT-2.0 was released, when LayoutPanels, uibinders, Cells, etc. were not available.● Many of the libraries which Hupa are using are unmaintained or have an equivalent feature in modern GWT.
  • 17. Hupa, RoadMap● Replace gwt-dispatch by RequestFactory● Replace gwt-presenter with the available stuff in GWT-2.4● Remove gwt-incubator dependency in favor of CellTable and CellTree● Use LayoutPanels instead of css workarounds● Use gwt-decorated panels● Use gQuery in client side to enhance and simply views● Implement new features: Contact management, Oauth, LocalStorage, Gadgets, etc.
  • 18. Become an opensource contributor● Checkout the code.● Play with it, test it, find bugs.● Open JIRA tickets reporting problems, asking for improvements.● Attach patches which fix bugs, add new features, improve performance, contribute to readability, etc. Dont forget unit Tests.● Subscribe to mailing lists, and participate asking and answering questions.● Committers will appreciate your work and will propose you to be part of the team.● Other way you can utilize is to propose new projects: Apache incubator, labs, GSOC, etc. Find a mentor or use mailing-lists for that.
