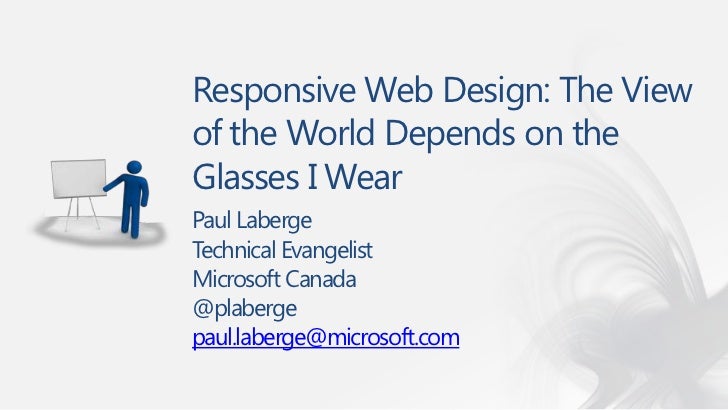

  1. 1. Responsive Web Design: The Viewof the World Depends on theGlasses I WearPaul LabergeTechnical EvangelistMicrosoft Canada@plabergepaul.laberge@microsoft.com
  2. 2. How we viewed the web…• The Desktop Browser
  3. 3. How we view the web today…• The Desktop Browser• Mobile Browsers• Tablet form-factors• Televisions• Game Consoles• More…• Yeah, so what’s the problem?
  4. 4. demoThe Anti-Pattern
  5. 5. Responsive Web Design• Thinking of the user’s needs instead of ours.• Adapt to various device capabilities instead of configurations.• Help future-proof our sites.
  6. 6. demoResponsive Web Designs
  7. 7. Elements of Responsive Web Design• A flexible, grid-based layout,• Flexible images and media, and• Media queries.• Something else.
  8. 8. Flexible, Grid-based Layout
  9. 9. Ok, so what’s the problem?• Non-responsive sites are no fun.• Fixed-width sites are not the best experiences.• Design tools tend to use pixels.• Sometimes a pixel does not equal a pixel.• So how do we turn pixels to their em counterparts?
  10. 10. Pixels to Ems Algorithm
  11. 11. Responsive Web Design READ MORE >> h1 { h1 {em font-size: 24px; 24 / 16 = 1.5 font-size: 1.5em; } } h1 a { 11 / 24 = h1 a {% font-size: 24px; 0.458333333+ font: 0.458333333+; } } 1 2 3
  12. 12. Didn’t You Say Something About a Grid?
  13. 13. Flexible Images and Media
  14. 14. A Simple SolutionWorks on images, as well as other media like <video>.
  15. 15. Another Possibility Filament Group – depends on cookies and JavaScript
  16. 16. Media Queries
  17. 17. Not so long ago…• We could define media types: screen and print.• But not easily respond to the user’s display.• Lots of grunt work.• Didn’t spend much time thinking about mobile devices.
  18. 18. CSS3 Media Queries• The CSS3 Media Queries Module specifies methods to enable web developers to scope a style sheet to a set of precise device capabilities.
  19. 19. Simple Example@media screen and (max-width: 600px) { body { font-size: 80%; }}
  20. 20. Other Queries@media screen and (min-width:320px) and (max-width:480px)@media not print and (max-width:600px)@media screen (x) and (y), print (a) and (b)
  21. 21. Can be declared…In the StylesheetImport Rule @import url(mq.css) only screen and (max- width:600px)link Element <link rel=“stylesheet” media=“only screen and (max-width:800px)” href=“mq.css”>
  22. 22. Supported Media Properties• min/max-width • color• min/max-height • color-index• device-width • monochrome• device-height • resolution• orientation• aspect-ratio• device-aspect-ratio
  23. 23. demoLittle Pea Bakery
  24. 24. What About Devices?• viewport meta tag • <meta name=“viewport” content=“width=device-width”>• device-width vs. width• maximum-zoom
  25. 25. What about non-supportive browsers?• css3-mediaqueries-js by Wouter van der Graaf• Just include the script in your pages• Parses the CSS and applies style for positive media tests
  26. 26. Hey, what was that 4th thing?• Design. • Do we start with mobile-first? • Is it best that all sites are responsive? • Do we need or want to do visual comps for every device? • Don’t dismiss mobile as walking and looking something up. • We are at the beginning, that’s what makes this interesting!
  27. 27. Remember To Complete Your Evaluations!You could WIN a Samsung FocusWindows Phone 7!Let us know what you liked & disliked!Remember, 1=Bad, 5=Good Please provide comments!No purchase necessary. The contest is open to residents of Canada (excluding government employees). The Toronto Tech·Days evaluation form contest begins on October 25th, 2011 andends on October 26th, 2011. The Vancouver Tech·Days evaluation form contest begins on November 15th, 2011 and ends on November 16th, 2011. The Montreal Tech·Days evaluationform contest begins on November 29th, 2011 and ends on November 30th, 2011. Participants can enter the contest in one of two ways: (1) complete and submit an evaluation form by thecontest close date; or (2) provide contact information by the contest close date. The draw for Toronto will take place on October 31st, 2011. The draw for Vancouver will take place onNovember 21st, 2011. The draw for Montreal will take place on December 5th, 2011. The chances of being selected depend upon the number of eligible entries. Selected participants will becontacted by phone and/or e-mail and will be required to answer correctly a time-limited skill-testing question. There are three (3) prizes available to be won. One (1) prize will be given awayfor each Tech·Days event in Toronto (October 25-26 2011), Vancouver (November 15-16 2011) and Montreal (November 29-30 2011). The prize consists of a Samsung Focus WindowsPhone 7 (handset only; voice and/or data plan not included) (approximate retail value of $499 CAD). The prize will be delivered to the shipping address designated by the winner within 6-8weeks. The winner may be required to sign a declaration and release form. For full contest rules, please see a Microsoft Tech·Days representative. You can email any additional comments directly to td_can@microsoft.com at any time.
  28. 28. Q&A
