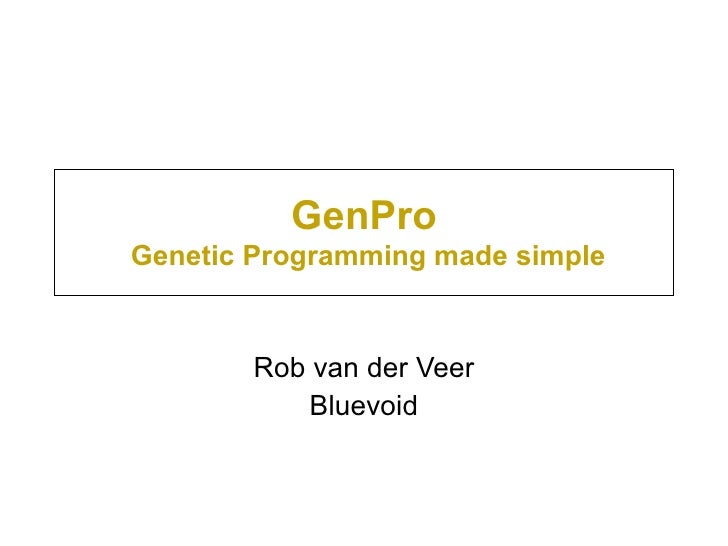

GenPro   Genetic Programming made simple Rob van der Veer Bluevoid
Bio Java Development (Web, OSGi, Android, Swing) Project Leader (o.a. Scrum) [email_address]
Genpro preamble
Automated help: “Grrr”
Settings vs re-programmable logic
AI to the rescue! Genetic Programming Genetic Algorithm Neural networks Fuzzy logic Self learning machines Emergent behavi...
Representations outside GP <ul><li>if-then production rules </li></ul><ul><li>Horn clauses </li></ul><ul><li>decision tree...
Genetic algorithm / programming  <ul><li>Generate random solutions  </li></ul><ul><li>Evaluate & score  (cumulative error ...
Program representations in GP <ul><li>bits </li></ul><ul><li>numerical weight vectors </li></ul><ul><li>machine / byte cod...
Genpro birth
One year later: Spreadsheet Inspiration <ul><li>Every cell has a value and a type  </li></ul>3 = A2 + B1 2 1 41 <ul><li>Ev...
One (call)cell, one method call <ul><li>A GenPro cell holds: </li></ul><ul><li>Type </li></ul><ul><li>Value </li></ul><ul>...
One (call)cell, one method call Integer cc1 = Math.max(a, b)   <ul><li>cc1 </li></ul><ul><li>Integer  </li></ul><ul><li>Va...
A grid of cells i1 37 17.4 Input  values 1: 113 2: 212 3: 392 4: 752 Expected Output values 1: 45 2: 100 3: 200 4: 400 O1 ...
Working with GenPro
Using GenPro: extending Trainer <ul><li>public   abstract   class  Trainer { </li></ul><ul><li>public   abstract  Setup cr...
Setup <ul><li>Defines: how to create programs and run generations of programs </li></ul><ul><li>Parts of Setup: </li></ul>...
GridSolutionEvaluator extends TestSetSolutionEvaluator <ul><li>Defines how to evaluate and select programs. </li></ul><ul>...
TestSet <ul><li>Defines the inputs and outputs values to evaluate a program. </li></ul><ul><li>Is actually a list of celln...
First testcase: exact formula  <ul><li>Convert Fahrenheit to Celsius </li></ul><ul><li>input: Fahrenheit </li></ul><ul><li...
GenPro inner working
Creating a random solution Lib1 Math input1 Integer output1 Integer Integer c1 = Math.abs(input1); Integer c2 = Math.round...
The heart of the machine:  Method.invoke() <ul><li>public void calc() {  </li></ul><ul><li>  // fetch parameter values </l...
Why reflection? <ul><li>Strong typed connecting </li></ul><ul><li>No compile time  ( = faster @ small testsets ) </li></ul...
Operators / libraries <ul><li>public class NumberOperations { </li></ul><ul><li>public   static   double  multiply( double...
Back to reality ;)
Egg Boiling!
Second testcase: non-exact formula <ul><li>Eggweight </li></ul><ul><li>input: width & height of egg </li></ul><ul><li>outp...
Search Space size <ul><li>Nr of cells </li></ul><ul><li>Nr of operators/methods </li></ul><ul><li>Nr of parameters </li></...
Third Test case: search space <ul><li>Exact formula (score=0) </li></ul><ul><li>F(y)=x4+x3+x2-x </li></ul>
Forth Test case: Roman Figures <ul><li>Exact formula (score=0) </li></ul><ul><li>Strings to Integers </li></ul><ul><li>Doe...
Genpro current state
Program representations <ul><li>Tree  based GP (TGP) </li></ul><ul><li>Linear  based GP (LGP) </li></ul><ul><li>Graph  bas...
Runtime Requirements <ul><li>GenPro Core: Java 1.5 or Android 1.0 </li></ul><ul><li>GenPro Examples: Java 1.5 (Swing) </li...
Features <ul><li>Supported cell types: Integer, Double, Boolean, String </li></ul><ul><li>Operators:  </li></ul><ul><ul><l...
Wanted Features <ul><li>Cell type mutation (keep the if-cells!) </li></ul><ul><li>Runtime compiling of programs </li></ul>...
GenPro challenges you! <ul><li>Real world application of GenPro </li></ul><ul><li>2 days of free help getting your problem...
Links <ul><li>GenPro code:  code.google.com/p/genpro </li></ul><ul><li>GenPro on twitter: @bluevoid </li></ul><ul><li>Grou...
Genpro, the origin of species  (not covered on feb 2!)
Example Solution structure cc2 Integer cc3 Integer Lib1 Math Input1 Integer abs(int) round(double) compareTo(Integer) Outp...
Crossing of solutions cross over point Int Int Math Int Int Int Solution A Int Int Math Int Int Int Solution B
Creating children of A & B Int Int Int Int Parent A Int Int Int Int Parent B Child A~B Child B~A cross over point Int Int ...
Crossover Reconnecting A2 B1 B2 A1 Int Int Math Int Int Int Child A~B Int Int Math Int Int Int Child B~A
Example Solution structure 2 in code: setup.setCallCells(3, &quot;cc&quot;,  Double .class,  Integer.class ,  Boolean .cla...
Crossover on mixed value types A2 B1 Int Int Math Int Int Dbl Child B~A compareTo(Integer) Mismatch in  param type! Potent...
Crossover in nature:  the origin of species Heart Lung “ DNA” of Horse Heart Lung Brain “ DNA” of Dog cross over points do...
Solving the species problem <ul><li>prevent mismatch by pre-typing the solution template - specie-fy </li></ul><ul><li>use...
Crossover on mixed value types: random reconnect A2 B1 Int Int Math Int Int Dbl Child B~A compareTo(Integer) Moved  connec...
Here be dragons
