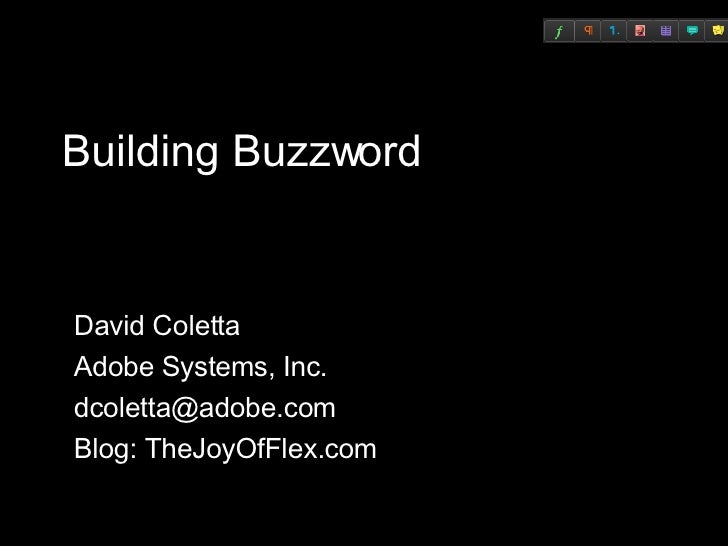

Building Buzzword David Coletta Adobe Systems, Inc. [email_address] Blog: TheJoyOfFlex.com

Introduction Was developer and co-founder at Virtual Ubiquity Now Sr. Computer Scientist at Adobe Career focus on collaboration software Background in C++ and web applications Started using Flex 2.0 alpha in January 2006

Was developer and co-founder at Virtual Ubiquity

Now Sr. Computer Scientist at Adobe

Career focus on collaboration software

Background in C++ and web applications

Started using Flex 2.0 alpha in January 2006

A little history Jan 2006: Started coding with three developers in an attic Oct 2006: First public demo by Kevin Lynch at MAX; Funded by Adobe Nov 2006: Hired designer and three more developers, moved into real offices May, June, July, August 2007: monthly preview releases Fall 2007: Opening up for real use, Adobe acquisition

Jan 2006: Started coding with three developers in an attic

Oct 2006: First public demo by Kevin Lynch at MAX; Funded by Adobe

Nov 2006: Hired designer and three more developers, moved into real offices

May, June, July, August 2007: monthly preview releases

Fall 2007: Opening up for real use, Adobe acquisition

This talk focuses on Buzzword internals and features Not really related to Flex Worth understanding because of what it demonstrates about the capabilities of the platform Building a real-world app inside the browser in Flex Getting the most out of the platform Dealing with limitations

Buzzword internals and features

Not really related to Flex

Worth understanding because of what it demonstrates about the capabilities of the platform

Building a real-world app inside the browser in Flex

Getting the most out of the platform

Dealing with limitations

The Five Cent Tour Show of hands: who has never actually used Buzzword? Document Organizer Toolbar Lists Graphics Tables Comments Sharing

Show of hands: who has never actually used Buzzword?

Document Organizer

Toolbar

Lists

Graphics

Tables

Comments

Sharing

Topics in detail Getting text on the page Testing the app Page-segmented scroll bar Modularizing Rich text clipboard

Getting text on the page

Testing the app

Page-segmented scroll bar

Modularizing

Rich text clipboard

Possible Q&A topics Client/server communications MXML and code-behind .NET back end Fonts Logging and Tracing Performance Choreography AIR

Client/server communications

MXML and code-behind

.NET back end

Fonts

Logging and Tracing

Performance

Choreography

AIR

Getting text on the page Three major models: Document: the persistent user content Layout: the transient positioning of the content Display: the Flex/Flash objects on the display list Flow is always document to layout to display Everything the user does modifies the document Fine-grained events are dispatched by document and consumed by layout (and others) One high-level document change event for everyone else

Three major models:

Document: the persistent user content

Layout: the transient positioning of the content

Display: the Flex/Flash objects on the display list

Flow is always document to layout to display

Everything the user does modifies the document

Fine-grained events are dispatched by document and consumed by layout (and others)

One high-level document change event for everyone else

Document internals Paragraph Paragraph Run Run Run Containment Inheritance Run FontyRun AnchorRun BreakRun FieldRun Body Stream Section TextRun

Getting text on the page Demo: Style inspector DocumentStructureTree extends Tree DocumentTreeDescriptor implements ITreeDataDescriptor

Demo: Style inspector

DocumentStructureTree extends Tree

DocumentTreeDescriptor implements ITreeDataDescriptor

Getting text on the page Layout engine Demo: Layout inspector

Layout engine

Demo: Layout inspector

Getting text on the page Demo: Display element debugging

Demo: Display element debugging

Questions?

Testing the app: “LiveTest” Goal of LiveTest: create a test framework that verifies the correctness of document commands Non-goal: not intended to test the whole UI (can't replace something like QTP) Command pattern: each command knows how to emit ActionScript code to execute itself Demo: recording, debugging, training, and executing a test

Goal of LiveTest: create a test framework that verifies the correctness of document commands

Non-goal: not intended to test the whole UI (can't replace something like QTP)

Command pattern: each command knows how to emit ActionScript code to execute itself

Demo: recording, debugging, training, and executing a test

Questions?

Page-segmented scroll bar Demo: small document (Welcome to Buzzword) large document (Name that Movie) Not a component but actually two skins: thumb skin and track skin Most of the work is in track skin Pushing a skin pretty far: hard to get skins to draw text (got easier in Flex 3)

Demo:

small document (Welcome to Buzzword)

large document (Name that Movie)

Not a component but actually two skins: thumb skin and track skin

Most of the work is in track skin

Pushing a skin pretty far: hard to get skins to draw text (got easier in Flex 3)

Questions?

Modularizing Demo: logging in with empty browser cache

Demo: logging in with empty browser cache

Modularizing Advantages Improves build times Permits background downloading Imposes information hiding discipline

Advantages

Improves build times

Permits background downloading

Imposes information hiding discipline

Modularizing Risks Can increase overall download Can slow overall build times Increased complexity

Risks

Can increase overall download

Can slow overall build times

Increased complexity

Modularizing Debugging across modules is a common problem Since SWF module is loaded at runtime by path, if your production version is a release built, you won’t be able to debug it We solved by building ModulePathLoader subclass of ModuleLoader that tries to load the debug path as well as the release path

Debugging across modules is a common problem

Since SWF module is loaded at runtime by path, if your production version is a release built, you won’t be able to debug it

We solved by building ModulePathLoader subclass of ModuleLoader that tries to load the debug path as well as the release path

Modularizing UI for progress bars handled by ProgressManager class Keeps track of what mode we're in (notified by app frame) Knows what modes are blocked by which downloads Keeps track of which downloads are in progress (monitors events from Module loading process)

UI for progress bars handled by ProgressManager class

Keeps track of what mode we're in (notified by app frame)

Knows what modes are blocked by which downloads

Keeps track of which downloads are in progress (monitors events from Module loading process)

Questions?

Rich Text Clipboard Demo: copying and pasting between Buzzword and MS Word

Demo: copying and pasting between Buzzword and MS Word

Rich Text Clipboard Flash does not support rich text at all Flash provides limited support for putting plain text only on system clipboard Flash provides no support for getting contents of system clipboard Clearly a hack is required

Flash does not support rich text at all

Flash provides limited support for putting plain text only on system clipboard

Flash provides no support for getting contents of system clipboard

Clearly a hack is required

Rich Text Clipboard Browser contains both the Flash plug-in and a hidden editable IFRAME (or DIV for some browsers) All keystrokes go into the editable IFRAME and are passed into Flex via ExternalInterface Clipboard actions are detected via either clipboard events (in IE) or keyDown/keyPress/keyUp events (other browsers)

Browser contains both the Flash plug-in and a hidden editable IFRAME (or DIV for some browsers)

All keystrokes go into the editable IFRAME and are passed into Flex via ExternalInterface

Clipboard actions are detected via either clipboard events (in IE) or keyDown/keyPress/keyUp events (other browsers)

Rich Text Clipboard Flex JavaScript Traps Copy event, synchronously calls into Flex for HTML rendition of selection Renders contents of selection as HTML Replaces IFRAME contents with HTML from selection, allows operation to complete, unwinds, then calls back into Flex Finishes command How a Copy command works

Rich Text Clipboard Demo: copying and pasting between Buzzword and MS Word This is a giant hack! And it requires a separate instance of the hack for each browser! Unavoidable due to limitations of Flash AIR will make this better, but we'll still need the hack for the browser version

Demo: copying and pasting between Buzzword and MS Word

This is a giant hack! And it requires a separate instance of the hack for each browser!

Unavoidable due to limitations of Flash

AIR will make this better, but we'll still need the hack for the browser version

Questions? Reminder of topics we didn’t cover: Client/server communications MXML and code-behind .NET back end Fonts Logging and Tracing Performance Choreography AIR
