Microsoft Cloud Services Architecture

                                    David Chou
                                Arch...
Courtesy – wordle.net
Which is better?




1 gallon of fuel -> ¼ ton of „freight‟; 20 miles   1 gallon of fuel -> 1 ton of freight; 436 miles
Ca...
This is not new…

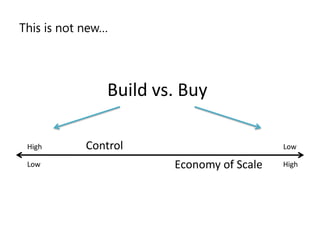

                Build vs. Buy

 High       Control                        Low

 Low                  ...
This is new…




        On premises vs. in the cloud

 High        Control                       Low

 Low               ...
On premises vs. in the cloud



        Application runs   Application runs         Application runs
         on-premises ...
On premises vs. in the cloud

                   “Packaged”         Hosted         “Software as a
 Buy




               ...

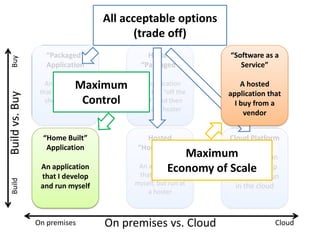

All acceptable options
                                              (trade off)
                   “Packaged”            ...

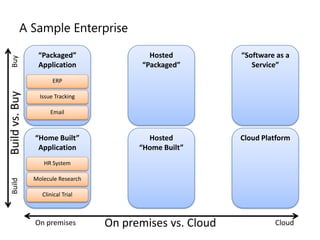

A Sample Enterprise

                 “Packaged”                  Hosted         “Software as a
 Buy




                 ...
A Sample Enterprise

                “Packaged”                 Hosted         “Software as a
 Buy




                App...

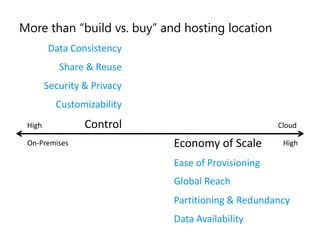

More than “build vs. buy” and hosting location
        Data Consistency
           Share & Reuse
        Security & Privac...

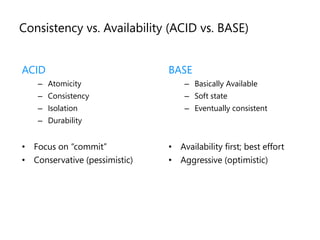

Consistency vs. Availability (ACID vs. BASE)


ACID                           BASE
    – Atomicity                    – Ba...
CAP (Consistency, Availability, Partition) Theorem

At most two of these properties for any shared-data system


         ...
Spectrum of Choices




   Extend existing         Deploy Complete          Compose New Application
On-Premise Application...
™
™

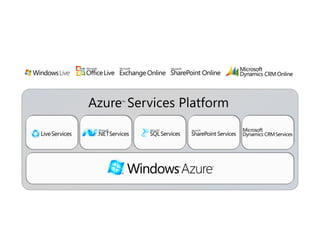

Service
          Workflow     Database    Analytics   Identity   Contacts
 Bus
Access                 Reporting    ...
Cloud services operating system that provides on-demand compute and storage
capabilities to host, scale, and manage applic...
Highly scalable and Internet-facing distributed database services in the cloud for
storing structured and unstructured dat...
Highly scalable and Internet-facing distributed database services in the cloud for
storing structured and unstructured dat...
A set of building blocks for handling user data and application resources, and
extensible components to build rich social ...
Azure & .NET Framework
     Build, test, debug, and deploy using a single familiar toolset

Client                 Server ...
Design Considerations


data              process             security             management
read-only         stateless ...
Potential Scenarios
Parallel and distributed processing
   – Image processing and rendering
   – Media content transcoding...
Scenario – NBC Olympics

1.3 billion page views
50 million unique visitors
70 million videos watched
27 minutes of viewing...
Scenario – NBC Olympics
NBC (New York and Beijing)
Microsoft (Redmond)
DeltaTre (Italy)
Schematic (New York, Atlanta, Cost...
Scenario – NBC Olympics



       Live Event   International           30 Rock      DMZs      Limelight
        (Beijing) ...
Scenario – Next-Generation B2B Collaboration


Characteristics
• Near-time collaboration between many partners
• Many-to-m...
Emerging Patterns


•   De-perimeterization
•   Democratization of industries
•   Dynamic business models
•   Relationship...
Thank you!

                                                                                                              ...
Upcoming SlideShare
Loading in...5
×

Microsoft Cloud Services Architecture

28,912

Published on

Published in: Business, Technology
1 Comment
44 Likes
Statistics
Notes
No Downloads
Views
Total Views
28,912
On Slideshare
0
From Embeds
0
Number of Embeds
6
Actions
Shares
0
Downloads
3,583
Comments
1
Likes
44
Embeds 0
No embeds

No notes for slide

Microsoft Cloud Services Architecture

  1. 1. Microsoft Cloud Services Architecture David Chou Architect, Microsoft
  2. 2. Courtesy – wordle.net

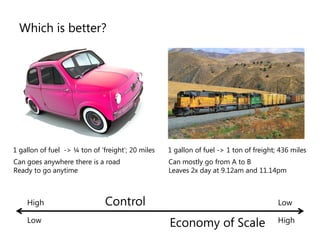

  3. 3. Which is better? 1 gallon of fuel -> ¼ ton of „freight‟; 20 miles 1 gallon of fuel -> 1 ton of freight; 436 miles Can goes anywhere there is a road Can mostly go from A to B Ready to go anytime Leaves 2x day at 9.12am and 11.14pm High Control Low Low Economy of Scale High
  4. 4. This is not new… Build vs. Buy High Control Low Low Economy of Scale High

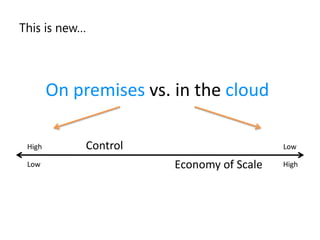

  5. 5. This is new… On premises vs. in the cloud High Control Low Low Economy of Scale High

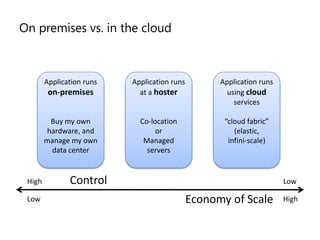

  6. 6. On premises vs. in the cloud Application runs Application runs Application runs on-premises at a hoster using cloud services Buy my own Co-location “cloud fabric” hardware, and or (elastic, manage my own Managed infini-scale) data center servers High Control Low Low Economy of Scale High
  7. 7. On premises vs. in the cloud “Packaged” Hosted “Software as a Buy Application “Packaged” Service” An application An application A hosted that I buy “off that I buy “off application that Build vs. Buy the shelf” and the shelf” and I buy from a run myself run at a hoster vendor “Home Built” Hosted Cloud Application “Home Built” Platform An application An application An application that I develop that I develop that I develop Build and run myself myself, but run myself, but run at a hoster in the cloud On premises Cloud
  8. 8. All acceptable options (trade off) “Packaged” Hosted “Software as a Buy Application “Packaged” Service” Maximum An application that I buy “off the An application that I buy “off the A hosted application that Build vs. Buy Control shelf” and run shelf” and then I buy from a myself run at a hoster vendor “Home Built” Hosted Cloud Platform Application “Home Built” Maximum application An An application Economy of Scale An application that I develop that I develop that I develop myself, but run Build and run myself myself, but run at in the cloud a hoster On premises On premises vs. Cloud Cloud
  9. 9. A Sample Enterprise “Packaged” Hosted “Software as a Buy Application “Packaged” Service” ERP Build vs. Buy Issue Tracking Email “Home Built” Hosted Cloud Platform Application “Home Built” HR System Molecule Research Build Clinical Trial On premises On premises vs. Cloud Cloud
  10. 10. A Sample Enterprise “Packaged” Hosted “Software as a Buy Application “Packaged” Service” ERP Build vs. Buy Issue Tracking HR System Email “Home Built” Hosted Cloud Platform Application “Home Built” Molecule Research Build Clinical Trial On premises On premises vs. Cloud Cloud
  11. 11. More than “build vs. buy” and hosting location Data Consistency Share & Reuse Security & Privacy Customizability High Control Cloud On-Premises Economy of Scale High Ease of Provisioning Global Reach Partitioning & Redundancy Data Availability
  12. 12. Consistency vs. Availability (ACID vs. BASE) ACID BASE – Atomicity – Basically Available – Consistency – Soft state – Isolation – Eventually consistent – Durability • Focus on “commit” • Availability first; best effort • Conservative (pessimistic) • Aggressive (optimistic)

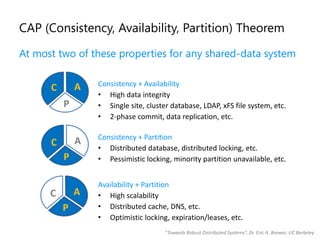

  13. 13. CAP (Consistency, Availability, Partition) Theorem At most two of these properties for any shared-data system A Consistency + Availability C • High data integrity P • Single site, cluster database, LDAP, xFS file system, etc. • 2-phase commit, data replication, etc. Consistency + Partition C A • Distributed database, distributed locking, etc. P • Pessimistic locking, minority partition unavailable, etc. Availability + Partition C A • High scalability P • Distributed cache, DNS, etc. • Optimistic locking, expiration/leases, etc. “Towards Robust Distributed Systems”, Dr. Eric A. Brewer, UC Berkeley
  14. 14. Spectrum of Choices Extend existing Deploy Complete Compose New Application On-Premise Application Application in the Cloud from Cloud Services
  15. 15.
  16. 16. ™ Service Workflow Database Analytics Identity Contacts Bus Access Reporting Devices Control Compute Storage Manage
  17. 17. Cloud services operating system that provides on-demand compute and storage capabilities to host, scale, and manage applications Compute Services Scalable and reliable Web applications 64-bit hosting service in the cloud  .NET 3.5 SP1, managed code, ASP.NET, IIS 7, SOAP/REST/XML, PHP, Ruby, Python  Security supported by flexible Code Access Security policies  Small runtime API supports logging and local scratch storage Storage Services Simple data storage for cloud-based applications  Blobs, tables, and queues; local and remote REST-based access to data  Authenticated access and triple replication Management Services Manage the applications, not infrastructure  Advanced tracing & logging – monitor compute, storage, and bandwidth  Dynamically upgrade applications without downtime  Resource usage and performance insights; monitoring & metering Development Tools Model and execute business logic and service interactions  Complete offline environment, including compute and storage services  Visual Studio add-in enables local debugging (Eclipse soon)
  18. 18. Highly scalable and Internet-facing distributed database services in the cloud for storing structured and unstructured data, and processing relational queries Service Bus Exchange messages between loosely coupled, composite applications  Connectivity to on-premises applications; secure, federated firewall-friendly messaging; simple, connected pub-sub eventing; extension of WCF  Federated namespace – shared, hierarchical, Internet-accessible URL  Service registry – publish service endpoints, lightweight, hierarchical, RSS-based discovery  Relay and connectivity – NAT traversal, pull-mode message delivery, Web service intermediary, WS-*/SOAP, REST Access Control Service Rules-driven application access control to users across organizations  Security Token Service (STS) – User name/password, Windows CardSpace, X.509 certificate, 3rd-party STS-issued SAML token, WS-Security, WS-Federation  Each .NET Services solution has a private, isolated STS; backing identity infrastructure for all services published within that solution’s Service Bus namespace  Claims-based rules-driven authorization – configured via claim mappings Workflow Service Model and execute business logic and service interactions  Reliable and scalable cloud runtime environment for user-defined declarative workflows  Extends Windows Workflow Foundation (.NET 3.5) to the cloud  Activities optimized for sending, receiving, and manipulating HTTP and Service Bus messages  Deploy, manage and track running workflow instances using tools and APIs
  19. 19. Highly scalable and Internet-facing distributed database services in the cloud for storing structured and unstructured data, and processing relational queries SQL Data Services Internet-facing database built on SQL Server relational database  Data storage – blobs, flexible, structured, birth to archival, multiple consistency levels  Data Processing – filters, aggregates, user-defined logic, online-offline indexing  Data Delivery – network proximity aware, locate closest static-content copies, spanning trees for live-content, failure resiliency Scalable, Flexible, Reliable, and Secure High-availability database, scale as needed and without limits  Data partitions limited to single node on cluster – efficient replication and load balancing  Geo-replication and transactional consistency of data across multiple copies  Geo-location configuration helps protect against latency and improve response time  HTTPS/SSL support; built on SQL Server security infrastructure Developer Agility Standards-based interface and familiar language support  Access runtimes through standards-based interfaces and Web services – SOAP and REST  Perform CRUD operations with authorities, containers, and entities  Relational queries via text-based queries, LINQ, typed data in XML wire format  Simple filtering, retrieval of complete entities, full-text search, paging queries  Flexible data model, no schema required
  20. 20. A set of building blocks for handling user data and application resources, and extensible components to build rich social applications and consumer experiences Live Framework Extensible components to build rich consumer services  Mesh Services – build applications that span across the web, devices, apps, and services o User – Mesh management and sharing resources across multiple users o Device – facilities for managing the collection of heterogeneous devices; relationship, status, security o Synchronization – data and metadata synchronization framework across applications, devices, and cloud o Application – facilities for managing the configuration, deployment, and versioning of applications  Identity Services – manage identities with associated services; delegated authentication  Directory Services – manage relationships between identities, data, devices, and apps  User-Data Storage Services – manage user-centric information; extensible data types  Communication and Presence Services – transport infrastructure for transient and persistent state management between applications and devices  Search Services – facilities for building search capailities for web sites and applications  Geospatial Services – geocoding/reverse geocoding, routing, search, mapping data Development Platform Uniform way for programming Live Services from any platform, language, application or device  Exposes RESTful programming model for live resources  Protocol based – open standards usage: HTTP, XML, ATOM, RSS  Resource Model: unified model across Live  Symmetric client/cloud programming model  CRUD/Query, triggers and SPROC based interaction model  Libraries: Rich client libraries (.NET, Silverlight, JavaSript etc.)
  21. 21. Azure & .NET Framework Build, test, debug, and deploy using a single familiar toolset Client Server Services Desktop & On-premises Mobile Experiences & Hosted Servers
  22. 22. Design Considerations data process security management read-only stateless claims-based leverage automation authentication public / share- idempotent plan for average load able identity isolation aware of application federation reference data lifecycles loosely-coupled end user idntities primary key rolling changes to live asynchronous access services IPC Not all data is handle dynamic data fault-tolerant equal schema and (expect failures) configuration changes

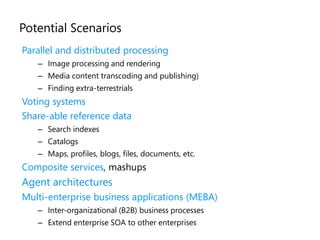

  23. 23. Potential Scenarios Parallel and distributed processing – Image processing and rendering – Media content transcoding and publishing) – Finding extra-terrestrials Voting systems Share-able reference data – Search indexes – Catalogs – Maps, profiles, blogs, files, documents, etc. Composite services, mashups Agent architectures Multi-enterprise business applications (MEBA) – Inter-organizational (B2B) business processes – Extend enterprise SOA to other enterprises

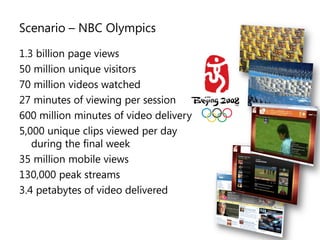

  24. 24. Scenario – NBC Olympics 1.3 billion page views 50 million unique visitors 70 million videos watched 27 minutes of viewing per session 600 million minutes of video delivery 5,000 unique clips viewed per day during the final week 35 million mobile views 130,000 peak streams 3.4 petabytes of video delivered

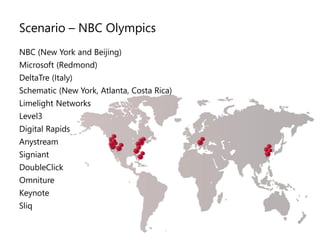

  25. 25. Scenario – NBC Olympics NBC (New York and Beijing) Microsoft (Redmond) DeltaTre (Italy) Schematic (New York, Atlanta, Costa Rica) Limelight Networks Level3 Digital Rapids Anystream Signiant DoubleClick Omniture Keynote Sliq
  26. 26. Scenario – NBC Olympics Live Event International 30 Rock DMZs Limelight (Beijing) Broadcast (New York) (New & Level3 Center Jersey, (Beijing) Burbank) CDN Video Video Production Workflow Distribution Player

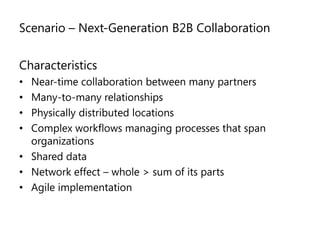

  27. 27. Scenario – Next-Generation B2B Collaboration Characteristics • Near-time collaboration between many partners • Many-to-many relationships • Physically distributed locations • Complex workflows managing processes that span organizations • Shared data • Network effect – whole > sum of its parts • Agile implementation
  28. 28. Emerging Patterns • De-perimeterization • Democratization of industries • Dynamic business models • Relationship networking core competencies • Shifting process centers of gravity • Plug-and-play IT architectures • Model-driven development, DSL
  29. 29. Thank you! david.chou@microsoft.com blogs.msdn.com/dachou © 2008 Microsoft Corporation. All rights reserved. The information herein is for informational purposes only and represents the current view of Microsoft Corporation as of the date of this presentation. Because Microsoft must respond to changing market conditions, it should not be interpreted to be a commitment on the part of Microsoft, and Microsoft cannot guarantee the accuracy of any information provided after the date of this presentation. MICROSOFT MAKES NO WARRANTIES, EXPRESS, IMPLIED OR STATUTORY, AS TO THE INFORMATION IN THIS PRESENTATION.
