This presentation aims to introduce you, the Domino administrator, to the fundamentals of IBM WebSphere Application Server (WAS)....

This presentation aims to introduce you, the Domino administrator, to the fundamentals of IBM WebSphere Application Server (WAS).

It aims to cover: -
What is WebSphere Application Server (WAS) ?
A brief history of WebSphere Application Server
The core building blocks of a typical WAS infrastructure
An examination of some of the core WAS configuration files
An illustration, by demonstration, of WAS administration
via command-line
via script
via graphical user interface
Note that I'm going to focus on WAS v7 because that's what is currently delivered via IBM products such as Connections and Sametime .....

Statistics

Views

Total Views
1,901
Views on SlideShare
1,901
Embed Views
0

Actions

Likes
1
Downloads
67
Comments
0

0 Embeds 0

No embeds

Accessibility

Categories

Upload Details

Uploaded via as Adobe PDF

Usage Rights

© All Rights Reserved

Report content

Flagged as inappropriate Flag as inappropriate
Flag as inappropriate

Select your reason for flagging this presentation as inappropriate.

Cancel
  • Full Name Full Name Comment goes here.
    Are you sure you want to
    Your message goes here
    Processing…
Post Comment
Edit your comment

    Dave hay   web sphere administration for domino administrators Dave hay web sphere administration for domino administrators Presentation Transcript

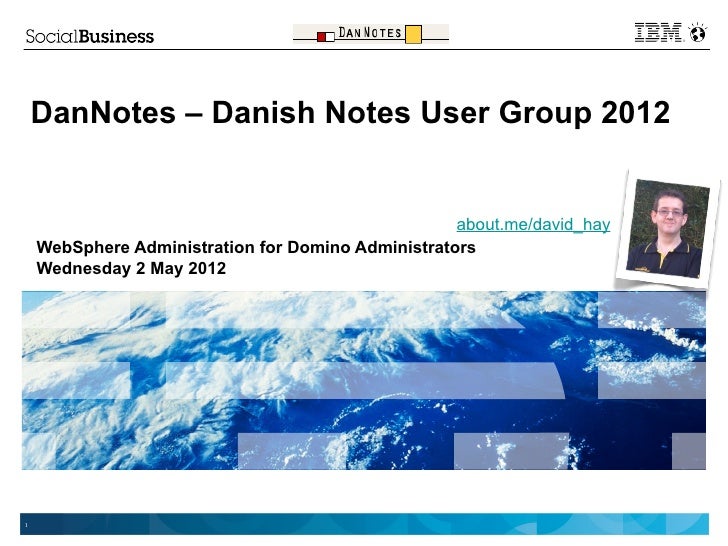

    • DanNotes – Danish Notes User Group 2012 about.me/david_hay WebSphere Administration for Domino Administrators Wednesday 2 May 20121
