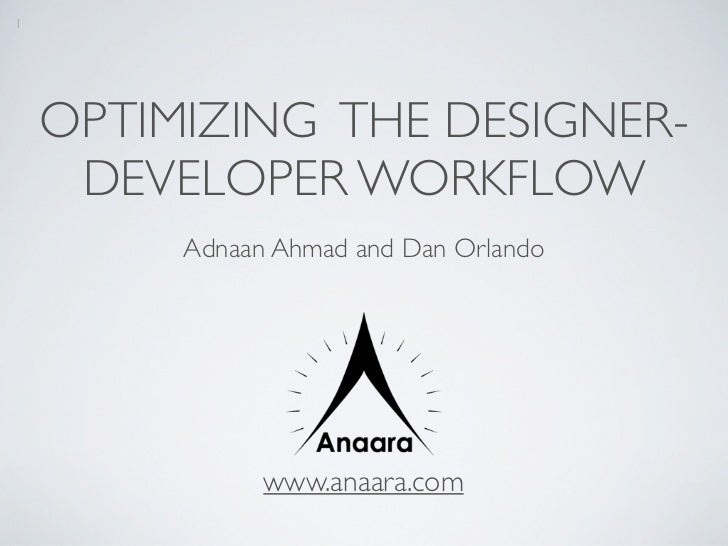

1    OPTIMIZING THE DESIGNER-     DEVELOPER WORKFLOW         Adnaan Ahmad and Dan Orlando               www.anaara.com
2          Adnaan Ahmad                                        Dan Orlando    • UX/UE Designer & Developer                ...
3     WHY DO WE    NEED ANOTHER    FRIGGIN’ FLASH-        BASED      PROGRAM?
4      THE INHERENT DIVIDE    Developer                                                              Designer             ...
5                   PART 1:                  WORKFLOW    Real-world scenarios often require Simultaneous design & developm...
6       FLASH CATALYST CS5    LINEAR/SEMI-LINEAR WORKFLOW     Makes sense in theory, but a disaster in practice...
7    SEMI-LINEAR WORKFLOW
WELCOME TO...8         FLASH CATALYST CS5.5           Bi-directional Workflow    Designers & Developers can now share a sec...
9    ROUND - TRIPPING      Single person/small team workflow                                          Diagram courtesy of ...
10     ROUND - TRIPPING         Multi-person Workflow                                 Diagram courtesy of Jacob Surber
11                   PART 2:      TIPS & TRICKS FOR A HARMONIOUS     DESIGNER-DEVELOPER RELATIONSHIP         Dan          ...
12                THINKING AHEAD     By thinking ahead of the workflow, consideration is paid to         making others’ job...
13              THINKING AHEAD          Good Naming Conventions            Bad        BigLongList      Application_List1  ...
14      THINKING AHEAD      Element Organization     Design Program   Flash Catalyst CS5
15              PART 3:     NEW WORKFLOW FEATURES IN        FLASH CATALYST CS5.5        Let’s blow up stuff...
ROUND-TRIPPINGAll Workflows• Project -> Flash Catalyst -> Compatibility Checker• Automatic settingSingle person• Project -...
ROUND - TRIPPING                 Multi-person WorkflowMulti-person project workflow may start in        either Catalyst or...
FXPL ROUND-TRIPPING                      Developer-driven workflow• Flex Library Project (FXPL) Files  ✴ Collectionof comp...
FXPL ROUND-TRIPPING                    Designer-driven workflow• Flex Library Project (FXPL) Files  ✴ Designer  creates co...
RESOURCES                    “Optimizing work ow with Flash Catalyst CS5”      http://www. ashmagazine.com/tutorials/detai...
