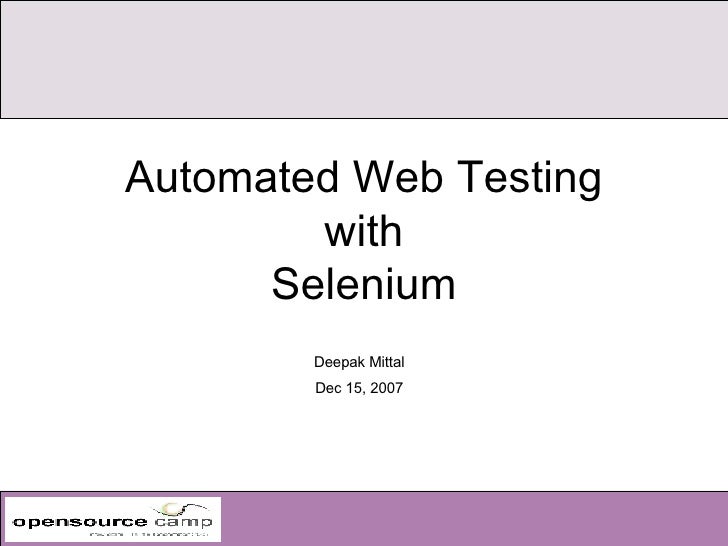

Automated Web Testing with Selenium Deepak Mittal Dec 15, 2007

Deepak Mittal

Dec 15, 2007

Agenda Introduction to Selenium Quick Demo Different ways of using Selenium Best practices with using Selenium Questions & Feedback

Introduction to Selenium

Quick Demo

Different ways of using Selenium

Best practices with using Selenium

Questions & Feedback

Quick Poll Do you do Web Testing? Do you do automated Web Testing? Do you need to support & test your web-app on multiple browsers? Which automated web-testing frameworks do you use?

Do you do Web Testing?

Do you do automated Web Testing?

Do you need to support & test your web-app on multiple browsers?

Which automated web-testing frameworks do you use?

What is Selenium? A JavaScript based Open Source Web testing tool That supports testing Web 2.0 applications On multiple browsers And multiple Operating Systems

A JavaScript based

Open Source

Web testing tool

That supports testing Web 2.0 applications

On multiple browsers

And multiple Operating Systems

What is Selenium Acceptance Testing tool for web-apps Tests run directly in browser Implemented entirely using browser technologies - JavaScript DHTML Frames

Acceptance Testing tool for web-apps

Tests run directly in browser

Implemented entirely using browser technologies -

JavaScript

DHTML

Frames

Origins of Selenium Developed by ThoughtWorks to test new time and expenses system Selenium is the key mineral to protect body from mercury toxicity http://www.openqa.org/selenium

Developed by ThoughtWorks to test new time and expenses system

Selenium is the key mineral to protect body from mercury toxicity

http://www.openqa.org/selenium

Selenium Modes Test Runner Mode test cases in HTML tables Record-Playback mode (Selenium IDE)‏ Selenium Remote Control (RC) Mode test-cases in your language of choice

Test Runner Mode

test cases in HTML tables

Record-Playback mode (Selenium IDE)‏

Selenium Remote Control (RC) Mode

test-cases in your language of choice

Selenium Modes Test Runner Mode test cases in HTML tables Record-Playback mode (Selenium IDE)‏ Selenium Remote Control (RC) Mode test-cases in your language of choice

Test Runner Mode

test cases in HTML tables

Record-Playback mode (Selenium IDE)‏

Selenium Remote Control (RC) Mode

test-cases in your language of choice

Test Runner Mode

Selenium HTML Tests Selenium tests are HTML files Selenium interacts with the DOM served to browser Selenium is agnostic of server side technology Selenium HTML language is called Selenese

Selenium tests are HTML files

Selenium interacts with the DOM served to browser

Selenium is agnostic of server side technology

Selenium HTML language is called Selenese

Selenese Selenium declarative DSL : Selenese Selenium understands two types of HTML files (which have simple HTML tables): Tests Test Suites Every test is contained within a test suite Point TestRunner.html at the test suite to run it

Selenium declarative DSL : Selenese

Selenium understands two types of HTML files (which have simple HTML tables):

Tests

Test Suites

Every test is contained within a test suite

Point TestRunner.html at the test suite to run it

Format of a Selenium Test HTML Table with 3 columns First Column: Selenium command Second Column: Target of command Third Column: Optional parameter

HTML Table with 3 columns

First Column: Selenium command

Second Column: Target of command

Third Column: Optional parameter

Selenium Concepts Element Locators : specify HTML elements Patterns : for pattern matching values Action : manipulate app state Accessors : store results in variables Assertion : verify that the app is in a certain state

Element Locators : specify HTML elements

Patterns : for pattern matching values

Action : manipulate app state

Accessors : store results in variables

Assertion : verify that the app is in a certain state

Test Runner Demo See Demo suite Look at tests bundled with Selenium Running selenium test in slow and fast mode

See Demo suite

Look at tests bundled with Selenium

Running selenium test in slow and fast mode

Problems with HTML Tests Selenium is sensitive to the format of the table No separation of concern Duplication is a major issue Tests need to be deployed with AUT (Application under Test)‏

Selenium is sensitive to the format of the table

No separation of concern

Duplication is a major issue

Tests need to be deployed with AUT (Application under Test)‏

Selenium Modes Test Runner Mode test cases in HTML tables Record-Playback mode (Selenium IDE)‏ Selenium Remote Control (RC) Mode test-cases in your language of choice

Test Runner Mode

test cases in HTML tables

Record-Playback mode (Selenium IDE)‏

Selenium Remote Control (RC) Mode

test-cases in your language of choice

Selenium IDE Very useful tool for beginners Firefox extension which allows record/play testing paradigm Automates commands, but asserts must be entered by hand Creates the simplest possible Locator Based on Selenese

Very useful tool for beginners

Firefox extension which allows record/play testing paradigm

Automates commands, but asserts must be entered by hand

Creates the simplest possible Locator

Based on Selenese

Selenium IDE Demo Look at firefox extension Look at various possible commands Record a test on AUT and play-back Save the test at HTML file Export the test as Java / Ruby

Look at firefox extension

Look at various possible commands

Record a test on AUT and play-back

Save the test at HTML file

Export the test as Java / Ruby

Selenium Modes Test Runner Mode test cases in HTML tables Record-Playback mode (Selenium IDE)‏ Selenium Remote Control (RC) Mode test-cases in your language of choice

Test Runner Mode

test cases in HTML tables

Record-Playback mode (Selenium IDE)‏

Selenium Remote Control (RC) Mode

test-cases in your language of choice

Selenium RC Mode

Selenium RC Mode Demo Run selenium server Look at sample tests

Run selenium server

Look at sample tests

Maintaining Selenium Tests Test code is just like production code Needs re-factoring, abstraction API for the application Can build tests from API building blocks Try to maintain meaning – in test names, variable names, comments, and suite organization

Test code is just like production code

Needs re-factoring, abstraction

API for the application

Can build tests from API building blocks

Try to maintain meaning – in test names, variable names, comments, and suite organization

Selenium with Continuous Integration Run Selenium tests as part of the build Can generate HTML reports, published to entire team Helps catch bugs ASAP

Run Selenium tests as part of the build

Can generate HTML reports, published to entire team

Helps catch bugs ASAP

Ajax Support Selenium supports testing Web 2.0 applications Monitor the DOM for completion of Async calls waitForCondition(script, timeout)‏

Selenium supports testing Web 2.0 applications

Monitor the DOM for completion of Async calls

waitForCondition(script, timeout)‏

Useful Selenium Tools Chris Pederick's Web Developer toolbar XPather Firebug Xpath Checker

Chris Pederick's Web Developer toolbar

XPather

Firebug

Xpath Checker

Selenium Best Practices Use Ids wherever possible (xpaths make the tests brittle)‏ Use data-driven tests. Use a JSP/PHP page to generate tests In order to generate unique Ids, use timestamp Use the right level of granularity

Use Ids wherever possible (xpaths make the tests brittle)‏

Use data-driven tests. Use a JSP/PHP page to generate tests

In order to generate unique Ids, use timestamp

Use the right level of granularity

What have we not covered? Continuous Integration set-ups Creating screencasts using Selenium Testing of Ajax applications Selenium Commands in detail User Extensions Using Python/Ruby/C# ...

Continuous Integration set-ups

Creating screencasts using Selenium

Testing of Ajax applications

Selenium Commands in detail

User Extensions

Using Python/Ruby/C# ...

Selenium Limitations Slow when testing all the edge cases Slow for testing fine-grained features – set-up and tear-down are called for each test

Slow when testing all the edge cases

Slow for testing fine-grained features – set-up and tear-down are called for each test

Selenium Strengths For testing Ajax applications Multiple browsers Test full-stack

For testing Ajax applications

Multiple browsers

Test full-stack

Interesting Possibilities Delivering Selenium Screencast as Documentation to end-users Creating a report with screenshots A Server having VMWare images of various OS/browser and each submitting a report back

Delivering Selenium Screencast as Documentation to end-users

Creating a report with screenshots

A Server having VMWare images of various OS/browser and each submitting a report back

Summary Selenium is a testing framework for Web Applications Drivers allow web testing in language of choice Test scripts are code: need maintenance, re-factoring

Selenium is a testing framework for Web Applications

Drivers allow web testing in language of choice

Test scripts are code: need maintenance, re-factoring

Summary Can be used on Developer machines Most valuable when used with CI set-up Can be used to make screen casts Tests run on real browser – most people use it to test their JavaScript works predictably on all browsers

Can be used on Developer machines

Most valuable when used with CI set-up

Can be used to make screen casts

Tests run on real browser – most people use it to test their JavaScript works predictably on all browsers

Summary Can be used for unit-testing, regression testing, smoke-testing, integration and acceptance testing

Can be used for unit-testing, regression testing, smoke-testing, integration and acceptance testing

References / Attribution Neal Ford's presentation on Selenium Selenium site This work is licensed under the Creative Commons Attribution-Noncommercial-Share Alike 3.0 License http://creativecommons.org/licenses/by-nc-sa/3.0/

Neal Ford's presentation on Selenium

Selenium site

This work is licensed under the Creative Commons Attribution-Noncommercial-Share Alike 3.0 License http://creativecommons.org/licenses/by-nc-sa/3.0/

Feedback [email_address]

[email_address]
