WATER TREATMENT FOR EMERGENCY MODUL UF 430/640 Document Transcript

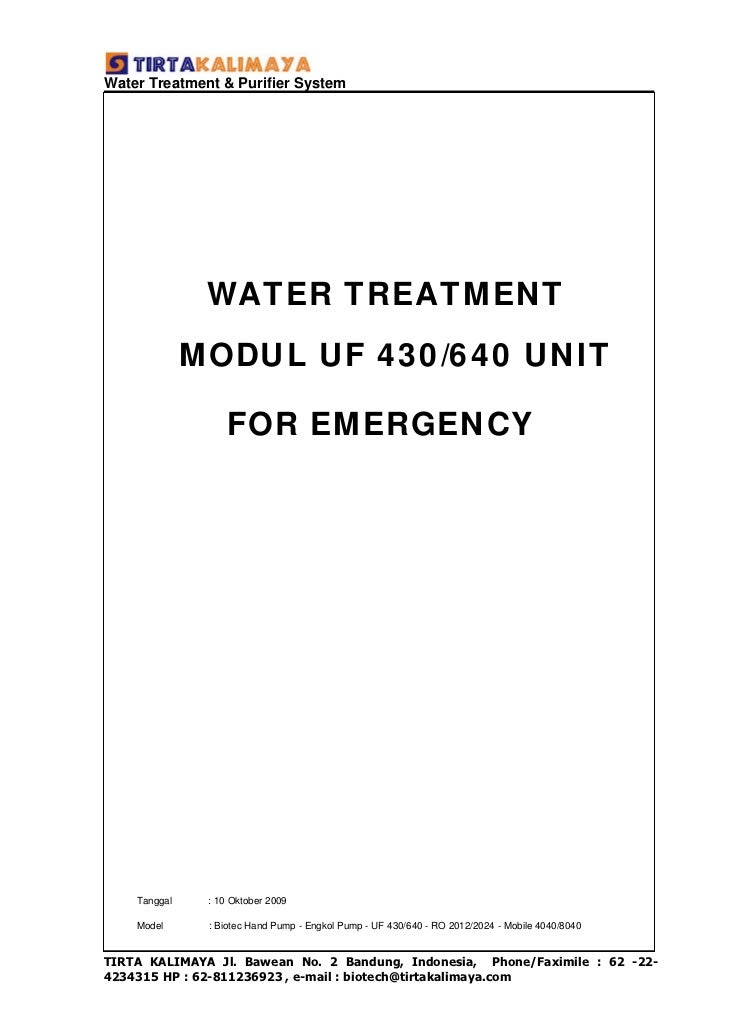

  • 1. Water Treatment & Purifier System WATER TREATMENT MODUL UF 430/640 UNIT FOR EMERGENCY Tanggal : 10 Oktober 2009 Model : Biotec Hand Pump - Engkol Pump - UF 430/640 - RO 2012/2024 - Mobile 4040/8040 TIRTA KALIMAYA Jl. Bawean No. 2 Bandung, Indonesia, Phone/Faximile : 62 -22- 4234315 HP : 62-811236923 , e-mail : biotech@tirtakalimaya.com
  • 2. MODUL ULTRAFILTRASI S-430 Description The increasing amount and variety of contaminants such as heavy metals, pathogens, bacteria, and viruses in sources of water, set a limitation for the treatment according to the conventional processes. This issue drives us to new challenges to produce a constant safe and clean water. Membrane technology is our latest innovation to solve the above problem. Ultrafiltration membrane has been used extensively in medical field to remove bacteria and viruses. Now, a novel hollow fiber design allows new application in production of drinking water for houses economically. The hollow fiber ultrafiltration membrane can remove almost 100% colloids, germs, viruses, bacteria, and all particulate matters responsible for turbidity in the water while keeping the mineral content intact. In case when odour is present, it is best coupled with granular activated carbon for complete odour removal. The crystal-clear water produced is fresh and can be directly consumed without boiling. When the filter is fouled severely, backflushing can be introduced Product Characteristic Membrane area : 5 m2 Capacity : 300 – 400 liter/hour Pore diameter : 0.01 µm Power : 250 Watt Pump material : Plastik Features  Continuous clean and safe  Simple and quick installation  Long life membrane filter  Suitable for home, offices, hotel, restaurant, apartment, real estate, schools, hospital, and others
  • 3. BioTech MEMBRANE FOR INDUSTRY Ultrafiltration for Bacteria and Virus Removal Deskripsi Ultrafiltrasi ( UF) adalah suatu proses filtrasi dengan menggunakan membrane yang dapat menyaring larutan yang memiliki besar molekul 1000 dalton. Ultrafiltrasi pada umumnya digunakan pada larutan yang mengandung makromolekul, koloid, garam, gula, dan lain sebagainya. UF diterapkan pada laboratorium dan industri pada skala besar. Membrane UF dapat digambarkan sebagai saringan berskala dimensi molecular. Biasanya polymeric dan asymmetric membrane, dirancang untuk produktifitas tinggi. Ukuran pori-pori dari membrane tersebut antara 0.05 µ m hingga 1 nm. Unit Ultrafiltrasi adalah suatu system ultrafiltrasi yang terutama diigunakan untuk menghilangkan bakteri dan virus. Model ini terdiri dari suatu pompa sentrifugal untuk menghasilkan tekanan sedang yang mendorong proses pemisahan pada permukaan membrane. Membran Ultrafiltrasi terdiri atas suatu konfigurasi modul Hollow Fiber (serabut berongga). Tangki berukuran 200 liter dan asesoris lainnya diperlukan pada unit tersebut. Karakteristik produk Area Membrane : 30 m2 Material Membrane : Polyacrylonitrile or Polyethersulfone Diameter Pori : 0.01 – 0.001 µm Power : 500 Watt untuk pompa filter 250 Watt untuk pompa backwash Material Pompa : Stainless steel Penerapan Menghilangkan Bakteri dan virus Mail enquiries to: biotech@tirtakalimaya.com 20
  • 4. TEKNOLOGI ULTRAFILTRASI UNIT UF TIPE S-640 www.tirtakalimaya.com
  • 5. UNIT ULTRAFILTRASI TIPE S-640 Teknologi : Ultrafiltrasi Efek : Menghilangkan sedimen, bakteri, virus, kekeruhan, koloid, dan organik Kapasitas : 1000 - 1200 liter/jam Pore diameter : 0,005 µm Tipe pompa : Sentrifugal Daya : 250 Watt untuk pompa filter 125 Watt untuk pompa backwash Material pompa : Cast iron Waktu operasi : Maksimum 10 jam Model operasi : Intermiten (tidak kontinyu) www.tirtakalimaya.com
  • 6. KINERJA MEMBRAN ULTRAFILTRASI www.tirtakalimaya.com
