HTML 5: The Future of the Web

  1. 1. HTML 5: The Future of the Web Tim Wright | csskarma.com | @csskarma Friday, July 23, 2010 1

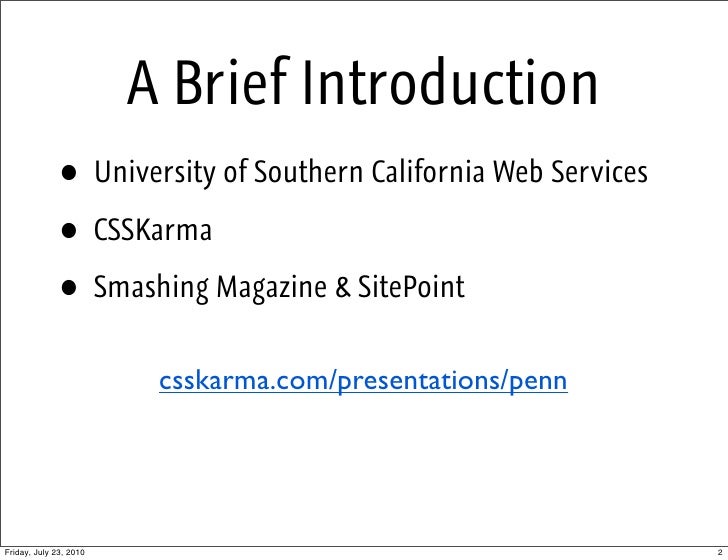

  2. 2. A Brief Introduction • University of Southern California Web Services • CSSKarma • Smashing Magazine & SitePoint csskarma.com/presentations/penn Friday, July 23, 2010 2

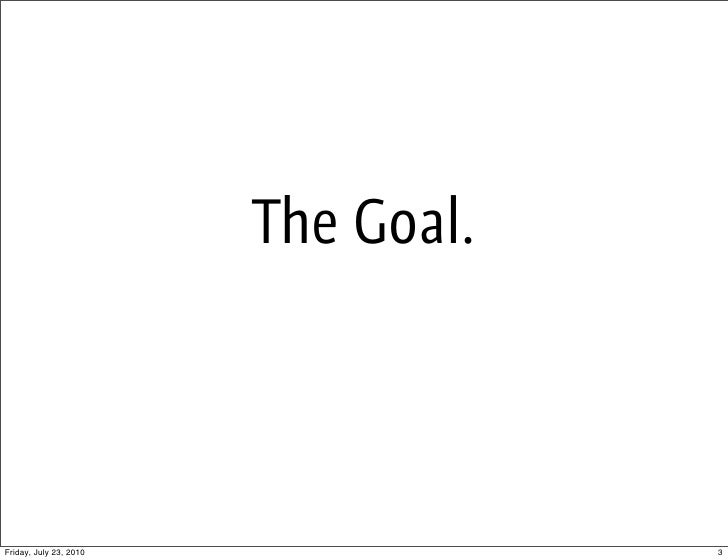

  3. 3. The Goal. Friday, July 23, 2010 3

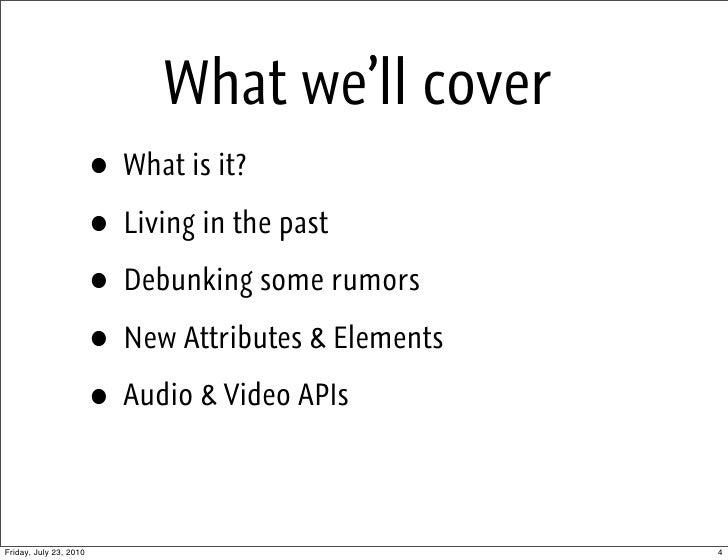

  4. 4. What we’ll cover • What is it? • Living in the past • Debunking some rumors • New Attributes & Elements • Audio & Video APIs Friday, July 23, 2010 4

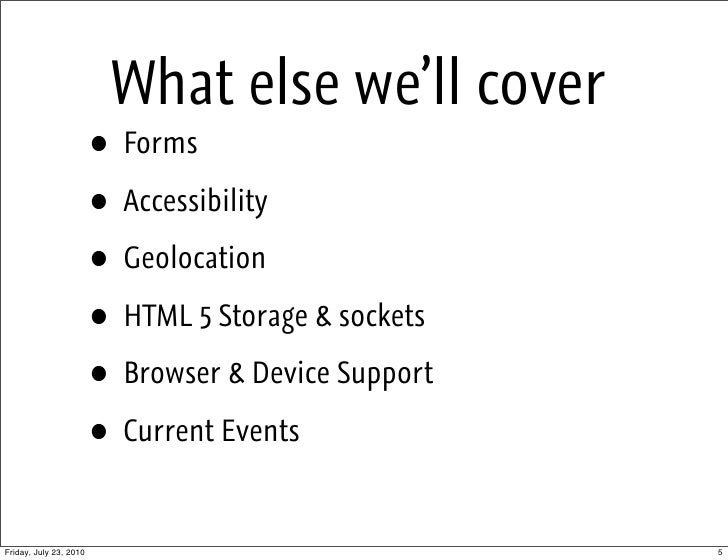

  5. 5. What else we’ll cover • Forms • Accessibility • Geolocation • HTML 5 Storage & sockets • Browser & Device Support • Current Events Friday, July 23, 2010 5
  6. 6. HTML 5 = Markup + JS APIs Friday, July 23, 2010 6
  7. 7. Quick History 1991 - Informal HTML 1998 - CSS 2 1994 - HTML 2 2000 - XHTML 1 1996 - CSS 1 & JavaScript 2002 - Tableless designs 1997 - HTML 4 2005 - Ajax 2009 - HTML 5 Friday, July 23, 2010 7
  8. 8. Is HTML 5 Ready? via ishtml5readyyet.com Friday, July 23, 2010 8

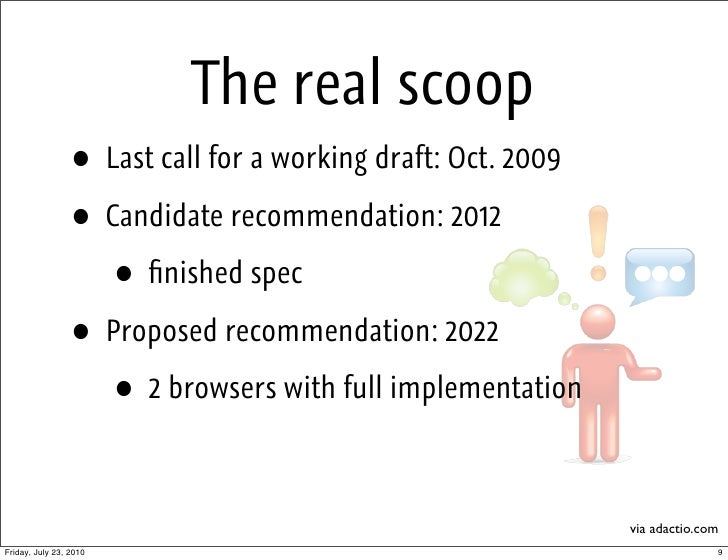

  9. 9. The real scoop • Last call for a working draft: Oct. 2009 • Candidate recommendation: 2012 • finished spec • Proposed recommendation: 2022 • 2 browsers with full implementation via adactio.com Friday, July 23, 2010 9
  10. 10. Browser-based usage Friday, July 23, 2010 10
  11. 11. Let’s dig around... Friday, July 23, 2010 11
  12. 12. What has changed ...everything is lighter Friday, July 23, 2010 12

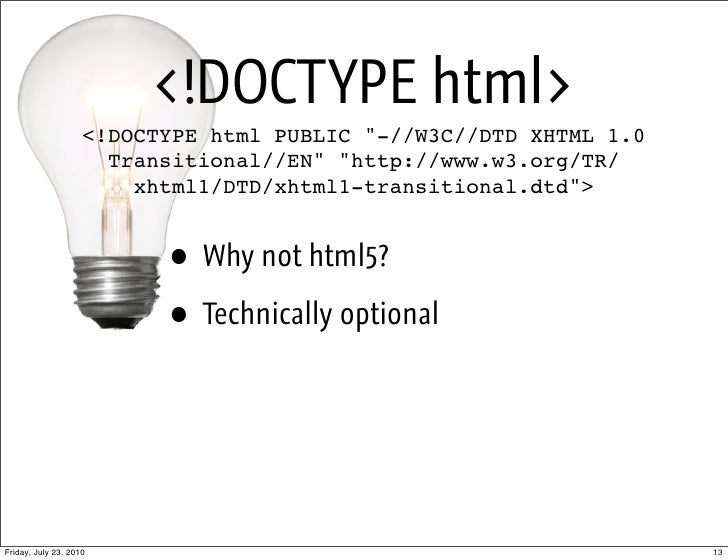

  13. 13. <!DOCTYPE html> <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/ xhtml1/DTD/xhtml1-transitional.dtd"> • Why not html5? • Technically optional Friday, July 23, 2010 13

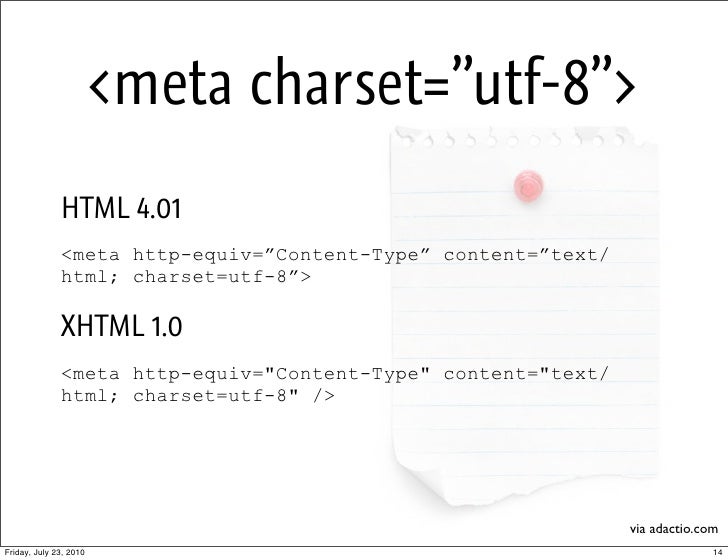

  14. 14. <meta charset=”utf-8”> HTML 4.01 <meta http-equiv=”Content-Type” content=”text/ html; charset=utf-8”> XHTML 1.0 <meta http-equiv="Content-Type" content="text/ html; charset=utf-8" /> via adactio.com Friday, July 23, 2010 14

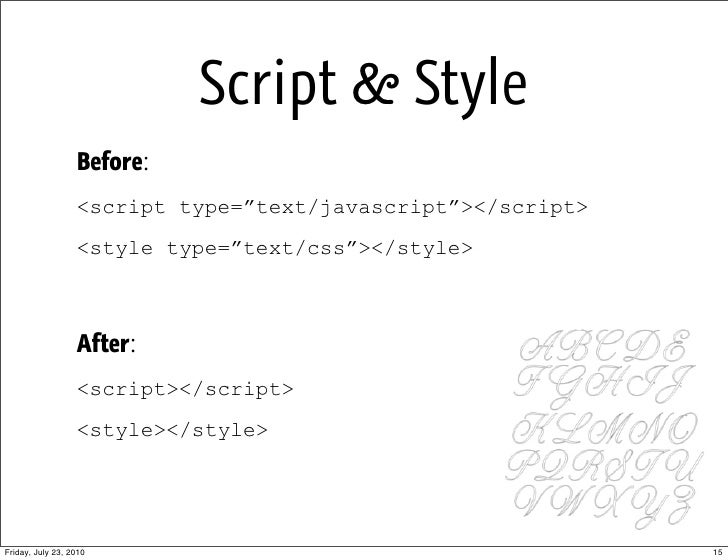

  15. 15. Script & Style Before: <script type=”text/javascript”></script> <style type=”text/css”></style> After: <script></script> <style></style> Friday, July 23, 2010 15

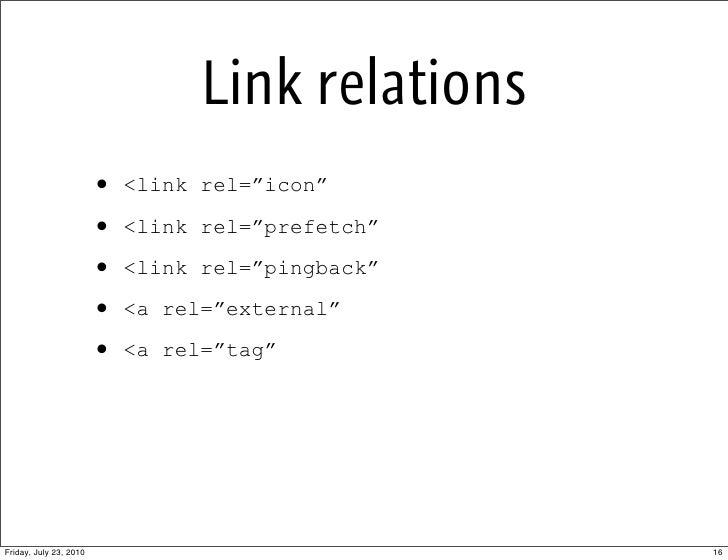

  16. 16. Link relations • <link rel=”icon” • <link rel=”prefetch” • <link rel=”pingback” • <a rel=”external” • <a rel=”tag” Friday, July 23, 2010 16
  17. 17. Notable changes Block-level anchors Presentational elements like <i>, <b>, <cite> & <small> redefined Friday, July 23, 2010 17

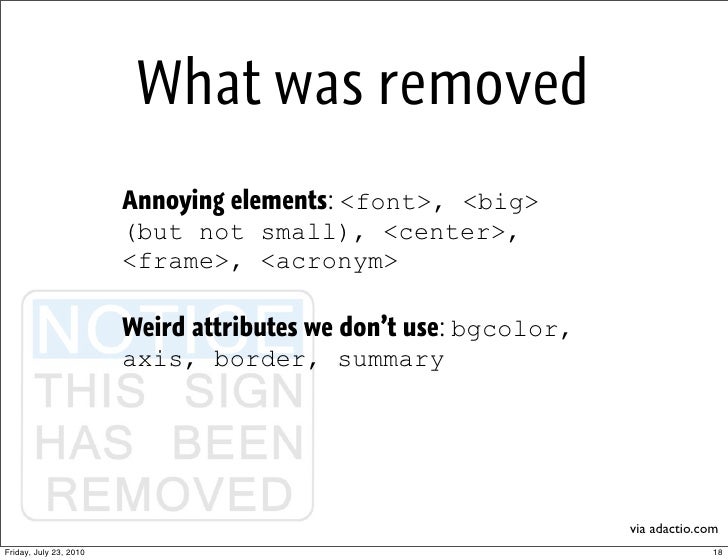

  18. 18. What was removed Annoying elements: <font>, <big> (but not small), <center>, <frame>, <acronym> Weird attributes we don’t use: bgcolor, axis, border, summary via adactio.com Friday, July 23, 2010 18

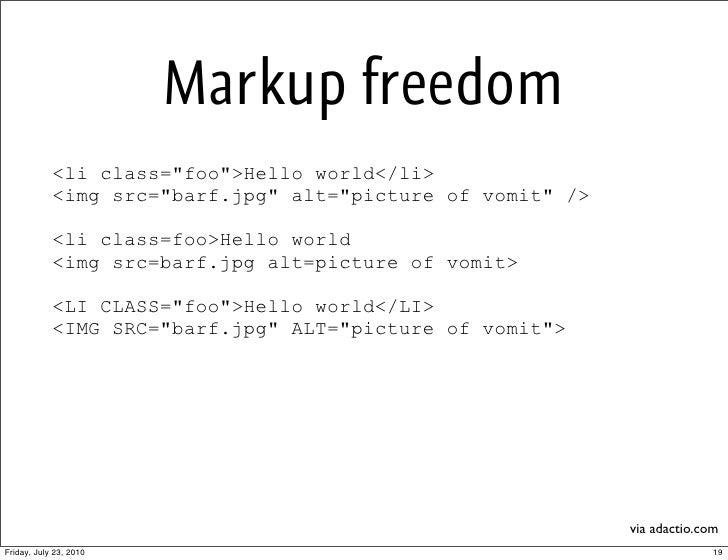

  19. 19. Markup freedom <li class="foo">Hello world</li> <img src="barf.jpg" alt="picture of vomit" /> <li class=foo>Hello world <img src=barf.jpg alt=picture of vomit> <LI CLASS="foo">Hello world</LI> <IMG SRC="barf.jpg" ALT="picture of vomit"> <li class=foo>Hello world</li> <img src=foo alt=bar> via adactio.com Friday, July 23, 2010 19
  20. 20. New...building robust applications Attributes Friday, July 23, 2010 20

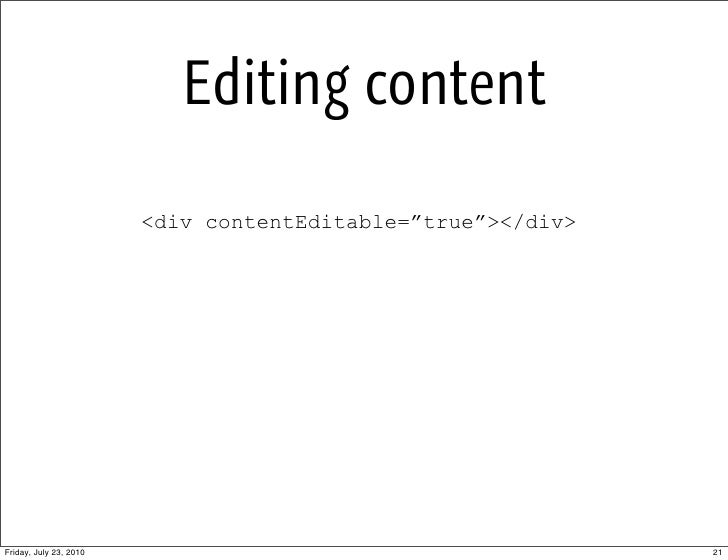

  21. 21. Editing content <div contentEditable=”true”></div> Friday, July 23, 2010 21

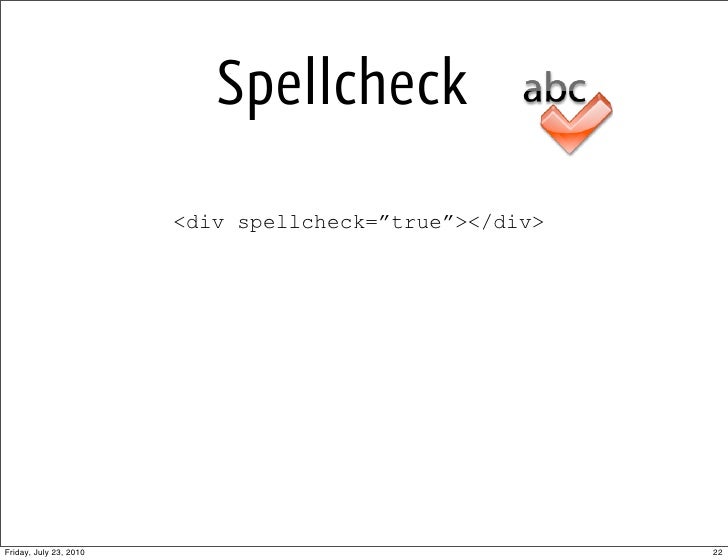

  22. 22. Spellcheck <div spellcheck=”true”></div> Friday, July 23, 2010 22

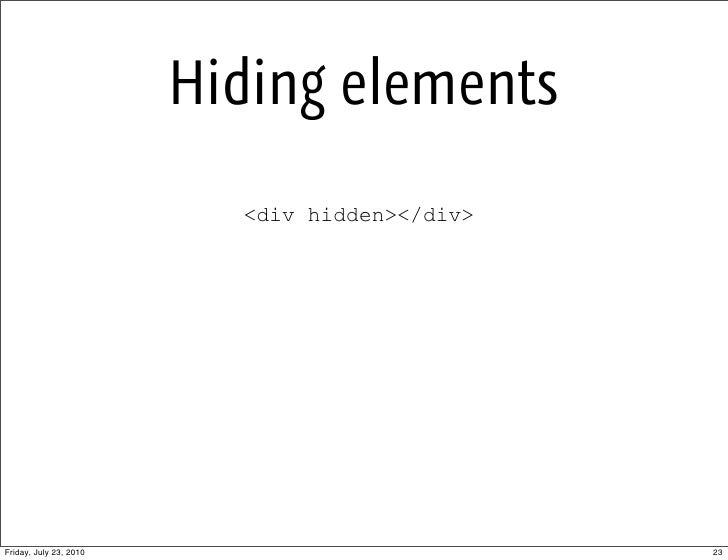

  23. 23. Hiding elements <div hidden></div> Friday, July 23, 2010 23

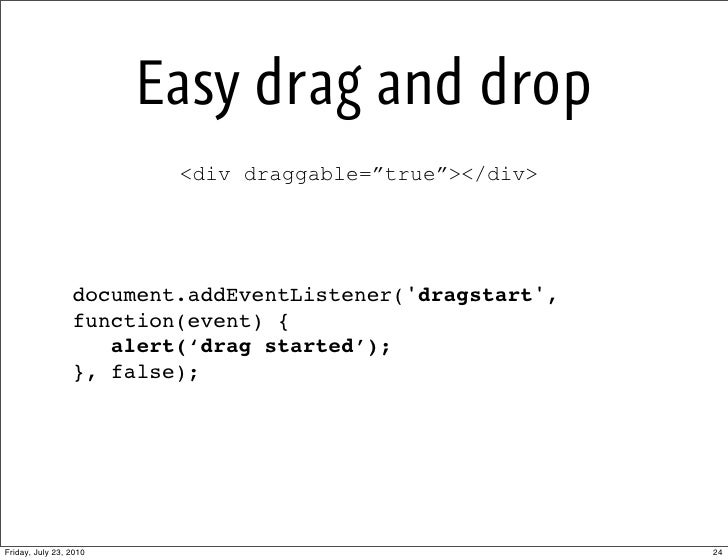

  24. 24. Easy drag and drop <div draggable=”true”></div> document.addEventListener('dragstart', function(event) { alert(‘drag started’); }, false); Friday, July 23, 2010 24

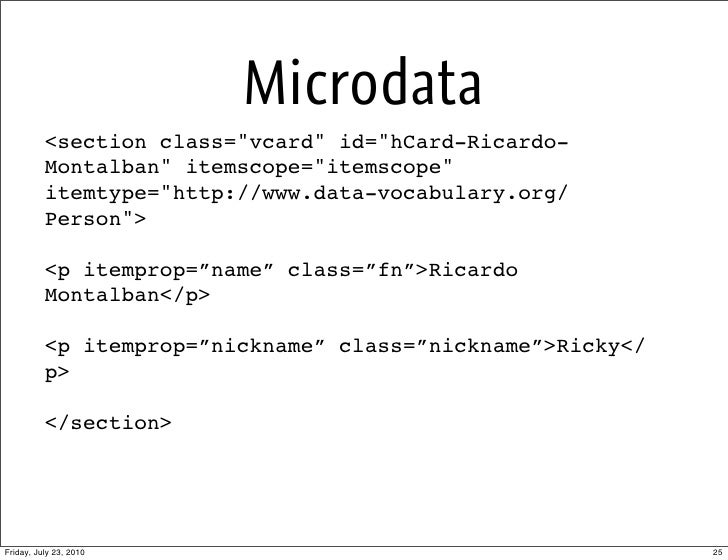

  25. 25. Microdata <section class="vcard" id="hCard-Ricardo- Montalban" itemscope="itemscope" itemtype="http://www.data-vocabulary.org/ Person"> <p itemprop=”name” class=”fn”>Ricardo Montalban</p> <p itemprop=”nickname” class=”nickname”>Ricky</ p> </section> Friday, July 23, 2010 25

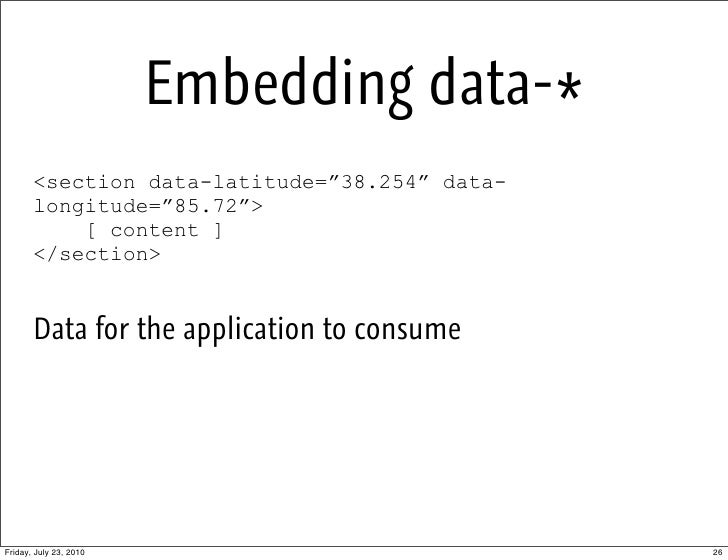

  26. 26. Embedding data-* <section data-latitude=”38.254” data- longitude=”85.72”> [ content ] </section> Data for the application to consume Friday, July 23, 2010 26
  27. 27. Structural Elements ...some new semantics Friday, July 23, 2010 27

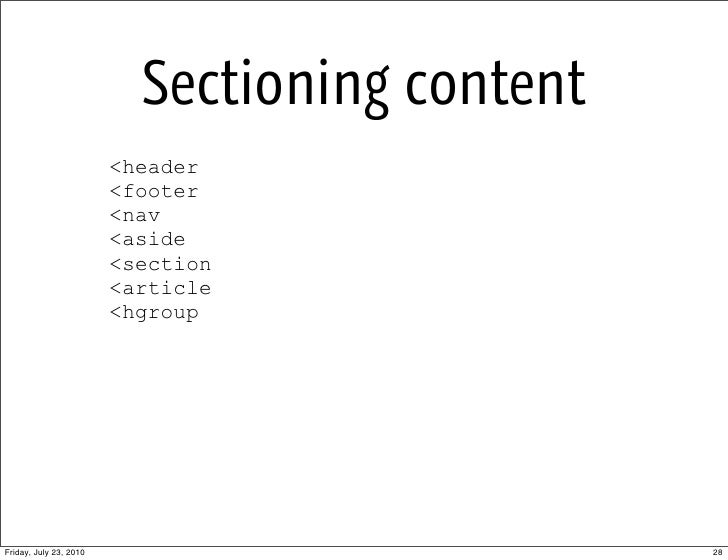

  28. 28. Sectioning content <header <footer <nav <aside <section <article <hgroup Friday, July 23, 2010 28

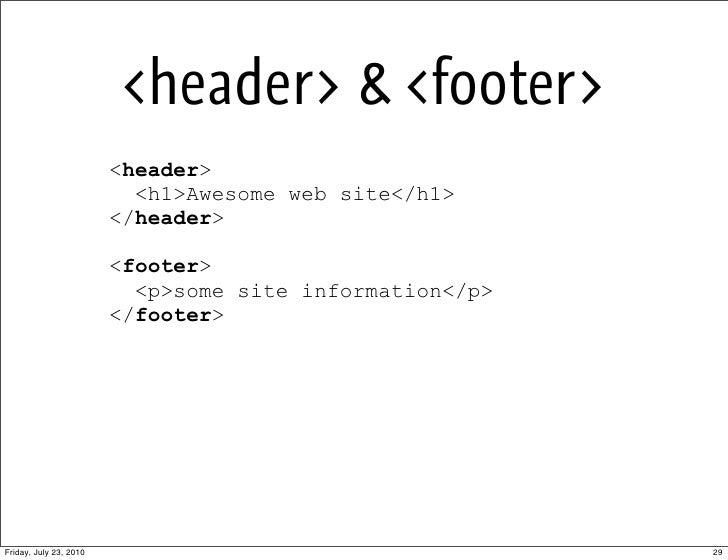

  29. 29. <header> & <footer> <header> <h1>Awesome web site</h1> </header> <footer> <p>some site information</p> </footer> Friday, July 23, 2010 29

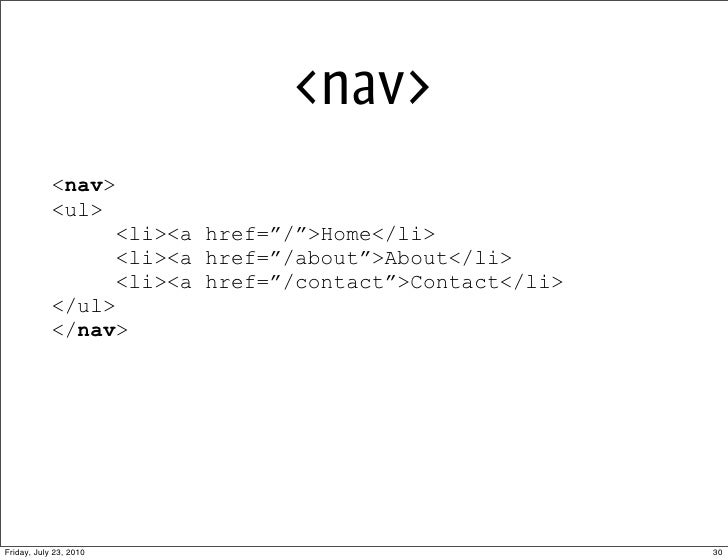

  30. 30. <nav> <nav> <ul> <li><a href=”/”>Home</li> <li><a href=”/about”>About</li> <li><a href=”/contact”>Contact</li> </ul> </nav> Friday, July 23, 2010 30

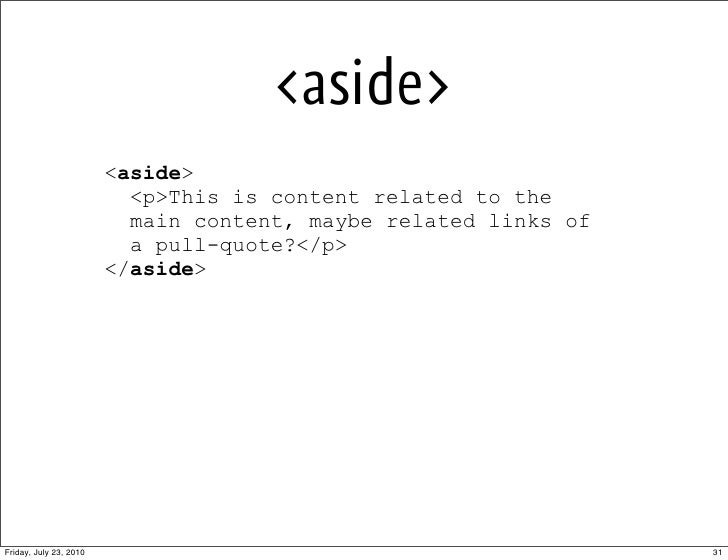

  31. 31. <aside> <aside> <p>This is content related to the main content, maybe related links of a pull-quote?</p> </aside> Friday, July 23, 2010 31

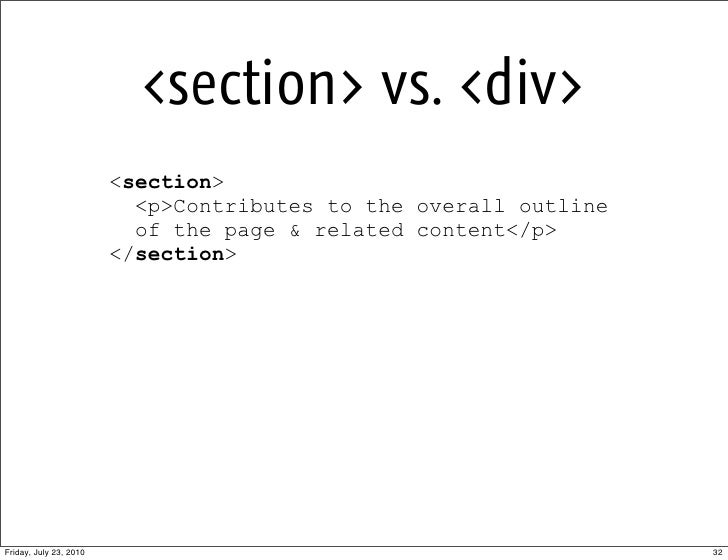

  32. 32. <section> vs. <div> <section> <p>Contributes to the overall outline of the page & related content</p> </section> Friday, July 23, 2010 32

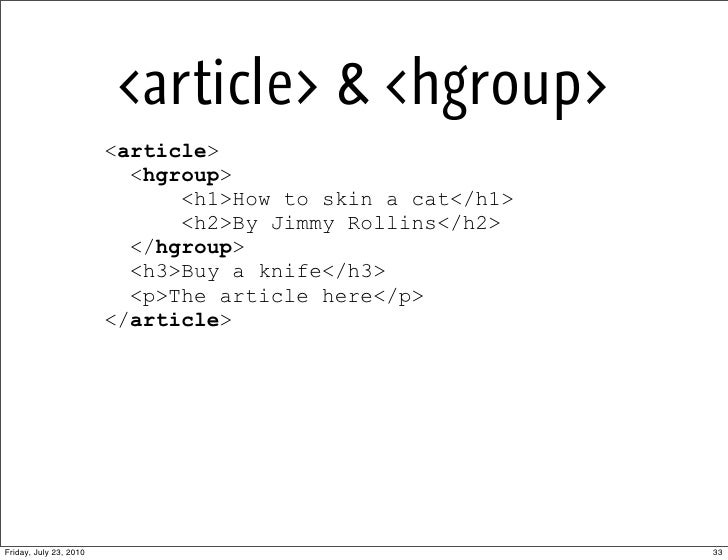

  33. 33. <article> & <hgroup> <article> <hgroup> <h1>How to skin a cat</h1> <h2>By Jimmy Rollins</h2> </hgroup> <h3>Buy a knife</h3> <p>The article here</p> </article> Friday, July 23, 2010 33

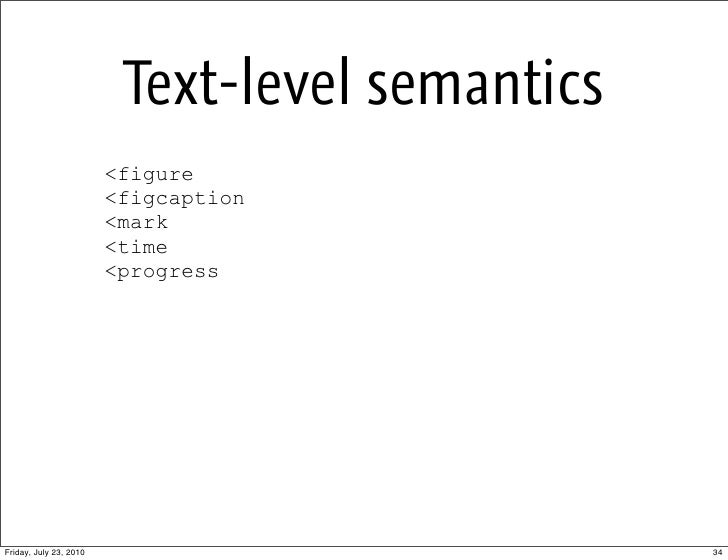

  34. 34. Text-level semantics <figure <figcaption <mark <time <progress Friday, July 23, 2010 34

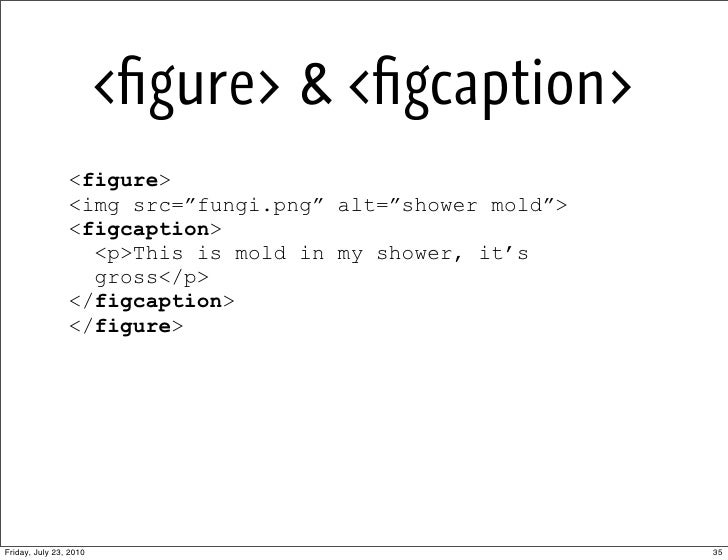

  35. 35. <figure> & <figcaption> <figure> <img src=”fungi.png” alt=”shower mold”> <figcaption> <p>This is mold in my shower, it’s gross</p> </figcaption> </figure> Friday, July 23, 2010 35

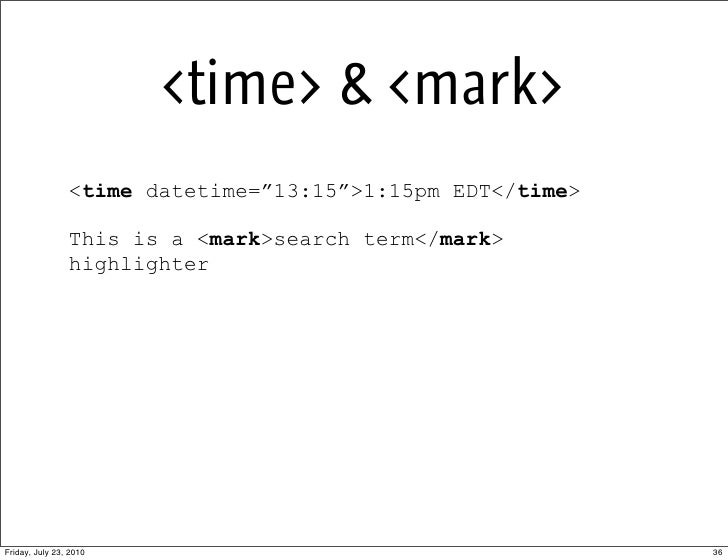

  36. 36. <time> & <mark> <time datetime=”13:15”>1:15pm EDT</time> This is a <mark>search term</mark> highlighter Friday, July 23, 2010 36

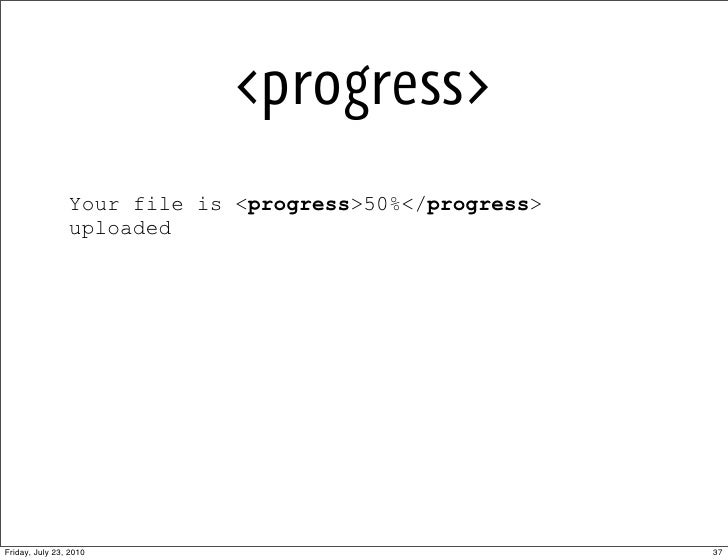

  37. 37. <progress> Your file is <progress>50%</progress> uploaded Friday, July 23, 2010 37
  38. 38. Audio & Video APIs ...filetype matters, apparently Friday, July 23, 2010 38

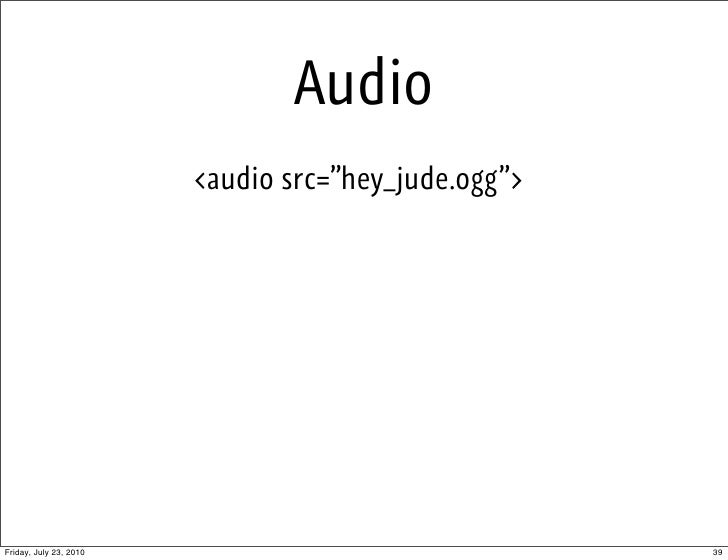

  39. 39. Audio <audio src=”hey_jude.ogg”> Friday, July 23, 2010 39

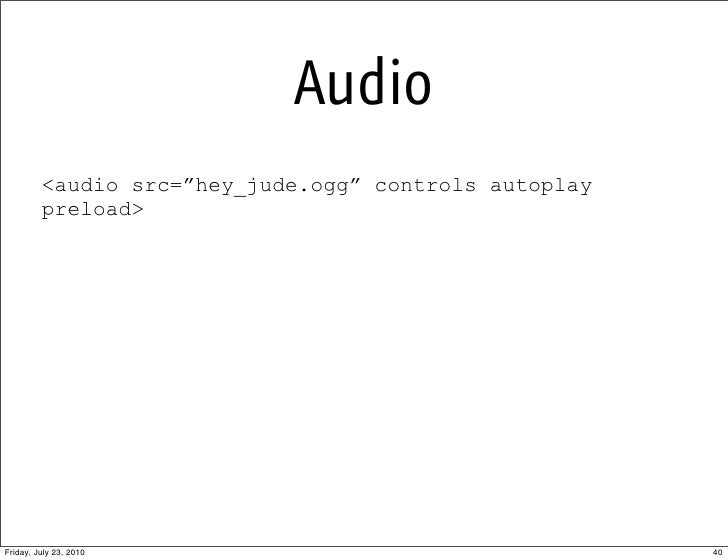

  40. 40. Audio <audio src=”hey_jude.ogg” controls autoplay preload> Friday, July 23, 2010 40

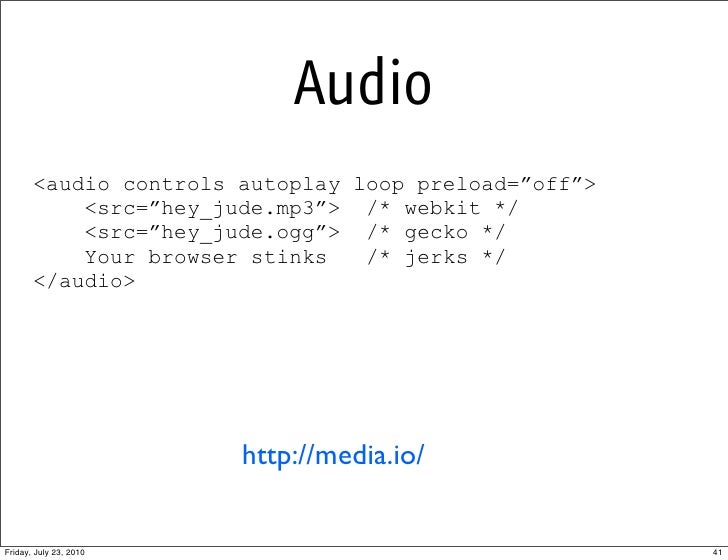

  41. 41. Audio <audio controls autoplay loop preload=”off”> <src=”hey_jude.mp3”> /* webkit */ <src=”hey_jude.ogg”> /* gecko */ Your browser stinks /* jerks */ </audio> http://media.io/ Friday, July 23, 2010 41
  42. 42. Video <video controls autoplay poster=”titlescreen.jpg”> <src=”monkey.ogv”> <src=”monkey.mp4”> Your browser still stinks </video> Friday, July 23, 2010 42

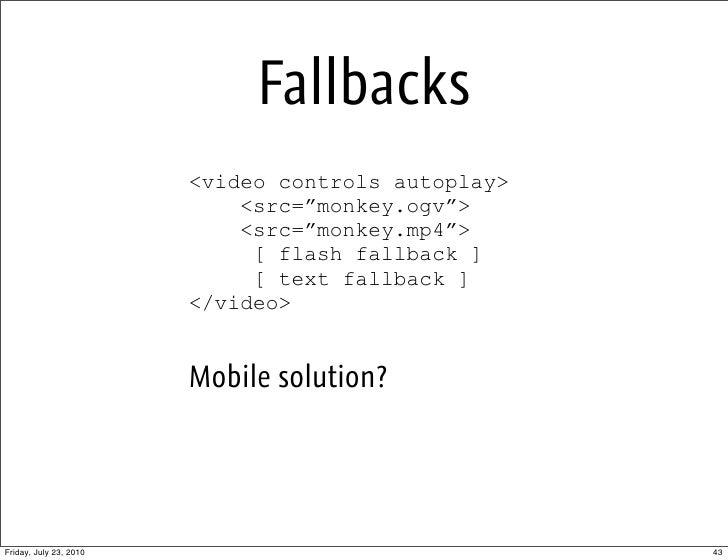

  43. 43. Fallbacks <video controls autoplay> <src=”monkey.ogv”> <src=”monkey.mp4”> [ flash fallback ] [ text fallback ] </video> Mobile solution? Friday, July 23, 2010 43

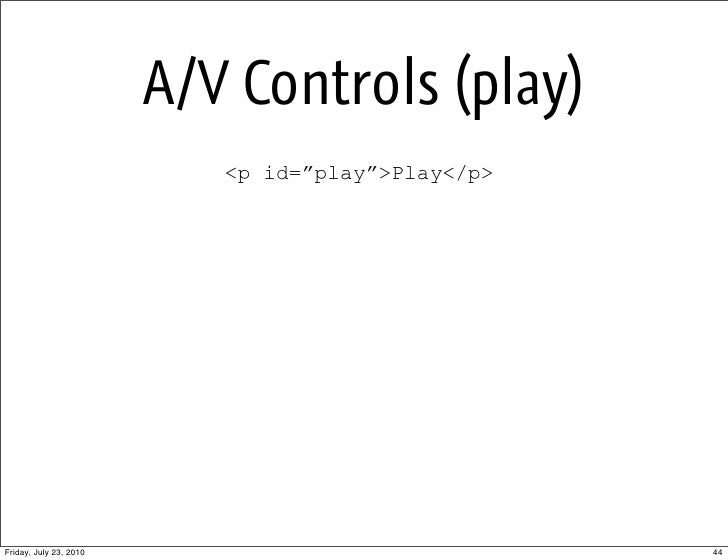

  44. 44. A/V Controls (play) <p id=”play”>Play</p> Friday, July 23, 2010 44

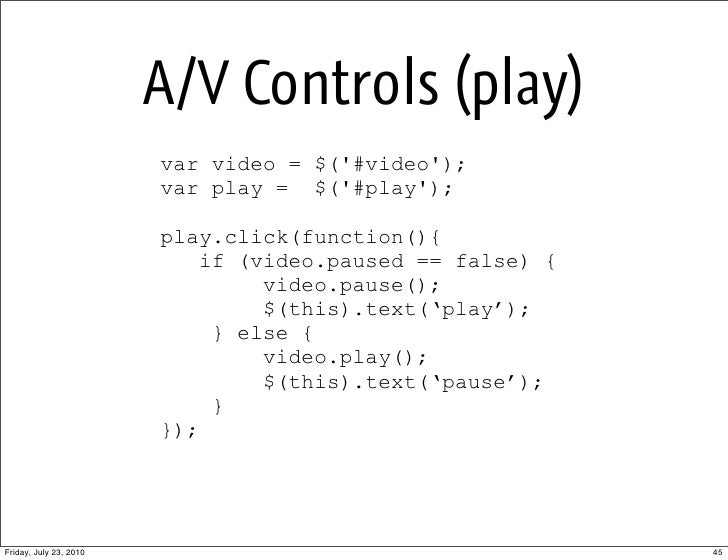

  45. 45. A/V Controls (play) var video = $('#video'); var play = $('#play'); play.click(function(){ if (video.paused == false) { video.pause(); $(this).text(‘play’); } else { video.play(); $(this).text(‘pause’); } }); Friday, July 23, 2010 45
  46. 46. A/V Controls Let’s see one: http://www.broken-links.com/tests/video/ Friday, July 23, 2010 46
  47. 47. HTML...inputs & validation 5 Forms Friday, July 23, 2010 47

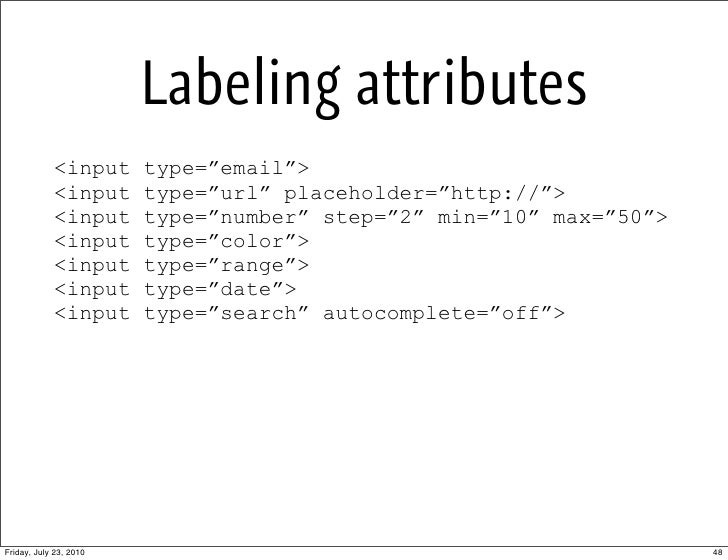

  48. 48. Labeling attributes <input type=”email”> <input type=”url” placeholder=”http://”> <input type=”number” step=”2” min=”10” max=”50”> <input type=”color”> <input type=”range”> <input type=”date”> <input type=”search” autocomplete=”off”> Friday, July 23, 2010 48
  49. 49. More attr & validation <input type=”search”> <input type=”text” autofocus required> document.getElementById(“q”).focus(); Friday, July 23, 2010 49

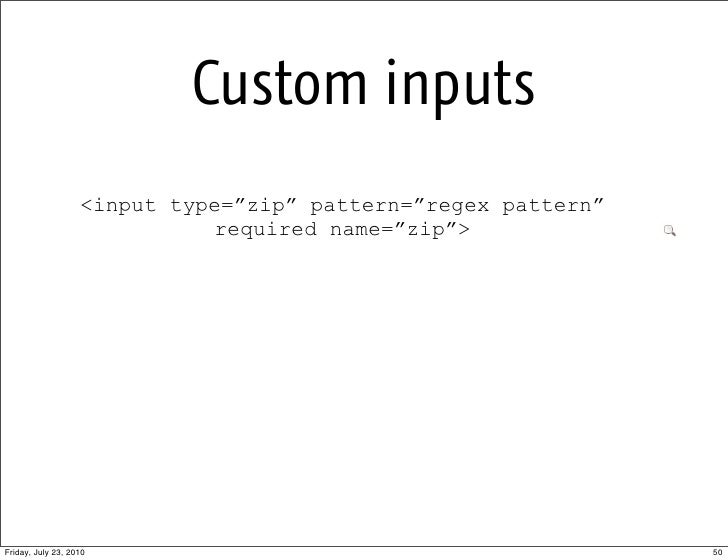

  50. 50. Custom inputs <input type=”zip” pattern=”regex pattern” required name=”zip”> Friday, July 23, 2010 50

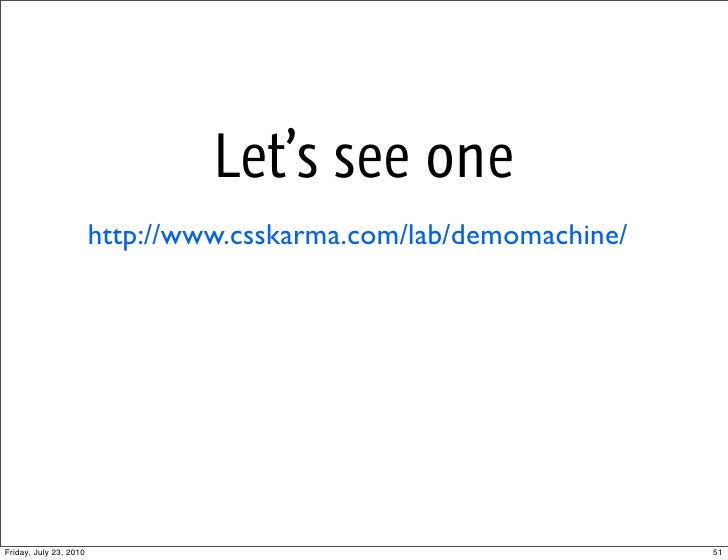

  51. 51. Let’s see one http://www.csskarma.com/lab/demomachine/ Friday, July 23, 2010 51

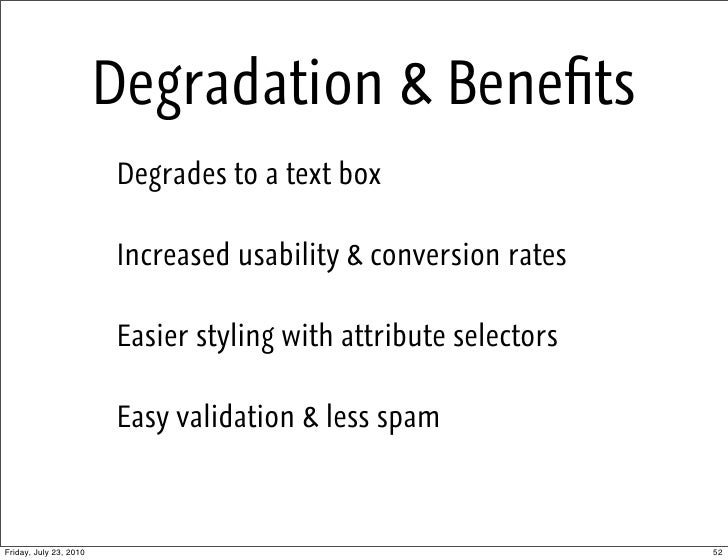

  52. 52. Degradation & Benefits Degrades to a text box Increased usability & conversion rates Easier styling with attribute selectors Easy validation & less spam Friday, July 23, 2010 52
  53. 53. Accessibility Built-in vs. Bolt-on Friday, July 23, 2010 53

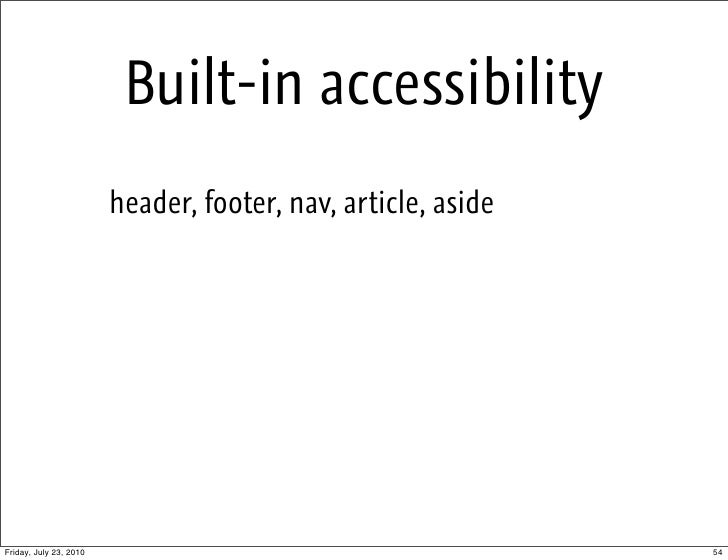

  54. 54. Built-in accessibility header, footer, nav, article, aside Friday, July 23, 2010 54

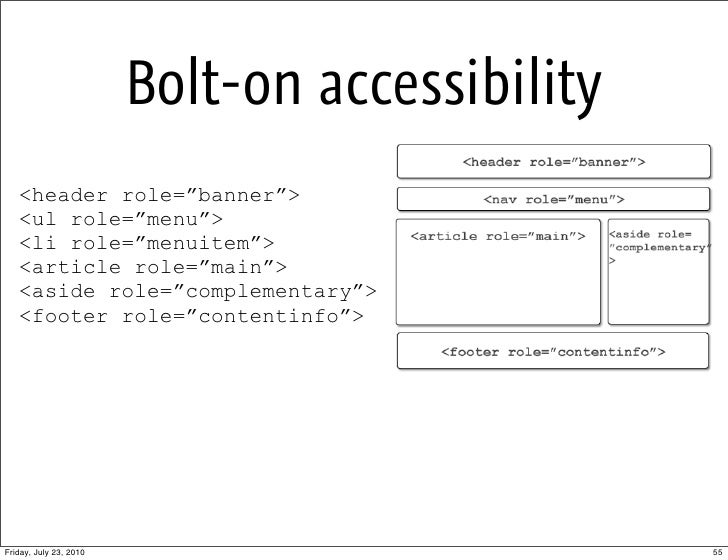

  55. 55. Bolt-on accessibility <header role=”banner”> <ul role=”menu”> <li role=”menuitem”> <article role=”main”> <aside role=”complementary”> <footer role=”contentinfo”> Friday, July 23, 2010 55

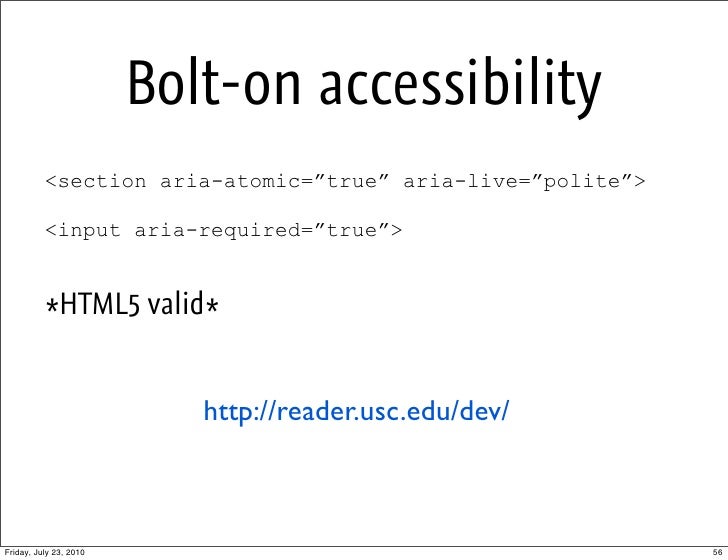

  56. 56. Bolt-on accessibility <section aria-atomic=”true” aria-live=”polite”> <input aria-required=”true”> *HTML5 valid* http://reader.usc.edu/dev/ Friday, July 23, 2010 56
  57. 57. I wanna use...menow! it too Friday, July 23, 2010 57

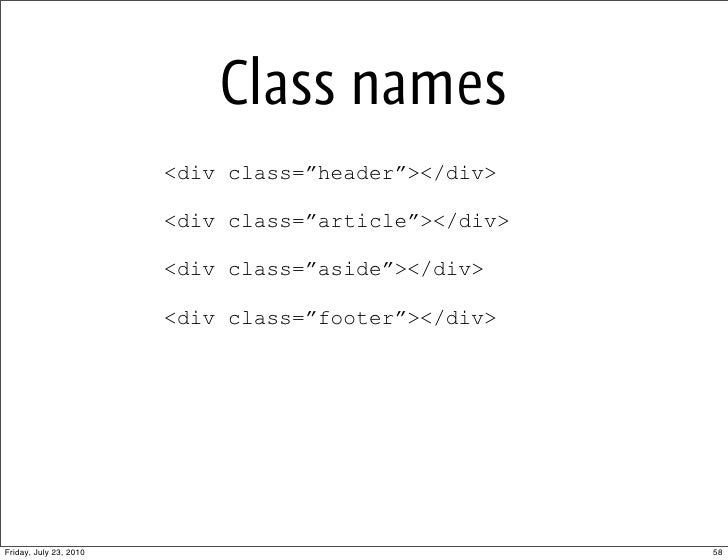

  58. 58. Class names <div class=”header”></div> <div class=”article”></div> <div class=”aside”></div> <div class=”footer”></div> Friday, July 23, 2010 58

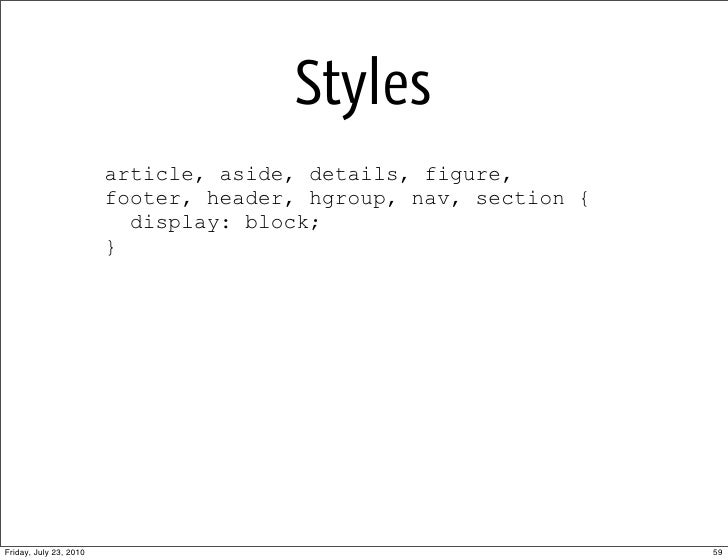

  59. 59. Styles article, aside, details, figure, footer, header, hgroup, nav, section { display: block; } Friday, July 23, 2010 59

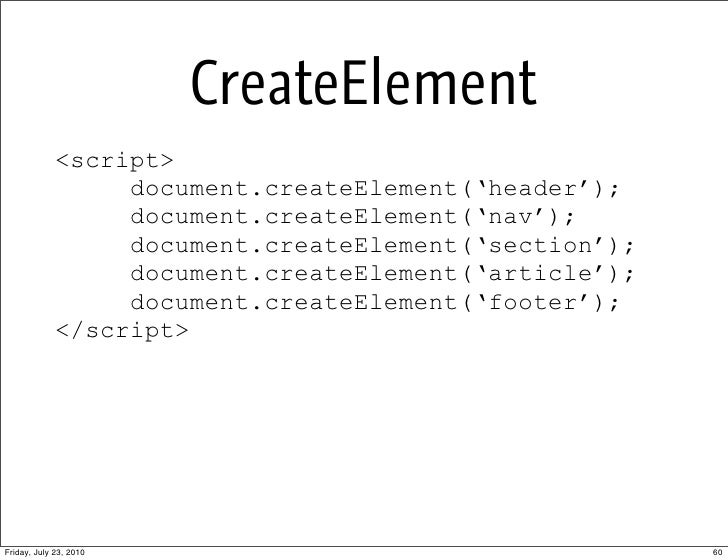

  60. 60. CreateElement <script> document.createElement(‘header’); document.createElement(‘nav’); document.createElement(‘section’); document.createElement(‘article’); document.createElement(‘footer’); </script> Friday, July 23, 2010 60

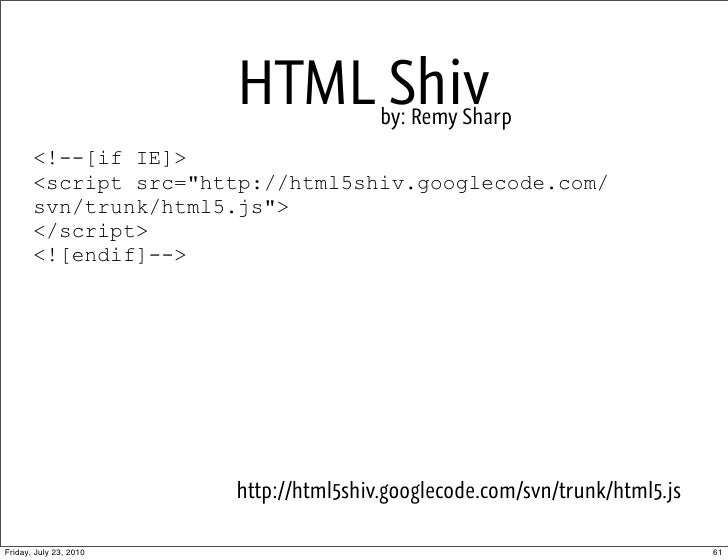

  61. 61. HTML Shiv by: Remy Sharp <!--[if IE]> <script src="http://html5shiv.googlecode.com/ svn/trunk/html5.js"> </script> <![endif]--> http://html5shiv.googlecode.com/svn/trunk/html5.js Friday, July 23, 2010 61
  62. 62. Server-side JavaScript • Jaxer • Creating element in the DOM Friday, July 23, 2010 62

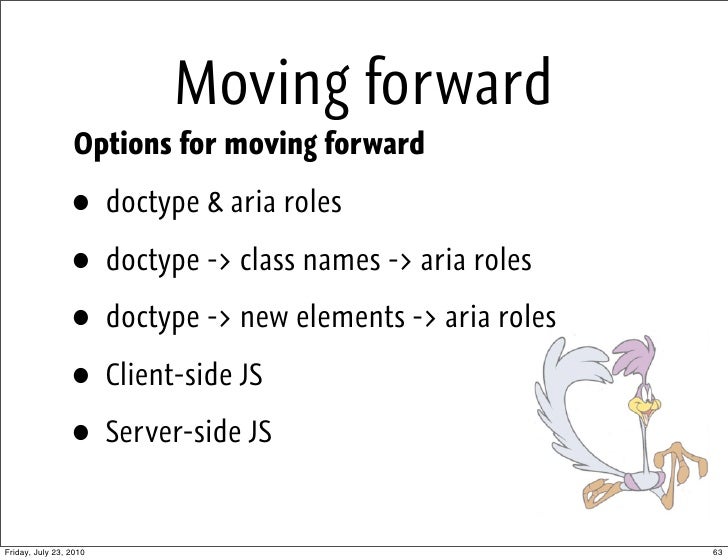

  63. 63. Moving forward Options for moving forward • doctype & aria roles • doctype -> class names -> aria roles • doctype -> new elements -> aria roles • Client-side JS • Server-side JS Friday, July 23, 2010 63
  64. 64. The New kids will love it ...the Web Friday, July 23, 2010 64
  65. 65. Old <head> <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional// EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1- transitional.dtd"> <html xmlns="http://www.w3.org/1999/xhtml" lang="en" xml:lang="en"> <head> <meta http-equiv="Content-Type" content="text/html; charset=utf-8" /> <meta name="description" content="html 5 demo" /> <meta name="keywords" content="example, web site, html5" /> <title>Title</title> <link rel="icon" href="favicon.ico" type="image/x-icon" /> <link href="website.css" rel="stylesheet" type="text/css" media="all" /> <script type=”text/javascript” src=”website.js”></script> </head> Friday, July 23, 2010 65

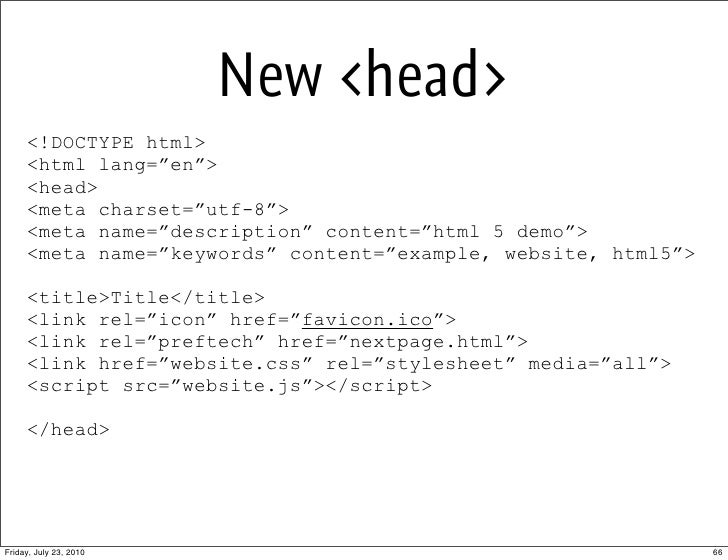

  66. 66. New <head> <!DOCTYPE html> <html lang=”en”> <head> <meta charset=”utf-8”> <meta name=”description” content=”html 5 demo”> <meta name=”keywords” content=”example, website, html5”> <title>Title</title> <link rel=”icon” href=”favicon.ico”> <link rel=”preftech” href=”nextpage.html”> <link href=”website.css” rel=”stylesheet” media=”all”> <script src=”website.js”></script> </head> Friday, July 23, 2010 66

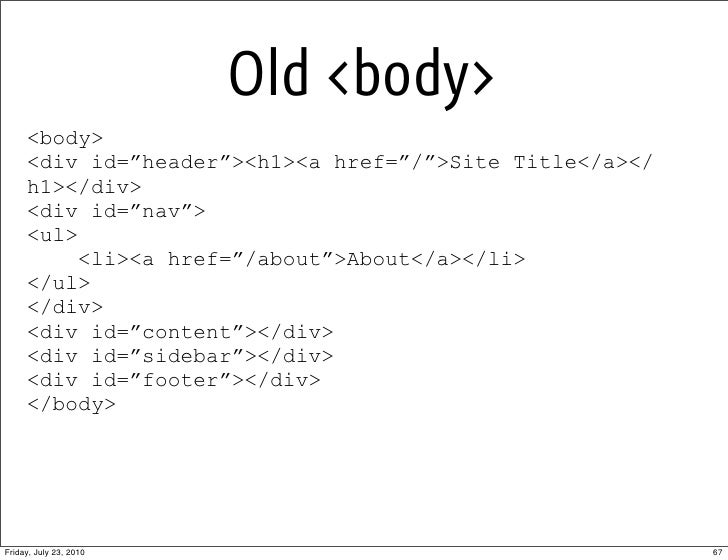

  67. 67. Old <body> <body> <div id=”header”><h1><a href=”/”>Site Title</a></ h1></div> <div id=”nav”> <ul> <li><a href=”/about”>About</a></li> </ul> </div> <div id=”content”></div> <div id=”sidebar”></div> <div id=”footer”></div> </body> Friday, July 23, 2010 67

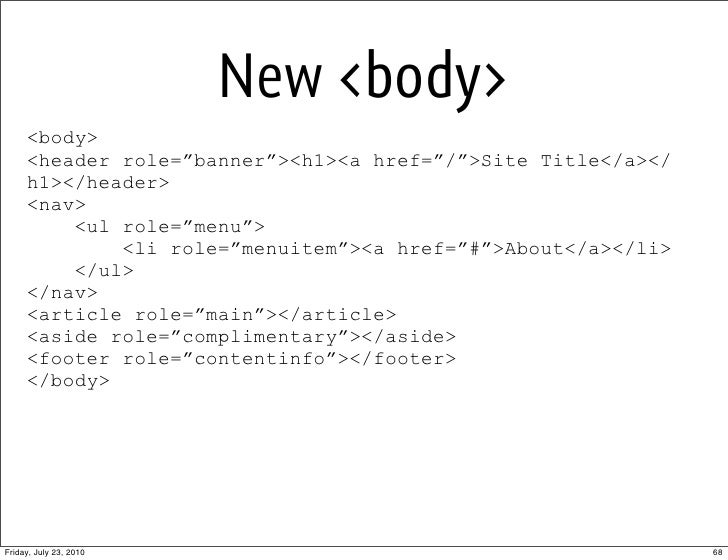

  68. 68. New <body> <body> <header role=”banner”><h1><a href=”/”>Site Title</a></ h1></header> <nav> <ul role=”menu”> <li role=”menuitem”><a href=”#”>About</a></li> </ul> </nav> <article role=”main”></article> <aside role=”complimentary”></aside> <footer role=”contentinfo”></footer> </body> Friday, July 23, 2010 68

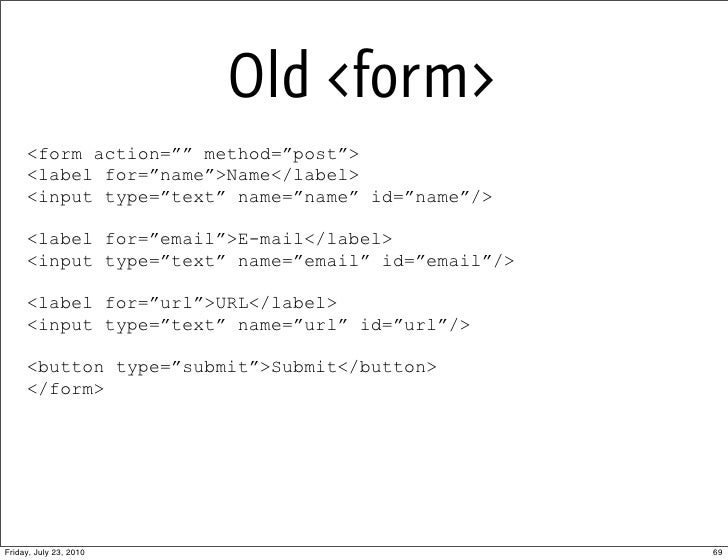

  69. 69. Old <form> <form action=”” method=”post”> <label for=”name”>Name</label> <input type=”text” name=”name” id=”name”/> <label for=”email”>E-mail</label> <input type=”text” name=”email” id=”email”/> <label for=”url”>URL</label> <input type=”text” name=”url” id=”url”/> <button type=”submit”>Submit</button> </form> Friday, July 23, 2010 69

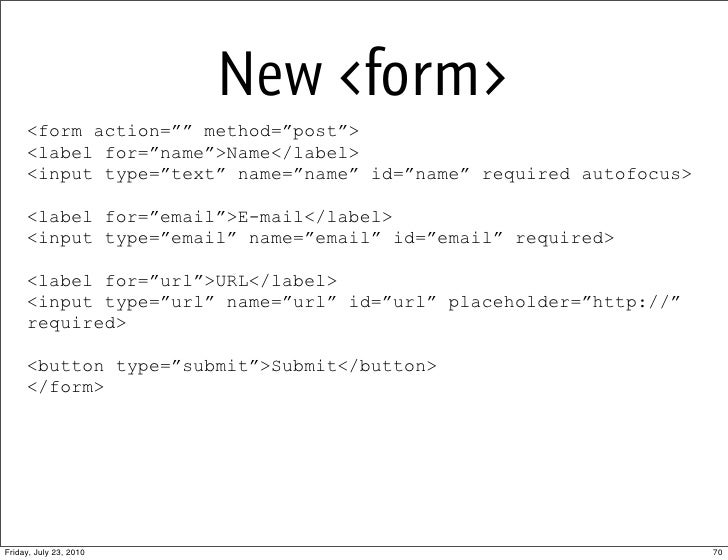

  70. 70. New <form> <form action=”” method=”post”> <label for=”name”>Name</label> <input type=”text” name=”name” id=”name” required autofocus> <label for=”email”>E-mail</label> <input type=”email” name=”email” id=”email” required> <label for=”url”>URL</label> <input type=”url” name=”url” id=”url” placeholder=”http://” required> <button type=”submit”>Submit</button> </form> Friday, July 23, 2010 70

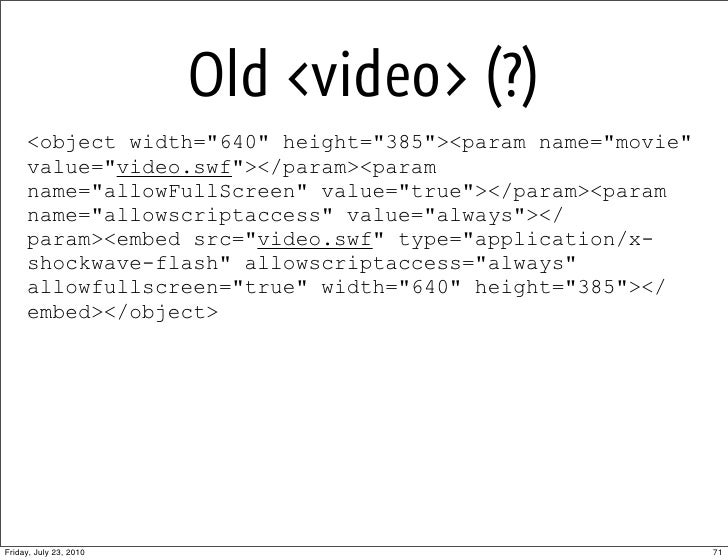

  71. 71. Old <video> (?) <object width="640" height="385"><param name="movie" value="video.swf"></param><param name="allowFullScreen" value="true"></param><param name="allowscriptaccess" value="always"></ param><embed src="video.swf" type="application/x- shockwave-flash" allowscriptaccess="always" allowfullscreen="true" width="640" height="385"></ embed></object> Friday, July 23, 2010 71

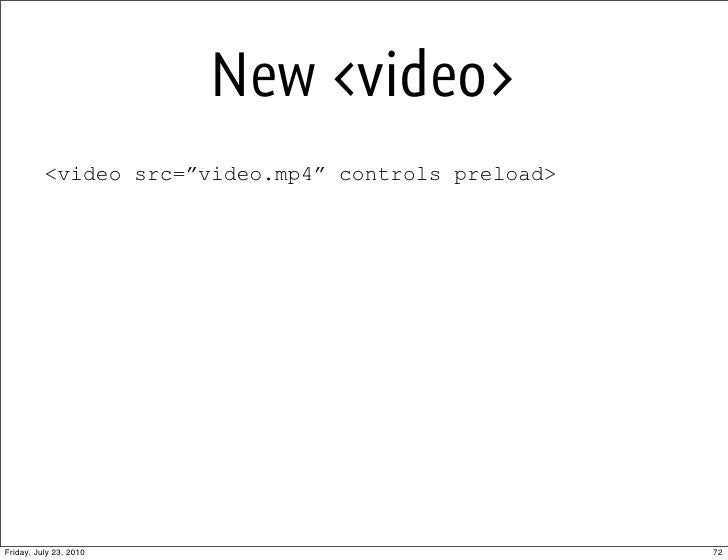

  72. 72. New <video> <video src=”video.mp4” controls preload> Friday, July 23, 2010 72

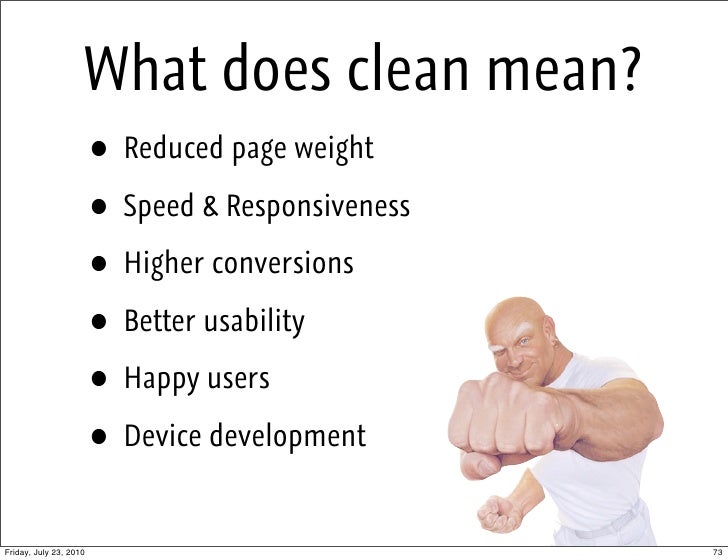

  73. 73. What does clean mean? • Reduced page weight • Speed & Responsiveness • Higher conversions • Better usability • Happy users • Device development Friday, July 23, 2010 73
  74. 74. New JavaScript ...and Ninja-like qualities Friday, July 23, 2010 74
  75. 75. New JavaScript Finding elements by class (DOM API) document.getElementbyClassname(“skipmenu”); Finding elements by CSS syntax (selectors API) document.querySelectorAll(“#nav ul > li”); document.querySelector(“:hover”); <li class=foo>Hello world</li> <img src=foo alt=bar> Friday, July 23, 2010 75

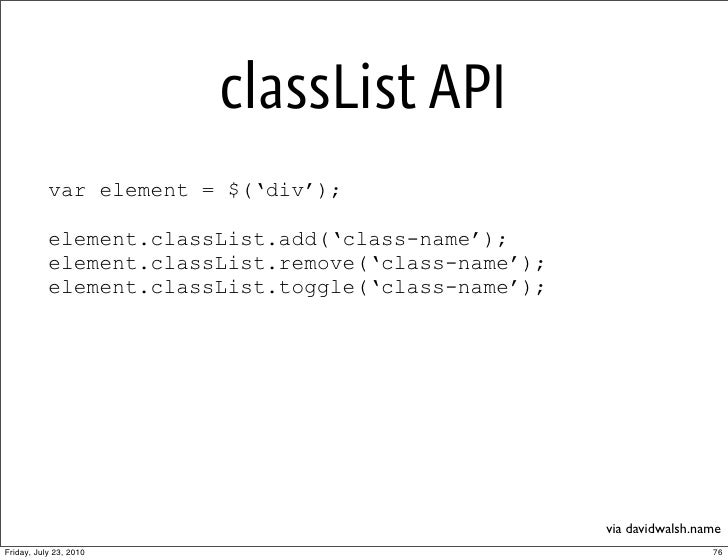

  76. 76. classList API var element = $(‘div’); element.classList.add(‘class-name’); element.classList.remove(‘class-name’); element.classList.toggle(‘class-name’); via davidwalsh.name Friday, July 23, 2010 76
  77. 77. Geolocationbut still way cool Not actually HTML5, Friday, July 23, 2010 77

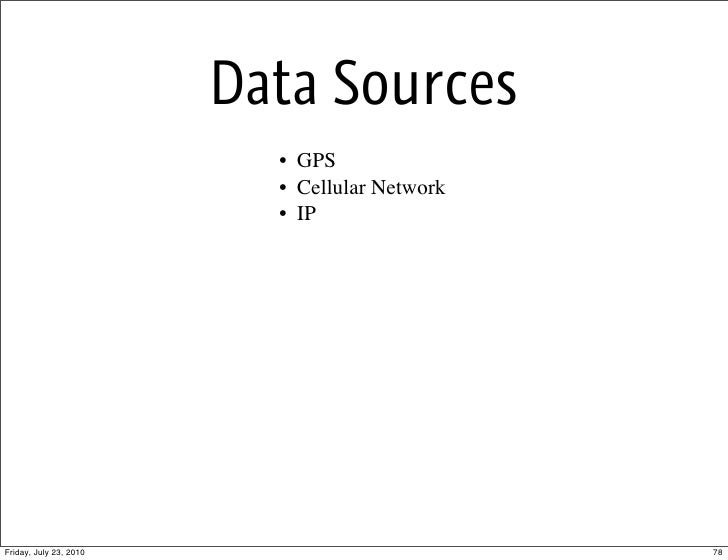

  78. 78. Data Sources • GPS • Cellular Network • IP Friday, July 23, 2010 78

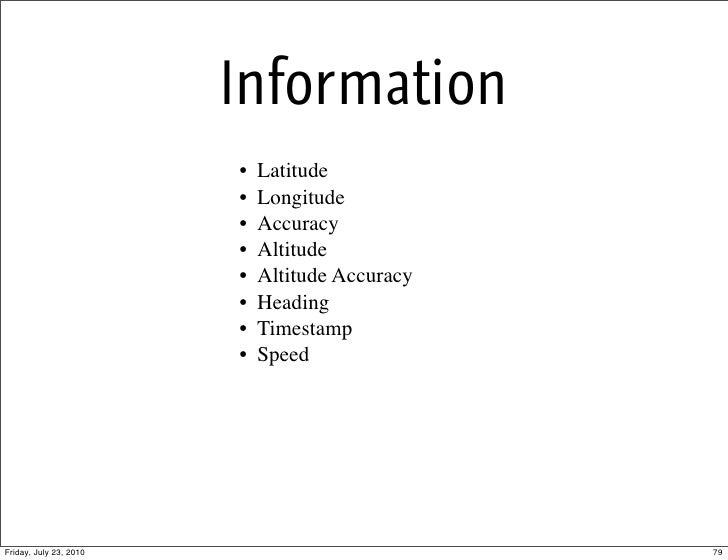

  79. 79. Information • Latitude • Longitude • Accuracy • Altitude • Altitude Accuracy • Heading • Timestamp • Speed Friday, July 23, 2010 79
  80. 80. Privacy Friday, July 23, 2010 80

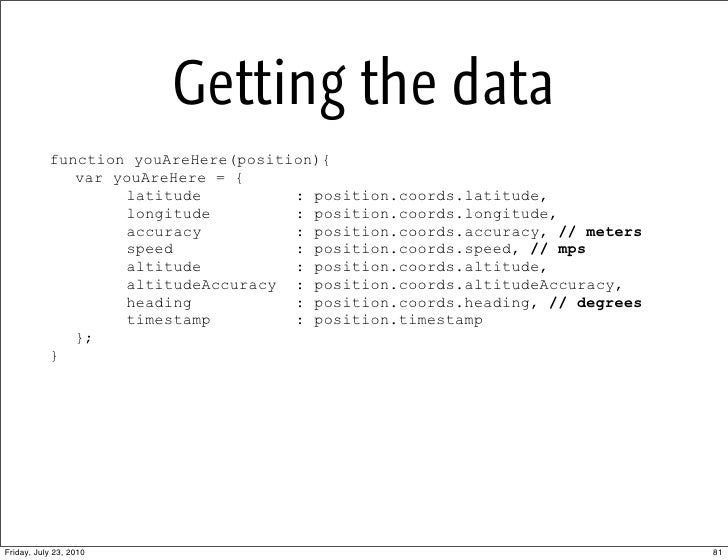

  81. 81. Getting the data function youAreHere(position){ var youAreHere = { latitude : position.coords.latitude, longitude : position.coords.longitude, accuracy : position.coords.accuracy, // meters speed : position.coords.speed, // mps altitude : position.coords.altitude, altitudeAccuracy : position.coords.altitudeAccuracy, heading : position.coords.heading, // degrees timestamp : position.timestamp }; } Friday, July 23, 2010 81

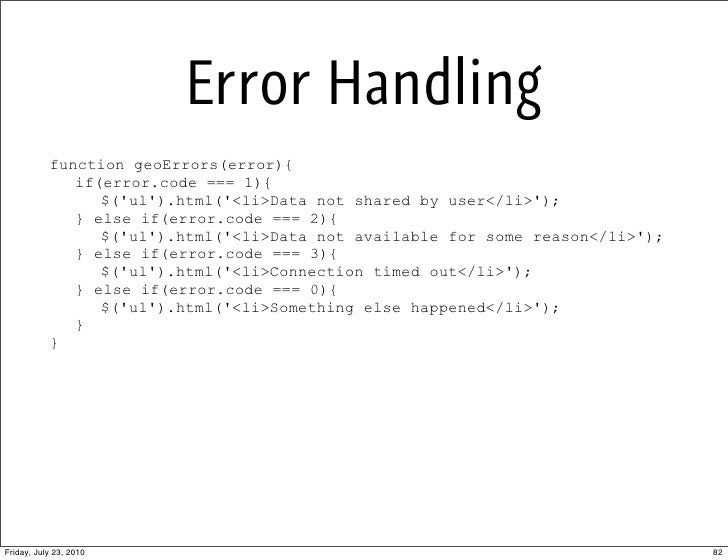

  82. 82. Error Handling function geoErrors(error){ if(error.code === 1){ $('ul').html('<li>Data not shared by user</li>'); } else if(error.code === 2){ $('ul').html('<li>Data not available for some reason</li>'); } else if(error.code === 3){ $('ul').html('<li>Connection timed out</li>'); } else if(error.code === 0){ $('ul').html('<li>Something else happened</li>'); } } Friday, July 23, 2010 82

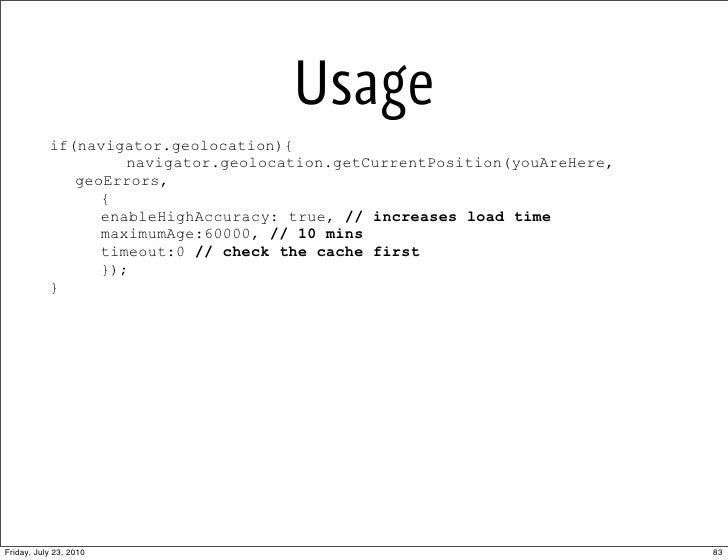

  83. 83. Usage if(navigator.geolocation){ navigator.geolocation.getCurrentPosition(youAreHere, geoErrors, { enableHighAccuracy: true, // increases load time maximumAge:60000, // 10 mins timeout:0 // check the cache first }); } Friday, July 23, 2010 83

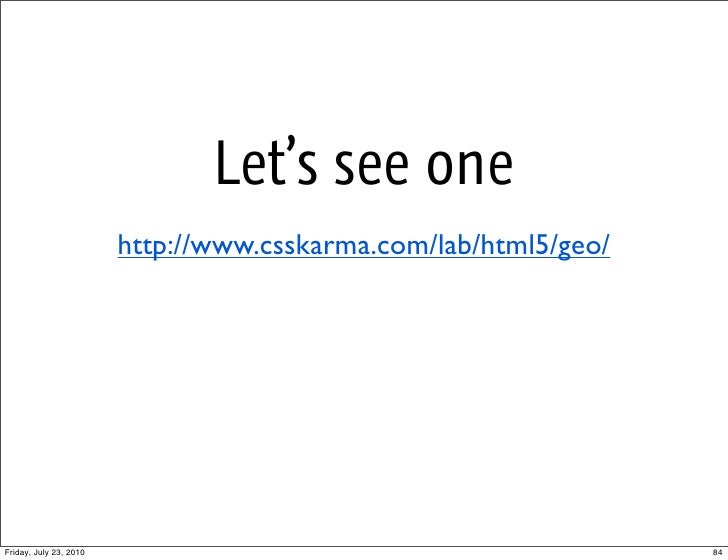

  84. 84. Let’s see one http://www.csskarma.com/lab/html5/geo/ Friday, July 23, 2010 84
  85. 85. Great examples Friday, July 23, 2010 85
  86. 86. Storage & Sockets ..set it and forget it Friday, July 23, 2010 86

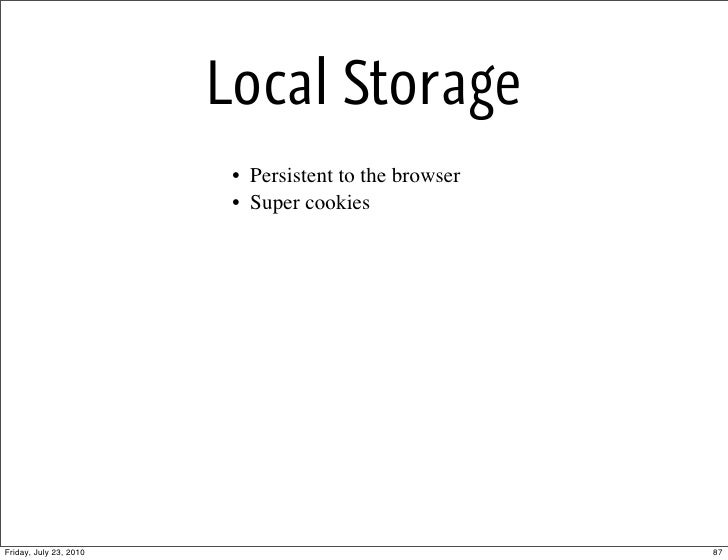

  87. 87. Local Storage • Persistent to the browser • Super cookies Friday, July 23, 2010 87

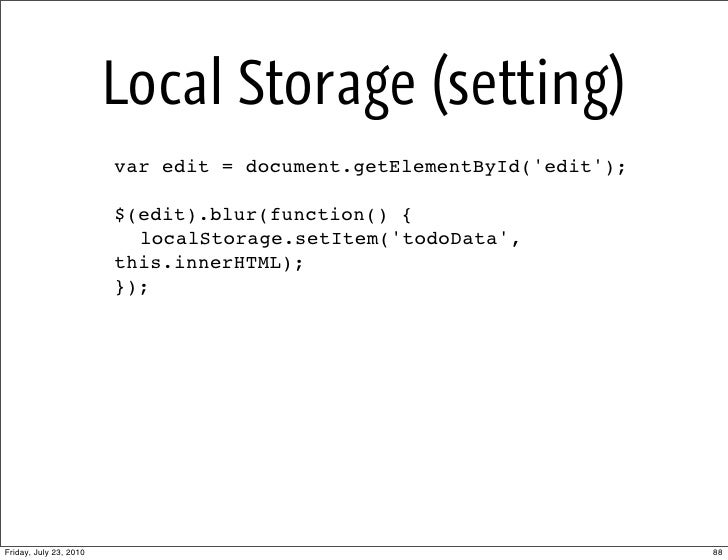

  88. 88. Local Storage (setting) var edit = document.getElementById('edit'); ! $(edit).blur(function() { ! localStorage.setItem('todoData', this.innerHTML); }); Friday, July 23, 2010 88

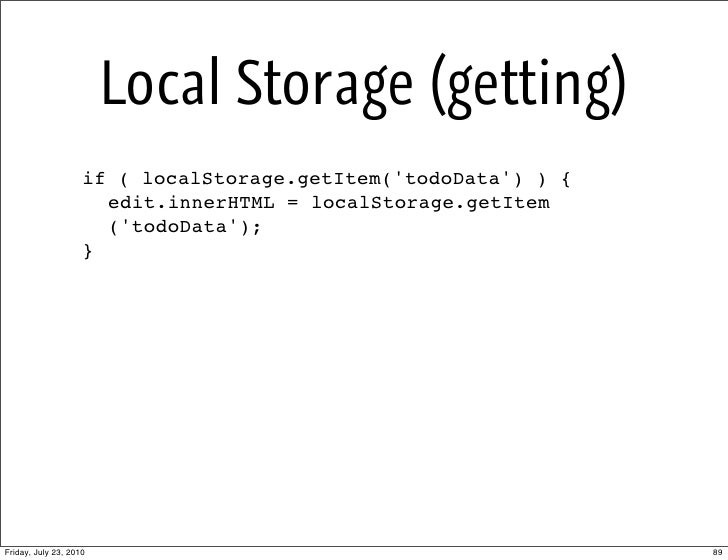

  89. 89. Local Storage (getting) if ( localStorage.getItem('todoData') ) { edit.innerHTML = localStorage.getItem ('todoData'); } Friday, July 23, 2010 89

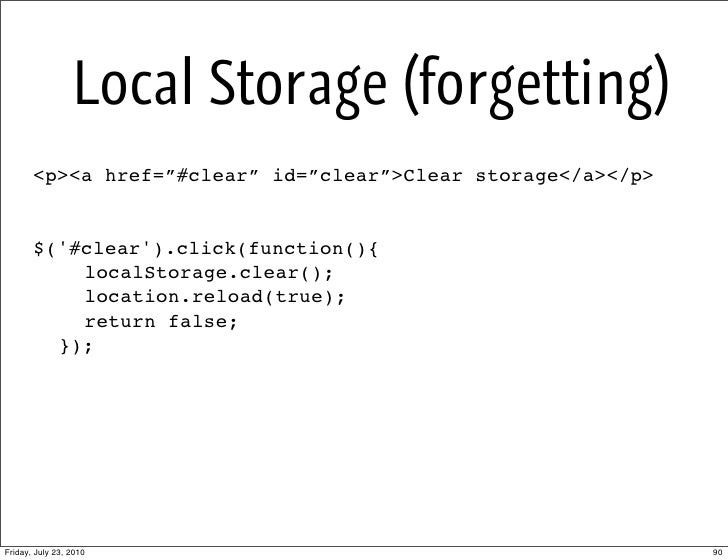

  90. 90. Local Storage (forgetting) <p><a href=”#clear” id=”clear”>Clear storage</a></p> $('#clear').click(function(){ ! ! localStorage.clear(); ! ! location.reload(true); ! ! return false; ! }); Friday, July 23, 2010 90

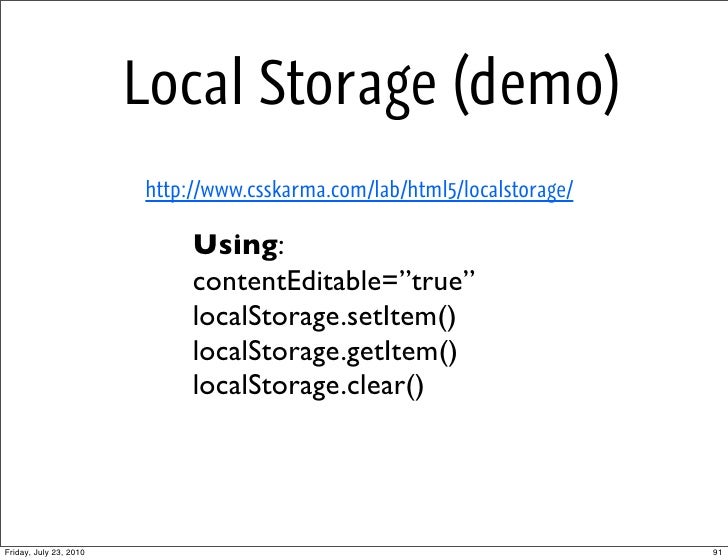

  91. 91. Local Storage (demo) http://www.csskarma.com/lab/html5/localstorage/ Using: contentEditable=”true” localStorage.setItem() localStorage.getItem() localStorage.clear() Friday, July 23, 2010 91

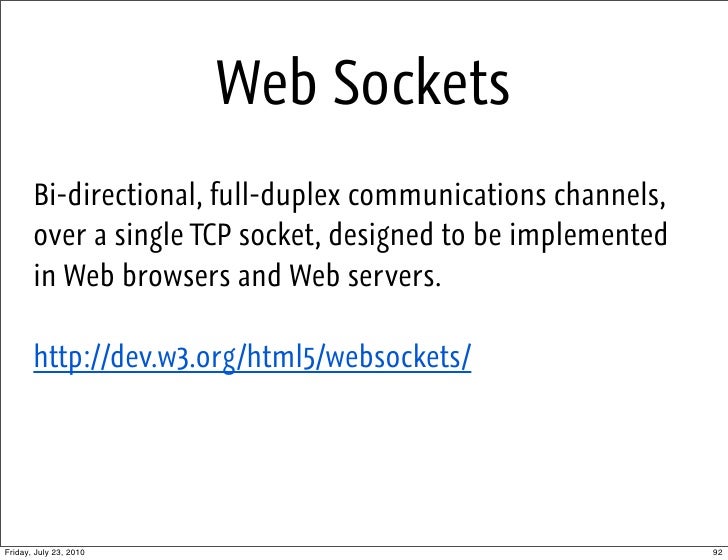

  92. 92. Web Sockets Bi-directional, full-duplex communications channels, over a single TCP socket, designed to be implemented in Web browsers and Web servers. http://dev.w3.org/html5/websockets/ Friday, July 23, 2010 92
  93. 93. Support Friday, July 23, 2010 93
  94. 94. Active browsers Friday, July 23, 2010 94
  95. 95. Browser support CanIUse.com HTML5test.com Friday, July 23, 2010 95

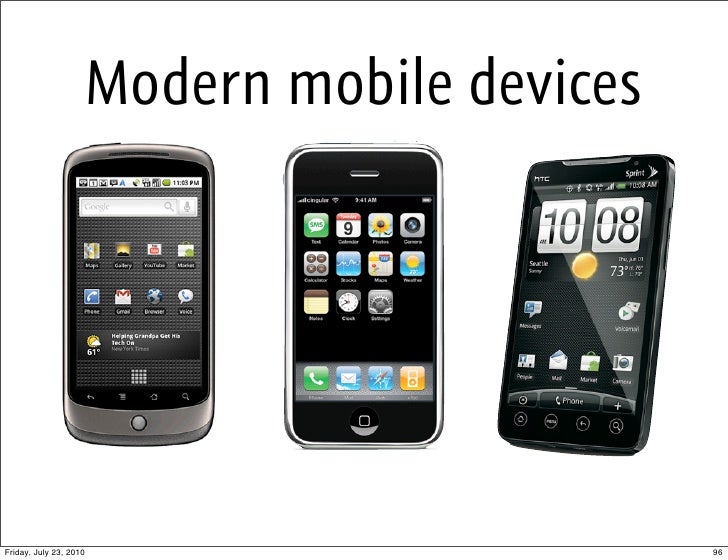

  96. 96. Modern mobile devices Friday, July 23, 2010 96

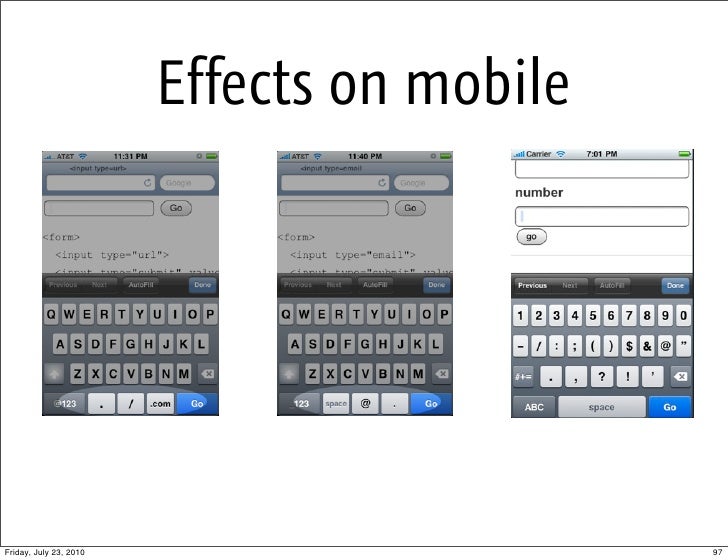

  97. 97. Effects on mobile Friday, July 23, 2010 97
  98. 98. Current Events Friday, July 23, 2010 98
  99. 99. WebM video format High-quality open video format YouTube for compression over ogg (.ogv) IE9, Chrome, Firefox & Opera support WebM converter -> mirovideoconverter.com Friday, July 23, 2010 99

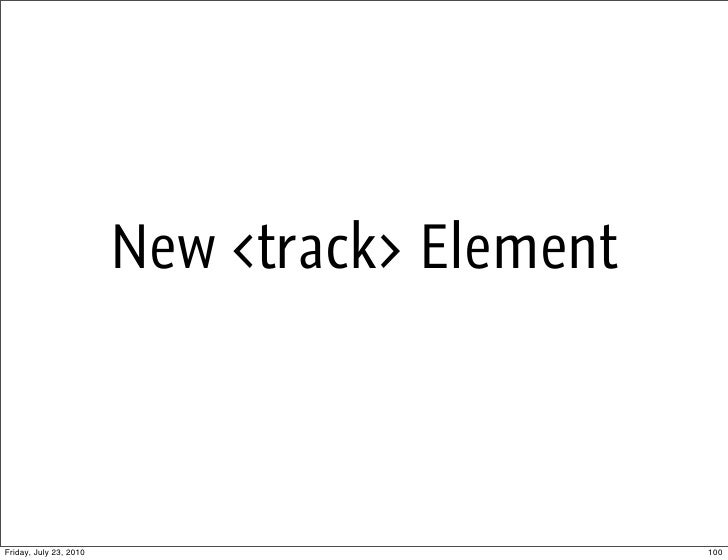

  100. 100. New <track> Element Friday, July 23, 2010 100
  101. 101. Resources Friday, July 23, 2010 101

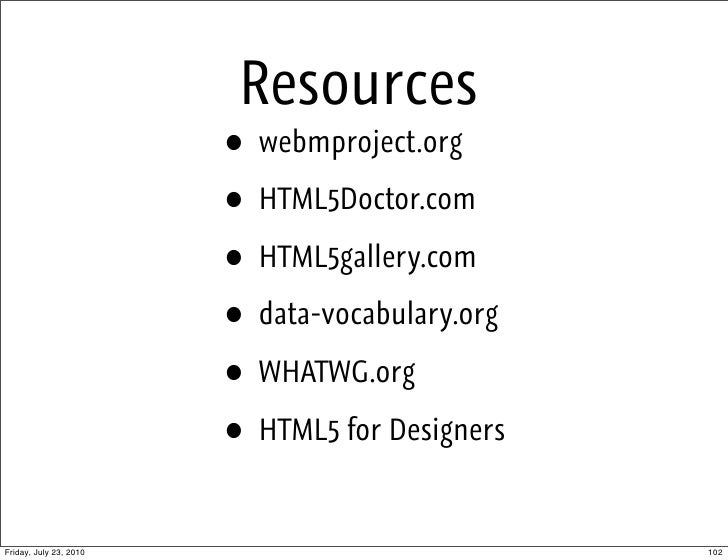

  102. 102. Resources • webmproject.org • HTML5Doctor.com • HTML5gallery.com • data-vocabulary.org • WHATWG.org • HTML5 for Designers Friday, July 23, 2010 102

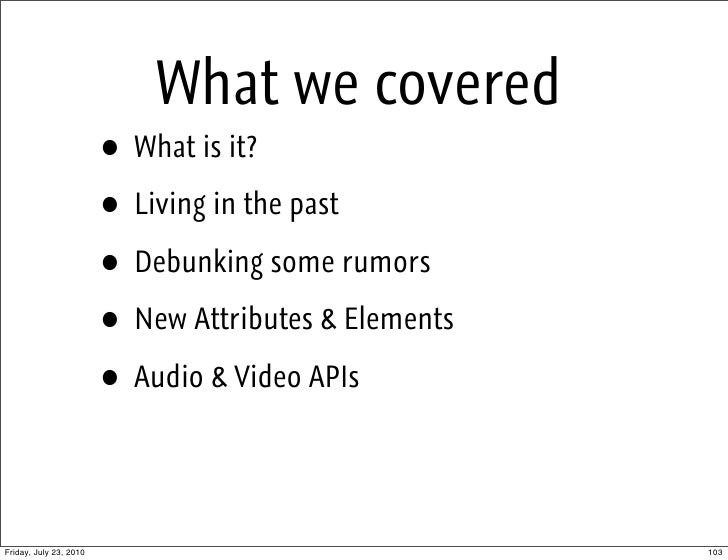

  103. 103. What we covered • What is it? • Living in the past • Debunking some rumors • New Attributes & Elements • Audio & Video APIs Friday, July 23, 2010 103

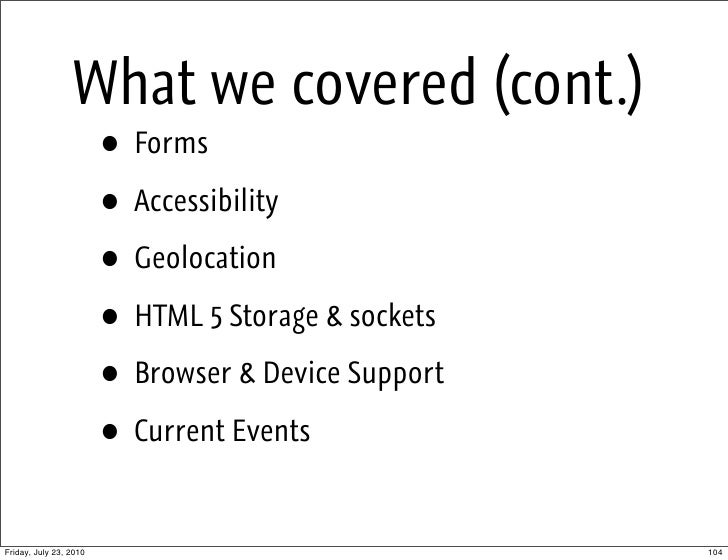

  104. 104. What we covered (cont.) • Forms • Accessibility • Geolocation • HTML 5 Storage & sockets • Browser & Device Support • Current Events Friday, July 23, 2010 104
  105. 105. Steal my work csskarma.com/presentations/penn/ Friday, July 23, 2010 105
  106. 106. “Never memorize something you that can look up” - Albert Einstein Friday, July 23, 2010 106
  107. 107. Questions? Friday, July 23, 2010 107

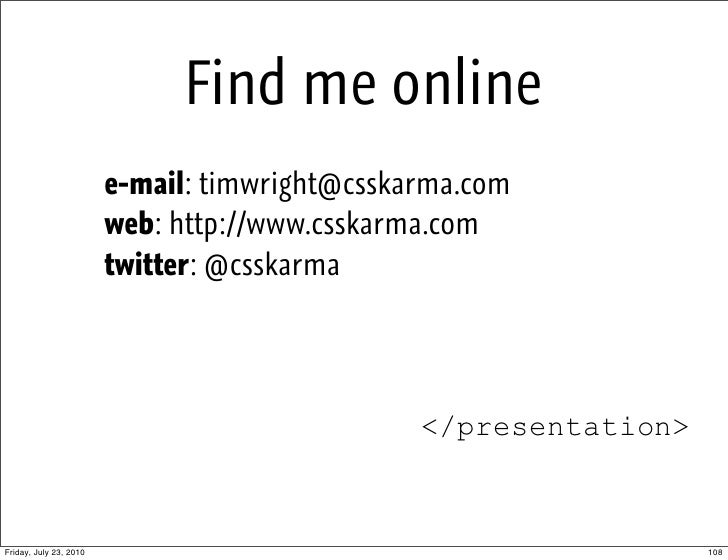

  108. 108. Find me online e-mail: timwright@csskarma.com web: http://www.csskarma.com twitter: @csskarma </presentation> Friday, July 23, 2010 108
