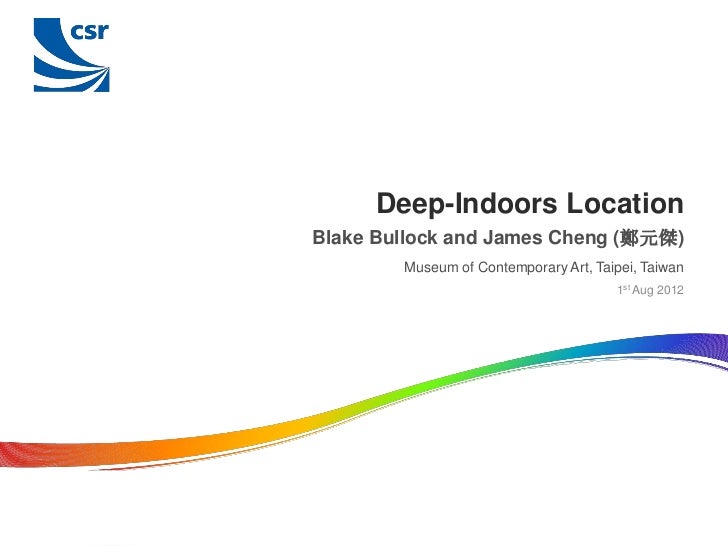

  1. 1. Deep-Indoors LocationBlake Bullock and James Cheng (鄭元傑) Museum of Contemporary Art, Taipei, Taiwan 1st Aug 2012
  2. 2. Market drivers for location-based services (LBS) LBS is mass market  Smartphones all feature GPS to enable consumer LBS  High volume and high growth  500K+ iOS apps 2011 2012 2013  450K+ Android apps (MU) Smartphones 508 740 910 Source: CSR Estimates 2012 LBS is a daily experience  LBS used for search, maps, navigation, check-in, fitness, tracking, etc. But... LBS is currently not Indoors  Consumers expect functionality anywhere anytime  Consumers are indoors a very high percentage of the time Page 2
  3. 3. Indoor LBS experiences Micello Find nearest shop in the 3D indoor map with Find train, browse Location check-in mall that has the product search and walking stores and receive ads with friends you are looking for directions CSR and ST enables indoor LBS Page 3
  4. 4. Application value chain Location End user Location Application End user Carrier Maptechnology hardware enabling and service OS networks providersdevelopers providers platform providers Micello Page 4
  5. 5. Total addressable market for locationTarget segments Select GPS Markets 2012-2017 ($M) Handset 900 Tablet Camera 800 Fitness 700 11% CAGR Module 600Growth drivers 500 Tablet proliferation 400 Continued strength in handsets, but lower growth 300 Lower total power consumption 200 enables fitness, camera, module 100 products 0Indoor advertising 2012 2017 Indoor location enables better ad Source: CSR Estimates 2012 targeting and better analytics Google just announced ads for indoors Page 5
  6. 6. SiRFstarV™ – the next generation location platformSiRFstarV™ architecture and SiRFusion™ hybrid positioning system CSR Positioning Center Multisat GNSS MEMS Gateway SiRFstarV SiRFusion SiRFstarV Wireless Sniffer Pedestrian Dead (Wi-Fi, GSM, …) Reckoning Taking mobile location to the next frontiers
  7. 7. Competitive positioning CSR solution: zero install, zero survey and globally scalable  Announced indoor solution Nov ‘11  No new infrastructure required – relies on existing Wi-Fi transmitters  Can use new infrastructure when available including Bluetooth SMART  Users and building owners do not have to locate APs  System automatically learns from normal use  Demonstrated in various target environments  Shopping malls, train stations, convention centers, hotels, museums  San Francisco, Las Vegas, Barcelona, Seoul, Beijing, New York, Tokyo, Cambridge, Taipei Other solutions  Some solutions require Bluetooth SMART beacon infrastructure or other supplemental infrastructure  Requires investment by building owner  Some require survey work to position beacons  One solution requires round trip proprietary Wi-Fi measurements  Non-standards approach limits compatibility and coverage Page 7
  8. 8. Indoor positioning – PDR only Start  Once GPS is lost indoors, the + Last GPS fix PDR is used to keep track of position  The MEMS sensors drift and the error accumulates at a growth rate of 10% of distance travelled  Soon the position track is not representative of the actual path  The uncertainty illustrated by the size of the ellipses makes most indoor use cases impractical + End 50m
  9. 9. Indoor positioning – Wi-Fi only Start  Once GPS is lost indoors, the + Last GPS fix locations of Wi-Fi access + points are used to determine approximate position once every 20s  The uncertainty illustrated by + the size of the ellipses makes most indoor use cases + impractical  Once outdoors, a more accurate GPS position is obtained and the uncertainty shrinks + + + End 50m Page 9
  10. 10. SiRFusion positioning – Fusion of GNSS, PDR and Wi-Fi Start  Once GPS is lost indoors, the Last GPS fix MEMS sensor output is used for dead reckoning as the user moves  The error grows about 10% of distance traveled, so in 50m, the error grows only 5m  Wi-Fi positioning keeps the error from growing too large  The better accuracy allows the Wi-Fi access point locations to be determined more precisely End 50m Page 10
  11. 11. SiRFusion demoModule with SiRFstar 5xp and 10-axis ST MEMS devices Integrated in a Nexus One phone running SiRFusion Applications Micello Maps
  12. 12. SiRFusion test – Taipei MOCA Standard Google Maps with SiRFusion shows correct GPS/Wi-Fi positioning shows location inside museum location outside near street with uncertainty ~10m with large uncertainty ~100m Page 12
  13. 13. SiRFusion test – Taipei MOCAUp the stairs Started inside museum with no GNSSWalked around in room 108Walked around Down the in room 202 elevator Page 13
  14. 14. SiRFusion test – Tokyo Station  Lower level at Tokyo station  Google indoor maps for each level  Environment has no GNSS signal, lots of magnetic anomaly sources (tracks, elevators, escalators), and many people causing signal variations  Red flags mark the route walked  Blue dots mark the SiRFusion position Starting point determined using Wi-Fi only Page 14
  15. 15. SummaryEmerging indoor ecosystem New and existing applications need indoor positioning Navteq/Micello/Google/Microsoft indoor maps Google indoor advertisingSiRFstarV with SiRFusion Can be deployed worldwide using existing infrastructure No surveying required Target accuracy: within 10m 50% of the time Initial products in development Today’s demo features: SiRFusion brings positioning indoors! Page 15
