Hw09   Hadoop Applications At Yahoo! Hw09 Hadoop Applications At Yahoo! Presentation Transcript

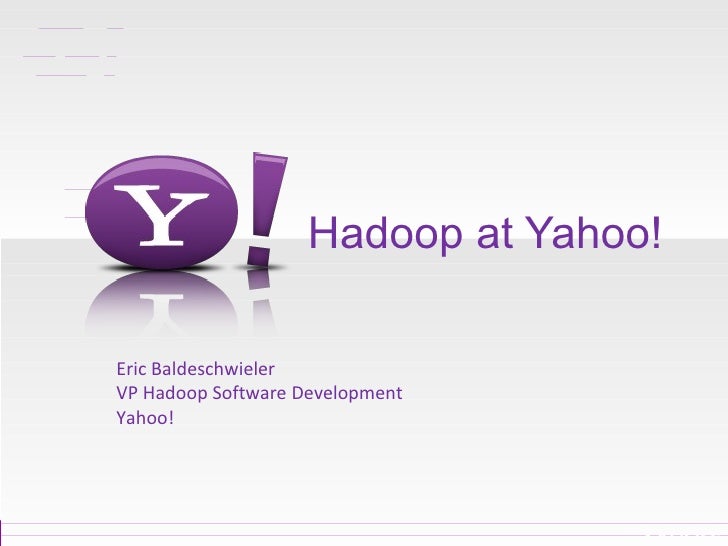

  • Hadoop at Yahoo! Eric Baldeschwieler VP Hadoop Software Development Yahoo!
  • What we want you to know about Yahoo! and Hadoop
    • Yahoo! is:
      • The largest contributor to Hadoop
      • The largest tester of Hadoop
      • The largest user of Hadoop
        • 4000 node clusters!
      • A great place to do Hadoop development, do internet scale science and change the world!
    • Also:
      • We release “The Yahoo! Distribution of Hadoop”
      • We contribute all of our Hadoop work to the Apache Foundation as open source
      • We continue to aggressively invest in Hadoop
      • We do not sell Hadoop service or support!
        • We use Hadoop services to run Yahoo!
    • The majority of all patches to Hadoop have come from Yahoo!s
      • 72% of core patches
        • Core = HDFS, Map-reduce, Common
      • Metric is an underestimate
        • Some Yahoo!s use apache.org accounts
        • Patch sizes vary
    • Yahoo! is the largest employer of Hadoop Contributors, by far!
      • We contribute ALL of our Hadoop development work back to Apache!
    • We are hiring!
      • Sunnyvale, Bangalore, Beijing
      • See http://hadoop.yahoo.com
    The Largest Hadoop Contributor All Patches Core Patches
  • The Largest Hadoop Tester
    • Every release of The Yahoo! Distribution of Hadoop goes through multiple levels of testing before we declare it stable
    • 4 Tiers of Hadoop clusters
      • Development, Testing and QA (~10% of our hardware)
        • Continuous integration / testing of new code
      • Proof of Concepts and Ad-Hoc work (~10% of our hardware)
        • Runs the latest version of Hadoop – currently 0.20 (RC6)
      • Science and Research (~60% of our hardware)
        • Runs more stable versions – currently 0.20 (RC5)
      • Production (~20% of our hardware)
        • The most stable version of Hadoop – currently 0.18.3
    • We continue to grow our Quality Engineering team
      • We are hiring!!
  • The Largest Hadoop User 2006 now Hardware Internal Hadoop Users building new datacenter PB Disk, >82PB Today Nodes, >25,000 Today
  • Collaborations around the globe
      • The Apache Foundation – http://hadoop.apache.org
      • Hundreds of contributors and thousands users of Hadoop!
      • see http://wiki.apache.org/hadoop/PoweredBy
    • The Yahoo! Distribution of Hadoop – Opening up our testing
      • Cloudera
    • M45 - Yahoo!’s shared research supercomputing cluster
      • Carnegie Mellon University
      • The University of California at Berkeley
      • Cornell University
      • The University of Massachusetts at Amherst
    • Partners in India
      • Computational Research Laboratories (CRL), India's Tata Group
      • Universities – IIT-B, IISc, IIIT-H, PSG
    • Open Cirrus™ - cloud computing research & education
      • The University of Illinois at Urbana-Champaign
      • Infocomm Development Authority (IDA) in Singapore
      • The Karlsruhe Institute of Technology (KIT) in Germany
      • HP, Intel
      • The Russian Academy of Sciences, Electronics & Telecomm.
      • Malaysian Institute of Microelectronic Systems
  • Usage of Hadoop
  • Why Hadoop @ Yahoo! ?
    • Massive scale
      • 500M+ unique users per month
      • Billions of “transactions” per day
      • Many petabytes of data
    • Analysis and data processing key to our business
      • Need to process all of that data in a timely manner
      • Lots of ad hoc investigation to look for patterns, run reports…
    • Need to do this cost effectively
      • Use low cost commodity hardware
      • Share resources among multiple projects
      • Try new things quickly at huge scale
      • Handle the failure of some of that hardware every day
    • The Hadoop infrastructure provides these capabilities
  • Yahoo! front page - Case Study
  • Yahoo! front page - Case Study Ads Optimization Search Index
  • Yahoo! front page - Case Study Ads Optimization Content Optimization Search Index Machine Learned Spam filters RSS Feeds Content Optimization
  • Large Applications 2008 2009 Webmap ~70 hours runtime ~300 TB shuffling ~200 TB output ~73 hours runtime ~490 TB shuffling ~280 TB output +55% Hardware Sort benchmarks (Jim Gray contest)
    • 1 Terabyte sorted
    • 209 seconds
    • 900 nodes
    • 1 Terabyte sorted
    • 62 seconds, 1500 nodes 1 Petabyte sorted
    • 16.25 hours, 3700 nodes
    Largest cluster
    • 2000 nodes
    • 6PB raw disk
    • 16TB of RAM
    • 16K Cores
    • 4000 nodes
    • 16PB raw disk
    • 64TB of RAM
    • 32K Cores
    • (40% faster too!)
    • Makes Developers & Scientists more productive
      • Research questions answered in days, not months
      • Projects move from research to production easily
      • Easy to learn! “Even our rocket scientists use it!”
    • The major factors
      • You don’t need to find new hardware to experiment
      • You can work with all your data!
      • Production and research based on same framework
      • No need for R&D to do I.T., the clusters just work
    Tremendous Impact on Productivity
  • Example: Search Assist TM
    • Database for Search Assist™ is built using Hadoop.
    • 3 years of log-data
    • 20-steps of map-reduce
    Before Hadoop After Hadoop Time 26 days 20 minutes Language C++ Python Development Time 2-3 weeks 2-3 days
  • Futures
  • Current Yahoo! Development
    • Hadoop
      • Backwards compatibility
        • New APIs in 21, Avro
      • Append, Sync, Flush
      • Improved Scheduling
        • Capacity Scheduler, Hierarchical Queues in 21
      • Security - Kerberos authentication
      • GridMix3 / Mumak Simulator / Better trace & log analysis
    • PIG
      • SQL and Metadata
      • Column oriented storage access layer - Zebra
      • Multi-query, lots of other optimizations
    • Oozie
      • New workflow and scheduling system
    • Quality Engineering – Many more tests
      • Stress tests, Fault injection, Functional test coverage, performance regression…
  • Questions? Eric Baldeschwieler VP Hadoop Software Development Yahoo! For more information: http://hadoop.apache.org/ http://hadoop.yahoo.com/ (including job openings)
