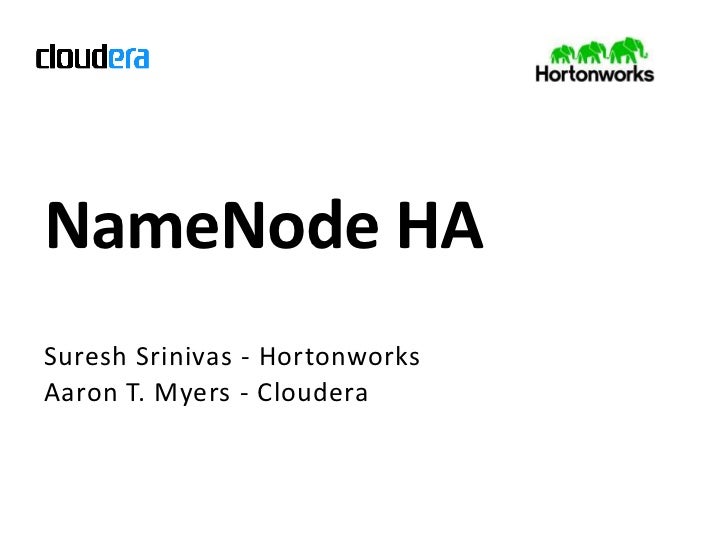

    1. 1. NameNode HA<br />Suresh Srinivas - Hortonworks<br />Aaron T. Myers - Cloudera<br />
    2. 2. Overview<br />Part 1 – Suresh Srinivas (Hortonworks)<br />HDFS Availability and Data Integrity – what is the record?<br />NN HA Design<br />Part 2 – Aaron T. Myers (Cloudera)<br />NN HA Design continued<br />Client-NN Connection failover<br />Operations and Admin of HA<br />Future Work<br />2<br />
    3. 3. Current HDFS Availability & Data Integrity<br />Simple design, storage fault tolerance<br />Storage: Rely in OS’s file system rather than use raw disk<br />Storage Fault Tolerance: multiple replicas, active monitoring<br />Single NameNode Master<br />Persistent state: multiple copies + checkpoints<br />Restart on failure<br />How well did it work?<br />Lost 19 out of 329 Million blocks on 10 clusters with 20K nodes in 2009 <br />7-9’s of reliability<br />Fixed in 20 and 21.<br />18 month Study: 22 failures on 25 clusters - 0.58 failures per year per cluster<br />Only 8 would have benefitted from HA failover!! (0.23 failures per cluster year)<br />NN is very robust and can take a lot of abuse<br />NN is resilient against overload caused by misbehaving apps<br />3<br />
    4. 4. HA NameNode<br />Active work has started on HA NameNode (Failover)<br />HA NameNode<br />Detailed design and sub tasks in HDFS-1623<br />HA: Related work<br />Backup NN (0.21)<br />Avatar NN (Facebook)<br />HA NN prototype using Linux HA (Yahoo!)<br />HA NN prototype with Backup NN and block report replicator (eBay)<br />HA is the highest priority<br />4<br />
    5. 5. Approach and Terminology<br />Initial goal is Active-Standby<br />With Federation each namespace volume has a NameNode<br />Single active NN for any namespace volume<br />Terminology<br />Active NN – actively serves the read/write operations from the clients<br />Standby NN - waits, becomes active when Active dies or is unhealthy<br />Could serve read operations<br />Standby’s State may be cold, warm or hot <br />Cold : Standby has zero state (e.g. started after the Active is declared dead.<br />Warm: Standby has partial state:<br />has loaded fsImage& editLogsbut has not received any block reports<br />Hot Standby: Standby has all most of the Active’s state and start immediately<br />5<br />
    6. 6. High Level Use Cases<br />Supported failures<br />Single hardware failure<br />Double hardware failure not supported<br />Some software failures<br />Same software failure affects both active and standby<br />6<br />Planned downtime<br />Upgrades<br />Config changes<br />Main reason for downtime<br />Unplanned downtime<br />Hardware failure<br />Server unresponsive<br />Software failures<br />Occurs infrequently<br />
    7. 7. Use Cases<br />Deployment models<br />Single NN configuration; no failover<br />Active and Standby with manual failover<br />Standby could be cold/warm/hot<br />Addresses downtime during upgrades – main cause of unavailability<br />Active and Standby with automatic failover<br />Hot standby<br />Addresses downtime during upgrades and other failures<br />See HDFS-1623 for detailed use cases<br />7<br />
    8. 8. Design<br />Failover control outside NN<br />Parallel Block reports to Active and Standby (Hot failover)<br />Shared or non-shared NN state<br />Fencing of shared resources/data<br />Datanodes<br />Shared NN state (if any)<br />Client failover<br />IP Failover<br />Smart clients (e.g configuration, or ZooKeeper for coordination)<br />8<br />
    9. 9. Failover Control Outside NN<br />HA Daemon outside NameNode<br />Daemon manages resources<br />All resources modeled uniformly<br />Resources – OS, HW, Network etc.<br />NameNode is just another resource<br />Heartbeat with other nodes<br />Quorum based leader election<br />Zookeeper for coordination and Quorum<br />Fencing during split brain<br />Prevents data corruption<br />Quorum<br />Service<br />Heartbeat<br />Leader Election<br />HA<br />Daemon<br />Resources<br />Resources<br />Resources<br />Actions<br />start, stop, <br />failover, monitor, …<br />Fencing/<br />STONITH<br />Shared<br />Resources<br />
    10. 10. NN HA with Shared Storage and ZooKeeper<br />ZK<br />ZK<br />ZK<br />Heartbeat<br />Heartbeat<br />FailoverController<br />Standby<br />FailoverController<br />Active<br />Cmds<br />Monitor Health<br /> of NN. OS, HW<br />Monitor Health<br /> of NN. OS, HW<br />NN<br />Active<br />NN<br />Standby<br />Shared NN state with single writer<br />(fencing)<br />Block Reports to Active & Standby<br />DN fencing: Update cmds from one<br />DN<br />DN<br />DN<br />
    11. 11. HA Design Details<br />11<br />
    12. 12. Client Failover Design<br />Smart clients<br />Users use one logical URI, client selects correct NN to connect to<br />Implementing two options out of the box<br />Client Knows of multiple NNs <br />Use a coordination service (ZooKeeper)<br />Common things between these<br />Which operations are idempotent, therefore safe to retry on a failover<br />Failover/retry strategies<br />Some differences<br />Expected time for client failover<br />Ease of administration<br />12<br />
    13. 13. Ops/Admin: Shared Storage<br />To share NN state, need shared storage<br />Needs to be HA itself to avoid just shifting SPOF<br />BookKeeper, etc will likely take care of this in the future<br />Many come with IP fencing options<br />Recommended mount options:<br />tcp,soft,intr,timeo=60,retrans=10<br />Not all edits directories are created equal<br />Used to be all edits dirs were just a pool of redundant dirs<br />Can now configure some edits directories to be required<br />Can now configure number of tolerated failures<br />You want at least 2 for durability, 1 remote for HA<br />13<br />
    14. 14. Ops/Admin: NN fencing<br />Client failover does not solve this problem<br />Out of the box<br />RPC to active NN to tell it to go to standby (graceful failover)<br />SSH to active NN and `kill -9’ NN<br />Pluggable options<br />Many filers have protocols for IP-based fencing options<br />Many PDUs have protocols for IP-based plug-pulling (STONITH)<br />Nuke the node from orbit. It’s the only way to be sure.<br />Configure extra options if available to you<br />Will be tried in order during a failover event<br />Escalate the aggressiveness of the method<br />Fencing is critical for correctness of NN metadata<br />14<br />
    15. 15. Ops/Admin: Monitoring<br />New NN metrics<br />Size of pending DN message queues<br />Seconds since the standby NN last read from shared edit log<br />DN block report lag<br />All measurements of standby NN lag – monitor/alert on all of these<br />Monitor shared storage solution<br />Volumes fill up, disks go bad, etc<br />Should configure paranoid edit log retention policy (default is 2)<br />Canary-based monitoring of HDFS a good idea<br />Pinging both NNs not sufficient<br />15<br />
    16. 16. Ops/Admin: Hardware<br />Active/Standby NNs should be on separate racks<br />Shared storage system should be on separate rack<br />Active/Standby NNs should have close to the same hardware<br />Same amount of RAM – need to store the same things<br />Same # of processors - need to serve same number of clients<br />All the same recommendations still apply for NN<br />ECC memory, 48GB<br />Several separate disks for NN metadata directories<br />Redundant disks for OS drives, probably RAID 5 or mirroring<br />Redundant power<br />16<br />
    17. 17. Future Work<br />Other options to share NN metadata<br />BookKeeper<br />Multiple, potentially non-HA filers<br />Entirely different metadata system<br />More advanced client failover/load shedding<br />Serve stale reads from the standby NN<br />Speculative RPC<br />Non-RPC clients (IP failover, DNS failover, proxy, etc.)<br />Even Higher HA<br />Multiple standby NNs<br />17<br />
    18. 18. QA<br />Detailed design (HDFS-1623)<br />Community effort<br />HDFS-1971, 1972, 1973, 1974, 1975, 2005, 2064, 1073<br />18<br />

    ×
