EUCALYPTUS: An Open Source Infrastructure for Elastic Computing Research Rich Wolski Chris Grzegorczyk, Dan Nurmi, Grazian...
Exciting Weather Forecasts
Commercial Cloud Formation
What is a Cloud? SLAs Web Services Virtualization
How do they work? <ul><li>What can and cannot easily be hosted in a cloud? </li></ul><ul><li>What extensions or modificati...
The Skies are Opening <ul><li>Nimbus (Freeman and Keahey, University of Chicago) </li></ul><ul><ul><li>Client-side cloud-c...
<ul><li>E lastic  U tility  C omputing  A rchitecture  L inking  Y our  P rograms  T o  U seful  S ystems </li></ul><ul><l...
Goals for Eucalyptus <ul><li>Foster research in elastic/cloud/utility computing  </li></ul><ul><ul><li>models of service p...
Challenges <ul><li>Extensibility </li></ul><ul><ul><li>Simple architecture and open internal APIs </li></ul></ul><ul><li>C...
Eucalyptus Architecture: WS-Cloud Client-side API Translator Cloud Controller Cluster Controller Node Controller Amazon EC...
EC2 Compatibility <ul><li>Interface is based on Amazon’s published WSDL </li></ul><ul><ul><li>2008 compliant except for  <...
Networking <ul><li>Eucalyptus  does not assume that all worker nodes will have publicly routable IP addresses </li></ul><u...
Virtual Network: Ethernet Overlay ssl vde vde vde vde vde vde vde vde
Performance of the Virtual Network
Security <ul><li>All  Eucalyptus  components use WS-security for authentication </li></ul><ul><ul><li>Encryption of inter-...
Packaging, Installation, and Deployment <ul><li>Rocks </li></ul><ul><ul><li>“ One-button” install per cluster </li></ul></...
What’s it Made Out Of? <ul><li>Axis2 and Axis2c version 1.4.0 </li></ul><ul><li>Hibernate 3.2.2 </li></ul><ul><li>HSQLDB 1...
Eucalyptus Public Cloud <ul><li>Free, time limited access to a  Eucalyptus  installation at UCSB </li></ul><ul><ul><li>Onl...
EC2 and EPC Throughput
EC2 and EPC RTT
Single Instance
Four Instances
Eight Instances
Version History <ul><li>Eucalyptus  version 1.0 became available for public release 5/28/08 (Rocks binary only) </li></ul>...
Next Releases <ul><li>Version 1.4 (expected 11/5/2008) </li></ul><ul><ul><li>S3 support uses local file system </li></ul><...
Next Generation Eucalyptus Networking <ul><li>Multiple networking implementations </li></ul><ul><ul><li>Open Source + acad...
More Plans <ul><li>Hypervisor religiosity and secularism </li></ul><ul><ul><li>Current implementation uses a subset of the...
Ancillary Projects <ul><li>Google App Engine </li></ul><ul><ul><li>AppDrop will run App Engine inside EC2 </li></ul></ul><...
Clouds Versus Grids <ul><li>Clouds and Grids are distinct </li></ul><ul><li>Cloud </li></ul><ul><ul><li>Full private clust...
Lessons Learned so Far <ul><li>Open source for cloud computing constrains design more than we thought it would </li></ul><...
Thanks, More Information, and Help! <ul><li>National Science Foundation </li></ul><ul><ul><li>VGrADS Project </li></ul></u...
Upcoming SlideShare
Loading in...5
×

Eucalyptus: Open Source for Cloud Computing

11,064

Published on

Rich Wolski, professor of Computer Science at UC Santa Barbara, presents Eucalyptus: an Open Source Infrastructure for Elastic Computing Research

Published in: Technology
1 Comment
20 Likes
Statistics
Notes
No Downloads
Views
Total Views
11,064
On Slideshare
0
From Embeds
0
Number of Embeds
1
Actions
Shares
0
Downloads
0
Comments
1
Likes
20
Embeds 0
No embeds

No notes for slide
  • Transcript of "Eucalyptus: Open Source for Cloud Computing"

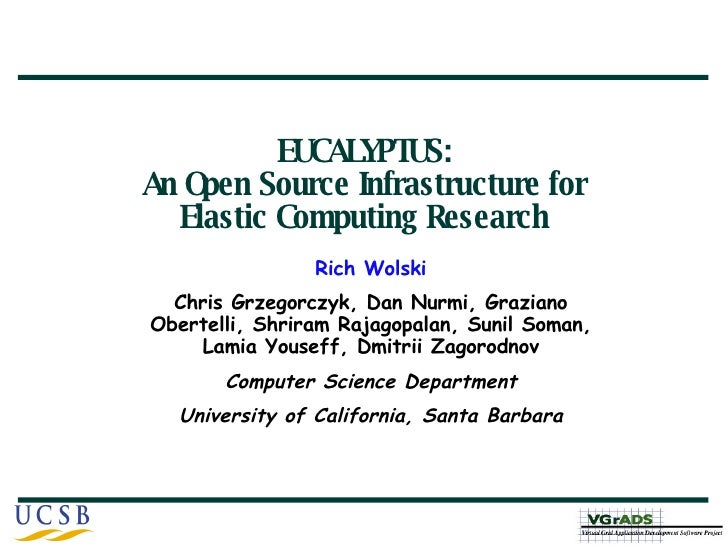

    1. 1. EUCALYPTUS: An Open Source Infrastructure for Elastic Computing Research Rich Wolski Chris Grzegorczyk, Dan Nurmi, Graziano Obertelli, Shriram Rajagopalan, Sunil Soman, Lamia Youseff, Dmitrii Zagorodnov Computer Science Department University of California, Santa Barbara
