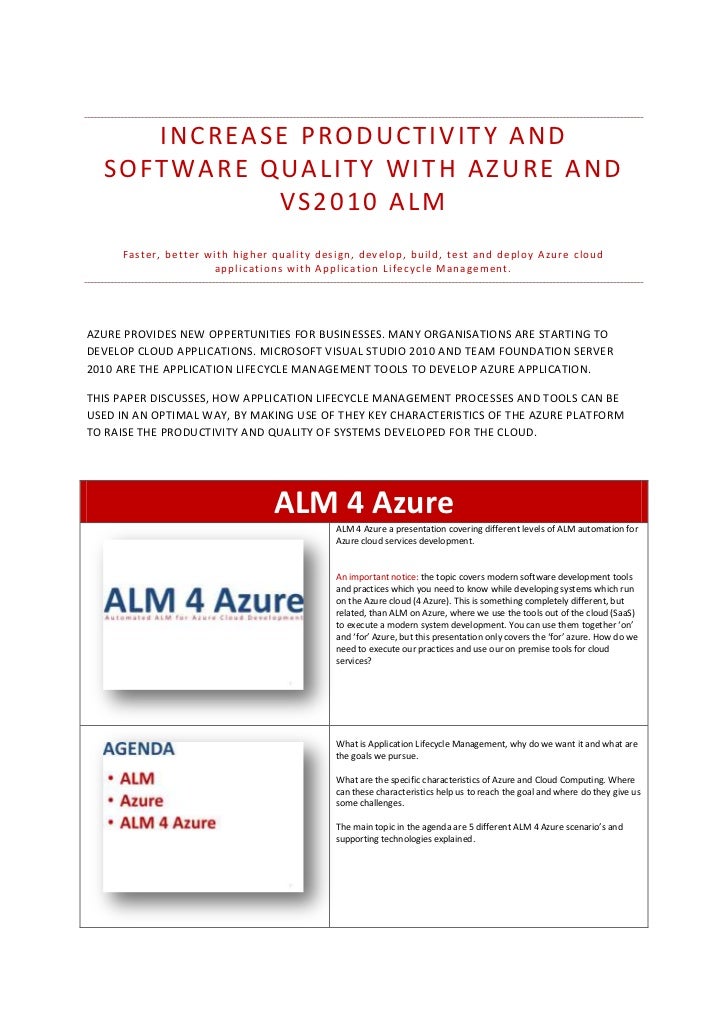

INCREASE PRODUCTIVITY AND  SOFTWARE QUALITY WITH AZURE AND            VS2010 ALM     F a s t e r , b e t t e r w i t h h i...
Application Lifecycle Management              All tool vendors and methodologies have their own definition of Application ...
clear for the parties involved what they will gain, at a personal level,             from collaborating in a new way. Surp...
runs on the virtual machines (VMs) that host your service. The guestoperating system is updated monthly. You can choose to...
ALM 4 Azure                 The main goal when configuring the technical tool support for your                 processes i...
The engineers create functionality in Visual Studio 2010. The        source code is checked in Team Foundation Server. Eng...
The developer only scenario has a lot of benefit and many organizations                start with it because its painless....
As in scenario 1, the engineers create functionality in Visual        Studio 2010. The source code is checked in Team Foun...
Execute tests in test environment by using the compute and CSRun.To execute tests, on a tester’s environment without Visua...
See demo WAD MTM Adapter:                http://www.youtube.com/watch?v=xKxFtfKh6yo                Microsoft Test Manger c...
To drive forward when the team grows or when we need to but some moreeffort in the stability of the system development pro...
Soon on: http://www.youtube.com/user/clemensreijnen                 Having automated deployment in place is a boost for th...
Engineers write source code and testers specify and execute test        cases on the compute emulator.        In collabora...
Execute tests as soon as possible in the lifecycle.We can divide the different tests technologies in development tests, lo...
Soon on: http://www.youtube.com/user/clemensreijnenThere are multiple ways to execute your test automation effort, you can...
The preferred way of execution automated tests is from within MicrosoftTest Manager with associated automation in manual t...
Soon on: http://www.youtube.com/user/clemensreijnen                 Pro:                 No click deployment from build   ...
Team development.The Team implements the requested features, specifies test casesand determines operational SLA and usages...
simple question: Is the application running efficiently within its        defined SLA parameters and without errors? If th...
