Automated Builds And UI Testing in SharePoint 2010 Development

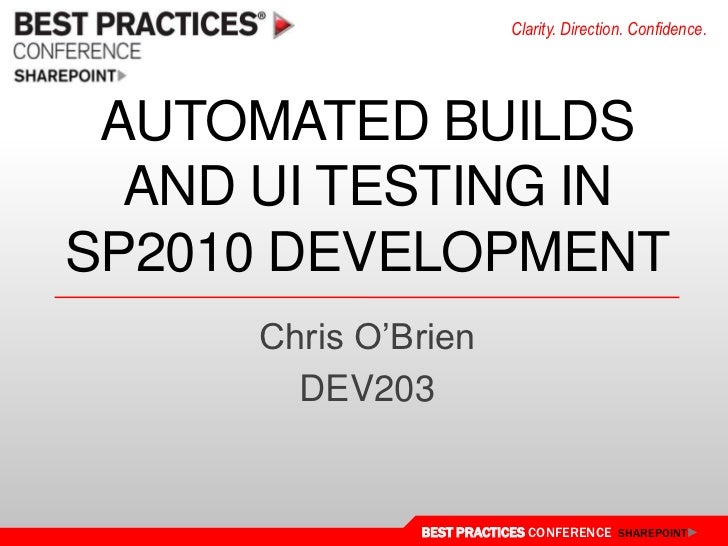

  1. 1. Automated builds and UI testing in Sp2010 development<br />Chris O’Brien<br />DEV203<br />
  2. 2. About me<br />Independent SharePoint consultant<br />Blog: www.sharepointnutsandbolts.com<br />Twitter: @ChrisO_Brien<br />Book: Real World SharePoint 2010 (20 MVPs)<br />LinkedIn: http://uk.linkedin.com/in/chrisobrienmvp<br />
  3. 3. Problems in SP2010 dev projects<br />Many dependencies<br />Code, Features, timer jobs<br />Deployment is complex<br />e.g. No native support for WSP rollback<br />Difficult to unit test<br />Still not much traction in SharePoint world?<br />
  4. 4. Problems in *large* SP2010 dev projects<br />Tracking<br />Hard to keep track of deployments/fixes<br />Many developers = many deployments?<br />Inefficiency<br />Devs keeping environment up-to-date<br />Inconsistent builds (or buildmaster bottleneck)<br />Silly mistakes e.g.<br />Incorrect versions<br />Debug vs. Release mode<br />Testing of actual WSPs<br />Communication<br />
  5. 5. Solution recipe<br />Auto-compile of assemblies and build of WSPs<br />Correct versions in source control<br />Add a label in source control to help rollback<br />Auto incrementing assembly version number<br />Better tracking of deployments/fixes etc.<br />Deployment of WSPs to remote SharePoint 2010 environment<br />Test environment, not developer machine<br />UI testing<br />Build fails on UI test failure<br />Developer notifications<br />
  6. 6. Solution ingredients<br />TFS Team Build workflow (.Net4.0)<br />Specifies sequence of steps<br />PowerShell<br />Deploys WSPs, other deployment steps e.g. teardown/setup site<br />PowerShell remoting(preferred over PsExec)<br />Allows PS on SharePoint box to be called from build server<br />Invoke-Command -ComputerName “foo” { script }<br />
  7. 7. Automating the build<br />
  8. 8. Build definition<br />Styles:<br />What’s the trigger?<br />Manual, Scheduled (e.g. nightly), every check-in, Rolling builds, Gated Check-In etc.<br />Customise workflow<br />Mandatory for SharePoint builds<br />Several workflows OOTB<br />DefaultTemplate, LabTemplate<br />
  9. 9. demo<br />Automating the build<br />
  10. 10. Image: selecting build trigger<br />
  11. 11. Image: customizing build workflow<br />
  12. 12. COdedui tests<br />
  13. 13. What is a coded UI test?<br />Recorded on test agent desktop<br />Support: browser (inc. AJAX), Silverlight, WPF, forms apps<br />Generate code which can be modified (e.g. to pass data)<br />Point and click to add assertions<br />E.g. navigate to web part gallery, check web part present<br />
  14. 14. demo<br />Testing SharePoint with coded UI tests<br />
  15. 15. Image: recording a UI test<br />
  16. 16. Adding COdedui tests to the build<br />
  17. 17. Integrating coded UI tests into build<br />Automatic if test assembly name matches filespec<br />Default = “*test*” somewhere in assembly name<br />Background:<br />All tests can be run from command-line with MSTest.exe (Unit tests, Coded UI tests, Load tests, Etc.)<br />Team Build ships with MSTest WF activity (wrapper)<br />The OOTB workflows contain this activity<br />Caveat:<br />OOTB workflows must be edited to deploy WSPs and/or run coded UI tests<br />
  18. 18. demo<br />Catching code issues with build/test process <br />
  19. 19. Image: build summary<br />
  20. 20. Image: test results for build<br />
  21. 21. Image: analyzing failed test (1)<br />
  22. 22. Image: analyzing failed test (2)<br />
  23. 23. Why stop at UI testing?<br />
  24. 24. Image: code profiling in build (1)<br />
  25. 25. Image: code profiling in build (2)<br />
  26. 26. Image: IntelliTrace in build<br />
  27. 27. Best practices<br />Start on day 0 of project<br />Retro-fitting can be expensive<br />Get fast feedback - have a lightweight/quick build run on check-in<br />Compile all projects/build WSPs<br />Suggestion - every SharePoint project should do this much<br />Increment assembly versions (FileVersion) with label generated by build<br />Leverage UI testing (with or without automated builds)<br />
  28. 28. Resources<br />Setting up TFS to build SharePoint Projects - http://bit.ly/9lEqnP<br />Assembly versions in build workflow - http://bit.ly/eRPB0e<br />Running tests as part of a build - http://bit.ly/i41eze<br />PS remoting and SharePoint 2010 - http://bit.ly/9Cb4tF<br />Also on my blog soon:<br />My customized workflow and PS scripts<br />Multi-part article series on automated builds/testing<br />www.sharepointnutsandbolts.com<br />
  29. 29. Thank you!<br />
  30. 30. Appendix slides<br />
  31. 31. What you need - software<br />Automated builds = TFS 2010 (Team Build)<br />Server + 1 CAL free with every MSDN level<br />Need CAL for every user who interacts<br />Components: Build Controller, Build Agent<br />Coded UI tests = Visual Studio 2010 Premium/Ultimate (OR ‘Test Elements’ add-on)<br />Components: Test Controller, Test Agent<br />
  32. 32. What you need - hardware<br />Option 1 – the EASY button<br />Disadvantages:<br />Risk to source control<br />Performance<br />SP2010 + TFS2010 = big resource reqs<br />Bottom line:<br />Don’t do this with prod source control!<br />
  33. 33. What you need - hardware<br />Option 2 – a sample topology<br />
  34. 34. PowerShell remoting<br />To enable:<br />To run:<br />Invoke-Command -ComputerName“foo” { script }<br />

×
