OpenStreetMap - Case Study Haiti Crisis Response

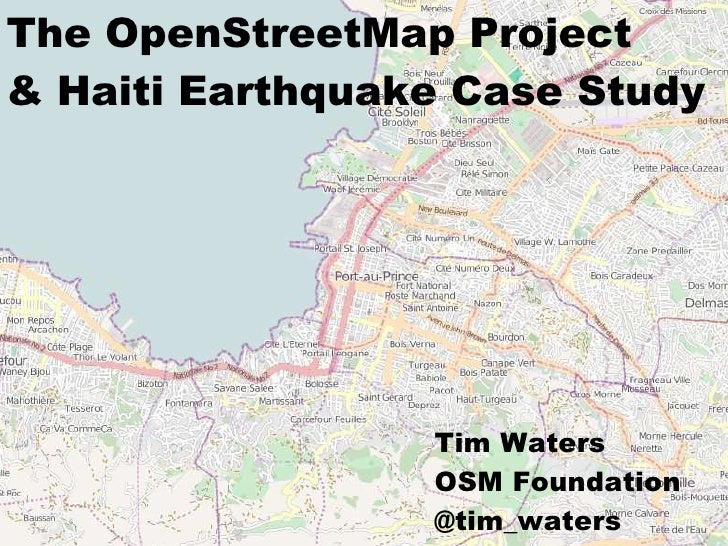

  1. 1. The OpenStreetMap Project & Haiti Earthquake Case Study title Tim Waters OSM Foundation @tim_waters
  2. 2. = +
  3. 3. Easy to use
  4. 4. Want custom tiles?
  5. 5. Want data? Planet http://planet.openstreetmap.org/ Full Daily Hour Minutely etc Osmosis --tag-filter accept-nodes amenity=toilet OSM2PGSQL
  6. 6. .shp Extracts
  7. 7. HAITI What we did in Haiti changed disaster response forever. Jeffery Johnson
  8. 8. 1 Data collection 2 Apply to Disaster Response 3 Reconstruction Crisis is ongoing!
  9. 9. 1. Data Collection Creation and Collection of Data Mass Collaboration
  10. 10. 12 Jan 2010
  11. 11. Day 1
  12. 12. Day 1
  13. 13. Day 3
  14. 14. Day 1
  15. 15. Day 2
  16. 16. 1 Week
  17. 17. 2 Weeks
  18. 18. For the first time ever we now have a set of conditions where individuals from the comfort and safety of their own home can literally help other people save lives in a disaster zone by contributing to OSM & Ushahidi Schuyler Erle UN “Would have taken tens of thousands of pounds and years to do. OSM took 3 weeks.”
  19. 19. DigitalGlobe, Google, NOAA, World Bank (ImageCAT GFDRR), GeoEye, SpotImage, CIA Geoeye “You can trace this imagery in OSM”
  20. 20. We need tiles
  21. 21. 3 minutes http://www.youtube.com/watch?v=D6pBBK1SHh0 THREE MINUTES http://www.youtube.com/watch?v=D6pBBK1SHh0
  22. 22. http://www.flickr.com/photos/sidereal/17380004/
  23. 23. Day 1
  24. 24. Day 28
  25. 25.  Satellite and aerial imagery was made available.  Volunteers (>700) marshalled that imagery and made it usable.  Volunteers traced the imagery into OSM.  Volunteers prepared extracts of OSM for reuse.
  26. 26. 1 Data collection 2 Apply to Disaster Response 3 Reconstruction
  27. 27. Fairfax County Urban Search & Rescue Team “wish you could see their faces 'light up' when I take their GPS unit and tell them that I'm going to give them street level detail maps. Mapaction - training and loading up. Most SAR are firefighters.
  28. 28. Tagging Earthquake Damage earthquake:damage: collapsed_building earthquake:damage: spontaneous_camp earthquake:damage: damaged_infrastructure earthquake:damage: landslide
  29. 29. Damage Assessment
  30. 30. NEED to map Distributing Food & Water “ any spontaneous camps appearing in the imagery” Mapping requirement mentioned by United Nations Office of Coordination of Humanitarian Affairs (UNOCHA) 69 B earthquake:damage: spontaneous_camp tourism: camp_site refugee: yes
  31. 31. Obstacle Routing – OpenRouteService Dont even bother with GMaps!
  32. 32. 1 Data collection 2 Apply to Disaster Response 3 Ongoing crisis & recovery
  33. 33. OSM HOT Deployments Support the use of OSM on the ground to make sure it stays relevant and useful into the recovery, reconstruction, development of Haiti. = Audience = * groups of UN and international responders, * the Haitian government, * Haitian civil society = Activities = * Surveying with GPS/Walking Papers * Editing * Ensuring an efficient use of OSM resources by the responders * Training * Humanitarian Data Model and data imports * Work with QGIS / PostGIS & extension to wider GIS workflows
  34. 34. Humanitarian Data Model Presets Questionnaires Cartography
  35. 35. Supported by Many organisations: OpenGeo World Bank MapAction ESRI World Food Programme
  36. 36. Humanitarian Openstreetmap Team http://hot.openstreetmap.org Relief Map Warper http://maps.nypl.org/relief Haiti Crisis Map http://hypercube.telascience.org/haiti/ OpenRouteService for Haiti http://openls.geog.uni-heidelberg.de/osm-haiti/ Walking Papers http://walking-papers.org OSM Shapefiles http://www.geofabrik.de/data/download.html CrisisMappers http://www.crisismappers.net/ @tim_waters

×
