CCFS Workshop
27th – 28th October
The Carbon Benefits Project Modelling
Component Tools as applied
at the Landscape Scale

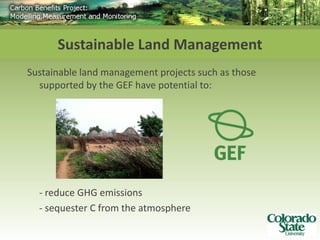

Sustainable Land Management
Sustainable land management projects such as those
supported by the GEF have potential to:
- reduce GHG emissions
- sequester C from the atmosphere

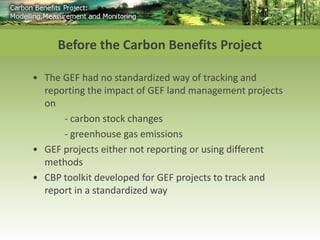

Before the Carbon Benefits Project
• The GEF had no standardized way of tracking and
reporting the impact of GEF land management projects
on
- carbon stock changes
- greenhouse gas emissions
• GEF projects either not reporting or using different
methods
• CBP toolkit developed for GEF projects to track and
report in a standardized way

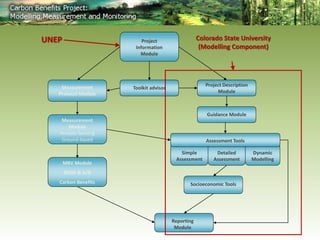

Reporting
Module
Measurement
Module
Remote Sensing
Ground-based
Measurement
Protocol Module
Project
Information
Module
Toolkit advisor
Project Description
Module
Simple
Assessment
Detailed
Assessment
Dynamic
Modelling
Guidance Module
Assessment Tools
MRV Module
REDD & A/R
Carbon Benefits Socioeconomic Tools
UNEP Colorado State University
(Modelling Component)
CSU Component, Plus Points for Smallholders
1. Online system
2. Easy to use
3. Options for projects with varying amounts of data
including just activity data
4. Projects with varying emphasis
5. Economic and social tools

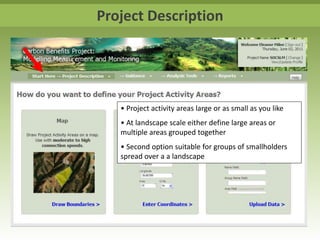

Project Description
• Project activity areas large or as small as you like
• At landscape scale either define large areas or multiple areas grouped together
• Second option suitable for groups of smallholders spread over a a landscape

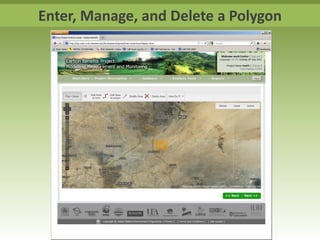

Enter, Manage, and Delete a Polygon

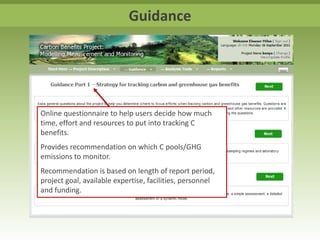

Guidance
Online questionnaire to help users decide how much time, effort and resources to put into tracking C benefits.
Provides recommendation on which C pools/GHG emissions to monitor.
Recommendation is based on length of report period, project goal, available expertise, facilities, personnel and funding.

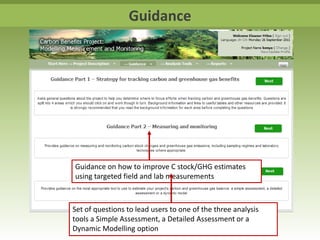

Guidance
Guidance on how to improve C stock/GHG estimates using targeted field and lab measurements
Set of questions to lead users to one of the three analysis tools a Simple Assessment, a Detailed Assessment or a Dynamic Modelling option

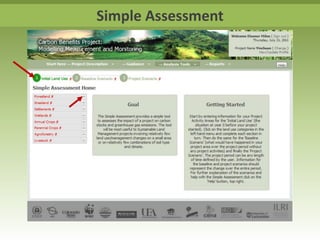

Simple Assessment
CBP Modelling System Data Requirements for Forestland
• Locations of native forest or plantations, extent of interventions (ha)
• Forest / Plantation System Type
• Age Range (<= 20 years or > 20 years)
• Natural Losses:
• Fire (%/year)
• Wind (%/year)
• Pest/Disease (%/year)
• Other (drought, etc.) (%/year)
• Timber Harvests (m3/year)
• Fuelwood Gathering (m3/year)

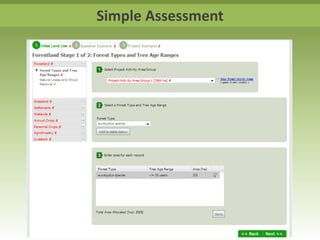

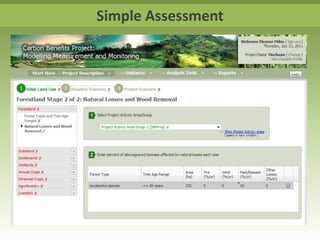

Simple Assessment
Simple Assessment
Detailed Assessment & Dynamic Modeling
Detailed Assessment Same as the simple assessment with capacity for users to:
1.Create their own cropping, grassland or forest systems
2.Modify emission factors to make them project or country specific
Dynamic Modelling
An option for users wishing to do an in depth analysis with a focus on soil C.
Requires some expertise in GIS and ecosystem modelling.
Socio-Economic Component
• Cost Benefit Analysis (CBA)
– Quantitative analysis to determine economic
impacts of project activities
• DPSIR Framework (Driving Forces, Pressures, State,
Impacts, Responses)
– Qualitative analysis to identify the drivers and
barriers to carbon friendly practices
Summary Report
PDF, 7 pages
• Project attributes
• Total and annual C balance in CO2e for
baseline, project and incremental diff
• Tables - C changes by land use classes and
emission sources
• Economic Impacts
• Social Impacts
Detailed Report
• Excel spreadsheet
• GHG emissions C stock changes by
source, activity area, land use, category
• IPCC equation given
• Uncertainty estimate

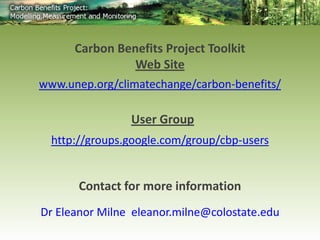

Carbon Benefits Project Toolkit
Web Site
www.unep.org/climatechange/carbon-benefits/
http://groups.google.com/group/cbp-users
User Group
Contact for more information
Dr Eleanor Milne eleanor.milne@colostate.edu
