    ISS World Prague 2010 - DPI at 40G and 100G: Moving Beyond Appliances ISS World Prague 2010 - DPI at 40G and 100G: Moving Beyond Appliances Presentation Transcript

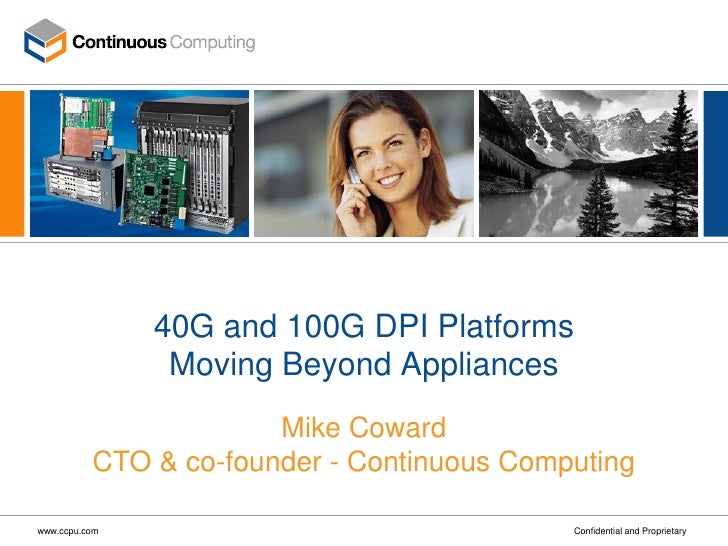

    • 40G and 100G DPI Platforms Moving Beyond Appliances Mike Coward CTO & co-founder - Continuous Computing www.ccpu.com Confidential and Proprietary
    • Agenda  Company Overview  DPI Market Trends – High Scale Requirements  DPI System Architecture Options  Bladed DPI Development Options  100G System Design Example www.ccpu.com Confidential and Proprietary 2
    • Quick Corporate Facts  Founded Feb ’98  Private, VC-financed  >300 employees globally  Headquarters in San Diego  Engineering in Bangalore, Shenzhen  Acquired Trillium® from Intel (Feb ’03) 95,000 ft2 facilities ISO 9001 certified RoHS compliant  Sell to equipment mfrs, not operators CMMI Level 3 www.ccpu.com Confidential and Proprietary 3
    • Integrated Systems & Services Protocols & HA Middleware Integrated DPI Platforms AdvancedTCA & Professional CompactPCI Hardware Services www.ccpu.com Confidential and Proprietary 4
    • 2 Categories of DPI Applications Optimize / Protect OpEx Drive Revenue  IDS/IPS/Firewall  Tiered subscriber  Security gateway (UTM) bandwidth / applications  Subscriber traffic shaping  Managed Security Svcs  Peer-to-Peer blocking  Market intelligence  Peer-to-Peer caching / gathering redirection  Mobile ad insertion  Lawful intercept  Server virtualization Carrier demand for new revenue drives investment into large scale DPI Lawful Intercept gets higher capacity systems with minimal investment www.ccpu.com Confidential and Proprietary 5
    • Movement towards 40G and 100G: Core and Edge  Core  Cisco CRS-3: >1000 ports of 100G Ethernet  Juniper T1600  Access Equipment: DSLAM, G-EPON, 10G-EPON, CMTS  Adding 10G interfaces, and starting to add 40G and 100G interfaces  CMTS: channel bonding yields 200 Mb/s  Google fiber broadband at 1Gb/s  Recent informal survey: 19 of 21 operators planning to skip 40G and move directly to 100G interfaces www.ccpu.com Confidential and Proprietary 6
    • Appliances  Appliances: Good enough for multi-gigabit, even to 10G  Typically carefully tuned x86 with customized accelerated packet capture cards  Biggest Problem: Application creep  Applications and inspection criteria tend to expand over time: can’t guarantee line rate performance with new feature additions  Other issues: Redundancy, Scalability www.ccpu.com Confidential and Proprietary 7
    • 40G Appliances? 100G Appliances?  Don’t bet against Moore’s Law  But not a silver bullet – still have to wait  2013: 40G Appliance  2016: 100G Appliance www.ccpu.com Confidential and Proprietary 8
    • The Solution Today: Bladed Systems  Bladed systems used in Telecom central office deployments for 20 years  Provide scalability, reliability, upgradeability  Proven technology in DPI / LI  80 Gbps traffic shaping system deployed since 2007  10 Gbps network security platform deployed since 2008  40 Gbps network security platform deployed since 2009  10 Gbps LI inspection system deployed since 2008 www.ccpu.com Confidential and Proprietary 9
    • 40/100G www.ccpu.com Load Balancing Load Balancing Switching Switching Load Balanced Load Balanced Load Balanced Load Balanced Flow Identification Flow Identification Packet Processing Flow Processing Packet Identification Flow Processing Packet Identification Packet Processing 100G Bladed DPI: 3 Tier Architectures Filtered Filtered Filtered Filtered Flow Identification Flow Processing PacketIdentification Flow Processing PacketIdentification Flow Analysis Packet Processing Compute Confidential and Proprietary 10
    • 3 Tier Architecture: Switching Packet Processing Packet Identification Packet Processing PacketIdentification Flow Analysis Load Balancing Flow Processing Packet Identification Flow Processing PacketIdentification Load Balanced Filtered Load Balancing Flow Processing Flow Identification Flow Processing Flow Identification Compute Switching Packet Processing Flow Identification Switching Load Balanced Filtered 40/100G Load Balanced Filtered Load Balanced Filtered  Switching layer load balances incoming traffic across payload cards  Apply thousands of rules at full line rate for pre-filtering, classification, packet steering www.ccpu.com Confidential and Proprietary 11
    • 3 Tier Architecture: Packet Processing Packet Processing Packet Identification Packet Processing PacketIdentification Flow Analysis Load Balancing Flow Processing Packet Identification Flow Processing PacketIdentification Load Balanced Filtered Load Balancing Flow Processing Flow Identification Flow Processing Flow Identification Compute Switching Packet Processing Flow Identification Switching Load Balanced Filtered 40/100G Load Balanced Filtered Load Balanced Filtered  Packet Processing card capable of 5-tuple classification, DPI packet inspection for keywords, flow extraction  Capable of classifying packets into millions of flows, and applying individual rules to each flow: drop, mirror, forward www.ccpu.com Confidential and Proprietary 12
    • 3 Tier Architecture: Compute Packet Processing Packet Identification Packet Processing PacketIdentification Flow Analysis Load Balancing Flow Processing Packet Identification Flow Processing PacketIdentification Load Balanced Filtered Load Balancing Flow Processing Flow Identification Flow Processing Flow Identification Compute Switching Packet Processing Flow Identification Switching Load Balanced Filtered 40/100G Load Balanced Filtered Load Balanced Filtered  Compute tier capable of complex data extraction, flow correlation, protocol decode, data storage  Leverages Intel silicon roadmap for cost effective processing capability and huge development ecosystem www.ccpu.com Confidential and Proprietary 13
    • 40/100G www.ccpu.com Load Balancing Load Balancing Switching Switching Load Balanced Load Balanced Load Balanced Load Balanced Flow Identification Flow Identification Packet Processing Flow Processing Packet Identification Flow Processing Packet Identification Packet Processing 100G Bladed DPI: 3 Tier Architectures Filtered Filtered Filtered Filtered Flow Identification Flow Processing PacketIdentification Flow Processing PacketIdentification Flow Analysis Packet Processing Compute Confidential and Proprietary 14
    • Bladed DPI Components  4 components needed for Bladed DPI  x86 Compute Blades  Nothing better for complex flow analysis  Packet Processing Blades  Required for line rate encryption/decryption, IP header manipulation, flow duplication, DPI  Ethernet Switch Fabric  Must support load balancing, complex filtering  Chassis  Multiple sizes needed to support range of capacities www.ccpu.com Confidential and Proprietary 15
    • Introduction to AdvancedTCA™ (ATCA)  Open blade specification created for telecom market  Designed for Central Office Requirements  Reliability – High Available, Easily Serviceable  Capacity – Large boards – high power processors  Bandwidth – Up to 40Gbps/slot – 500Gbps/chassis  200+ PICMG members, dozens of blade vendors  Globally $100M+ of ATCA-focused R&D  Every permutation of CPU (x86, AMD, PowerPC), Packet Processor (RMI, Cavium, IXP), Ethernet switch fabric (Broadcom, Fulcrum), and I/O (1G/10G Ethernet, ATM, SS7, serial)  Blades are designed to interoperate – no vendor lock in  Good economies of scale: ATCA is $1B market www.ccpu.com Confidential and Proprietary 16
    • Typical High-End Next Generation ATCA DPI  FM80 ATCA 40G Fabric Switch  40G Switching to every slot in the backplane  16k TCAM-based rules for pattern matching & ingress processing  Integrated Load Balancing  XE80 Dual 6-core x86 CPU  Dual Westmere 6-Core CPU Up to 64GB DDR3 memory  Dual 10GE Fabric high performance accelerated NIC (TOE, RDMA, iSCSI)  PP80/CV80 – Dual 40G Packet Processors  Flexible Ethernet-based architecture  32GB memory for millions of flow entries www.ccpu.com Confidential and Proprietary 17
    • ATCA Comparison with Bladed Systems  Bladed Systems optimized for Enterprise compute applications  Lots of x86 processors, fairly simple Ethernet switching  ATCA optimized for Telco applications – same reqmts as DPI  Broad array of silicon architectures: x86, PowerPC, Packet Processors, Network Processors, FPGAs, DSPs  High Capacity Flexible I/O  Support for 10G, 40G, 100G Uplinks  Advanced Switch Features  Switch Load Balancing  Switch-based packet pre-filtering and routing  Globally, >$100M R&D focused on ATCA platforms www.ccpu.com Confidential and Proprietary 18
    • Packet Processors vs x86 Blades – Which is better?  Lots of debate in the market: Should DPI be done with packet processors or x86?  x86 vendors say:  Intel roadmap moves faster than anyone else, commodity: very good pricing  Packet Processors vendors say:  Integrated NICs and architecture allows very high packet rates  Integrated encryption/decryption allows line rate security processing  Our answer: Use Both!  x86 blades are best for complex flow analysis, deep correlation, database and reporting  Packet Processors: Packet reception, reassembly, regular expression scanning, application identification  Our experience is that the highest performance systems on the market include both www.ccpu.com Confidential and Proprietary 19
    • System Design Example  Requirements  Capable of monitoring 100G Tapped Interface  Want to monitor up to 1,000 users, with up to 1,000 flows per subscriber: 1M flows total  Want aggregate application decode rate of 10 Gbps www.ccpu.com Confidential and Proprietary 20
    • 100G 100G www.ccpu.com Load Balancing Load Balancing Switching Switching Load Balanced Load Balanced Load Balanced Load Balanced System Design Example Flow Identification Flow Identification Packet Processing Flow Processing Packet Identification Flow Processing Packet Identification Packet Processing Filtered Filtered Filtered Filtered  100G Tapped interface means 200G into system  Need 200G of load balancing capability on switch Flow Identification Flow Processing PacketIdentification Flow Processing PacketIdentification Flow Analysis Packet Processing Compute Confidential and Proprietary 21
    • 40/100G www.ccpu.com Load Balancing Load Balancing Switching Switching Load Balanced Load Balanced Load Balanced Load Balanced System Design Example Flow Identification Flow Identification Packet Processing Flow Processing Packet Identification Flow Processing Packet Identification Packet Processing  Add 1 card as a spare for N+1 redundancy Filtered Filtered Filtered Filtered Flow Identification  Each Flow Identification card can handle 40G traffic Flow Processing PacketIdentification  200G ingress traffic means 5 packet processing cards Flow Processing PacketIdentification Flow Analysis Packet Processing Compute Confidential and Proprietary 22
    • System Design Example Packet Processing Packet Identification Packet Processing PacketIdentification Flow Analysis Load Balancing Flow Processing Packet Identification Flow Processing PacketIdentification Load Balanced Filtered Load Balancing Flow Processing Flow Identification Flow Processing Flow Identification Compute Switching Packet Processing Flow Identification Switching Load Balanced Filtered 40/100G Load Balanced Filtered Load Balanced Filtered  Each Flow Analysis/Decode card can handle 2-5G traffic  Aggregate decode rate of 10G means 5 cards  Add 1 card as a spare for N+1 redundancy  Local Storage: 1TB per card, or use external storage www.ccpu.com Confidential and Proprietary 23
    • Flow Identification www.ccpu.com Packet Processing Flow Identification Packet Processing Flow Identification Packet Processing Flow Identification Packet Processing Flow Identification Packet Processing Flow Identification Packet Processing  Fits into 1/3rd Telco Rack Load Balancing Switching Load Balancing Switching Flow Analysis Compute Flow Analysis Compute Flow Analysis Compute System Architecture: 100G Inspection Flow Analysis Compute Flow Analysis  100G Inspection platform: 200G ingress capacity Compute Flow Analysis Compute Confidential and Proprietary 24
    • Ways to deploy DPI on ATCA 1. Adopt 100% off-the-shelf ATCA hardware, and focus on DPI application Theory: More Differentiation More R&D Investment 2. Adopt ATCA system and develop custom Better Time to Market mezzanine or module to implement hardware “secret sauce” 3. Use ATCA switch, x86 cards, but develop full ATCA blade with specific DPI implementation 4. Use ATCA spec but develop all blades www.ccpu.com Confidential and Proprietary 25
    • CCPU Packet Inspection Platform Capabilities  Packet Inspection at 200+ Gbps per shelf  Mix of dedicated packet processing cards and x86 compute offers ideal blend of quick time-to- deployment and high capacity  Dedicated security engines allow real-time packet decryption at line rate  Supports tapped, inline bump-in-wire or terminated modes www.ccpu.com Confidential and Proprietary 26
    • Summary  ATCA emerging as the preferred architecture for next generation DPI deployments at 40G and 100G  Cost effective, scalable, future-proof www.ccpu.com Confidential and Proprietary 27
    • Thank You Mike Coward www.ccpu.com mike.coward@ccpu.com www.ccpu.com Confidential and Proprietary
