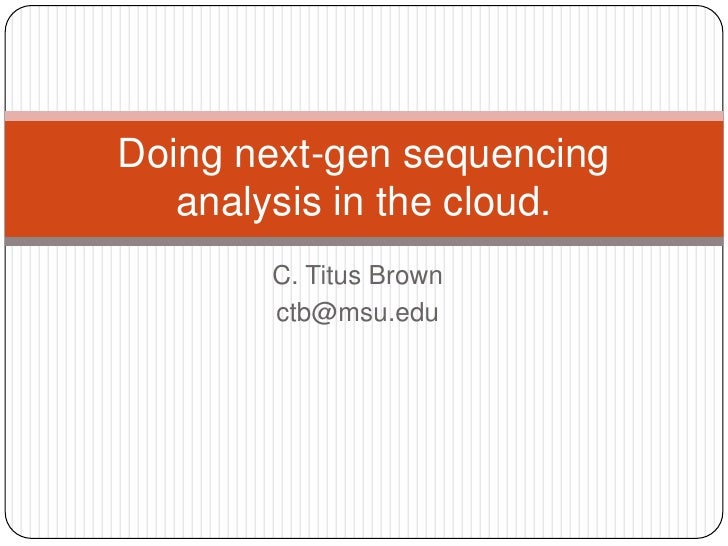

  1. 1. Doing next-gen sequencing analysis in the cloud. C. Titus Brown ctb@msu.edu
  2. 2. AcknowledgementsLab members involved Collaborators Adina Howe (w/Tiedje)  Jim Tiedje, MSU Jason Pell ArendHintze  Billie Swalla, UW RosangelaCanino-  Janet Jansson, LBNL Koning Qingpeng Zhang  Susannah Tringe, JGI Elijah Lowe LikitPreeyanon Funding JiarongGuo Tim Brom USDA NIFA; NSF IOS; KanchanPavangadkar BEACON. Eric McDonald
  3. 3. “Be the change you want to see” We are aggressivelyopen…Everything discussed here: Code: github.com/ged-lab/ ; BSD license Blog: http://ivory.idyll.org/blog („titus brown blog‟) Twitter: @ctitusbrown Grants on Lab Web site: http://ged.msu.edu/interests.html (What‟s a good license??) Preprints: on arXiv, q-bio: „kmer-percolation arxiv‟ „diginormarxiv‟
  4. 4. The data catastrophe! Data set sizes growing faster than compute capacity (esp RAM). Many biological algorithms don‟t scale all that well, anyway. Algorithmically, we want:  Single-pass.  Compression approaches (lossy or otherwise).  Low-memory data structures I, personally, think the last thing in the world we need is another standalone package: pre-filtering approaches. “Run our nifty approaches first, then feed into the
  5. 5. Digital normalization Suppose you have a dilution factor of A (10) to B(1). To get 10x of B you need to get 100x of A! Overkill!! This 100x will consume disk space and, because of errors, memory.
  6. 6. Downsample based on de Bruijngraph structure (which can bederived online)
  7. 7. Digital normalization algorithmfor read in dataset: if median_kmer_count(read) < CUTOFF:update_kmer_counts(read)save(read) else: # discard read Note, single pass; fixed memory.
  8. 8. Digital normalization is efficient &effective • Single pass algorithm • Fixed memory; Algorithmic nerdvana! • Cheaper than assembly; • Reduces assembly time; • Scales assembly memory. Brown et al., in review, PLoS On
  9. 9. Digital normalization removes errors
  10. 10. Shotgun data is often (1) highcoverage and (2) biased in coverage.
  11. 11. …here we discard > 95% of data!
  12. 12. Other key points Virtually identical contigassembly; scaffolding works but is not yet cookie-cutter. Digital normalization changes the way de Bruijn graph assembly scales from the size of your data set to the size of the source sample. Alwayslower memory than assembly: we never collect most erroneous k-mers. Digital normalization can be done once– and then assembly parameter exploration can be done.
  13. 13. Quotable quotes.Comment: “This looks like a great solution for people who can’t afford real computers”. OK, but: “Buying ever bigger computers is a great solution for people who don’t want to think hard.”To be less snide: both kinds of scaling are needed, of course.
  14. 14. Why use diginorm? Use the cloud to assemble any microbial genomes incl. single-cell, many eukaryotic genomes, most mRNAseq, and many metagenomes. Seems to provide leverage on addressing many biological or sample prep problems (single-cell & genome amplification MDA; metagenome; heterozygosity). And, well, the general idea of locus specific graph analysis solves lots of things…
  15. 15. Some interim concludingthoughts Digital normalization-like approaches provide a path to solving the majority of assembly scaling problems, and will enable assembly on current cloud computing hardware.  This is not true for highly diverse metagenome environments…  For soil, we estimate that we need 50 Tbp / gram soil. Sigh. Biologists and bioinformaticianshate:  Throwing away data  Caveats in bioinformatics papers (which reviewers like, note)
  16. 16. Streaming error correction.We can do error trimming of genomic, MDA, transcriptomic, metagenomic data in < 2 passes, fixed memory. We have just submitted a proposal to adapt Euler or Quake-like error correction (e.g. spectral alignment problem) to this framework.
  17. 17. Side note: error correction is thebiggest “data” problem left insequencing. Both for mapping & assembly.
  18. 18. Replication fu In December 2011, I met Wes McKinney on a train and he convinced me that I should look at IPython Notebook. This is an interactive Web notebook for data analysis… Hey, neat! We can use this for replication!  All of our figures can be regenerated from scratch, on an EC2 instance, using a Makefile (data pipeline) and IPython Notebook (figure generation).  Everything is version controlled.  Honestly not much work, and will be less the next time.
  19. 19. So… how‟d that go? People who already cared thought it was nifty. http://ivory.idyll.org/blog/replication-i.html Almost nobody else cares ;(  Presub enquiry to editor: “Be sure that your paper can be reproduced.” Uh, please read my letter to the end?  “Could you improve your Makefile? I want to reimplementdiginorm in another language and reuse your pipeline, but your Makefile is a mess.” Incredibly useful, nonetheless. Already part of undergraduate and graduate training in my lab; helping us and others with next parpes; etc. etc. etc. Life is way too short to waste on unnecessarily replicating your own workflows, much less other people’s.
  20. 20. AcknowledgementsLab members involved Collaborators Adina Howe (w/Tiedje)  Jim Tiedje, MSU Jason Pell ArendHintze  Billie Swalla, UW RosangelaCanino-  Janet Jansson, LBNL Koning Qingpeng Zhang  Susannah Tringe, JGI Elijah Lowe LikitPreeyanon Funding JiarongGuo Tim Brom USDA NIFA; NSF IOS; KanchanPavangadkar BEACON. Eric McDonald
  21. 21. Advertisement! Qingpeng Zhang (QP) will talk about our very useful „khmer‟ software for efficiently counting k- mers. Want a simple Python lib for reading & indexing FASTA/FASTQ? Check out screed. “Better science through superior software.”
  22. 22. AdvertisementPanel on “Should we have voluntary review standards for bioinformatics?” Tomorrow, 4:30pm.
  23. 23. We are aggressivelyopenEverything discussed here: Code: github.com/ged-lab/ ; BSD license Blog: http://ivory.idyll.org/blog („titus brown blog‟) Twitter: @ctitusbrown Grants on Lab Web site: http://ged.msu.edu/interests.html (What‟s a good license??) Preprints: on arXiv, q-bio: „kmer-percolation arxiv‟ „diginormarxiv‟

×
