  • Web maps

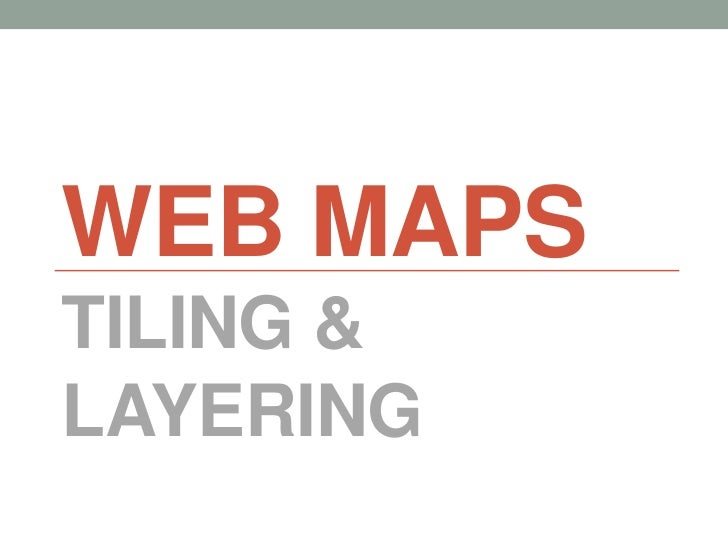

    1. 1. WEB MAPSTILING &LAYERING
    2. 2. Background• Maps as fundamental as<video>?• Growth in mobile → more maps?• Apple entering map space
    3. 3. What’s the problem?• Current systems are closed• Limited facility for: • Offline access • Ad-hoc sharing • Mash-up data• Web should be: • “de-centralized, simple, cooperative” • “autonomous, distributed, cooperative”• Need for open approach • KML just annotation within maps (POI) • GML is XML Schema based, non-trivial
    4. 4. Disaster relief
    5. 5. What’s the problem?• Current systems are closed• Limited facility for: • Offline access • Ad-hoc sharing • Mash-up data• Web should be: • “de-centralized, simple, cooperative” • “autonomous, distributed, cooperative”• Need for open approach • KML just annotation within maps (POI) • GML is XML Schema based, non-trivial
    6. 6. Source: https://www.w3.org/2011/Talks/kddi-201111.pdf
    7. 7. What is needed for maps in SVG?• Tiling and layering• Non-scaling stroke• Shared paths• Fixed-size objects• Non-linear transformations• UI features• API features
    8. 8. Tiling and layering • HyperlinksSource: http://www.w3.org/Submission/2011/SUBM-SVGTL-20110607/#Tiling
    9. 9. Cascading containersSource: http://www.w3.org/Submission/2011/SUBM-SVGTL-20110607/#Tiling
    10. 10. Container file<svg xmlns="http://www.w3.org/2000/svg" viewBox="20 110 120 85"> <globalCoordinateSystem srsName="http://purl.org/crs/84" transform="matrix(15.3631,0.0,0.0,-18.6994,-1889.2916,849.9202)"/> <animation x="0" y="0" width="100" height="70" xlink:href="0_0.svg"/> <animation x="100" y="0" width="100" height="70" xlink:href="1_0.svg"/> <animation x="200" y="0" width="100" height="70" xlink:href="2_0.svg"/> <animation x="0" y="70" width="100" height="70" xlink:href="0_1.svg"/> <animation x="100" y="70" width="100" height="70" xlink:href="1_1.svg"/> <animation x="200" y="70" width="100" height="70" xlink:href="2_1.svg"/> <animation x="0" y="140" width="100" height="70" xlink:href="0_2.svg"/> <animation x="100" y="140" width="100" height="70" xlink:href="1_2.svg"/> <animation x="200" y="140" width="100" height="70" xlink:href="2_2.svg"/></svg>
    11. 11. <globalCoordinateSystem> <globalCoordinateSystem srsName="http://purl.org/crs/84" transform="matrix(15.3631,0.0,0.0,-18.6994,-1889.2916,849.9202)"/>
    12. 12. LayeringSource: http://www.w3.org/Submission/2011/SUBM-SVGTL-20110607/#Layering
    13. 13. Min & max zoom<svg> <circle cy="100" cy="100" visibleMinZoom="100" visibleMaxZoom="200"/></svg>
    14. 14. Applicability beyond maps• Medical imagery?• Large images in general (c.f. SVG 1.2Fs multires proposal)• Building blueprints?• Games?
    15. 15. What is needed for maps in SVG?• Tiling and layering• Non-scaling stroke ✓• Shared paths – SVG 2?• Fixed-size objects – transform-ref? SVG 2?• Non-linear transformations ו UI features• API features
    16. 16. UI features• Built-in map controls ו Programming-less geolocation ו SVG views with geographic coords ? • Media frag? xywh=degree:lng,lat,w,h ?
    17. 17. API features• API for smooth transition action of zooming, panning, rotating• Transformation functions between global/geospatial coordinate systems and user/viewport coordinate systems• DOM access API for cascading SVG documents • i.e. SVGTileElement.contentDocument/contentWindow
    18. 18. Resources• Spec: http://ww.w3.org/Submission/2011/SUBM-SVGTL- 20110607/• Offline Web Applications for Disaster Relief - http://www.w3.org/2011/web-apps-ws/papers/KDDI.html• Presentations by Takagi-san: • https://www.w3.org/2011/Talks/kddi-201111.pdf • http://www.slideshare.net/totipalmate/proposal-of-svg-map- 8157601
