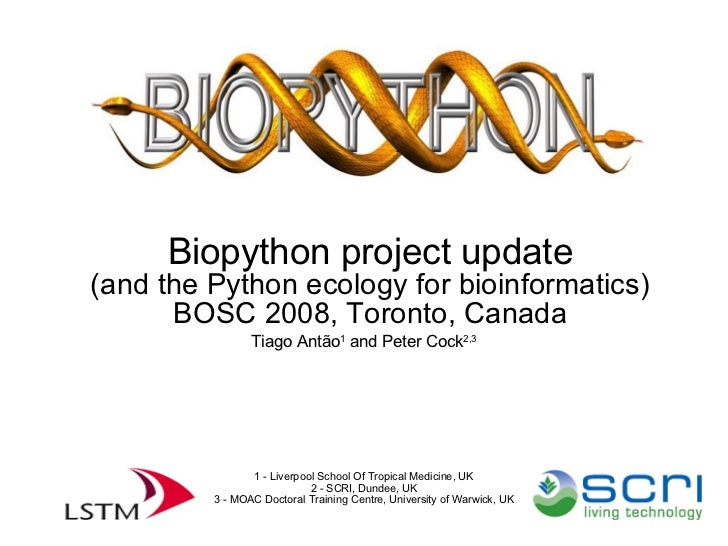

Biopython project update (and the Python ecology for bioinformatics)‏ BOSC 2008, Toronto, Canada‏ Tiago Antão 1  and Peter...
Credits and caveats <ul><li>Open Bioinformatics Foundation or O|B|F for web hosting, CVS servers, mailing list </li></ul><...
Overview <ul><li>Python </li></ul><ul><li>Biopython </li></ul><ul><li>The Python ecology for bioinformatics </li></ul><ul>...
Python <ul><li>High-level, OO, free software (the usual goodies)‏ </li></ul><ul><li>Cultural traits of the Python communit...
Biopython Available features <ul><li>Read, write & manipulate sequences </li></ul><ul><li>Restriction enzymes </li></ul><u...
Bio.Entrez Examples <ul><li>Searching the taxonomy database </li></ul><ul><li>Fetch the species lineage </li></ul>> from B...
Bio.AlignIO <ul><li>File format agnostic </li></ul><ul><li>Reads and writes: PFAM/Stockholm, Clustal (strict),  PHYLIP and...
Bio.PopGen <ul><li>Philosophy: Don't reinvent the wheel if there are good alternatives around </li></ul><ul><li>Mainly a (...
Bio.PopGen Future and Alternatives <ul><li>PopGen Statistics (Fst, LD, EHH, Tajima D, HWE, ...) - Stalled for now, still n...
Jython and IronPython Interacting with your favourite VM <ul><li>Biopython can be partially used inside JVM and .NET envir...
Biopython on Java <ul><li>Example applications from Bio.PopGen </li></ul>Coalescent simulation Molecular adaptation detect...
Biopython Wrapping up <ul><li>Contributions welcomed </li></ul><ul><ul><li>Code, documentation, bug reporting </li></ul></...
Matplotlib Easy and powerful charting <ul><li>Easy to use </li></ul><ul><li>Documentation, including cookbooks </li></ul><...
Matplotlib GC-percentage example <ul><li>Zoom, save built-in on show </li></ul><ul><li>Straightforward code (judge for you...
Matplotlib - 3D <ul><li>User controlled 3D interface included (zoom, rotation, ...)‏ </li></ul><ul><li>Full code shown abo...
NumPy and SciPy <ul><li>N-dimensional arrays </li></ul><ul><li>Basic linear algebra functions </li></ul><ul><li>Basic Four...
Other applications and libraries <ul><li>SWIG – C/C++ interaction </li></ul><ul><li>Zope, Django and many other web framew...
Questions?
Upcoming SlideShare
Loading in...5
×

Antao Biopython Bosc2008

1,392

Published on

Published in: Technology, Education
0 Comments
0 Likes
Statistics
Notes
  • Be the first to comment

  • Be the first to like this

No Downloads
Views
Total Views
1,392
On Slideshare
0
From Embeds
0
Number of Embeds
0
Actions
Shares
0
Downloads
24
Comments
0
Likes
0
Embeds 0
No embeds

No notes for slide

Transcript of "Antao Biopython Bosc2008"

  1. 1. Biopython project update (and the Python ecology for bioinformatics)‏ BOSC 2008, Toronto, Canada‏ Tiago Antão 1 and Peter Cock 2,3 1 - Liverpool School Of Tropical Medicine, UK 2 - SCRI, Dundee, UK 3 - MOAC Doctoral Training Centre, University of Warwick, UK
  2. 2. Credits and caveats <ul><li>Open Bioinformatics Foundation or O|B|F for web hosting, CVS servers, mailing list </li></ul><ul><li>Biopython developers, including: Jeff Chang, Andrew Dalke, Brad Chapman, Iddo Friedberg, Michiel de Hoon, Frank Kauff, Cymon Cox, Thomas Hamelryck, Peter Cock </li></ul><ul><li>Contributors who report bugs & join in the mailing list discussions </li></ul><ul><li>Caveat: The person in front of you minor author (new population genetics module)‏ </li></ul>
  3. 3. Overview <ul><li>Python </li></ul><ul><li>Biopython </li></ul><ul><li>The Python ecology for bioinformatics </li></ul><ul><ul><li>Matplotlib </li></ul></ul><ul><ul><li>NumPy and SciPy </li></ul></ul><ul><ul><li>Jython/IronPython </li></ul></ul><ul><ul><li>...Python as a complete solution for computational biology research </li></ul></ul>
  4. 4. Python <ul><li>High-level, OO, free software (the usual goodies)‏ </li></ul><ul><li>Cultural traits of the Python community (applies to both the core language and many Python projects) – The Python ethos </li></ul><ul><ul><li>Smooth learning curve – powerful yet tamable by new users </li></ul></ul><ul><ul><li>Focus on readability, maintainability </li></ul></ul><ul><ul><li>Good documentation </li></ul></ul><ul><ul><li>Examples will follow </li></ul></ul>
  5. 5. Biopython Available features <ul><li>Read, write & manipulate sequences </li></ul><ul><li>Restriction enzymes </li></ul><ul><li>BLAST (local and online)‏ </li></ul><ul><li>Web databases (e.g. NCBI’s EUtils)‏ </li></ul><ul><li>Call command line tools (e.g. clustalw)‏ </li></ul><ul><li>Clustering (Bio.Cluster)‏ </li></ul><ul><li>Phylogenetics (Bio.Nexus)‏ </li></ul><ul><li>Protein Structures (Bio.PDB)‏ </li></ul><ul><li>Bio.SQL support </li></ul><ul><li>Population genetics (Bio.PopGen) – New module </li></ul>
  6. 6. Bio.Entrez Examples <ul><li>Searching the taxonomy database </li></ul><ul><li>Fetch the species lineage </li></ul>> from Bio import Entrez > handle = Entrez.esearch( db=&quot;Taxonomy&quot;, term=&quot;Nanoarchaeum equitans&quot;)‏ > record = Entrez.read(handle) #parse XML > record[&quot;IdList&quot;] ['158330'] > handle = Entrez.efetch( db=&quot;Taxonomy&quot;, id=&quot;158330&quot;, retmode='xml')‏ > records = Entrez.read(handle) > records[0]['Lineage'] 'cellular organisms; Archaea; Nanoarchaeota; Nanoarchaeum' <ul><li>Entrez interface supports all the API functions </li></ul><ul><li>Will convert the XML output to typical Python structures </li></ul>
  7. 7. Bio.AlignIO <ul><li>File format agnostic </li></ul><ul><li>Reads and writes: PFAM/Stockholm, Clustal (strict), PHYLIP and FASTA </li></ul><ul><li>Also reads several formats including NEXUS </li></ul>> from Bio import AlignIO > alignment = AlignIO.read(open(&quot;PF09395_seed.sth&quot;),&quot;stockholm&quot;)‏ > print alignment SingleLetterAlphabet() alignment with 14 rows and 77 columns GFGTYCPTTCGVADYLQRYKPDMDKKLDDMEQDLEEIANLTRGA...NML Q7ZVG7_BRARE/37-110 ... RFGSYCPTTCGIADFLSTYQTXVDKDLQVLEDILNQAENKTSEA...KML O02689_TAPIN/1-77 RFGSYCPTMCGIAGFLSTYQNTVEKDLQNLEGILHQVENKTSEA...KML O02688_PIG/1-77 RFGSYCPTTCGVADFLSNYQTSVDKDLQNLEGILYQVENKTSEA...RMM O02672_9CETA/1-77 RFGSYCPTTCGIADFLSNYQTSVDKDLQDFEDILHRAENQTSEA...KMM O02682_EQUPR/1-77
  8. 8. Bio.PopGen <ul><li>Philosophy: Don't reinvent the wheel if there are good alternatives around </li></ul><ul><li>Mainly a (smart) wrapper for existing applications </li></ul><ul><ul><li>SimCoal2 for coalescent, Fdist for selection detection </li></ul></ul><ul><ul><li>LDNe (Ne estimation) coming soon </li></ul></ul><ul><li>Supports GenePop file format (standard in the “industry”)‏ </li></ul><ul><li>Multi-core aware! Even includes a naïve task scheduler </li></ul>
  9. 9. Bio.PopGen Future and Alternatives <ul><li>PopGen Statistics (Fst, LD, EHH, Tajima D, HWE, ...) - Stalled for now, still not clear how to handle statistics (using SciPy or replicate code to avoid adding another dependency)‏ </li></ul><ul><li>Other Python solutions for population genetics </li></ul><ul><ul><li>SimuPOP for individual based simulation </li></ul></ul><ul><ul><li>PyPop for some statistics </li></ul></ul><ul><ul><li>Bio.PopGen + PyPop + SimuPOP = Python's solution to (most) population genetics problems </li></ul></ul>
  10. 10. Jython and IronPython Interacting with your favourite VM <ul><li>Biopython can be partially used inside JVM and .NET environments </li></ul><ul><li>Only parts of Biopython available (functionality that links to C code will not work)‏ </li></ul><ul><li>On JVM, BioJava might be a better option... </li></ul><ul><li>Most applications done with Bio.PopGen are actually JavaWebStart Applications </li></ul>Different approaches BioJava – Construct algorithms BioPython – Solve users problems Complementary?
  11. 11. Biopython on Java <ul><li>Example applications from Bio.PopGen </li></ul>Coalescent simulation Molecular adaptation detection using a Fst-outlier approach
  12. 12. Biopython Wrapping up <ul><li>Contributions welcomed </li></ul><ul><ul><li>Code, documentation, bug reporting </li></ul></ul><ul><li>Suggestions welcomed </li></ul><ul><ul><li>What functionality would you like to see? </li></ul></ul><ul><li>Short term goals </li></ul><ul><ul><li>Moving to Subversion </li></ul></ul><ul><ul><li>Supporting more file formats in Bio.SeqIO and Bio.AlignIO </li></ul></ul><ul><ul><li>Numeric to numpy migration </li></ul></ul><ul><ul><li>Make Sequence objects more String and OO </li></ul></ul>
  13. 13. Matplotlib Easy and powerful charting <ul><li>Easy to use </li></ul><ul><li>Documentation, including cookbooks </li></ul><ul><li>Sensible defaults </li></ul><ul><li>Powerful visualization aids </li></ul>
  14. 14. Matplotlib GC-percentage example <ul><li>Zoom, save built-in on show </li></ul><ul><li>Straightforward code (judge for yourself, all code is left)‏ </li></ul>from Bio import SeqIO from Bio.SeqUtils import GC from pylab import * data = [GC(rec.seq) for rec in SeqIO.parse( open(&quot;NC_005213.ffn&quot;),&quot;fasta&quot;)‏ ] data.sort()‏ plot(data)‏ xlim([0,len(data)])‏ xlabel(&quot;Genes&quot;)‏ ylabel(&quot;GC%&quot;)‏ savefig(&quot;gc_plot.png&quot;)‏ show()‏
  15. 15. Matplotlib - 3D <ul><li>User controlled 3D interface included (zoom, rotation, ...)‏ </li></ul><ul><li>Full code shown above the image </li></ul><ul><li>3D undergoing changes in matplotlib </li></ul>u=r_[0:2*pi:100j] v=r_[0:pi:100j] x=10*outer(cos(u),sin(v))‏ y=10*outer(sin(u),sin(v))‏ z=10*outer(ones(size(u)),cos(v))‏ fig=p.figure()‏ ax = p3.Axes3D(fig)‏ ax.contour3D(x,y,z)‏ ax.set_xlabel('X')‏ ax.set_ylabel('Y')‏ ax.set_zlabel('Z')‏ fig.add_axes(ax)‏ p.show()‏
  16. 16. NumPy and SciPy <ul><li>N-dimensional arrays </li></ul><ul><li>Basic linear algebra functions </li></ul><ul><li>Basic Fourier transforms </li></ul><ul><li>Sophisticated random number capabilities </li></ul><ul><li>Statistics </li></ul><ul><li>Optimization </li></ul><ul><li>Numerical integration </li></ul><ul><li>Linear algebra </li></ul><ul><li>Fourier transforms </li></ul><ul><li>Signal processing </li></ul><ul><li>Image processing </li></ul><ul><li>Genetic algorithms </li></ul><ul><li>ODE solvers </li></ul>
  17. 17. Other applications and libraries <ul><li>SWIG – C/C++ interaction </li></ul><ul><li>Zope, Django and many other web frameworks </li></ul><ul><li>Plone – Content Management </li></ul><ul><li>ReportLab – PDF generation (used in biopython)‏ </li></ul><ul><li>MPI for Python – Parallel programming </li></ul><ul><li>SymPy – Symbolic Mathematics </li></ul><ul><li>Python/R interface (e.g. microarrays)‏ </li></ul><ul><li>Pygr – Graph database interfaces with emphasis on bioinformatics </li></ul><ul><li>PysCeS – Simulation of cellular systems </li></ul><ul><li>SloppyCell – Simulation and analysis of biomolecular networks </li></ul><ul><li>... </li></ul>
  18. 18. Questions?
