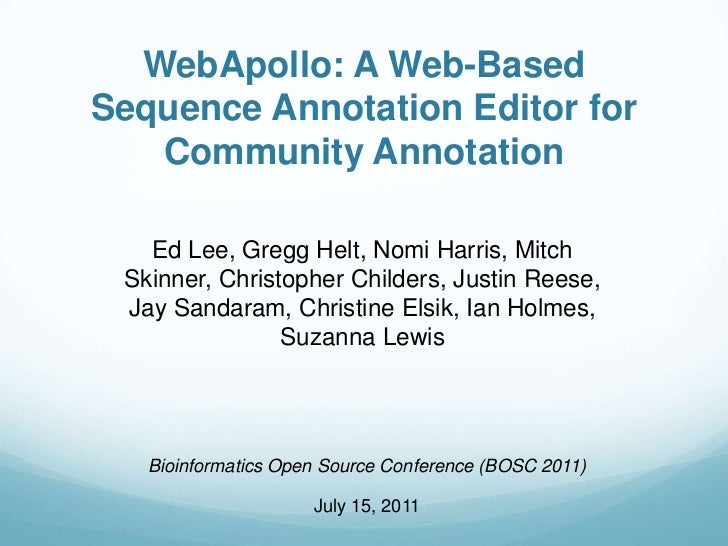

WebApollo: A Web-Based Sequence Annotation Editor for Community Annotation<br />Ed Lee, Gregg Helt, Nomi Harris, Mitch Ski...
“Old” Apollo<br />Popular open source genome annotation editing tool<br />Lets biologists view computational analyses and ...
In The Old Days<br />Users had to download and install Apollo<br />Annotations saved locally in flat files<br />Sharing do...
Apollo in the Old Days<br />(Flat file)<br />
Starting To Get Better<br />Annotations saved directly to a centralized database<br />Edits made by other users not visibl...
Starting To Get Better<br />
WebApollo:Collaborative Annotation<br />Web-based (runs in browser)<br />No software download required<br />Annotations sa...
WebApollo Framework<br />
Web-based Client<br />Uses JBrowse<br />Javascript annotation browser<br />Fast<br />Highly interactive<br />WebApollo ext...
Multiple Client Synchronization<br />Comet model<br />Server pushes annotation updates to all clients in real time<br />
Annotation Editing Engine<br />Java<br />Handles all the logic for editing<br />Edits stored persistently in the server<br...
Enabling WebApollo to access as many types of genomic data as possible<br />Efficient access to public data from UCSC, Ens...
Trellis<br />Trellis Framework Servlet<br />PokaPlugin<br />JBrowse JSON Plugin<br />WebApollo Client<br />DAS Data Model<...
WebApollo Demo<br />Try it yourself:                                               http://icebox.lbl.gov:8080/ApolloWebDem...
Source Code(BSD License)<br />Client source code<br />https://github.com/berkeleybop/jbrowse<br />Annotation editing engin...
Acknowledgements<br />LBNL<br />Ed Lee<br />Gregg Helt<br />Nomi Harris<br />Suzanna Lewis<br />UC Berkeley<br />Mitch Ski...
