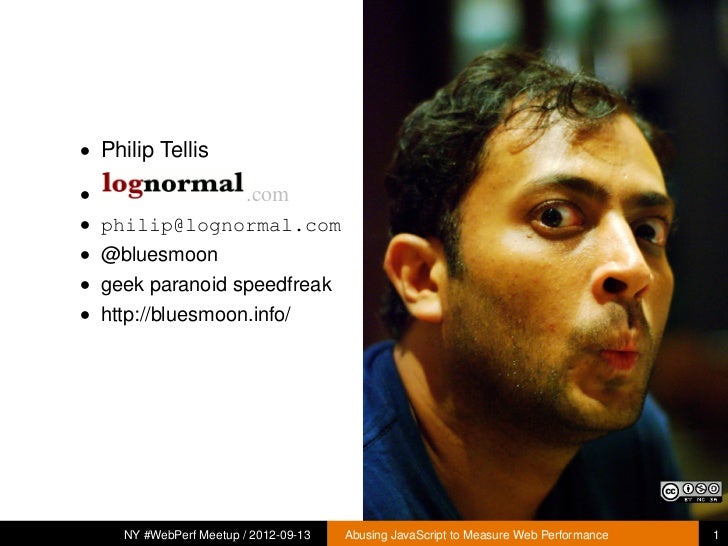

• Philip Tellis•                        .com• philip@lognormal.com• @bluesmoon• geek paranoid speedfreak• http://bluesmoon...
I <3 JavaScriptNY #WebPerf Meetup / 2012-09-13   Abusing JavaScript to Measure Web Performance   2
So much that I wore Mustache socks to my wedding        NY #WebPerf Meetup / 2012-09-13   Abusing JavaScript to Measure We...
I’m a Speedfreak (the network kind)NY #WebPerf Meetup / 2012-09-13   Abusing JavaScript to Measure Web Performance   4
We measure real user website performanceNY #WebPerf Meetup / 2012-09-13   Abusing JavaScript to Measure Web Performance   5
This talk is (mostly) about how we abuse JavaScript to do it    NY #WebPerf Meetup / 2012-09-13   Abusing JavaScript to Me...
Abusing JavaScript to Measure Web            Performance       Philip Tellis / philip@lognormal.com           NY #WebPerf ...
First, a note about the code                      Note that in the code that follows,                                     ...
1                           LatencyNY #WebPerf Meetup / 2012-09-13   Abusing JavaScript to Measure Web Performance   9
Arrange the following in order of increasing signal latency overa fixed distance:  • Electricity through copper  • Smoke Si...
1 Blinking Lights        It takes about 16ms for light to get from SF to NYC                       (24ms through fibre)    ...
1 Blinking Lights        It takes about 16ms for light to get from SF to NYC                       (24ms through fibre)    ...
1 HTTP         NY #WebPerf Meetup / 2012-09-13   Abusing JavaScript to Measure Web Performance   12
So to measure latency, we need to send 1 packet each way, and                           time it     NY #WebPerf Meetup / 2...
1   Network latency in JavaScript      var ts, rtt, img = new Image;      img.onload=function() { rtt=(+new Date - ts) }; ...
1 Notes    • 1x1 gif is 35 bytes    • including HTTP headers, is smaller than a TCP packet    • Fires onload on all browse...
2                TCP handshakeNY #WebPerf Meetup / 2012-09-13   Abusing JavaScript to Measure Web Performance   16
2 ACK-ACK-ACK      NY #WebPerf Meetup / 2012-09-13   Abusing JavaScript to Measure Web Performance   17
2 Connection: keep-alive        NY #WebPerf Meetup / 2012-09-13   Abusing JavaScript to Measure Web Performance   18
2   Network latency & TCP handshake in JavaScript    var t=[], tcp, rtt;    var ld = function() {        t.push(+new Date)...
Notice that we’ve ignored DNS lookup time here... how would                      you measure it?     NY #WebPerf Meetup / ...
Network Throughput                            3NY #WebPerf Meetup / 2012-09-13   Abusing JavaScript to Measure Web Perform...
3 Measuring Network Throughput                                   data_length                                  download_tim...
Should you fly a 747 or a 737?       • A 747 seats 400+ passengers       • A 737 seats about 150       • Both take about th...
3   Network Throughput in JavaScript    // Assume global object    // image={ url: ..., size: ... }    var ts, rtt, bw, im...
3 Measuring Network Throughput       If it were that simple, I wouldn’t be doing this talk.        NY #WebPerf Meetup / 20...
3 TCP Slow Start        NY #WebPerf Meetup / 2012-09-13   Abusing JavaScript to Measure Web Performance   26
3 Measuring Network Throughput   So to make the best use of bandwidth, we need resources that fit                         i...
3 There is no single size that will tax all available networks   http://www.yuiblog.com/blog/2010/04/08/analyzing-bandwidt...
3   Network Throughput in JavaScript – Take 2    // image object is now an array of multiple images    var i=0;    var ld ...
3 Measuring Network Throughput        Slow network connection, meet really huge image        NY #WebPerf Meetup / 2012-09-...
3   Network Throughput in JavaScript – Take 3       var img = new Image;       img.onload = ld;       image[i].start = +ne...
3   Network Throughput in JavaScript – Take 3    if(i>0) {       image[i-1].end = +new Date;       clearTimeout(image[i-1]...
3   Network Throughput in JavaScript – Take 3    if(i >= image.length          || (i > 0 && image[i-1].expired)) {       d...
3 Measuring Network Throughput                                  Are we done yet?        NY #WebPerf Meetup / 2012-09-13   ...
3 Measuring Network Throughput                                  Are we done yet?                                      sure...
3 Measuring Network Throughput    Except network throughput is different every time you test it        NY #WebPerf Meetup ...
Statistics to the Rescueflickr/sophistechate/4264466015/                    NY #WebPerf Meetup / 2012-09-13   Abusing JavaS...
3 Measuring Network Throughput            The code for that is NOT gonna fit on a slide        NY #WebPerf Meetup / 2012-09...
But this is sort of what we see world-wide         NY #WebPerf Meetup / 2012-09-13   Abusing JavaScript to Measure Web Per...
And it’s different for different countries   This is India          NY #WebPerf Meetup / 2012-09-13   Abusing JavaScript t...
4     DNSNY #WebPerf Meetup / 2012-09-13    Abusing JavaScript to Measure Web Performance   40
4 Measuring DNS                time_with_dns − time_without_dns       NY #WebPerf Meetup / 2012-09-13   Abusing JavaScript...
4   Measuring DNS in JavaScript    var t=[], dns, ip, hosts=[’http://hostname.com/’,                               ’http:/...
4 Measuring DNS    • What if the IP changes?    • What if DNS is cached?    • What if you map DNS based on geo location?  ...
4   Wildcard DNS Entries                             *.foo.com → IP address         NY #WebPerf Meetup / 2012-09-13   Abus...
4   Measuring DNS in JavaScript – take 2    var base_url="http://*.foo.com/",        timers = {}, gen_url="";    function ...
4   Measuring DNS in JavaScript – take 2    function A_loaded() {      var cache_bust = Math.random(),          img = new ...
4 Measuring DNS                Full code in boomerang’s DNS plugin       NY #WebPerf Meetup / 2012-09-13   Abusing JavaScr...
5     IPv6NY #WebPerf Meetup / 2012-09-13    Abusing JavaScript to Measure Web Performance   48
5 Measuring IPv6 support and latency    1   Try to load image from IPv6 host          • If timeout or error, then no IPv6 ...
5 Measuring IPv6 support and latency                  Full code in boomerang’s IPv6 plugin                       Note, onl...
6                       Other StuffNY #WebPerf Meetup / 2012-09-13   Abusing JavaScript to Measure Web Performance   51
6   Other Stuff We Measure     • NavTiming – navtiming.js     • navigation.connection.type – mobile.js     • window.perfor...
And we try to do it fastNY #WebPerf Meetup / 2012-09-13   Abusing JavaScript to Measure Web Performance   53
–                            .done()NY #WebPerf Meetup / 2012-09-13   Abusing JavaScript to Measure Web Performance   54
Code/References    • http://lognormal.github.com/boomerang/doc/      (BSD Licensed)    • www.lognormal.com        NY #WebP...
• Philip Tellis•                        .com• philip@lognormal.com• @bluesmoon• geek paranoid speedfreak• http://bluesmoon...
Thank you                   Ask me about a discount codeNY #WebPerf Meetup / 2012-09-13   Abusing JavaScript to Measure We...
