Advanced 10mm rigidpvc(1)

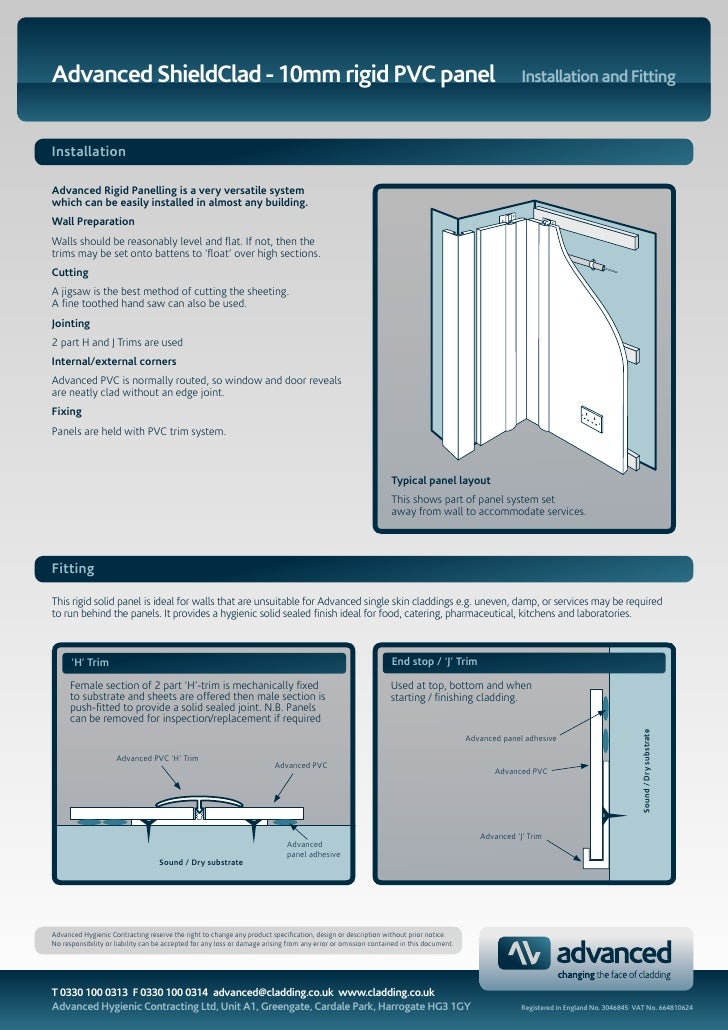

  1. 1. Advanced ShieldClad - 10mm rigid PVC panel Installation and Fitting Installation Advanced Rigid Panelling is a very versatile system which can be easily installed in almost any building. Wall Preparation Walls should be reasonably level and flat. If not, then the trims may be set onto battens to ‘float’ over high sections. Cutting A jigsaw is the best method of cutting the sheeting. A fine toothed hand saw can also be used. Jointing 2 part H and J Trims are used Internal/external corners Advanced PVC is normally routed, so window and door reveals are neatly clad without an edge joint. Fixing Panels are held with PVC trim system. Typical panel layout This shows part of panel system set away from wall to accommodate services. Fitting This rigid solid panel is ideal for walls that are unsuitable for Advanced single skin claddings e.g. uneven, damp, or services may be required to run behind the panels. It provides a hygienic solid sealed finish ideal for food, catering, pharmaceutical, kitchens and laboratories. ‘H’ Trim End stop / ‘J’ Trim Female section of 2 part ‘H’-trim is mechanically fixed Used at top, bottom and when to substrate and sheets are offered then male section is starting / finishing cladding. push-fitted to provide a solid sealed joint. N.B. Panels can be removed for inspection/replacement if required Sound / Dry substrate Advanced panel adhesive Advanced PVC ‘H’ Trim Advanced PVC Advanced PVC Advanced ‘J’ Trim Advanced panel adhesive Sound / Dry substrate Advanced Hygienic Contracting reserve the right to change any product specification, design or description without prior notice. No responsibility or liability can be accepted for any loss or damage arising from any error or omission contained in this document. T 0330 100 0313 F 0330 100 0314 advanced@cladding.co.uk www.cladding.co.uk Advanced Hygienic Contracting Ltd, Unit A1, Greengate, Cardale Park, Harrogate HG3 1GY Registered in England No. 3046845 VAT No. 664810624
  2. 2. Advanced ShieldClad - 10mm rigid PVC panel Installation and Fitting Fitting Internal / External corners Window / Door openings Most cladding is fabricated on site and angles are carefully routed to give a smooth, easy to clean strong finish. Advanced ‘J’ Trim Advanced PVC Internal / External routed angles Advanced PVC Foodsafe silicone sealant Sound / Dry substrate Advanced panel adhesive Resin floor detail Quarry tile floor detail Panel set off wall Sound / Dry Advanced PVC Advanced PVC substrate Battens Advanced ‘J’ Trim Advanced ‘J’ Trim Foodsafe silicone Foodsafe silicone sealant sealant Sound / Dry substrate Sound / Dry substrate Resin Quarry tile skirting Advanced PVC Minimum ‘H’ Trim 100mm self cove Advanced PVC This allows services to be run behind panels Quarry tile and sockets mounted on panel face Advanced Hygienic Contracting reserve the right to change any product specification, design or description without prior notice. No responsibility or liability can be accepted for any loss or damage arising from any error or omission contained in this document. T 0330 100 0313 F 0330 100 0314 advanced@cladding.co.uk www.cladding.co.uk Advanced Hygienic Contracting Ltd, Unit A1, Greengate, Cardale Park, Harrogate HG3 1GY Registered in England No. 3046845 VAT No. 664810624

×
