ADAPTING TO THE CONTROLLOGIX PLC<br />These are sample slides from presentation for upcoming 2010 ControlLogix PLC/PAC Sem...
Total number of elements  = 3<br />Total number of elements   2 * 4 = 8<br />For an array with two dimensions, <br />tag_n...
Total number of elements  2 * 4 * 3 = 24<br />For an array with three dimensions :tag_name[subscript_0, subscript_1, subsc...
For more Industrial Training …<br />Go To www.BIN95.com today<br />Copyright 2009 Business Industrial Network www.BIN95.co...
Upcoming SlideShare
Loading in...5
×

ControlLogix RSLogix 5000 Array

6,692

Published on

A few slides from our ControlLogix - RSLogix 5000 training. These on memory arrays (tags)

0 Comments
0 Likes
Statistics
Notes
  • Be the first to comment

  • Be the first to like this

No Downloads
Views
Total Views
6,692
On Slideshare
0
From Embeds
0
Number of Embeds
0
Actions
Shares
0
Downloads
0
Comments
0
Likes
0
Embeds 0
No embeds

No notes for slide
  • WIP: Slides from new ControlLogix Seminar coming up in 2010. See www.BIN95.com for ControlLogix PAC/PLC training.(Instructor’s notes, tips and reference is usually located here.)
  • Customers received full ControlLogix PowerPoint copy with Instructor’s notes, tips and references located in this are. (Software above used to show addressing memory Array in ControlLogix PAC is RSLogix 5000 by Rockwell / Allen Bradley.
  • Transcript of "ControlLogix RSLogix 5000 Array"

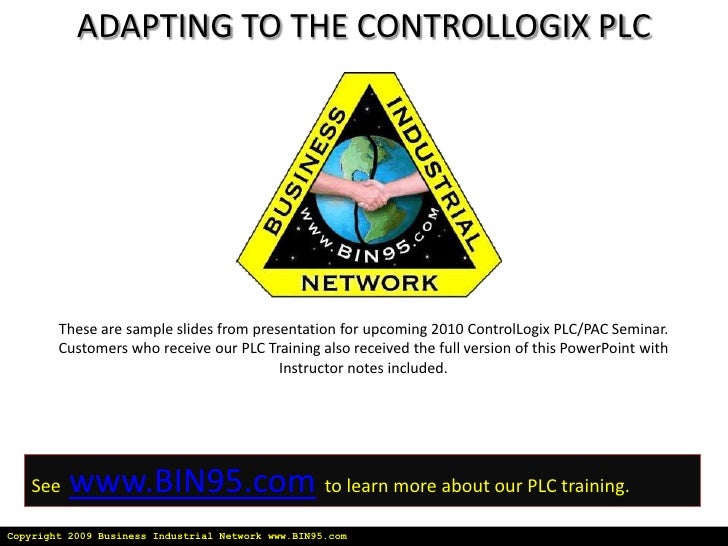

    1. 1. ADAPTING TO THE CONTROLLOGIX PLC<br />These are sample slides from presentation for upcoming 2010 ControlLogix PLC/PAC Seminar. Customers who receive our PLC Training also received the full version of this PowerPoint with Instructor notes included.<br />Seewww.BIN95.comto learn more about our PLC training.<br />Copyright 2009 Business Industrial Network www.BIN95.com<br />
