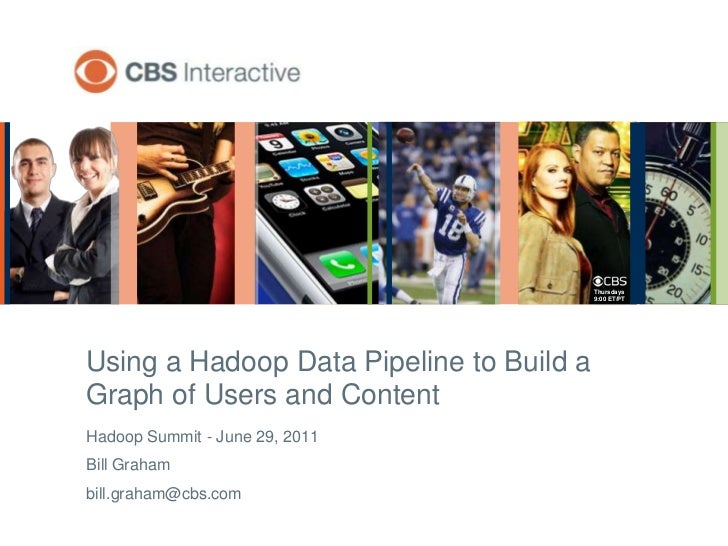

    1. 1. Using a Hadoop Data Pipeline to Build a Graph of Users and Content <br />Hadoop Summit - June 29, 2011<br />Bill Graham<br />bill.graham@cbs.com<br />
    2. 2. About me<br />Principal Software Engineer<br />Technology, Business & News BU (TBN)<br />TBN Platform Infrastructure Team<br />Background in SW Systems Engineering and Integration Architecture<br />Contributor: Pig, Hive, HBase<br />Committer: Chukwa<br />
    3. 3. About CBSi – who are we?<br />ENTERTAINMENT <br />GAMES & MOVIES <br />SPORTS<br />TECH, BIZ & NEWS <br />MUSIC<br />
    4. 4. About CBSi - scale<br />Top 10 global web property<br />235M worldwide monthly uniques1<br />Hadoop Ecosystem<br />CDH3, Pig, Hive, HBase, Chukwa, Oozie, Sqoop, Cascading<br />Cluster size:<br />Currently workers: 35 DW + 6 TBN (150TB)<br />Next quarter: 100 nodes (500TB)<br />DW peak processing: 400M events/day globally<br />1 - Source: comScore, March 2011<br />
    5. 5. Abstract<br /> At CBSi we’re developing a scalable, flexible platform to provide the ability to aggregate large volumes of data, to mine it for meaningful relationships and to produce a graph of connected users and content. This will enable us to better understand the connections between our users, our assets, and our authors.<br />
    6. 6. The Problem<br />User always voting on what they find interesting<br />Got-it, want-it, like, share, follow, comment, rate, review, helpful vote, etc.<br />Users have multiple identities<br />Anonymous<br />Registered (logged in)<br />Social<br />Multiple devices<br />Connections between entities are in silo-ized sub-graphs<br />Wealth of valuable user connectedness going unrealized<br />
    7. 7. The Goal<br />Create a back-end platform that enables us to assemble a holistic graph of our users and their connections to:<br />Content<br />Authors<br />Each other<br />Themselves<br />Better understand how our users connect to our content<br />Improved content recommendations<br />Improved user segmentation and content/ad targeting<br />
    8. 8. Requirements<br />Integrate with existing DW/BI Hadoop Infrastructure<br />Aggregate data from across CBSi and beyond<br />Connect disjointed user identities<br />Flexible data model<br />Assemble graph of relationships<br />Enable rapid experimentation, data mining and hypothesis testing<br />Power new site features and advertising optimizations<br />
    9. 9. The Approach<br />Mirror data into HBase <br />Use MapReduce to process data<br />Export RDF data into a triple store<br />
    10. 10. Data Flow<br />Site<br />Triple<br />Store<br />SPARQL<br />RDF<br />CMS Publishing<br />Site Activity Stream<br />a.k.a. Firehose (JMS)<br />HBase<br />MapReduce<br /><ul><li> Pig
    11. 11. ImportTsv</li></ul>atomic writes<br />transform<br />& load<br />Social/UGC Systems<br />DW Systems<br />HDFS<br />bulk load<br />CMS Systems<br />Content Tagging Systems<br />
    12. 12. NOSQL Data Models<br />Key-value stores<br />ColumnFamily<br />Document databases<br />Graph databases<br />Data size<br />Data complexity<br />Credit: Emil Eifrem, Neotechnology<br />
    13. 13. Conceptual Graph<br />PageEvent<br />PageEvent<br />contains<br />contains<br />Brand<br />SessionId<br />regId<br />is also<br />is also<br />Asset<br />had session<br />follow<br />Author<br />anonId<br />like<br />is also<br />Asset<br />follow<br />Asset<br />Author<br />is also<br />authored by<br />Product<br />tagged with<br />tagged with<br />Story<br />tag<br />Activity firehose (real-time)<br />CMS (batch + incr.)<br />Tags (batch)<br />DW (daily)<br />
    14. 14. HBase Schema<br />user_info table<br />
    15. 15. HBase Loading<br />Incremental<br />Consuming from a JMS queue == real-time<br />Batch<br />Pig’s HBaseStorage== quick to develop & iterate<br />HBase’sImportTsv== more efficient<br />
    16. 16. Generating RDF with Pig<br />RDF1 is an XML standard to represent subject-predicate-object relationships<br />Philosophy: Store large amounts of data in Hadoop, be selective of what goes into the triple store<br />For example:<br />“first class” graph citizens we plan to query on<br />Implicit to explicit (i.e., derived) connections<br />Content recommendations<br />User segments<br />Related users<br />Content tags<br />Easily join data to create new triples with Pig<br />Run SPARQL2 queries, examine, refine, reload<br />1 - http://www.w3.org/RDF, 2 - http://www.w3.org/TR/rdf-sparql-query <br />
    17. 17. Example Pig RDF Script<br />Create RDF triples of users to social events:<br />RAW = LOAD 'hbase://user_info' USING org.apache.pig.backend.hadoop.hbase.HBaseStorage('event:*', '-loadKey true’)<br /> AS (id:bytearray, event_map:map[]);<br />-- Convert our maps to bags so we can flatten them out <br />A = FOREACH RAW GENERATE id, FLATTEN(mapToBag(event_map)) AS (social_k, social_v); <br />-- Convert the JSON events into maps <br />B = FOREACH A GENERATE id, social_k, jsonToMap(social_v) AS social_map:map[]; <br />-- Pull values from map <br />C = FOREACH B GENERATE id, social_map#'levt.asid' AS asid, social_map#'levt.xastid' AS astid, social_map#'levt.event' AS event, social_map#'levt.eventt' AS eventt, social_map#'levt.ssite' AS ssite, social_map#'levt.ts' AS eventtimestamp ;<br />EVENT_TRIPLE = FOREACH C GENERATE GenerateRDFTriple(<br /> 'USER-EVENT', id, astid, asid, event, eventt, ssite, eventtimestamp ) ; <br />STORE EVENT_TRIPLE INTO 'trident/rdf/out/user_event' USING PigStorage ();<br />
    18. 18. Example SPARQL query<br /> Recommend content based on Facebook “liked” items:<br />SELECT ?asset1 ?tagname ?asset2 ?title2 ?pubdt2 WHERE {<br /> # anon-user who Like'd a content asset (news item, blog post) on Facebook<br /> <urn:com.cbs.dwh:ANON-Cg8JIU14kobSAAAAWyQ> <urn:com.cbs.trident:event:LIKE> ?x .<br /> ?x <urn:com.cbs.trident:eventt> "SOCIAL_SITE” .<br /> ?x <urn:com.cbs.trident:ssite> "www.facebook.com" .<br /> ?x <urn:com.cbs.trident:tasset> ?asset1 .<br /> ?asset1 a <urn:com.cbs.rb.contentdb:content_asset> .<br /> # a tag associated with the content asset <br /> ?asset1 <urn:com.cbs.cnb.bttrax:tag> ?tag1 . <br /> ?tag1 <urn:com.cbs.cnb.bttrax:tagname> ?tagname .<br /> # other content assets with the same tag and their title <br /> ?asset2 <urn:com.cbs.cnb.bttrax:tag> ?tag2 . FILTER (?asset2 != ?asset1)<br /> ?tag2 <urn:com.cbs.cnb.bttrax:tagname> ?tagname .<br /> ?asset2 <http://www.w3.org/2005/Atom#title> ?title2 .<br /> ?asset2 <http://www.w3.org/2005/Atom#published> ?pubdt2 . FILTER<br /> (?pubdt2 >= "2011-01-01T00:00:00"^^<http://www.w3.org/2001/XMLSchema#dateTime>) <br />} ORDER BY DESC (?pubdt2) LIMIT 10<br />
    19. 19. Conclusions I - Power and Flexibility<br />Architecture is flexible with respect to:<br />Data modeling<br />Integration patterns<br />Data processing, querying techniques<br />Multiple approaches for graph traversal<br />SPARQL<br />Traverse HBase<br />MapReduce<br />
    20. 20. Conclusions II – Match Tool with the Job<br />Hadoop - scale and computing horsepower<br />HBase – atomic r/w access, speed, flexibility<br />RDF Triple Store – complex graph querying<br />Pig – rapid MR prototyping and ad-hoc analysis<br />Future:<br />HCatalog – Schema & table management<br />Oozie or Azkaban – Workflow engine<br />Mahout – Machine learning<br />Hama – Graph processing<br />
    21. 21. Conclusions III – OSS, woot!<br />If it doesn’t do what you want, submit a patch.<br />
    22. 22. Questions?<br />
