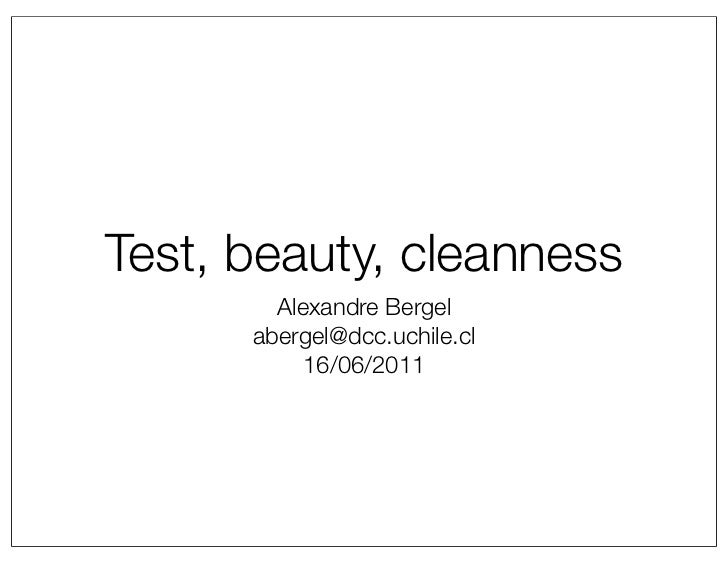

Test, beauty, cleanness        Alexandre Bergel      abergel@dcc.uchile.cl           16/06/2011
Problem description  We would like to build a two-dimensional graphicsframework for structured drawing editors Widgets suc...
What are the responsibilities?Containing the widgetsModeling the widgetsApplying the operations
Version 1Creating a canvas to contains the widgets
Testing the canvaspublic class HotDrawTest {	 @Test public void testEmptyCanvas() {	 	 Canvas canvas = new Canvas ();	 	 a...
Creating the class Canvaspublic class Canvas {	 public Object getNumberOfElements() {	 	 return 0;	 }}
Introducing the containment	   @Test public void testCanvas() {	   	 Canvas canvas = new Canvas ();	   		   	 canvas.add(n...
Revising the definition of Canvaspublic class Canvas {	 private ArrayList<Object> elements =	 	 	 	 new ArrayList<Object>()...
Revising the definition of Canvaspublic class Canvas {	 private ArrayList<Object> elements =	 	 	 	 new ArrayList<Object>()...
Version 2Introducing some widgets
We revise our testCanvas	   @Test public void testCanvas() {	   	 Canvas canvas = new Canvas ();	   		   	 canvas.add(new ...
Circle and Rectanglepublic class Circle {}public class Rectangle {}
Adding position to circle and               rectangle	   @Test public void testCanvas() {	   	 Canvas canvas = new Canvas ...
Generated templatepublic class Circle {	   public Circle(int i, int j, int k) {	   	 // TODO Auto-generated constructor st...
Filling the template templatepublic class Circle {	 private int x, y, radius;		 public Circle() {	 	 this(5, 5, 10);	 }		 ...
Generated templatepublic class Rectangle {	   public Rectangle(int i, int j, int k, int l) {	   	 // TODO Auto-generated c...
Filling the template templatepublic class Rectangle {	 private int x1, y1, x2, y2;	   public Rectangle() {	   	 this(2, 3,...
Version 3 Before moving on, lets step back on what we wroteto see whether there are opportunities for cleaning abit the code
HotDrawTestpublic class HotDrawTest {	   @Test public void testEmptyCanvas() {	   	 Canvas canvas = new Canvas ();        ...
HotDrawTestpublic class HotDrawTest {	   @Test public void testEmptyCanvas() {	   	 Canvas canvas = new Canvas ();        ...
Refactoring our testpublic class HotDrawTest {	 private Canvas canvas;		 @Before public void initializingFixture() {	 	 ca...
Giving a better name to the variable
canvas -> emptyCanvaspublic class HotDrawTest {	 private Canvas emptyCanvas;		 @Before public void initializingFixture() {...
canvas -> emptyCanvaspublic class HotDrawTest {	 private Canvas emptyCanvas;		 @Before public void initializingFixture() {...
Version 4 Applying the operations on the widget Note that at that point, we have not seen the need tohave a common supercl...
Adding an operation Let’s translate our objects  Each widget should now understand the messagetranslate(deltaX, deltaY) Le...
Testing circle first	   @Test public void translatingCircle() {	   	 Circle circle = new Circle();	   	 int oldX = circle.g...
Modifying Circlepublic class Circle {	 private int x, y, radius;		 public int getX() {	 	 return x;	 }		 public int getY()...
Translating Circlepublic class Circle {   ...	 public void translate(int dx, int dy) {	 	 x = x + dx;	 	 y = y + dy;	 }   ...
Translating Circlepublic class Circle {   ...	 public void translate(int dx, int dy) {	 	 x = x + dx;	 	 y = y + dy;	 }   ...
Translating the rectangle	   @Test public void translatingRectangle() {	   	 Rectangle rectangle = new Rectangle();	   	 i...
Updating Rectanglepublic class Rectangle {   ...	 public int getX1() {...	                         }	 public int getY1() {...
Important Note that we have not still see the need to have acommon interface and a common superclass If you doing it upfro...
Version 5 It is a bit cumbersome to have to translate eachelement one by one Let’s ask the canvas to translate all the nodes
Translating the canvas	 @Test public void translatingTheCanvas() {	   	   Rectangle rectangle = new Rectangle();	   	   in...
Translating the canvas        ...	   		   	   assertEquals(rectangle.getX1(), rectangleOldX1   +   2);	   	   assertEquals...
Updating Canvas - what we would               like to dopublic class Canvas {	   private ArrayList<Object> elements =	   	...
Updating Canvas - what we would               like to dopublic class Canvas {	   private ArrayList<Object> elements =	   	...
What is happening?  Only now we see the need to introduce a commoninterface that the object have to fulfill This interface ...
Let’s introduce the Widget interfacepublic interface Widget {	 public void translate(int dx, int dy);}public class Rectang...
Updating Canvaspublic class Canvas {	 private ArrayList<Widget> elements =	 	 	 	 new ArrayList<Widget>();	   public void ...
Updating Canvaspublic class Canvas {	 private ArrayList<Widget> elements =	 	 	 	 new ArrayList<Widget>();	   public void ...
Version 6 We are doing a pretty good job so far Let’s add a group of widgets that can be commonlymanipulated
Testing Group	   @Test public void groupingWidgets() {	   	 Group group = new Group();	   	 assertEquals(group.getNumberOf...
Defining Grouppublic class Group {	 private ArrayList<Object> elements =              new ArrayList<Object>();		 public voi...
Defining Grouppublic class Group {	 private ArrayList<Object> elements =              new ArrayList<Object>();		 public voi...
Defining Group  public class Group {  	 private ArrayList<Object> elements =                new ArrayList<Object>();  	  	 ...
Translating a group - what we could write,    but it contains a lot of duplication  	   @Test public void translatingGroup...
But let’s refactor firstpublic class HotDrawTest {	 private Canvas emptyCanvas;	 private Group emptyGroup, group;	 private ...
But let’s refactor first	   @Test public void groupingWidgets() {	   	 assertEquals(emptyGroup.getNumberOfElements(), 0);	 ...
Translating a group	   @Test public void translatingGroup() {	   	 int circleOldX = circle.getX();	   	 int circleOldY = c...
Translating a grouppublic class Group {	 private ArrayList<Widget> elements =	 	 	 	 new ArrayList<Widget>();		 public voi...
Translating a grouppublic class Group {	 private ArrayList<Widget> elements =	 	 	 	 new ArrayList<Widget>();		 public voi...
Translating a grouppublic class Group {	 private ArrayList<Widget> elements =	 	 	 	 new ArrayList<Widget>();		 public voi...
Version 7Let’s refactor Canvas  instead of containing a list of elements, it will solely contains a group
Canvas is getting simplerpublic class Canvas {	 private Group group = new Group();	   public void add(Widget widget) {	   ...
Canvas is getting simplerpublic class Canvas {	 private Group group = new Group();	   public void add(Widget widget) {	   ...
Version 8Adding a new operationWe will now scale objects                         scale x2
Adding a test for scalability	   @Test public void scalingGroup() {	   	 int oldRadius = circle.radius();	   	 int rectang...
Adding a test for scalability                                            Accessing                                        ...
Updating Circlepublic class Circle implements Widget {	 private int x, y, radius;     public int radius() {	   	 return ra...
Updating Rectanglepublic class Rectangle implements Widget {	 public int width() {	 	 return Math.abs(x2 - x1);	 }		 publi...
Scalabilitypublic class Group {	   public void scale(double s) {	   	   for(Widget w : elements)	   	   	   w.scale(s);	  ...
Scalabilitypublic class Group {	   public void scale(double s) {	   	   for(Widget w : elements)	   	   	   w.scale(s);	  ...
Cost of adding a Scalability                operation As you can see, there is a high cost of adding anoperation Adding th...
Cost of adding a Scalability                  operation In addition, there is some code duplication betweenscale() and (tr...
Cost of adding a Scalability                operation Ok, you may argue that’s not so bad. Tests are green! In fact, yes, ...
Why a Visitor pattern Let’s refactor all that by introducing a visitor  Remember two of the three responsibilities weident...
Why a Visitor pattern A well modularized software should let you add newoperations without touching your widgets Ok, there...
Updating with a visitorpublic interface Widget {	 public void translate(int dx, int dy);	 public void scale(double s);	 pu...
Updating with a visitorpublic class Group {   ...	 public void accept(Visitor visitor) {	 	 visitor.visitGroup(this);	 	 f...
Creating the visitorpublic class Visitor {	 public void visitCircle(Circle circle) { }	 public void visitGroup(Group group...
Trying out our visitor - let’s introduce      a visitor to count objects	   @Test public void countingObject() {	   	 Coun...
Countingpublic class CountingVisitor extends Visitor {	 private int result = 0;		 public void visitCircle(Circle circle) {...
Trying out our visitor - let’s introduce      a visitor to count objects	   @Test public void countingObject() {	   	 Coun...
Version 9Let’s refactoring and clean!
Using the visitor to countpublic class Canvas {	 private Group group = new Group();	   public int getNumberOfElements() {	...
Using Grouppublic class Group {   ...	 public void translate(int dx, int dy) {	 	 this.accept(new TranslatingVisitor(dx,dy...
Scalingpublic class ScalingVisitor extends Visitor {	 private double scale;		 public ScalingVisitor(double scale) {	 	 thi...
Scalingpublic class ScalingVisitor extends Visitor {	 private double scale;		 public ScalingVisitor(double scale) {	 	 thi...
Version 10Making group recursiveA group can now contains a group
Recursive group	   @Test public void recursiveGroup() {	   	 Group group = new Group();	   	 emptyGroup.add(group);	   	 a...
Group implement Widgetpublic class Group implements Widget {   ...}
