Instrumenting thereal-time web:Node.js, DTrace and theRobinson ProjectionBryan CantrillVP, Engineeringbryan@joyent.com@bca...
Node.js   • node.js is a JavaScript-based framework for building     event-oriented servers:      var http = require(‘http...
The energy behind Node.js   • node.js is a confluence of three ideas:      • JavaScriptʼs rich support for asynchrony (i.e....
Node Knockout   • In August of last year, Joyent hosted “Node Knockout”, a    programming competition for the nascent node...
A Node Knockout leaderboard?   • Even though the contest was judged, could we provide a    real-time leaderboard?   • @rya...
DTrace   • Facility for dynamic instrumentation of production     systems originally developed circa 2003 for Solaris 10  ...
Node + DTrace   • DTrace instruments the system holistically, which is to    say, from the kernel, which poses a challenge...
Node + DTrace   • Given the nature of the paths that we wanted to    instrument, we introduced a function into JavaScript ...
Node USDT Provider   • Example one-liners:     dtrace -n ‘node*:::http-server-request{        printf(“%s of %s from %sn”, ...
Instrumenting Node Knockout   • With a USDT provider in place for Node, we could    instrument contestants in a meaningful...
OS Virtualization                   • The Joyent cloud uses OS virtualization to achieve high                    levels of...
Leaderboard architecture   • Define connection establishment/teardown to be “ticks”   • Have a daemon instrument all virtua...
Leaderboard architecture                                          Virtual     Virtual   Virtual   Virtual                 ...
Leaderboard architecture                 1,000 tick ring buffer            10,000 tick ring buffer                        ...
Building it    • Necessitated a libdtrace add-on for node for tickerd:         https://github.com/bcantrill/node-libdtrace...
Front-end challenges   • How to present the geo-located IP connection     information (latitude and longitude) visually?  ...
Equirectangular Projection
Mercator Projection
Robinson Projection FTW!
Robinson “Projection”   • Youʼd be forgiven for assuming that the Robinson is     actually a projection; quite the contrar...
Robinson-based Leaderboard!
Experiences   • Leaderboard very quickly got 1,000+ active users   • CPU utilization remained negligible (< 6% of one CPU)...
Epitome of a broader shift?    • As the competition unfolded, it became clear that the     leaderboard typified the entrant...
The primacy of latency   • As a reminder, a real-time system is one in which the     correctness of the system is relative...
Instrumenting the real-time web   • Weʼve taken a swing at this with the new cloud analytics     facility in our no.de env...
Thank you!   • Node Knockout Leaderboard shout-outs: @rob_ellis,    @jahoni, @yoheis and @brianleroux   • Node Knockout gu...
Upcoming SlideShare
Loading in...5
×

Instrumenting the real-time web

84,165

Published on

This is my talk from Velocity 2011 -- minus some of the scarier rantings about map projections.

0 Comments
7 Likes
Statistics
Notes
  • Be the first to comment

No Downloads
Views
Total Views
84,165
On Slideshare
0
From Embeds
0
Number of Embeds
12
Actions
Shares
0
Downloads
94
Comments
0
Likes
7
Embeds 0
No embeds

No notes for slide

Instrumenting the real-time web

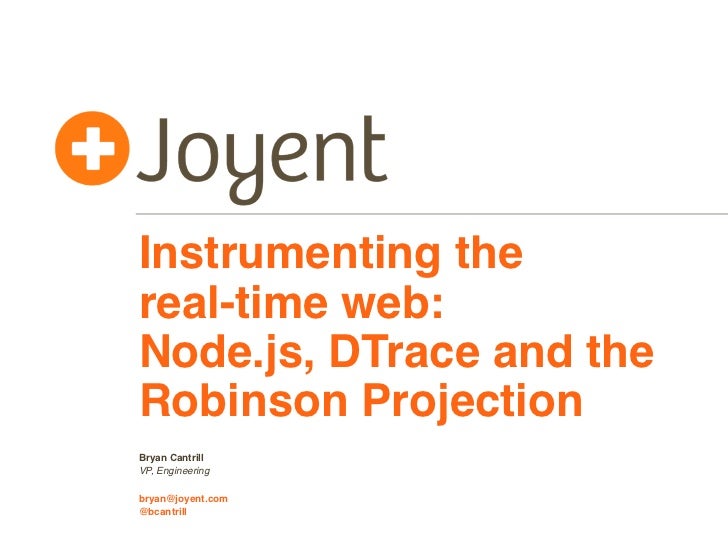

  1. 1. Instrumenting thereal-time web:Node.js, DTrace and theRobinson ProjectionBryan CantrillVP, Engineeringbryan@joyent.com@bcantrill
