SharedCanvas: A Collaborative Modelfor Medieval Manuscript Layout Dissemination                                  Robert Sa...
Overview•  Motivation•  Requirements / Use Cases•  Model by Example•  Implementations•  Conclusion                 SharedC...
MotivationDigitization of cultural heritage   important•  Less than 1% of known medieval   documents digitized to dateDigi...
MotivationInnovation needed in modeling and   rendering:    •  Embrace the GraphInnovation in storage and inter-linking:  ...
Architectural RequirementsGoal:•  Provide standardized input to presentation systems,   to allow interoperability between ...
Domain RequirementsWorking at physical item level  provides unique challenges!1. Only parts of pages may be   digitized•  ...
Domain Requirements2. Page may not be digitized at   all•  Not "interesting" enough                            This page i...
Domain Requirements3. Non-rectangular pages•  Fashionable heart shaped   manuscripts•  Fragments•  Pages with foldouts    ...
Domain Requirements4. Alignment of multiple   images of same object•  Multi-spectral imaging•  Multiple resolutions•  Imag...
Domain Requirements5. Multiple page orders over time•  Rebinding•  Scholarly disagreement on   reconstruction6. Different ...
Initial Approach: Transcribe Images DirectlyBut how to align multiple images, pages without images, fragments ???         ...
Canvas and Annotation Paradigm•  A generic Canvas is an abstract space to build up a display      •  HTML5, SVG, PDF, UI l...
Canvas to Page Relationship SharedCanvas: Collaborative Medieval Manuscript Model   13           JCDL 2011, Ottawa, June 1...
OAC Annotations to Paint Images   SharedCanvas: Collaborative Medieval Manuscript Model   14             JCDL 2011, Ottawa...
OAC Annotations to Paint Text  SharedCanvas: Collaborative Medieval Manuscript Model   15            JCDL 2011, Ottawa, Ju...
Transcription: M804SharedCanvas: Collaborative Medieval Manuscript Model   16          JCDL 2011, Ottawa, June 13-17
Transcription: M804SharedCanvas: Collaborative Medieval Manuscript Model   17          JCDL 2011, Ottawa, June 13-17
Fragments: Cod Sang 1394 SharedCanvas: Collaborative Medieval Manuscript Model   18           JCDL 2011, Ottawa, June 13-17
Missing Pages: Parker CCC 286   SharedCanvas: Collaborative Medieval Manuscript Model   19             JCDL 2011, Ottawa, ...
Repeated Zones: Frauenfeld Y 112    SharedCanvas: Collaborative Medieval Manuscript Model   20              JCDL 2011, Ott...
ORE Aggregations for Ordering  SharedCanvas: Collaborative Medieval Manuscript Model   21            JCDL 2011, Ottawa, Ju...
Rebinding: BNF f.fr. 113-116 SharedCanvas: Collaborative Medieval Manuscript Model   22           JCDL 2011, Ottawa, June ...
SharedCanvas: Data Model SharedCanvas: Collaborative Medieval Manuscript Model   23           JCDL 2011, Ottawa, June 13-17
ImplementationsRepository Side:   •  Parker Library on the Web       (Stanford)   •  Roman de la Rose       (JHU)   •  e-c...
ImplementationsClient Side:•  Flipbook integration for navigation•  Djatoka for pan/zoomNative implementation planned:•  G...
Conclusions•  Distributed Canvas paradigm provides a coherent solution tomodeling the layout of medieval manuscripts    • ...
Thank You                                         Robert Sanderson                                             rsanderson@...
Upcoming SlideShare
Loading in...5
×

SharedCanvas: A Collaborative Model for Medieval Manuscript Layout Dissemination

4,116

Published on

Slides from JCDL2011 regarding SharedCanvas, an annotated canvas model for creating distributed renditions of medieval manuscript pages or other culturally significant textual documents.

Published in: Technology
0 Comments
5 Likes
Statistics
Notes
  • Be the first to comment

No Downloads
Views
Total Views
4,116
On Slideshare
0
From Embeds
0
Number of Embeds
2
Actions
Shares
0
Downloads
21
Comments
0
Likes
5
Embeds 0
No embeds

No notes for slide

SharedCanvas: A Collaborative Model for Medieval Manuscript Layout Dissemination

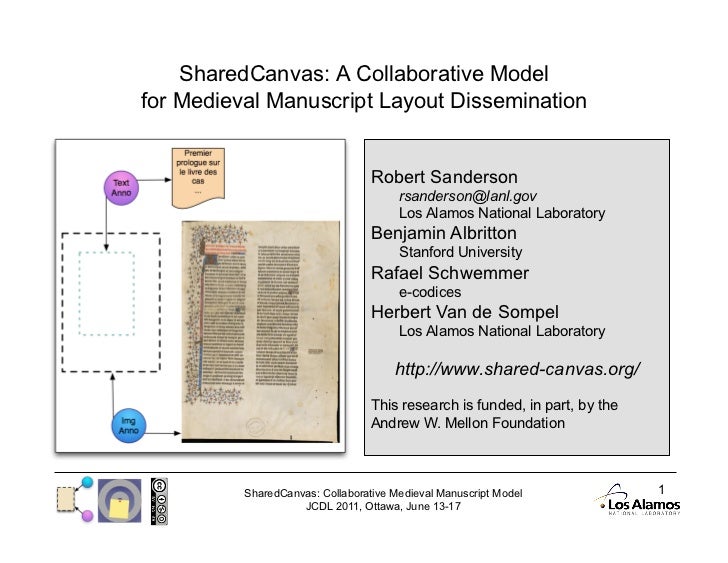

  1. 1. SharedCanvas: A Collaborative Modelfor Medieval Manuscript Layout Dissemination Robert Sanderson rsanderson@lanl.gov Los Alamos National Laboratory Benjamin Albritton Stanford University Rafael Schwemmer e-codices Herbert Van de Sompel Los Alamos National Laboratory http://www.shared-canvas.org/ This research is funded, in part, by the Andrew W. Mellon Foundation SharedCanvas: Collaborative Medieval Manuscript Model 1 JCDL 2011, Ottawa, June 13-17
