Evaluating the SharedCanvasManuscript Data Model in CATCHPlus                                     Robert Sanderson        ...
Overview•  SharedCanvas:    •  Requirements    •  Model by Example•  Evaluation in CATCHPlus:    •  Use Cases    •  Modeli...
MotivationManuscripts spread all around the world:•  For every repository, its interface.•  How do we rethink digital facs...
Baseline RequirementsTo Realize this Future:•  Need an interoperable input format to   presentation systems, exposed by   ...
Domain Requirements: Missing/Fragmentary PagesThis page intentionally,  but unfortunately,       left blank               ...
Domain Requirements: Non-Rectangular Fragments/Pages                                                                 Facsi...
Domain Requirements: Multiple Orderings and Digitizations                                                                 ...
Domain Requirements: Non-TextParker CCC 008, f1r                                     Evaluating SharedCanvas              ...
Naïve Approach: Transcribe Images DirectlyBut how to align multiple images, pages without images, fragments… ?!           ...
Canvas Paradigm•  A Canvas is an empty space in which to build up a display•  A SharedCanvass top left and bottom right co...
Painting the Canvas?Requirements:   •  Need to allow distributed association of resources with the      Canvas, or part of...
Annotations to Paint Images                   Evaluating SharedCanvas                12SDH2011,   17th   of November 2011,...
Annotations to Paint Text                   Evaluating SharedCanvas                13SDH2011,   17th   of November 2011, C...
Transcription: Morgan 804                   Evaluating SharedCanvas                14SDH2011,   17th   of November 2011, C...
Transcription: Morgan 804                   Evaluating SharedCanvas                15SDH2011,   17th   of November 2011, C...
Musical Manuscripts: Parker CCC 008                    Evaluating SharedCanvas                16 SDH2011,   17th   of Nove...
Rebinding: BNF f.fr. 113-116                   Evaluating SharedCanvas                17SDH2011,   17th   of November 2011...
Discovery                   Evaluating SharedCanvas                18SDH2011,   17th   of November 2011, Copenhagen, Denmark
Evaluation via Unseen RequirementsArchive of the Queen’s Office (KdK)•  40,000 images with transcriptions•  Texts automati...
Evaluation via Unseen RequirementsSailing Letters•  38,000 letters and documents capturedby Pirates•  Complex layouts•  Mu...
Alignment of Multiple TextsGroup text annotations together in the Discovery layerAlign via overlap of Annotation targets o...
Interactive Zones on a Canvas: Rotation                     Evaluating SharedCanvas                22  SDH2011,   17th   o...
Interactive Zones on a Canvas: Rotation                     Evaluating SharedCanvas                23  SDH2011,   17th   o...
Interactive Zones on a Canvas: Folding                    Evaluating SharedCanvas                24 SDH2011,   17th   of N...
Open Annotation Constraint Model                   Evaluating SharedCanvas                25SDH2011,   17th   of November ...
Multiple Reference Frames                   Evaluating SharedCanvas                26SDH2011,   17th   of November 2011, C...
Layout Templating                   Evaluating SharedCanvas                27SDH2011,   17th   of November 2011, Copenhage...
Semantic Annotation of Text                   Evaluating SharedCanvas                28SDH2011,   17th   of November 2011,...
SummaryDistributed Canvas paradigm provides a coherent solution to modelingthe layout of medieval manuscripts   •  Annotat...
Thank You                                                Robert Sanderson                                                 ...
Upcoming SlideShare
Loading in...5
×

Evaluating SharedCanvas in CATCHPlus

635

Published on

Published in: Travel, Business
0 Comments
0 Likes
Statistics
Notes
  • Be the first to comment

  • Be the first to like this

No Downloads
Views
Total Views
635
On Slideshare
0
From Embeds
0
Number of Embeds
0
Actions
Shares
0
Downloads
3
Comments
0
Likes
0
Embeds 0
No embeds

No notes for slide

Transcript of "Evaluating SharedCanvas in CATCHPlus"

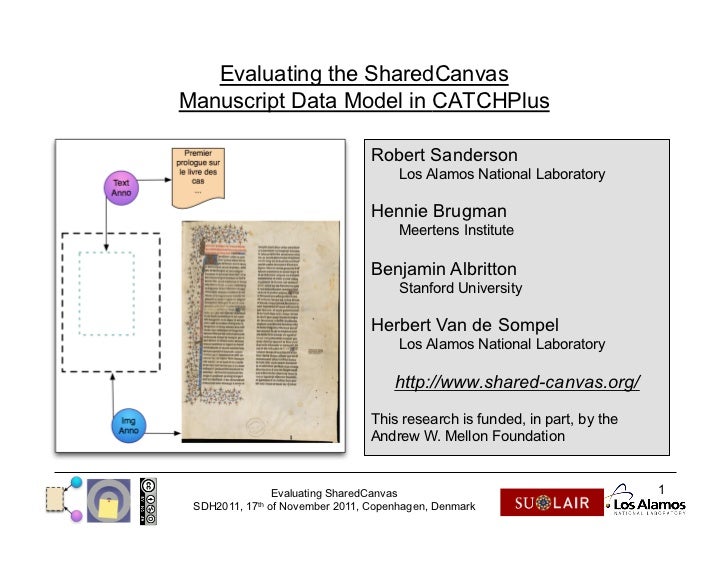

  1. 1. Evaluating the SharedCanvasManuscript Data Model in CATCHPlus Robert Sanderson Los Alamos National Laboratory Hennie Brugman Meertens Institute Benjamin Albritton Stanford University Herbert Van de Sompel Los Alamos National Laboratory http://www.shared-canvas.org/ This research is funded, in part, by the Andrew W. Mellon Foundation Evaluating SharedCanvas 1 SDH2011, 17th of November 2011, Copenhagen, Denmark
  2. 2. Overview•  SharedCanvas: •  Requirements •  Model by Example•  Evaluation in CATCHPlus: •  Use Cases •  Modeling Evaluating SharedCanvas 2 SDH2011, 17th of November 2011, Copenhagen, Denmark
  3. 3. MotivationManuscripts spread all around the world:•  For every repository, its interface.•  How do we rethink digital facsimiles in a shared, distributed, global space?A collaborative future:•  Rich landscape of interconnected repositories, with seamless user interfaces•  Improve efficiency and usability through open, shared development BNF f.fr 113, folio 1 recto Evaluating SharedCanvas 3 SDH2011, 17th of November 2011, Copenhagen, Denmark
  4. 4. Baseline RequirementsTo Realize this Future:•  Need an interoperable input format to presentation systems, exposed by distributed repositoriesBaseline Requirements:•  Ability to model primarily textual items, where the individual physical instance is an important cultural object•  Alignment of multiple Images, Texts, Commentary and other Content resources per folio Ms MurF: 10.5076/e-codices-kba-0003 Evaluating SharedCanvas 4 SDH2011, 17th of November 2011, Copenhagen, Denmark
  5. 5. Domain Requirements: Missing/Fragmentary PagesThis page intentionally, but unfortunately, left blank Cod. Sang. 1394: 10.5076/e-codices-csg-1394 Evaluating SharedCanvas 5 SDH2011, 17th of November 2011, Copenhagen, Denmark
  6. 6. Domain Requirements: Non-Rectangular Fragments/Pages Facsimile of BNF Rothschild 2973 Cod Sang 1394, folio 63r http://www.omifacsimiles.com/brochures/montchen.html Evaluating SharedCanvas 6 SDH2011, 17th of November 2011, Copenhagen, Denmark
  7. 7. Domain Requirements: Multiple Orderings and Digitizations Archimedes Palimpsest Multi-Spectral ImagesCod Sang 730: 10.5706/e-codices-csg-0730a http://www.archimedespalimpsest.org/ Evaluating SharedCanvas 7 SDH2011, 17th of November 2011, Copenhagen, Denmark
  8. 8. Domain Requirements: Non-TextParker CCC 008, f1r Evaluating SharedCanvas 8 SDH2011, 17th of November 2011, Copenhagen, Denmark
  9. 9. Naïve Approach: Transcribe Images DirectlyBut how to align multiple images, pages without images, fragments… ?! Evaluating SharedCanvas 9 SDH2011, 17th of November 2011, Copenhagen, Denmark
  10. 10. Canvas Paradigm•  A Canvas is an empty space in which to build up a display•  A SharedCanvass top left and bottom right corners correspond tothe equivalent corners of a page Evaluating SharedCanvas 10 SDH2011, 17th of November 2011, Copenhagen, Denmark
  11. 11. Painting the Canvas?Requirements: •  Need to allow distributed association of resources with the Canvas, or part of the Canvas •  Any type of resource, or part of a resource, should be able to be painted •  Need to allow users to comment about the Canvas, or part of it, or any of the resourcesSolution: •  Associate resources using Annotations •  Open Annotation: http://www.openannotation.org/ Evaluating SharedCanvas 11 SDH2011, 17th of November 2011, Copenhagen, Denmark
  12. 12. Annotations to Paint Images Evaluating SharedCanvas 12SDH2011, 17th of November 2011, Copenhagen, Denmark
  13. 13. Annotations to Paint Text Evaluating SharedCanvas 13SDH2011, 17th of November 2011, Copenhagen, Denmark
  14. 14. Transcription: Morgan 804 Evaluating SharedCanvas 14SDH2011, 17th of November 2011, Copenhagen, Denmark
  15. 15. Transcription: Morgan 804 Evaluating SharedCanvas 15SDH2011, 17th of November 2011, Copenhagen, Denmark
  16. 16. Musical Manuscripts: Parker CCC 008 Evaluating SharedCanvas 16 SDH2011, 17th of November 2011, Copenhagen, Denmark
  17. 17. Rebinding: BNF f.fr. 113-116 Evaluating SharedCanvas 17SDH2011, 17th of November 2011, Copenhagen, Denmark
  18. 18. Discovery Evaluating SharedCanvas 18SDH2011, 17th of November 2011, Copenhagen, Denmark
  19. 19. Evaluation via Unseen RequirementsArchive of the Queen’s Office (KdK)•  40,000 images with transcriptions•  Texts automatically annotated withNamed Entity software•  Templates for consistent layouts Evaluating SharedCanvas 19 SDH2011, 17th of November 2011, Copenhagen, Denmark
  20. 20. Evaluation via Unseen RequirementsSailing Letters•  38,000 letters and documents capturedby Pirates•  Complex layouts•  Multiple co-ordinates after image re-alignment piu•  Alignment of multiple texts(transcription versus edition) Evaluating SharedCanvas 20 SDH2011, 17th of November 2011, Copenhagen, Denmark
  21. 21. Alignment of Multiple TextsGroup text annotations together in the Discovery layerAlign via overlap of Annotation targets on the Canvas Evaluating SharedCanvas 21 SDH2011, 17th of November 2011, Copenhagen, Denmark
  22. 22. Interactive Zones on a Canvas: Rotation Evaluating SharedCanvas 22 SDH2011, 17th of November 2011, Copenhagen, Denmark
  23. 23. Interactive Zones on a Canvas: Rotation Evaluating SharedCanvas 23 SDH2011, 17th of November 2011, Copenhagen, Denmark
  24. 24. Interactive Zones on a Canvas: Folding Evaluating SharedCanvas 24 SDH2011, 17th of November 2011, Copenhagen, Denmark
  25. 25. Open Annotation Constraint Model Evaluating SharedCanvas 25SDH2011, 17th of November 2011, Copenhagen, Denmark
  26. 26. Multiple Reference Frames Evaluating SharedCanvas 26SDH2011, 17th of November 2011, Copenhagen, Denmark
  27. 27. Layout Templating Evaluating SharedCanvas 27SDH2011, 17th of November 2011, Copenhagen, Denmark
  28. 28. Semantic Annotation of Text Evaluating SharedCanvas 28SDH2011, 17th of November 2011, Copenhagen, Denmark
  29. 29. SummaryDistributed Canvas paradigm provides a coherent solution to modelingthe layout of medieval manuscripts •  Annotation, and Collaboration, at the heart of the model •  Distribution across repositories for images, text, commentary •  Granular accuracy, from full resource to non-rectangular segment •  Multiple page orders and Discovery via Aggregations SharedCanvas brings the humanists primary research objects to their desktop in a powerful, extensible and interoperable fashion Evaluating SharedCanvas 29 SDH2011, 17th of November 2011, Copenhagen, Denmark
  30. 30. Thank You Robert Sanderson rsanderson@lanl.gov azaroth42@gmail.com @azaroth42 Web: http://www.shared-canvas.org/ Papers: http://arxiv.org/abs/1104.2925 http://arxiv.org/abs/1110.3687 Slides: http://slidesha.re/xxxxxx AcknowledgementsDMSTech Group: http://dmstech.group.stanford.edu/Open Annotation Collaboration: http://www.openannotation.org/ Evaluating SharedCanvas 30 SDH2011, 17th of November 2011, Copenhagen, Denmark
